Model GE JGBP24GEH1 Electric Range – Common Parts & Diagrams

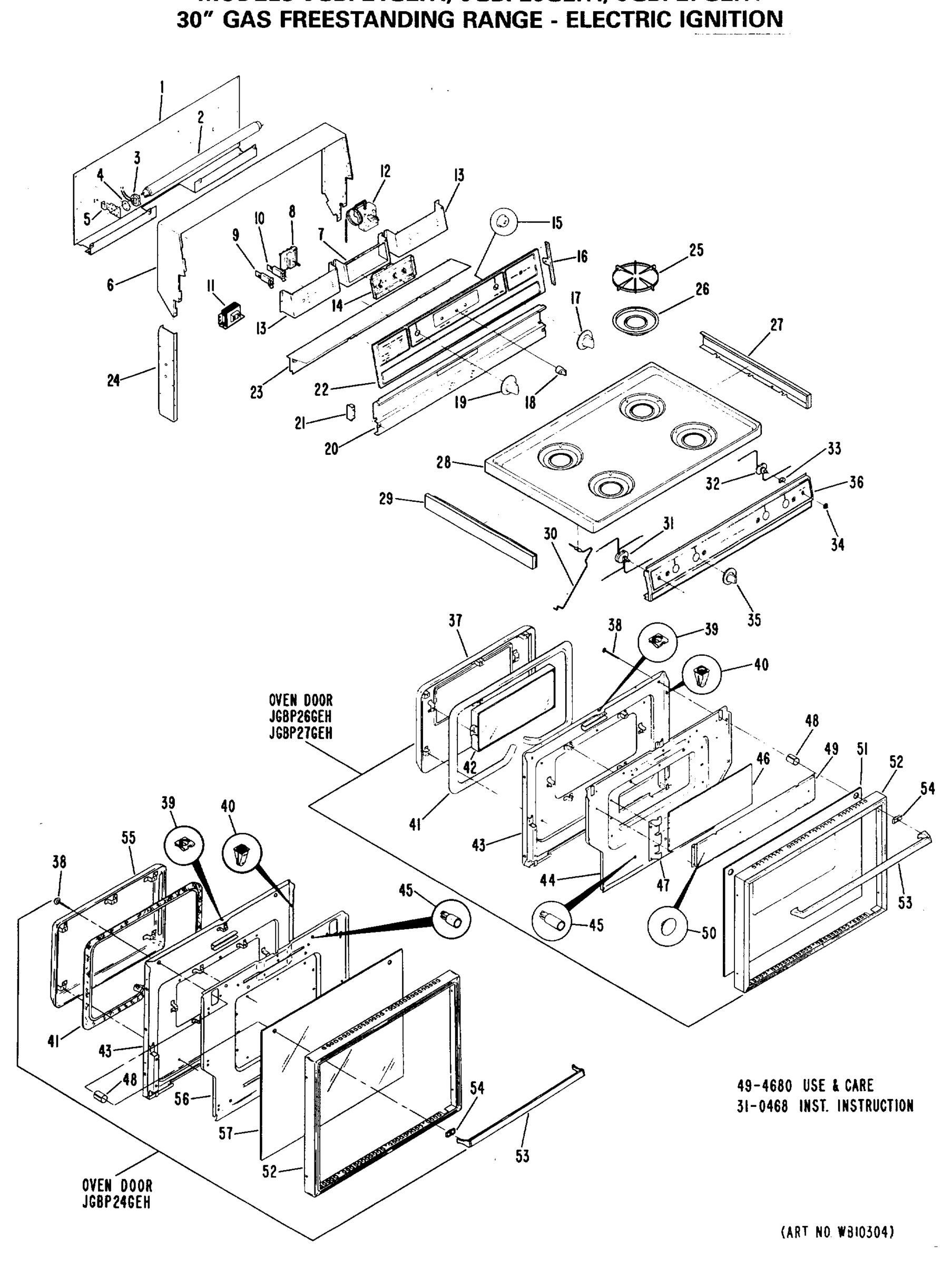

30" GAS FREESTANDING RANGE-ELECTRIC IGNITION
30" GAS FREESTANDING RANGE-ELECTRIC IGNITION
Common parts from model GE JGBP24GEH1 Electric Range
1
GEN WB56X1690 GEN WB56X1690 Contact Us For Availability
2
FLUORESCENT TUBE F-26T8 CW4 GEN WB02X4666 Contact Us For Availability
3
GEN WB08X0242 GEN WB08X0242 Contact Us For Availability
4
GEN WB02X4294 GEN WB02X4294 Contact Us For Availability
5
GEN WB02X4295 GEN WB02X4295 Contact Us For Availability
6
TRIM BACKGUARD FRAME GEN WB07X1370 Contact Us For Availability
7
BRACKET CLOCK MTG GEN WB02X4276 Contact Us For Availability
8
GEN WB24X0331 GEN WB24X0331 Contact Us For Availability
9
GEN WB02X4290 GEN WB02X4290 Contact Us For Availability
9
GEN WB02X4291 GEN WB02X4291 Contact Us For Availability
10
GEN WB02X4288 GEN WB02X4288 Contact Us For Availability
10
GEN WB02X4289 GEN WB02X4289 Contact Us For Availability
11
GEN WB27X0295 GEN WB27X0295 Contact Us For Availability
12
GEN WB21X0396 GEN WB21X0396 Contact Us For Availability
13
GEN WB02X4292 GEN WB02X4292 Contact Us For Availability
14
GEN WB19X0209 GEN WB19X0209 Contact Us For Availability
15
GEN WB02X4293 GEN WB02X4293 Contact Us For Availability
16
TRIM-GLASS RETAINER GEN WB02X4278 Contact Us For Availability
17
GEN WB03X0629 GEN WB03X0629 Contact Us For Availability
18
KNOB CLOCK GEN WB03X0628 Contact Us For Availability
19
GEN WB03X0630 GEN WB03X0630 Contact Us For Availability
20
GEN WB61X0275 GEN WB61X0275 Contact Us For Availability
21
GEN WB07X1374 GEN WB07X1374 Contact Us For Availability
22
GEN WB36X0681 GEN WB36X0681 Contact Us For Availability
22
GEN WB36X0682 GEN WB36X0682 Contact Us For Availability
23
GEN WB02X4287 GEN WB02X4287 Contact Us For Availability
24
GEN WB02X4286 GEN WB02X4286 Contact Us For Availability
25
GEN WB32X0083 GEN WB32X0083 Contact Us For Availability
26
PAN BURNER GEN WB32X0084 Contact Us For Availability
27
TRIM R/H JGBP26,27 GEN WB07X1363 Contact Us For Availability
28
GEN WB62X1607 GEN WB62X1607 Contact Us For Availability
28
GEN WB62X1608 GEN WB62X1608 Contact Us For Availability
28
COOKTOP BRUSHED CHROME JGBP27 GEN WB62X1609 Contact Us For Availability
29
TRIM L/H JGBP26,27 GEN WB07X1362 Contact Us For Availability
30
ROD TOP SUPPORT GEN WB02X4280 Contact Us For Availability
31
GEN WB24X0333 GEN WB24X0333 Contact Us For Availability
32
GEN WB24X0332 GEN WB24X0332 Contact Us For Availability
33
WASHER SPRING GEN WB01X0725 Contact Us For Availability
34
GEN WB01X0626 GEN WB01X0626 Contact Us For Availability
35
GEN WB03X0631 GEN WB03X0631 Contact Us For Availability
36
GEN WB07X1375 GEN WB07X1375 Contact Us For Availability
36
GEN WB07X1376 GEN WB07X1376 Contact Us For Availability
37
GEN WB55X0519 GEN WB55X0519 Contact Us For Availability
38
SCREW HANDLE MTG GEN WB01X0687 Contact Us For Availability
39
GEN WB01X0732 GEN WB01X0732 Contact Us For Availability
40
SPACER-FASTENER GEN WB01X0705 Contact Us For Availability
41
GEN WB02X4296 GEN WB02X4296 Contact Us For Availability
42
GEN WB36X0683 GEN WB36X0683 Contact Us For Availability
43
GEN WB55X0520 GEN WB55X0520 Contact Us For Availability
44
GEN WB02X4487 GEN WB02X4487 Contact Us For Availability
44
GEN WB55X0521 GEN WB55X0521 Contact Us For Availability
45
GEN WB01X0730 GEN WB01X0730 Contact Us For Availability
45
GEN WB01X0731 GEN WB01X0731 Contact Us For Availability
46
GLASS-MIDDLE JGBP26,27 GEN WB36X0679 Contact Us For Availability
47
GEN WB02X4297 GEN WB02X4297 Contact Us For Availability
48
SPACER TUBULAR HANDLE MTG GEN WB02X4283 Contact Us For Availability
49
SHIELD HEAT GEN WB02X4298 Contact Us For Availability
50
BUTTON PLUG GEN WB02X4299 Contact Us For Availability
51
GEN WB36X0684 GEN WB36X0684 Contact Us For Availability
52
GEN WB07X1377 GEN WB07X1377 Contact Us For Availability
53
GEN WB15X0208 GEN WB15X0208 Contact Us For Availability
54
SPACER DOOR HANDLE GEN WB02X4285 Contact Us For Availability
55
GEN WB55X0524 GEN WB55X0524 Contact Us For Availability
56
GEN WB55X0523 GEN WB55X0523 Contact Us For Availability
57
GEN WB36X0711 GEN WB36X0711 Contact Us For Availability
58
GEN WB02X4300 GEN WB02X4300 Contact Us For Availability
59
IGNITER-RIGHT GEN WB02X4215 Contact Us For Availability
60
FUSE-5A-250V GEN WB27X0277 Contact Us For Availability
61
RECEPTACLE-FUSE GEN WB02X4213 Contact Us For Availability
62
GEN WB21X0395 GEN WB21X0395 Contact Us For Availability
63
RETAINER-IGNITER GEN WB02X4214 Contact Us For Availability
64
BASE-IGNITER-LH GEN WB02X4216 Contact Us For Availability
65
GEN WB02X4307 GEN WB02X4307 Contact Us For Availability
67
IGNITER MODULE BOARD GEN WB21X0389 Contact Us For Availability
68
MIXER-AIR GEN WB02X4191 Contact Us For Availability
69
GEN WB28X0041 GEN WB28X0041 Contact Us For Availability
70
BRACKET GEN WB02X4188 Contact Us For Availability
72
GEN WB28X0042 GEN WB28X0042 Contact Us For Availability
73
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
74
LOXIT NUT-SHUT OFF VALVE GEN WB01X0713 Contact Us For Availability
75
GEN WB21X0397 GEN WB21X0397 Contact Us For Availability
76
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
77
VALVE SHUT-OFF MANUAL GEN WB21X0390 Contact Us For Availability
78
BAFFLE BROILER BURNER GEN WB49X0526 Contact Us For Availability
79
GEN WB21X0398 GEN WB21X0398 Contact Us For Availability
80
GEN WB02X4301 GEN WB02X4301 Contact Us For Availability
81
GEN WB02X4308 GEN WB02X4308 Contact Us For Availability
82
GEN WB18X0219 GEN WB18X0219 Contact Us For Availability
83
GEN WB02X4302 GEN WB02X4302 Contact Us For Availability
84
GEN WB02X4303 GEN WB02X4303 Contact Us For Availability
85
GEN WB28X0046 GEN WB28X0046 Contact Us For Availability
86
GEN WB02X4310 GEN WB02X4310 Contact Us For Availability
87
GEN WB49X0527 GEN WB49X0527 Contact Us For Availability
88
GEN WB02X4309 GEN WB02X4309 Contact Us For Availability
89
GEN WB28X0047 GEN WB28X0047 Contact Us For Availability
90
GEN WB02X4312 GEN WB02X4312 Contact Us For Availability
91
GEN WB02X4311 GEN WB02X4311 Contact Us For Availability
92
TUBE OVEN SUPPLY 3/8"X54 GEN WB02X4196 Contact Us For Availability
93
GEN WB02X4304 GEN WB02X4304 Contact Us For Availability
94
GEN WB08X0243 GEN WB08X0243 Contact Us For Availability
96
GEN WB24X0336 GEN WB24X0336 Contact Us For Availability
96
GEN WB24X0337 GEN WB24X0337 Contact Us For Availability
97
GEN WB02X4319 GEN WB02X4319 Contact Us For Availability
98
GEN WB49X0531 GEN WB49X0531 Contact Us For Availability
99
GEN WB02X4317 GEN WB02X4317 Contact Us For Availability
100
GEN WB55X0531 GEN WB55X0531 Contact Us For Availability
101
GEN WB55X0530 GEN WB55X0530 Contact Us For Availability
102
BRACKET-DISCONNECT GEN WB02X4211 Contact Us For Availability
103
SUPPORT-BURNER GEN WB02X4275 Contact Us For Availability
104
GEN WB02X4322 GEN WB02X4322 Contact Us For Availability
105
GLIDE-MAIN TOP GEN WB01X0708 Contact Us For Availability
106
TRIM-BODYSIDE GEN WB07X1364 Contact Us For Availability
107
GEN WB27X0296 GEN WB27X0296 Contact Us For Availability
108
GEN WB15X0209 GEN WB15X0209 Contact Us For Availability
109
GEN WB01X0734 GEN WB01X0734 Contact Us For Availability
110
GEN WB03X0632 GEN WB03X0632 Contact Us For Availability
111
GEN WB14X0048 GEN WB14X0048 Contact Us For Availability
112
GEN WB24X0338 GEN WB24X0338 Contact Us For Availability
113
GEN WB02X4325 GEN WB02X4325 Contact Us For Availability
114
GEN WB01X0733 GEN WB01X0733 Contact Us For Availability
115
GEN WB56X1694 GEN WB56X1694 Contact Us For Availability
115
GEN WB56X1695 GEN WB56X1695 Contact Us For Availability
115
GEN WB56X1696 GEN WB56X1696 Contact Us For Availability
115
GEN WB56X1697 GEN WB56X1697 Contact Us For Availability
116
GEN WB55X0532 GEN WB55X0532 Contact Us For Availability
116
GEN WB55X0533 GEN WB55X0533 Contact Us For Availability
117
GEN WB02X4323 GEN WB02X4323 Contact Us For Availability
118
GEN WB02X4324 GEN WB02X4324 Contact Us For Availability
119
RETAINER GEN WB01X0729 Contact Us For Availability
120
HINGE-COOKTOP GEN WB14X0047 Contact Us For Availability
121
TERMINAL BLOCK GEN WB17X0189 Contact Us For Availability
122
GEN WB02X4320 GEN WB02X4320 Contact Us For Availability
123
GEN WB02X4316 GEN WB02X4316 Contact Us For Availability
124
GEN WB49X0532 GEN WB49X0532 Contact Us For Availability
125
GEN WB24X0335 GEN WB24X0335 Contact Us For Availability
127
GEN WB55X0525 GEN WB55X0525 Contact Us For Availability
129
CAM-OVEN DOOR-LF GEN WB14X0044 Contact Us For Availability
129
HINGE-OVEN DOOR-RIGHT GEN WB14X0045 Contact Us For Availability
131
GEN WB09X0201 GEN WB09X0201 Contact Us For Availability
132
GEN WB02X4315 GEN WB02X4315 Contact Us For Availability
133
FASTENER-LEVELING LEG GEN WB01X0710 Contact Us For Availability
134
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
135
GEN WB49X0529 GEN WB49X0529 Contact Us For Availability
136
GEN WB49X0530 GEN WB49X0530 Contact Us For Availability
137
CORD-POWER SUPPLY GEN WB18X0214 Contact Us For Availability
138
GEN WB02X4329 GEN WB02X4329 Contact Us For Availability
139
GEN WB02X4330 GEN WB02X4330 Contact Us For Availability
140
GEN WB02X4326 GEN WB02X4326 Contact Us For Availability
141
GEN WB02X4327 GEN WB02X4327 Contact Us For Availability
142
GEN WB02X4328 GEN WB02X4328 Contact Us For Availability
143
GEN WB48X0169 GEN WB48X0169 Contact Us For Availability
144
GEN WB48X0170 GEN WB48X0170 Contact Us For Availability
147
GEN WB55X0529 GEN WB55X0529 Contact Us For Availability
148
GEN WB55X0528 GEN WB55X0528 Contact Us For Availability
149
GEN WB56X1691 GEN WB56X1691 Contact Us For Availability
149
GEN WB56X1692 GEN WB56X1692 Contact Us For Availability
149
GEN WB56X1693 GEN WB56X1693 Contact Us For Availability
150
GEN WB02X4314 GEN WB02X4314 Contact Us For Availability
151
GEN WB55X0527 GEN WB55X0527 Contact Us For Availability
152
GEN WB55X0526 GEN WB55X0526 Contact Us For Availability
153
GEN WB49X0528 GEN WB49X0528 Contact Us For Availability
154
GEN WB02 GEN WB02 Contact Us For Availability
× ![]()
