Model GE JGBP19GEV1WH – Common Parts & Diagrams

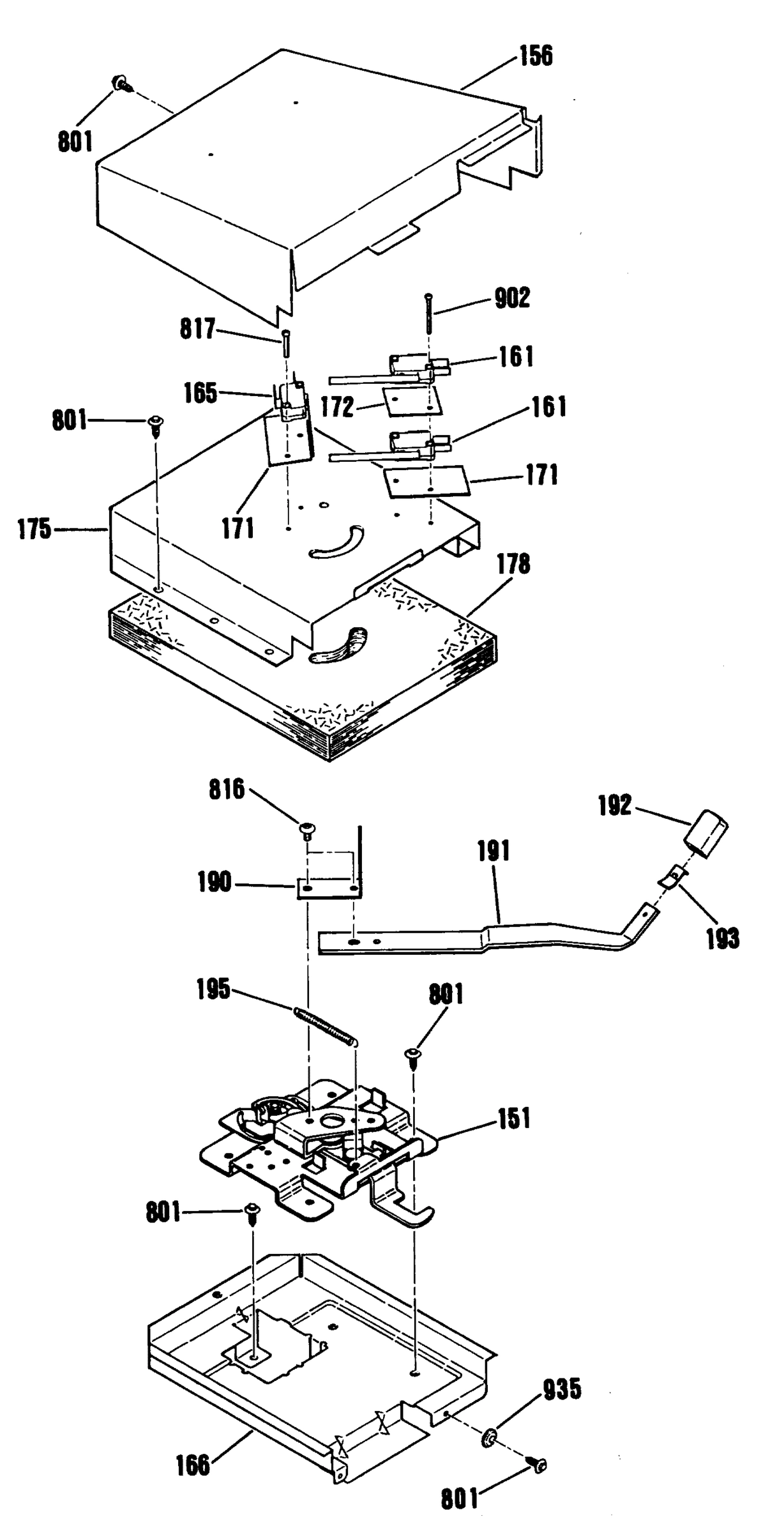

0

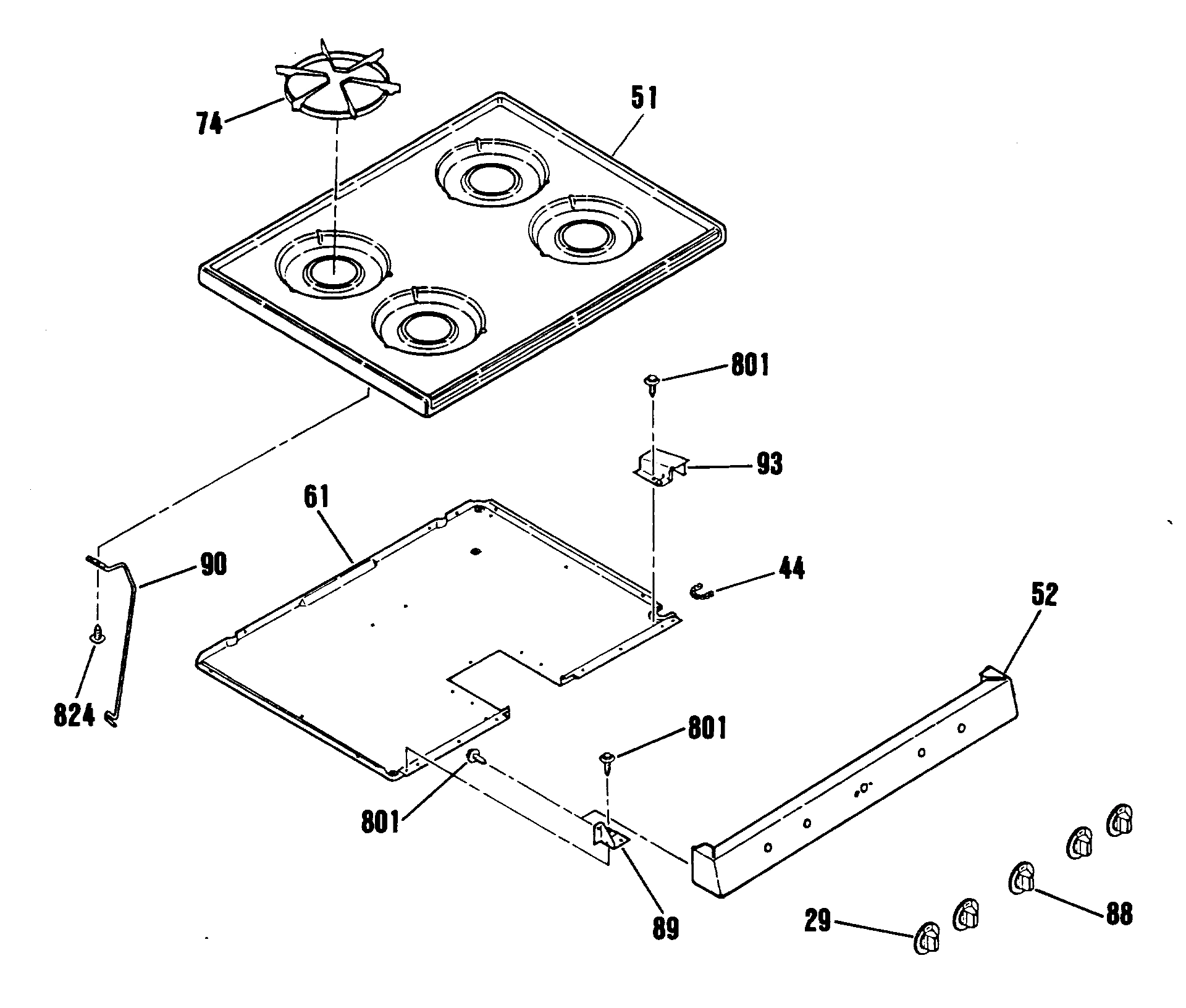

1

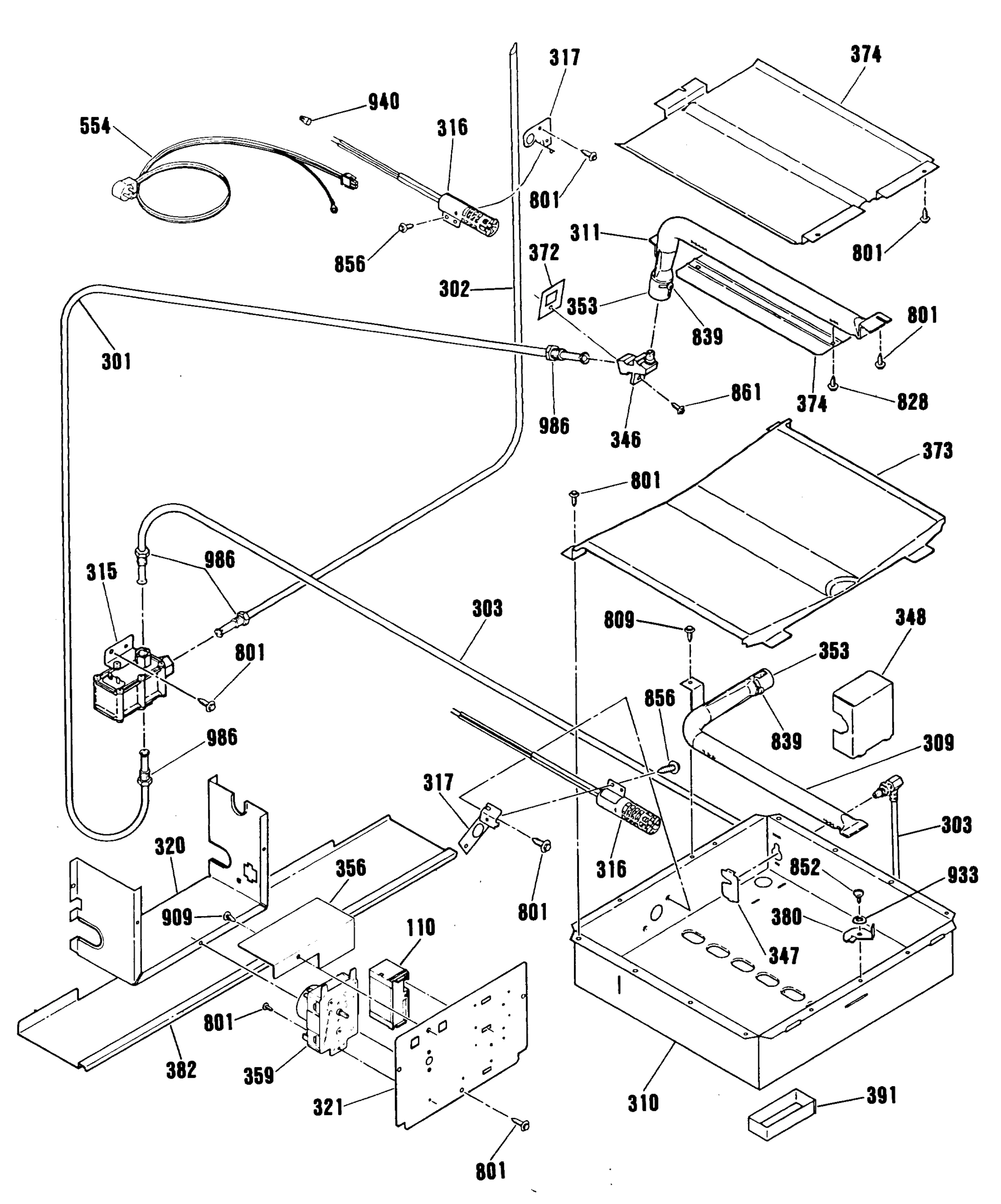

2

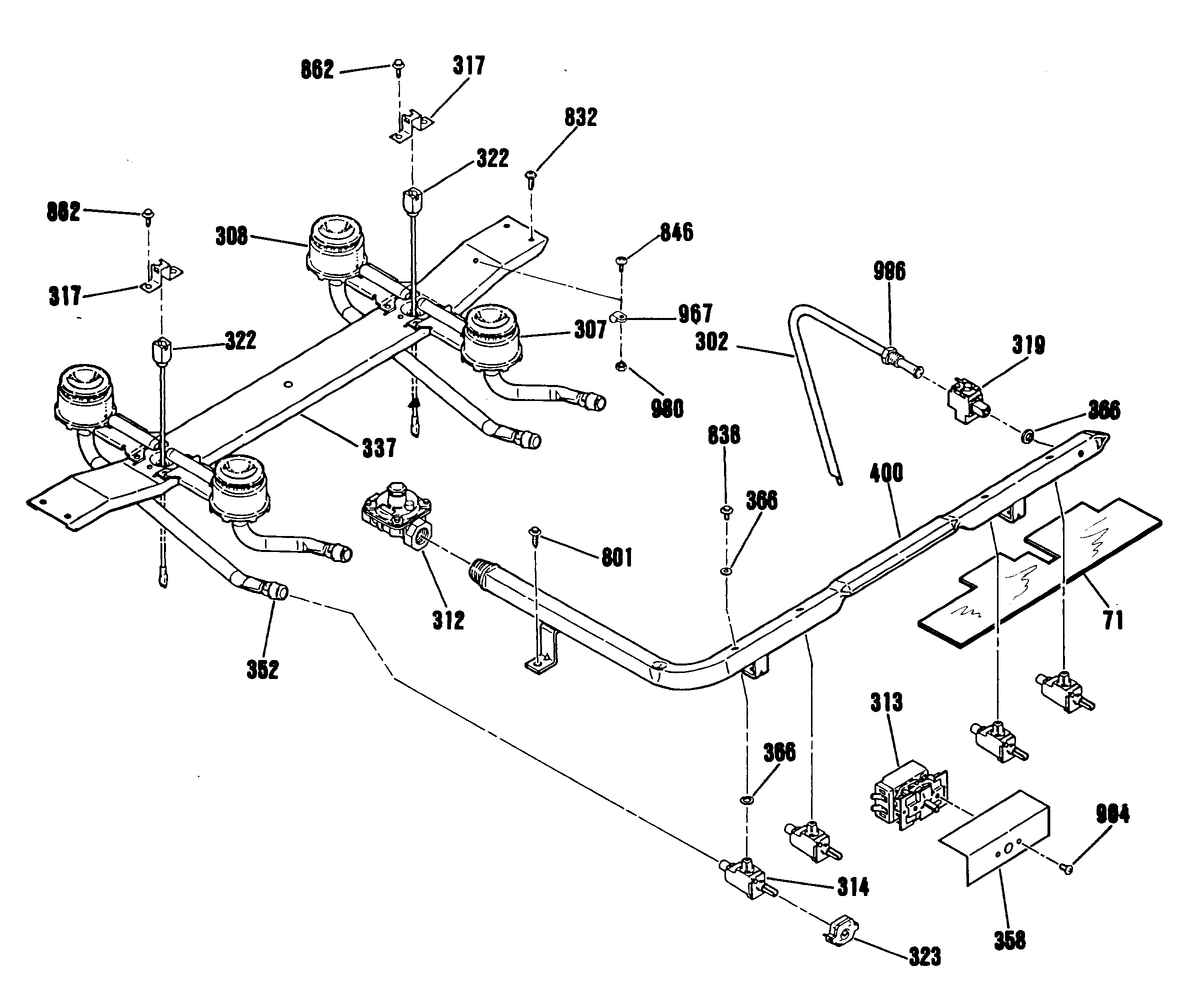

3

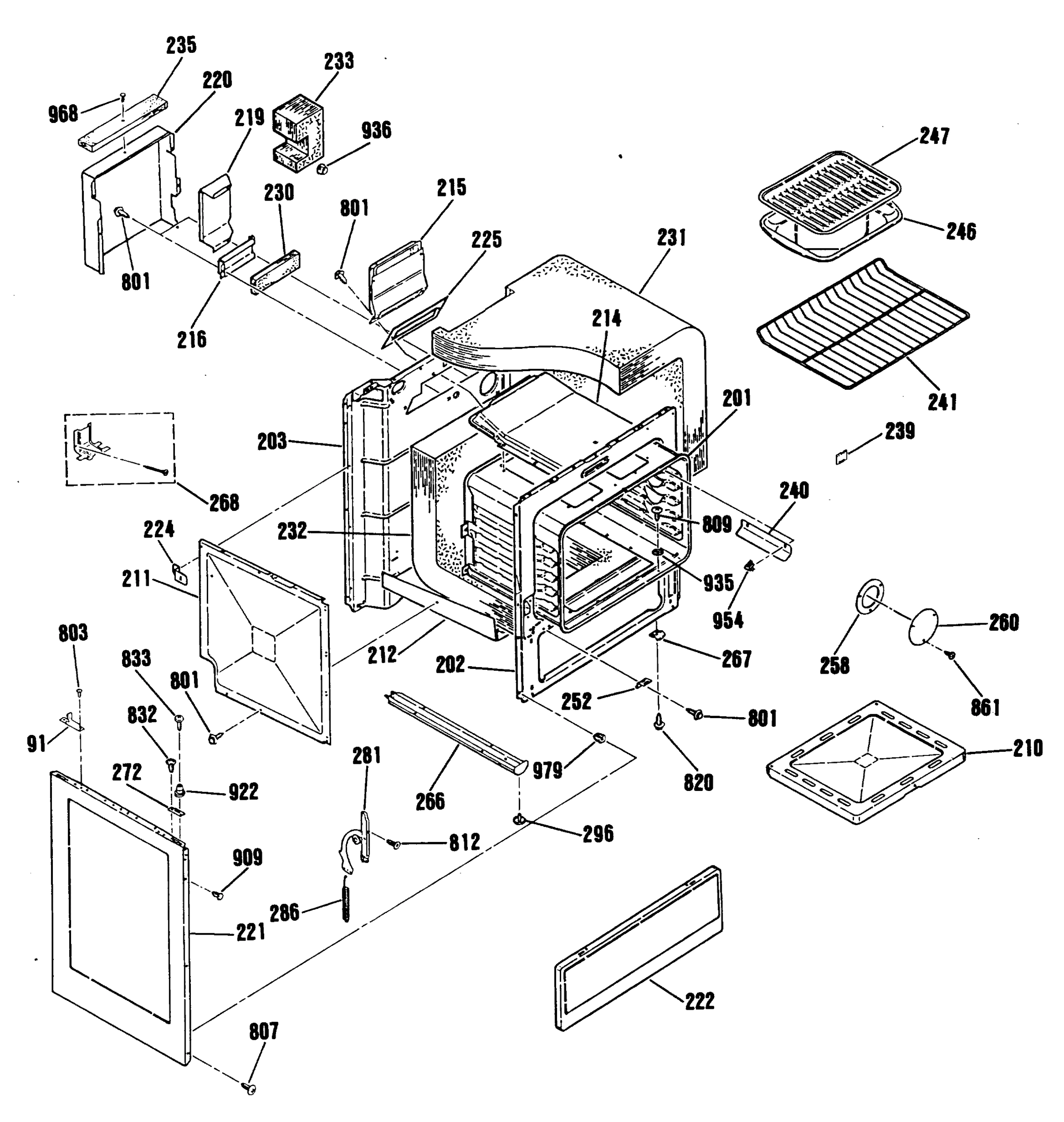

4

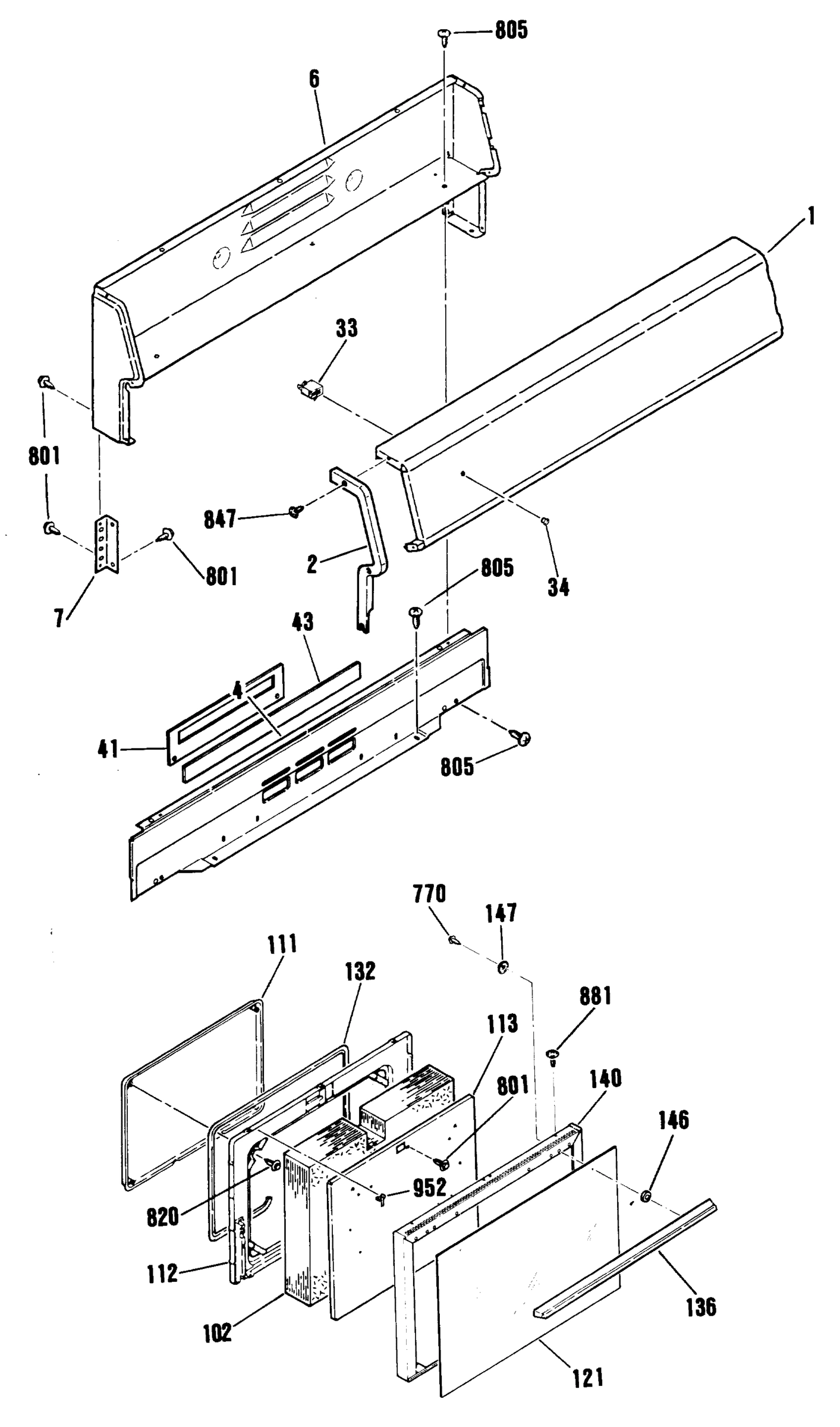

5
Common parts from model GE JGBP19GEV1WH
1
GEN WB36K5526 GEN WB36K5526 Contact Us For Availability
2
GEN WB07X1643 GEN WB07X1643 Contact Us For Availability
2
GEN WB07X1644 GEN WB07X1644 Contact Us For Availability
4
GEN WB37K5029 GEN WB37K5029 Contact Us For Availability
6
GEN WB37K5027 GEN WB37K5027 Contact Us For Availability
7
GEN WB07X1647 GEN WB07X1647 Contact Us For Availability
29
GEN WB03K5238 GEN WB03K5238 Contact Us For Availability
41
GEN WB35K5091 GEN WB35K5091 Contact Us For Availability
43
GEN WB35K5090 GEN WB35K5090 Contact Us For Availability
44
GROMMET STRIP GEN WB02X9725 Contact Us For Availability
51
GEN WB62K5063 GEN WB62K5063 Contact Us For Availability
52
GEN WB36K5527 GEN WB36K5527 Contact Us For Availability
61
GEN WB63X0411 GEN WB63X0411 Contact Us For Availability
71
GEN WB35K5115 GEN WB35K5115 Contact Us For Availability
74
GEN WB31K5027 GEN WB31K5027 Contact Us For Availability
88
GEN WB03K5239 GEN WB03K5239 Contact Us For Availability
89
MANIF PANEL BRACKET LT GEN WB02X9001 Contact Us For Availability
89
MANIF PNL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
GEN WB02K5347 GEN WB02K5347 Contact Us For Availability
91
GEN WB14K5004 GEN WB14K5004 Contact Us For Availability
91
GEN WB14K5005 GEN WB14K5005 Contact Us For Availability
93
GEN WB02X9723 GEN WB02X9723 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5036 GEN WB55K5036 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
GEN WB02K5315 GEN WB02K5315 Contact Us For Availability
121
GEN WB57K5213 GEN WB57K5213 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
151
DOOR LATCH ASM GEN WB14X0125 Contact Us For Availability
156
GEN WB02X9406 GEN WB02X9406 Contact Us For Availability
165
GEN WB24K5075 GEN WB24K5075 Contact Us For Availability
166
GEN WB02X9403 GEN WB02X9403 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
172
GEN WB35K5028 GEN WB35K5028 Contact Us For Availability
175
GEN WB02X9401 GEN WB02X9401 Contact Us For Availability
178
INSULATION-LATCH ASM GEN WB02X9405 Contact Us For Availability
190
HANDLE EXTENSION GEN WB02X9402 Contact Us For Availability
191
LATCH HANDLE GEN WB15X0281 Contact Us For Availability
192
GEN WB03K5154 GEN WB03K5154 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB53X0276 GEN WB53X0276 Contact Us For Availability
202
FRONT FRAME GEN WB63X0348 Contact Us For Availability
203
GEN WB63K5140 GEN WB63K5140 Contact Us For Availability
210
GEN WB63X0335 GEN WB63X0335 Contact Us For Availability
211
GEN WB02X9728 GEN WB02X9728 Contact Us For Availability
212
INSULATION RETAINER GEN WB02X9149 Contact Us For Availability
214
GEN WB38K5052 GEN WB38K5052 Contact Us For Availability
215
GEN WB02X9727 GEN WB02X9727 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
219
GEN WB34K5221 GEN WB34K5221 Contact Us For Availability
220
FLUE DEFLECTOR SHIELD GEN WB02X9395 Contact Us For Availability
221
GEN WB63K5194 GEN WB63K5194 Contact Us For Availability
221
BODY SIDE-WHITE-SMOOTH GEN WB63K5065 Contact Us For Availability
222
GEN WB56K5053 GEN WB56K5053 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9143 Contact Us For Availability
230
GEN WB02X9726 GEN WB02X9726 Contact Us For Availability
231
INSULATION-TOP & SIDE GEN WB02X9153 Contact Us For Availability
232
GEN WB35K5035 GEN WB35K5035 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
235
FLUE BOX INSULATION GEN WB02X9394 Contact Us For Availability
240
GEN WB34K5114 GEN WB34K5114 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
252
GEN WB02K5202 GEN WB02K5202 Contact Us For Availability
258
OV LAMP LENS GASKET GEN WB02X9151 Contact Us For Availability
260
GEN WB02K5337 GEN WB02K5337 Contact Us For Availability
266
GEN WB02K5271 GEN WB02K5271 Contact Us For Availability
267
GEN WB02X5199 GEN WB02X5199 Contact Us For Availability
272
GEN WB02X9023 GEN WB02X9023 Contact Us For Availability
272
GEN WB02X9024 GEN WB02X9024 Contact Us For Availability
286
GEN WB09X0265 GEN WB09X0265 Contact Us For Availability
296
LEG LEVELER GEN WB02X9025 Contact Us For Availability
301
GEN WB28K5016 GEN WB28K5016 Contact Us For Availability
302
GEN WB28K5015 GEN WB28K5015 Contact Us For Availability
303
GEN WB28K5025 GEN WB28K5025 Contact Us For Availability
307
TOP BURNER ASM-FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM-REAR GEN WB28X0111 Contact Us For Availability
309
GEN WB28X0089 GEN WB28X0089 Contact Us For Availability
310
BURNER BOX BOTTOM GEN WB53X0277 Contact Us For Availability
311
GEN WB28X0088 GEN WB28X0088 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
GEN WB20K5019 GEN WB20K5019 Contact Us For Availability
314
VALVE-TOP BURNER GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0475 GEN WB21X0475 Contact Us For Availability
317
IGNITER BRACKET-TOP BURN GEN WB02X9003 Contact Us For Availability
317
IGNITER BRACKET-BROIL GEN WB02X9155 Contact Us For Availability
319
VALVE--SHUT-OFF GEN WB21X0482 Contact Us For Availability
320
GEN WB34K5146 GEN WB34K5146 Contact Us For Availability
321
GEN WB34K5211 GEN WB34K5211 Contact Us For Availability
322
GEN WB13K5071 GEN WB13K5071 Contact Us For Availability
322
GEN WB13K5072 GEN WB13K5072 Contact Us For Availability
323
IGNITER SWITCH-GAS VALVE GEN WB24X0412 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
346
GEN WB02X9156 GEN WB02X9156 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
356
GEN WB34K5184 GEN WB34K5184 Contact Us For Availability
358
GEN WB34K5113 GEN WB34K5113 Contact Us For Availability
359
GEN WB11K5028 GEN WB11K5028 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
366
GEN WB02X9092 GEN WB02X9092 Contact Us For Availability
372
GEN WB06K5015 GEN WB06K5015 Contact Us For Availability
373
OVEN BURNER BAFFLE GEN WB49X0631 Contact Us For Availability
374
BRO BRN BAFFLE -UPPER GEN WB49X0629 Contact Us For Availability
374
BROILER BURNER BAFFLE-LO GEN WB49X0630 Contact Us For Availability
382
GEN WB34K5147 GEN WB34K5147 Contact Us For Availability
391
INSULATION RETAINER GEN WB02X9176 Contact Us For Availability
400
GEN WB28K5011 GEN WB28K5011 Contact Us For Availability
767
GEN WB01K5136 GEN WB01K5136 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
824
GEN WB01X1291 GEN WB01X1291 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
846
SCREW GEN WB01X1169 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
881
SCREW-BLACK GEN WB01K5160 Contact Us For Availability
904
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
922
MT STRIKE GEN WB14X0105 Contact Us For Availability
933
GEN WB01X1256 GEN WB01X1256 Contact Us For Availability
936
GEN WB02X9103 GEN WB02X9103 Contact Us For Availability
952
GEN WB02K5359 GEN WB02K5359 Contact Us For Availability
953
GEN WB02X9106 GEN WB02X9106 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
967
CLIP GEN WB02X9894 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
980
GEN WB01X1129 GEN WB01X1129 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
999
GEN 31-10007 GEN 31-10007 Contact Us For Availability
999
GEN 31-13143 GEN 31-13143 Contact Us For Availability
999
GEN 49-8555 GEN 49-8555 Contact Us For Availability
999
GEN WB18K5171 GEN WB18K5171 Contact Us For Availability
999
GEN WB18K5447 GEN WB18K5447 Contact Us For Availability
999
GEN WB18K5448 GEN WB18K5448 Contact Us For Availability
999
GEN WB18K5512 GEN WB18K5512 Contact Us For Availability
× ![]()
