Model GE JGBC17GEK2 Gas Range Or Dual Fuel – Common Parts & Diagrams
0
1
2
3

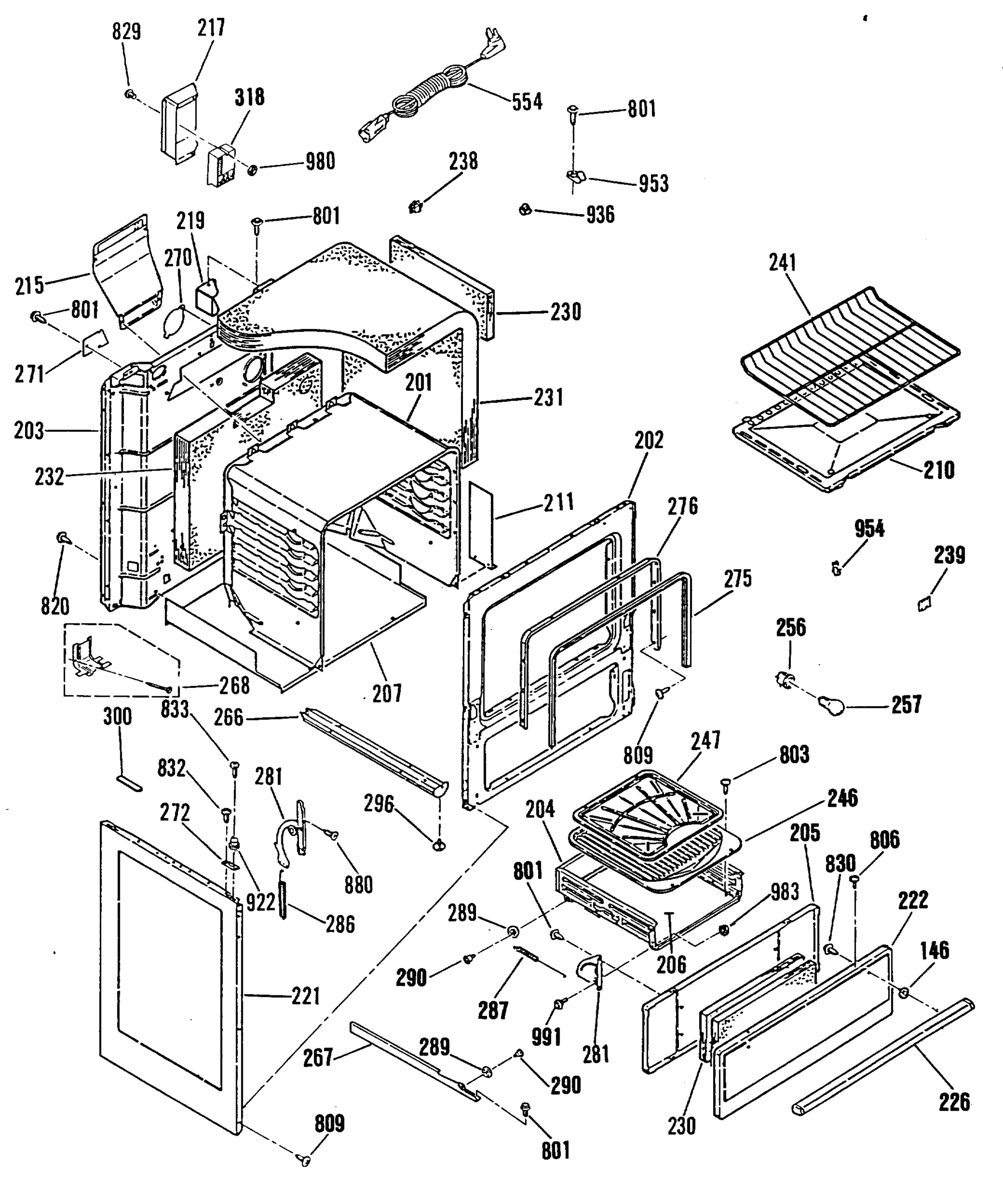

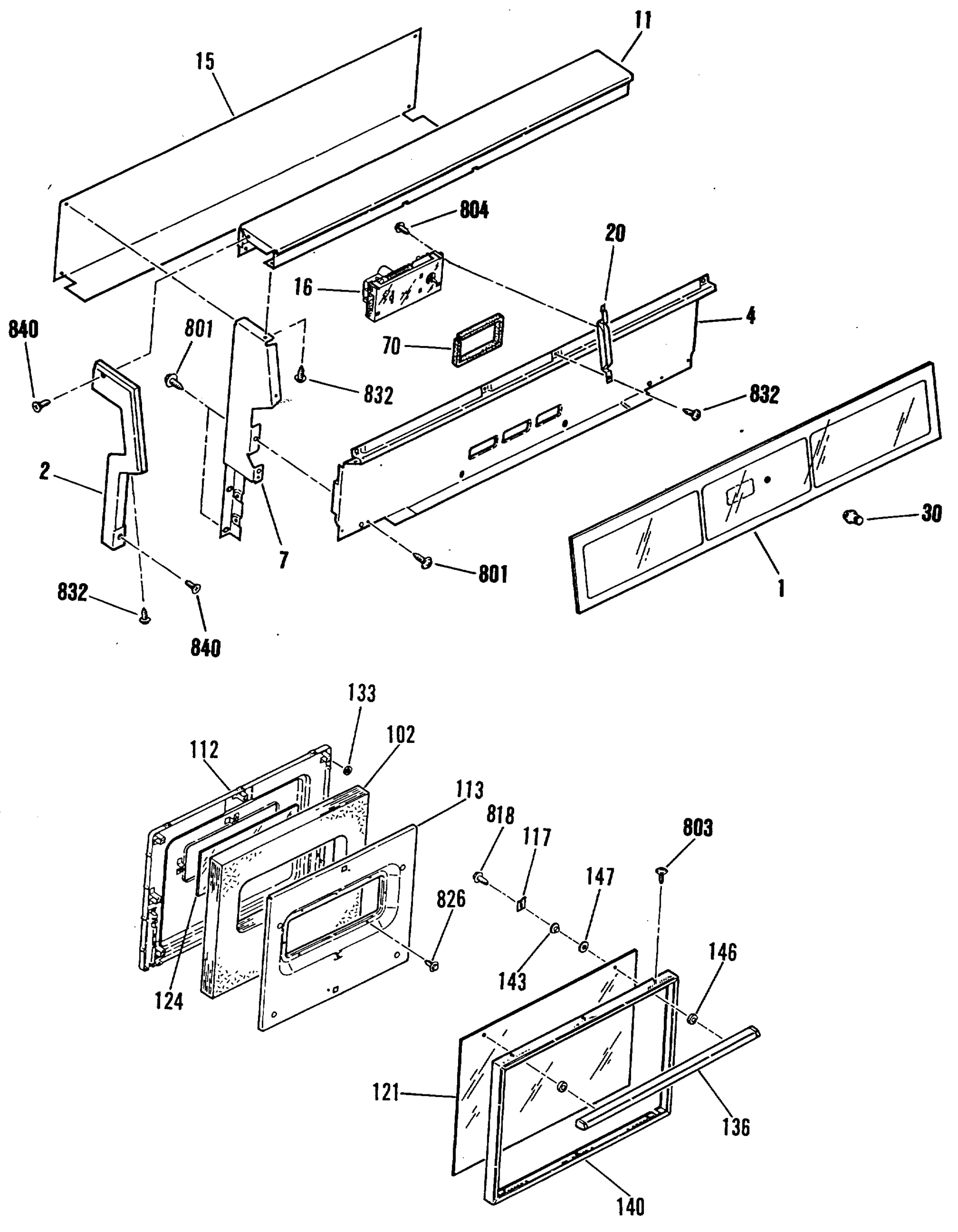

Common parts from model GE JGBC17GEK2 Gas Range Or Dual Fuel
1
BACKGUARD GLASS GEN WB36X0757 Contact Us For Availability
2
END CAP LT GEN WB07X1591 Contact Us For Availability
2
END CAP-RT GEN WB07X1592 Contact Us For Availability
4
BACKGUARD PANEL GEN WB61X0359 Contact Us For Availability
7
BACKGUARD SUPPORT-LT GEN WB02X9180 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB02X9181 Contact Us For Availability
11
BACKGUARD PANEL-UPPER GEN WB07X1590 Contact Us For Availability
15
GEN WB02X9179 GEN WB02X9179 Contact Us For Availability
16
CLOCK ASM GEN WB19X0248 Contact Us For Availability
20
CLOCK BRACKET GEN WB02X9183 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0773 Contact Us For Availability
51
MAIN TOP-CHROME GEN WB62X1677 Contact Us For Availability
52
GEN WB07X1593 GEN WB07X1593 Contact Us For Availability
61
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
70
FOAM STRIP GEN WB02X9182 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIF PANEL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
MAINTOP HINGE-RT GEN WB14X0101 Contact Us For Availability
91
MAINTOP HINGE-LT GEN WB14X0102 Contact Us For Availability
93
GEN WB34M0017 GEN WB34M0017 Contact Us For Availability
95
MAINTOP HINGE BRACKET GEN WB10X0252 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0002 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
117
OV DOOR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OVEN DOOR GLASS GEN WB56X1901 Contact Us For Availability
133
FELT WASHER GEN WB01X1159 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DOOR FRAME GEN WB07X1585 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
201
OVEN BODY GEN WB53X0275 Contact Us For Availability
202
FRONT FRAME ASM GEN WB63X0328 Contact Us For Availability
203
GEN WB63M0047 GEN WB63M0047 Contact Us For Availability
204
GEN WB58M0001 GEN WB58M0001 Contact Us For Availability
205
BROILER DOOR LINING GEN WB56X2015 Contact Us For Availability
206
BROILER DRAWER BOTTOM GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
FLUE DEFLECTOR ASM GEN WB38X0105 Contact Us For Availability
217
WIRE SHIELD ASM GEN WB02X9101 Contact Us For Availability
219
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
221
BODY SIDE-BLACK GEN WB63X0330 Contact Us For Availability
222
LOWER FRONT PANEL GEN WB56X2057 Contact Us For Availability
226
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
230
INSULATION-BBB/BRO DR GEN WB02X9394 Contact Us For Availability
231
OVEN INSULATION GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
246
BROILER PAN GEN WB49X0619 Contact Us For Availability
247
BROILER PAN GRID GEN WB49X0620 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
DRAWER GUIDE ASM RT GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT-LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT-RT GEN WB02X9024 Contact Us For Availability
275
GEN WB02X9747 GEN WB02X9747 Contact Us For Availability
276
DR SEAL RETAINER GEN WB02X9029 Contact Us For Availability
281
BROILER DRAWER HINGE-LT GEN WB14X0116 Contact Us For Availability
281
BROILER DRAWER HINGE-RT GEN WB14X0117 Contact Us For Availability
286
GEN WB09X0267 GEN WB09X0267 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
RIVET GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
300
MAINTOP SPACER GEN WB02X9022 Contact Us For Availability
301
3/8" TUBE W/NUT GEN WB02X9282 Contact Us For Availability
302
3/16" TUBE GEN WB02X9019 Contact Us For Availability
307
TOP BURNER ASM-FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM-REAR GEN WB28X0111 Contact Us For Availability
309
GEN WB16M0008 GEN WB16M0008 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
OVEN THERMOSTAT GEN WB21X0466 Contact Us For Availability
314
GAS VALVE-90 DEGREES GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
317
BRACKET GEN WB02X9003 Contact Us For Availability
318
SPARK IGN MODULE GEN WB20X0104 Contact Us For Availability
322
SPARK IGN ELECTRODE-RT GEN WB02X9005 Contact Us For Availability
322
SPARK IGN ELECTRODE-OV GEN WB02X9018 Contact Us For Availability
322
SPARK IGN ELECTRODE-LT GEN WB02X9278 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0412 Contact Us For Availability
325
GEN WB02X9751 GEN WB02X9751 Contact Us For Availability
326
3/16 TUBING NUT GEN WB01X1126 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
353
AIR SHUTTER-FOR KEY 309 GEN WB02X9014 Contact Us For Availability
361
PILOT W/CUP GEN WB02X9015 Contact Us For Availability
365
ORIFICE CUP-FOR KEY 361 GEN WB02X9017 Contact Us For Availability
366
GASKET-FOR KEY 838 GEN WB02X9008 Contact Us For Availability
366
GASKET-FOR KEY 837 GEN WB02X9009 Contact Us For Availability
366
GASKET FOR KEY 314 GEN WB02X9011 Contact Us For Availability
367
GASKET-FOR KEY 313 GEN WB02X9010 Contact Us For Availability
373
OV BURNER BAFFLE GEN WB49X0618 Contact Us For Availability
393
THERMOSTAT SWITCH GEN WB24X0411 Contact Us For Availability
400
MANIF PIPE ASM GEN WB02X9012 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
829
GEN WB01X1128 GEN WB01X1128 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
GEN WB01X1327 GEN WB01X1327 Contact Us For Availability
840
SCREW GEN WB01X1430 Contact Us For Availability
908
POP RIVET GEN WB01X1114 Contact Us For Availability
909
RIVET GEN WB01X1347 Contact Us For Availability
922
MAINTOP STRIKE GEN WB14X0105 Contact Us For Availability
936
1/2" SNAP BUSHING GEN WB02X9033 Contact Us For Availability
936
1 1/2" SNAP BUSHING GEN WB02X9103 Contact Us For Availability
953
GEN WB02X9106 GEN WB02X9106 Contact Us For Availability
954
RETAINER CLIP GEN WB02X9105 Contact Us For Availability
959
GEN WB02X9737 GEN WB02X9737 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
980
HEX NUT GEN WB01X1129 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0698 GEN 31-0698 Contact Us For Availability
999
OWNERS MANUAL GEN 49-4998 Contact Us For Availability
999
GEN WB18M0035 GEN WB18M0035 Contact Us For Availability
999
GEN WB18M0036 GEN WB18M0036 Contact Us For Availability
999
GEN WB18X0299 GEN WB18X0299 Contact Us For Availability
× ![]()
