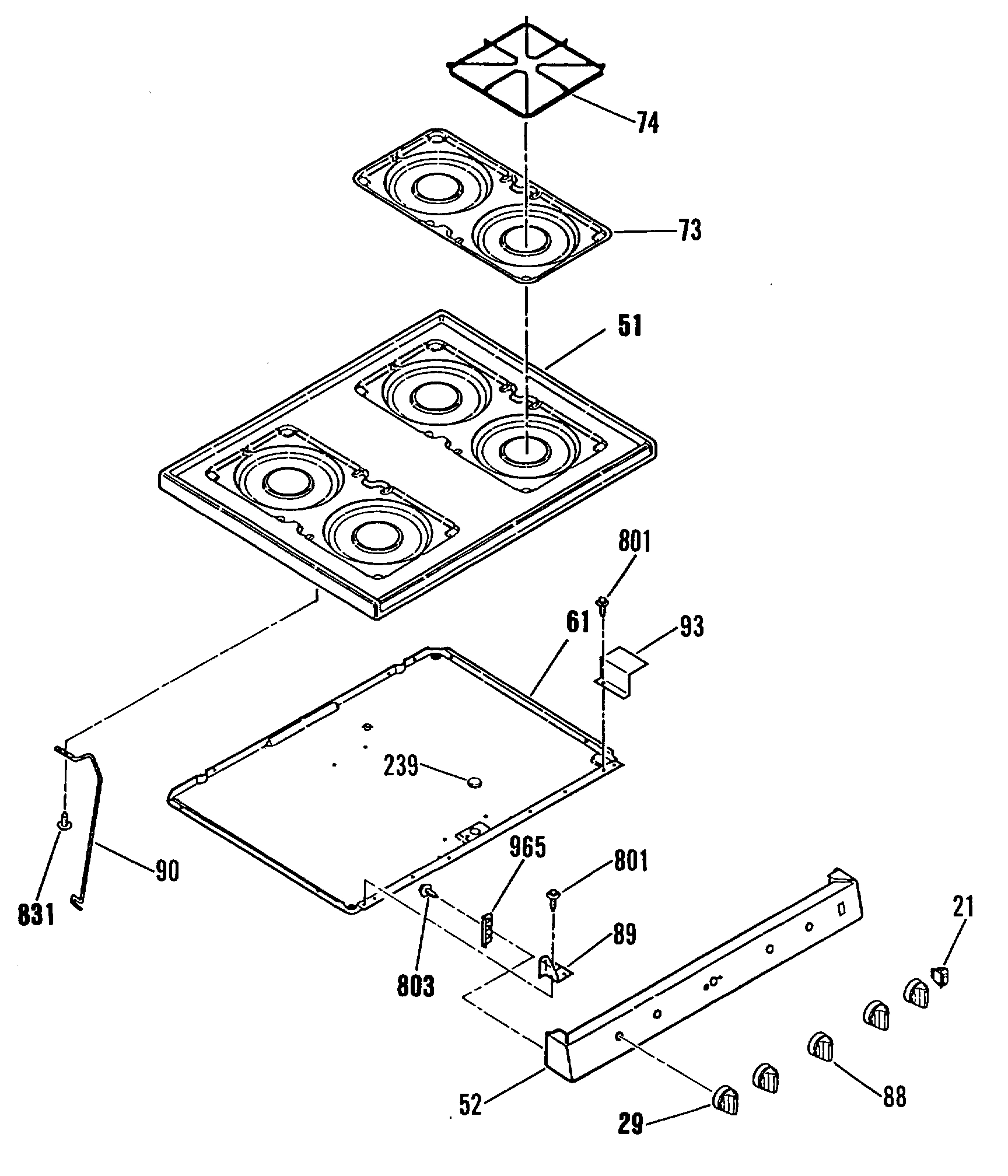

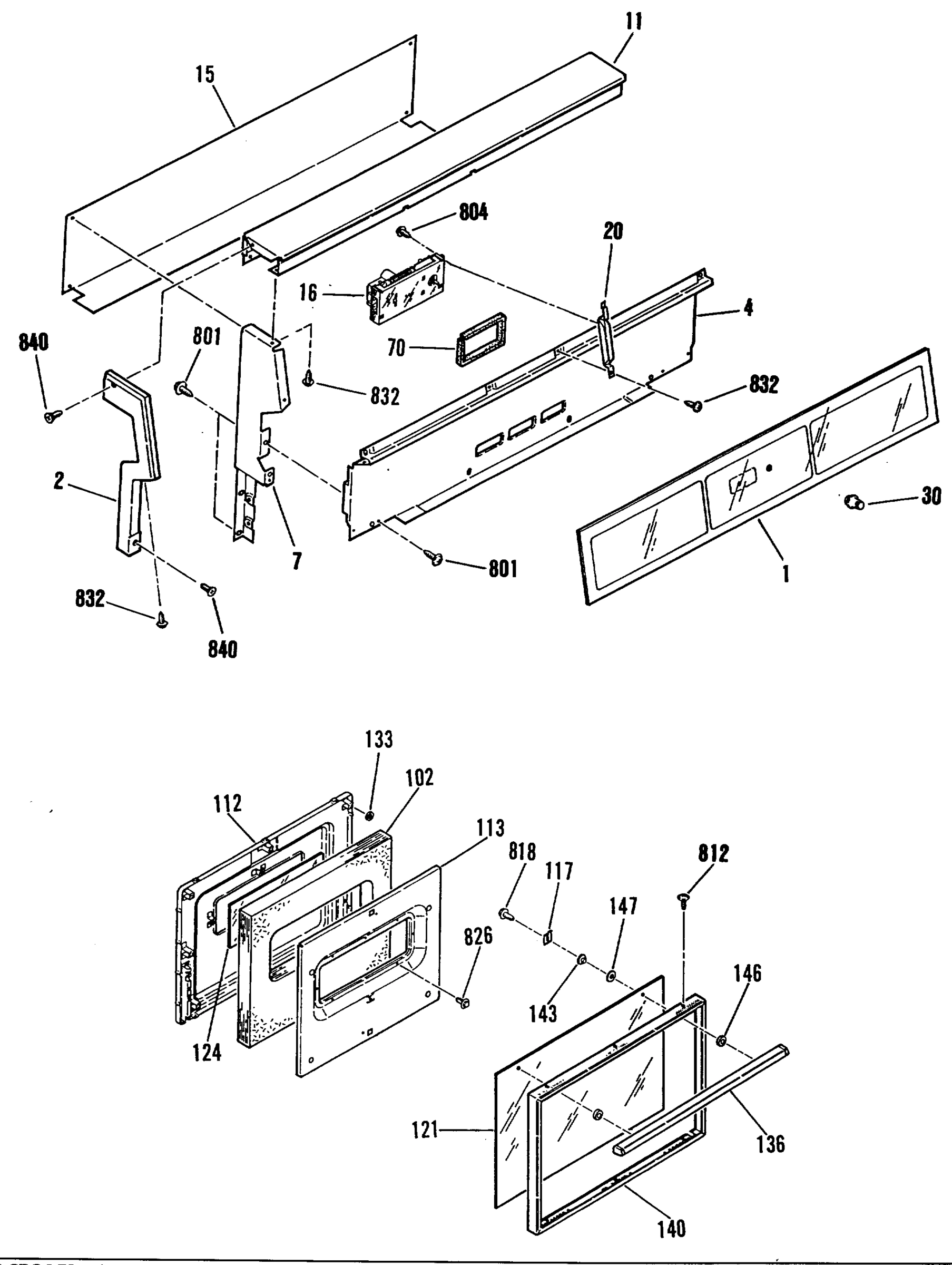

Model GE JGBC15GEK4 Gas Range Or Dual Fuel – Common Parts & Diagrams
0
1
2
3
Common parts from model GE JGBC15GEK4 Gas Range Or Dual Fuel
2
END CAP RT GEN WB07X1592 Contact Us For Availability
4
LOWER BACKGUARD PANEL GEN WB61X0359 Contact Us For Availability
7
BKGD SUPPORT LEFT GEN WB02X9180 Contact Us For Availability
7
BKGD SUPPORT RIGHT GEN WB02X9181 Contact Us For Availability
11
BACKGUARD PANEL-UPPER GEN WB07X1590 Contact Us For Availability
15
BACKGUARD WIRE COVER GEN WB02X9179 Contact Us For Availability
16
GEN WB19X0257 GEN WB19X0257 Contact Us For Availability
20
CLOCK BRACKET GEN WB02X9183 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
29
GAS VALVE KNOB GEN WB03X0760 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0773 Contact Us For Availability
51
MAIN TOP-WHITE GEN WB62X1675 Contact Us For Availability
52
MANIF PANEL GEN WB07X1593 Contact Us For Availability
61
BURN BOX BOTTOM GEN WB63X0336 Contact Us For Availability
70
FOAM STRIP GEN WB02X9182 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
87
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIFOLD PNL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIFOLD PNL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
GEN WB14K5004 GEN WB14K5004 Contact Us For Availability
91
GEN WB14K5005 GEN WB14K5005 Contact Us For Availability
93
GEN WB34M0017 GEN WB34M0017 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB56M0002 GEN WB56M0002 Contact Us For Availability
113
INS RETAINER GEN WB56X1910 Contact Us For Availability
117
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DR INNER GLASS GEN WB56X1901 Contact Us For Availability
133
FELT WASHER GEN WB01X1159 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0272 Contact Us For Availability
140
FRAME GEN WB07X1585 Contact Us For Availability
143
GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
201
OV WRAPPER GEN WB53X0275 Contact Us For Availability
202
FRT FRAME ASM GEN WB63X0328 Contact Us For Availability
203
GEN WB63M0047 GEN WB63M0047 Contact Us For Availability
204
GEN WB58K5003 GEN WB58K5003 Contact Us For Availability
205
BRO DOOR LINING GEN WB56X2015 Contact Us For Availability
206
BRO DRWR BOTTOM GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OV BOTTOM GEN WB53X0273 Contact Us For Availability
211
INS RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
217
WIRE SHIELD GEN WB02X9101 Contact Us For Availability
219
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
221
GEN WB63K5065 GEN WB63K5065 Contact Us For Availability
222
LO FRT PANEL GEN WB56X2057 Contact Us For Availability
226
DR HANDLE GEN WB15X0270 Contact Us For Availability
230
INSULATION BBB OR BRO DR GEN WB02X9394 Contact Us For Availability
231
OV BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
246
GEN WB49X0619 GEN WB49X0619 Contact Us For Availability
247
GEN WB49X0620 GEN WB49X0620 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
266
BASE ASM W/LEVLER GEN WB02X9187 Contact Us For Availability
267
GEN WB39M0004 GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT RT GEN WB02X9024 Contact Us For Availability
275
GEN WB06X0105 GEN WB06X0105 Contact Us For Availability
276
DR SEAL RETAINER GEN WB02X9029 Contact Us For Availability
281
BRO DRAW HINGE-LT GEN WB14X0116 Contact Us For Availability
281
BRO DRAW HINGE-RT GEN WB14X0117 Contact Us For Availability
286
OVEN DOOR SPRING GEN WB09X0267 Contact Us For Availability
287
BRO DRAW SPRING GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
RIVET GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
301
3/8 TUBE W/NUTS (57") GEN WB02X9282 Contact Us For Availability
307
FRONT BURNERS-INC'S 352 GEN WB28X0112 Contact Us For Availability
308
REAR BURNERS-INC'S 352 GEN WB28X0111 Contact Us For Availability
309
GEN WB16K5011 GEN WB16K5011 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
OV THERMOSTAT GEN WB21X0466 Contact Us For Availability
314
GAS VALVE GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
317
SPARK IGN BRACKET GEN WB02X9003 Contact Us For Availability
318
SPARK IGN MODULE GEN WB20X0104 Contact Us For Availability
322
SPARK IGN ELECTRODE-RT GEN WB02X9005 Contact Us For Availability
322
SPARK IGN ELECTRODE-OV GEN WB02X9018 Contact Us For Availability
322
GEN WB13K5039 GEN WB13K5039 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0412 Contact Us For Availability
325
3/16 TUBING SLEEVE GEN WB02X9016 Contact Us For Availability
326
COMPRESSION NUT 3/16" GEN WB01X1126 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
PILOT W/CUP GEN WB02X9015 Contact Us For Availability
365
GEN WB02K9017 GEN WB02K9017 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
367
GEN WB02X0910 GEN WB02X0910 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
387
3/16 TUBE GEN WB02X9019 Contact Us For Availability
393
THERMOSTAT SWITCH GEN WB24X0411 Contact Us For Availability
400
GEN WB02X9012 GEN WB02X9012 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
829
GEN WB01X1128 GEN WB01X1128 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
MTG SCREW (FOR KEY 313) GEN WB01X1151 Contact Us For Availability
838
MTG SCREW (FOR KEY 314) GEN WB01X1121 Contact Us For Availability
839
ADJUSTING SCREW GEN WB01X1124 Contact Us For Availability
909
ACCORDIAN RIVET GEN WB01X1347 Contact Us For Availability
922
GEN WB14X0105 GEN WB14X0105 Contact Us For Availability
936
GEN WB02X9033 GEN WB02X9033 Contact Us For Availability
936
SNAP BUSHING GEN WB02X9103 Contact Us For Availability
947
GEN WB02X9493 GEN WB02X9493 Contact Us For Availability
954
THERMOSTAT BULB CLIP GEN WB02X9105 Contact Us For Availability
959
GEN WB02X9737 GEN WB02X9737 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
980
HEX NUT GEN WB01X1129 Contact Us For Availability
983
HEX NUT 10-24 GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
SHLDR BOLT GEN WB01X1156 Contact Us For Availability
999
GEN 31-0698 GEN 31-0698 Contact Us For Availability
999
OWNERS MANUAL GEN 49-4998 Contact Us For Availability
999
GEN WB18M0035 GEN WB18M0035 Contact Us For Availability
999
GEN WB18M0036 GEN WB18M0036 Contact Us For Availability
999
GEN WB18X0299 GEN WB18X0299 Contact Us For Availability
× ![]()
