Model Maytag JF42SSFXDA02 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams

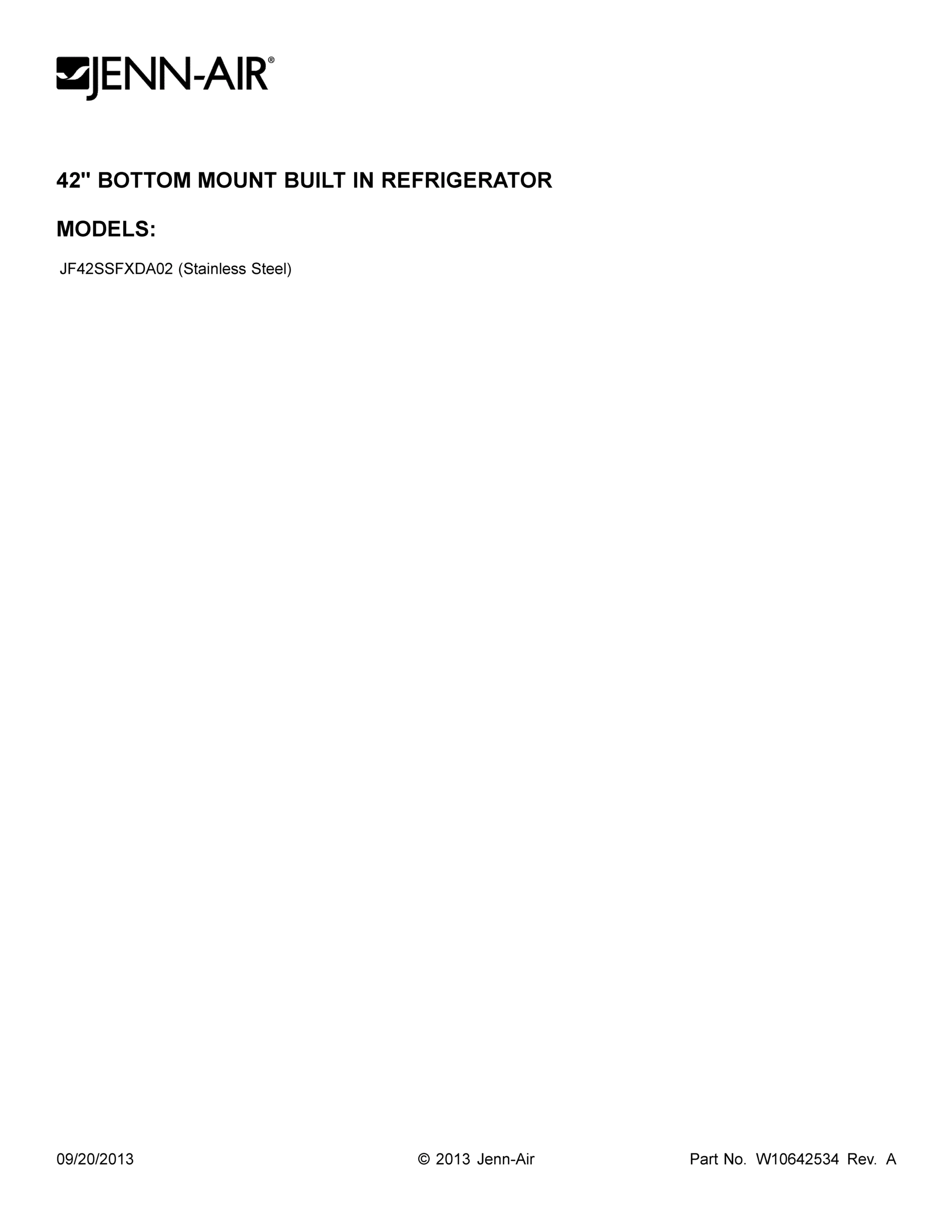

01 - COVER SHEET

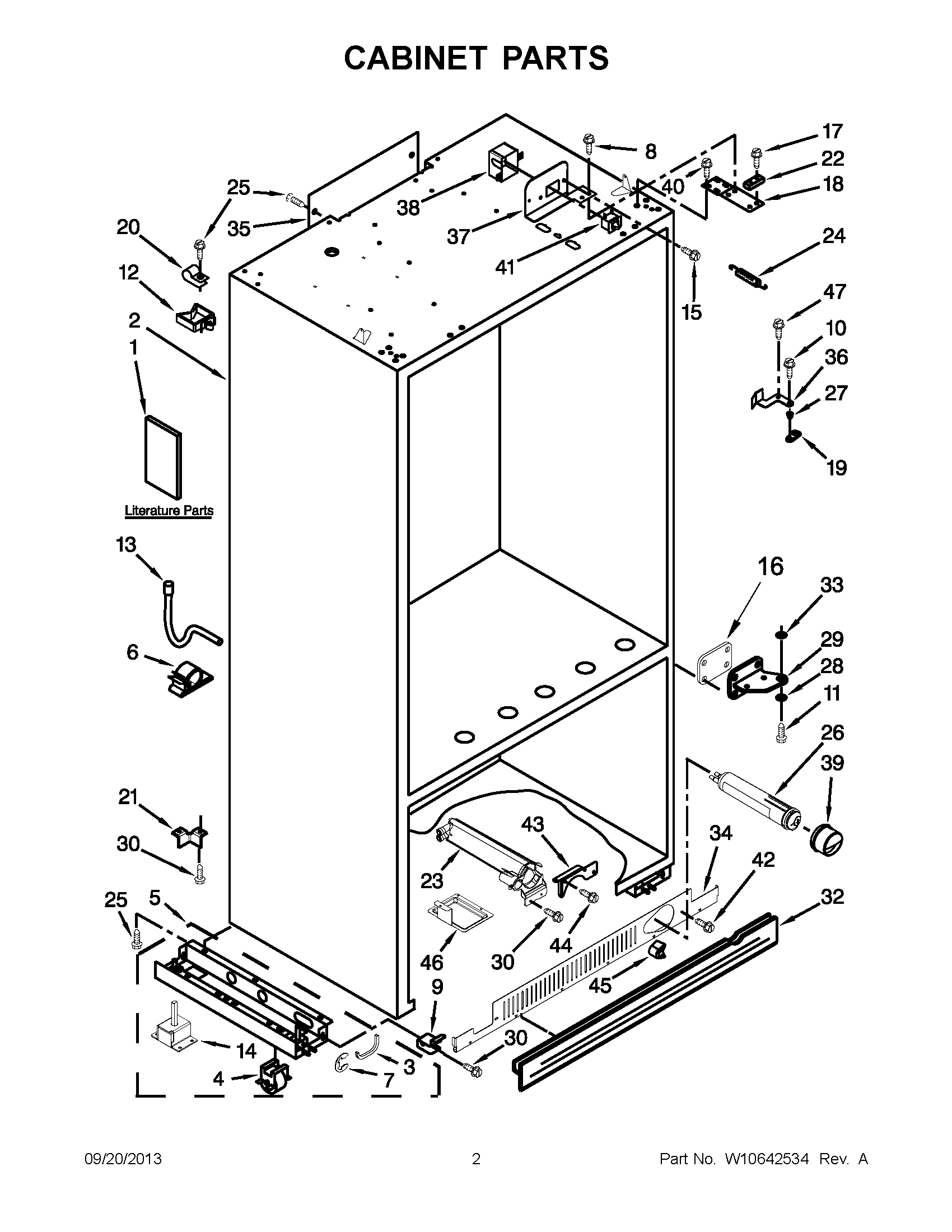

02 - CABINET PARTS
03 - CABINET TRIM PARTS
04 - TOP GRILLE AND UNIT COVER PARTS
05 - REFRIGERATOR LINER PARTS
06 - FREEZER LINER PARTS
07 - SHELF PARTS
08 - REFRIGERATOR DOOR PARTS
09 - FREEZER DOOR AND BASKET PARTS
10 - UPPER UNIT PARTS
11 - LOWER UNIT AND TUBE PARTS
12 - ICEMAKER PARTS
Common parts from model Maytag JF42SSFXDA02 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
MAY 2317840 MAY 2317840 Contact Us For Availability
1
USE AND CARE GUIDE MAY W10183787 Contact Us For Availability
1
MAY W10469187 MAY W10469187 Contact Us For Availability
1
MAY W10477526 MAY W10477526 Contact Us For Availability
1
SERVICE AND WIRING SHEET MAY W10512205 Contact Us For Availability
1
MAY W10555566 MAY W10555566 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
MAY W10321125 MAY W10321125 Contact Us For Availability
1
ASSEMBLY, CRISPER PAN (INCLUDES ITEM 2) (RIGH MAY W10407630 Contact Us For Availability
1
ASSEMBLY, CRISPER PAN (INCLUDES ITEM 2) (LEFT MAY W10407631 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEM 2) (RIGHT H MAY W10192508 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT HA MAY W10192510 Contact Us For Availability
1
FREEZER DOOR MAY W10258747 Contact Us For Availability
1
MAY W10449006 MAY W10449006 Contact Us For Availability
1
MAY W10546784 MAY W10546784 Contact Us For Availability
2
TRIM, CABINET SIDE (RIGHT) (ALUMINUM) MAY W10132472 Contact Us For Availability
2
MAY W10624563 MAY W10624563 Contact Us For Availability
2
MAY 2317004 MAY 2317004 Contact Us For Availability
2
MAY W10423553 MAY W10423553 Contact Us For Availability
2
MAY 2256247 MAY 2256247 Contact Us For Availability
2
MAY 2268265 MAY 2268265 Contact Us For Availability
2
MAY 2317101 MAY 2317101 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10388653 MAY W10388653 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
3
MAY 2256466 MAY 2256466 Contact Us For Availability
3
CONTROL BOX ASSEMBLY MAY W10481163 Contact Us For Availability
3
ASSEMBLY, DELI PAN (INCLUDES ITEMS 4, 5 AND 6 MAY W10407633 Contact Us For Availability
3
ASSEMBLY, DELI PAN (INCLUDES ITEMS 4, 5 AND 6 MAY W10407635 Contact Us For Availability
3
MAY 2320642 MAY 2320642 Contact Us For Availability
3
MAY W10183770 MAY W10183770 Contact Us For Availability
3
COMPRESSOR MAY 2302967 Contact Us For Availability
3
Screw MAY 489136 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
TRIM, BOTTOM CABINET (ALUMINUM) MAY 2316687 Contact Us For Availability
4
UNIT COVER, FRONT MAY W10185625 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
DRAWER SLIDE, FREEZER BASKET MAY W10423551 Contact Us For Availability
4
ASSEMBLY, MEAT PAN FRONT MAY 2256365 Contact Us For Availability
4
SCREW MAY W10135775 Contact Us For Availability
4
MAY W10321056 MAY W10321056 Contact Us For Availability
4
MAY 2307944 MAY 2307944 Contact Us For Availability
4
WIRE ASSEMBLY, FILL TUBE HEATER MAY W10482373 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (LEFT HAND) MAY W10279275 Contact Us For Availability
5
MAY W10121451 MAY W10121451 Contact Us For Availability
5
MAY 2324969 MAY 2324969 Contact Us For Availability
5
MAY W10061370 MAY W10061370 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
MAY W10135792 MAY W10135792 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY 2303091 Contact Us For Availability
5
Bracket, Mounting MAY 2307945 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
6
CLIP MAY 2004514 Contact Us For Availability
6
TRIM, TOP CABINET (ALUMINUM) MAY 2314017 Contact Us For Availability
6
MAY 2187946 MAY 2187946 Contact Us For Availability
6
MAY 2309248 MAY 2309248 Contact Us For Availability
6
COVER, SWITCH MAY W10234211 Contact Us For Availability
6
MAY 2317939 MAY 2317939 Contact Us For Availability
6
MAY 2316804 MAY 2316804 Contact Us For Availability
6
MAY 2309219 MAY 2309219 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
TUBE, OIL TRAP SUCTION MAY W10306442 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
Ring, Retainer MAY 2006841 Contact Us For Availability
7
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
7
MAY 2316857 MAY 2316857 Contact Us For Availability
7
MAY 2316858 MAY 2316858 Contact Us For Availability
7
MAY W10214168 MAY W10214168 Contact Us For Availability
7
MAY W10187549 MAY W10187549 Contact Us For Availability
7
BOTTOM HINGE ASSEMBLY (RIGHT HAND) MAY W10273367 Contact Us For Availability
7
BOTTOM HINGE ASSEMBLY (LEFT HAND) MAY W10273369 Contact Us For Availability
7
SPACER, DOOR EDGE (SIDE) MAY W10340330 Contact Us For Availability
7
MAY W10525177 MAY W10525177 Contact Us For Availability
7
MAY W10525179 MAY W10525179 Contact Us For Availability
7
MAY W10219166 MAY W10219166 Contact Us For Availability
7
Tube Assembly, Water Inlet MAY 2317847 Contact Us For Availability
8
SCREW (STAINLESS) MAY 8281164 Contact Us For Availability
8
COVER, HINGE (WHITE) MAY 2005782 Contact Us For Availability
8
MAY W10523731 MAY W10523731 Contact Us For Availability
8
SPACER, DOOR EDGE (TOP AND BOTTOM) MAY 2309221 Contact Us For Availability
8
MAY 2303033 MAY 2303033 Contact Us For Availability
8
MAY W10321092 MAY W10321092 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
9
Mounting Bracket, Grill MAY 2307640 Contact Us For Availability
9
MAY 2005925 MAY 2005925 Contact Us For Availability
9
MAY W10191429 MAY W10191429 Contact Us For Availability
9
ASSEMBLY, ICE PAN MAY 2306174 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10298244 Contact Us For Availability
9
MAY W10192907 MAY W10192907 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10321090 MAY W10321090 Contact Us For Availability
9
MAY W10437853 MAY W10437853 Contact Us For Availability
10
MAY W10485630 MAY W10485630 Contact Us For Availability
10
TRIM, CABINET SIDE (LEFT) (ALUMINUM) MAY W10132541 Contact Us For Availability
10
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
10
Bulb, Light MAY 2326255 Contact Us For Availability
10
Front, Ice Pan MAY 2306175 Contact Us For Availability
10
Screw MAY 308544 Contact Us For Availability
10
MAY W10587113 MAY W10587113 Contact Us For Availability
10
MAY W10436861 MAY W10436861 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
SCREW MAY 488234 Contact Us For Availability
11
MAY W10001250 MAY W10001250 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
MAY W10321131 MAY W10321131 Contact Us For Availability
11
ASSEMBLY, FREEZER PAN MAY 2327511 Contact Us For Availability
11
HANDLE, DOOR (STAINLESS) MAY W10298179 Contact Us For Availability
11
BOARD, CONTROL MAY W10427079 Contact Us For Availability
11
MAY W10260421 MAY W10260421 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
12
MAY W10129069 MAY W10129069 Contact Us For Availability
12
MAY 2309230 MAY 2309230 Contact Us For Availability
12
MAY 2309231 MAY 2309231 Contact Us For Availability
12
MAY 2320523 MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
ASSEMBLY, MEAT PAN FRONT MAY 2256367 Contact Us For Availability
12
MAY 2309218 MAY 2309218 Contact Us For Availability
12
MAY W10523750 MAY W10523750 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
12
MAY W10279393 MAY W10279393 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
Cover, Diffuser MAY 2320519 Contact Us For Availability
13
MAY 2317005 MAY 2317005 Contact Us For Availability
13
LADDER, SHELF (SIDE) MAY W10213472 Contact Us For Availability
13
LADDER, SHELF (CENTER) MAY W10246602 Contact Us For Availability
13
MAY 2314068 MAY 2314068 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8281250 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
TUBE, DISCHARGE ASSEMBLY MAY W10404239 Contact Us For Availability
13
MAY 2221231 MAY 2221231 Contact Us For Availability
14
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
14
Screw MAY 487415 Contact Us For Availability
14
COVER, SCREW (SQUARE) MAY 2316899 Contact Us For Availability
14
MAY 2306100 MAY 2306100 Contact Us For Availability
14
Support, Ladder MAY 520965 Contact Us For Availability
14
MAY 2316768 MAY 2316768 Contact Us For Availability
14
MAY W10258183 MAY W10258183 Contact Us For Availability
14
MAY W10482185 MAY W10482185 Contact Us For Availability
14
Screw MAY 304392 Contact Us For Availability
15
COVER, SCREW (ROUND) MAY 2317078 Contact Us For Availability
15
COVER, FAN MAY 2317829 Contact Us For Availability
15
SHELF MAY W10198701 Contact Us For Availability
15
MAY 2309204 MAY 2309204 Contact Us For Availability
15
MAY 2207454 MAY 2207454 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
EVAPORATOR ASSEMBLY MAY W10195924 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
16
MAY 2207470 MAY 2207470 Contact Us For Availability
16
SCREW (STAINLESS) MAY 487539 Contact Us For Availability
16
COVER, DELI BIN (RIGHT HAND) MAY W10183755 Contact Us For Availability
16
COVER, DELI BIN (LEFT HAND) MAY W10183756 Contact Us For Availability
16
MAY 2006346 MAY 2006346 Contact Us For Availability
16
MAY W10001190 MAY W10001190 Contact Us For Availability
16
MAY W10591457 MAY W10591457 Contact Us For Availability
16
MAY W10281063 MAY W10281063 Contact Us For Availability
16
CLAMP, TUBE MAY 488946 Contact Us For Availability
17
SCREW MAY W10005070 Contact Us For Availability
17
DIFFUSER, CRISPER (COMPLETE) MAY 2268249 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
MAY 2309400 MAY 2309400 Contact Us For Availability
17
MOUNT, HANDLE MAY W10168981 Contact Us For Availability
17
MAY 2316760 MAY 2316760 Contact Us For Availability
17
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
17
MAY W10309012 MAY W10309012 Contact Us For Availability
17
WIRE ASSEMBLY, ICE MAKER MAY W10508673 Contact Us For Availability
18
MAY 2316759 MAY 2316759 Contact Us For Availability
18
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
18
MAY 2306116 MAY 2306116 Contact Us For Availability
18
MAY 2306117 MAY 2306117 Contact Us For Availability
18
MAY W10183754 MAY W10183754 Contact Us For Availability
18
MAY W10127710 MAY W10127710 Contact Us For Availability
18
ASSEMBLY, CONDENSER FAN WIRE MAY 2310207 Contact Us For Availability
18
MAY W10321048 MAY W10321048 Contact Us For Availability
18
MAY W10289690 MAY W10289690 Contact Us For Availability
19
MAY 2320509 MAY 2320509 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
SPACER, CRISPER (LEFT HAND) MAY 2268331 Contact Us For Availability
19
SPACER, CRISPER (RIGHT HAND) MAY 2268332 Contact Us For Availability
19
MAY 2309396 MAY 2309396 Contact Us For Availability
19
MULLION ASSEMBLY (LEFT SIDE DOOR) MAY 2307938 Contact Us For Availability
19
MAY W10321050 MAY W10321050 Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
20
SPACER, DELI (RIGHT HAND) MAY 2306474 Contact Us For Availability
20
SPACER, DELI (LEFT HAND) MAY 2306475 Contact Us For Availability
20
DIVIDER, FREEZER BINS MAY W10290822 Contact Us For Availability
20
GASKET, FRONT (DELI COVER) MAY 2309395 Contact Us For Availability
20
MAY W10323746 MAY W10323746 Contact Us For Availability
20
MAY 2306180 MAY 2306180 Contact Us For Availability
20
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
21
BRACKET, BASE SUPPORT MAY 2006617 Contact Us For Availability
21
SLIDE, CRISPER PAN (LEFT HAND) MAY 2302952 Contact Us For Availability
21
SLIDE, CRISPER PAN (RIGHT HAND) MAY 2302953 Contact Us For Availability
21
SUPPORT, SLIDE (RIGHT HAND) MAY 2306104 Contact Us For Availability
21
SCREW (WHITE) MAY 8281251 Contact Us For Availability
21
BIN, DOOR MAY W10323598 Contact Us For Availability
21
TIE, WIRE MAY 2155774 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
22
MAY 2316758 MAY 2316758 Contact Us For Availability
22
CENTER SUPPORT (RIGHT HAND) MAY 2320550 Contact Us For Availability
22
CENTER SUPPORT (LEFT HAND) MAY 2320551 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
MAY 2001377 MAY 2001377 Contact Us For Availability
22
MAY W10131132 MAY W10131132 Contact Us For Availability
22
BRACKET, FAN MOTOR (CONDENSER FAN) MAY W10414681 Contact Us For Availability
22
MAY W10169509 MAY W10169509 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
MAY W10121140 MAY W10121140 Contact Us For Availability
23
SLIDE, DELI PAN (LEFT HAND) MAY 2302956 Contact Us For Availability
23
SLIDE, DELI PAN (RIGHT HAND) MAY 2302957 Contact Us For Availability
23
SUPPORT, SLIDE (LEFT HAND) MAY 2306105 Contact Us For Availability
23
SCREW MAY 488886 Contact Us For Availability
23
RAIL, UTILITY LID MAY 2222795 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 2317920 MAY 2317920 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
MAY 2221242 MAY 2221242 Contact Us For Availability
24
SUPPORT, DELI COVER MAY 2314054 Contact Us For Availability
24
BRACKET, EVAPORATOR COVER (RIGHT HAND) MAY 2317893 Contact Us For Availability
24
BRACKET, EVAPORATOR COVER (LEFT HAND) MAY 2320512 Contact Us For Availability
24
MAY 2222981 MAY 2222981 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
MAY 2320554 MAY 2320554 Contact Us For Availability
24
STRIPPER, ICE MAY W10122563 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
MAY 2309083 MAY 2309083 Contact Us For Availability
25
LOCKING CLIP, BIN (RIGHT HAND) MAY 2327393 Contact Us For Availability
25
LOCKING CLIP, BIN (LEFT HAND) MAY 2327394 Contact Us For Availability
25
BIN, UTILITY CENTER MAY W10323035 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
SEALER, INSULATION MAY 2169104 Contact Us For Availability
25
MAY 2194712 MAY 2194712 Contact Us For Availability
26
Filter, Water MAY W10121146 Contact Us For Availability
26
MAY 2318008 MAY 2318008 Contact Us For Availability
26
ASSEMBLY, AIR RETURN BRACKET MAY W10121940 Contact Us For Availability
26
END CAP, UTILITY BIN (RIGHT HAND) MAY W10323172 Contact Us For Availability
26
END CAP, UTILITY BIN (LEFT HAND) MAY W10323173 Contact Us For Availability
26
MAY W10495645 MAY W10495645 Contact Us For Availability
26
MAY W10331955 MAY W10331955 Contact Us For Availability
27
MAY 2316859 MAY 2316859 Contact Us For Availability
27
SCREW MAY W10001160 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
THERMOSTAT MAY 627985 Contact Us For Availability
28
LOCK, BUSHING MAY 2004994 Contact Us For Availability
28
ASSEMBLY, THERMISTOR MAY 2317844 Contact Us For Availability
28
VALVE TUBE, BODY MAY 2171931 Contact Us For Availability
28
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
28
MAY W10001280 MAY W10001280 Contact Us For Availability
29
MAY W10337505 MAY W10337505 Contact Us For Availability
29
MAY 2188820 MAY 2188820 Contact Us For Availability
29
WIRE ASSEMBLY MAY 2310164 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
Air Baffle Assembly MAY 2221296 Contact Us For Availability
30
MAY W10624944 MAY W10624944 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) MAY 2209025B Contact Us For Availability
32
AIR DEFLECTOR ASSEMBLY MAY W10135430 Contact Us For Availability
33
BUSHING, HINGE MAY 2314023 Contact Us For Availability
33
Lens, Receiver MAY 2198643 Contact Us For Availability
33
TOP COVER, CONDENSER MAY W10525175 Contact Us For Availability
34
MAY 2325188B MAY 2325188B Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
35
COVER-ASSEMBLY, AIR DUCT MAY W10426957 Contact Us For Availability
35
MAY W10321055 MAY W10321055 Contact Us For Availability
36
ARM, EXTENSION (LEFT HAND) MAY 2266881 Contact Us For Availability
36
ARM, EXTENSION (RIGHT HAND) MAY 2266882 Contact Us For Availability
36
Clamp, Power Cord MAY 549193 Contact Us For Availability
37
BRACKET, SWITCH (LEFT HAND) MAY 2221096 Contact Us For Availability
37
BRACKET, SWITCH (RIGHT HAND) MAY 2221097 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
MAY 2215938 MAY 2215938 Contact Us For Availability
38
SCREW MAY 487294 Contact Us For Availability
39
MAY 2260518B MAY 2260518B Contact Us For Availability
39
MAY W10427101 MAY W10427101 Contact Us For Availability
40
MAY 8533913 MAY 8533913 Contact Us For Availability
41
Clamp, Tube MAY 489348 Contact Us For Availability
42
MAY W10005050 MAY W10005050 Contact Us For Availability
42
CONTROL, ELECTRONIC MAY W10356040 Contact Us For Availability
43
BRACKET, FILTER MAY W10348782 Contact Us For Availability
43
MAY W10483905 MAY W10483905 Contact Us For Availability
44
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
45
MAY 2260503B MAY 2260503B Contact Us For Availability
46
MAY 2318189 MAY 2318189 Contact Us For Availability
47
MAY 8533980 MAY 8533980 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL (2 OZ) MAY 8537055 Contact Us For Availability
× ![]()
