Model Maytag JF42SSFXDA00 REFRIGERATOR – Common Parts & Diagrams

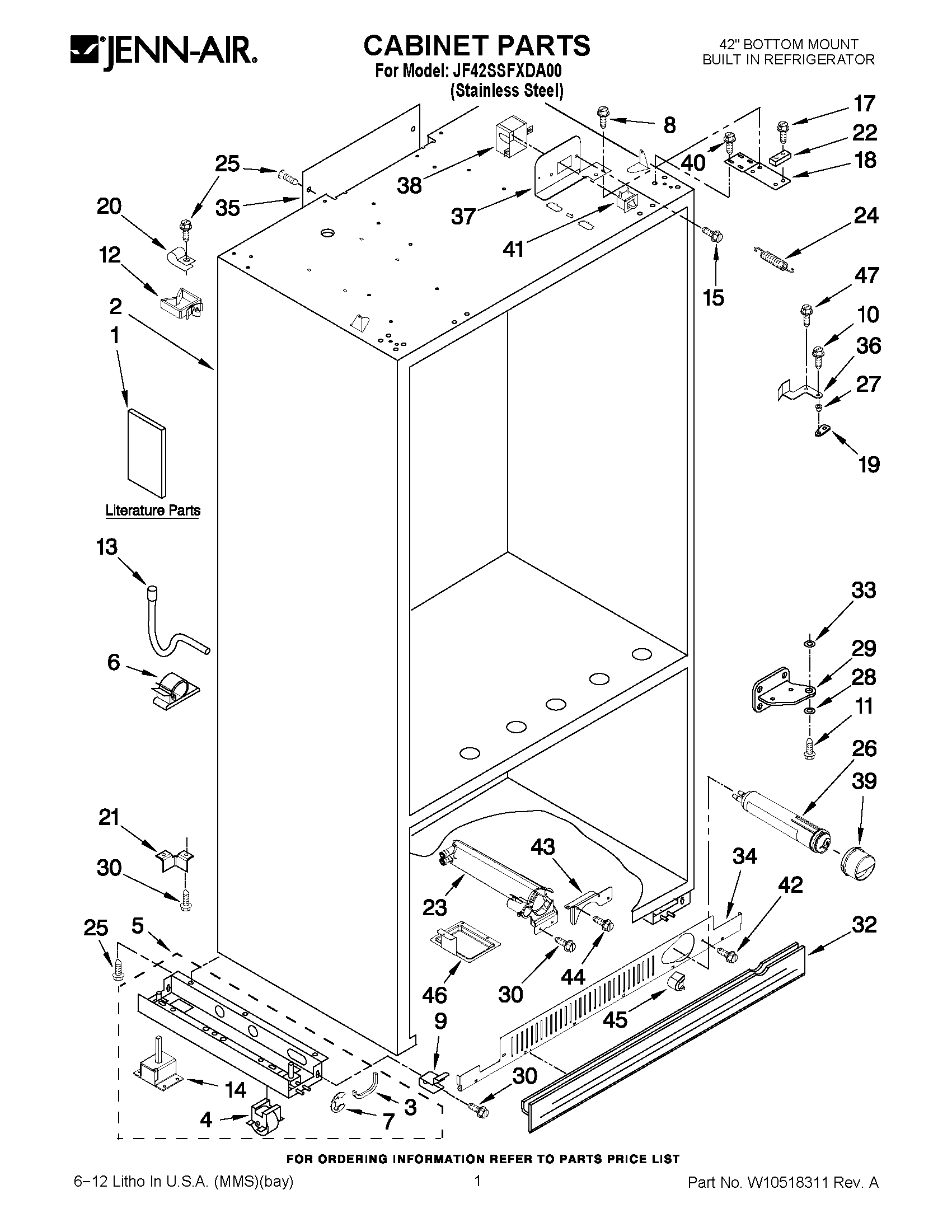

01 - CABINET PARTS

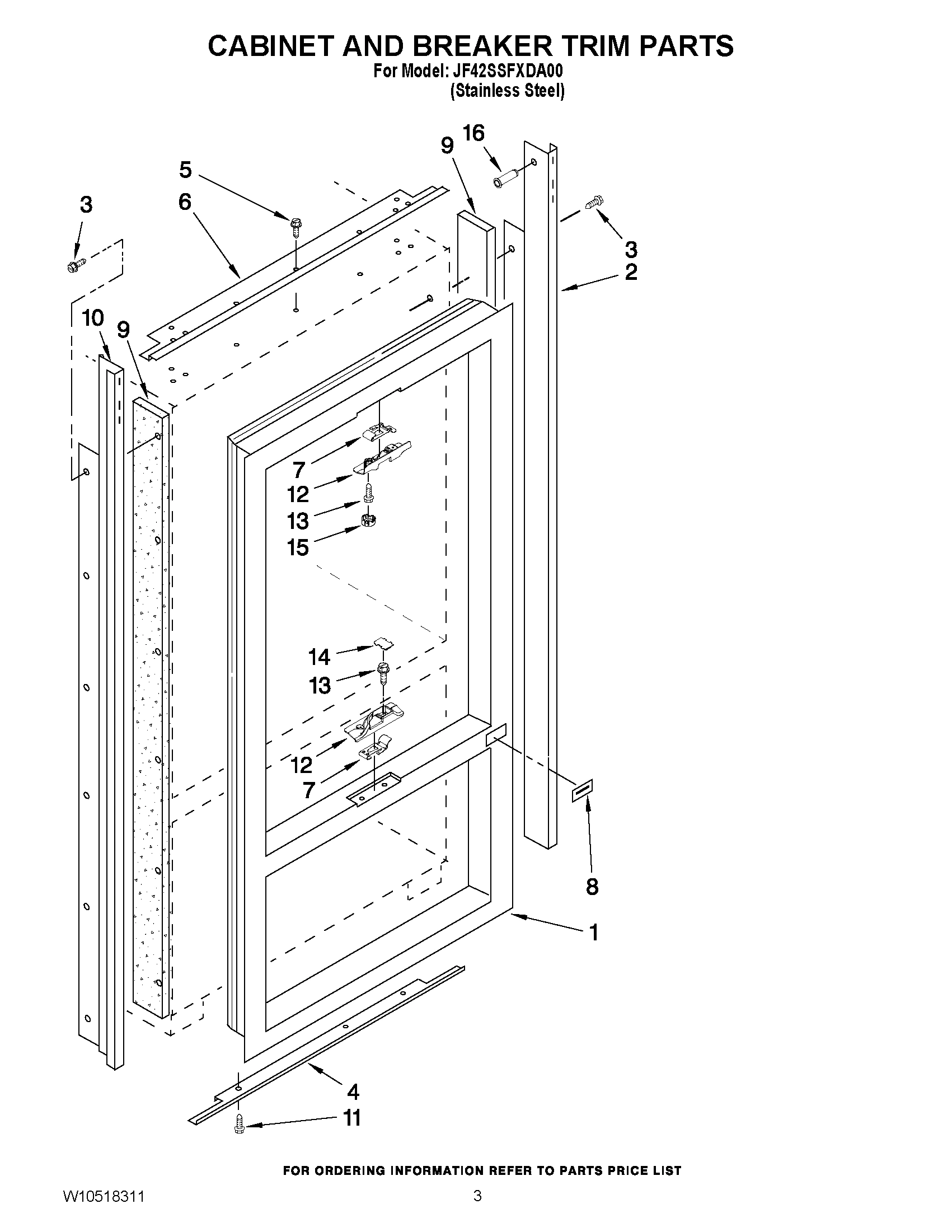

02 - CABINET AND BREAKER TRIM PARTS

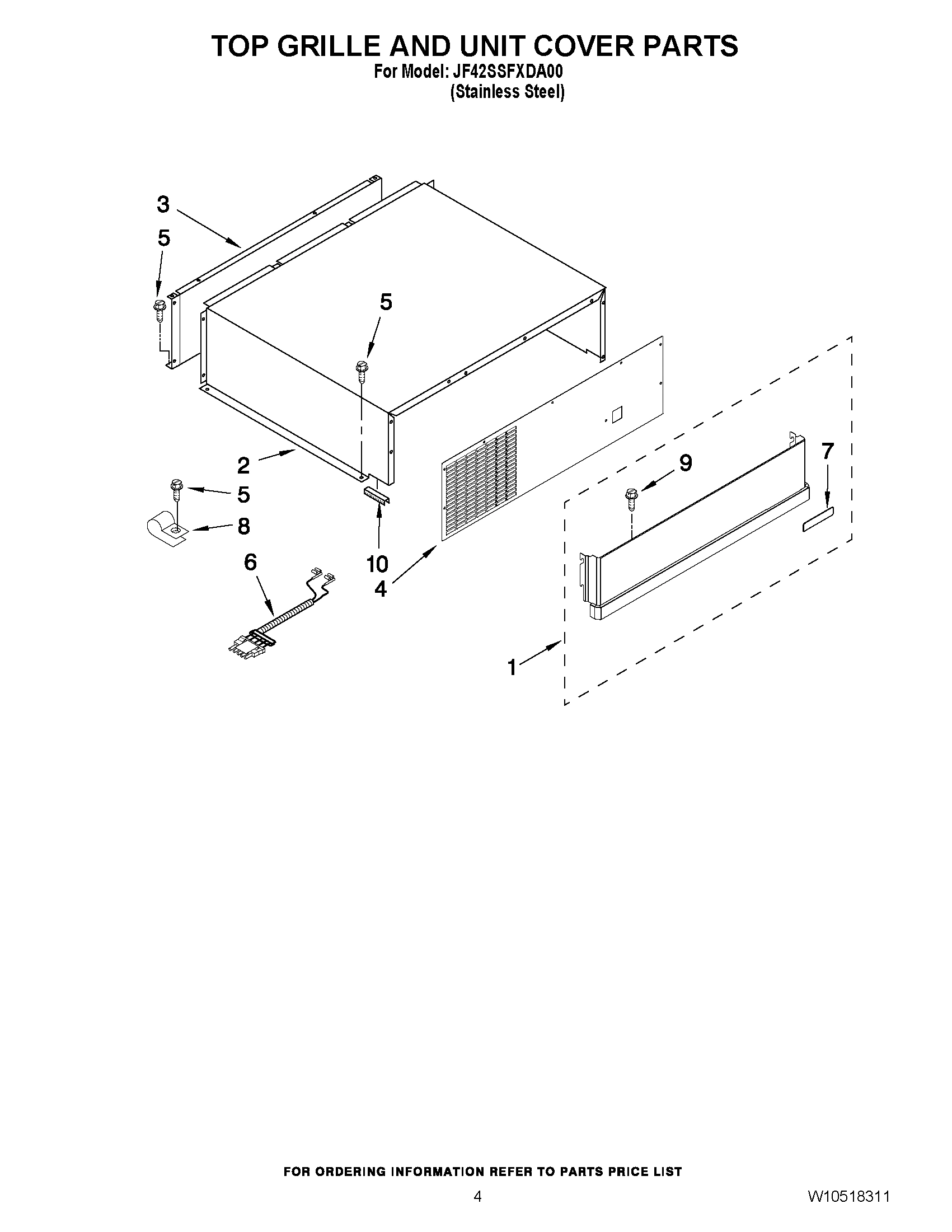

03 - TOP GRILLE AND UNIT COVER PARTS

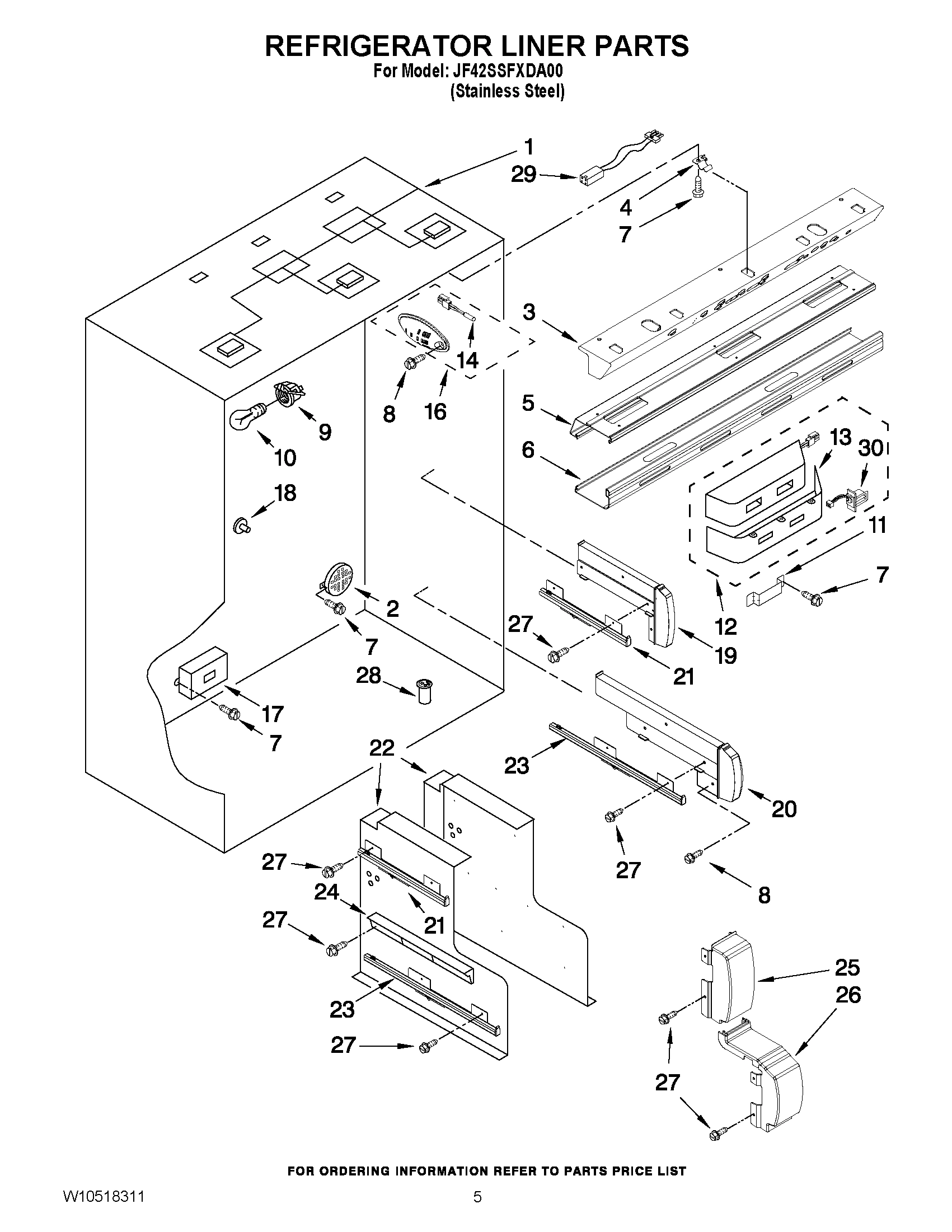

04 - REFRIGERATOR LINER PARTS

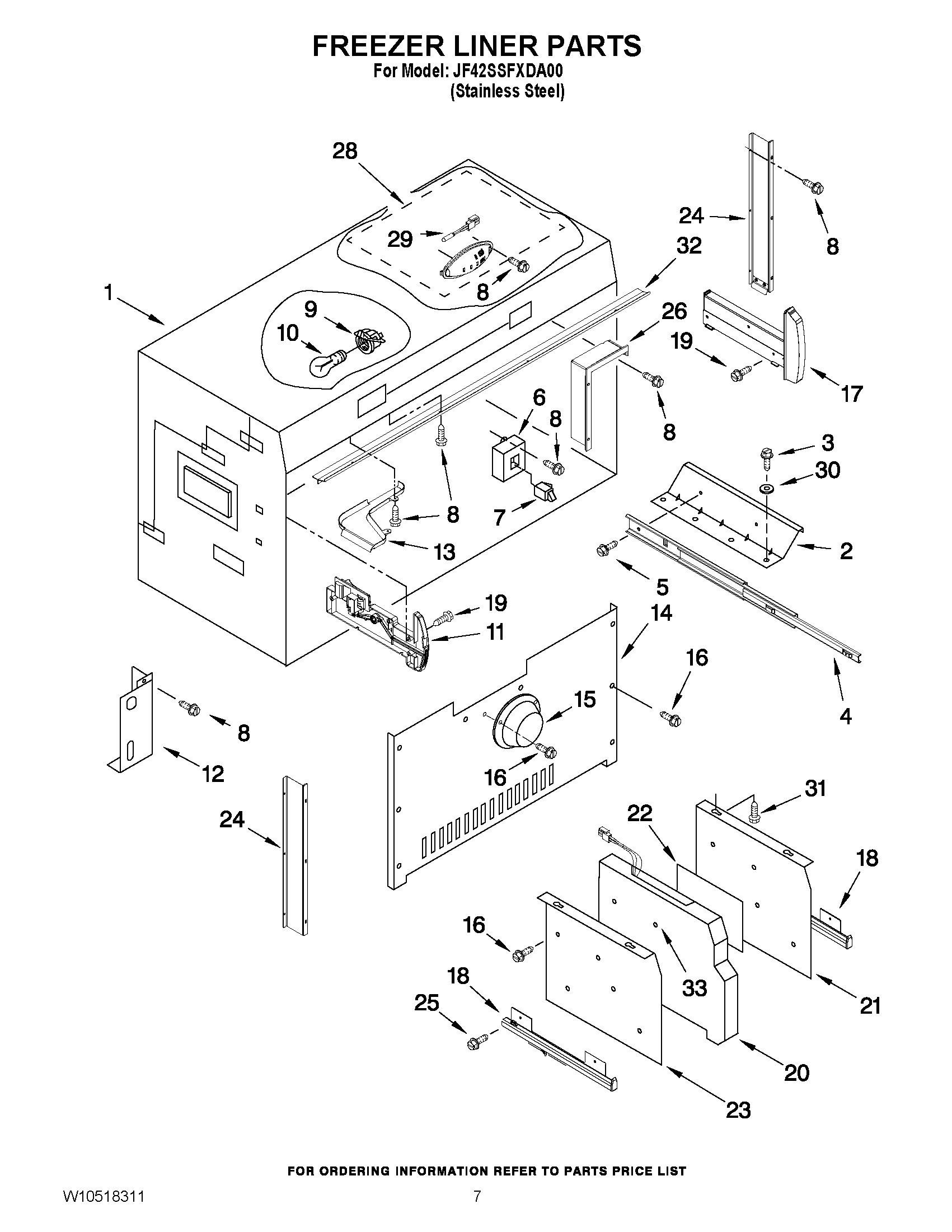

05 - FREEZER LINER PARTS

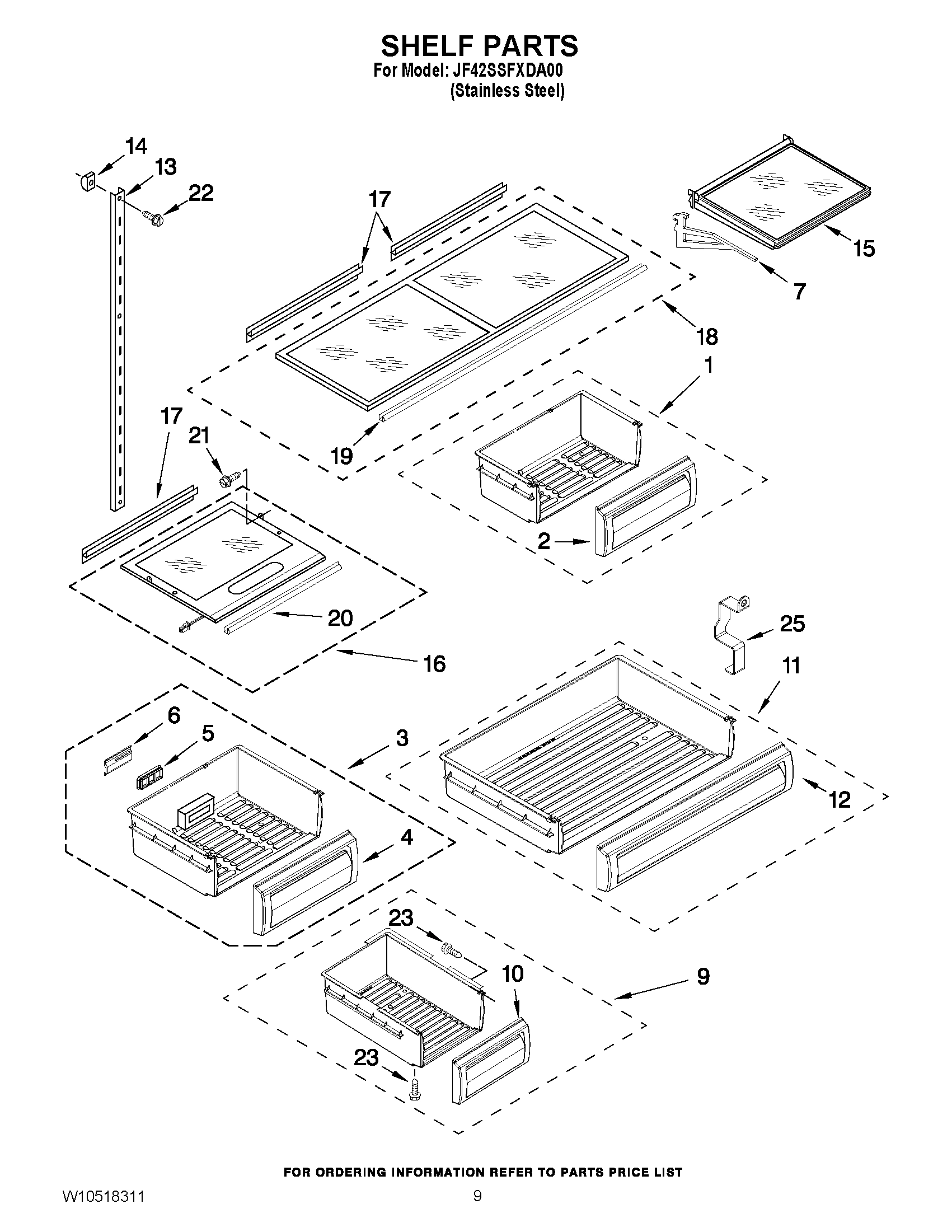

06 - SHELF PARTS

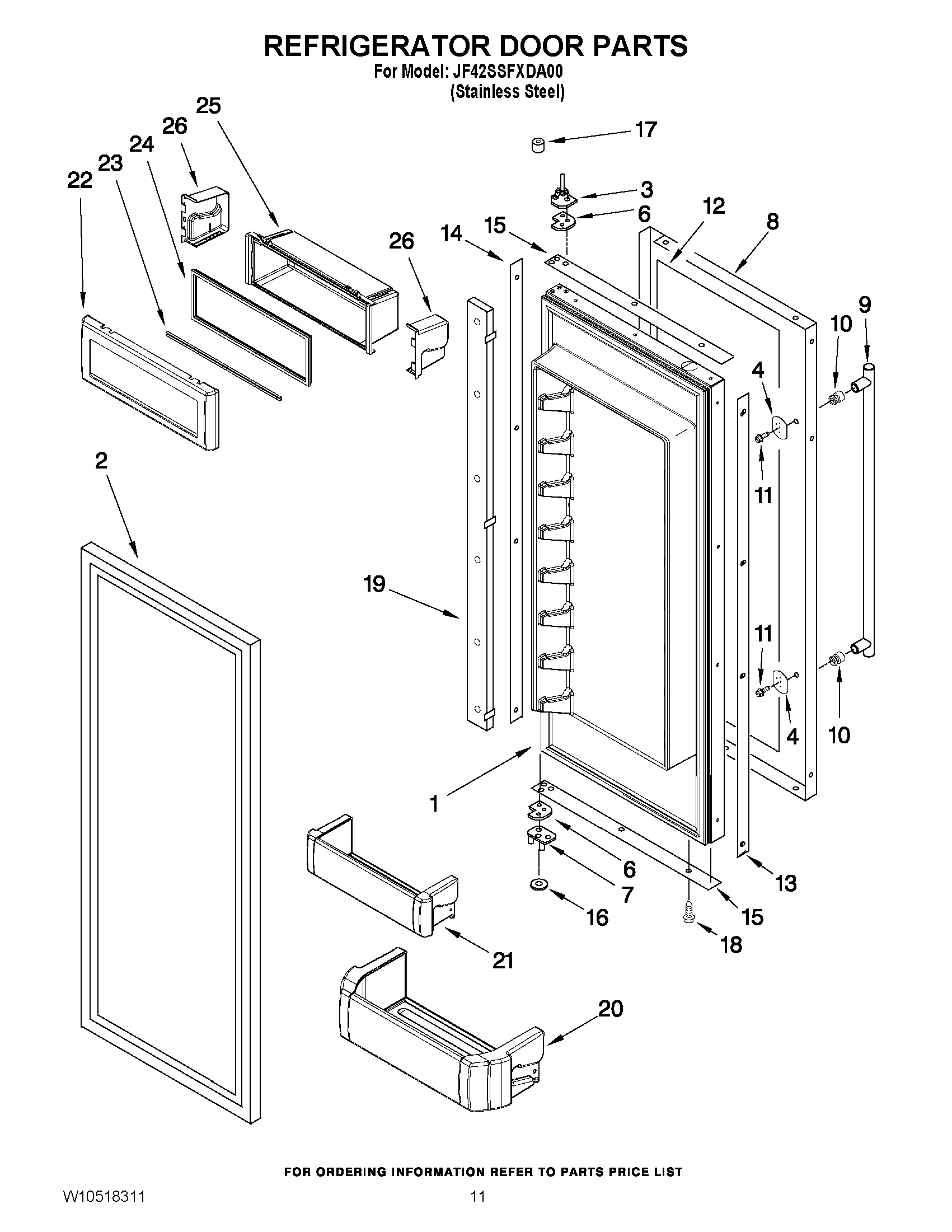

07 - REFRIGERATOR DOOR PARTS

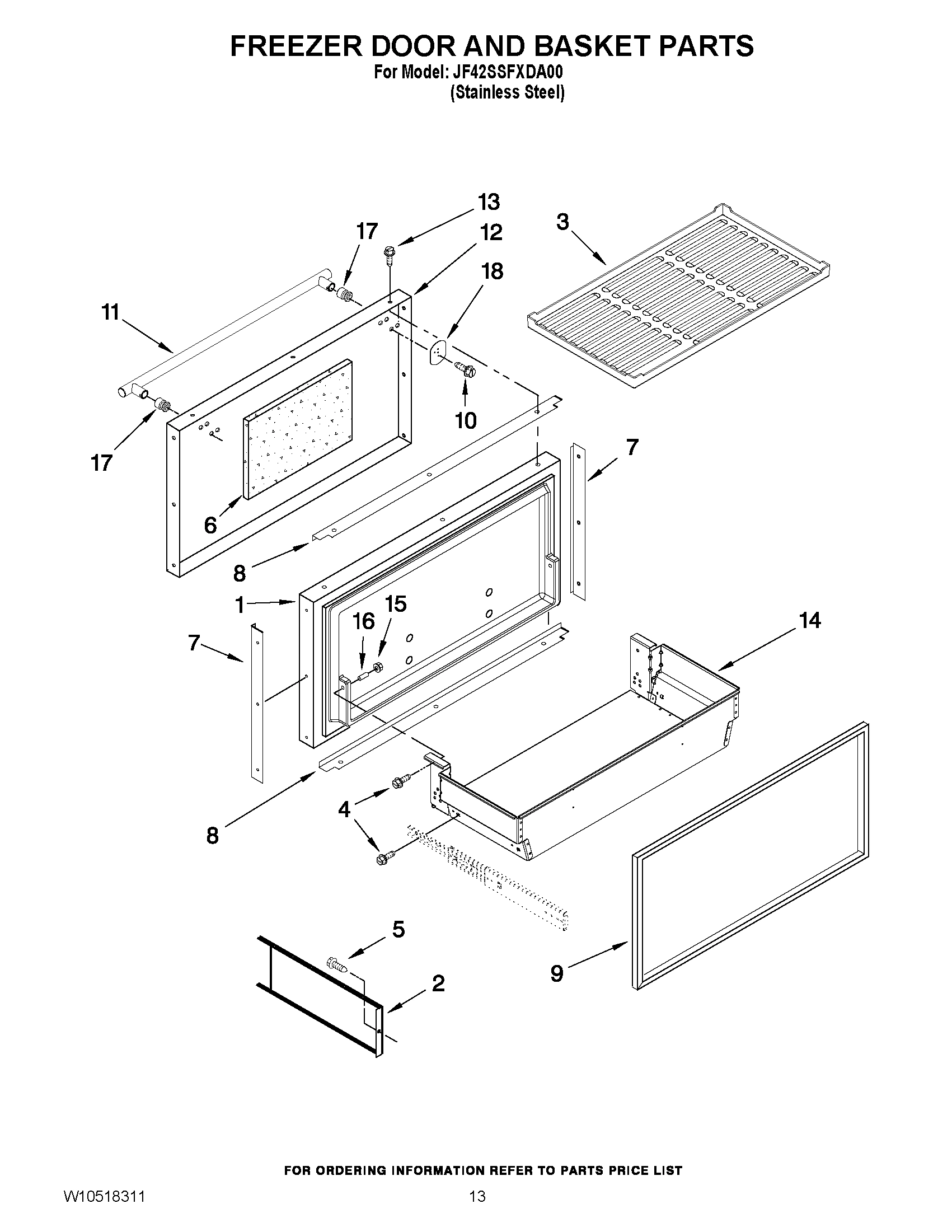

08 - FREEZER DOOR AND BASKET PARTS

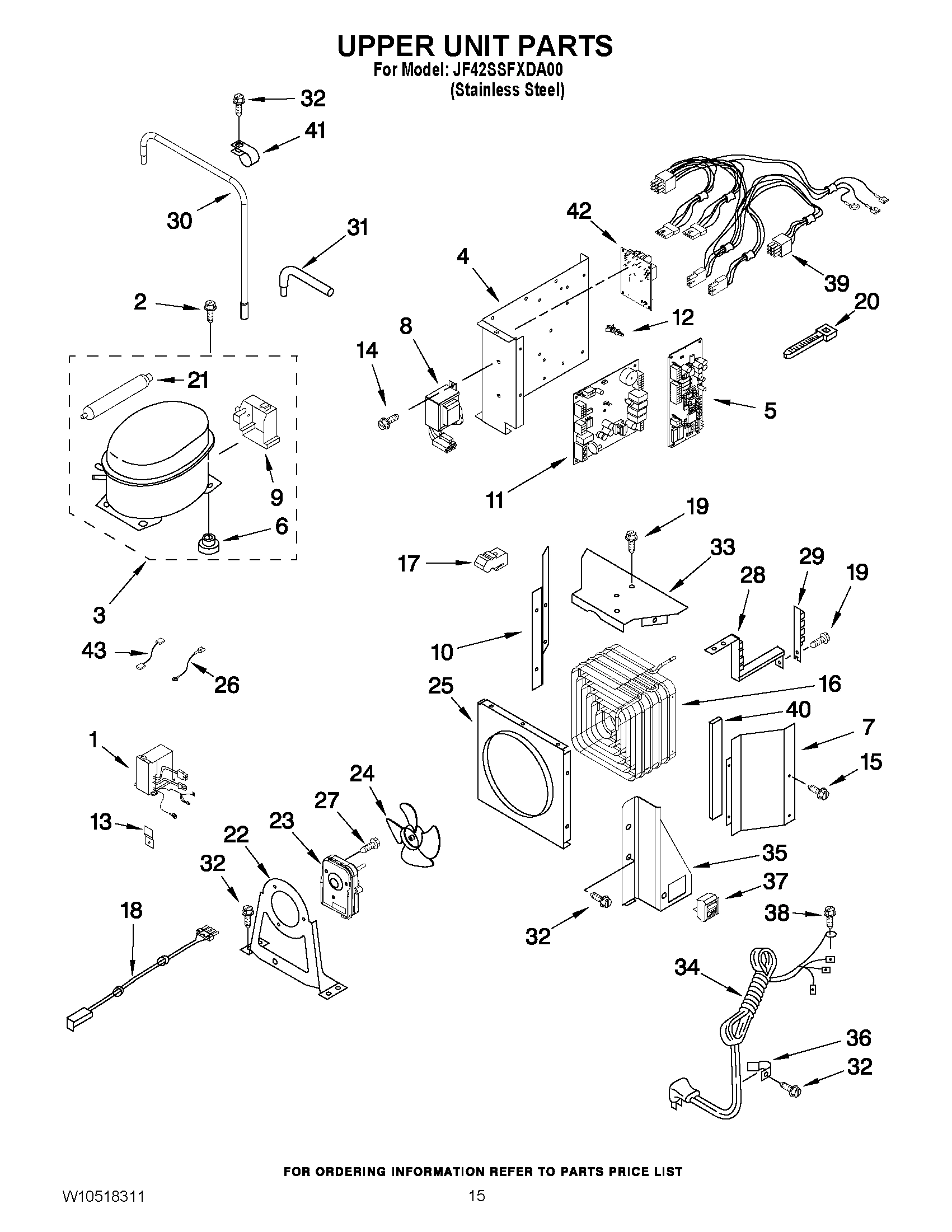

09 - UPPER UNIT PARTS

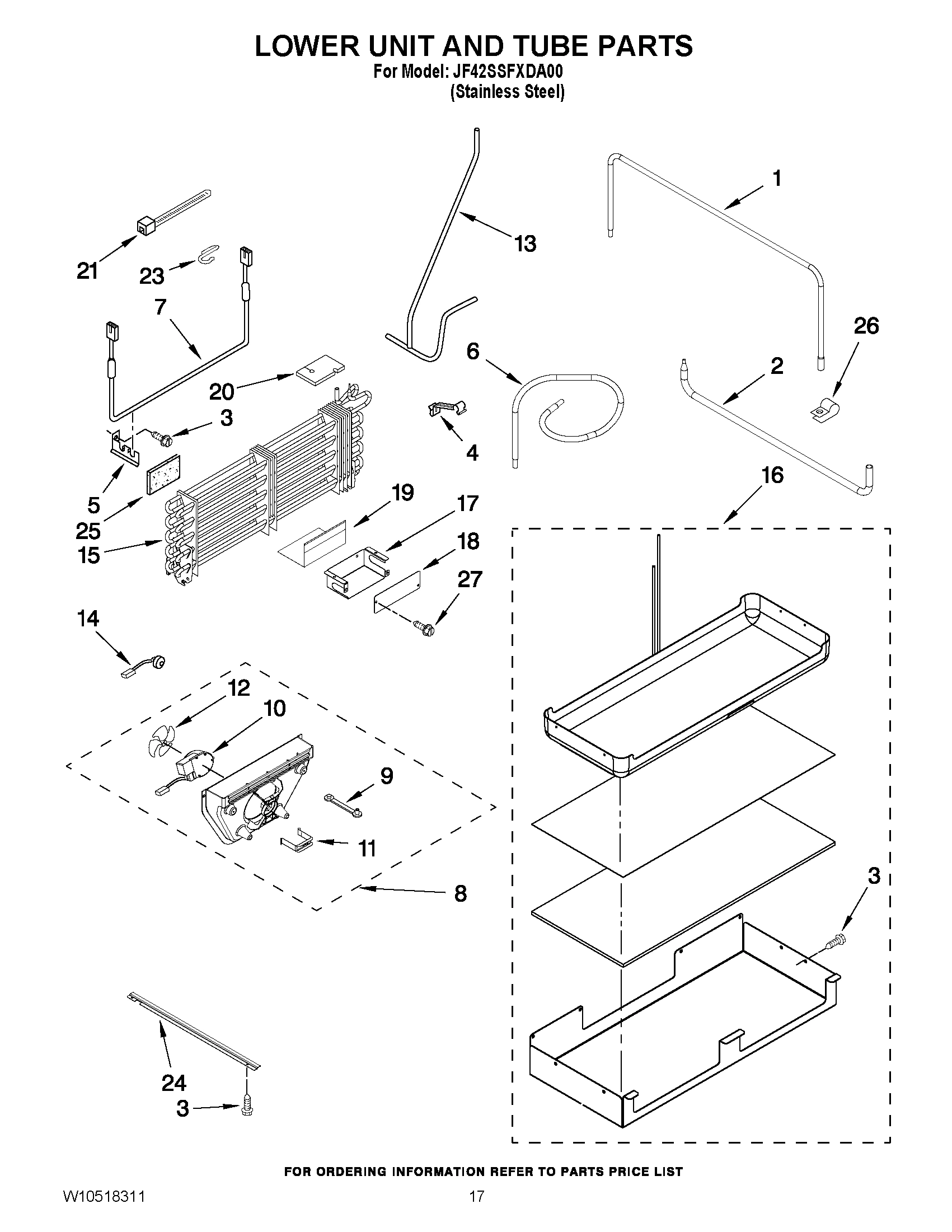

10 - LOWER UNIT AND TUBE PARTS

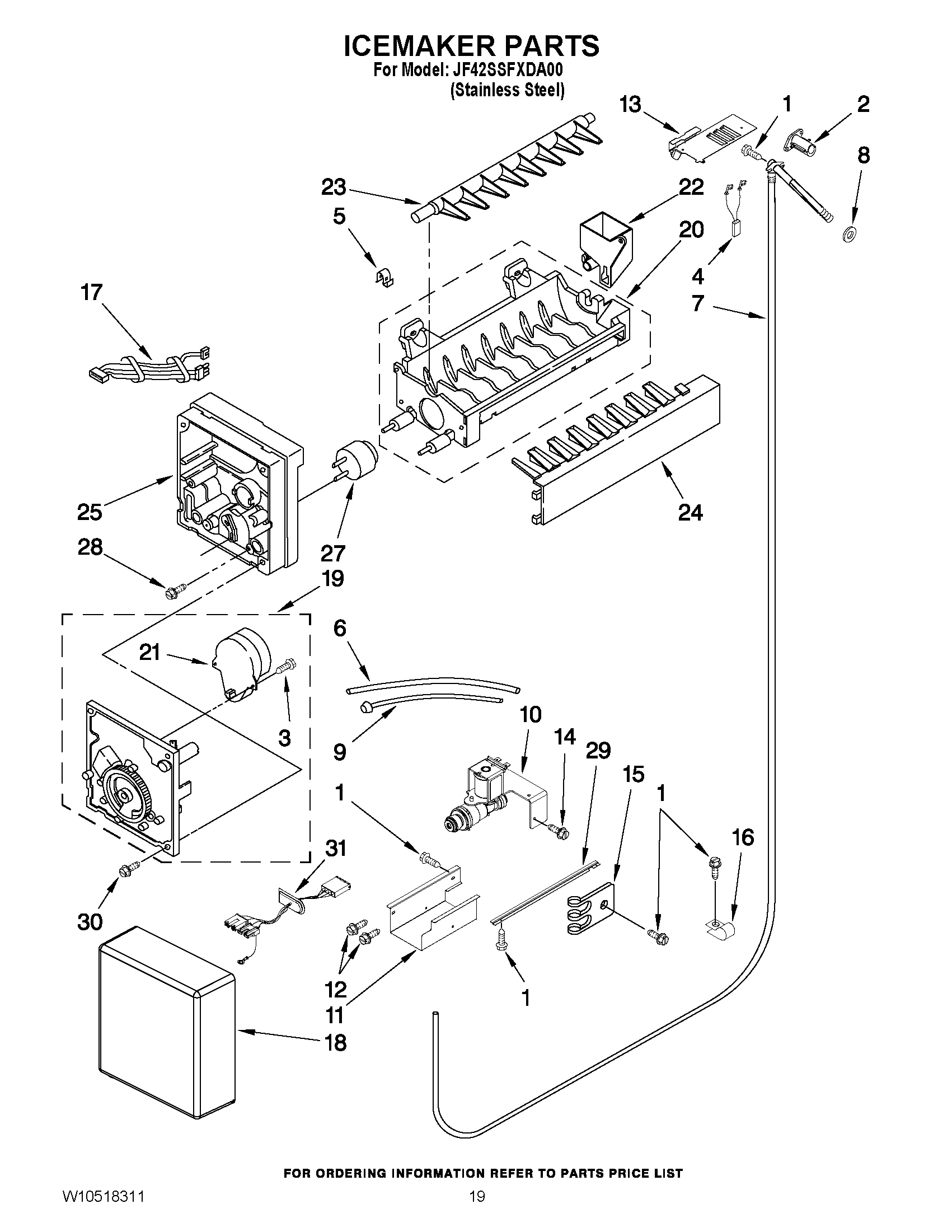

11 - ICEMAKER PARTS
Common parts from model Maytag JF42SSFXDA00 REFRIGERATOR
1
MAY 2317840 MAY 2317840 Contact Us For Availability
1
MAY W10183782 MAY W10183782 Contact Us For Availability
1
MAY W10183787 MAY W10183787 Contact Us For Availability
1
MAY W10469187 MAY W10469187 Contact Us For Availability
1
MAY W10477526 MAY W10477526 Contact Us For Availability
1
MAY W10512205 MAY W10512205 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
MAY W10321125 MAY W10321125 Contact Us For Availability
1
CRISPER PAN ASSEMBLY INCLUDES No. 2) (RIGHT) MAY W10407630 Contact Us For Availability
1
CRISPER PAN ASSEMBLY INCLUDES No. 2) (LEFT) MAY W10407631 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Right) MAY W10192508 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Left) MAY W10192510 Contact Us For Availability
1
FREEZER DOOR (INCLUDES No.9) MAY W10258747 Contact Us For Availability
1
INVERTER BOX MAY W10449006 Contact Us For Availability
1
MAY 2309072 MAY 2309072 Contact Us For Availability
2
Cabinet, Trim (Right Side) MAY W10132472 Contact Us For Availability
2
Cover, Unit MAY W10188580 Contact Us For Availability
2
Cover, Air Return (2) MAY 2317004 Contact Us For Availability
2
MOUNTING BRACKET, DRAWER SLIDE (2) MAY W10423553 Contact Us For Availability
2
MAY 2256247 MAY 2256247 Contact Us For Availability
2
MAY 2268265 MAY 2268265 Contact Us For Availability
2
Divider, Basket (2) MAY 2317101 Contact Us For Availability
2
Screw, Compressor Mounting (4) MAY 489373 Contact Us For Availability
2
MAY W10388653 MAY W10388653 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
Back Panel MAY 2256466 Contact Us For Availability
3
MAY W10481163 MAY W10481163 Contact Us For Availability
3
MAY W10071460 MAY W10071460 Contact Us For Availability
3
DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (RIGHT) MAY W10407633 Contact Us For Availability
3
DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (LEFT) MAY W10407635 Contact Us For Availability
3
MAY 2320642 MAY 2320642 Contact Us For Availability
3
MAY W10183770 MAY W10183770 Contact Us For Availability
3
Compressor Assy (Includes Items 6, 9 & 21) (A MAY 2302967 Contact Us For Availability
3
Screw (2) MAY 489136 Contact Us For Availability
4
Roller, Front & Rear (4) MAY W10138054 Contact Us For Availability
4
Cabinet, Trim (Bottom) MAY 2316687 Contact Us For Availability
4
MAY W10185625 MAY W10185625 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
DRAWER SLIDE, FREEZER BASKET (2) MAY W10423551 Contact Us For Availability
4
MAY 2256365 MAY 2256365 Contact Us For Availability
4
Screw, 5/16-24 x 1 MAY W10135775 Contact Us For Availability
4
MAY W10321056 MAY W10321056 Contact Us For Availability
4
CLIP MAY 2307944 Contact Us For Availability
4
MAY 2310108 MAY 2310108 Contact Us For Availability
5
Support, Leveler Assembly (Refrigerator Side) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (FREEZER SIDE) MAY W10279275 Contact Us For Availability
5
MAY 2324969 MAY 2324969 Contact Us For Availability
5
MAY W10061370 MAY W10061370 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
MAY W10135792 MAY W10135792 Contact Us For Availability
5
MAY 2303091 MAY 2303091 Contact Us For Availability
5
Bracket, Mounting MAY 2307945 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
Clip, Conduit MAY 2004514 Contact Us For Availability
6
Cabinet, Trim Top MAY 2314017 Contact Us For Availability
6
MAY 2187946 MAY 2187946 Contact Us For Availability
6
MAY 2309248 MAY 2309248 Contact Us For Availability
6
MAY W10234211 MAY W10234211 Contact Us For Availability
6
MAY 2317939 MAY 2317939 Contact Us For Availability
6
Spacer-Hinge MAY 2316804 Contact Us For Availability
6
MAY 2309219 MAY 2309219 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
MAY W10431124 MAY W10431124 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
Rong, Retainer MAY 2006841 Contact Us For Availability
7
Switch, Rocker MAY 1118894 Contact Us For Availability
7
MAY 2316857 MAY 2316857 Contact Us For Availability
7
MAY 2316858 MAY 2316858 Contact Us For Availability
7
NAMEPLATE MAY W10214168 Contact Us For Availability
7
MAY W10187549 MAY W10187549 Contact Us For Availability
7
MAY W10273367 MAY W10273367 Contact Us For Availability
7
MAY W10273369 MAY W10273369 Contact Us For Availability
7
SPACER, DOOR EDGE (SIDE) MAY W10340330 Contact Us For Availability
7
SUPPORT, CONDENSER (RIGHT) MAY W10415668 Contact Us For Availability
7
MAY W10219166 MAY W10219166 Contact Us For Availability
7
Tube Assembly, Water Inlet MAY 2317847 Contact Us For Availability
8
MAY 8281164 MAY 8281164 Contact Us For Availability
8
MAY 2005782 MAY 2005782 Contact Us For Availability
8
MAY W10491169 MAY W10491169 Contact Us For Availability
8
MAY 2309221 MAY 2309221 Contact Us For Availability
8
MAY 2303033 MAY 2303033 Contact Us For Availability
8
MAY W10321092 MAY W10321092 Contact Us For Availability
8
MAY 1106508 MAY 1106508 Contact Us For Availability
9
Mounting Bracket, Grille MAY 2307640 Contact Us For Availability
9
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
9
MAY W10191429 MAY W10191429 Contact Us For Availability
9
ICE PAN ASSEMBLY (INCLUDES No. 10) MAY 2306174 Contact Us For Availability
9
HANDLE, DOOR (2) MAY W10298244 Contact Us For Availability
9
MAY W10192907 MAY W10192907 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
MAY W10321090 MAY W10321090 Contact Us For Availability
9
MAY W10437853 MAY W10437853 Contact Us For Availability
10
MAY W10485630 MAY W10485630 Contact Us For Availability
10
Cabinet Trim (Left Side) MAY W10132541 Contact Us For Availability
10
GROMMET MAY 2215910 Contact Us For Availability
10
Bulb, Light MAY 2326255 Contact Us For Availability
10
Front, Ice Pan MAY 2306175 Contact Us For Availability
10
MAY 308544 MAY 308544 Contact Us For Availability
10
SUPPORT, CONDENSER (LEFT) MAY W10415666 Contact Us For Availability
10
MAY W10436861 MAY W10436861 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
Screw 8-32 x 1/4 MAY 488234 Contact Us For Availability
11
SCREW 8-18 X 1/2 MAY W10001250 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
SWITCH ASSEMBLY, ICEMAKER (INCLUDES EMITTER) MAY W10321131 Contact Us For Availability
11
FREEZER PAN ASSEMBLY (INCLUDES No. 12) MAY 2327511 Contact Us For Availability
11
HANDLE, DOOR MAY W10298179 Contact Us For Availability
11
CONTROL BOARD MAY W10427079 Contact Us For Availability
11
MAY W10260421 MAY W10260421 Contact Us For Availability
11
MAY W10129653 MAY W10129653 Contact Us For Availability
12
Clip (6) MAY W10129069 Contact Us For Availability
12
MAY 489464 MAY 489464 Contact Us For Availability
12
MAY 2309230 MAY 2309230 Contact Us For Availability
12
MAY 2309231 MAY 2309231 Contact Us For Availability
12
MAY 2320523 MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
MAY 2256367 MAY 2256367 Contact Us For Availability
12
MAY 2309218 MAY 2309218 Contact Us For Availability
12
MAY W10259225 MAY W10259225 Contact Us For Availability
12
Spacer (9) MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
Cover, Diffuser MAY 2320519 Contact Us For Availability
13
MAY 2317005 MAY 2317005 Contact Us For Availability
13
LADDER, SHELF (SIDE) MAY W10213472 Contact Us For Availability
13
LADDER, SHELF (CENTER) MAY W10246602 Contact Us For Availability
13
MAY 2314068 MAY 2314068 Contact Us For Availability
13
Screw, 8-15 x 1/2 MAY 8281250 Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY W10404239 MAY W10404239 Contact Us For Availability
13
Heat Shield MAY 2221231 Contact Us For Availability
14
LEVELER ASSY MAY 2005032 Contact Us For Availability
14
Screw MAY 487415 Contact Us For Availability
14
MAY 2316899 MAY 2316899 Contact Us For Availability
14
MAY 2306100 MAY 2306100 Contact Us For Availability
14
Support, Ladder MAY 520965 Contact Us For Availability
14
MAY 2316768 MAY 2316768 Contact Us For Availability
14
MAY W10258183 MAY W10258183 Contact Us For Availability
14
MAY W10139165 MAY W10139165 Contact Us For Availability
14
Screw, 8-18 x 1/2 MAY 304392 Contact Us For Availability
15
MAY 2317078 MAY 2317078 Contact Us For Availability
15
MAY 2317829 MAY 2317829 Contact Us For Availability
15
SHELF (4) MAY W10198701 Contact Us For Availability
15
MAY 2309204 MAY 2309204 Contact Us For Availability
15
MAY 2207454 MAY 2207454 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
EVAPORATOR (INCLUDES No.5 & 7) MAY W10195924 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
16
Nutsert (4) MAY W10121451 Contact Us For Availability
16
SCREW MAY 487539 Contact Us For Availability
16
MAY W10183755 MAY W10183755 Contact Us For Availability
16
MAY W10183756 MAY W10183756 Contact Us For Availability
16
WASHER MAY 2006346 Contact Us For Availability
16
MAY W10001190 MAY W10001190 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
MAY W10281063 MAY W10281063 Contact Us For Availability
16
Clamp, Tubing MAY 488946 Contact Us For Availability
17
MAY W10005070 MAY W10005070 Contact Us For Availability
17
MAY 2268249 MAY 2268249 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
MAY 2309400 MAY 2309400 Contact Us For Availability
17
STUD, MOUNTING HANDLE MAY W10168981 Contact Us For Availability
17
MAY 2316760 MAY 2316760 Contact Us For Availability
17
MAY 2309431 MAY 2309431 Contact Us For Availability
17
COVER, BOX MAY W10316077 Contact Us For Availability
17
MAY 2310136 MAY 2310136 Contact Us For Availability
18
MAY 2316759 MAY 2316759 Contact Us For Availability
18
STUD, SHELF MAY W10173127 Contact Us For Availability
18
Slide, Freezer Bin (Right (2)) MAY 2306116 Contact Us For Availability
18
Slide, Freezer Bin (Left (2)) MAY 2306117 Contact Us For Availability
18
MAY W10183754 MAY W10183754 Contact Us For Availability
18
Plate, Door-Handle MAY W10127710 Contact Us For Availability
18
MAY 2310207 MAY 2310207 Contact Us For Availability
18
COVER, WIRING MAY W10321048 Contact Us For Availability
18
COVER MAY W10289690 Contact Us For Availability
19
Cam-Closer, Door MAY 2320509 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
MAY 2268331 MAY 2268331 Contact Us For Availability
19
MAY 2268332 MAY 2268332 Contact Us For Availability
19
MAY 2309396 MAY 2309396 Contact Us For Availability
19
MAY 2307938 MAY 2307938 Contact Us For Availability
19
COVER, WIRE MAY W10321050 Contact Us For Availability
19
Module Assembly (Includes Items 3 & 21) MAY 626691 Contact Us For Availability
20
MAY 2306474 MAY 2306474 Contact Us For Availability
20
MAY 2306475 MAY 2306475 Contact Us For Availability
20
DIVIDER, FREEZER BINS (INCLUDESRECEIVER) MAY W10290822 Contact Us For Availability
20
MAY 2309395 MAY 2309395 Contact Us For Availability
20
BUCKET, GALLON MAY W10323746 Contact Us For Availability
20
MAY 2306180 MAY 2306180 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.19) MAY N/P Contact Us For Availability
21
Bracket, Support Door MAY 2006617 Contact Us For Availability
21
MAY 2302952 MAY 2302952 Contact Us For Availability
21
MAY 2302953 MAY 2302953 Contact Us For Availability
21
Support, Slide (Right) MAY 2306104 Contact Us For Availability
21
MAY 8281251 MAY 8281251 Contact Us For Availability
21
BUCKET, SHALLOW MAY W10323598 Contact Us For Availability
21
Wire Tie MAY 2155774 Contact Us For Availability
21
Drier MAY W10143759 Contact Us For Availability
22
MAY 2316758 MAY 2316758 Contact Us For Availability
22
MAY 2320550 MAY 2320550 Contact Us For Availability
22
MAY 2320551 MAY 2320551 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
SCREW MAY 2006475 Contact Us For Availability
22
MAY W10131132 MAY W10131132 Contact Us For Availability
22
MAY W10414681 MAY W10414681 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
MAY W10121140 MAY W10121140 Contact Us For Availability
23
MAY 2302956 MAY 2302956 Contact Us For Availability
23
MAY 2302957 MAY 2302957 Contact Us For Availability
23
Support, Slide (Left) MAY 2306105 Contact Us For Availability
23
MAY 488886 MAY 488886 Contact Us For Availability
23
MAY 2222795 MAY 2222795 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
Clip, Heater MAY 2317920 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
Spring, Door Closure MAY 2221242 Contact Us For Availability
24
MAY 2314054 MAY 2314054 Contact Us For Availability
24
MAY 2317893 MAY 2317893 Contact Us For Availability
24
MAY 2320512 MAY 2320512 Contact Us For Availability
24
MAY 2222981 MAY 2222981 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
Bracket, Drain Pan MAY 2320554 Contact Us For Availability
24
ICE STRIPPER MAY W10122563 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
MAY 2309083 MAY 2309083 Contact Us For Availability
25
MAY 2327393 MAY 2327393 Contact Us For Availability
25
MAY 2327394 MAY 2327394 Contact Us For Availability
25
MAY W10323035 MAY W10323035 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
INSULATION, SOUND MAY 2169104 Contact Us For Availability
25
Support MAY 2194712 Contact Us For Availability
26
Clamp, Tube MAY 489348 Contact Us For Availability
26
Filter, Water MAY W10121146 Contact Us For Availability
26
MAY 2318008 MAY 2318008 Contact Us For Availability
26
MAY W10121940 MAY W10121940 Contact Us For Availability
26
MAY W10323172 MAY W10323172 Contact Us For Availability
26
MAY W10323173 MAY W10323173 Contact Us For Availability
26
INVERTER GROUND MAY W10495645 Contact Us For Availability
27
Bushing-Arm, Extension MAY 2316859 Contact Us For Availability
27
Screw, 8-32 x 1/2 MAY W10001160 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
Thermostat (Also Order 542639 Cement Alumilas MAY 627985 Contact Us For Availability
28
MAY 2004994 MAY 2004994 Contact Us For Availability
28
MAY 2317844 MAY 2317844 Contact Us For Availability
28
VALVE TUBE, BODY MAY 2171931 Contact Us For Availability
28
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
28
MAY W10001280 MAY W10001280 Contact Us For Availability
29
HINGE, BOTTOM REFRIGERATOR DOOR MAY W10337505 Contact Us For Availability
29
MAY 2188820 MAY 2188820 Contact Us For Availability
29
MAY 2310164 MAY 2310164 Contact Us For Availability
29
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
ASSY, AIR BAFFLE MAY 2221296 Contact Us For Availability
30
MAY W10075920 MAY W10075920 Contact Us For Availability
30
MAY 2307566 MAY 2307566 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
Screw MAY 8533928 Contact Us For Availability
31
MAY 2194319 MAY 2194319 Contact Us For Availability
31
MAY W10279393 MAY W10279393 Contact Us For Availability
32
MAY 2209025B MAY 2209025B Contact Us For Availability
32
MAY W10135430 MAY W10135430 Contact Us For Availability
33
MAY 2314023 MAY 2314023 Contact Us For Availability
33
Lens, Receiver MAY 2198643 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
34
MAY 2325188B MAY 2325188B Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
35
COVER, AIR DUCT MAY W10426957 Contact Us For Availability
35
MAY W10321055 MAY W10321055 Contact Us For Availability
36
MAY 2266881 MAY 2266881 Contact Us For Availability
36
MAY 2266882 MAY 2266882 Contact Us For Availability
36
MAY 549193 MAY 549193 Contact Us For Availability
37
MAY 2221096 MAY 2221096 Contact Us For Availability
37
MAY 2221097 MAY 2221097 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
MAY 2215938 MAY 2215938 Contact Us For Availability
38
Screw, Ground MAY 487294 Contact Us For Availability
39
Cap, Water Filter MAY 2260518B Contact Us For Availability
39
MAY W10427101 MAY W10427101 Contact Us For Availability
40
MAY 8533913 MAY 8533913 Contact Us For Availability
40
MAY 2309432 MAY 2309432 Contact Us For Availability
42
Screw, 8-18 x 1/2 MAY W10005050 Contact Us For Availability
42
CONTROL, ELECTRIC MAY W10356040 Contact Us For Availability
43
BRACKET, MOUNTING (FILTER) MAY W10348782 Contact Us For Availability
43
INVERTER JUMPER MAY W10483905 Contact Us For Availability
44
Screw, 8-16 x 1/2 MAY 8281163 Contact Us For Availability
45
Button, Filter MAY 2260503B Contact Us For Availability
46
Tray, Drip Filter MAY 2318189 Contact Us For Availability
47
MAY 8533980 MAY 8533980 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
× ![]()
