Model Maytag JF42CXFXDB01 REFRIGERATOR – Common Parts & Diagrams

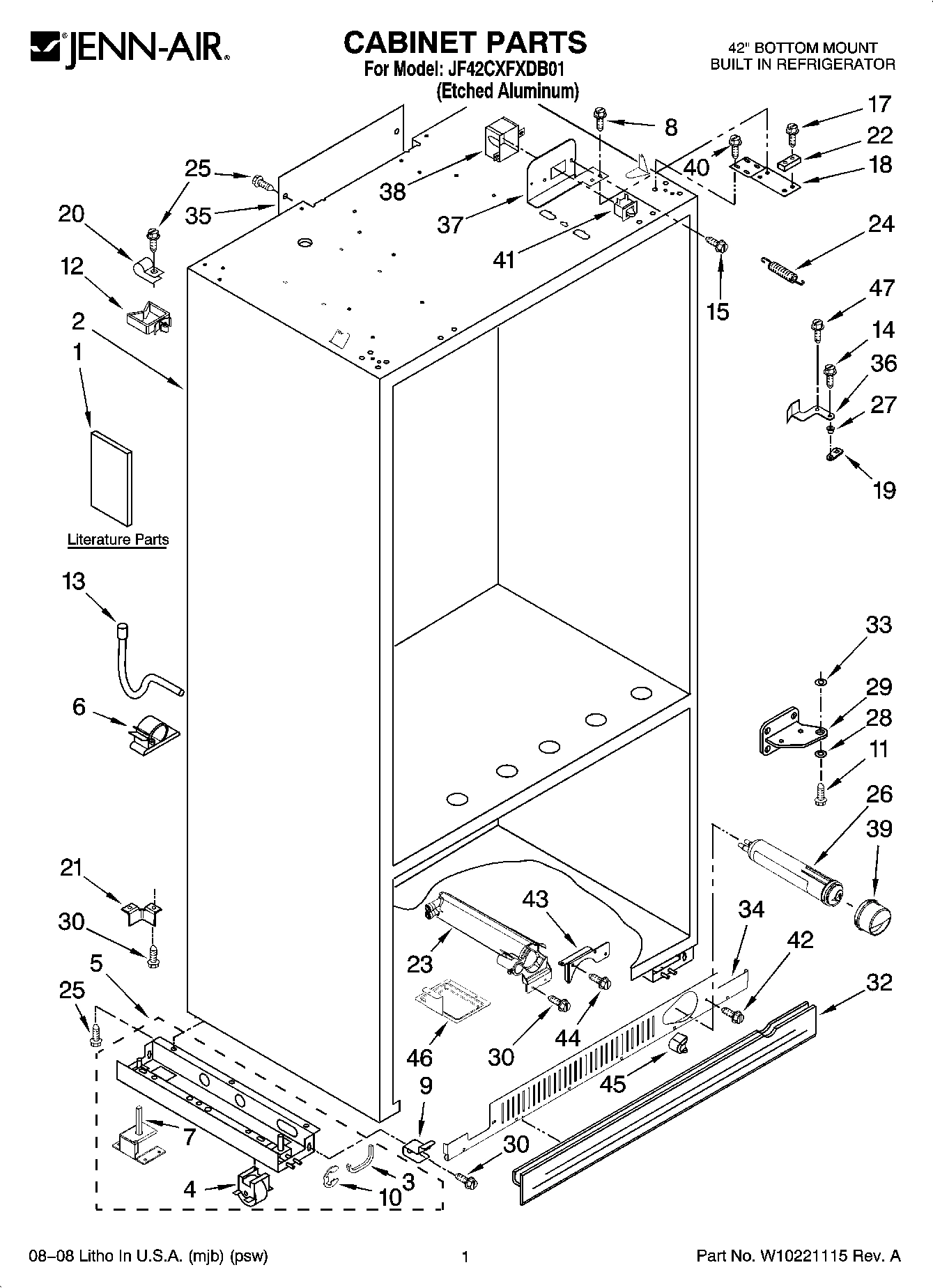

01 - CABINET PARTS

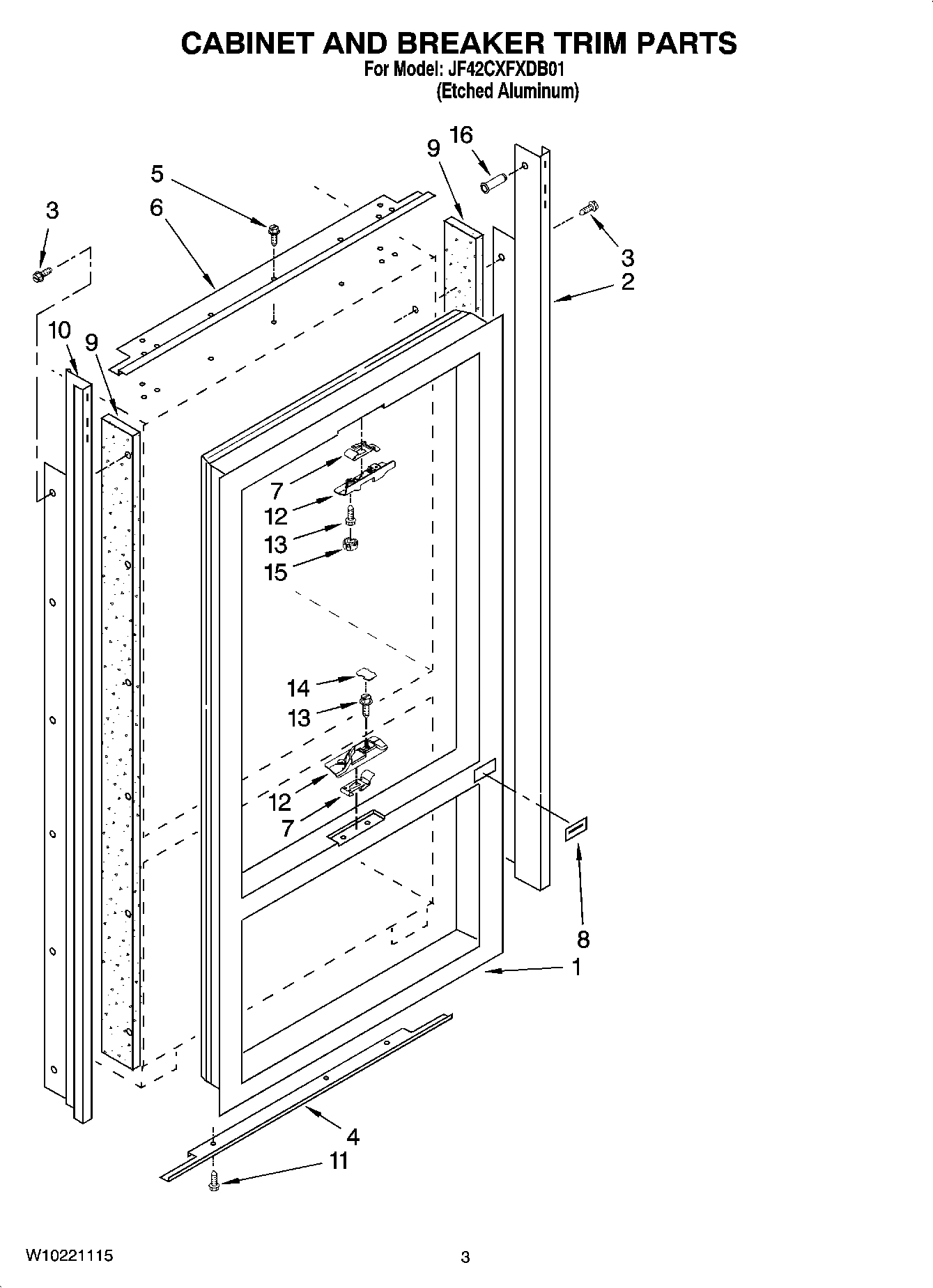

02 - CABINET AND BREAKER TRIM PARTS
03 - TOP GRILLE AND UNIT COVER PARTS
04 - REFRIGERATOR LINER PARTS
05 - FREEZER LINER PARTS
06 - SHELF PARTS
07 - REFRIGERATOR DOOR PARTS
08 - FREEZER DOOR AND BASKET PARTS
09 - UPPER UNIT PARTS
10 - LOWER UNIT AND TUBE PARTS
11 - ICEMAKER PARTS
Common parts from model Maytag JF42CXFXDB01 REFRIGERATOR
1
MAY 2317840 MAY 2317840 Contact Us For Availability
1
MAY 2317849 MAY 2317849 Contact Us For Availability
1
MAY W10183782 MAY W10183782 Contact Us For Availability
1
MAY W10183787 MAY W10183787 Contact Us For Availability
1
MAY W10197559 MAY W10197559 Contact Us For Availability
1
MAY W10205646 MAY W10205646 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
Top Grille Assembly MAY 2317080S Contact Us For Availability
1
MAY 2268171 MAY 2268171 Contact Us For Availability
1
MAY 2268173 MAY 2268173 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Right) MAY W10192508 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Left) MAY W10192510 Contact Us For Availability
1
MAY W10192032 MAY W10192032 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
MAY 2309072 MAY 2309072 Contact Us For Availability
2
MAY W10133679 MAY W10133679 Contact Us For Availability
2
MAY W10161693 MAY W10161693 Contact Us For Availability
2
Cover, Air Return (2) MAY 2317004 Contact Us For Availability
2
MAY 2306425 MAY 2306425 Contact Us For Availability
2
MAY 2256247 MAY 2256247 Contact Us For Availability
2
MAY 2268265 MAY 2268265 Contact Us For Availability
2
Divider, Basket (2) MAY 2317101 Contact Us For Availability
2
Screw, Compressor Mounting (4) MAY 489373 Contact Us For Availability
2
MAY 2309070 MAY 2309070 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
GROMMET MAY 2215910 Contact Us For Availability
3
MAY W10183797 MAY W10183797 Contact Us For Availability
3
MAY W10071460 MAY W10071460 Contact Us For Availability
3
MAY 2317940 MAY 2317940 Contact Us For Availability
3
MAY 2317941 MAY 2317941 Contact Us For Availability
3
MAY 2320642 MAY 2320642 Contact Us For Availability
3
MAY W10183770 MAY W10183770 Contact Us For Availability
3
Compressor (Includes Items 6, 9 & 21) (Also O MAY 2302967 Contact Us For Availability
3
Screw (2) MAY 489136 Contact Us For Availability
4
Roller, Front & Rear (4) MAY W10138054 Contact Us For Availability
4
Cabinet, Trim (Bottom) MAY 2316687 Contact Us For Availability
4
Back Panel MAY 2256466 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
MAY 2320616 MAY 2320616 Contact Us For Availability
4
MAY 2256365 MAY 2256365 Contact Us For Availability
4
Spacer-Hinge MAY 2316804 Contact Us For Availability
4
MAY 2307683 MAY 2307683 Contact Us For Availability
4
CLIP MAY 2307944 Contact Us For Availability
4
MAY 2310108 MAY 2310108 Contact Us For Availability
5
Support, Leveler Assembly (Left Side) MAY W10163491 Contact Us For Availability
5
Support, Leveler Assembly (Right Side) MAY W10163493 Contact Us For Availability
5
MAY 2307682 MAY 2307682 Contact Us For Availability
5
MAY 2324969 MAY 2324969 Contact Us For Availability
5
MAY W10061370 MAY W10061370 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
Screw, 8/32 x 1/4 MAY W10135792 Contact Us For Availability
5
MAY 2303091 MAY 2303091 Contact Us For Availability
5
Bracket, Mounting MAY 2307945 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
Clip, Conduit MAY 2004514 Contact Us For Availability
6
Cabinet, Trim Top MAY 2313961S Contact Us For Availability
6
MAY 2309248 MAY 2309248 Contact Us For Availability
6
MAY 2314022 MAY 2314022 Contact Us For Availability
6
MAY 2317939 MAY 2317939 Contact Us For Availability
6
MAY W10109030 MAY W10109030 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
MAY 2309076 MAY 2309076 Contact Us For Availability
6
MAY W10174395 MAY W10174395 Contact Us For Availability
7
LEVELER ASSY MAY 2005032 Contact Us For Availability
7
Switch, Rocker MAY 1118894 Contact Us For Availability
7
MAY 2316857 MAY 2316857 Contact Us For Availability
7
MAY 2316858 MAY 2316858 Contact Us For Availability
7
MAY 2187946 MAY 2187946 Contact Us For Availability
7
MAY 2316751 MAY 2316751 Contact Us For Availability
7
MAY 2316752 MAY 2316752 Contact Us For Availability
7
Trim-Door, Side MAY 2313999S Contact Us For Availability
7
MAY 2309002 MAY 2309002 Contact Us For Availability
7
MAY 2306176 MAY 2306176 Contact Us For Availability
7
MAY 2317848 MAY 2317848 Contact Us For Availability
8
MAY 8281164 MAY 8281164 Contact Us For Availability
8
MAY 2005782 MAY 2005782 Contact Us For Availability
8
MAY 2207457 MAY 2207457 Contact Us For Availability
8
Trim-Door, Top & Bottom MAY 2313998S Contact Us For Availability
8
MAY 2303033 MAY 2303033 Contact Us For Availability
8
MAY 2306178 MAY 2306178 Contact Us For Availability
8
MAY 1106508 MAY 1106508 Contact Us For Availability
9
Mounting Bracket, Grille MAY 2307640 Contact Us For Availability
9
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
9
MAY 489348 MAY 489348 Contact Us For Availability
9
MAY 2223857 MAY 2223857 Contact Us For Availability
9
MAY 2306174 MAY 2306174 Contact Us For Availability
9
Cover-Trim, Side (Handle Side) MAY 2309021S Contact Us For Availability
9
MAY 2309216 MAY 2309216 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
Grommet, Motor MAY 2223986 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
Ring, Retainer MAY 2006841 Contact Us For Availability
10
MAY W10133683 MAY W10133683 Contact Us For Availability
10
Tee Bolt (4) MAY 2003347 Contact Us For Availability
10
Bulb, Light (3) MAY 2326255 Contact Us For Availability
10
Bulb, Light MAY 2309101 Contact Us For Availability
10
Front, Ice Pan MAY 2306175 Contact Us For Availability
10
Cover-Trim, Side (Hinge Side) MAY 2309022S Contact Us For Availability
10
Cover-Trim, Top MAY 2309033S Contact Us For Availability
10
MAY 2309001 MAY 2309001 Contact Us For Availability
10
Motor, Fan MAY 2259385 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
Screw 8-32 x 1/4 MAY 488234 Contact Us For Availability
11
Nut (4) MAY 1161548 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
Switch Assembly, Icemaker (Includes Emitter) MAY W10194086 Contact Us For Availability
11
MAY 2327511 MAY 2327511 Contact Us For Availability
11
Cover-Trim, Side MAY 2309213S Contact Us For Availability
11
MAY W10121049 MAY W10121049 Contact Us For Availability
11
MAY 2223733 MAY 2223733 Contact Us For Availability
11
MAY W10129653 MAY W10129653 Contact Us For Availability
12
Clip (6) MAY W10129069 Contact Us For Availability
12
MAY 489464 MAY 489464 Contact Us For Availability
12
MAY 2309230 MAY 2309230 Contact Us For Availability
12
MAY 2309231 MAY 2309231 Contact Us For Availability
12
MAY 2320523 MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
MAY 2256367 MAY 2256367 Contact Us For Availability
12
Trim-Door, Bottom MAY 2314031S Contact Us For Availability
12
Spacer (9) MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
Cover, Diffuser MAY 2320519 Contact Us For Availability
13
MAY 2317005 MAY 2317005 Contact Us For Availability
13
MAY 2327314 MAY 2327314 Contact Us For Availability
13
Trim-Door, Side (Handle Side) MAY 2314030S Contact Us For Availability
13
Screw, 8-15 x 1/2 MAY 8281250 Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY W10121368 MAY W10121368 Contact Us For Availability
13
Heat Shield MAY 2221231 Contact Us For Availability
14
MAY W10004850 MAY W10004850 Contact Us For Availability
14
Screw MAY 487415 Contact Us For Availability
14
MAY 2316899 MAY 2316899 Contact Us For Availability
14
MAY 2306100 MAY 2306100 Contact Us For Availability
14
Support, Ladder MAY 520965 Contact Us For Availability
14
Trim-Door, Side (Hinge Side) MAY 2309031S Contact Us For Availability
14
MAY 2327532 MAY 2327532 Contact Us For Availability
14
MAY W10139165 MAY W10139165 Contact Us For Availability
14
Screw, 8-18 x 1/2 MAY 304392 Contact Us For Availability
15
MAY 2317078 MAY 2317078 Contact Us For Availability
15
MAY 2317829 MAY 2317829 Contact Us For Availability
15
MAY W10183800 MAY W10183800 Contact Us For Availability
15
Trim-Door, Top MAY 2314028S Contact Us For Availability
15
MAY 2207454 MAY 2207454 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
MAY W10195924 MAY W10195924 Contact Us For Availability
15
Clamp, Water- Tube MAY 2208136 Contact Us For Availability
16
Nutsert (4) MAY W10121451 Contact Us For Availability
16
SCREW MAY 487539 Contact Us For Availability
16
MAY 2320664 MAY 2320664 Contact Us For Availability
16
MAY 2320666 MAY 2320666 Contact Us For Availability
16
WASHER MAY 2006346 Contact Us For Availability
16
MAY W10001190 MAY W10001190 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
MAY W10196999 MAY W10196999 Contact Us For Availability
16
Clamp, Tubing MAY 488946 Contact Us For Availability
17
MAY W10005070 MAY W10005070 Contact Us For Availability
17
MAY 2268249 MAY 2268249 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
MAY 2309400 MAY 2309400 Contact Us For Availability
17
MAY 2316760 MAY 2316760 Contact Us For Availability
17
Screw, 5/16-24 x 1 (Basket to Slide) MAY W10135775 Contact Us For Availability
17
MAY 2309431 MAY 2309431 Contact Us For Availability
17
MAY W10153595 MAY W10153595 Contact Us For Availability
17
MAY 2310136 MAY 2310136 Contact Us For Availability
18
MAY 2316759 MAY 2316759 Contact Us For Availability
18
Stud, Shelf MAY 2196483 Contact Us For Availability
18
Slide, Freezer Bin (Right (2)) MAY 2306116 Contact Us For Availability
18
Slide, Freezer Bin (Left (2)) MAY 2306117 Contact Us For Availability
18
MAY W10183754 MAY W10183754 Contact Us For Availability
18
Cap, Door (4) Corner MAY 2258903 Contact Us For Availability
18
MAY 2310207 MAY 2310207 Contact Us For Availability
18
MAY W10151288 MAY W10151288 Contact Us For Availability
18
MAY 2257538 MAY 2257538 Contact Us For Availability
19
Cam-Closer, Door MAY 2320509 Contact Us For Availability
19
MAY 2268331 MAY 2268331 Contact Us For Availability
19
MAY 2268332 MAY 2268332 Contact Us For Availability
19
MAY 2309396 MAY 2309396 Contact Us For Availability
19
MAY 2307938 MAY 2307938 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
MAY 2215648 MAY 2215648 Contact Us For Availability
19
Module Assembly (Includes Items 3 & 21) MAY 626691 Contact Us For Availability
20
MAY 2221070 MAY 2221070 Contact Us For Availability
20
MAY 2306474 MAY 2306474 Contact Us For Availability
20
MAY 2306475 MAY 2306475 Contact Us For Availability
20
MAY 2317925 MAY 2317925 Contact Us For Availability
20
MAY 2309395 MAY 2309395 Contact Us For Availability
20
MAY 2222769 MAY 2222769 Contact Us For Availability
20
MAY 2306180 MAY 2306180 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
21
Bracket, Support Door MAY 2006617 Contact Us For Availability
21
MAY 2302952 MAY 2302952 Contact Us For Availability
21
MAY 2302953 MAY 2302953 Contact Us For Availability
21
Support, Slide (Right) MAY 2306104 Contact Us For Availability
21
MAY 8281251 MAY 8281251 Contact Us For Availability
21
MAY 2222772 MAY 2222772 Contact Us For Availability
21
Wire Tie MAY 2155774 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
MAY 2316758 MAY 2316758 Contact Us For Availability
22
MAY 2320550 MAY 2320550 Contact Us For Availability
22
MAY 2320551 MAY 2320551 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
SCREW MAY 2006475 Contact Us For Availability
22
MAY W10131132 MAY W10131132 Contact Us For Availability
22
MAY W10136614 MAY W10136614 Contact Us For Availability
22
Cup-Water Fill MAY 628356 Contact Us For Availability
23
MAY W10121140 MAY W10121140 Contact Us For Availability
23
MAY 2302956 MAY 2302956 Contact Us For Availability
23
MAY 2302957 MAY 2302957 Contact Us For Availability
23
Support, Slide (Left) MAY 2306105 Contact Us For Availability
23
MAY 488886 MAY 488886 Contact Us For Availability
23
MAY 2222795 MAY 2222795 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
Clip, Heater MAY 2317920 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
MAY 2004517 MAY 2004517 Contact Us For Availability
24
MAY 2314054 MAY 2314054 Contact Us For Availability
24
MAY 2317893 MAY 2317893 Contact Us For Availability
24
MAY 2320512 MAY 2320512 Contact Us For Availability
24
MAY 2222981 MAY 2222981 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
Bracket, Drain Pan MAY 2320554 Contact Us For Availability
24
MAY 2182124 MAY 2182124 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
MAY 2309083 MAY 2309083 Contact Us For Availability
25
MAY 2327393 MAY 2327393 Contact Us For Availability
25
MAY 2327394 MAY 2327394 Contact Us For Availability
25
MAY 2222921 MAY 2222921 Contact Us For Availability
25
MAY 2003169 MAY 2003169 Contact Us For Availability
25
INSULATION, SOUND MAY 2169104 Contact Us For Availability
25
MAY 2195914 MAY 2195914 Contact Us For Availability
26
Filter, Water MAY 4396841 Contact Us For Availability
26
MAY 2318008 MAY 2318008 Contact Us For Availability
26
MAY W10121940 MAY W10121940 Contact Us For Availability
26
MAY 2222919 MAY 2222919 Contact Us For Availability
26
MAY 2222920 MAY 2222920 Contact Us For Availability
26
Clamp, Tube MAY 488937 Contact Us For Availability
26
Retainer Thermostat (2) MAY 2315522 Contact Us For Availability
27
Bushing-Arm, Extension MAY 2316859 Contact Us For Availability
27
Screw, 8-32 x 1/2 MAY W10001160 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
Thermostat (Also Order 542639 Cement Alumilas MAY 627985 Contact Us For Availability
28
MAY 2004994 MAY 2004994 Contact Us For Availability
28
MAY 2317844 MAY 2317844 Contact Us For Availability
28
VALVE TUBE, BODY MAY 2171931 Contact Us For Availability
28
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
MAY 2302889 MAY 2302889 Contact Us For Availability
29
MAY 2188820 MAY 2188820 Contact Us For Availability
29
MAY 2310164 MAY 2310164 Contact Us For Availability
29
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
MAY 2221296 MAY 2221296 Contact Us For Availability
30
MAY W10075920 MAY W10075920 Contact Us For Availability
30
MAY 2307566 MAY 2307566 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
MAY 2194319 MAY 2194319 Contact Us For Availability
31
MAY W10139195 MAY W10139195 Contact Us For Availability
32
MAY 2209025B MAY 2209025B Contact Us For Availability
32
Screw MAY 8533928 Contact Us For Availability
33
MAY 2314023 MAY 2314023 Contact Us For Availability
33
MAY W10135430 MAY W10135430 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
34
MAY 2325188B MAY 2325188B Contact Us For Availability
34
Lens, Receiver MAY 2198643 Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
35
MAY 2215612 MAY 2215612 Contact Us For Availability
35
MAY 2307684 MAY 2307684 Contact Us For Availability
36
MAY 2266881 MAY 2266881 Contact Us For Availability
36
MAY 2266882 MAY 2266882 Contact Us For Availability
36
MAY 549193 MAY 549193 Contact Us For Availability
37
MAY 2221096 MAY 2221096 Contact Us For Availability
37
MAY 2221097 MAY 2221097 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
MAY 2215938 MAY 2215938 Contact Us For Availability
38
Screw, Ground MAY 487294 Contact Us For Availability
39
Cap, Water Filter MAY 2260518B Contact Us For Availability
39
MAY W10123227 MAY W10123227 Contact Us For Availability
40
MAY 8533913 MAY 8533913 Contact Us For Availability
40
MAY 2309432 MAY 2309432 Contact Us For Availability
42
Screw, 8-18 x 1/2 MAY W10005050 Contact Us For Availability
43
MAY 2318190 MAY 2318190 Contact Us For Availability
44
Screw, 8-16 x 1/2 MAY 8281163 Contact Us For Availability
45
Button, Filter MAY 2260503B Contact Us For Availability
46
Tray, Drip Filter MAY 2318189 Contact Us For Availability
47
MAY 8533980 MAY 8533980 Contact Us For Availability
100
MAY 2316895 MAY 2316895 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
× ![]()
