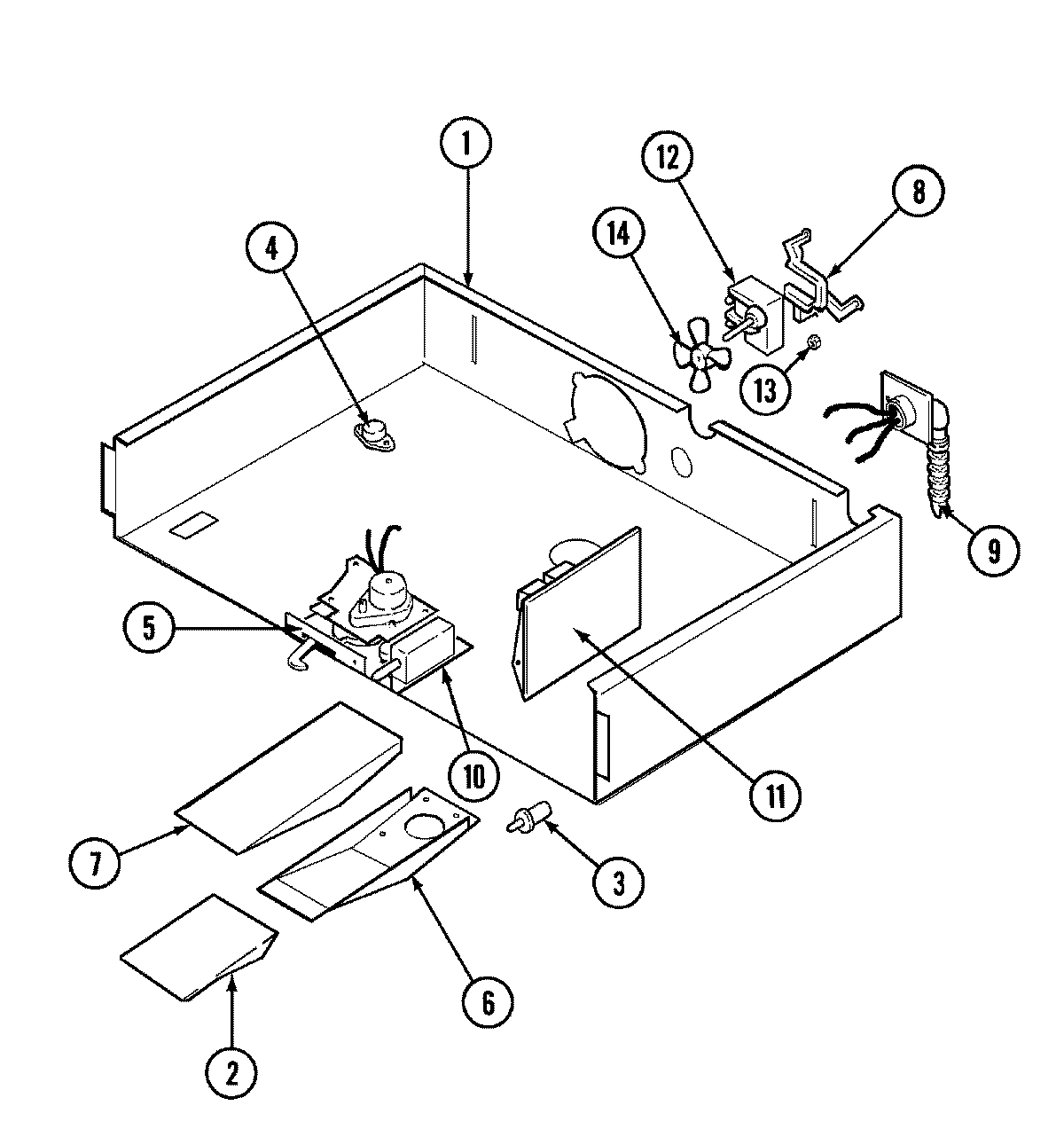

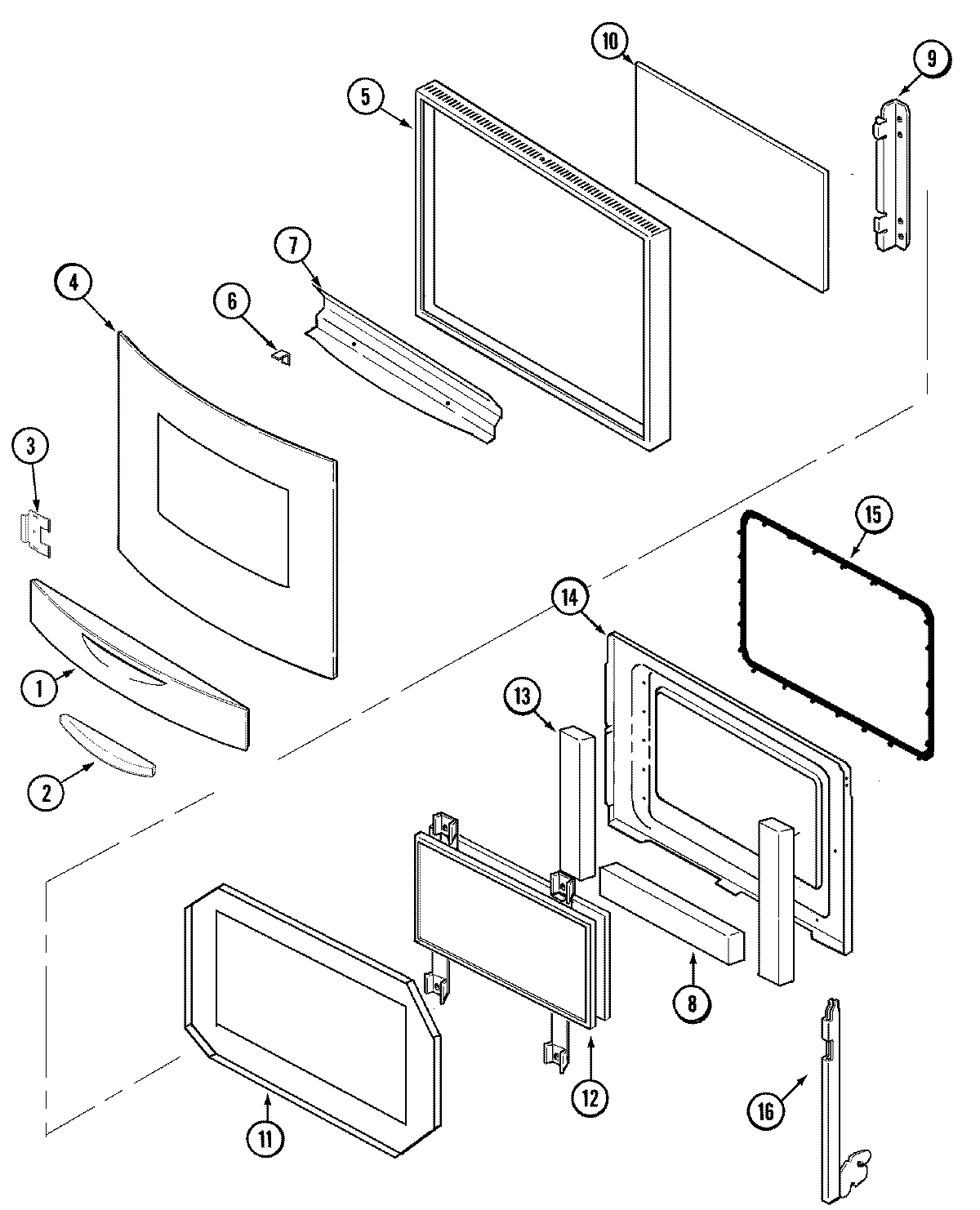

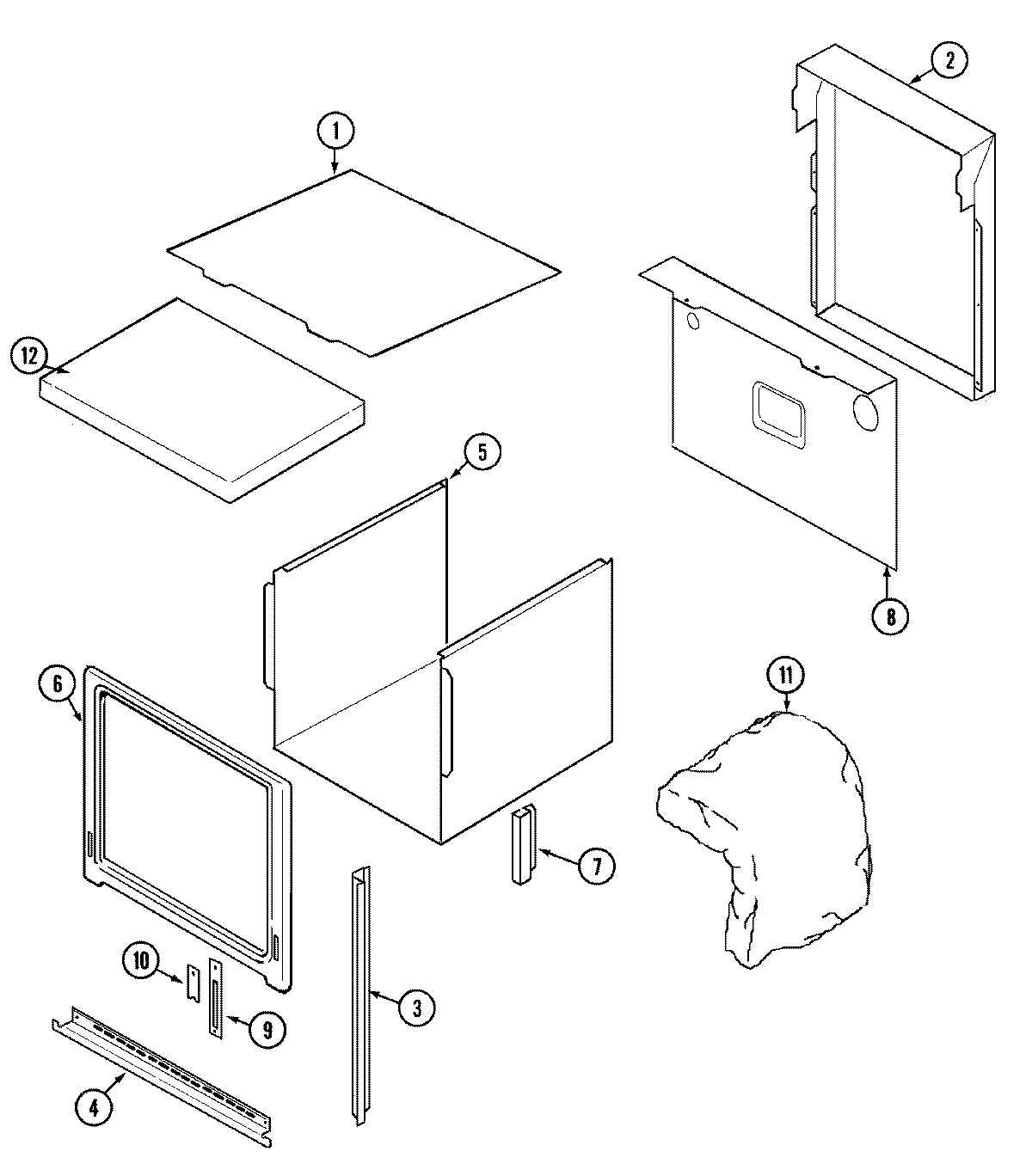

Model Whirlpool JEW8530ACB ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $75.36

1

TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability

1

PANEL, INNER TOP WPL 71001842 Contact Us For Availability

1

HANDLE, DOOR (BLK) WPL 71003387 Contact Us For Availability

2

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $75.42

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

POCKET, HANDLE (BLK) WPL 71003389 Contact Us For Availability

3

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

3

TRIM, SIDE (LT-BLK) WPL 71003422 Contact Us For Availability

3

TRIM, SIDE (RT-BLK) WPL 71003423 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

BRACKET, HANDLE WPL 71003386 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $87.16

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.55

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

4

TRIM, OVEN (LWR-BLK) WPL 71001822 Contact Us For Availability

4

GLASS, DOOR (BLK) WPL 71003392 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $44.32

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

FRAME, DOOR (BLK) WPL 71003394 Contact Us For Availability

6

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

PLATE, LATCH WPL 71001831 Contact Us For Availability

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

SHIELD, HEAT WPL 71003396 Contact Us For Availability

7

GASKET, WINDOW WPL 790058 Contact Us For Availability

8

BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

9

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability

9

BRACKET, DOOR GLASS (INNER) WPL 71003398 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

GLASS, INNER WPL 71002801 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.70

CLIP, OVEN WPL 71001170 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

BOARD, RELAY (UPPER) WPL 71003412 Contact Us For Availability

RETAINER, INSULATION WPL 71002791 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

74009648 Whirlpool Glass Inner Door Backorder WPL 74009648 $72.13

INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability

INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

BUTTON, PLUG WPL 702929 Contact Us For Availability

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

WPW10296816 Whirlpool Refrigerator Screw Backorder WPL WPW10296816 $2.51

BLADE, FAN WPL 71001852 Contact Us For Availability

LINER, OVEN DOOR WPL 71002967 Contact Us For Availability

15

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $74.65

16

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $88.94

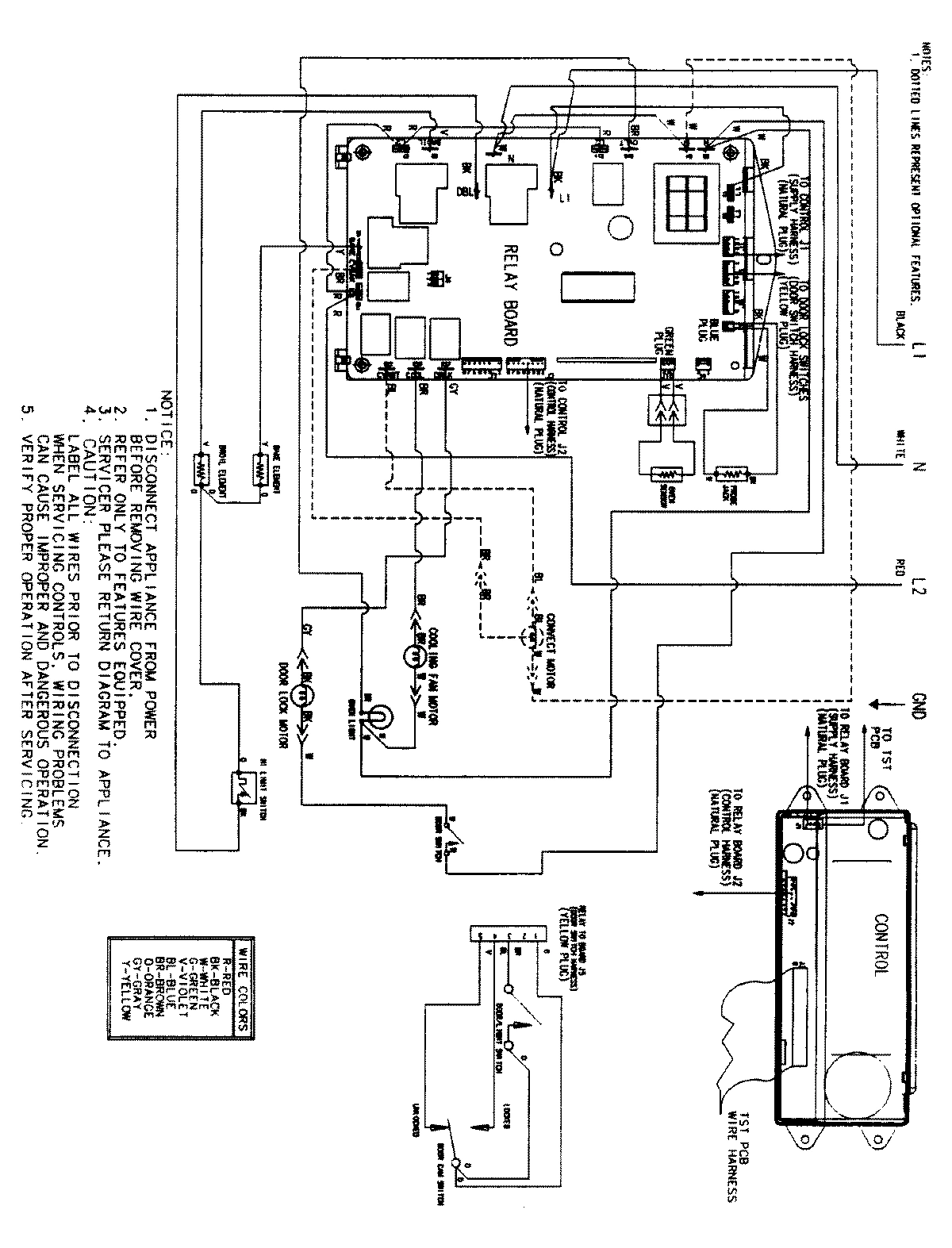

NI

WIRING INFORMATION WPL 15002516 Contact Us For Availability
