Model Accelerated Cooking Products JET14K-P2002757M Amana Menumaster JET14K – Common Parts &amp; Diagrams

1

14159100 Amana Oven TCO & Harness Kit - JET Backorder ACP 14159100 $328.44

1

59134300 Amana Antenna Cover Backorder ACP 59134300 $135.24

1

INSULATION-CAVITY ACP 20078801 Contact Us For Availability

1

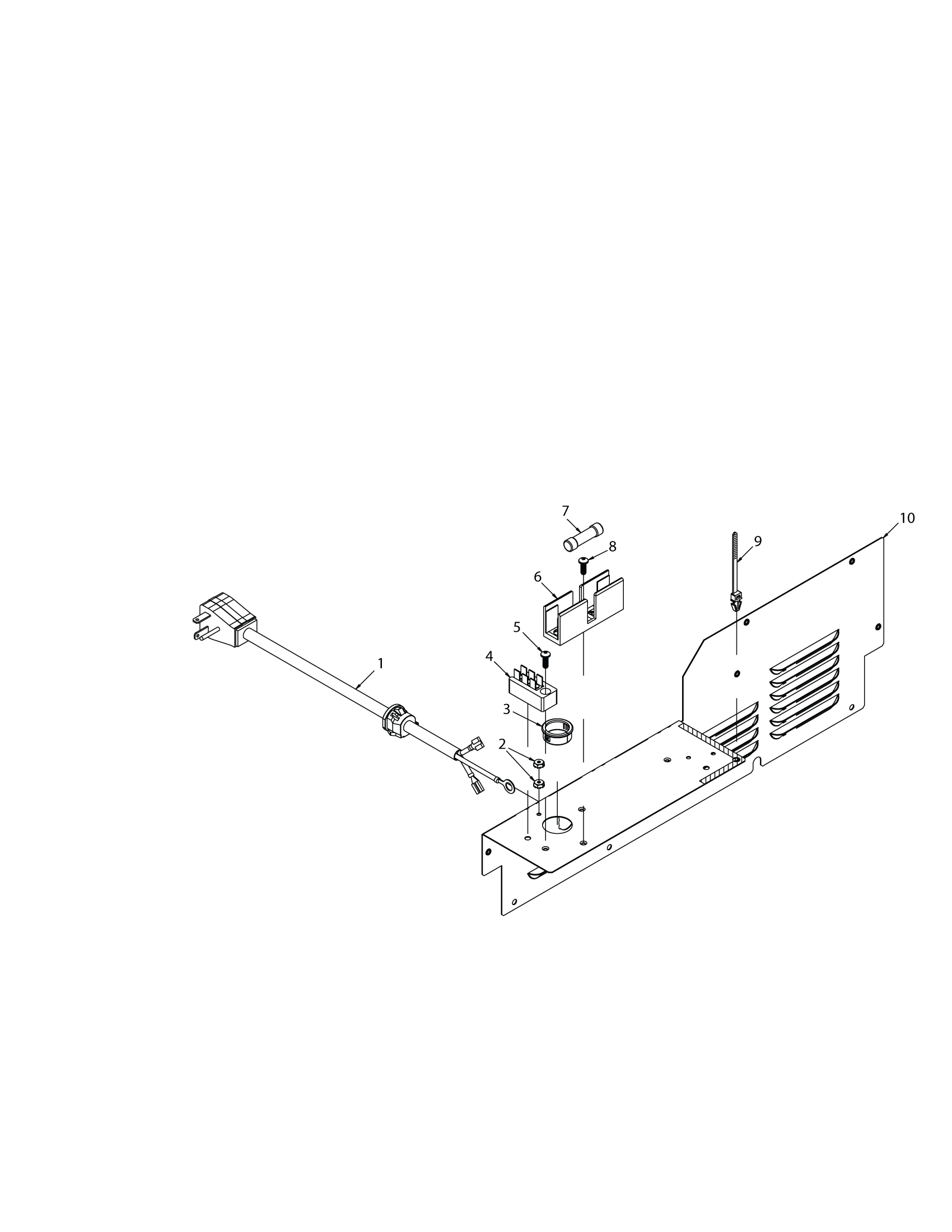

POWER CORD ACP 13068609 Contact Us For Availability

2

13045501 Amana Nut #6 KEPS Backorder ACP 13045501 $4.82

2

59114157 Amana Interlock Switch Assembly In Stock ACP 59114157 $96.66

2

59204743 Amana Motor Antenna Kit (Red Tip) Backorder ACP 59204743 $151.20

2

RETAINER-R INSUL ACP 21015202 Contact Us For Availability

2

HARNESS-HV ACP 20094001 Contact Us For Availability

3

A3293506 Amana Snap Bushing Backorder ACP A3293506 $4.82

3

R0130263 Amana Antenna Motor (230V) In Stock ACP R0130263 $64.28

3

SCREW ACP 12876603 Contact Us For Availability

3

BRKT-ANT BOX VENT ACP 21019002 Contact Us For Availability

3

HARNESS-RELAY BD ACP 20159801 Contact Us For Availability

4

13095501 Amana Interlock Harness Backorder ACP 13095501 $9.24

4

59134305 Amana Top Touch Panel Assembly Backorder ACP 59134305 $157.08

4

B5677214 Amana Terminal Block Backorder ACP B5677214 $6.17

5

13018301 Amana PC Board Harness Backorder ACP 13018301 $75.80

5

20302402 Amana Gear Retainer Shaft Backorder ACP 20302402 $4.82

5

RETAINER-L/BTM INSUL ACP 21017302 Contact Us For Availability

6

10091101 Amana Fuse Holder Backorder ACP 10091101 $7.53

6

12002453 Amana Handle Kit Backorder ACP 12002453 $74.24

6

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $4.82

6

59134301 Amana Heater In Stock ACP 59134301 $87.36

6

HARNESS, DATAKEY ACP 13013902 Contact Us For Availability

7

12538001 Amana Nut Cap Backorder ACP 12538001 $9.69

7

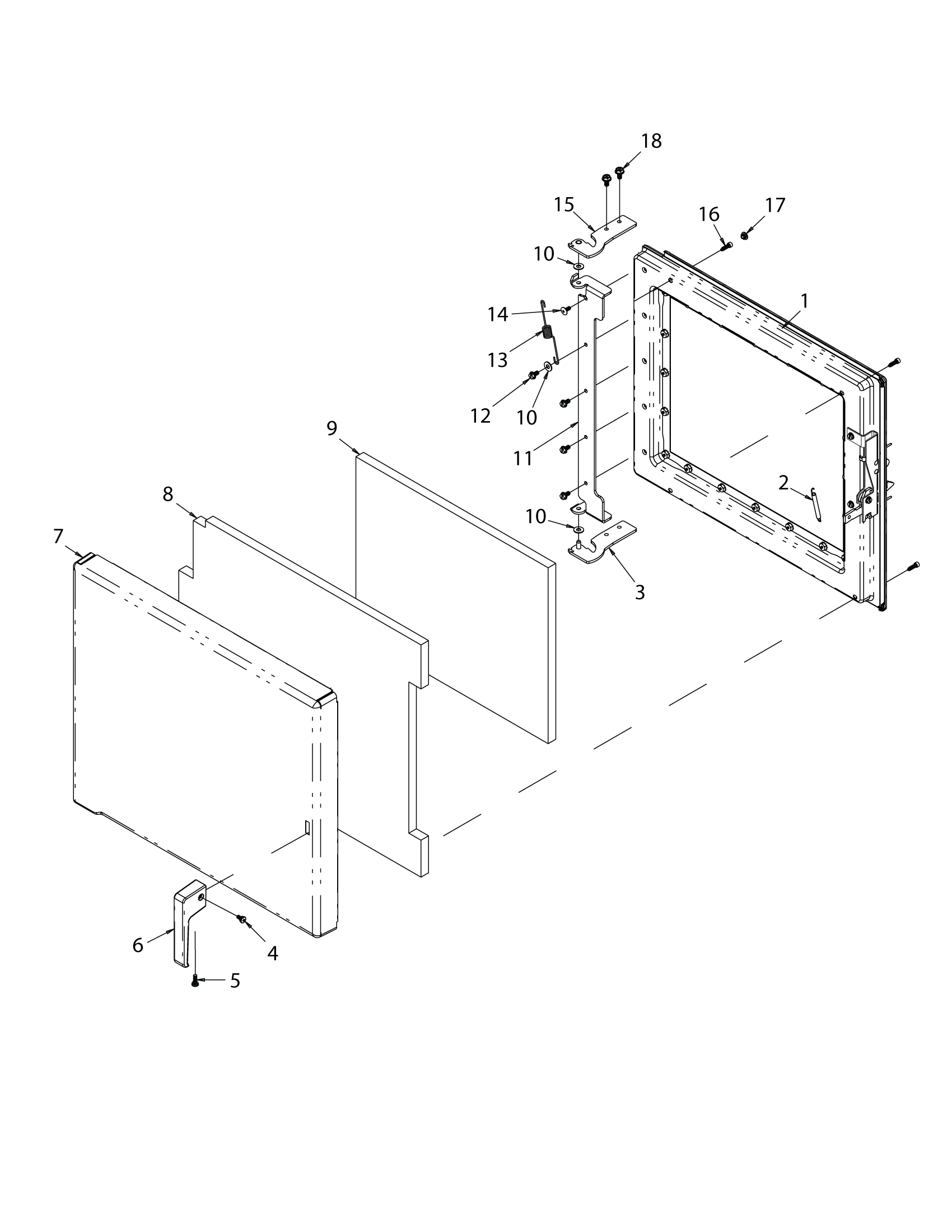

59154445 Amana Outer Door Backorder ACP 59154445 $95.76

7

M0805205 Amana 30A Fuse In Stock ACP M0805205 $7.46

7

INSULATION-ANT BRKT ACP 20099801 Contact Us For Availability

8

12537901 Amana Fan Blade Backorder ACP 12537901 $8.16

8

13074001 Amana RoHS TORX Pan Head Screw Backorder ACP 13074001 $5.31

8

PANEL, INNER DOOR & SEALANT- JET/ACE ACP 59154470 Contact Us For Availability

8

BRKT-ANTENNA MOTOR ACP 21018202 Contact Us For Availability

9

12000202 Amana TEMP Sensor Backorder ACP 12000202 $74.84

9

12546101 Amana Washer Backorder ACP 12546101 $5.31

9

20302101 Amana Spur Gear Backorder ACP 20302101 $4.82

9

M0322202 Amana Tie Wire Backorder ACP M0322202 $4.82

9

CLIP-CORD ACP M0104106 Contact Us For Availability

9

24"H CART ACP CA24 Contact Us For Availability

10903002 Amana Washer Spur Gear Backorder ACP 10903002 $4.82

SCREW ACP 12991611 Contact Us For Availability

INLET DUCT COVER-FLAT ACP 21015601 Contact Us For Availability

LWR ACCESS PANEL ASSY ACP 20135501 Contact Us For Availability

30"H CART ACP CA30 Contact Us For Availability

20241404 Amana Thermal Cutout Switch Backorder ACP 20241404 $8.15

CL10 Amana Xpress Oven Cleaner (6) 1 Liter Backorder ACP CL10 $85.48

HEATER BOX WELD- SERVICE ACP 20304001Q Contact Us For Availability

RETAINER-TOP INSUL ACP 21017202 Contact Us For Availability

20079501 Amana Exhaust Tube Backorder ACP 20079501 $17.88

DR10 Amana Drip Tray Backorder ACP DR10 $281.82

TAPE-DUCT ACP M0275089 Contact Us For Availability

EXCESS-SCREW-SM/OVAL (BLACK) ACP 13045301 Contact Us For Availability

SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability

13

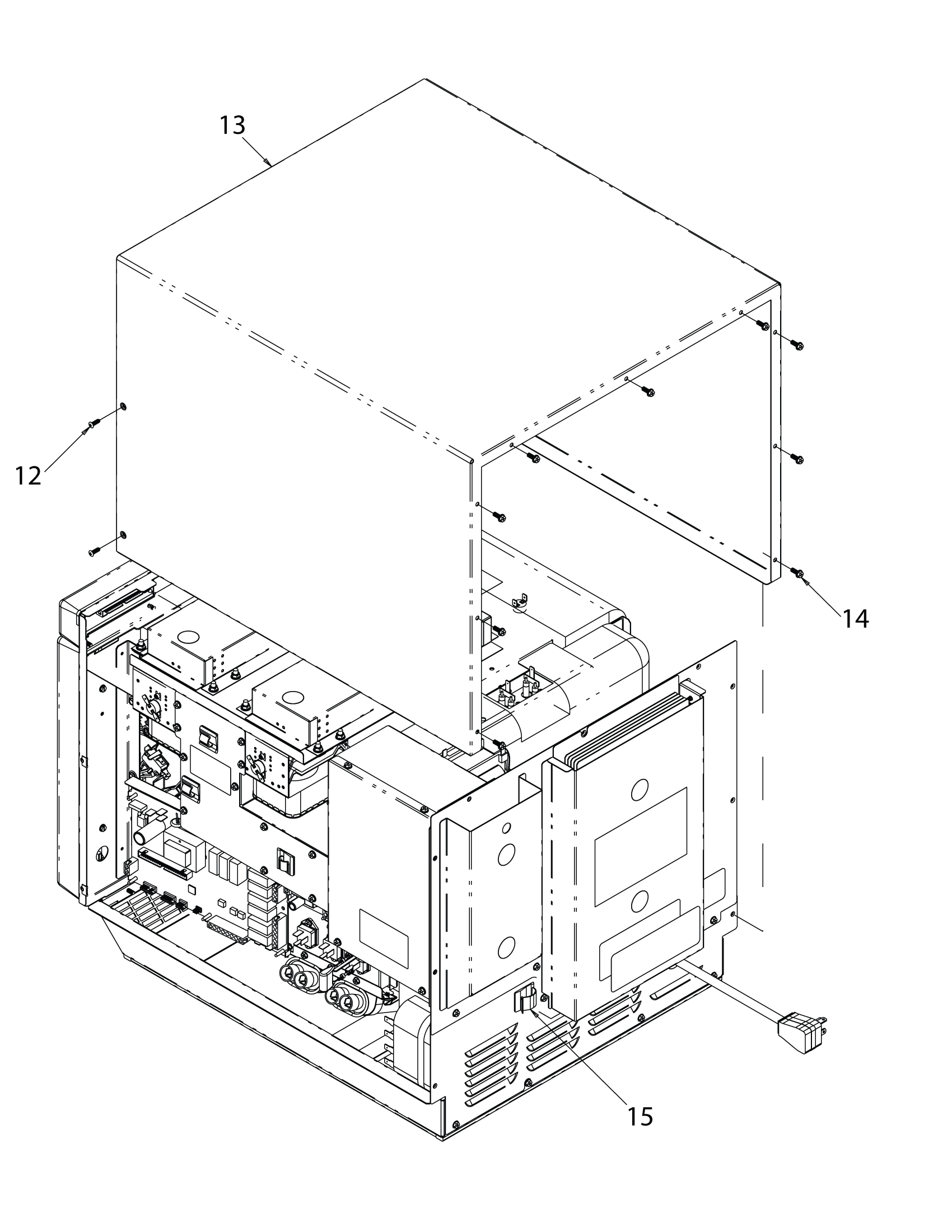

10908909Q Amana Stainless Steel Wrapper Backorder ACP 10908909Q $309.96

13

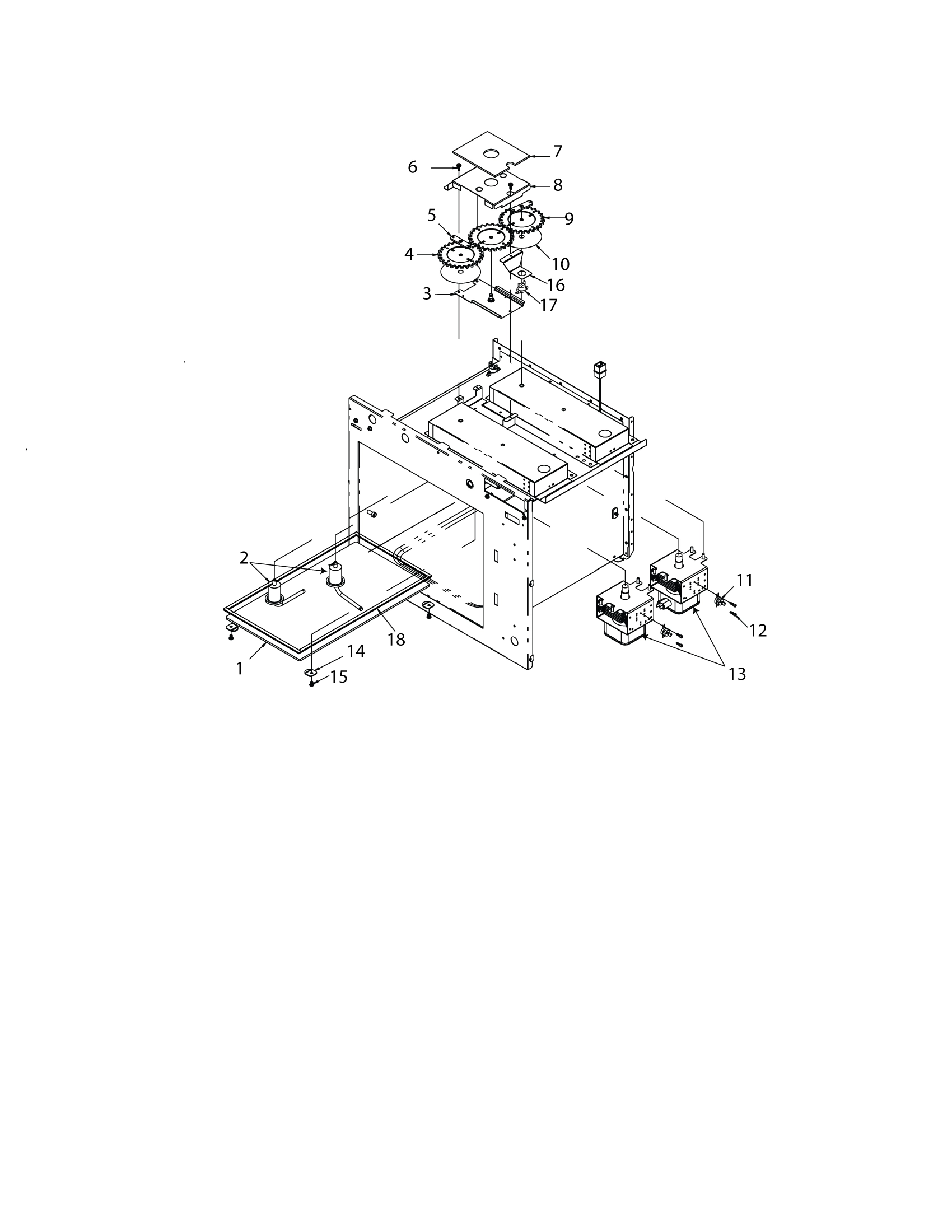

59004010 Amana Magnetron In Stock ACP 59004010 $120.83

13

PANINI GRILL FOR CONVECTION XPRESS OVENS ACP JR10 Contact Us For Availability

20079001 Amana Motor Insulation - Conv Backorder ACP 20079001 $6.00

PA10 Amana Oven Paddle Backorder ACP PA10 $183.88

GRILLE, EXHAUST ACP 59134367 Contact Us For Availability

RETAINER-TRAY ACP 12188901 Contact Us For Availability

59174549 Amana JET60 Blower Motor Assembly Backorder ACP 59174549 $257.88

RA14 Amana ACE Rack Accessory Backorder ACP RA14 $95.64

BRKT-CONV MOTOR ACP 21015502 Contact Us For Availability

CLIP, CORD ACP M0104102 Contact Us For Availability

SCREW-SM ACP M0213802 Contact Us For Availability

16

SB10 Amana Inner Bin Backorder ACP SB10 $193.59

16

UP ACCESS PNL WELD-E CT ACP 20079102 Contact Us For Availability

16

BRKT-TCO ACP 21028202 Contact Us For Availability

20241405 Amana Thermal Cutout Backorder ACP 20241405 $8.15

59002017 Amana Snubber Assembly Backorder ACP 59002017 $36.09

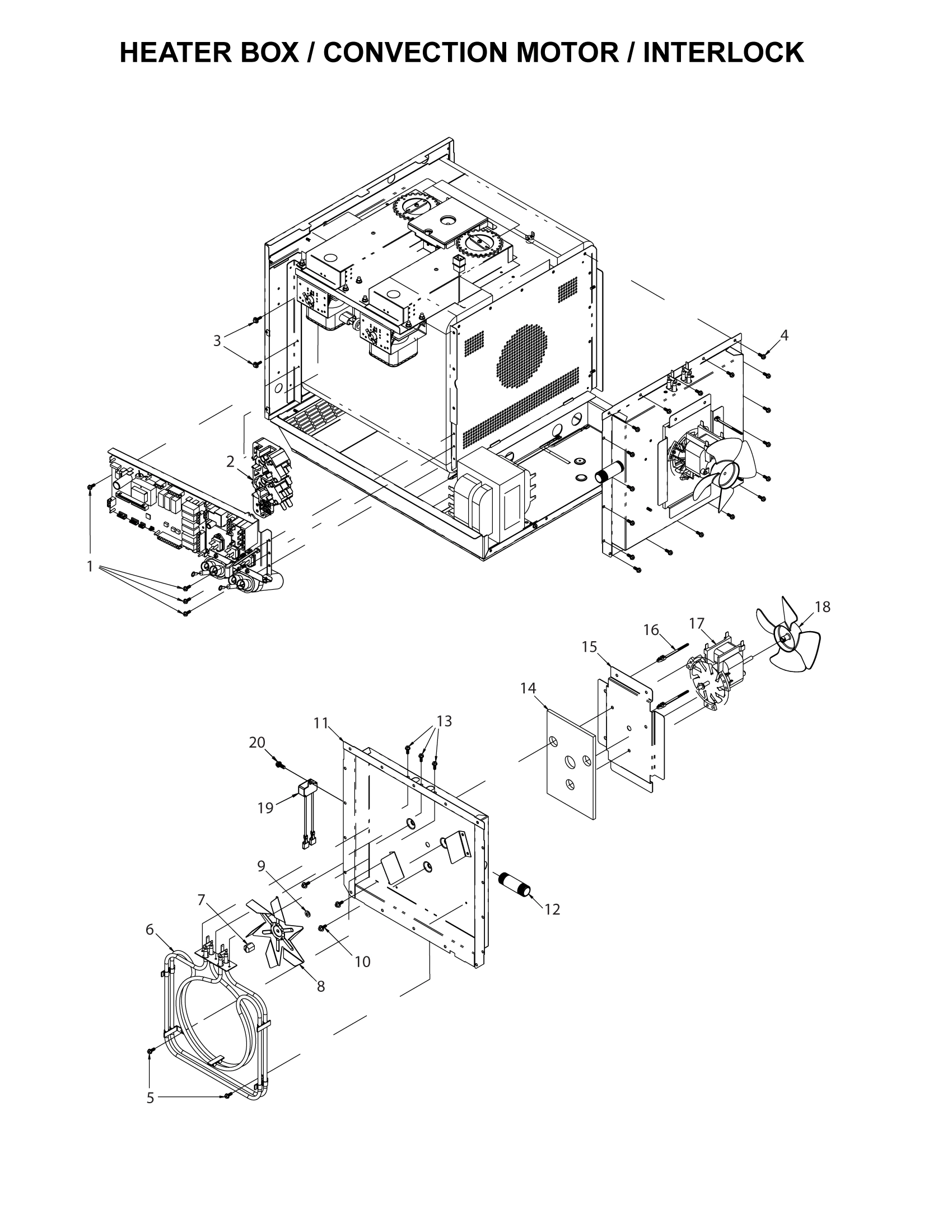

59134302 Amana Convection Motor Backorder ACP 59134302 $336.84

ST10C Amana Pizza Stone Backorder ACP ST10C $293.83

20093001 Amana Fan Blade Backorder ACP 20093001 $10.06

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $41.34

TB10 Amana 10" x 12" (254 mm x 305 mm) Backorder ACP TB10 $159.40

GASKET-SILICONE ACP 20291501 Contact Us For Availability

59154471 Amana Thermal Cutout Backorder ACP 59154471 $146.16

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

TL12 Amana Set of 4 Non-Stick Liners Backorder ACP TL12 $67.92

TOP-INLET DUCT ACP 21015702 Contact Us For Availability

20

59134303 Amana High Voltage Transformer Backorder ACP 59134303 $302.40

21

59001981 Amana Relay Backorder ACP 59001981 $39.61

21

BOTTOM-INLET DUCT ACP 21015802 Contact Us For Availability

22

12990529 Amana Hex Screw Backorder ACP 12990529 $4.82

22

59104126 Amana Display Board In Stock ACP 59104126 $213.21

22

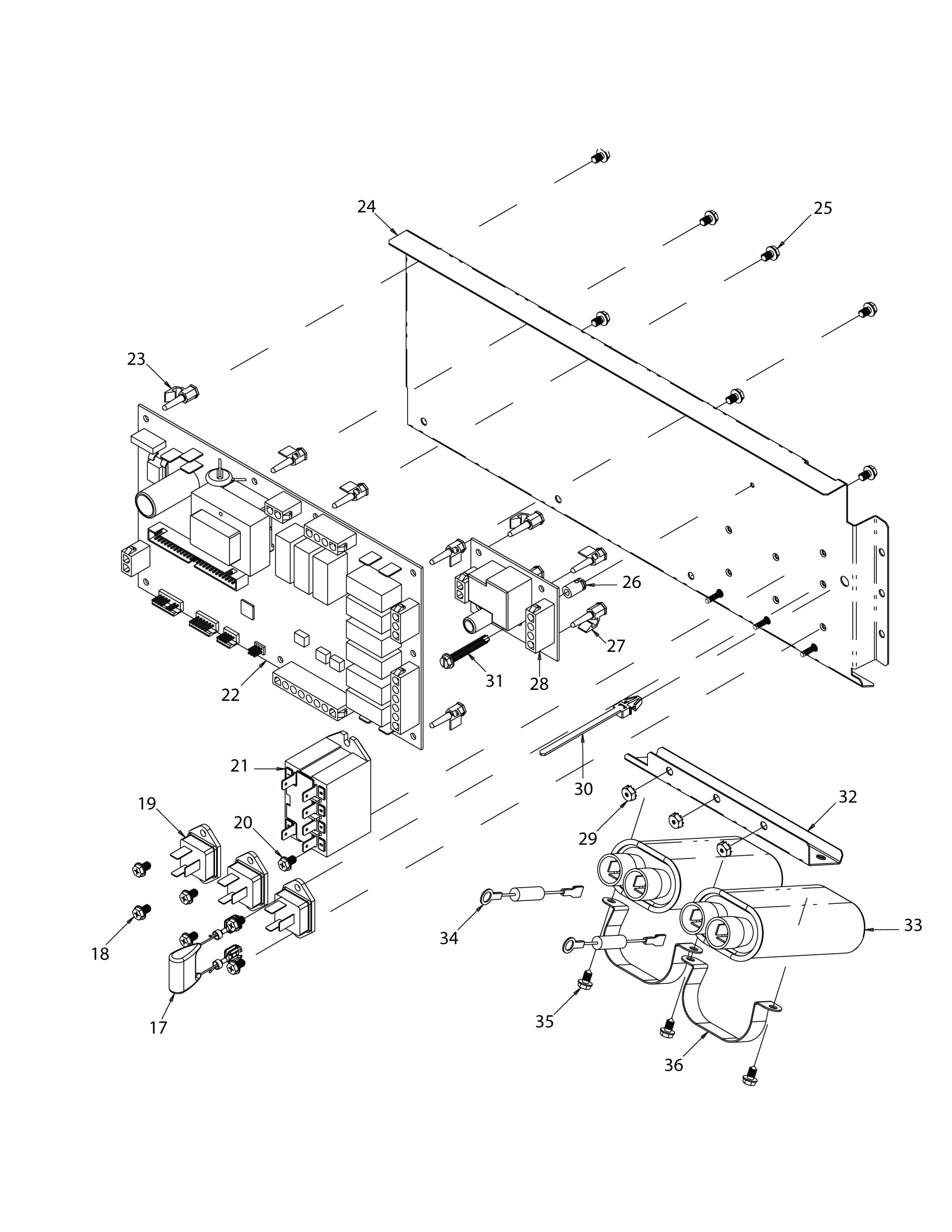

BOARD, HV ACP 59134363 Contact Us For Availability

23

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

23

INSULATION-HEATER BOX ACP 20164901 Contact Us For Availability

24

MACH COMP BRKT ASSY ACP 20165501 Contact Us For Availability

26

SUPPORT-PCB ACP M0800603 Contact Us For Availability

27

SUPPORT ACP 59174558 Contact Us For Availability

28

14179142 Amana Monitor Relay Board In Stock ACP 14179142 $86.90

29

NUT -#8 KEPS ACP 13045502 Contact Us For Availability

31

SCREW-TC/HEX Backorder ACP 12991610 $4.82

32

BRKT-CAPACITOR ACP 21022202 Contact Us For Availability

33

59174533 Amana Capacitor and Diode Kit, 0.65 Backorder ACP 59174533 $43.92

34

20057401 Amana Diode In Stock ACP 20057401 $7.57

35

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

36

A4055406 Amana Capacitor Strap Backorder ACP A4055406 $5.09
