Model Maytag JES9860BAW18 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

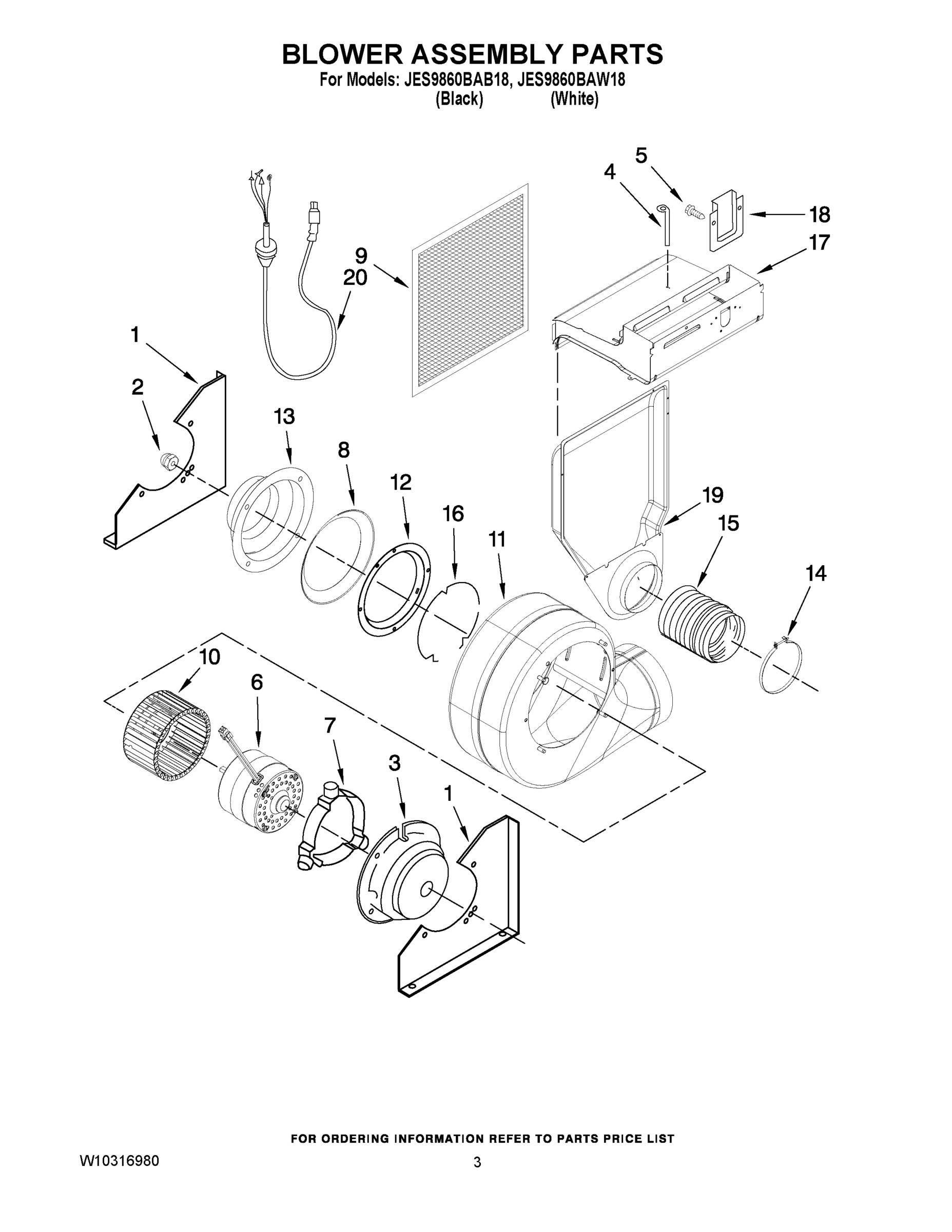

03 - BLOWER ASSEMBLY PARTS

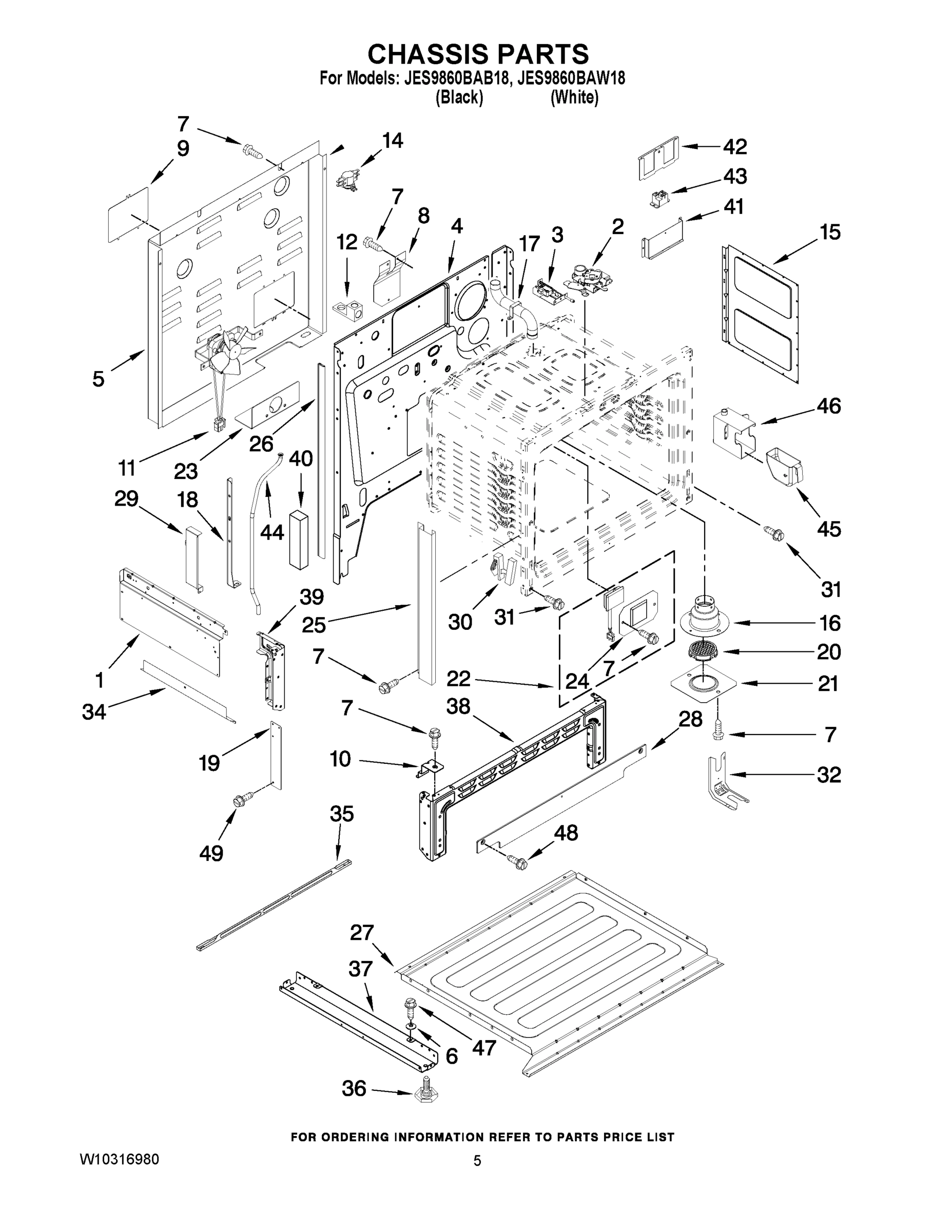

04 - CHASSIS PARTS

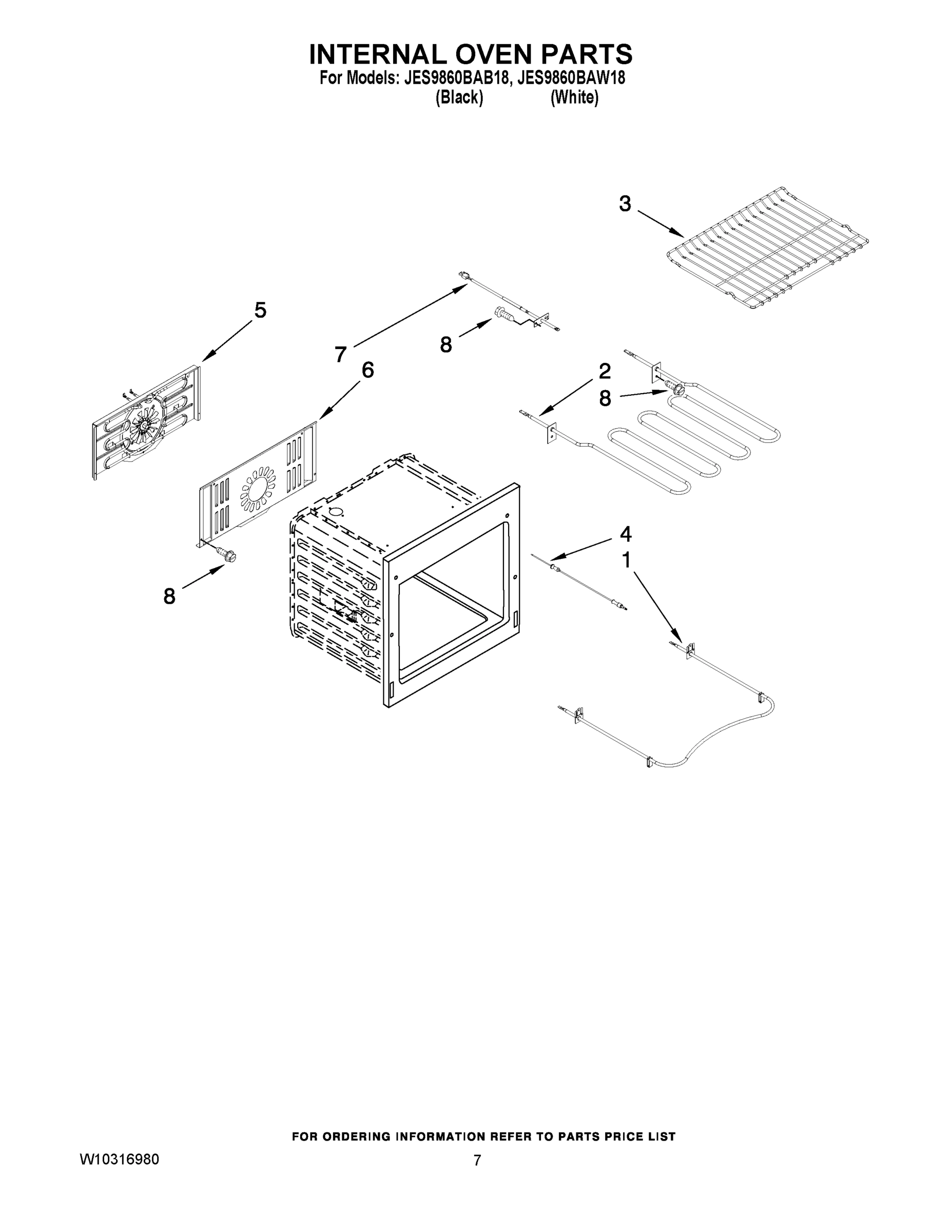

05 - INTERNAL OVEN PARTS

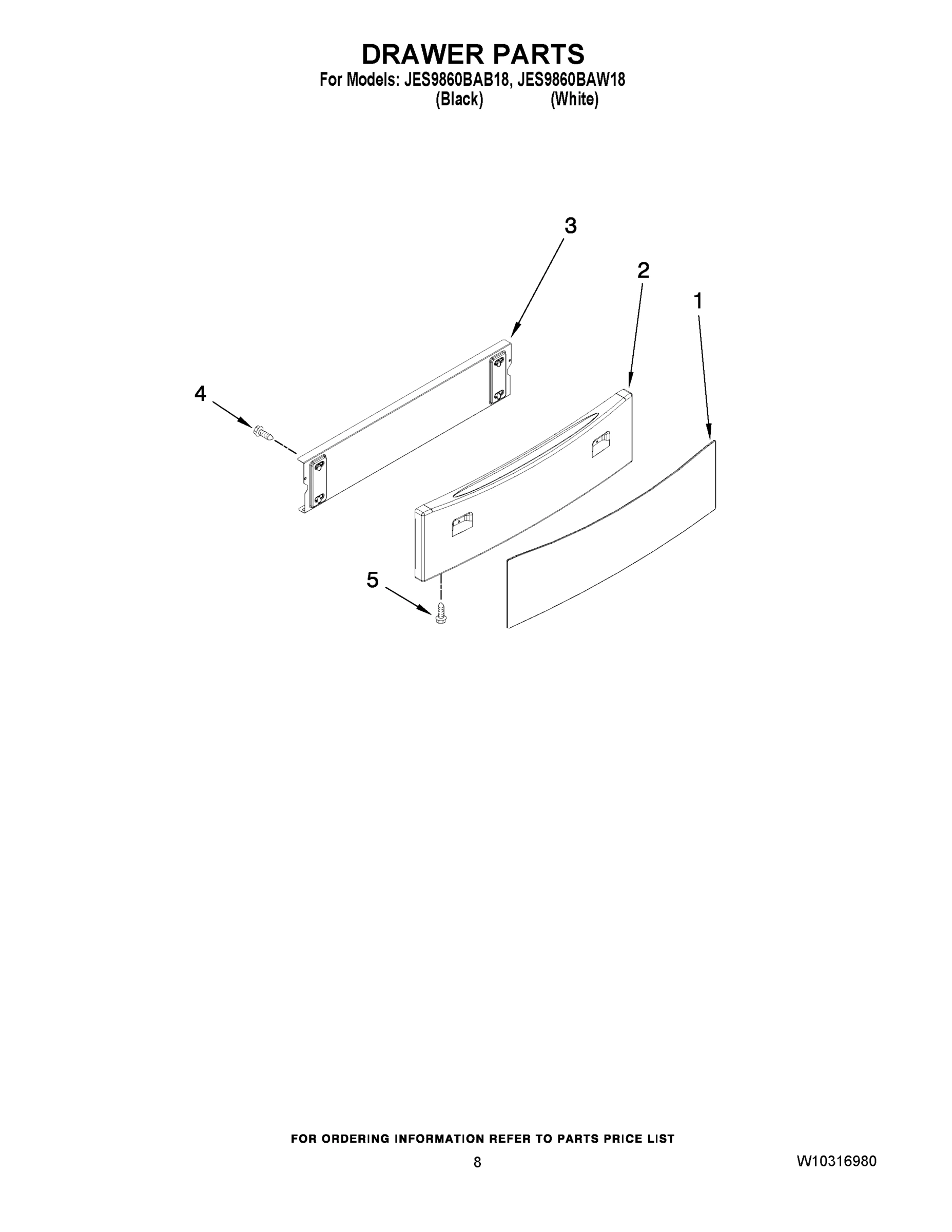

06 - DRAWER PARTS

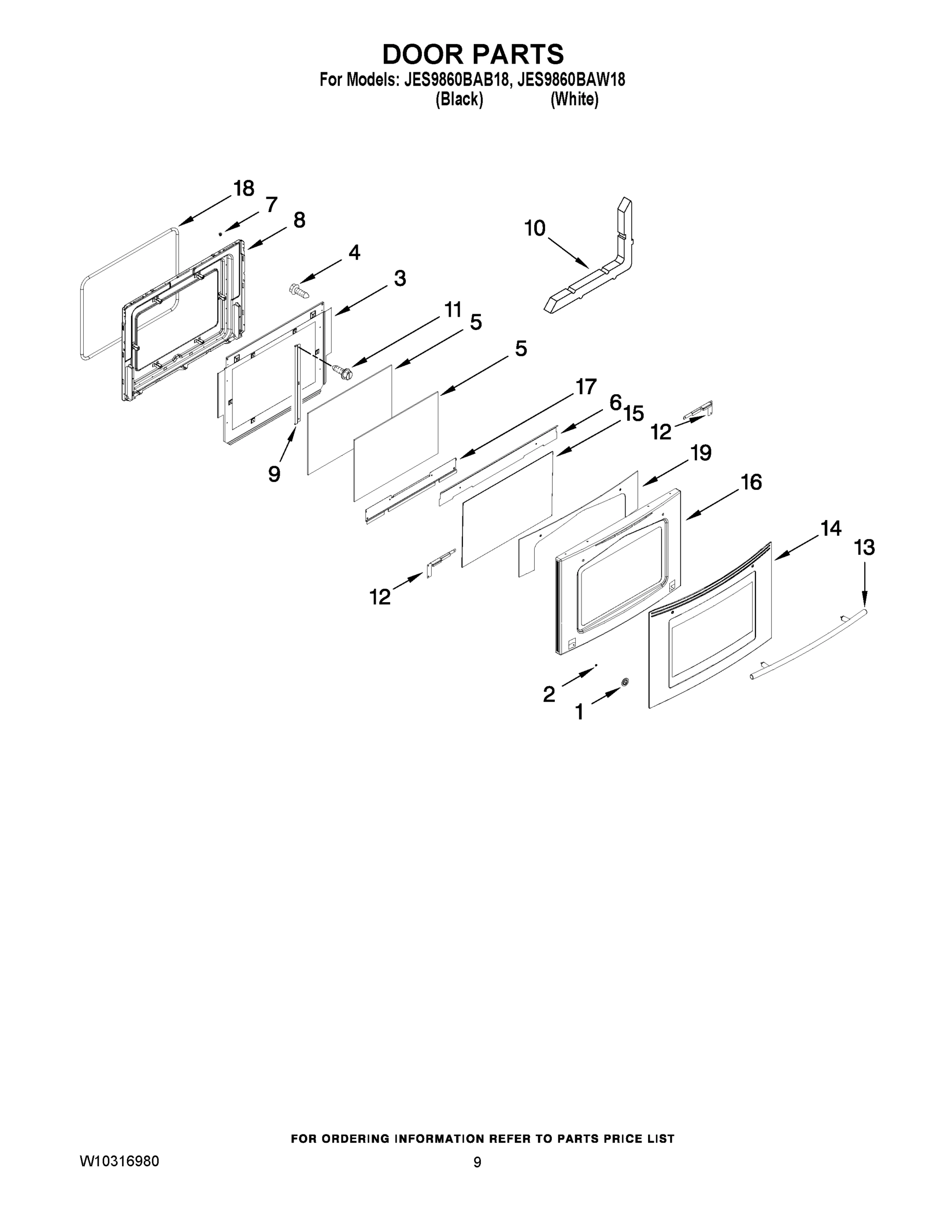

07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JES9860BAW18 ELECTRIC RANGE
1
BROCHURE, TIPS SAFE COOKING MAY 9762761 Contact Us For Availability
1
MAY 7730P031-60 MAY 7730P031-60 Contact Us For Availability
1
MAY 3801F631-51 MAY 3801F631-51 Contact Us For Availability
1
MAY 2618F202-51 MAY 2618F202-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 7406P439-60 MAY 7406P439-60 Contact Us For Availability
1
GLASS, DRAWER (BLACK) MAY 7922P057-60 Contact Us For Availability
1
MAY 7922P058-60 MAY 7922P058-60 Contact Us For Availability
1
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10202594 Contact Us For Availability
2
COOKTOP (WHITE) MAY W10204446 Contact Us For Availability
2
MAY W10206077 MAY W10206077 Contact Us For Availability
2
MAY W10206085 MAY W10206085 Contact Us For Availability
2
LOCKNUT MAY 7103P162-60 Contact Us For Availability
2
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
2
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
2
PANEL, DRAWER (BLACK) MAY 2416F086-70 Contact Us For Availability
2
MAY 2416F086-71 MAY 2416F086-71 Contact Us For Availability
2
NUT (10-32) MAY 7103P176-60 Contact Us For Availability
3
MAY 7406P297-60 MAY 7406P297-60 Contact Us For Availability
3
SCREW, SWITCH MAY 7101P676-60 Contact Us For Availability
3
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
3
LIGHT SWITCH ASSY MAY 7450P109-60 Contact Us For Availability
3
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
3
HANGER, ACCESS PANEL MAY 3806F011-80 Contact Us For Availability
3
BAFFLE, OVEN DOOR MAY 3601F373-51 Contact Us For Availability
4
MAY 7103P148-60 MAY 7103P148-60 Contact Us For Availability
4
MAY 7450P056-60 MAY 7450P056-60 Contact Us For Availability
4
MAY 7809P030-60 MAY 7809P030-60 Contact Us For Availability
4
MAIN, BACK MAY 3804F313-51 Contact Us For Availability
4
RECEPTACLE, MEAT PROBE MAY 7408P086-60 Contact Us For Availability
4
SCREW, 8AB X 1/2 MAY 7101P376-60 Contact Us For Availability
5
MAY 7422P002-60 MAY 7422P002-60 Contact Us For Availability
5
MAY 8507P234-60 MAY 8507P234-60 Contact Us For Availability
5
COVER, WIRE REAR MAY 4005F810-51 Contact Us For Availability
5
FAN ASSEMBLY, CONVECTION MAY W10213813 Contact Us For Availability
5
SCREW (2) MAY 7101P338-60 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
BLOCK, ELEMENT TERMINAL MAY 7401P061-60 Contact Us For Availability
6
KNOB, (4) MAY 7737P395-60 Contact Us For Availability
6
MAY W10201322 MAY W10201322 Contact Us For Availability
6
SPACER, SIDE PNL MAY 8004P024-60 Contact Us For Availability
6
COVER, CONVECTION MAY W10312218 Contact Us For Availability
6
SHIELD MAY 3604F418-51 Contact Us For Availability
7
CONTACT, SPADE MAY 7405P131-60 Contact Us For Availability
7
MAY 5700D526-60 MAY 5700D526-60 Contact Us For Availability
7
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
MAY 7772P050-60 MAY 7772P050-60 Contact Us For Availability
8
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
8
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
9
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
9
MAY 8310P006-60 MAY 8310P006-60 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
MAY 7003P082-60 MAY 7003P082-60 Contact Us For Availability
10
MAY 3807F741-80 MAY 3807F741-80 Contact Us For Availability
10
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) MAY 3807F615-51 Contact Us For Availability
10
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
11
PAN, GRILL (LEFT) MAY 3401F050-19 Contact Us For Availability
11
MAY 3401F051-19 MAY 3401F051-19 Contact Us For Availability
11
SCREW, 8-18 X 3/8 MAY 7101P426-60 Contact Us For Availability
11
ASSY., SCROLL BLWR MAY 2822W001-80 Contact Us For Availability
11
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
12
BRKT, GRILL PAN MAY 3801F621-51 Contact Us For Availability
12
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
12
BLOCK, BARE WIRE MAY 7401P157-60 Contact Us For Availability
12
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
12
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
13
MAY 3807F743-51 MAY 3807F743-51 Contact Us For Availability
13
MAY 2818F001-80 MAY 2818F001-80 Contact Us For Availability
13
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
14
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
14
MAY 7111P047-60 MAY 7111P047-60 Contact Us For Availability
14
THERMOSTAT, HI-LIMIT MAY 7403P856-60 Contact Us For Availability
14
MAY 7922P050-60 MAY 7922P050-60 Contact Us For Availability
14
MAY 7922P051-60 MAY 7922P051-60 Contact Us For Availability
15
MAY 7718P024-60 MAY 7718P024-60 Contact Us For Availability
15
MAY 8032P003-60 MAY 8032P003-60 Contact Us For Availability
15
RETAINER, INSUL. CONVECT. MAY 3804F300-51 Contact Us For Availability
15
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
16
MAY 7518P118-60 MAY 7518P118-60 Contact Us For Availability
16
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
MAY 4009F087-19 MAY 4009F087-19 Contact Us For Availability
17
ASSY., PLENUM MAY 2801W033-80 Contact Us For Availability
17
MAY 8026P094-60 MAY 8026P094-60 Contact Us For Availability
17
RETAINER,GLASS BTM MAY 3804F317-80 Contact Us For Availability
18
MAY 4005F779-80 MAY 4005F779-80 Contact Us For Availability
18
SUPPORT, OVEN REAR MAY 3807F732-51 Contact Us For Availability
18
SEAL, DOOR MAY W10162384 Contact Us For Availability
19
PLENUM (SIDE) MAY 2801L037-80 Contact Us For Availability
19
MAY 3801F929-51 MAY 3801F929-51 Contact Us For Availability
19
MAY 7002P465-60 MAY 7002P465-60 Contact Us For Availability
20
MAY 7402P104-60 MAY 7402P104-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
21
MAY 3605F344-45 MAY 3605F344-45 Contact Us For Availability
22
MAY 7407P180-60 MAY 7407P180-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
24
MAY 4005F684-51 MAY 4005F684-51 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
25
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
26
MAY W10183566 MAY W10183566 Contact Us For Availability
27
RETAINER, INSUL. (BOTTOM) MAY 3804F312-51 Contact Us For Availability
28
TRIM, FRONT FRAME MAY 7713P054-60 Contact Us For Availability
29
MAY 3604F336-51 MAY 3604F336-51 Contact Us For Availability
30
MAY 7106P143-60 MAY 7106P143-60 Contact Us For Availability
31
SCREW, HINGE MAY 7101P282-60 Contact Us For Availability
32
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
34
EXTENSION, SHIELD MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
BASE, PEDESTAL MAY W10271711 Contact Us For Availability
39
MAY 4020F032-80 MAY 4020F032-80 Contact Us For Availability
39
MAY 4020F033-80 MAY 4020F033-80 Contact Us For Availability
40
MAY 7002P304-60 MAY 7002P304-60 Contact Us For Availability
41
BRACKET, RELAY MAY 8405P063-60 Contact Us For Availability
42
MAY 8405P046-60 MAY 8405P046-60 Contact Us For Availability
43
MAY W10182892 MAY W10182892 Contact Us For Availability
44
TUBE, DRAIN MAY 7506P406-60 Contact Us For Availability
45
MAY 8312P191-60 MAY 8312P191-60 Contact Us For Availability
46
MAY 8312P190-60 MAY 8312P190-60 Contact Us For Availability
47
SCREW (4) MAY 7101P604-60 Contact Us For Availability
48
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
49
SCREW (6) MAY 7101P652-60 Contact Us For Availability
NI
MAY A341 MAY A341 Contact Us For Availability
NI
MAY JEA8120ADW MAY JEA8120ADW Contact Us For Availability
NI
MAY 7002P466-60 MAY 7002P466-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P467-60 Contact Us For Availability
NI
MAY 7002P468-60 MAY 7002P468-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
CLEANER & POLISH (STAINLESS MODELS) MAY 31462 Contact Us For Availability
NI
PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
NI
CLEANER, COOKTOP (CERAMIC MODELS) MAY 31464 Contact Us For Availability
NI
KIT, COOKTOP CAR MAY 31605 Contact Us For Availability
NI
CLEANER, ALL-PURPOSE MAY 31682 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
MAY 3195996 MAY 3195996 Contact Us For Availability
NI
MAY 3196076 MAY 3196076 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
HARNESS, SENSOR MAY 5171P537-60 Contact Us For Availability
NI
MAY 5171P554-60 MAY 5171P554-60 Contact Us For Availability
NI
MAY 5171P563-60 MAY 5171P563-60 Contact Us For Availability
NI
MAY 5171P777-60 MAY 5171P777-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
SCRAPER, COOKTOP (CERAMIC MODELS) MAY WA906B Contact Us For Availability
× ![]()
