Model Maytag JES8860CCB00 ELECTRIC RANGE – Common Parts & Diagrams

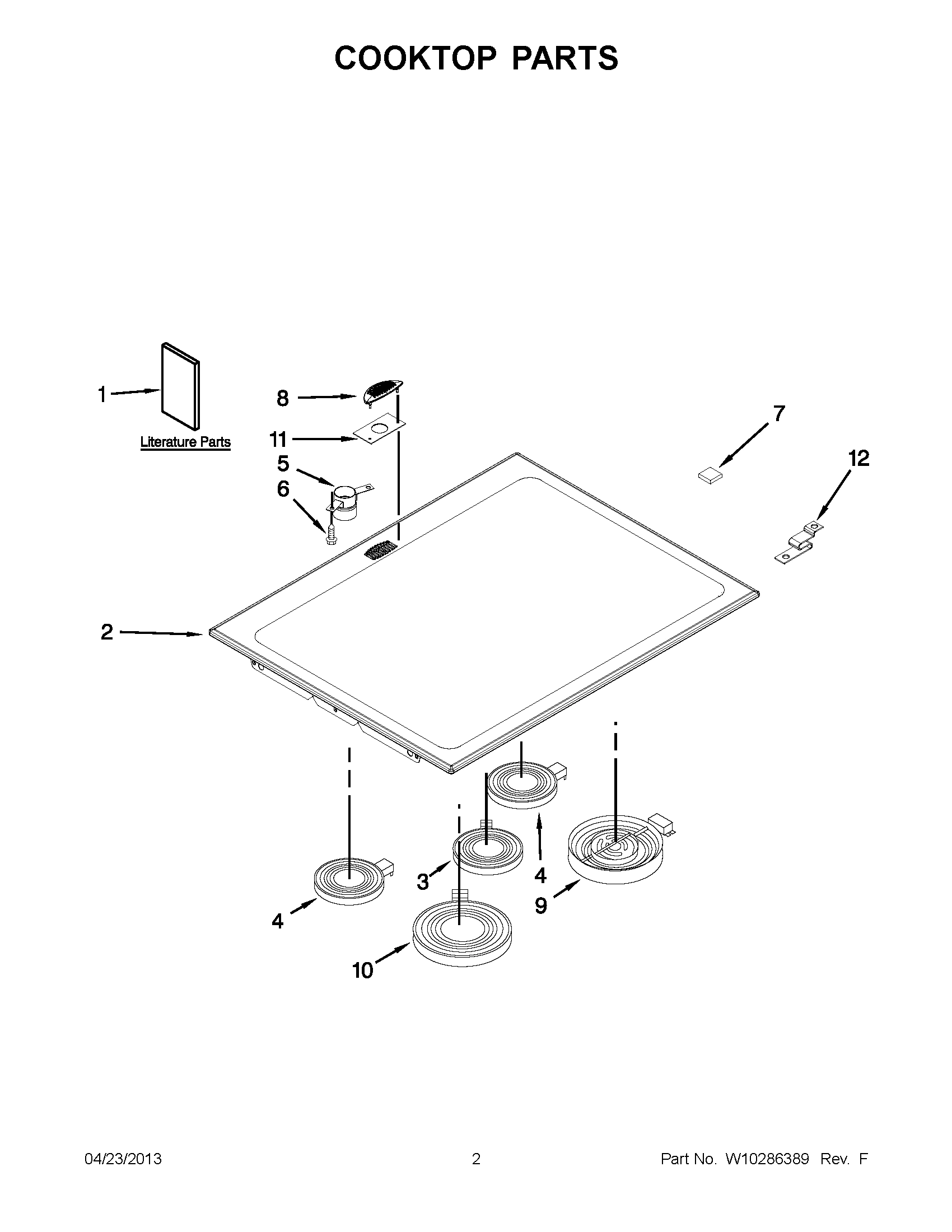

01 - COOKTOP PARTS

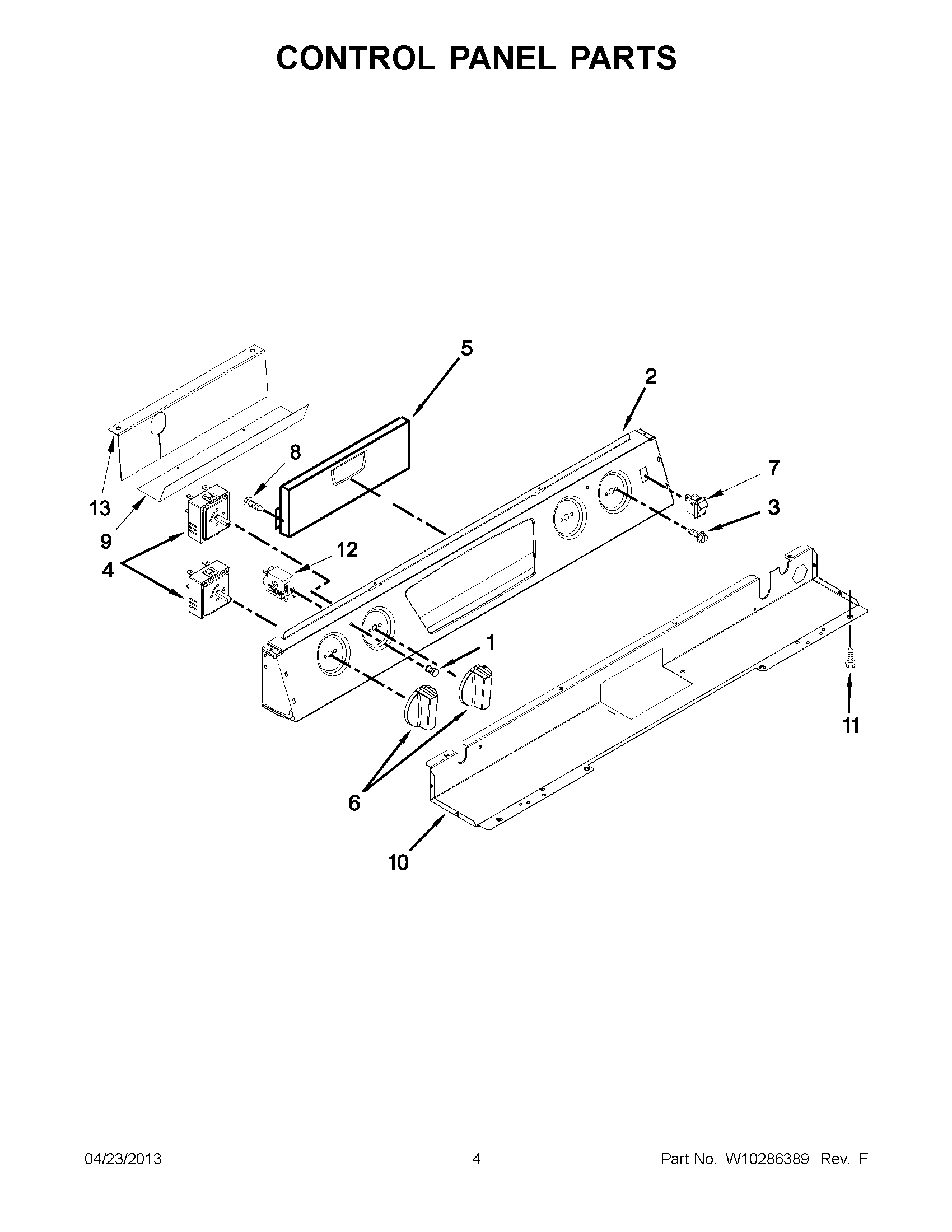

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DRAWER & RACK PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag JES8860CCB00 ELECTRIC RANGE
1
MAY W10235523 MAY W10235523 Contact Us For Availability
1
TECH SHEET (ENGLISH) MAY W10236967 Contact Us For Availability
1
TECH SHEET (FRENCH) MAY W10236968 Contact Us For Availability
1
MAY W10253461 MAY W10253461 Contact Us For Availability
1
MAY 7730P031-60 MAY 7730P031-60 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
1
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
2
MAY W10236961 MAY W10236961 Contact Us For Availability
2
MAY W10236207 MAY W10236207 Contact Us For Availability
2
MAY W10236213 MAY W10236213 Contact Us For Availability
2
MAY W10236221 MAY W10236221 Contact Us For Availability
2
ASSEMBLY, LATCH MAY 8002P089-60 Contact Us For Availability
2
DRAWER, WARMING MAY 3405W043-19 Contact Us For Availability
2
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
3
ELEMENT, WARMING (CENTER) MAY 7406P454-60 Contact Us For Availability
3
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
3
ASSEMBLY, LIGHT SWITCH MAY 7450P109-60 Contact Us For Availability
3
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
4
ELEMENT (1200W) (LEFT REAR & RIGHT REAR) MAY 7406P375-60 Contact Us For Availability
4
SWITCH, INFINITE (LEFT REAR) MAY 7403P373-60 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT REAR) MAY 7403P877-60 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT) MAY 7450P011-60 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10185286 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
MAY W10233479 MAY W10233479 Contact Us For Availability
5
MAY 8507P226-60 MAY 8507P226-60 Contact Us For Availability
5
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
5
PANEL, DRAWER (BLACK) MAY 2416F086-70 Contact Us For Availability
5
MAY 2416F086-71 MAY 2416F086-71 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
MAY 7101P498-60 MAY 7101P498-60 Contact Us For Availability
6
KNOB (BLACK) MAY W10207697 Contact Us For Availability
6
KNOB (WHITE) MAY W10213942 Contact Us For Availability
6
KNOB (STAINLESS) MAY W10213943 Contact Us For Availability
6
EXTENSION, MAIN BACK MAY 3826F066-51 Contact Us For Availability
6
SHIELD MAY 3604F418-51 Contact Us For Availability
7
SPACER, RUBBER MAY 8010P152-60 Contact Us For Availability
7
SWITCH, ROCKER (BLACK) MAY 7403P798-60 Contact Us For Availability
7
MAY 7403P799-60 MAY 7403P799-60 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
TRIM, VENT (BLACK) MAY 7744P464-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
GLASS, DRAWER (BLACK) MAY 7922P057-60 Contact Us For Availability
8
MAY 7922P058-60 MAY 7922P058-60 Contact Us For Availability
8
GLASS, DRAWER (STAINLESS) MAY W10184467 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
9
ELEMENT (RIGHT FRONT) MAY W10270587 Contact Us For Availability
9
MAY 7003P152-60 MAY 7003P152-60 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
ELEMENT (3000W) (LEFT FRONT) MAY 7406P501-60 Contact Us For Availability
10
MAY 3807F731-51 MAY 3807F731-51 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
10
MAY 2206F087-45 MAY 2206F087-45 Contact Us For Availability
10
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
11
MAY 7201P076-60 MAY 7201P076-60 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
11
ELEMENT, WARMING MAY W10310262 Contact Us For Availability
12
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
12
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
12
MAY W10183566 MAY W10183566 Contact Us For Availability
12
CLIP, WARMING ELEMENT MAY 3807F633-45 Contact Us For Availability
12
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
12
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
13
MAY 7003P150-60 MAY 7003P150-60 Contact Us For Availability
13
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
13
SHIELD, WARMING ELEMENT MAY 3604F414-51 Contact Us For Availability
13
MAY W10223152 MAY W10223152 Contact Us For Availability
13
MAY W10223163 MAY W10223163 Contact Us For Availability
13
MAY W10223164 MAY W10223164 Contact Us For Availability
14
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
14
MAY W10235390 MAY W10235390 Contact Us For Availability
14
MAY W10272330 MAY W10272330 Contact Us For Availability
14
MAY W10272332 MAY W10272332 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
MAY 8026P084-60 MAY 8026P084-60 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
MAY 2205F060-19 MAY 2205F060-19 Contact Us For Availability
18
MAY W10162384 MAY W10162384 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
INSULATION, DOOR MAY 7002P465-60 Contact Us For Availability
20
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
ASSEMBLY, BADGE (WHITE) MAY W10190723 Contact Us For Availability
20
ASSEMBLY, BADGE (BLACK) MAY W10190724 Contact Us For Availability
20
ASSEMBLY, BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
21
PLATE, SMOKE ELIMINATOR MAY 3605F354-45 Contact Us For Availability
22
ASSEMBLY, LIGHT MAY 7407P180-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
24
MAY 4005F684-51 MAY 4005F684-51 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
25
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
26
MAY 4005F749-45 MAY 4005F749-45 Contact Us For Availability
27
MAY 7406P411-60 MAY 7406P411-60 Contact Us For Availability
28
MAY 3401F092-45 MAY 3401F092-45 Contact Us For Availability
29
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
30
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
31
Screw MAY 7101P282-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7403P647-60 Contact Us For Availability
33
SHIELD, WARMING DRAWER MAY 3604F326-45 Contact Us For Availability
34
EXTENSION, HEAT SHIELD MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
MAY W10271711 MAY W10271711 Contact Us For Availability
39
SUPPORT, REGULATOR VALVE MAY 3807F640-51 Contact Us For Availability
40
MAY W10293200 MAY W10293200 Contact Us For Availability
41
ASSEMBLY, CONVECTION MAY 7427P129-60 Contact Us For Availability
42
COVER, CONVECTION MAY 3605F346-19 Contact Us For Availability
43
TRIM, FRAME MAY 7713P054-60 Contact Us For Availability
44
RETAINER, INSULATION MAY 3804F231-51 Contact Us For Availability
45
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P471-60 Contact Us For Availability
NI
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10221108 MAY W10221108 Contact Us For Availability
NI
MAY W10245259 MAY W10245259 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY 5171P537-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, TOP MAY 5171P569-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (LEFT) MAY 5171P784-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
MAY W10250360 MAY W10250360 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (RIGHT) MAY W10250369 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
