Model Whirlpool JES8850CAB00 ELECTRIC RANGE – Common Parts & Diagrams

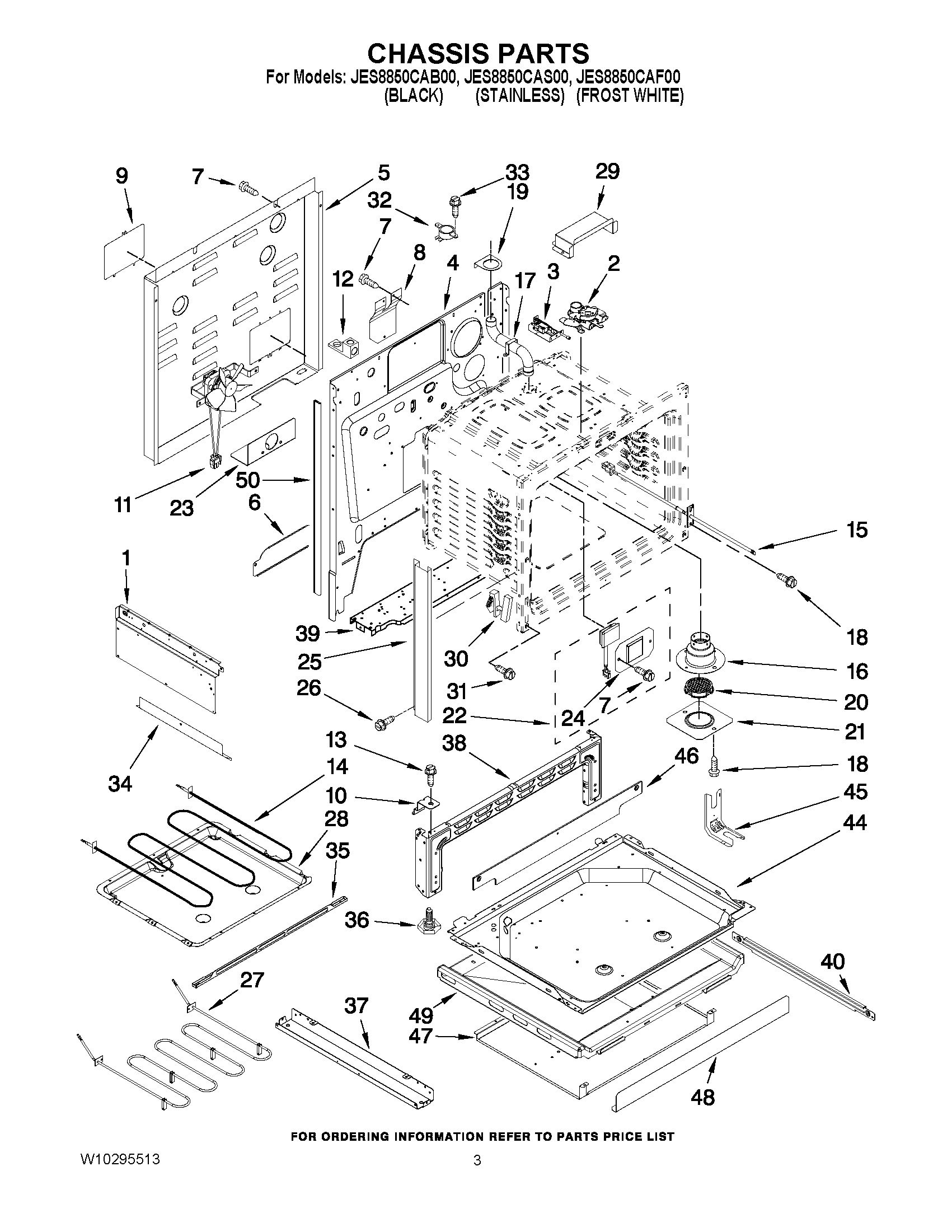

03 - CHASSIS PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
04 - DRAWER AND RACK PARTS
05 - DOOR PARTS
02 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
Common parts from model Whirlpool JES8850CAB00 ELECTRIC RANGE
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
WASHER WPL 7109P08260 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
1
SAFER CKG. TIPS WPL 9762761 Contact Us For Availability
1
USE & CARE GUIDE WPL W10235523 Contact Us For Availability
1
WIRING DIAGRAM WPL W10235683 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10253461 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10235816 Contact Us For Availability
2
PANEL, CONTROL (BLACK) WPL W10239181 Contact Us For Availability
2
PANEL, CONTROL (WHITE) WPL W10239182 Contact Us For Availability
2
DRAWER, STORAGE WPL 3405W04319 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
2
PANEL, CONTROL (STAINLESS) WPL W10239180 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10235813 Contact Us For Availability
3
SCREW (10-24) WPL 7101P07260 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P67660 Contact Us For Availability
3
ELEMENT, WARM (CTR) WPL 7406P45460 Contact Us For Availability
4
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
4
SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability
4
SWITCH, INFINITE (DUAL 6`` (LR/RR)) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINITE (DUAL (RF/LF)) WPL 7450P01160 Contact Us For Availability
4
ELEMENT LR/RR WPL 7406P37560 Contact Us For Availability
5
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
5
PANEL, DRAWER (WHITE) WPL 2416F08671 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
5
CONTROL WPL 8507P22660 Contact Us For Availability
5
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
6
KNOB, (4) (WHITE) WPL W10213942 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
6
SCREW WPL 7101P49860 Contact Us For Availability
7
NUT, LOCK (10-24) WPL 7103P13960 Contact Us For Availability
7
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability
8
GLASS, DRAWER (WHITE) WPL 7922P05860 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) WPL 7403P79860 Contact Us For Availability
8
SWITCH, ROCKER (WHITE) WPL 7403P79960 Contact Us For Availability
8
TRIM, VENT (BLACK) WPL 7744P46460 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
SCREW, CONTROL WPL 7101P07760 Contact Us For Availability
10
RECEPTACLE, PROBE WPL 7408P08660 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F73151 Contact Us For Availability
10
ELEMENT,DUAL-LF WPL 7406P43160 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
11
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
11
GASKET, VENT TRIM WPL 7201P07660 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
12
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
13
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
13
Light, Indicator WPL 7407P13660 Contact Us For Availability
14
GLASS, DOOR (STAINLESS) WPL W10235390 Contact Us For Availability
14
GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability
14
SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
15
SHIELD, CONTROL WPL 7003P15260 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
16
FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
25
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
27
ELEMENT, BAKE WPL 7406P41160 Contact Us For Availability
28
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P64760 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL 8016P02360 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
47
SHIELD,WARMING DWR WPL 3604F32645 Contact Us For Availability
48
COVER, FRONT WPL 4005F74945 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
50
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P53760 Contact Us For Availability
NI
HARNESS,SWITCH(LT) WPL 5171P55960 Contact Us For Availability
NI
HARNESS, TOP WPL 5171P56960 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
× ![]()
