Model Maytag JES8850AAB ELECTRIC RANGE – Common Parts & Diagrams

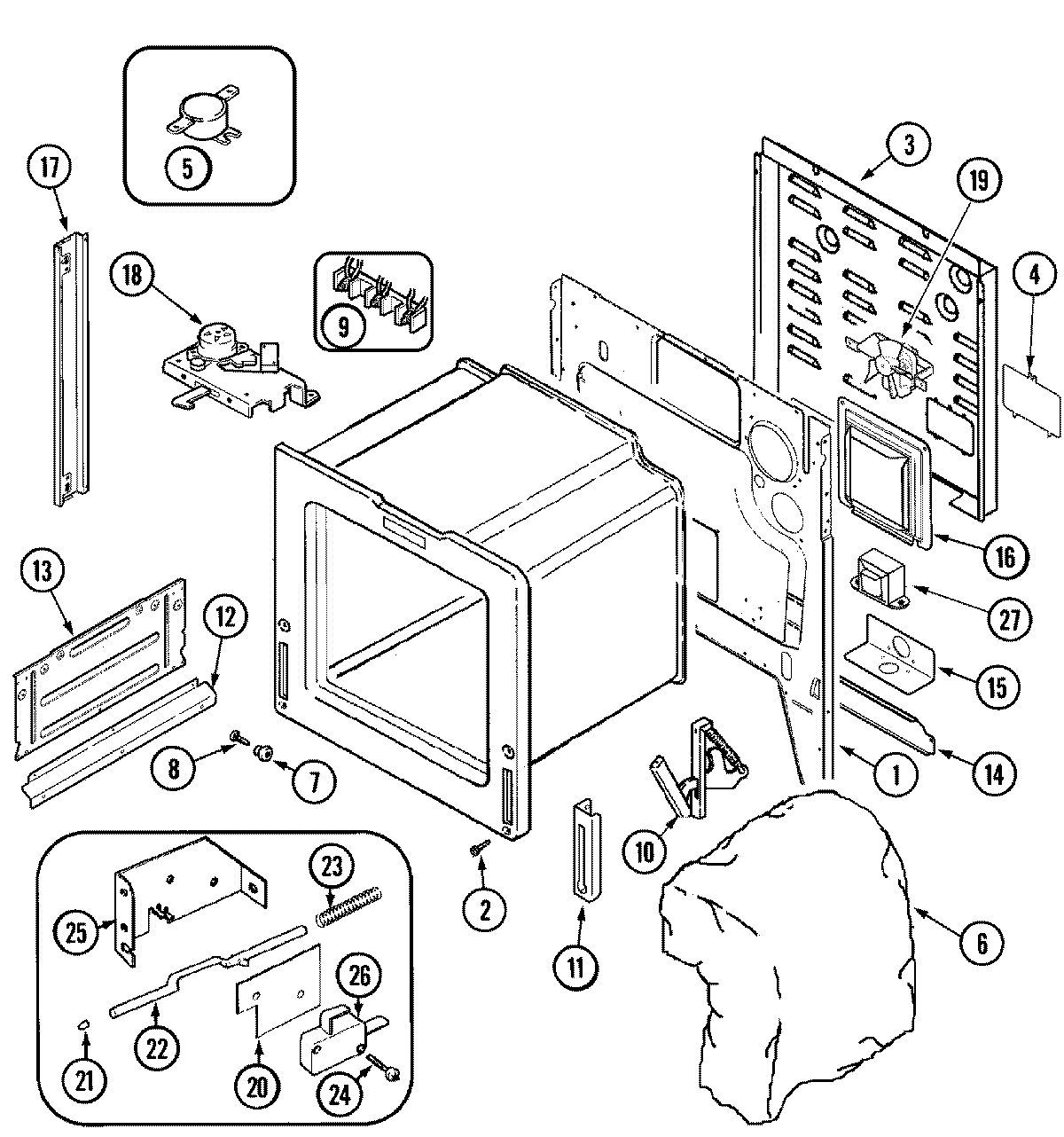

01 - BODY

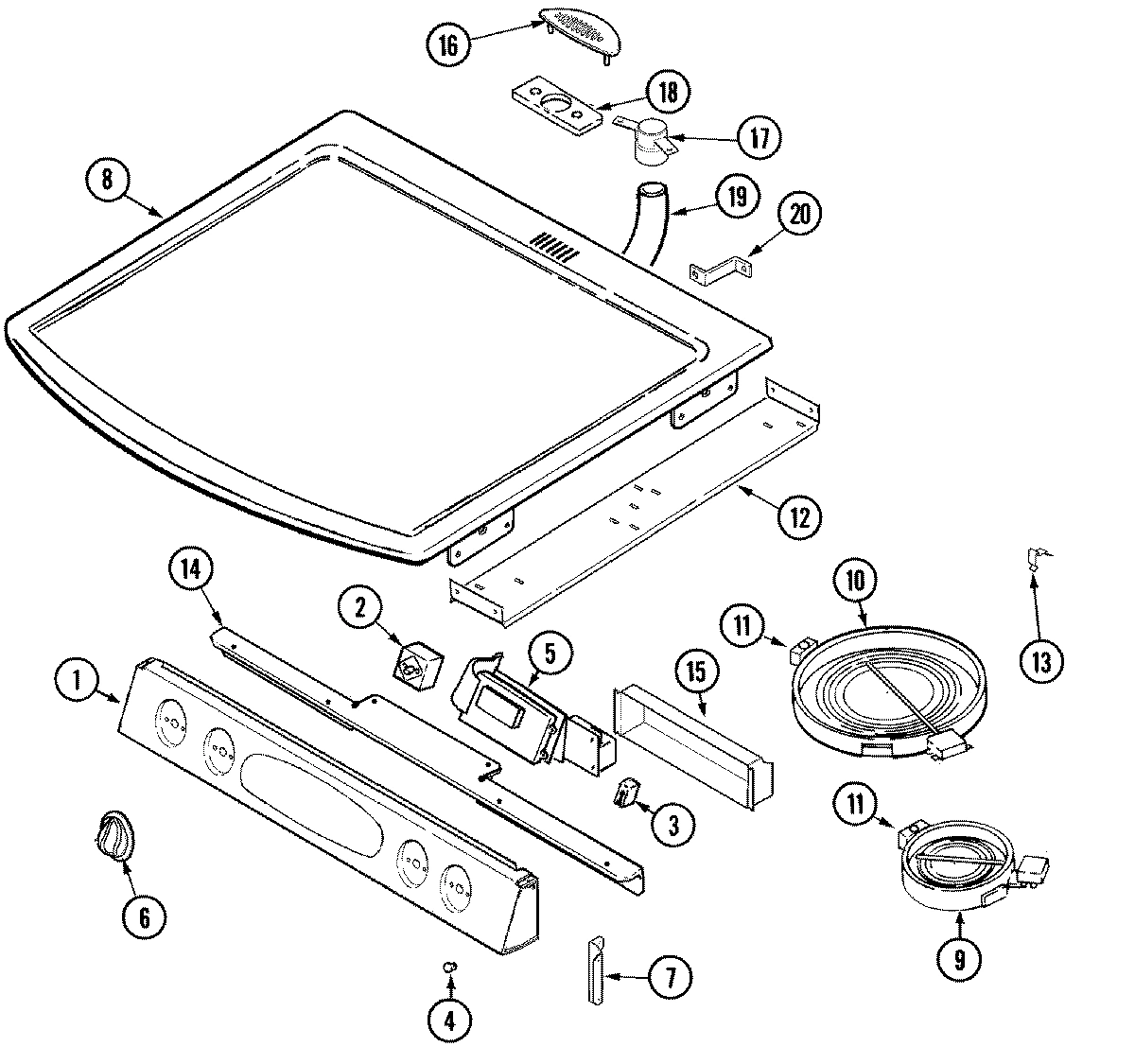

02 - CONTROL PANEL/TOP ASSY

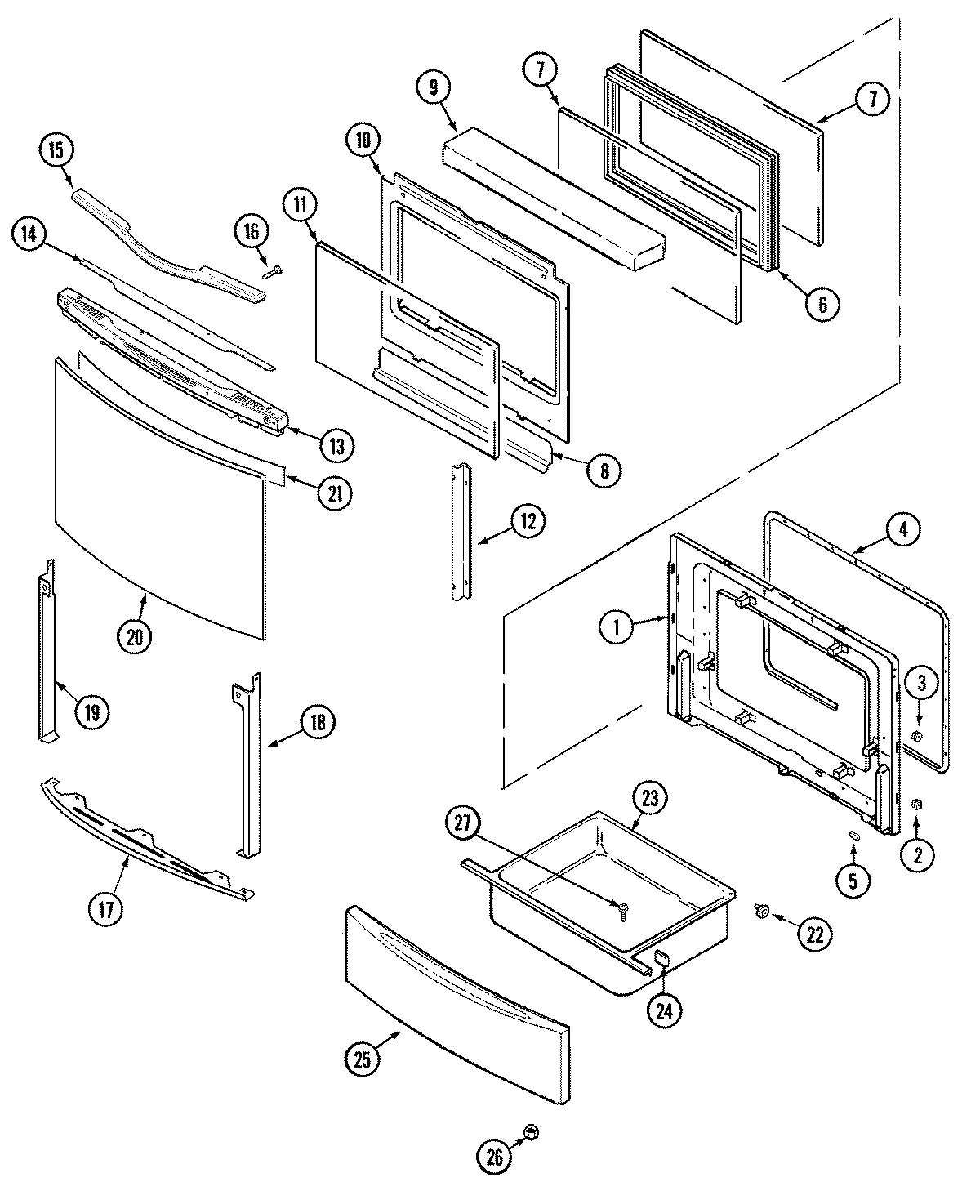

03 - DOOR/DRAWER

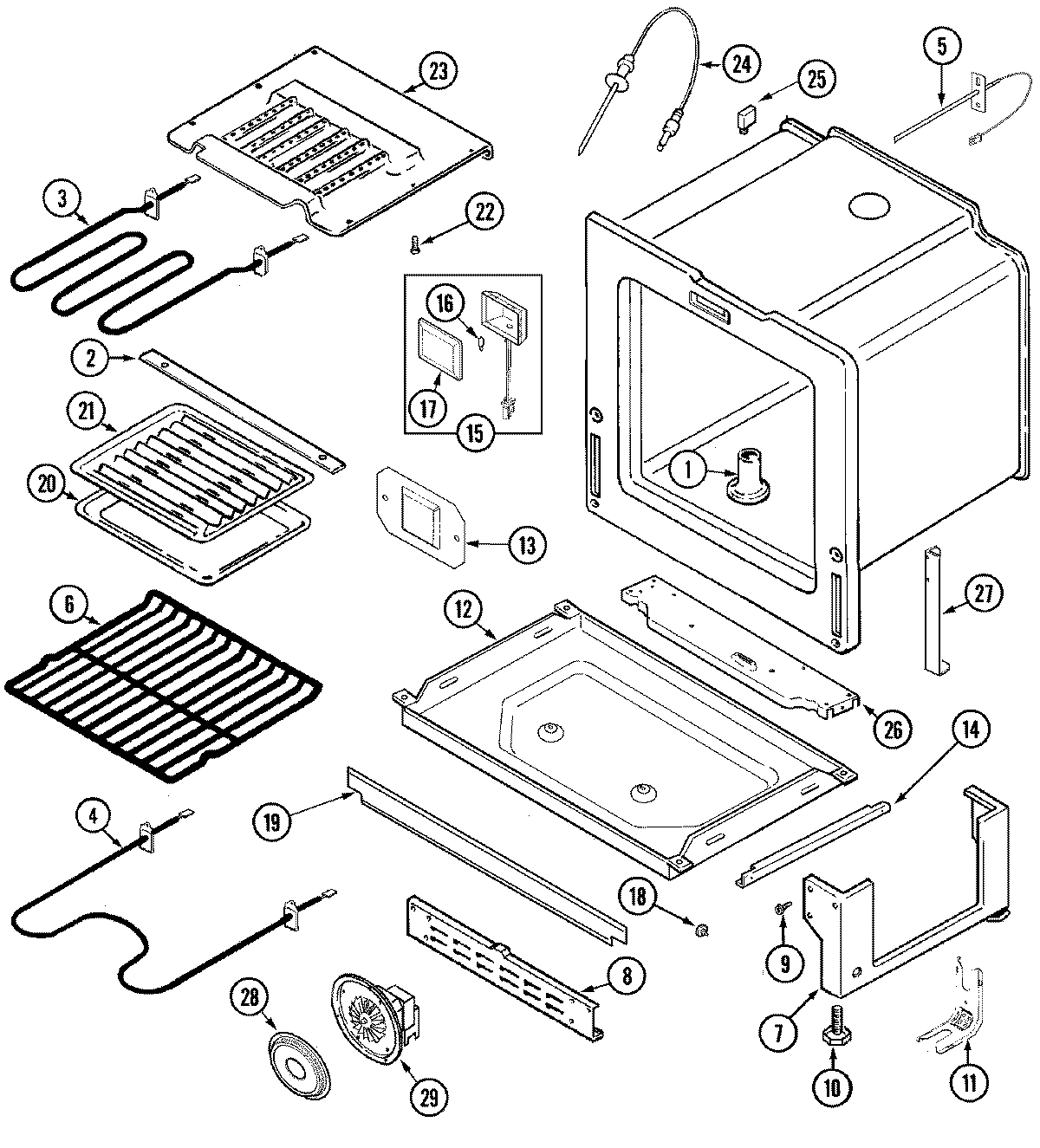

04 - OVEN/BASE
05 - SUPPLEMENTAL INFORMATION

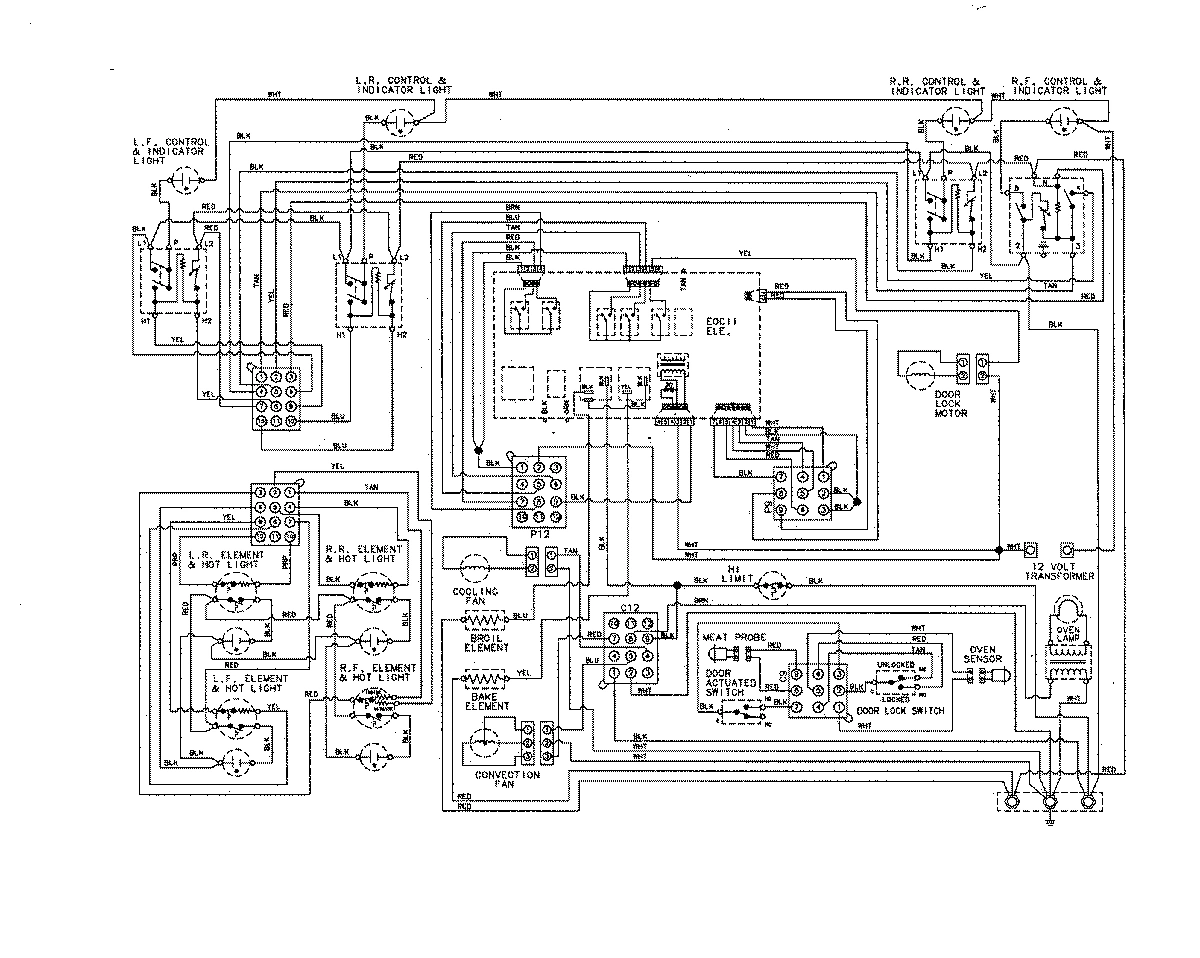

06 - WIRING INFORMATION
Common parts from model Maytag JES8850AAB ELECTRIC RANGE
1
MAY 74005742 MAY 74005742 Contact Us For Availability
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 74005720 MAY 74005720 Contact Us For Availability
1
MAY 16008409 MAY 16008409 Contact Us For Availability
1
MAY 74005524 MAY 74005524 Contact Us For Availability
2
MAY 71003201 MAY 71003201 Contact Us For Availability
2
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
2
MAY 74003563 MAY 74003563 Contact Us For Availability
2
MAY 74005872 MAY 74005872 Contact Us For Availability
2
MAY 74005875 MAY 74005875 Contact Us For Availability
3
MAY 7407P100-60 MAY 7407P100-60 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
3
MAY 74005874 MAY 74005874 Contact Us For Availability
3
MAY 74006171 MAY 74006171 Contact Us For Availability
4
MAY 74007219 MAY 74007219 Contact Us For Availability
4
MAY 74009289 MAY 74009289 Contact Us For Availability
5
MAY 74009316 MAY 74009316 Contact Us For Availability
5
MAY 74005731 MAY 74005731 Contact Us For Availability
5
MAY 74006358 MAY 74006358 Contact Us For Availability
5
MAY 74007369 MAY 74007369 Contact Us For Availability
6
MAY 74005706 MAY 74005706 Contact Us For Availability
6
MAY 74005708 MAY 74005708 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 20001099 MAY 20001099 Contact Us For Availability
7
MAY 74005729 MAY 74005729 Contact Us For Availability
7
MAY 74005772 MAY 74005772 Contact Us For Availability
8
MAY 74005714 MAY 74005714 Contact Us For Availability
8
MAY 74005761 MAY 74005761 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
9
MAY 74007123 MAY 74007123 Contact Us For Availability
9
MAY 74008573 MAY 74008573 Contact Us For Availability
9
MAY 74008574 MAY 74008574 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
10
MAY 74007218 MAY 74007218 Contact Us For Availability
10
MAY 74008575 MAY 74008575 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
11
MAY 71003486 MAY 71003486 Contact Us For Availability
11
MAY 74005774 MAY 74005774 Contact Us For Availability
12
MAY 74005760 MAY 74005760 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74005250 MAY 74005250 Contact Us For Availability
13
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
13
MAY 74005700 MAY 74005700 Contact Us For Availability
13
MAY 74005777 MAY 74005777 Contact Us For Availability
14
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
14
MAY 74005756 MAY 74005756 Contact Us For Availability
14
MAY 74005704 MAY 74005704 Contact Us For Availability
14
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
15
SCREW MAY 7101P349-60 Contact Us For Availability
15
MAY 74005755 MAY 74005755 Contact Us For Availability
15
MAY 74005698 MAY 74005698 Contact Us For Availability
15
MAY 74005773 MAY 74005773 Contact Us For Availability
16
MAY 74004348 MAY 74004348 Contact Us For Availability
16
MAY 74005757 MAY 74005757 Contact Us For Availability
16
MAY 71003275 MAY 71003275 Contact Us For Availability
17
MAY 74004216 MAY 74004216 Contact Us For Availability
17
TUBE, VENT (UPR) MAY 74005759 Contact Us For Availability
17
MAY 74005763 MAY 74005763 Contact Us For Availability
18
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
18
MAY 74005675 MAY 74005675 Contact Us For Availability
18
MAY 74004327 MAY 74004327 Contact Us For Availability
18
MAY Y04100462 MAY Y04100462 Contact Us For Availability
18
MAY 74005693 MAY 74005693 Contact Us For Availability
19
MAY 74004947 MAY 74004947 Contact Us For Availability
19
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
19
MAY 74005726 MAY 74005726 Contact Us For Availability
19
MAY 74005695 MAY 74005695 Contact Us For Availability
19
MAY 74005723 MAY 74005723 Contact Us For Availability
20
MAY 74001872 MAY 74001872 Contact Us For Availability
20
MAY 74005776 MAY 74005776 Contact Us For Availability
20
MAY 74005718 MAY 74005718 Contact Us For Availability
20
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
21
MAY 74001631 MAY 74001631 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
21
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
22
MAY 74003566 MAY 74003566 Contact Us For Availability
23
MAY 71003042 MAY 71003042 Contact Us For Availability
23
MAY 74003564 MAY 74003564 Contact Us For Availability
24
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
24
MAY 74007232 MAY 74007232 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
25
MAY 74005692 MAY 74005692 Contact Us For Availability
25
MAY 71001863 MAY 71001863 Contact Us For Availability
25
MAY 74009649 MAY 74009649 Contact Us For Availability
25
MAY Y703356 MAY Y703356 Contact Us For Availability
26
MAY 74001802 MAY 74001802 Contact Us For Availability
26
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
26
MAY 74005464 MAY 74005464 Contact Us For Availability
27
MAY 74005416 MAY 74005416 Contact Us For Availability
27
MAY 74004780 MAY 74004780 Contact Us For Availability
28
MAY 74003639 MAY 74003639 Contact Us For Availability
28
COVER, CONVECT MAY 74005783 Contact Us For Availability
29
MAY 71003203 MAY 71003203 Contact Us For Availability
NI
MAY 15002801 MAY 15002801 Contact Us For Availability
NI
MAY 15003358 MAY 15003358 Contact Us For Availability
× ![]()
