Model Maytag JES1450CDB0 RANGE/OVEN, ELECTRIC, SLIDE-IN – Common Parts & Diagrams

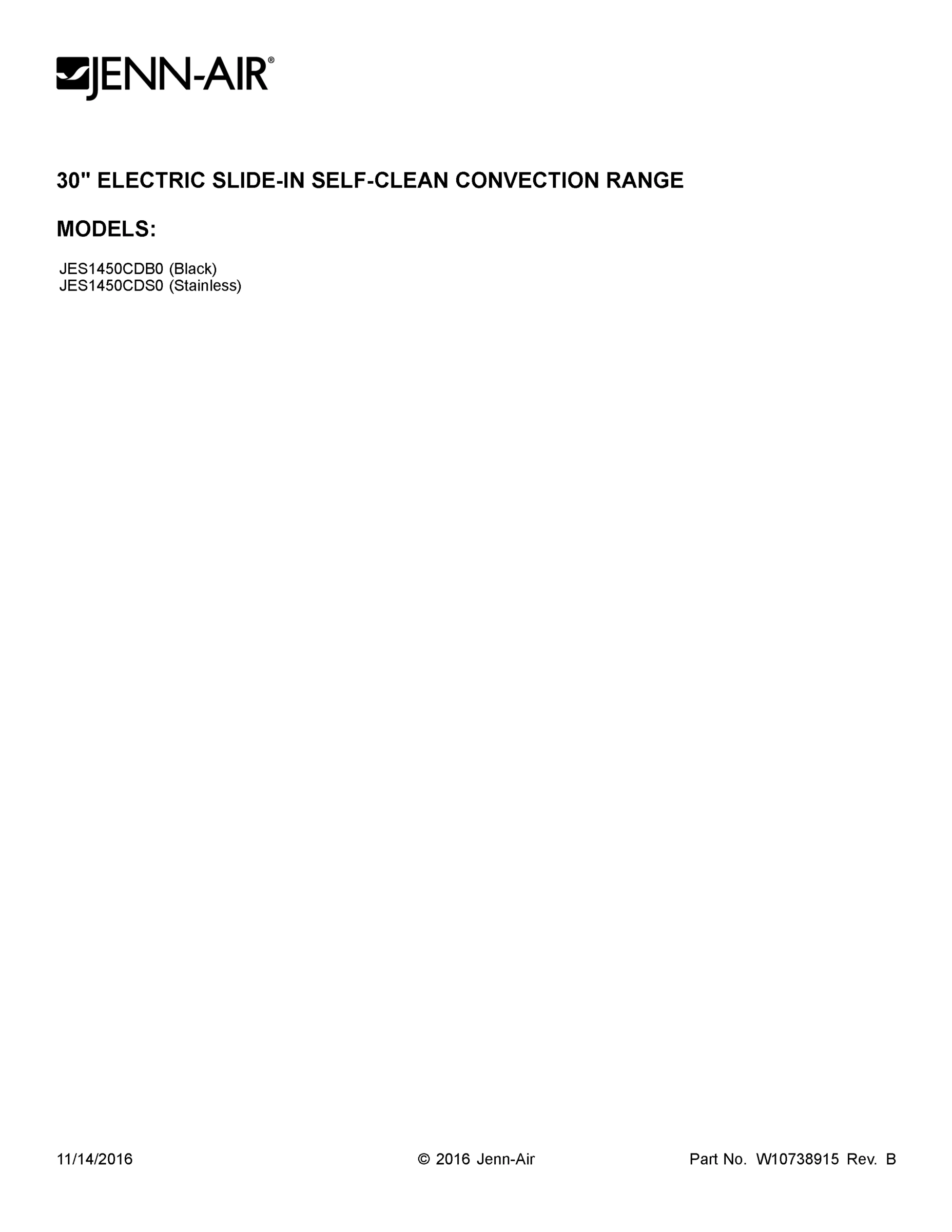

01 - COVER SHEET

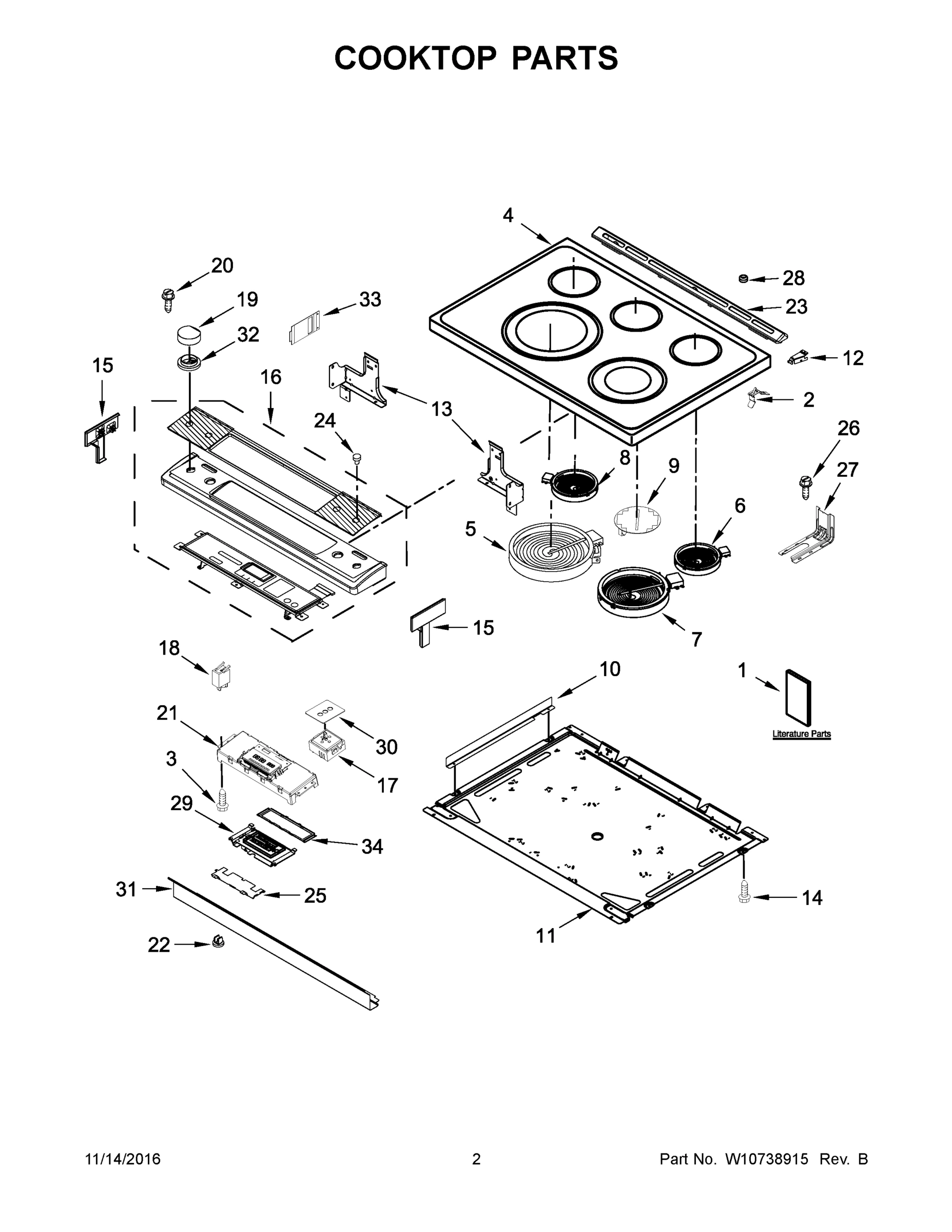

02 - COOKTOP PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
05 - DRAWER PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JES1450CDB0 RANGE/OVEN, ELECTRIC, SLIDE-IN
1
MAY W10634238 MAY W10634238 Contact Us For Availability
1
MAY W10541911 MAY W10541911 Contact Us For Availability
1
HANDLE, DRAWER (BLACK) MAY W10550998 Contact Us For Availability
1A
MAY W10665264 MAY W10665264 Contact Us For Availability
1A
HANDLE, DRAWER (STAINLESS) MAY W10551013 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10400064 MAY W10400064 Contact Us For Availability
1F
MAY W10400065 MAY W10400065 Contact Us For Availability
1G
MAY W10665234 MAY W10665234 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY W10757442 MAY W10757442 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
BADGE (BLACK) MAY W10190724 Contact Us For Availability
3
MAY W10550987 MAY W10550987 Contact Us For Availability
3A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4
MAY W10536298 MAY W10536298 Contact Us For Availability
4
MAY 3400029 MAY 3400029 Contact Us For Availability
4
MAY W10541882 MAY W10541882 Contact Us For Availability
4
MAY W10541957 MAY W10541957 Contact Us For Availability
4A
MAY W10536299 MAY W10536299 Contact Us For Availability
4A
MAY W10541958 MAY W10541958 Contact Us For Availability
5
ELEMENT (3000W TRIPLE) (LEFT FRONT) MAY W10187839 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
MAY W10921904 MAY W10921904 Contact Us For Availability
5A
MAY W10921905 MAY W10921905 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
MAY W10544952 MAY W10544952 Contact Us For Availability
6
MAY 3196169 MAY 3196169 Contact Us For Availability
6
MAY W10541888 MAY W10541888 Contact Us For Availability
7
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
7
MAY W10774342 MAY W10774342 Contact Us For Availability
7
MAY W10541886 MAY W10541886 Contact Us For Availability
7
MAY 8533988 MAY 8533988 Contact Us For Availability
8
ELEMENT (1300W DUAL) (LEFT REAR) MAY W10342780 Contact Us For Availability
8
MAY W10362924 MAY W10362924 Contact Us For Availability
8
PANEL, DOOR (BLACK) MAY W10541892 Contact Us For Availability
8
MAY W10634260 MAY W10634260 Contact Us For Availability
9
ELEMENT, WARM ZONE (CENTER REAR) MAY W10799048 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
TRIM, DOOR SIDE (BLACK) MAY W10634236 Contact Us For Availability
9
MAY W10727084 MAY W10727084 Contact Us For Availability
10
MAY W10613286 MAY W10613286 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
SCREW MAY 9780274 Contact Us For Availability
10
MAY W10634259 MAY W10634259 Contact Us For Availability
11
MAY W10536275 MAY W10536275 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
MAY W10541885 MAY W10541885 Contact Us For Availability
11
MAY W10720530 MAY W10720530 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
MAY W10031780 MAY W10031780 Contact Us For Availability
12
MAY W10541944 MAY W10541944 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MAY W10551019 MAY W10551019 Contact Us For Availability
13A
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
13B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
14
SCREW MAY 3196173 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10634268 MAY W10634268 Contact Us For Availability
14
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
15
MAY W10557750 MAY W10557750 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10613791 MAY W10613791 Contact Us For Availability
15
MAY W10551018 MAY W10551018 Contact Us For Availability
15A
MAY W10557753 MAY W10557753 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15A
LINER, DOOR SCOOP (STAINLESS) MAY W10551024 Contact Us For Availability
15B
ENDCAP (STAINLESS LEFT) MAY W10557751 Contact Us For Availability
15C
ENDCAP (STAINLESS RIGHT) MAY W10557754 Contact Us For Availability
16
MAY W10676648 MAY W10676648 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10541883 MAY W10541883 Contact Us For Availability
16
MAY W10550982 MAY W10550982 Contact Us For Availability
16A
MAY W10676649 MAY W10676649 Contact Us For Availability
17
MAY W10437097 MAY W10437097 Contact Us For Availability
17
MAY W10634234 MAY W10634234 Contact Us For Availability
17
MAY W10541947 MAY W10541947 Contact Us For Availability
17A
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
17B
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY W10437094 Contact Us For Availability
18
MAY 8523265 MAY 8523265 Contact Us For Availability
18
MAY 3196548 MAY 3196548 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
KNOB (BLACK) MAY W10505762 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
19
MAY 3196560 MAY 3196560 Contact Us For Availability
19A
KNOB (STAINLESS) MAY W10505763 Contact Us For Availability
20
MAY 3400882 MAY 3400882 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
20
MAY W10602493 MAY W10602493 Contact Us For Availability
21
MAY W10759270 MAY W10759270 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10645947 MAY W10645947 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
23
MAY 3196178 MAY 3196178 Contact Us For Availability
23
MAY W10636528 MAY W10636528 Contact Us For Availability
23A
VENT, TRIM TOP (STAINLESS) MAY W10636529 Contact Us For Availability
24
MAY 3196068 MAY 3196068 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY W10558372 MAY W10558372 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
26
MAY 3400016 MAY 3400016 Contact Us For Availability
27
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
28
MAY W10664705 MAY W10664705 Contact Us For Availability
29
MAY W10603095 MAY W10603095 Contact Us For Availability
29
MAY W10655441 MAY W10655441 Contact Us For Availability
30
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
31
MAY W10565660 MAY W10565660 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
31A
CONSOLE LOWER, PANEL (STAINLESS) MAY W10565662 Contact Us For Availability
32
MAY W10663811 MAY W10663811 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
32A
MAY W10663810 MAY W10663810 Contact Us For Availability
33
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
33
MAY W10774446 MAY W10774446 Contact Us For Availability
34
BRACKET, CONTROL MAY W10557780 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
MAY W10813366 MAY W10813366 Contact Us For Availability
37
MAY W10563084 MAY W10563084 Contact Us For Availability
38
MAY W10605411 MAY W10605411 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10346147 MAY W10346147 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
43
MAY W10780482 MAY W10780482 Contact Us For Availability
44
MAY W10162260 MAY W10162260 Contact Us For Availability
45
MAY W10162241 MAY W10162241 Contact Us For Availability
46
MAY W10162248 MAY W10162248 Contact Us For Availability
47
MAY W10289172 MAY W10289172 Contact Us For Availability
48
MAY W10603482 MAY W10603482 Contact Us For Availability
49
MAY W10554005 MAY W10554005 Contact Us For Availability
50
MAY W10554006 MAY W10554006 Contact Us For Availability
51
MAY W10554008 MAY W10554008 Contact Us For Availability
52
MAY W10554262 MAY W10554262 Contact Us For Availability
53
MAY W10624592 MAY W10624592 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580249 MAY W10580249 Contact Us For Availability
NI
MAY W10580303 MAY W10580303 Contact Us For Availability
NI
MAY W10580307 MAY W10580307 Contact Us For Availability
NI
MAY W10580316 MAY W10580316 Contact Us For Availability
NI
MAY W10598170 MAY W10598170 Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10575374 MAY W10575374 Contact Us For Availability
NI
INSULATION, HEAT SHIELD MAY W10655442 Contact Us For Availability
NI
MAY W10655489 MAY W10655489 Contact Us For Availability
NI
MAY W10655490 MAY W10655490 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS KIT, CANNING U MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES PROTECTANT MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES KIT, COOKT MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS GRID, BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, G MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, K MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, S MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES WIPES, STA MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES CLEANER, C MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES PAD, COOKT MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS/POLISHES ALT CLEANI MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
