Model LG JES1339BC – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

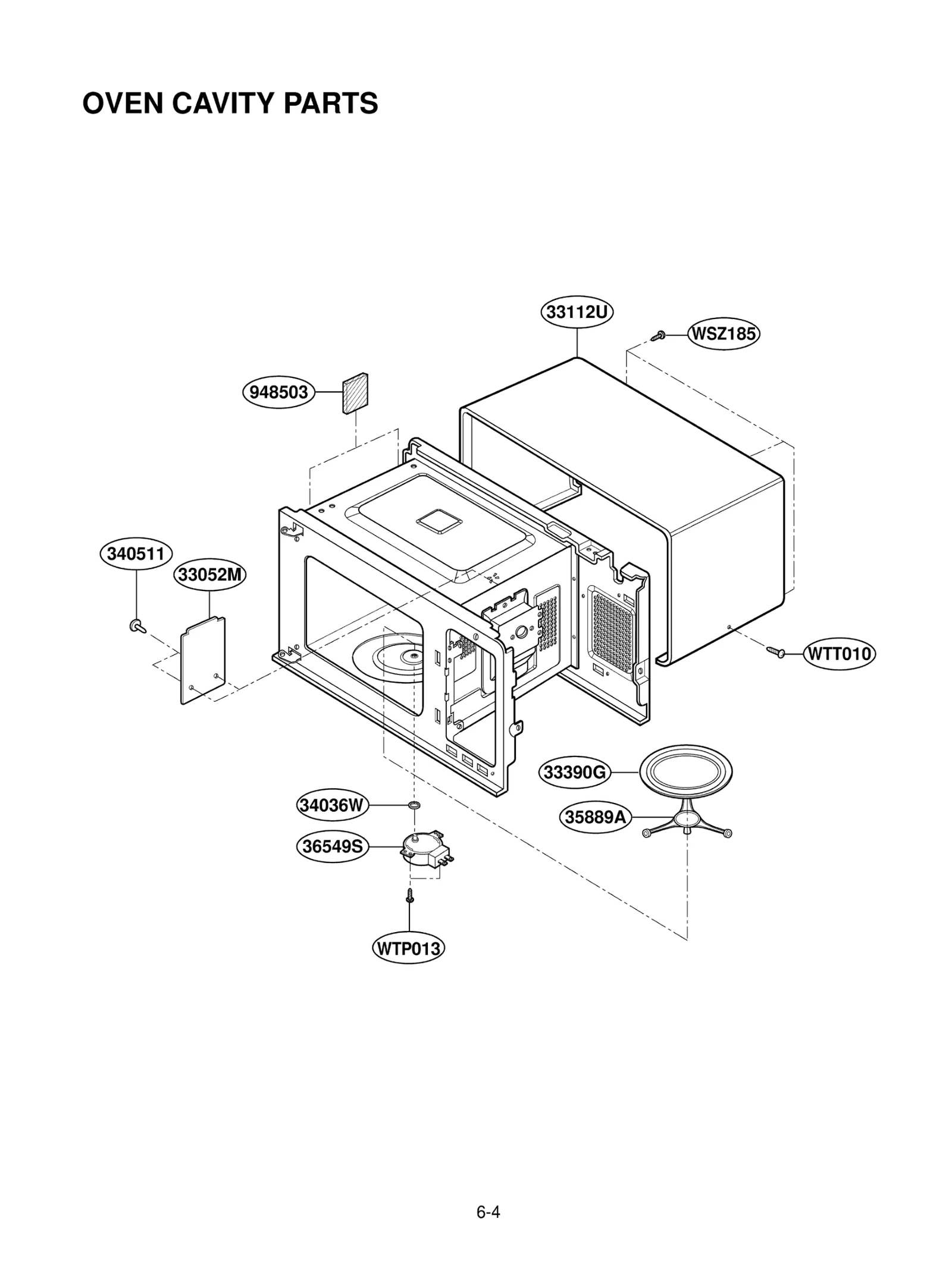

Diagram 3

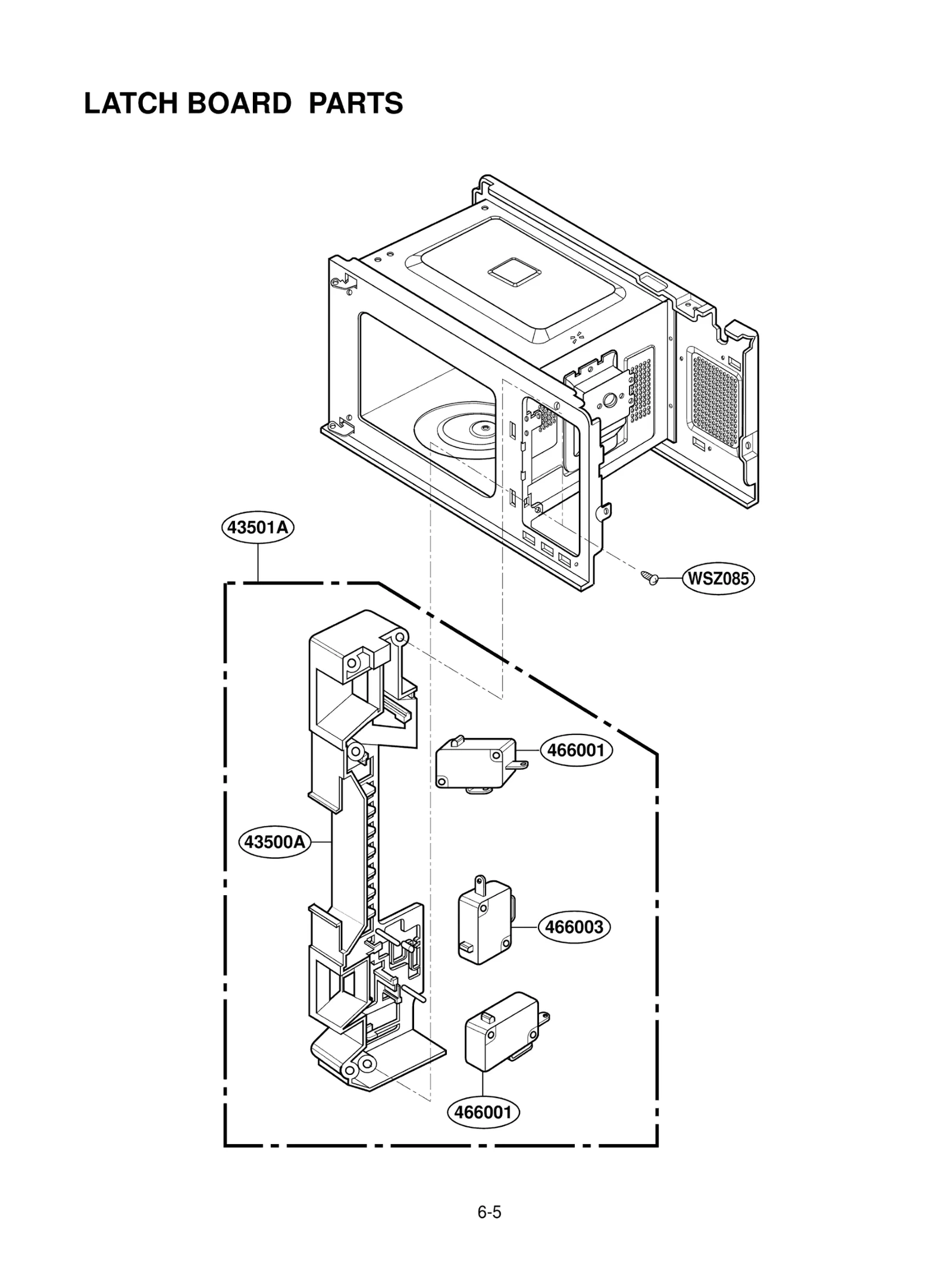

Diagram 4

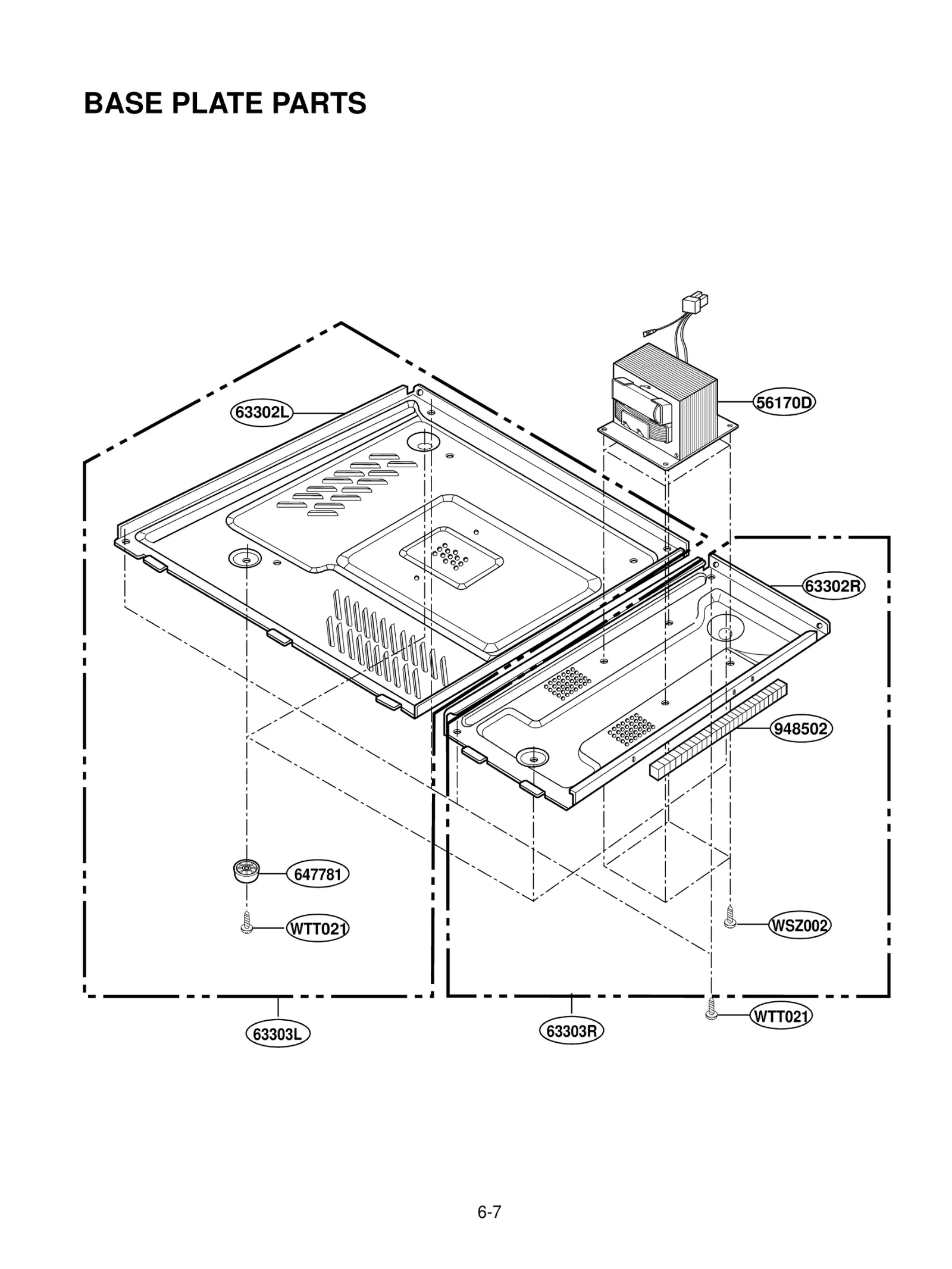

Diagram 5

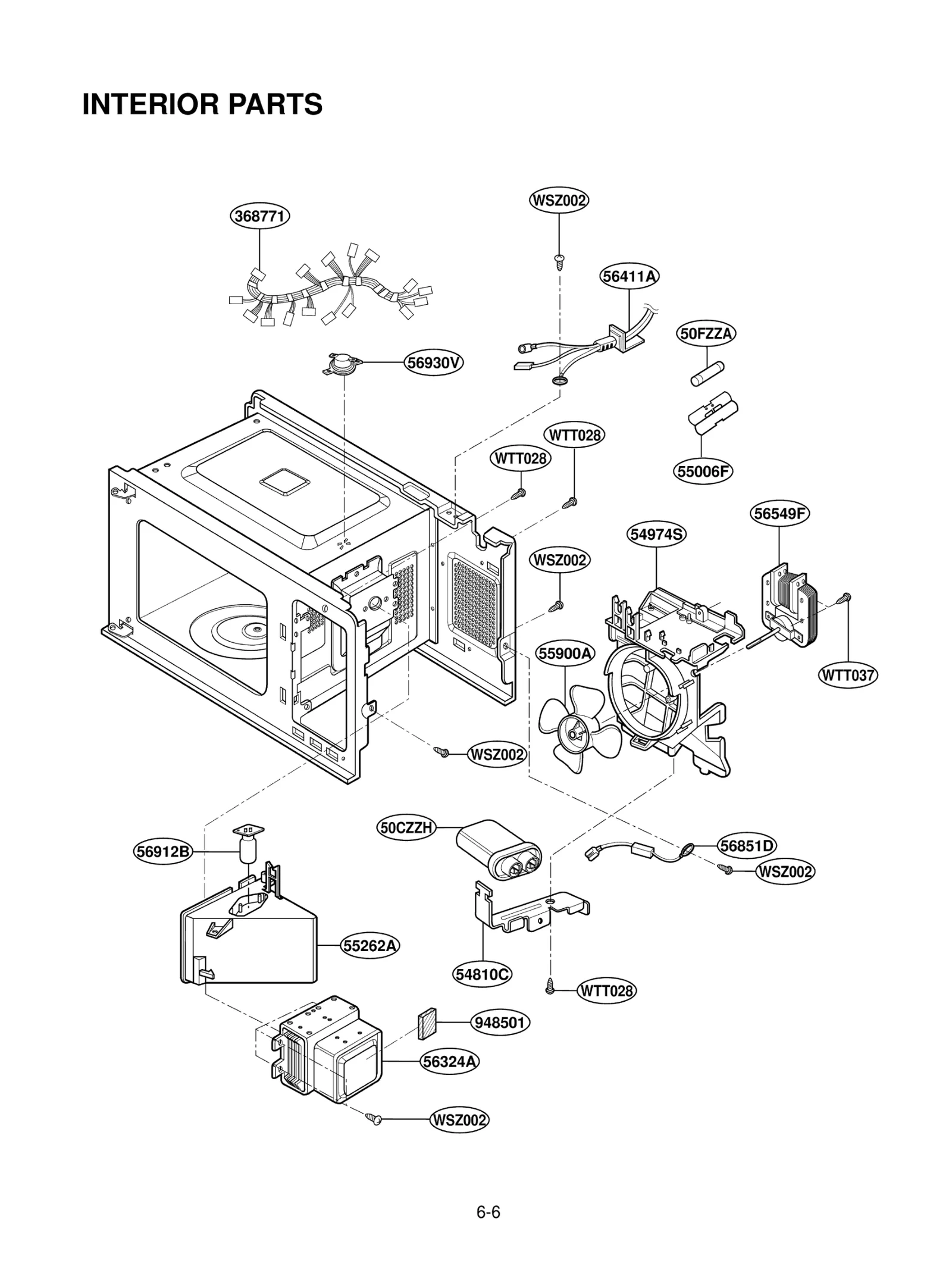

Diagram 6
Common parts from model LG JES1339BC
*01
LGE 3828W5A1597 LGE 3828W5A1597 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3A354A Contact Us For Availability
*10
LGE 3890W3Y010A LGE 3890W3Y010A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL ALL LGE 3572W1A120B Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M148C LGE 4781W1M148C Contact Us For Availability
26638A
LGE 6638W2A149B LGE 6638W2A149B Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
LGE 3112W0U006W LGE 3112W0U006W Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRON LGE 6549W1S004C Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOL LGE 6170W1D012C Contact Us For Availability
56411A
LGE 6411W2A002X LGE 6411W2A002X Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F001E Contact Us For Availability
56820A
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930WRT001H Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
LGE 3302W1A033F LGE 3302W1A033F Contact Us For Availability
63303L
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
63303R
LGE 3303W1A026E LGE 3303W1A026E Contact Us For Availability
250201
BUTTON MWO LGE 5020W3G102C Contact Us For Availability
268711
LGE 6871W2S084A LGE 6871W2S084A Contact Us For Availability
568771
LGE 6877W1A185A LGE 6877W1A185A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948503
LGE 4B73438L LGE 4B73438L Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C25
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C82
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D02
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
LGE 6302W5A010A LGE 6302W5A010A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R10
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R21
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R36
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R90
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R110
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IZZW5A015B LGE 0IZZW5A015B Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
