Model Maytag JER8895BAS12 ELECTRIC RANGE – Common Parts & Diagrams

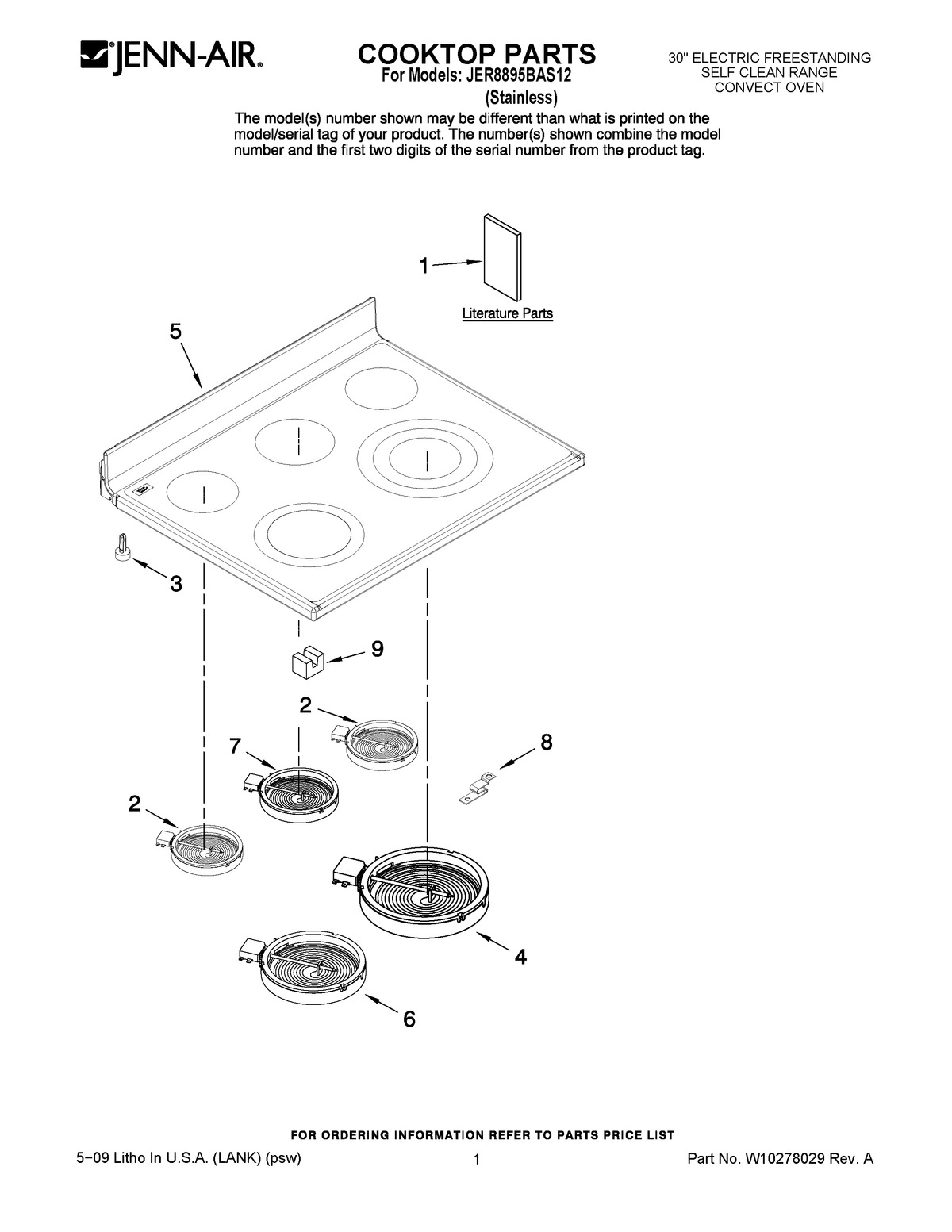

01 - COOKTOP PARTS

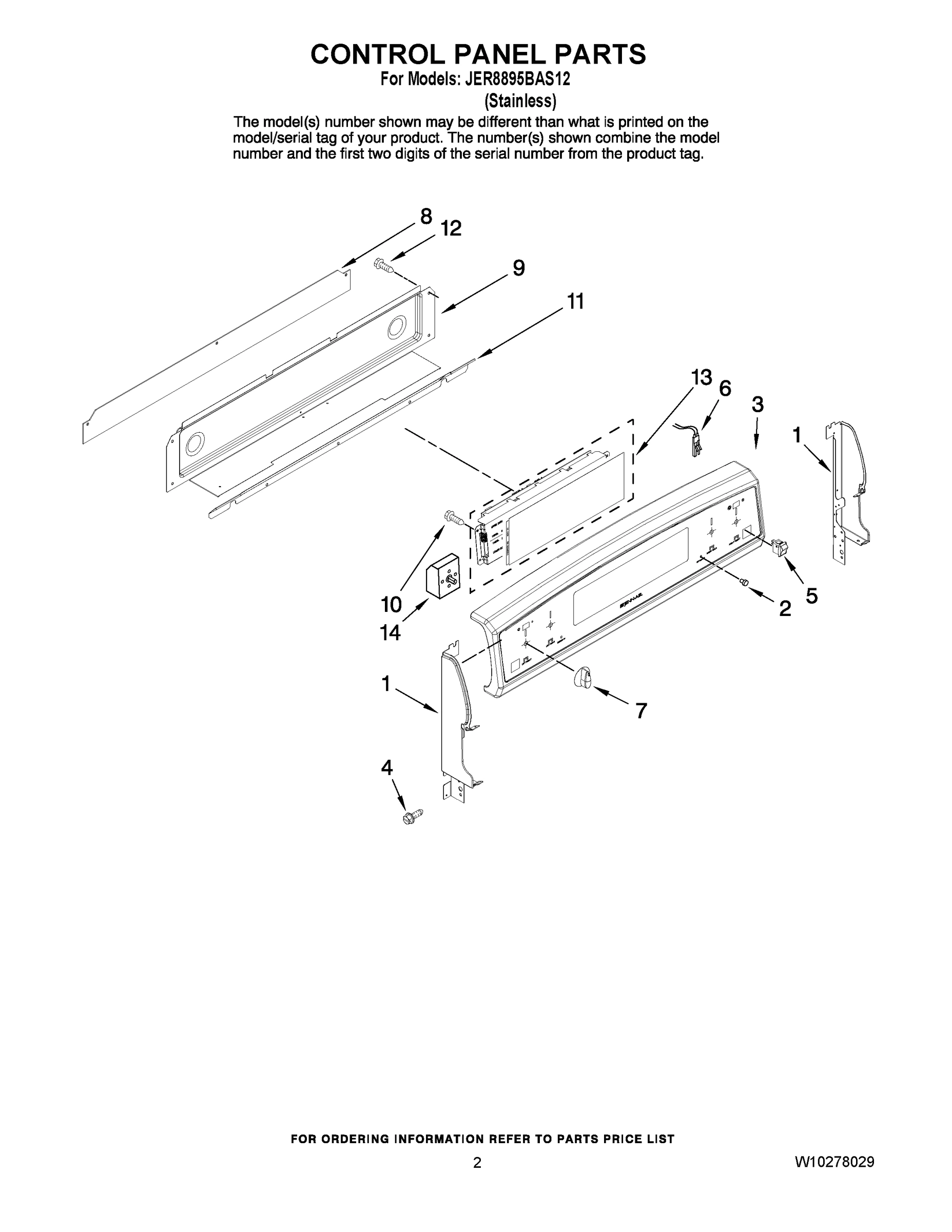

02 - CONTROL PANEL PARTS

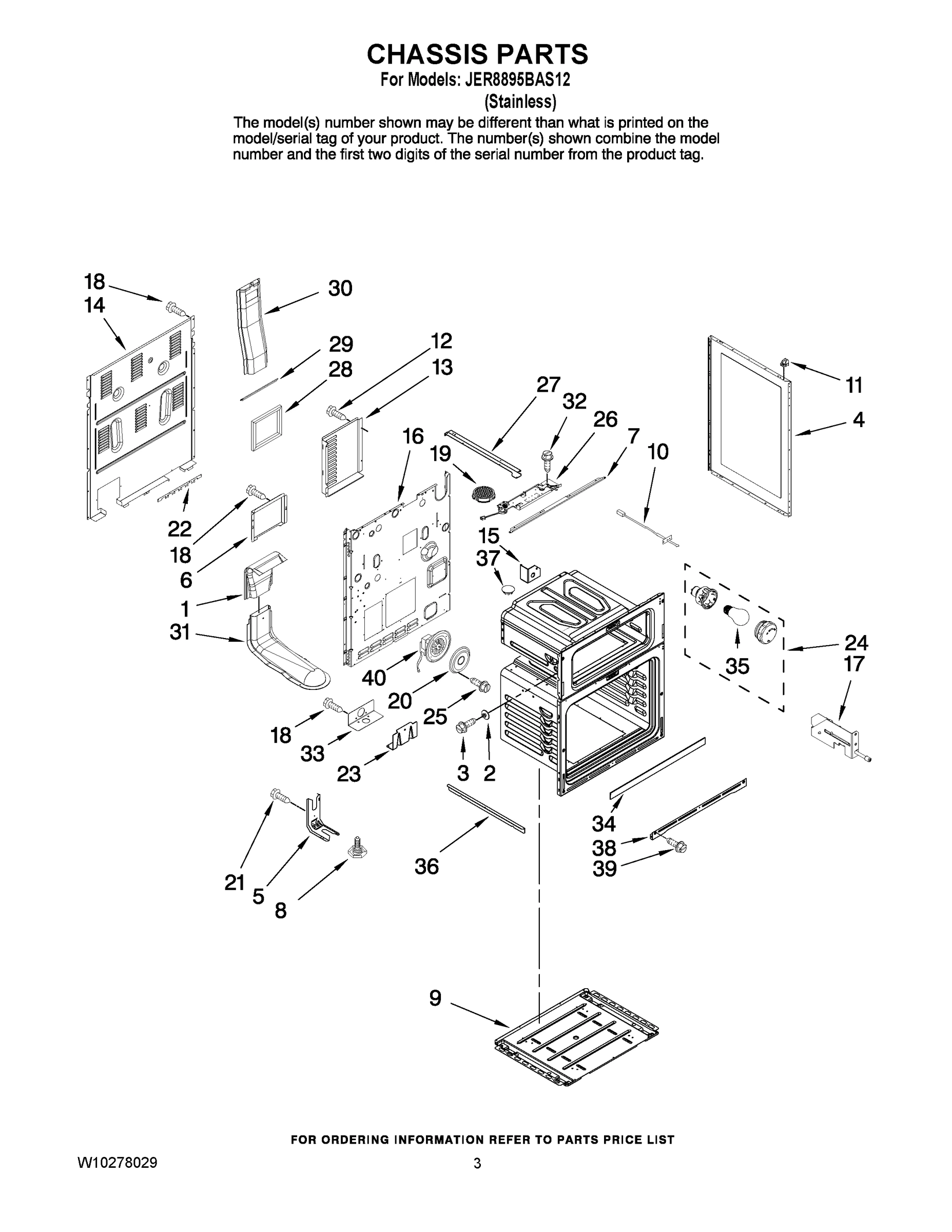

03 - CHASSIS PARTS

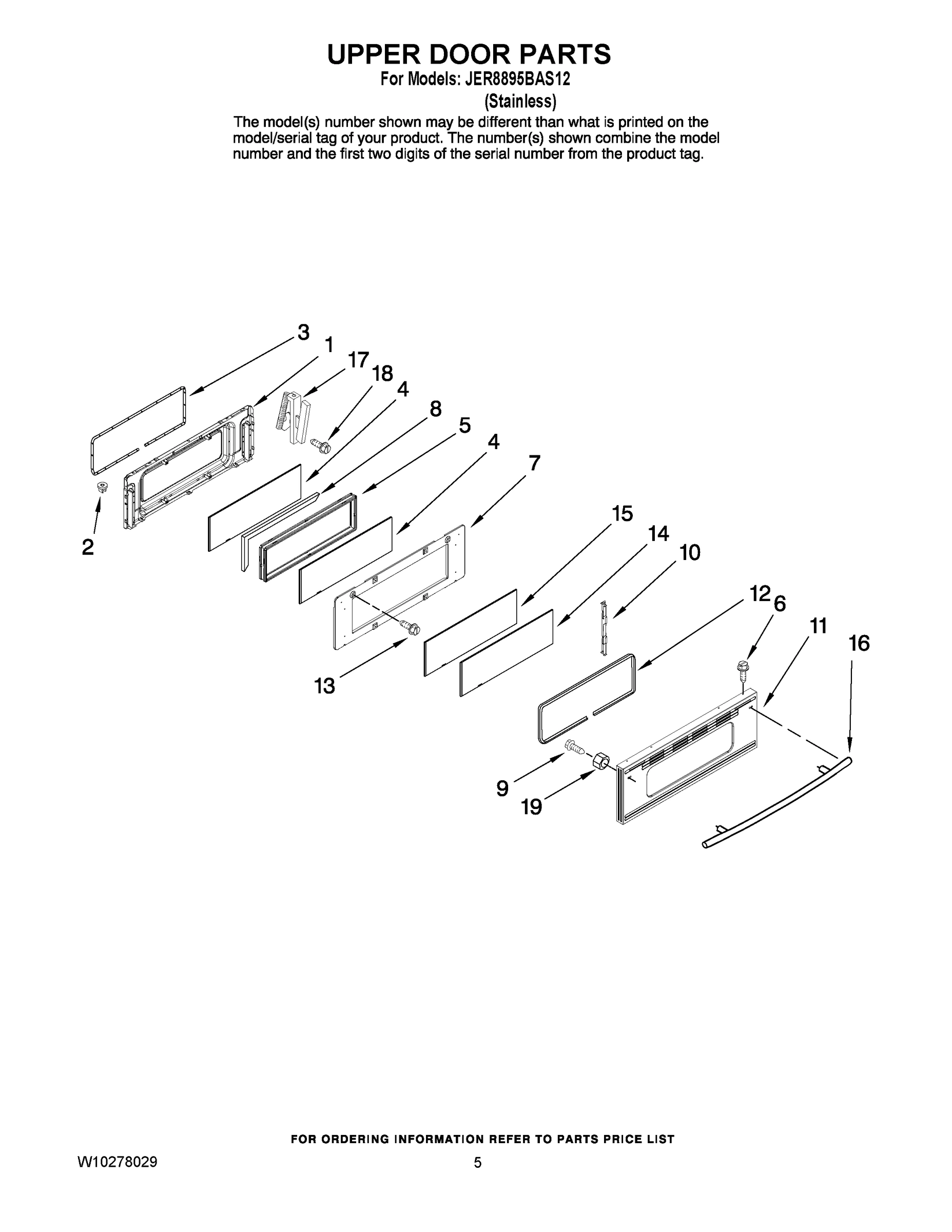

04 - UPPER DOOR PARTS

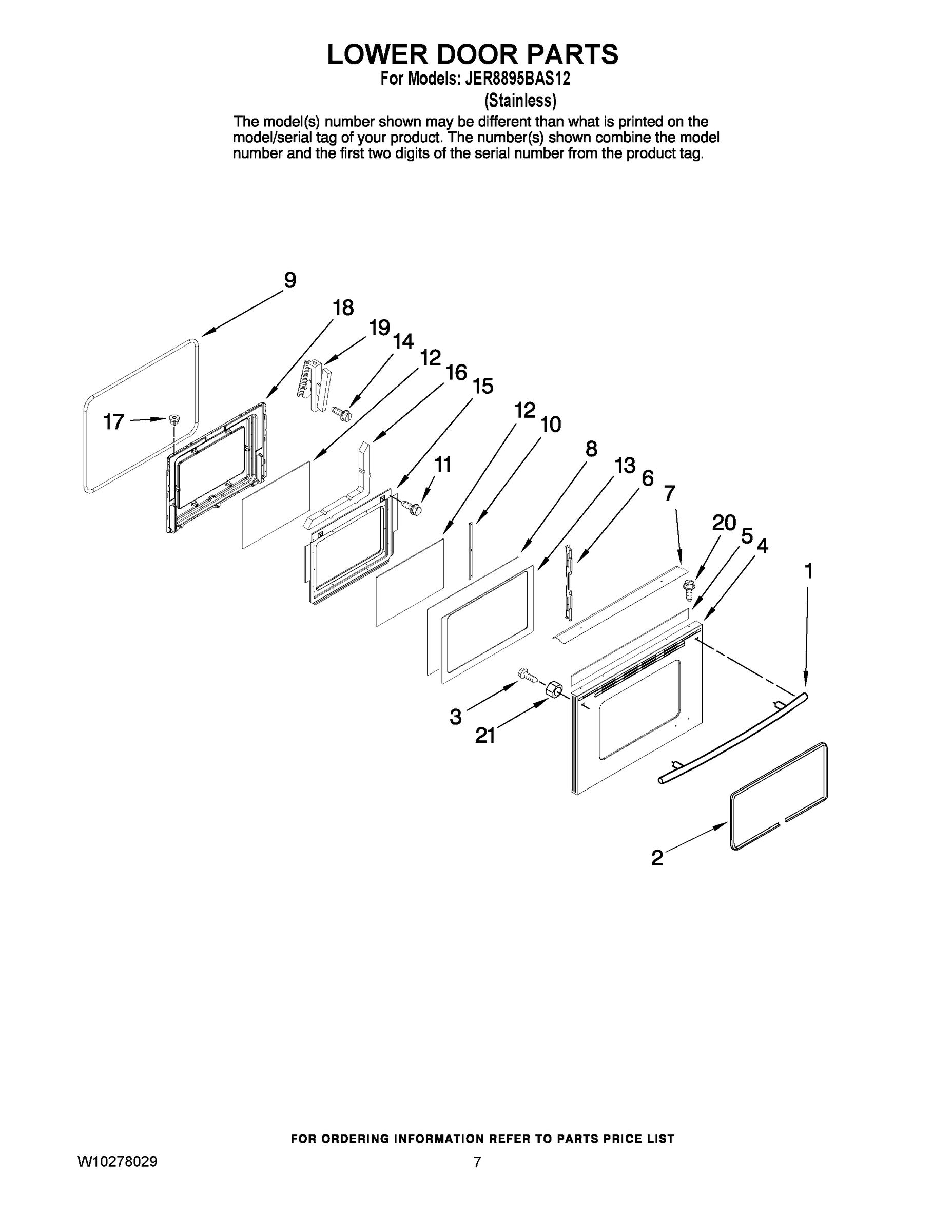

05 - LOWER DOOR PARTS

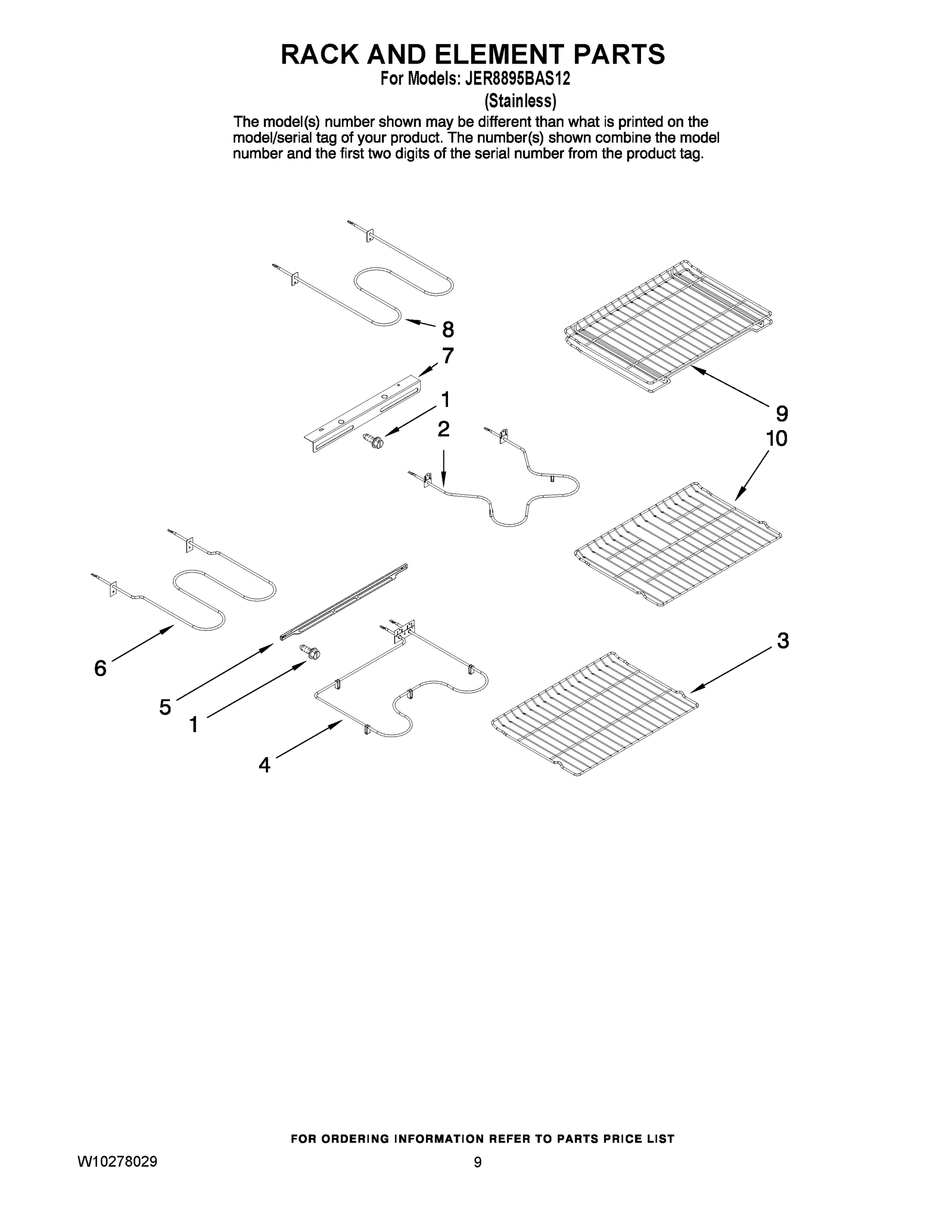

06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JER8895BAS12 ELECTRIC RANGE
1
MAY W10160641 MAY W10160641 Contact Us For Availability
1
MAY W10160642 MAY W10160642 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
MAY 7701P467-60 MAY 7701P467-60 Contact Us For Availability
2
Element (RR,LR) MAY 7406P365-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
MAY 7201P141-60 MAY 7201P141-60 Contact Us For Availability
2
MAY 7406P427-60 MAY 7406P427-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
MAY W10192787 MAY W10192787 Contact Us For Availability
3
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
3
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
4
MAY 7406P494-60 MAY 7406P494-60 Contact Us For Availability
4
Panel, Side (2) MAY 2618F194-70 Contact Us For Availability
4
MAY 7902P521-60 MAY 7902P521-60 Contact Us For Availability
4
Panel, Door MAY 7760P148-60 Contact Us For Availability
4
MAY 7406P428-60 MAY 7406P428-60 Contact Us For Availability
5
MAY W10192791 MAY W10192791 Contact Us For Availability
5
MAY 7403P798-60 MAY 7403P798-60 Contact Us For Availability
5
MAY 3801F656-51 MAY 3801F656-51 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
Insulation, Foil MAY 7002P427-60 Contact Us For Availability
5
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
6
MAY 7406P386-60 MAY 7406P386-60 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY 4005F747-51 MAY 4005F747-51 Contact Us For Availability
6
Retainer, Glass Support (2) MAY 3804F265-45 Contact Us For Availability
6
MAY 7406P205-60 MAY 7406P205-60 Contact Us For Availability
7
ELEMENT (CTR) MAY 7406P497-60 Contact Us For Availability
7
MAY W10183666 MAY W10183666 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
MAY 3604F441-51 MAY 3604F441-51 Contact Us For Availability
7
MAY 3807F749-45 MAY 3807F749-45 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
Glass, Door MAY 7902P468-60 Contact Us For Availability
8
MAY 7406P474-60 MAY 7406P474-60 Contact Us For Availability
9
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
9
MAY 4005F804-51 MAY 4005F804-51 Contact Us For Availability
9
MAY 4003F070-51 MAY 4003F070-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
MAY W10251904 MAY W10251904 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7430P042-60 MAY 7430P042-60 Contact Us For Availability
10
MAY 7430P044-60 MAY 7430P044-60 Contact Us For Availability
10
MAY 3804F184-45 MAY 3804F184-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
Rack, Oven (Upper) MAY W10273816 Contact Us For Availability
11
MAY 3604F438-51 MAY 3604F438-51 Contact Us For Availability
11
MAY 8010P087-60 MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
11
Panel, Door MAY 7760P149-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
CONTROL ASSY (INC. MEMBRANE) MAY 8507P328-60 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
13
Glass, Door Outer MAY 7902P754-60 Contact Us For Availability
14
SWITCH, INFINITE (LR,RR) MAY 7403P877-60 Contact Us For Availability
14
Switch, Infinite (RF MAY 7450P011-60 Contact Us For Availability
14
SWITCH, INFINITE (LF) MAY 7450P095-60 Contact Us For Availability
14
MAY W10167412 MAY W10167412 Contact Us For Availability
14
Glass, Outer Door MAY 7902P753-60 Contact Us For Availability
14
Screw MAY 7101P282-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
MAY 7902P542-60 MAY 7902P542-60 Contact Us For Availability
15
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
17
MAY 7450P108-60 MAY 7450P108-60 Contact Us For Availability
17
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
17
MAY 7106P148-60 MAY 7106P148-60 Contact Us For Availability
18
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
19
MAY 8034P008-60 MAY 8034P008-60 Contact Us For Availability
19
MAY 7106P141-60 MAY 7106P141-60 Contact Us For Availability
20
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
20
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
21
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
22
MAY 8036P012-60 MAY 8036P012-60 Contact Us For Availability
23
MAY 3807F580-51 MAY 3807F580-51 Contact Us For Availability
24
Assembly, Oven Light (2) MAY 7407P181-60 Contact Us For Availability
25
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
MAY 4011F524-51 MAY 4011F524-51 Contact Us For Availability
27
MAY 4011F525-51 MAY 4011F525-51 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
MAY 3604F335-51 MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
36
MAY 3823F015-51 MAY 3823F015-51 Contact Us For Availability
37
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
38
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
40
MAY 7002P233-60 MAY 7002P233-60 Contact Us For Availability
40
MAY 7002P434-60 MAY 7002P434-60 Contact Us For Availability
40
MAY 7002P490-60 MAY 7002P490-60 Contact Us For Availability
40
Fan Assy, Convect MAY W10206586 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P360-60 MAY 5171P360-60 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
HARNESS, UPPER LIGHT MAY 5171P715-60 Contact Us For Availability
NI
MAY 5171P916-60 MAY 5171P916-60 Contact Us For Availability
NI
MAY 5171P917-60 MAY 5171P917-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY W10167200 MAY W10167200 Contact Us For Availability
NI
MAY W10177747 MAY W10177747 Contact Us For Availability
× ![]()
