Model Whirlpool JER8850BAQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

PANEL, CONTROL (BSQ) WPL 74006800 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

1

GROMMET WPL 8008P01060 Contact Us For Availability

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

1

MANUAL, USE & CARE WPL 74005920 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.60

2

CLOCK W/OVERLAY (BSQ) WPL 74006229 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

2

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

2

HARNESS, SENSOR/LOCK WPL 74003557 Contact Us For Availability

2

HARNESS, DOOR LOCK MOTOR WPL 74005489 Contact Us For Availability

2

HARNESS, WARMING DRAWER WPL 74006804 Contact Us For Availability

2

HARNESS, BACKGUARD TO TOP WPL 74006805 Contact Us For Availability

2

HARNESS, WARM ZONE WPL 74006806 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74006813 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74007612 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $135.81

3

W11676350 Whirlpool Broil Element Backorder WPL W11676350 $76.20

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.75

3

BRACKET, CLOCK WPL 74003550 Contact Us For Availability

3

SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability

3

BOX, BURNER WPL 74006384 Contact Us For Availability

3

BOX, BURNER (LT) WPL 74007366 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74007367 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $7.05

4

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

TOP, MAIN (BSQ) WPL 74006479 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, DUAL ELEMENT WPL 74006797 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

COVER, TERMINAL WPL 74006581 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $108.99

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SPACER, DOOR DEHYDRATION WPL 74003639 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.84

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $99.83

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

8

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $7.18

8

WP8523700 Whirlpool Surface Element Backorder WPL WP8523700 $107.18

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

INSULATION, SIDE WPL 74003646 Contact Us For Availability

9

END CAP, PANEL (RT-BSQ) WPL 71003586 Contact Us For Availability

9

END CAP, PANEL (LT-BSQ) WPL 71003587 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.89

SWITCH, FLUORESCENT LIGHT(BSQ) WPL 71003590 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

SCREW WPL 7101P35260 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

GLASS, DOOR WPL 74003649 Contact Us For Availability

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $92.21

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

KNOB, SWITCH (BSQ) WPL 71003605 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

TRIM, DOOR TOP (BSQ) WPL 74006403 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.93

WP74006588 Whirlpool Warming Drawer Glide Backorder WPL WP74006588 $43.83

COVER, LIGHT (BSQ) WPL 71003589 Contact Us For Availability

INSERT, DOOR TRIM (BSQ) WPL 74004978 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SWITCH, ROCKER (BSQ) WPL 74006702 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

HANDLE, DOOR (BSQ) WPL 74006666 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.42

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $2.60

BULB-OVEN WPL 7407P10360 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $37.56

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $2.60

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $56.20

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability

LATCH, DOOR LOCK WPL 74007722 Contact Us For Availability

FRAME, DOOR (BSQ) WPL 74005162 Contact Us For Availability

PLATE, SWITCH MOUNTING WPL 74006575 Contact Us For Availability

RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

BALLAST WPL 74003033 Contact Us For Availability

SWITCH WPL 74001802 Contact Us For Availability

GLASS, OUTER DOOR (BSQ) WPL 74006740 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

SHIELD, LIGHT WPL 74003558 Contact Us For Availability

SCREW WPL 912012 Contact Us For Availability

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

22

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

BAFFLE, BROIL WPL 74003564 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

DRAWER, WARMING ASSY. WPL 74006595 Contact Us For Availability

DRAWER, WARMING ASY. WPL 74008334 Contact Us For Availability

24

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

24

BUMPER, ROD WPL 74001631 Contact Us For Availability

24

LINING, WARMING DRAWER WPL 74006593 Contact Us For Availability

25

GASKET, VENT WPL 74003285 Contact Us For Availability

25

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

25

PANEL, WARMING DRAWER (BSQ) WPL 74006803 Contact Us For Availability

26

RACK, WARMING WPL 74006573 Contact Us For Availability

26

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

26

TRIM, DRAWER (BSQ) WPL 71003594 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

COVER, CONVECT WPL 74005783 Contact Us For Availability

RETAINER, INSULATION (CONVECT) WPL 74005498 Contact Us For Availability

SCREW WPL 7101P07260 Contact Us For Availability

FAN ASSY., DUAL CONVECT WPL 74006807 Contact Us For Availability

RETAINER, INSUL. DOOR LOCK WPL 74005496 Contact Us For Availability

INSULATION, DOOR LOCK WPL 74006590 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE BOTH PARTS NOT WPL W10124350 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

7403P647-60 Whirlpool Limit Switch Backorder WPL 7403P647-60 $14.50

SWITCH, HI-LIMIT (ELEC/DRAWER) WPL 74006587 Contact Us For Availability

BACK, OVEN WARMER (ELEC) WPL 74006582 Contact Us For Availability

BACK, OVEN WARMER (ELEC) WPL 74006809 Contact Us For Availability

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability

SHIELD, HEAT POUCH WPL 74006574 Contact Us For Availability

SHIE WPL 74006583 Contact Us For Availability

WPL 74006810 WPL 74006810 Contact Us For Availability

31

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

32

ELEMENT, WARMER WPL 74005788 Contact Us For Availability

32

CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability

33

SUPPORT, ELEMENT (REAR) WPL 74006576 Contact Us For Availability

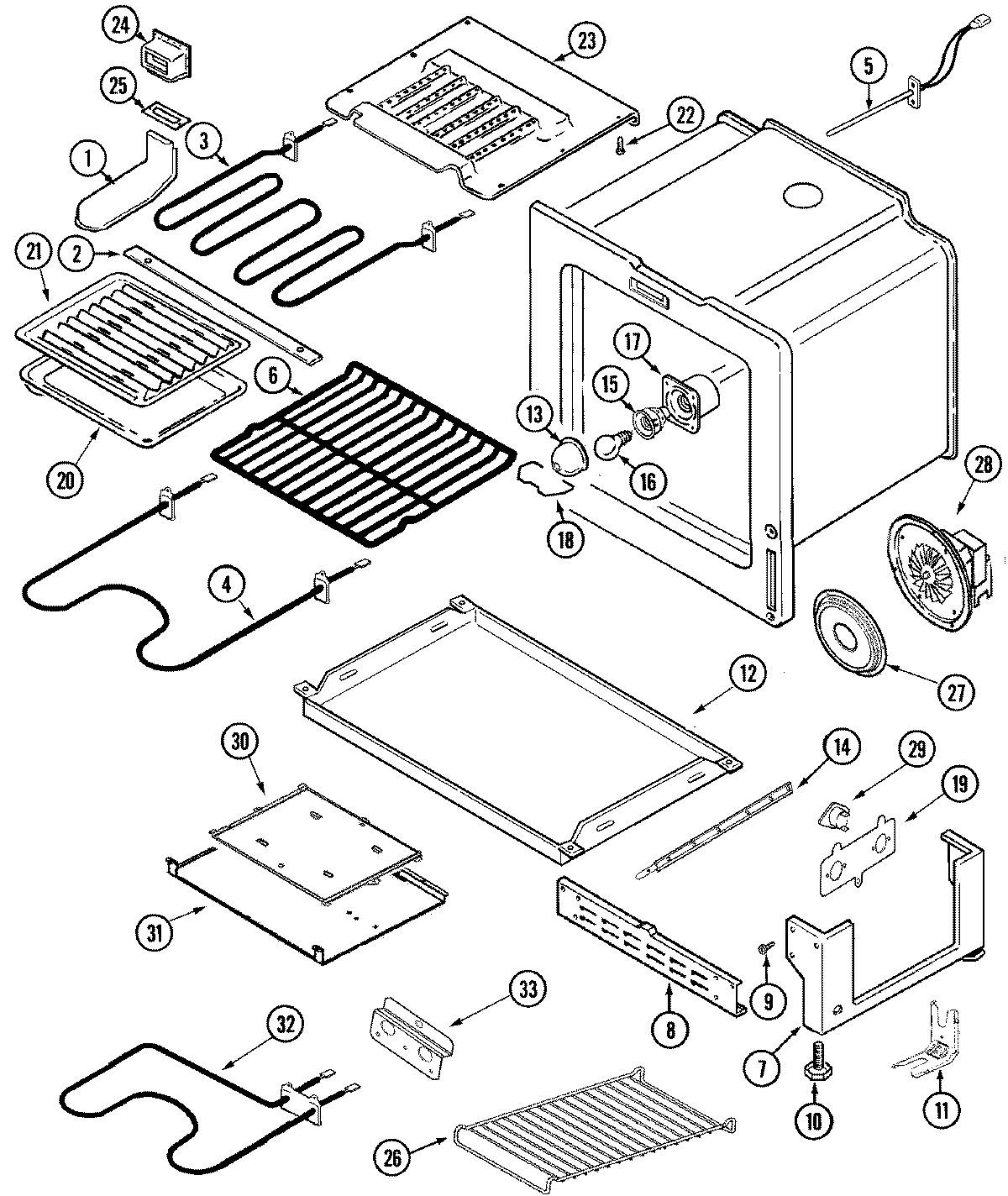

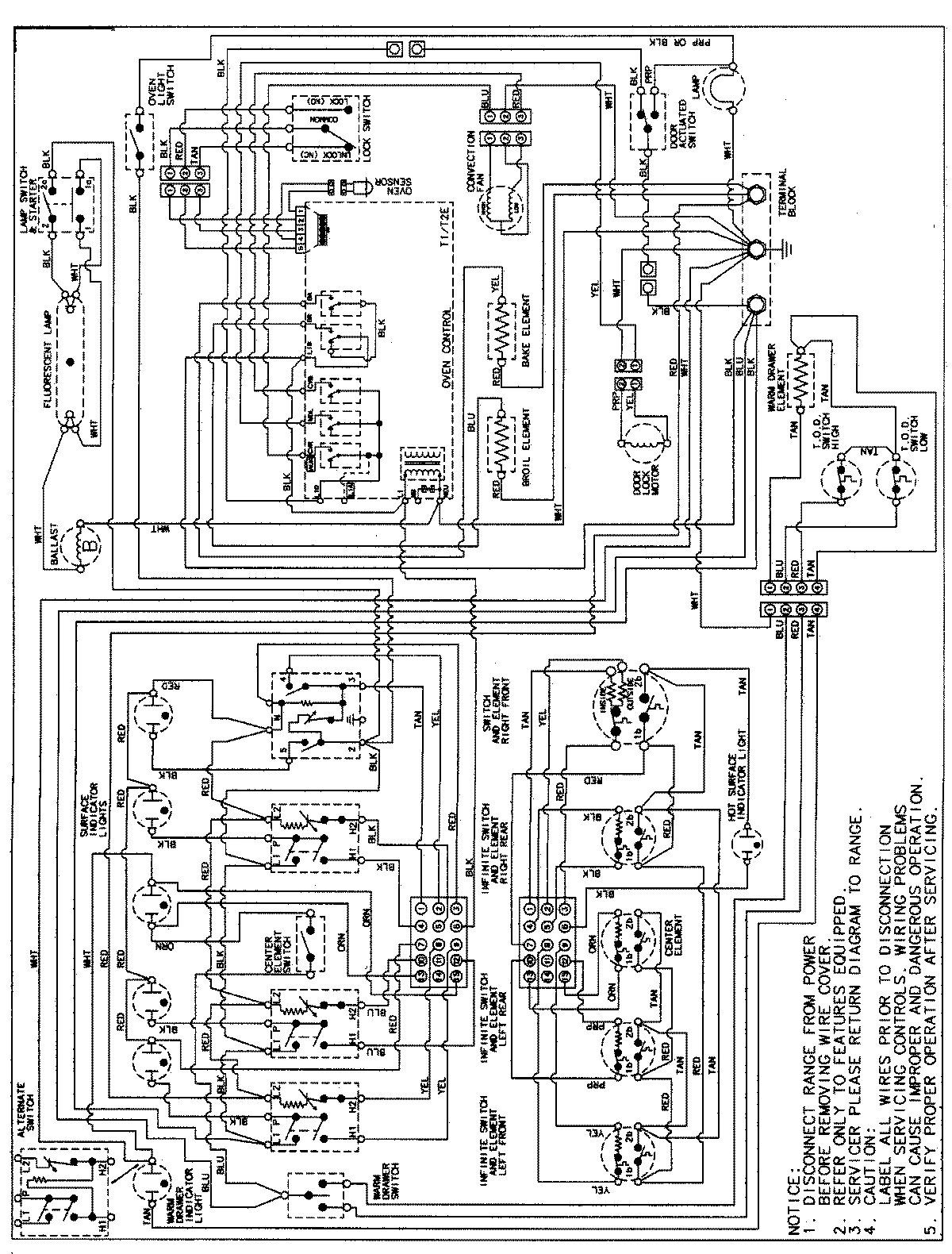

WIRING INFORMATION WPL 15002899 Contact Us For Availability

WIRING INFORMATION WPL 15003099 Contact Us For Availability

WIRING INFORMATION WPL 15003139 Contact Us For Availability

WIRING INFORMATION WPL 15003141 Contact Us For Availability
