Model Whirlpool JED8130ADB17 ELECTRIC COOK-TOP – Common Parts & Diagrams

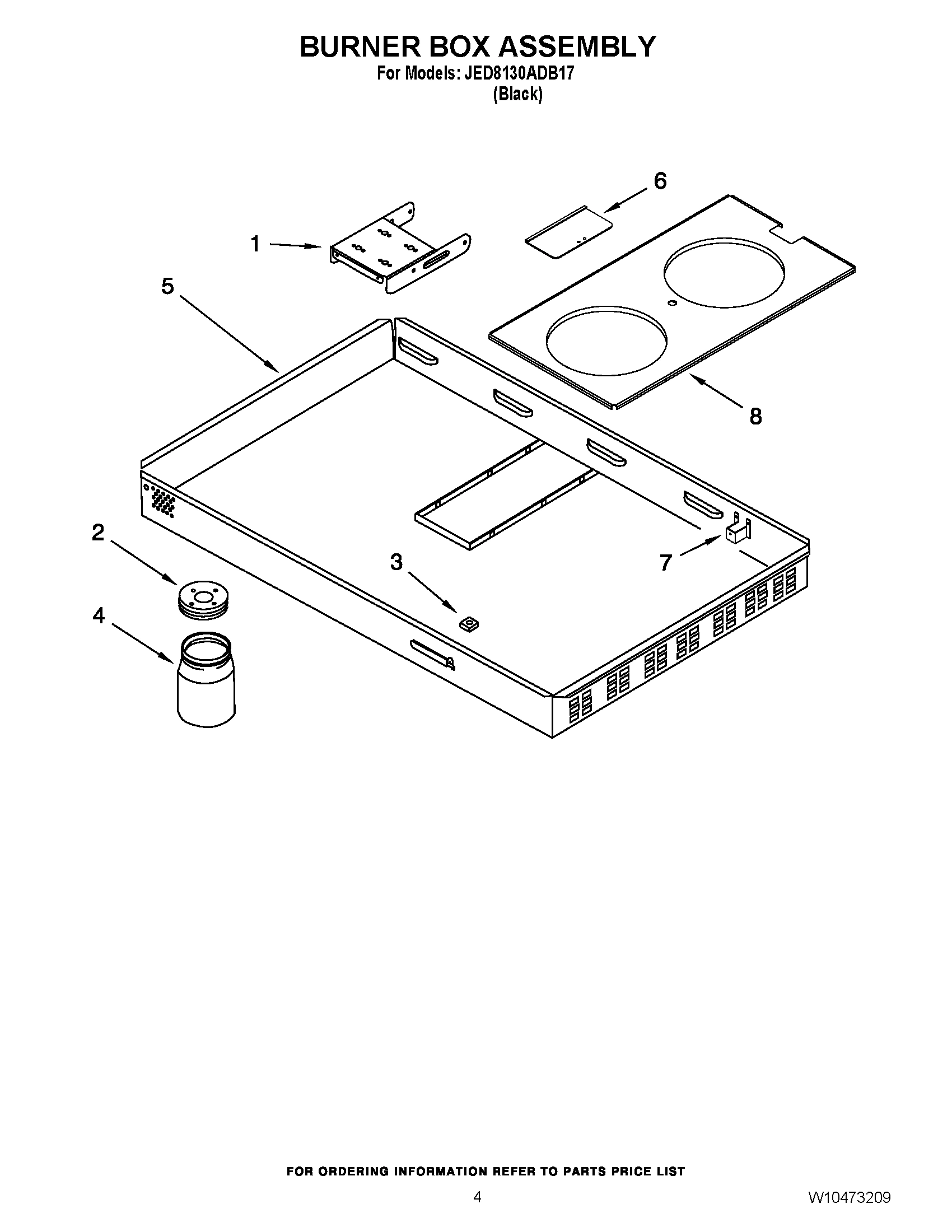

03 - BURNER BOX ASSEMBLY
04 - OPTIONAL PARTS

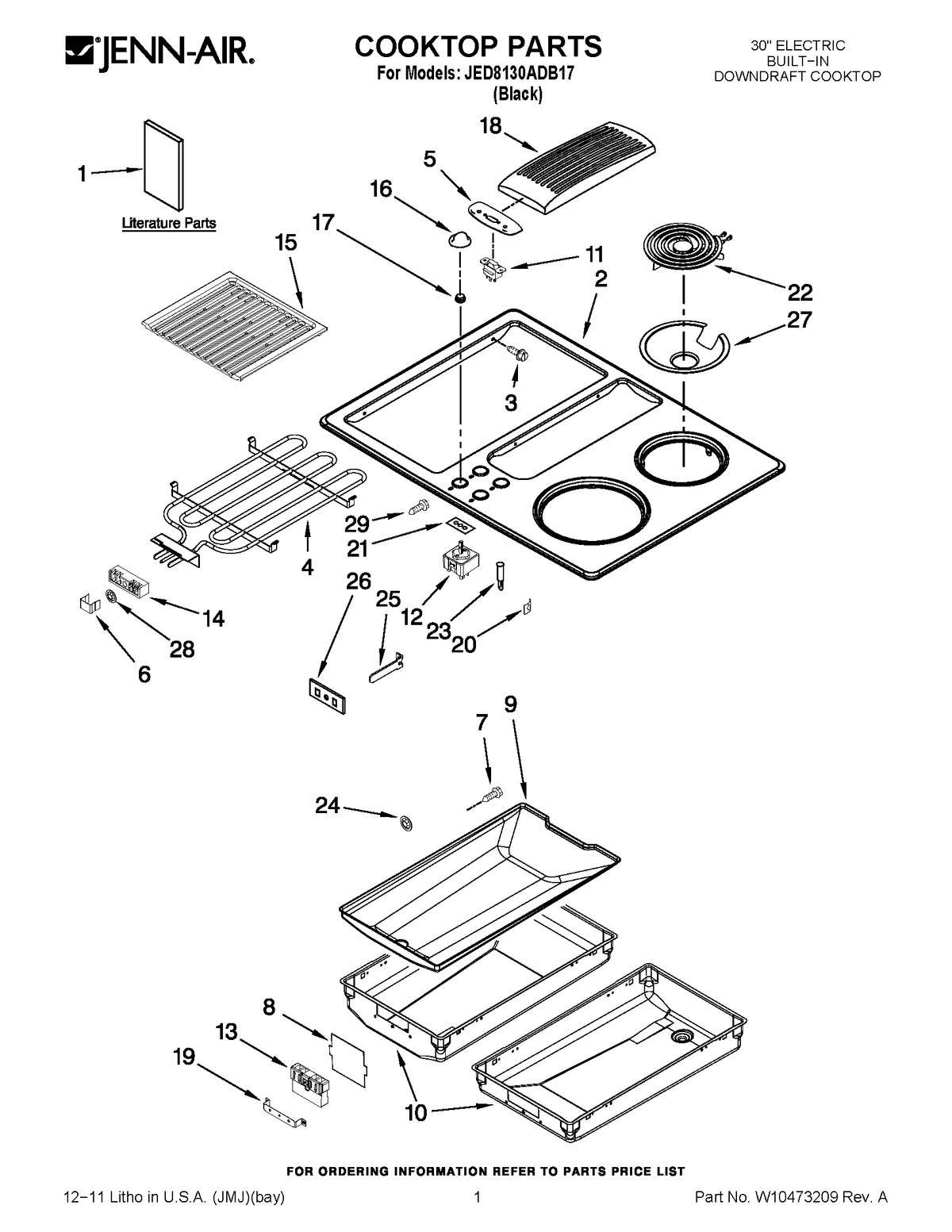

01 - COOKTOP PARTS

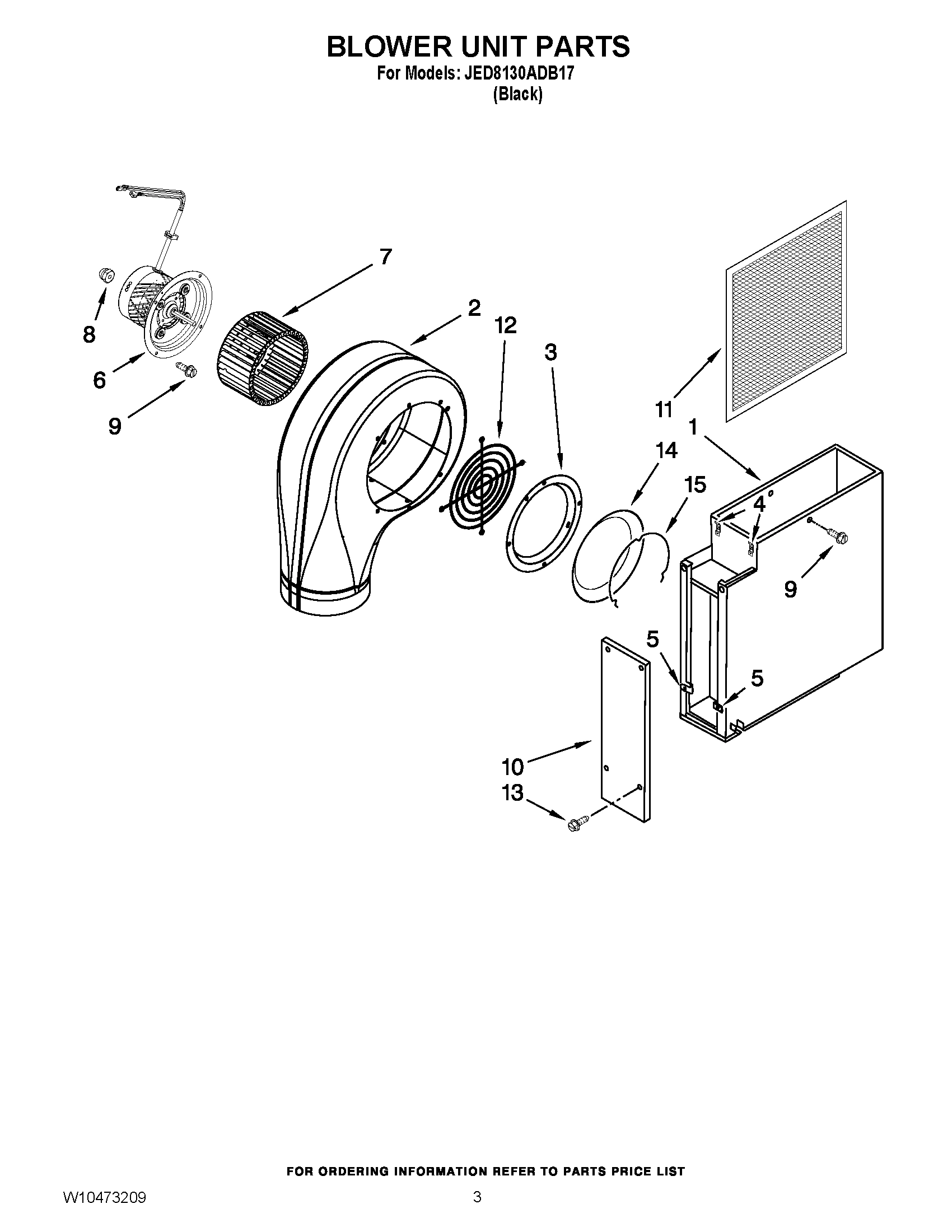

02 - BLOWER UNIT PARTS

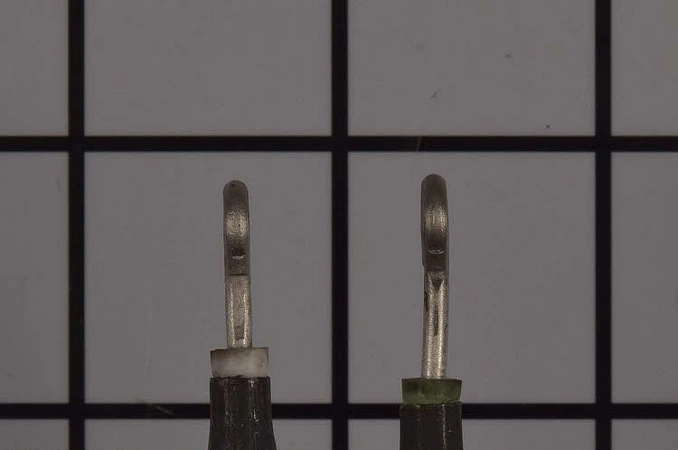

Common parts from model Whirlpool JED8130ADB17 ELECTRIC COOK-TOP
1
CARD, FLOW TESTER WPL 8106P06860 Contact Us For Availability
1
Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10298937 Contact Us For Availability
1
USE & CARE GUIDE WPL W10298939 Contact Us For Availability
1
WIRING DIAGRAM WPL W10411781 Contact Us For Availability
1
ASSY, PLENUM WPL 2801W02380 Contact Us For Availability
2
TOP, MAIN (BLACK) WPL 2002F16909 Contact Us For Availability
2
BLOWER/SCROLL ASSEMBLY WPL 2822W00180 Contact Us For Availability
3
RING, INLET WPL 4026F00851 Contact Us For Availability
4
CLIP WPL 7112P14760 Contact Us For Availability
5
COVER, CLIP WPL 7104P00760 Contact Us For Availability
6
CLIP, SHUNT WPL 7422P00260 Contact Us For Availability
7
BRACKET, SUPPORT WPL 3801F44451 Contact Us For Availability
7
SCREW WPL 7101P45160 Contact Us For Availability
7
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
8
PAN, INSERT WPL 3401F03942 Contact Us For Availability
8
BLOCK, CERAMIC WPL 7003P13060 Contact Us For Availability
8
NUT, ACORN WPL 7103P19260 Contact Us For Availability
9
SCREW WPL 7101P42860 Contact Us For Availability
9
PAN, GRILL INSERT WPL 4009F08719 Contact Us For Availability
10
PAN, GRILL WPL 3401F05019 Contact Us For Availability
10
COVER, PLATE WPL 4005F51180 Contact Us For Availability
11
SWITCH, FAN (RELAY, FAN) WPL 7428P03060 Contact Us For Availability
11
RETAINER, FILTER WPL 3804F18850 Contact Us For Availability
11
FILTER, GREASE WPL 8312P12160 Contact Us For Availability
12
WASHER WPL 7109P08660 Contact Us For Availability
12
GUARD, BLOWER WPL 8312P15160 Contact Us For Availability
13
RECEPTACLE WPL 7408P04760 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
14
Block, Terminal WPL 7401P06160 Contact Us For Availability
14
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
15
GRATE, GRILL WPL 7518P11860 Contact Us For Availability
15
RETAINER WPL 8038P00360 Contact Us For Availability
16
KNOB, CONTROL (BLACK) WPL 7737P19360 Contact Us For Availability
17
PALNUT WPL 7103P16460 Contact Us For Availability
18
GRILLE, AIR (BLACK) WPL 7772P04660 Contact Us For Availability
19
BRACKET, RECEPTACLE WPL 5708D09260 Contact Us For Availability
21
GASKET, SWITCH WPL 7212P03060 Contact Us For Availability
23
INDICATOR, LIGHT (BLACK) WPL W10354968 Contact Us For Availability
25
Spade, Contact WPL 7405P13160 Contact Us For Availability
26
INSULATOR WPL 7003P08260 Contact Us For Availability
27
BOWL, BURNER (RR) WPL 7725P06760 Contact Us For Availability
27
BOWL, BURNER (RF) WPL 7725P06860 Contact Us For Availability
28
NUT, SPEED WPL 7103P14860 Contact Us For Availability
29
SCREW,8-32X7/32 WPL 7101P30960 Contact Us For Availability
NI
HARNESS, SUPPLY WPL W10411784 Contact Us For Availability
NI
10 GRN 150C WPL 5112P13260 Contact Us For Availability
NI
18 YW 16 SB WPL 5112P33160 Contact Us For Availability
NI
WIRE, JUMPER WPL 5112P60760 Contact Us For Availability
NI
18 BLU 150C WPL 5112P75460 Contact Us For Availability
NI
HARNESS, LEFT WPL 5170P81660 Contact Us For Availability
NI
HARNESS, RIGHT WPL 5175P36760 Contact Us For Availability
NI
SCREW WPL 7101P43560 Contact Us For Availability
× ![]()
