Model Maytag JED4536WS01 ELECTRIC COOK-TOP – Common Parts & Diagrams

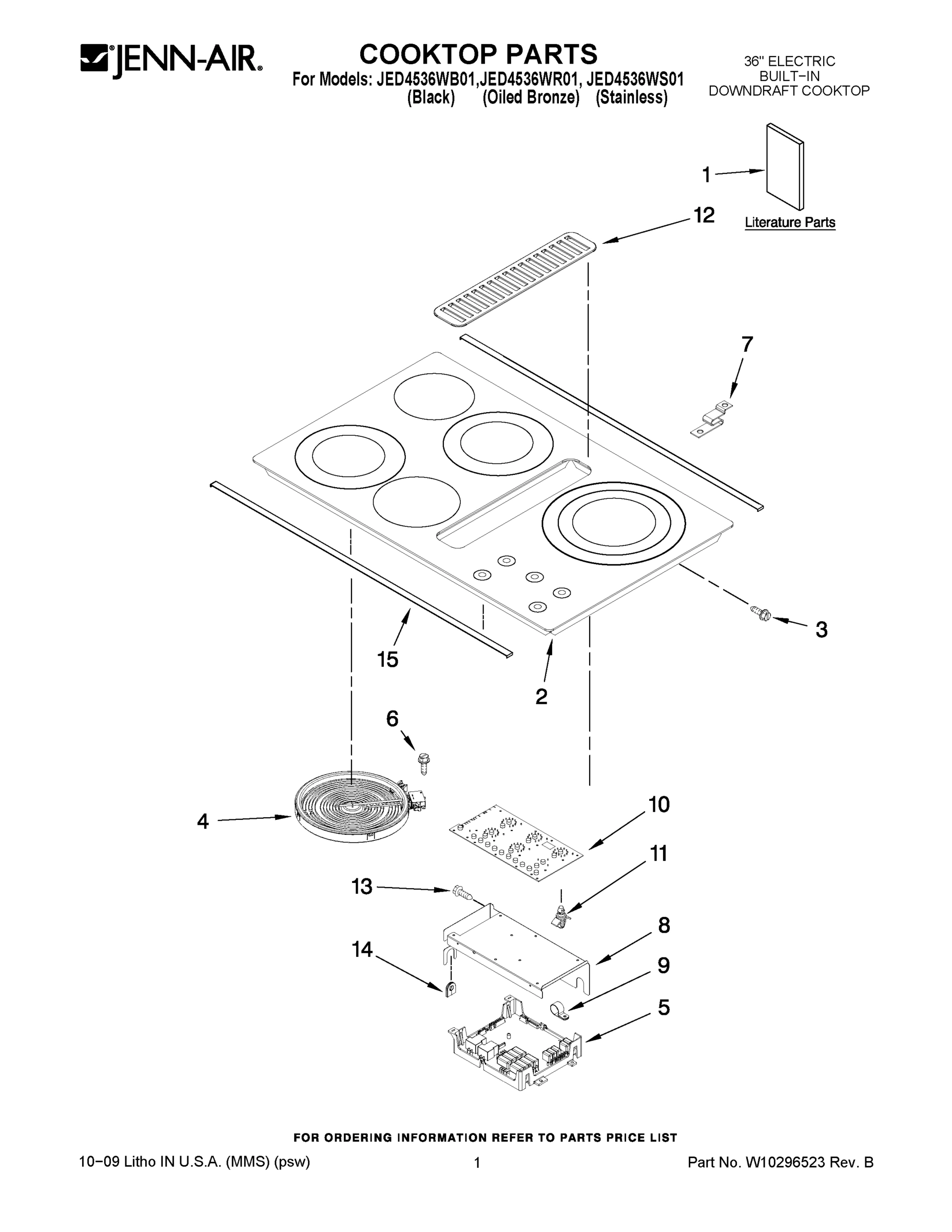

01 - COOKTOP PARTS

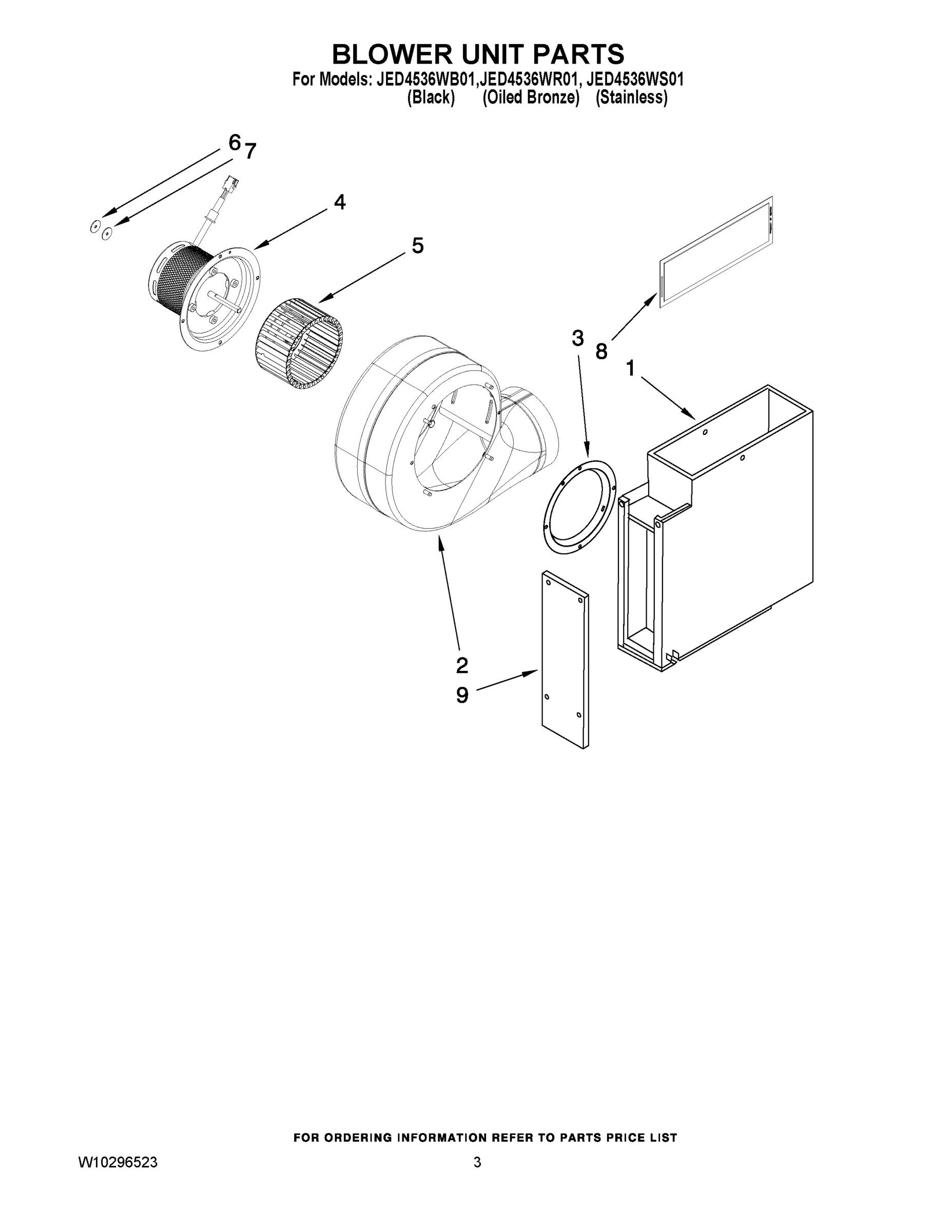

02 - BLOWER UNIT PARTS

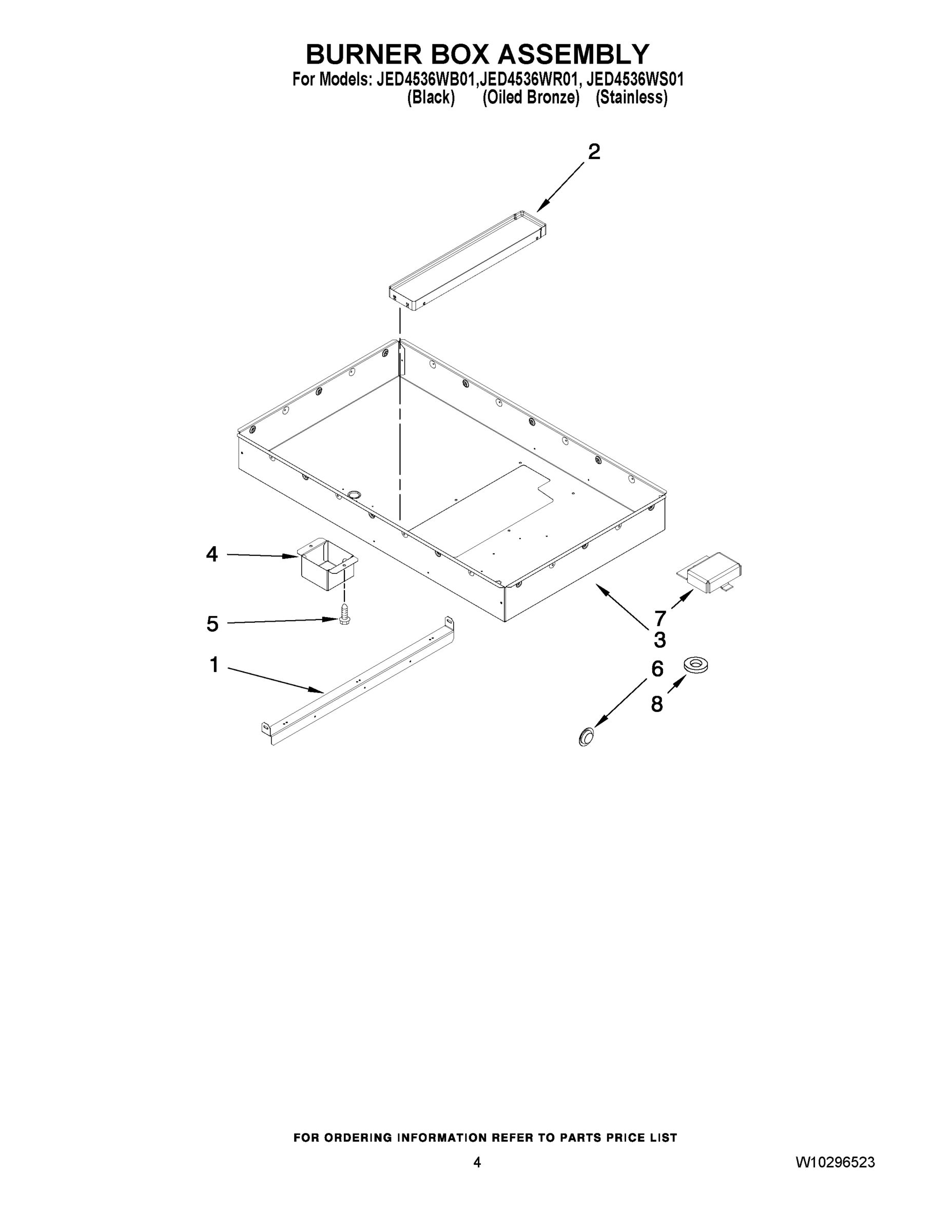

03 - BURNER BOX ASSEMBLY
04 - OPTIONAL PARTS
Common parts from model Maytag JED4536WS01 ELECTRIC COOK-TOP
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10197057 MAY W10197057 Contact Us For Availability
1
MAY W10197059 MAY W10197059 Contact Us For Availability
1
MAY W10277487 MAY W10277487 Contact Us For Availability
1
MAY W10277488 MAY W10277488 Contact Us For Availability
1
MAY W10254665 MAY W10254665 Contact Us For Availability
2
TOP, MAIN (OILED BRONZE) MAY W10161726 Contact Us For Availability
2
TOP, MAIN (BLACK/STAINLESS) MAY W10162423 Contact Us For Availability
2
MAY 2822W001-80 MAY 2822W001-80 Contact Us For Availability
2
MAY W10235990 MAY W10235990 Contact Us For Availability
3
BOTTOM, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
4
ELEMENT, SURFACE (RF) MAY 7406P497-60 Contact Us For Availability
4
ELEMENT, SURFACE (LR) MAY 8273994 Contact Us For Availability
4
ELEMENT, SURFACE (LF/RR) MAY W10221529 Contact Us For Availability
4
ELEMENT, SURFACE (TRIPLE) MAY W10259005 Contact Us For Availability
4
MAY W10247585 MAY W10247585 Contact Us For Availability
4
MAY W10258697 MAY W10258697 Contact Us For Availability
5
MAY W10190396 MAY W10190396 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
6
NUT MAY 7103P162-60 Contact Us For Availability
6
MAY 7718P023-60 MAY 7718P023-60 Contact Us For Availability
7
SUPPORT, CERAMIC MAY 8004P093-60 Contact Us For Availability
7
MAY 7109P086-60 MAY 7109P086-60 Contact Us For Availability
7
MAY 8285593 MAY 8285593 Contact Us For Availability
8
MAY W10225920 MAY W10225920 Contact Us For Availability
8
MAY W10240990 MAY W10240990 Contact Us For Availability
8
GROMMET, NYLON MAY 8008P004-60 Contact Us For Availability
9
MAY 7111P020-60 MAY 7111P020-60 Contact Us For Availability
9
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
10
MAY W10190399 MAY W10190399 Contact Us For Availability
11
MAY W10225914 MAY W10225914 Contact Us For Availability
12
MAY W10205094 MAY W10205094 Contact Us For Availability
13
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
WIRE, GROMMET MAY 8008P068-60 Contact Us For Availability
15
TRIM STAINLESS ONLY MAY W10168884 Contact Us For Availability
NI
CLEANER(STAINLESS) MAY 31462 Contact Us For Availability
NI
POLISH MAY 31463 Contact Us For Availability
NI
MAY 31464 MAY 31464 Contact Us For Availability
NI
CLEANER MAY 31682 Contact Us For Availability
NI
MAY W10177003 MAY W10177003 Contact Us For Availability
NI
HARNESS, BLOWER SWITCH MAY W10192073 Contact Us For Availability
NI
MAY W10206684 MAY W10206684 Contact Us For Availability
NI
MAY W10219714 MAY W10219714 Contact Us For Availability
NI
MAY W10254706 MAY W10254706 Contact Us For Availability
NI
MAY W10277479 MAY W10277479 Contact Us For Availability
NI
MAY W10277481 MAY W10277481 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
