Model Maytag JED4536GS00 COOKTOP, ELECTRIC, DOWNDRAFT – Common Parts & Diagrams

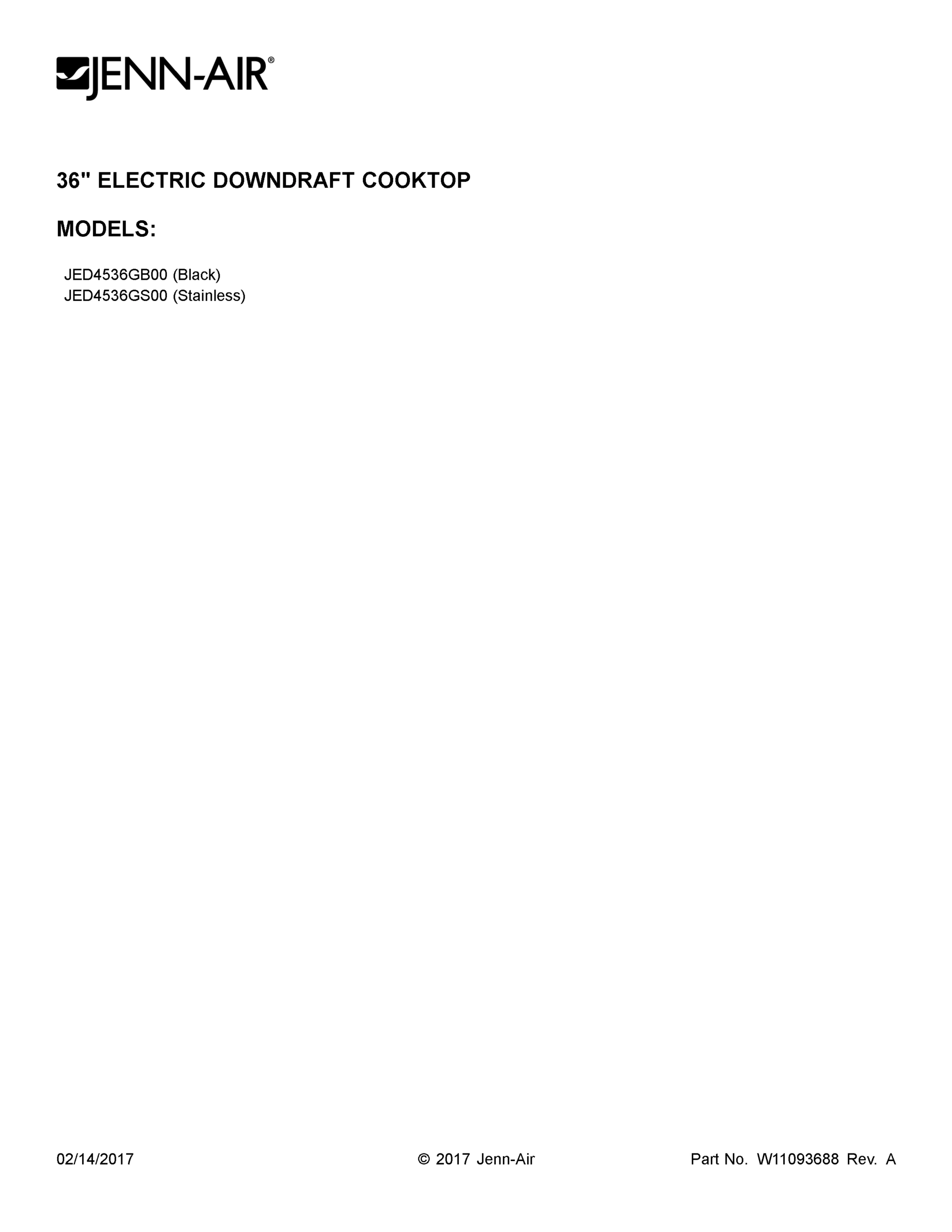

01 - COVER SHEET

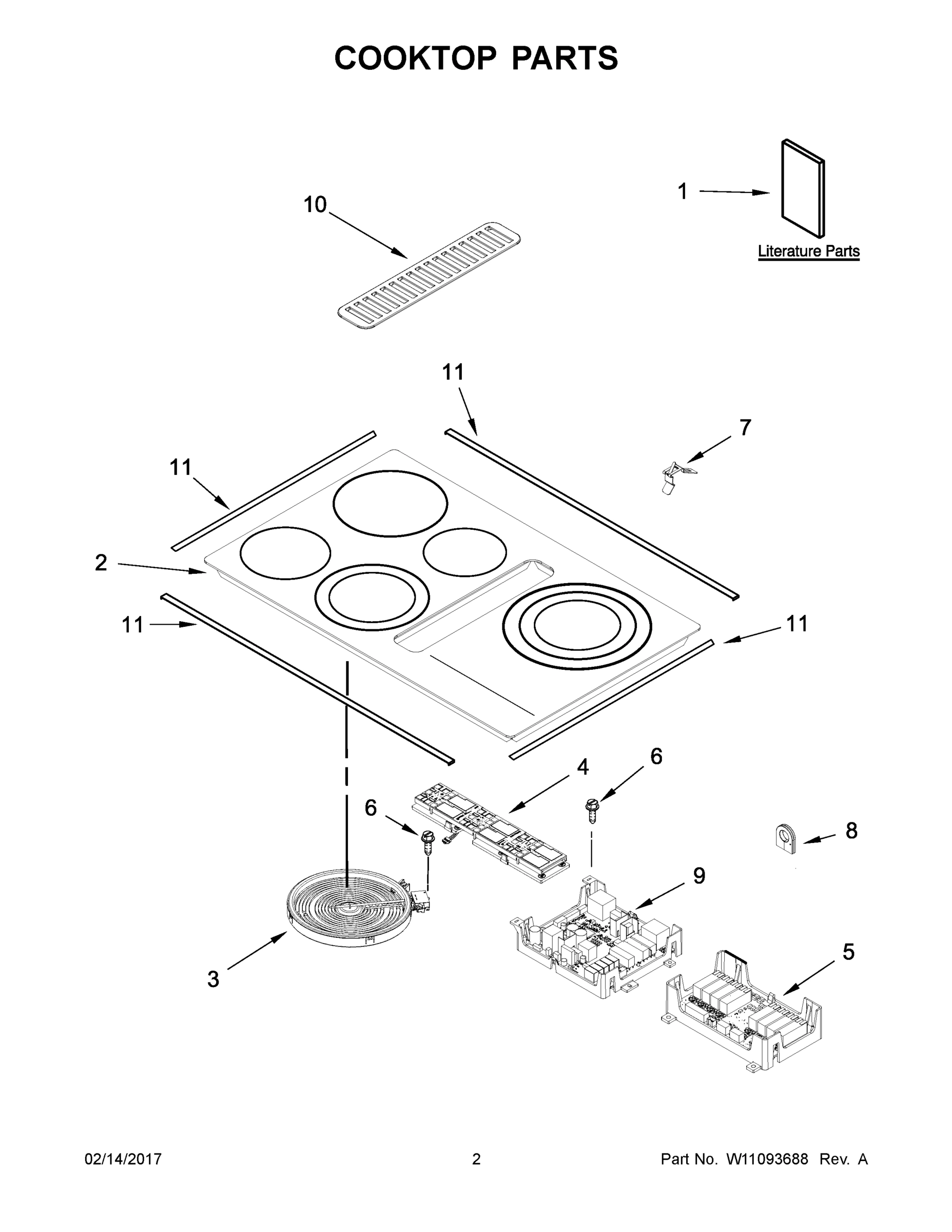

02 - COOKTOP PARTS

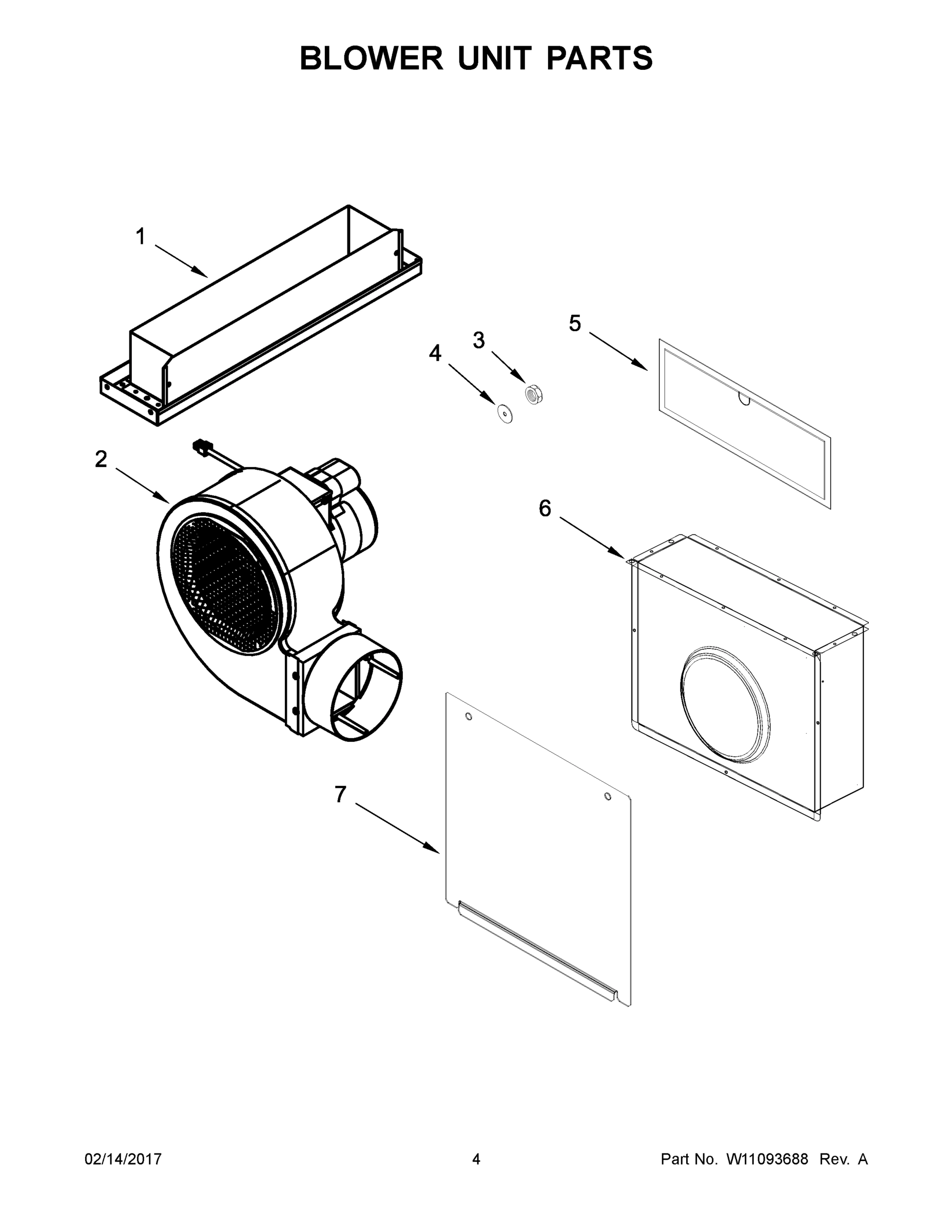

03 - BLOWER UNIT PARTS

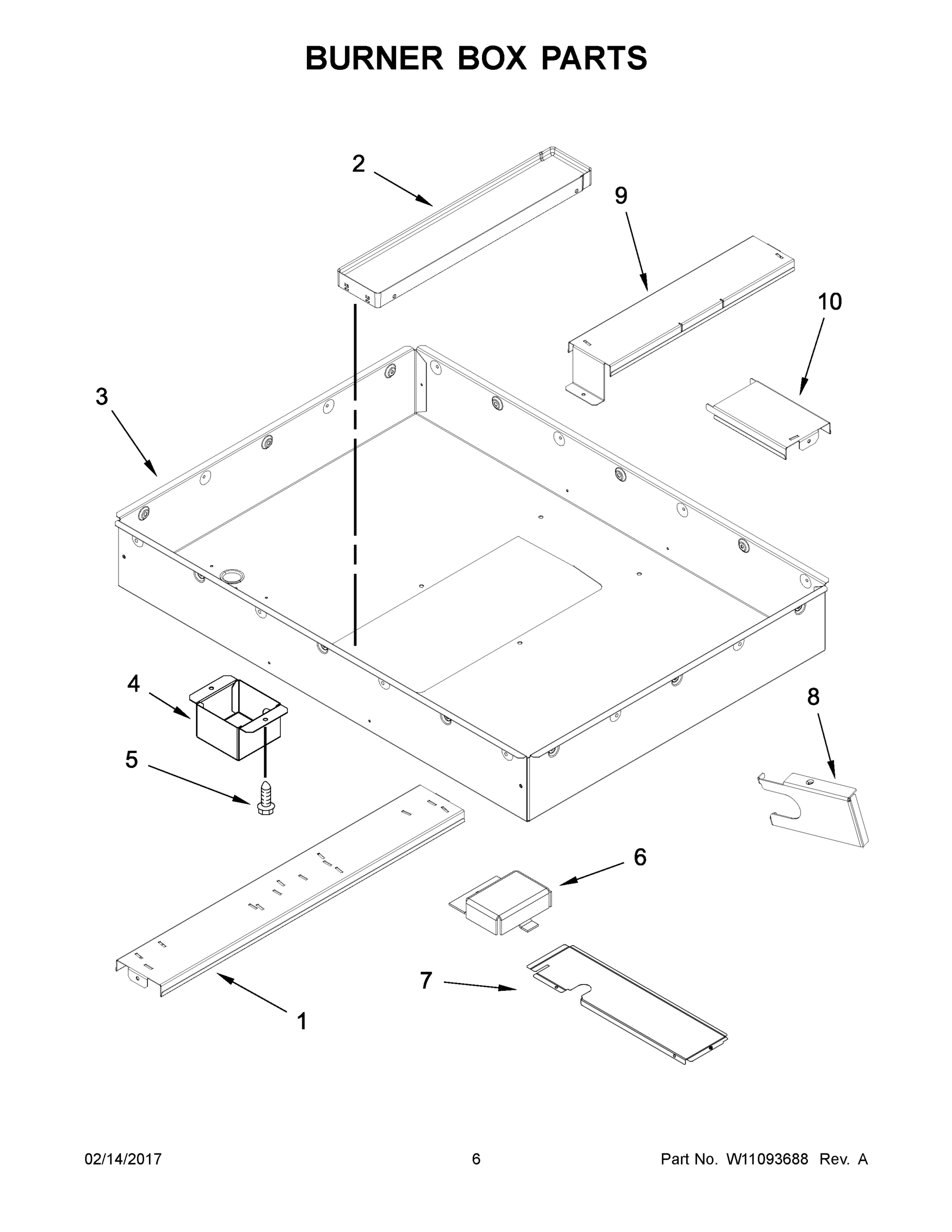

04 - BURNER BOX PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JED4536GS00 COOKTOP, ELECTRIC, DOWNDRAFT
1
INSTRUCTIONS, INSTALLATION MAY W10848428 Contact Us For Availability
1
ASSEMBLY, TOP PLENUM MAY W10872755 Contact Us For Availability
1
RAIL, STRAIGHT MAY W10815392 Contact Us For Availability
1A
INSTRUCTIONS, USER MAY W10848426 Contact Us For Availability
1B
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1C
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1D
MAY W11031714 MAY W11031714 Contact Us For Availability
1E
MAY W10917835 MAY W10917835 Contact Us For Availability
2
MAY W10794981 MAY W10794981 Contact Us For Availability
2
ASSEMBLY, BLOWER MAY W10877782 Contact Us For Availability
2
TRAY, SPILL MAY W10235990 Contact Us For Availability
2A
MAY W10908407 MAY W10908407 Contact Us For Availability
3
ELEMENT (1300W) (LEFT FRONT) MAY W10342780 Contact Us For Availability
3
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
3
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
3A
ELEMENT (1800W) (LEFT REAR) MAY 8273993 Contact Us For Availability
3B
ELEMENT (3000/1400W) (CENTER FRONT) MAY W10275048 Contact Us For Availability
3C
ELEMENT (1200W) (CENTER REAR) MAY 8273994 Contact Us For Availability
3D
ELEMENT (4500W) (RIGHT REAR) MAY W10298145 Contact Us For Availability
4
MAY W11032485 MAY W11032485 Contact Us For Availability
4
WASHER MAY 7109P086-60 Contact Us For Availability
4
COVER, BLOWER MOTOR HARNESS MAY W10258697 Contact Us For Availability
5
MAY W10817976 MAY W10817976 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
FILTER, GREASE MAY W10815866 Contact Us For Availability
6
ASSEMBLY, LOWER PLENUM MAY W10837738 Contact Us For Availability
6
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
7
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
7
PANEL, LOWER PLENUM ACCESS MAY W10837737 Contact Us For Availability
7
MAY W10833630 MAY W10833630 Contact Us For Availability
8
GROMMET, WIRE (LARGE HOLE) MAY W10324729 Contact Us For Availability
8
MAY W10874833 MAY W10874833 Contact Us For Availability
9
MAY W10817979 MAY W10817979 Contact Us For Availability
9
MAY W10815650 MAY W10815650 Contact Us For Availability
10
GRILLE, AIR (BLACK) MAY W10844354 Contact Us For Availability
10
MAY W10872311 MAY W10872311 Contact Us For Availability
11
ASSEMBLY, TRIM (STAINLESS MODELS ONLY) MAY W10836025 Contact Us For Availability
NI
SEAL, LIMITER MAY 3192439 Contact Us For Availability
NI
MAY W10809385 MAY W10809385 Contact Us For Availability
NI
MAY W10836939 MAY W10836939 Contact Us For Availability
NI
KIT, PLENUM SCREW MAY W10909126 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
