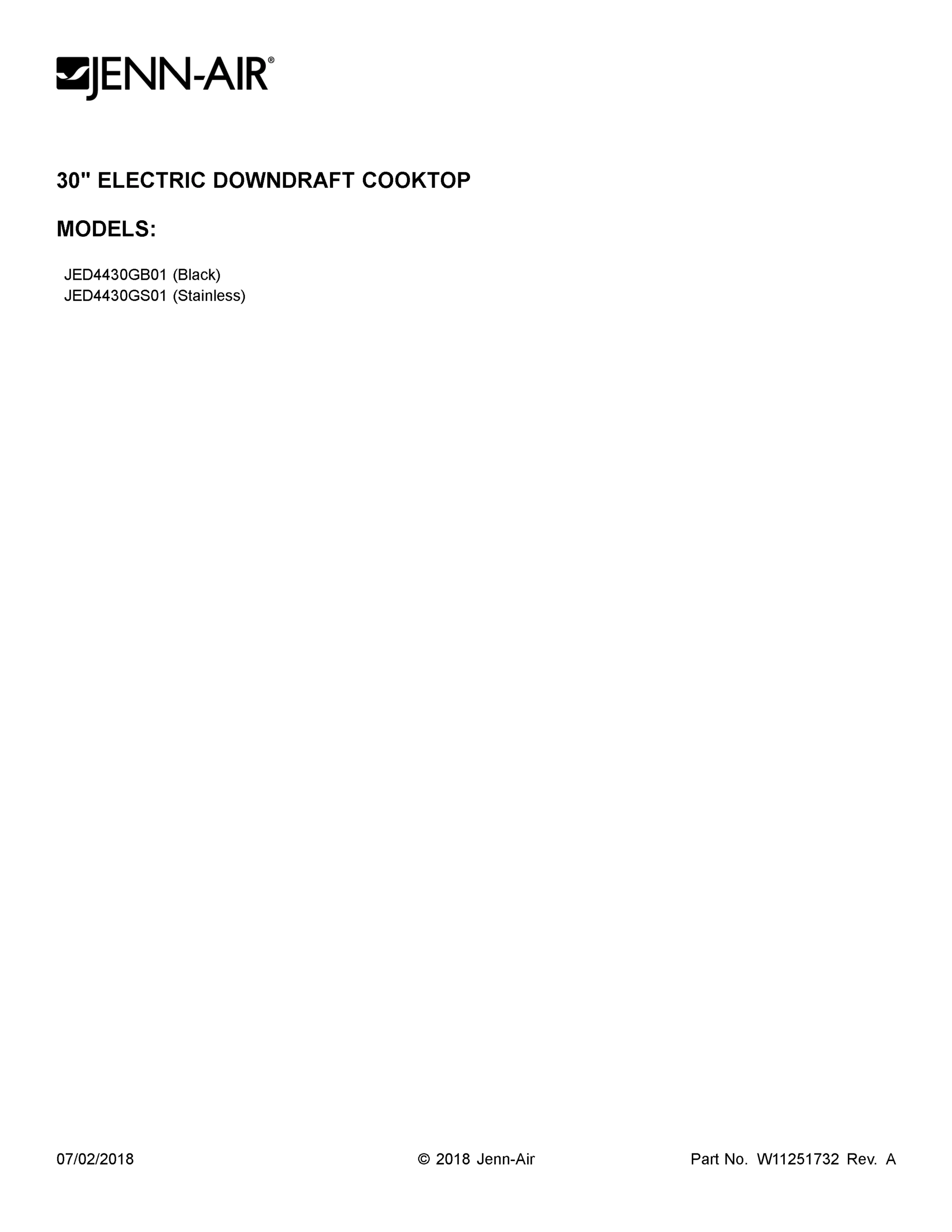

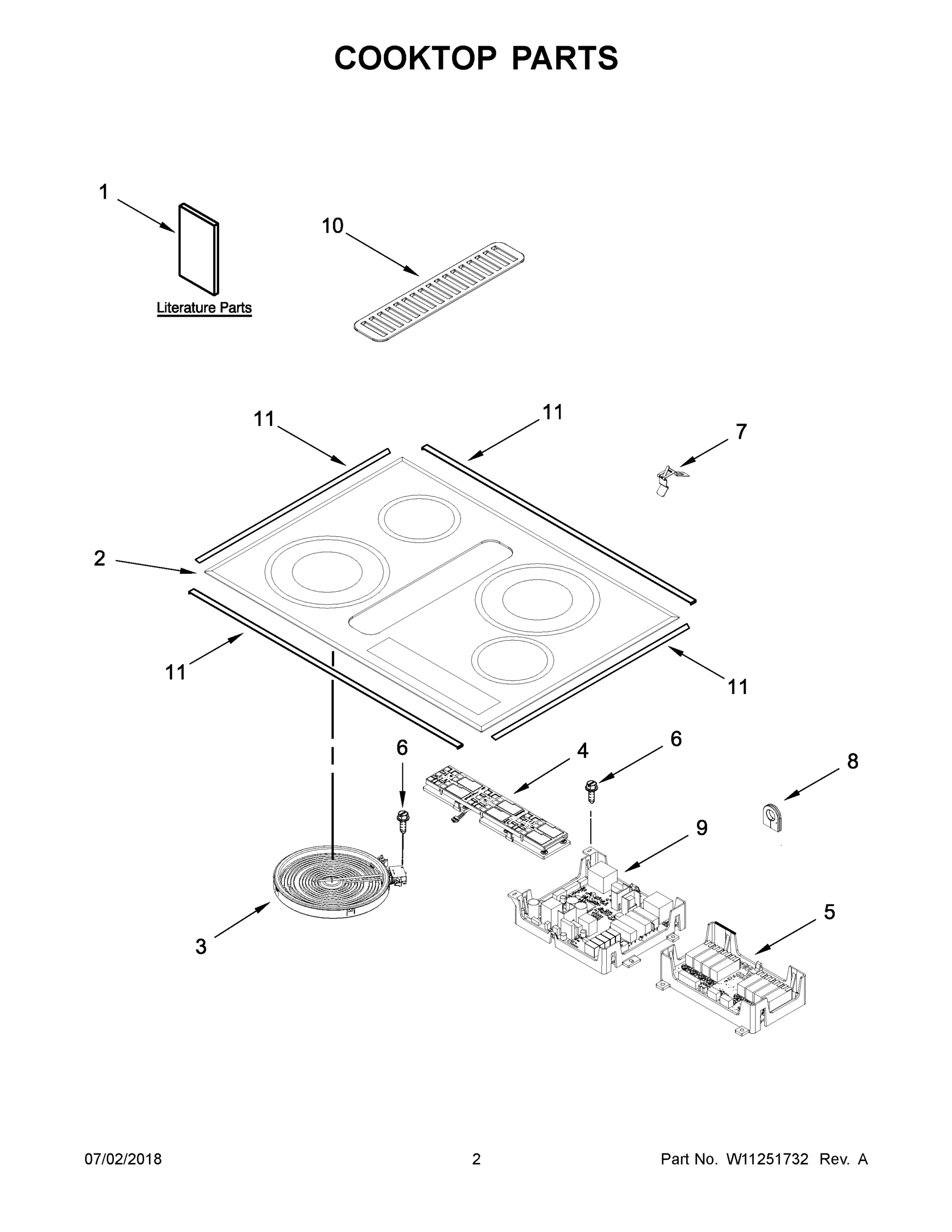

Model Maytag JED4430GS01 COOKTOP, ELECTRIC, DOWNDRAFT, 30 INCH – Common Parts & Diagrams

1
INSTRUCTIONS, INSTALLATION
INSTRUCTIONS, INSTALLATION MAY W10848428 Contact Us For Availability
View on Model
1
ASSEMBLY, TOP PLENUM
ASSEMBLY, TOP PLENUM MAY W10872755 Contact Us For Availability
View on Model
1
RAIL, STRAIGHT
RAIL, STRAIGHT MAY W10815392 Contact Us For Availability
View on Model
1A
INSTRUCTIONS, USER
INSTRUCTIONS, USER MAY W10848426 Contact Us For Availability
View on Model
1B
SHEET, TECH
SHEET, TECH MAY W11031713 Contact Us For Availability
View on Model
1C
DIAGRAM, WIRING
DIAGRAM, WIRING MAY W10917819 Contact Us For Availability
View on Model
2
TOP (BLACK)
TOP (BLACK) MAY W10796745 Contact Us For Availability
View on Model
2
ASSEMBLY, DOWNDRAFT BLOWER
ASSEMBLY, DOWNDRAFT BLOWER MAY W10877782 Contact Us For Availability
View on Model
2
TRAY, SPILL
TRAY, SPILL MAY W10235990 Contact Us For Availability
View on Model
2A
TOP (STAINLESS)
TOP (STAINLESS) MAY W10908403 Contact Us For Availability
View on Model
3
ELEMENT (3000/1400W) (LEFT FRONT & RIGHT REAR
ELEMENT (3000/1400W) (LEFT FRONT & RIGHT REAR MAY W10275048 Contact Us For Availability
View on Model
3
BOX, BURNER (NOT SERVICED)
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
View on Model
3
NUT, LOCK
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
View on Model
3A
ELEMENT (1300W) (LEFT REAR)
ELEMENT (1300W) (LEFT REAR) MAY W10342780 Contact Us For Availability
View on Model
3B
ELEMENT (1200W) (RIGHT FRONT)
ELEMENT (1200W) (RIGHT FRONT) MAY 8273994 Contact Us For Availability
View on Model
4
ASSEMBLY, UI
ASSEMBLY, UI MAY W11032484 Contact Us For Availability
View on Model
4
WASHER
WASHER MAY 7109P086-60 Contact Us For Availability
View on Model
4
COVER, BLOWER MOTOR HARNESS
COVER, BLOWER MOTOR HARNESS MAY W10258697 Contact Us For Availability
View on Model
5
CONTROL, ELECTRONIC
CONTROL, ELECTRONIC MAY W10817977 Contact Us For Availability
View on Model
5
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
5
FILTER, GREASE
FILTER, GREASE MAY W10815866 Contact Us For Availability
View on Model
6
ASSEMBLY, LOWER PLENUM
ASSEMBLY, LOWER PLENUM MAY W10837738 Contact Us For Availability
View on Model
6
COVER, CONNECTOR
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
View on Model
7
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
7
PANEL, LOWER PLENUM ACCESS
PANEL, LOWER PLENUM ACCESS MAY W10837737 Contact Us For Availability
View on Model
7
SHIELD, HEAT
SHIELD, HEAT MAY W10842296 Contact Us For Availability
View on Model
8
GROMMET, WIRE (GRAY) (LARGE HOLE)
GROMMET, WIRE (GRAY) (LARGE HOLE) MAY W10324729 Contact Us For Availability
View on Model
8
SHIELD, SIDE HEAT
SHIELD, SIDE HEAT MAY W10874833 Contact Us For Availability
View on Model
9
MANAGER, APPLIANCE
MANAGER, APPLIANCE MAY W10817979 Contact Us For Availability
View on Model
9
RAIL, FRONT
RAIL, FRONT MAY W10858345 Contact Us For Availability
View on Model
10
GRILLE, AIR (BLACK)
GRILLE, AIR (BLACK) MAY W10844354 Contact Us For Availability
View on Model
10
RAIL, REAR
RAIL, REAR MAY W10858346 Contact Us For Availability
View on Model
11
ASSEMBLY, TRIM (STAINLESS MODELS ONLY)
ASSEMBLY, TRIM (STAINLESS MODELS ONLY) MAY W10836028 Contact Us For Availability
View on Model
11
SCREW
SCREW MAY 7101P427-60 Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING MAY 7101P460-60 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
KIT, PLENUM SCREW
KIT, PLENUM SCREW MAY W10909126 Contact Us For Availability
View on Model
NI
MAY W11190486
MAY W11190486 MAY W11190486 Contact Us For Availability
View on Model
NI
MAY W11190487
MAY W11190487 MAY W11190487 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
