Model Maytag JED3536WF04 36`` ELECTRIC BUILT-IN DOWNDRAFT COOKTOP – Common Parts & Diagrams

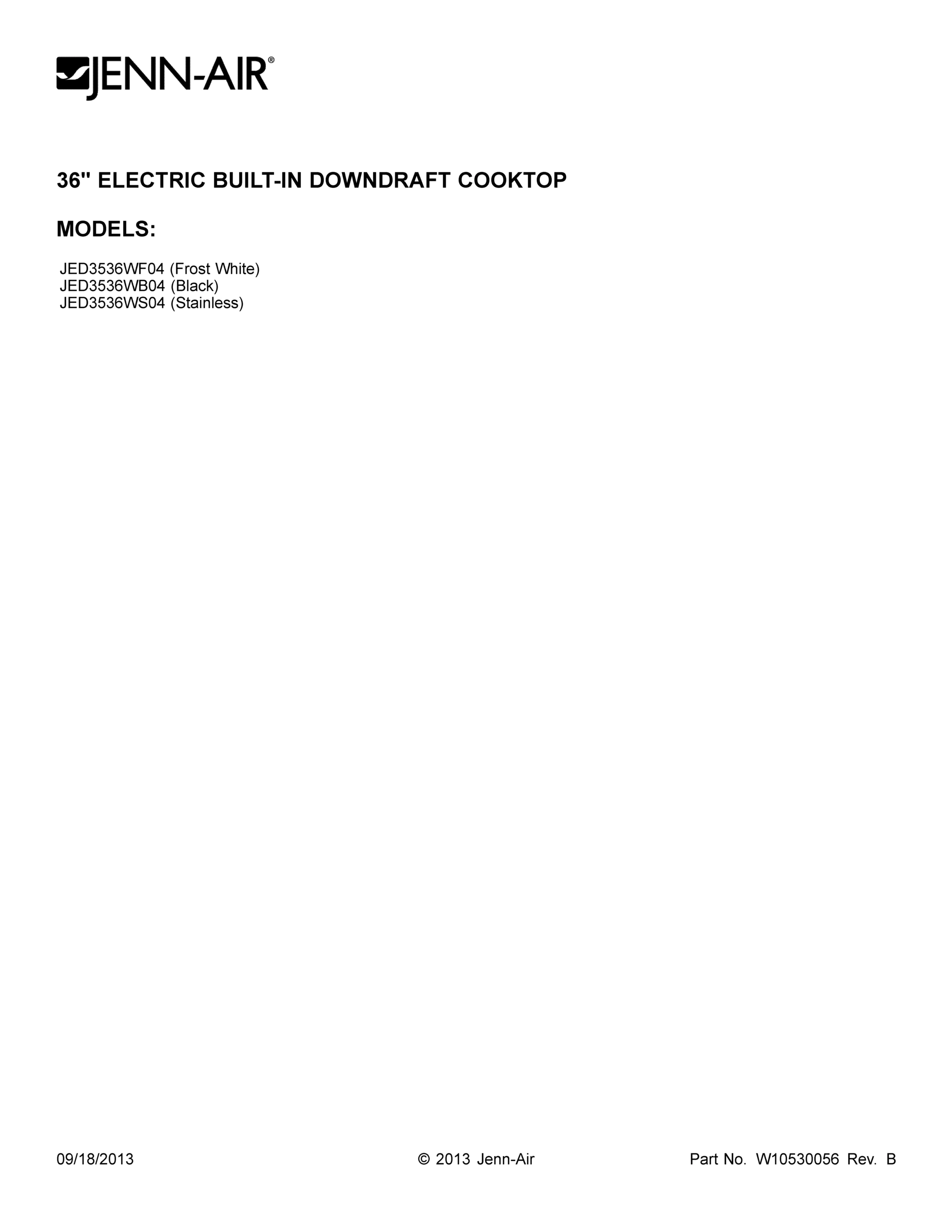

01 - COVER SHEET

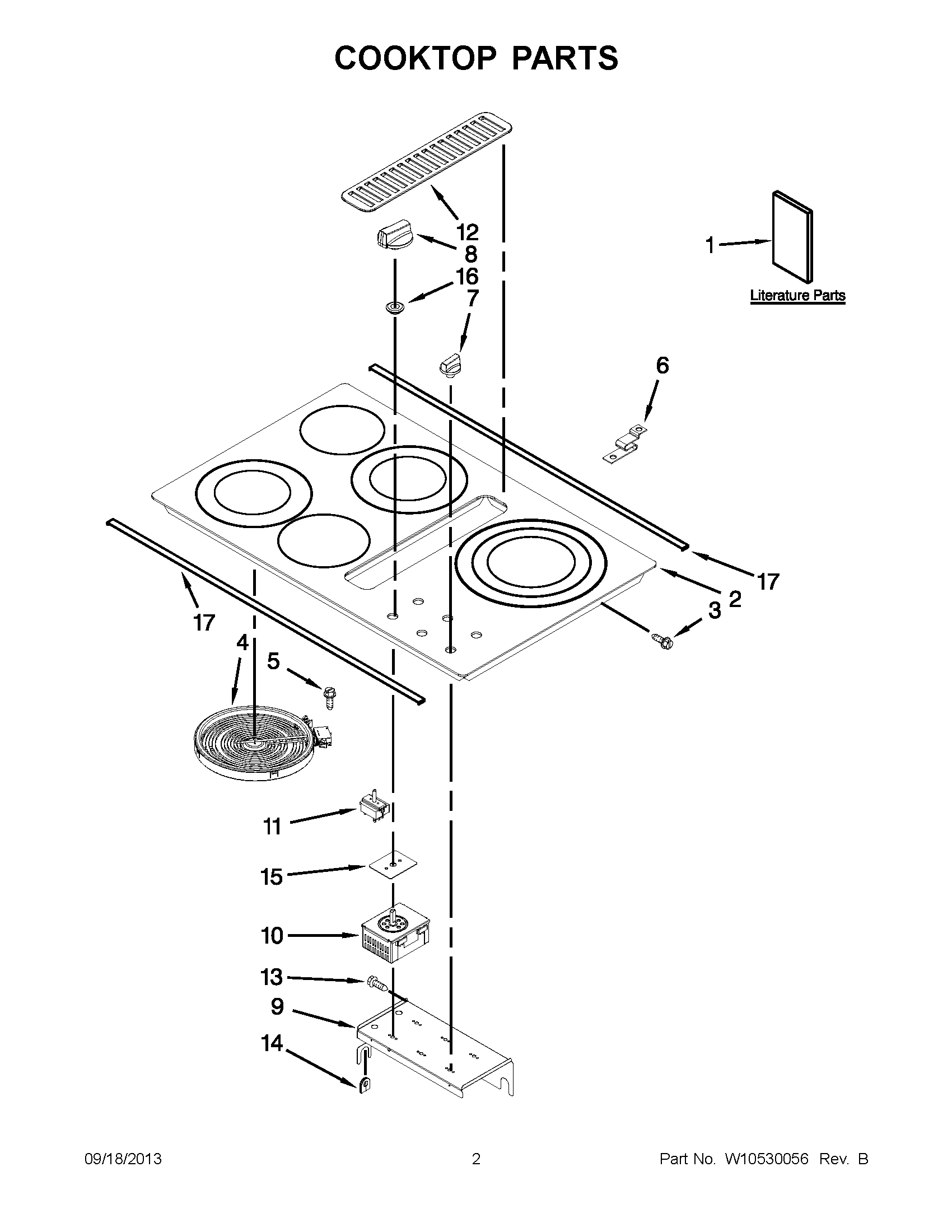

02 - COOKTOP PARTS
03 - BLOWER UNIT PARTS
04 - BURNER BOX PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JED3536WF04 36`` ELECTRIC BUILT-IN DOWNDRAFT COOKTOP
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10197056 MAY W10197056 Contact Us For Availability
1
MAY W10436037 MAY W10436037 Contact Us For Availability
1
MAY W10470331 MAY W10470331 Contact Us For Availability
1
PLUG, HOLE MAY 7718P023-60 Contact Us For Availability
2
TOP, MAIN (FROST WHITE) MAY W10162421 Contact Us For Availability
2
TOP, MAIN (BLACK) MAY W10162422 Contact Us For Availability
2
ASSEMBLY, BLOWER MAY W10338537 Contact Us For Availability
2
MAY W10254665 MAY W10254665 Contact Us For Availability
3
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
3
MAY W10184125 MAY W10184125 Contact Us For Availability
4
ELEMENT, WARMER (100W) (CENTER FRONT) MAY 7406P497-60 Contact Us For Availability
4
ELEMENT (1200W) (LEFT REAR) MAY 8273994 Contact Us For Availability
4
ELEMENT, DUAL (2200W) (LEFT FRONT, CENTER REA MAY W10221529 Contact Us For Availability
4
ELEMENT, TRIPLE (2700W) (RIGHT REAR) MAY W10259005 Contact Us For Availability
4
MAY 7109P086-60 MAY 7109P086-60 Contact Us For Availability
4
MAY W10235990 MAY W10235990 Contact Us For Availability
5
BOTTOM, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
5
MAY W10240990 MAY W10240990 Contact Us For Availability
6
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
6
MAY W10258697 MAY W10258697 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
MAY W10207833 MAY W10207833 Contact Us For Availability
7
MAY W10209700 MAY W10209700 Contact Us For Availability
7
MAY W10209701 MAY W10209701 Contact Us For Availability
8
MAY W10236130 MAY W10236130 Contact Us For Availability
8
MAY W10236132 MAY W10236132 Contact Us For Availability
8
MAY W10236133 MAY W10236133 Contact Us For Availability
9
MAY W10161712 MAY W10161712 Contact Us For Availability
10
SWITCH, INFINITE (LEFT REAR) MAY 7403P373-60 Contact Us For Availability
10
SWITCH, CONTROL (TRIPLE) (RIGHT REAR) MAY W10161713 Contact Us For Availability
10
SWITCH, CONTROL DUAL (2200W) (LEFT FRONT, CEN MAY W10215034 Contact Us For Availability
10
SWITCH, CONTROL (SINGLE) (CENTER FRONT) MAY W10222828 Contact Us For Availability
11
SWITCH, BLOWER MAY 4456836 Contact Us For Availability
12
GRILLE, AIR (BLACK) MAY W10205094 Contact Us For Availability
12
MAY W10205095 MAY W10205095 Contact Us For Availability
13
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
MAY 8008P068-60 MAY 8008P068-60 Contact Us For Availability
15
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
16
GROMMET, SWITCH MAY W10293874 Contact Us For Availability
17
TRIM, COOKTOP (STAINLESS) MAY W10168884 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
ACCESSORIES, COOKTOP PROTECTANT MAY 31463 Contact Us For Availability
NI
ACCESSORIES, COOKTOP CLEANER MAY 31464 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
MAY 7111P020-60 MAY 7111P020-60 Contact Us For Availability
NI
MAY 8286642 MAY 8286642 Contact Us For Availability
NI
ACCESSORIES, FILTER(DUCTLESS) MAY W10177003 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, BLOWER SWITCH MAY W10192073 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, LIGHT MAY W10257163 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10435939 Contact Us For Availability
NI
ACCESSORIES, COOKTOP SCRAPER MAY WA906B Contact Us For Availability
× ![]()
