Whirlpool JEC9536BDB Parts List

Model Whirlpool JEC9536BDB ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool JEC9536BDB ELECTRIC COOK-TOP

12002793 Whirlpool Foam Tape

12002793 Whirlpool Foam Tape Backorder WPL 12002793 $33.29

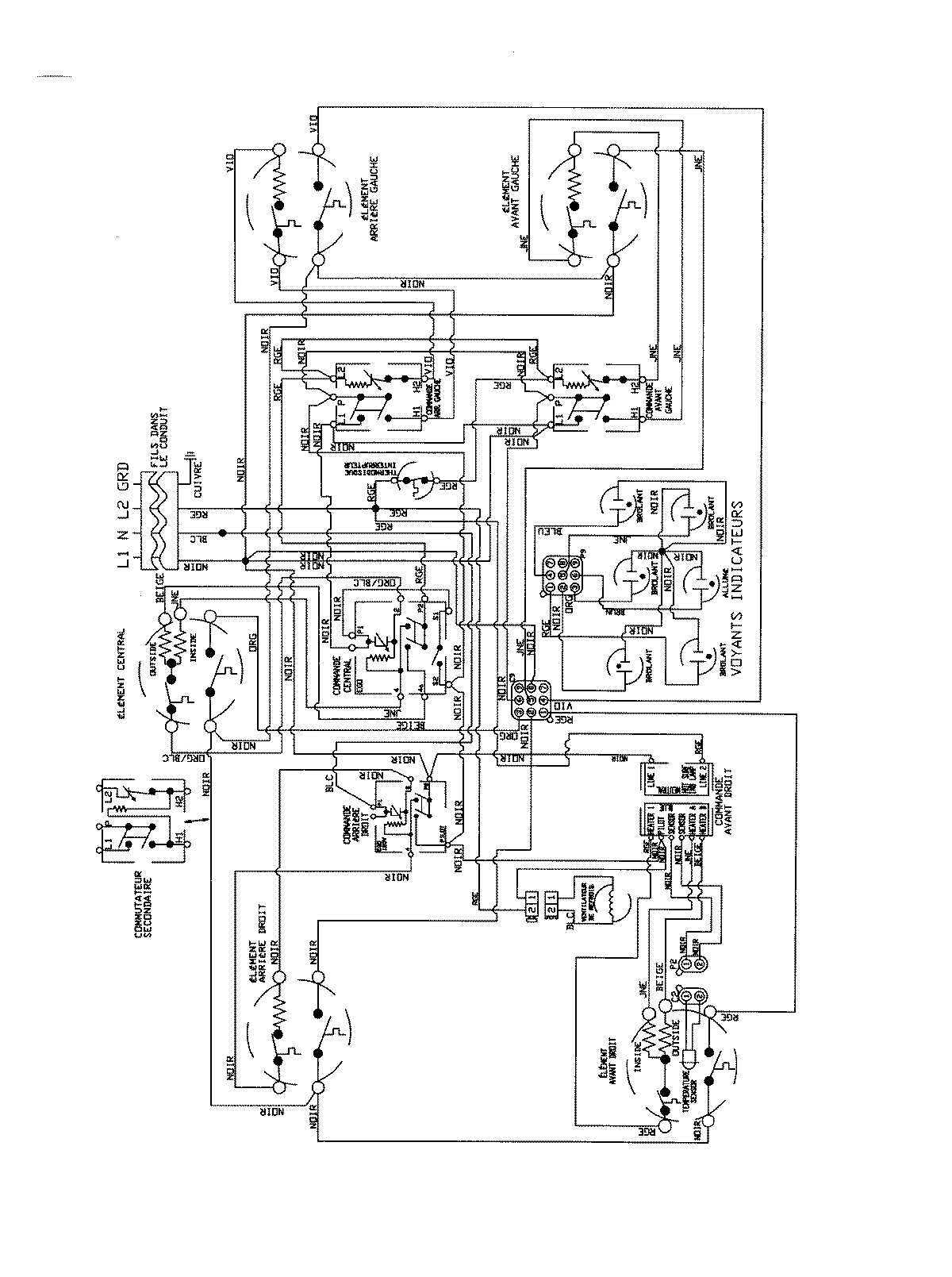

WIRING INFORMATION (FRENCH)

WIRING INFORMATION (FRENCH) WPL 8119P38260 Contact Us For Availability

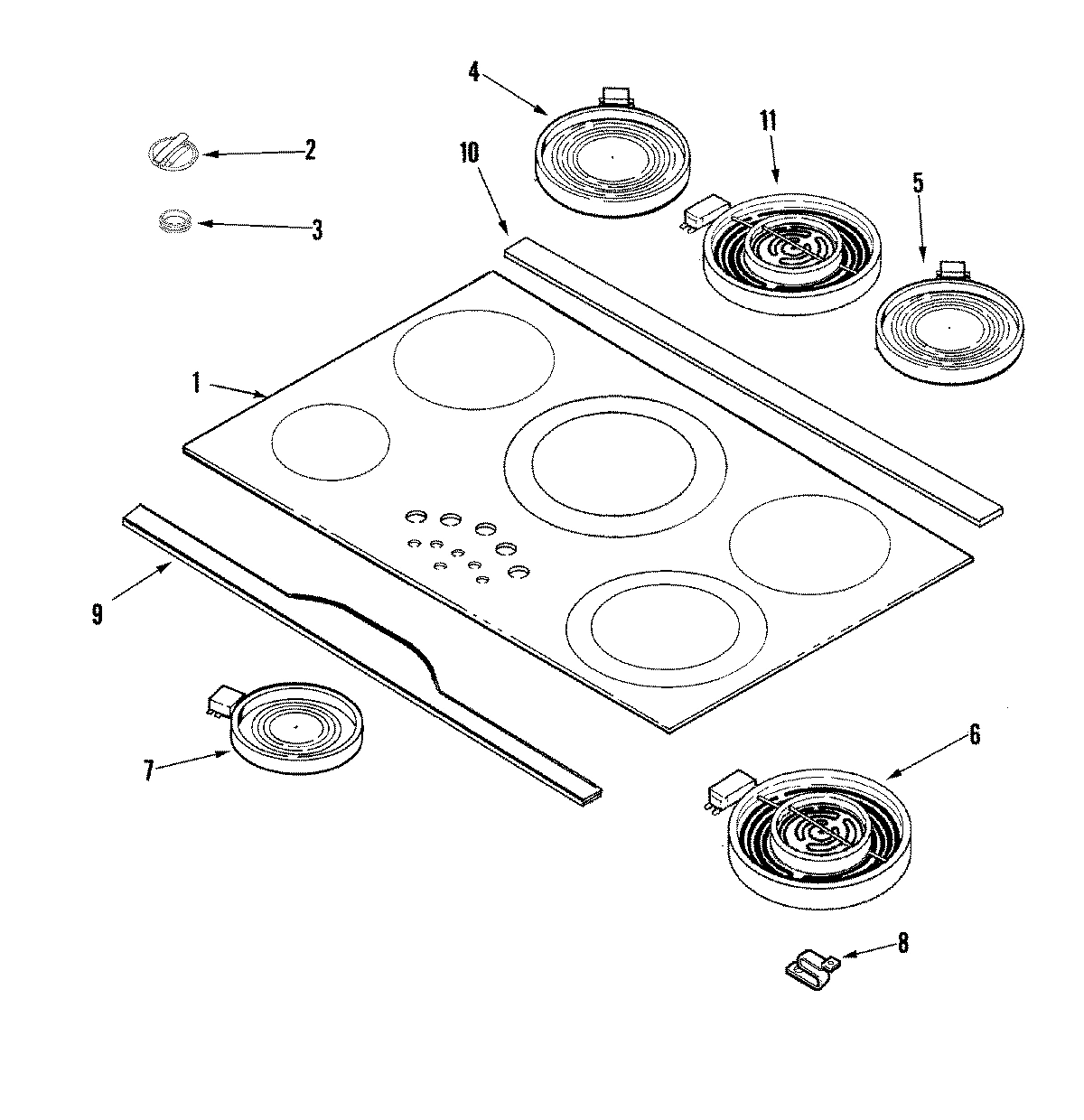

TOP ASSEMBLY (BLK)

TOP ASSEMBLY (BLK) WPL 7920P17360 Contact Us For Availability

BOTTOM, BURNER BOX

BOTTOM, BURNER BOX WPL 4011F50551 Contact Us For Availability

12002121 Whirlpool Dual Infinite Switch

12002121 Whirlpool Dual Infinite Switch In Stock WPL 12002121 $62.93

WP74007840 Whirlpool Infinite Switch

WP74007840 Whirlpool Infinite Switch In Stock WPL WP74007840 $129.24

WP74007841 Whirlpool Infinite Switch

WP74007841 Whirlpool Infinite Switch Backorder WPL WP74007841 $90.45

WP74008252 Whirlpool Switch In

WP74008252 Whirlpool Switch In Backorder WPL WP74008252 $73.11

KNOB

KNOB WPL 7737P40860 Contact Us For Availability

WPW10293874 Whirlpool Stove Cooktop Knob Grom

WPW10293874 Whirlpool Stove Cooktop Knob Grom In Stock WPL WPW10293874 $3.69

BAFFLE, BOTTOM

BAFFLE, BOTTOM WPL 74007836 Contact Us For Availability

W10823698 Whirlpool Surface Element Right Rea

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $97.93

WA906B Whirlpool Cooktop Glass Scraper

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.75

COOKTOP CLEANING CREME 4 OZ

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

HARNESS, MAIN/CONDUIT

HARNESS, MAIN/CONDUIT WPL 5171P82460 Contact Us For Availability

CONNECTOR, ANGLE

CONNECTOR, ANGLE WPL 74007891 Contact Us For Availability

CONDUIT, 1/2`` FLEXIBLE (48``)

CONDUIT, 1/2`` FLEXIBLE (48``) WPL 74007892 Contact Us For Availability

ELEMENT, WARMING

ELEMENT, WARMING WPL 74008571 Contact Us For Availability

PLATE, SWITCH

PLATE, SWITCH WPL 3605F35251 Contact Us For Availability

ELEMENT, DUAL (3000W)

ELEMENT, DUAL (3000W) WPL 74008228 Contact Us For Availability

HARNESS, LIGHT ASY

HARNESS, LIGHT ASY WPL 5171P82160 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

GROMMET, ANTI-SHORT

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

SUPPORT, ELEMENT

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

THERMOSTAT, SNAP ACTING

THERMOSTAT, SNAP ACTING WPL 7403P22760 Contact Us For Availability

SCREW

SCREW WPL 7101P30960 Contact Us For Availability

WP71002569 Whirlpool Gasket In

WP71002569 Whirlpool Gasket In Backorder WPL WP71002569 $4.37

W10823713 Whirlpool Surface Element

W10823713 Whirlpool Surface Element Backorder WPL W10823713 $144.58

WP71001171 Whirlpool Screw

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.60

BRACKET, CONDUIT/HARNESS ASY.

BRACKET, CONDUIT/HARNESS ASY. WPL 74007893 Contact Us For Availability

FAN, COOLING

FAN, COOLING WPL 74010173 Contact Us For Availability

CONTROL, BURNER (BLK)

CONTROL, BURNER (BLK) WPL 8507P36760 Contact Us For Availability

GASKET, SWITCH

GASKET, SWITCH WPL 74008253 Contact Us For Availability

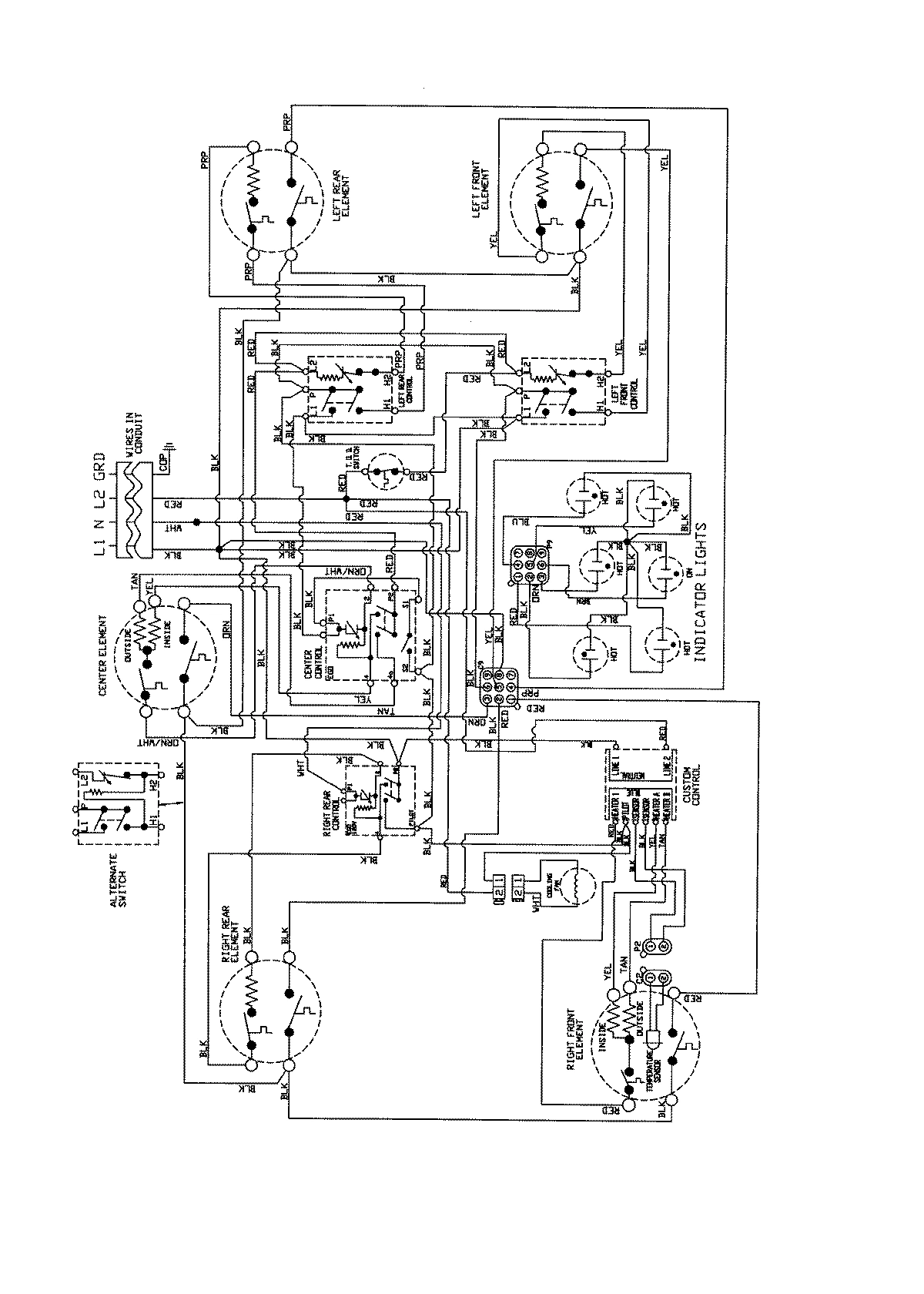

WIRING INFORMATION

WIRING INFORMATION WPL 8119P38160 Contact Us For Availability
