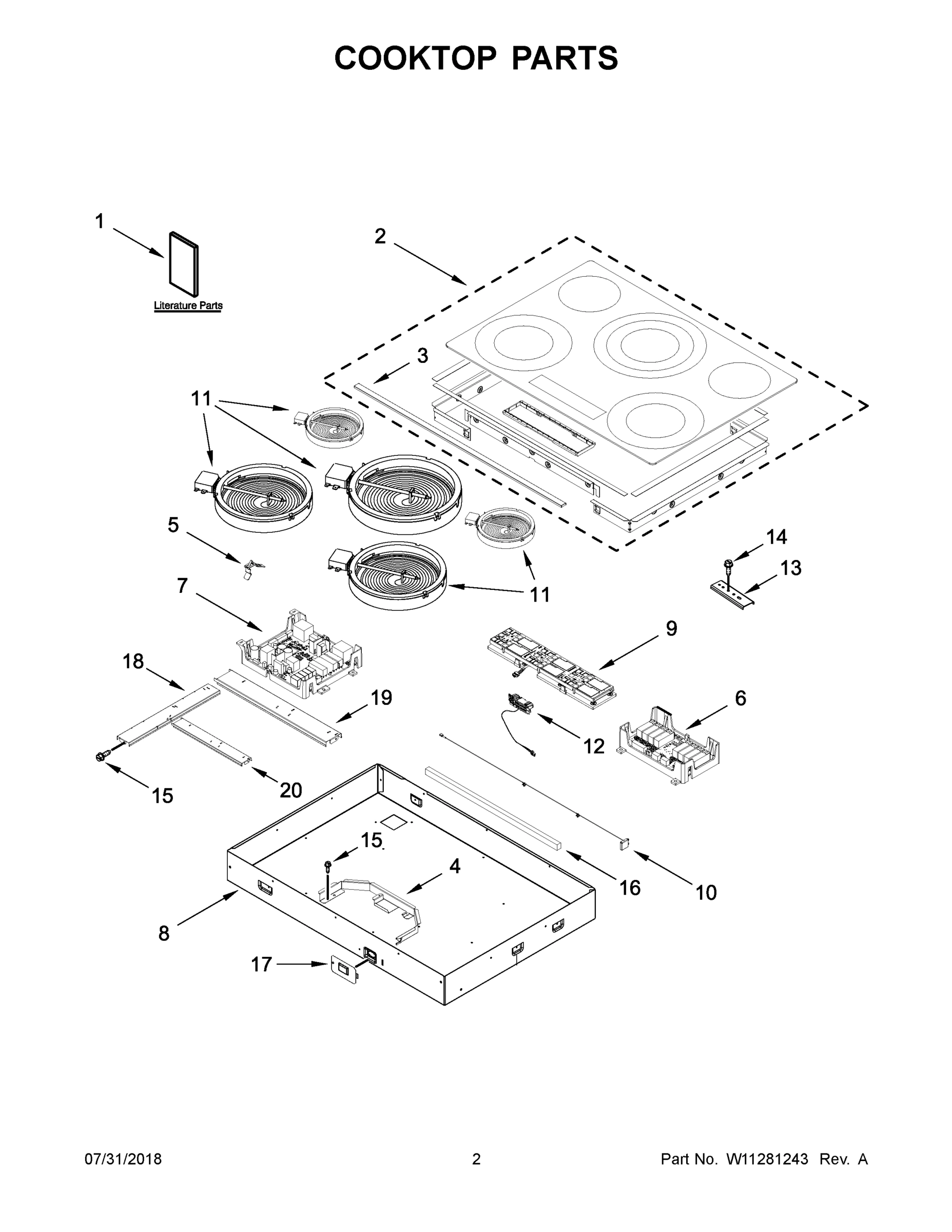

Model Maytag JEC4536HB00 COOKTOP, ELECTRIC, BUILT-IN, 36 INCH – Common Parts & Diagrams

1A
INSTRUCTIONS, UNDERCOUNTER INSTALL
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
View on Model
1B
GUIDE, USE & CARE
GUIDE, USE & CARE MAY W11161577 Contact Us For Availability
View on Model
1C
MAY W11238373
MAY W11238373 MAY W11238373 Contact Us For Availability
View on Model
1D
MAY W11234441
MAY W11234441 MAY W11234441 Contact Us For Availability
View on Model
2
MAY W11121007
MAY W11121007 MAY W11121007 Contact Us For Availability
View on Model
2A
MAY W11121009
MAY W11121009 MAY W11121009 Contact Us For Availability
View on Model
4
SHIELD, HEAT
SHIELD, HEAT MAY W11110726 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
MAY W11115983
MAY W11115983 MAY W11115983 Contact Us For Availability
View on Model
7
MANAGER, COPERNICUS APPLIANCE
MANAGER, COPERNICUS APPLIANCE MAY W11115992 Contact Us For Availability
View on Model
9
MAY W11115964
MAY W11115964 MAY W11115964 Contact Us For Availability
View on Model
10
ANTENNA
ANTENNA MAY W11179388 Contact Us For Availability
View on Model
11
ELEMENT (3000/1400W) (LEFT FRONT & RIGHT FRON
ELEMENT (3000/1400W) (LEFT FRONT & RIGHT FRON MAY W10275048 Contact Us For Availability
View on Model
11A
ELEMENT (1200W) (LEFT REAR & RIGHT REAR)
ELEMENT (1200W) (LEFT REAR & RIGHT REAR) MAY 8273994 Contact Us For Availability
View on Model
11B
ELEMENT (4500W) (CENTER REAR)
ELEMENT (4500W) (CENTER REAR) MAY W10298145 Contact Us For Availability
View on Model
12
ASSEMBLY, LOKI WIFI
ASSEMBLY, LOKI WIFI MAY W11179787 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
15
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
16
TOP, FOAM (HEAT SHIELD)
TOP, FOAM (HEAT SHIELD) MAY W11177352 Contact Us For Availability
View on Model
18
RAIL, SHORT COOKTOP
RAIL, SHORT COOKTOP MAY W11175316 Contact Us For Availability
View on Model
19
RAIL, AUXILIAR
RAIL, AUXILIAR MAY W11110717 Contact Us For Availability
View on Model
20
RAIL, HORIZONTAL
RAIL, HORIZONTAL MAY W11106010 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
View on Model
NI
SCREW
SCREW MAY 7101P520-60 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
MAY W11110557
MAY W11110557 MAY W11110557 Contact Us For Availability
View on Model
NI
INSULATION, COOKTOP
INSULATION, COOKTOP MAY W11160360 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
