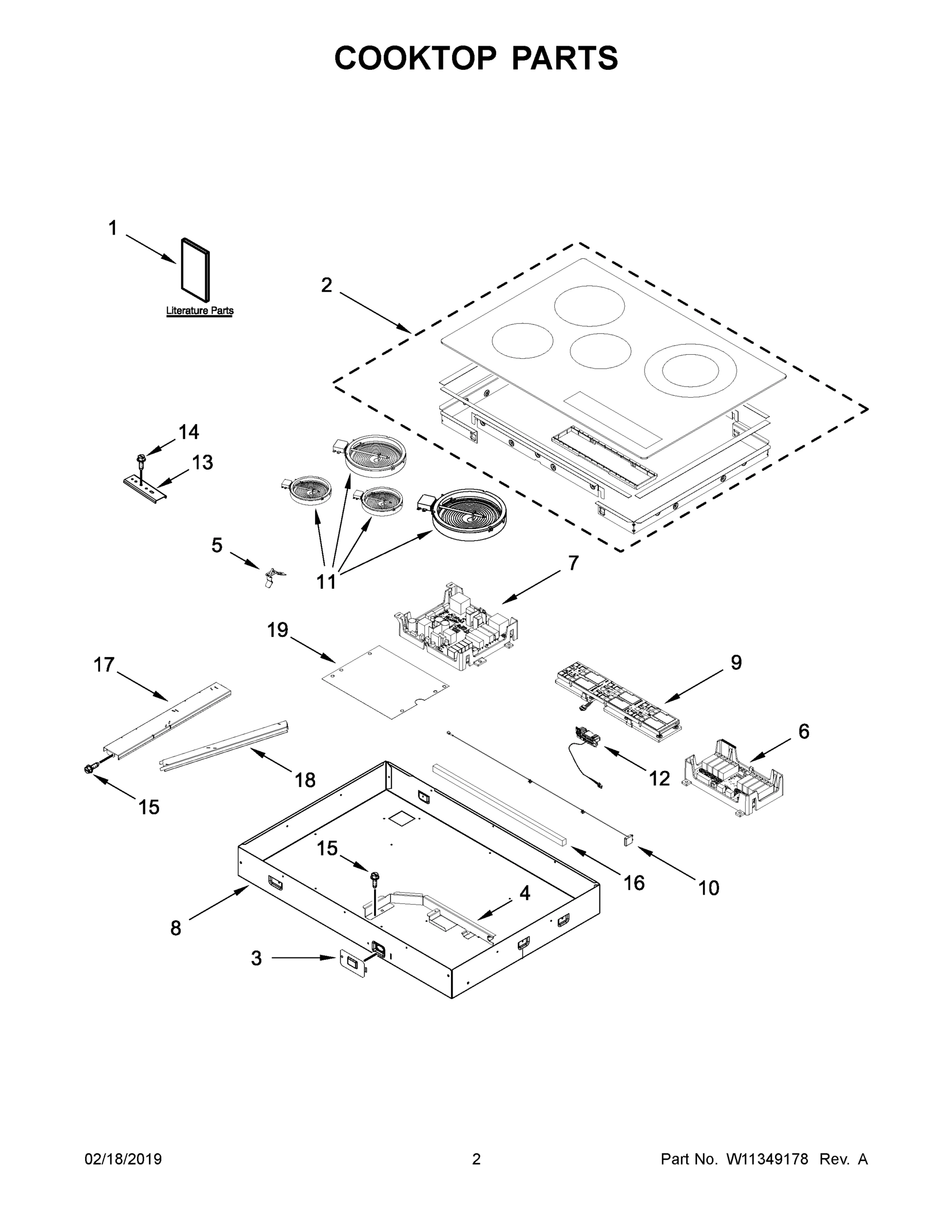

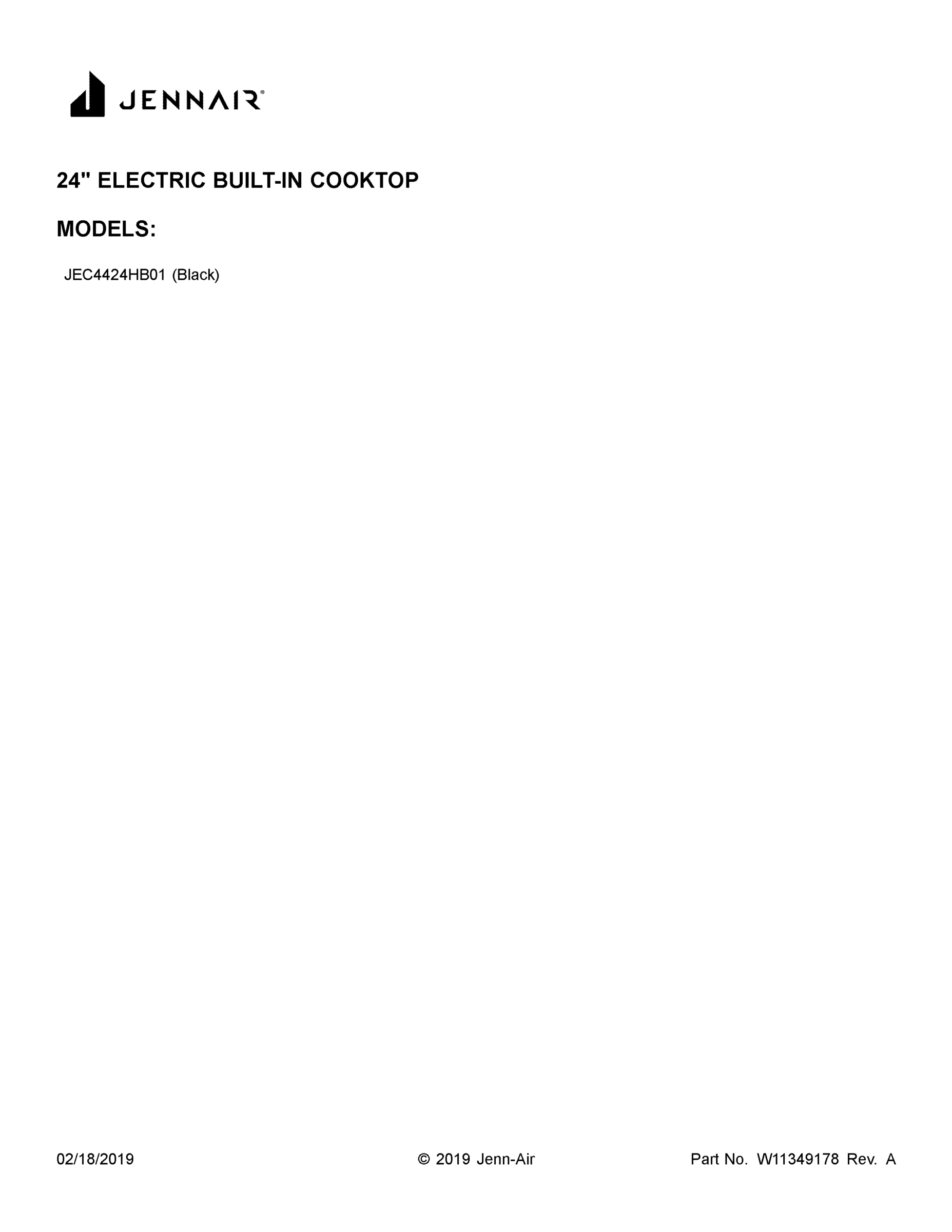

Model Maytag JEC4424HB01 COOKTOP, ELECTRIC, BUILT-IN, 24 INCH – Common Parts & Diagrams

1
INSTRUCTION, INSTALLATION
INSTRUCTION, INSTALLATION MAY W11236401 Contact Us For Availability
View on Model
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
View on Model
1B
MAY W11297622
MAY W11297622 MAY W11297622 Contact Us For Availability
View on Model
1C
DIAGRAM, WIRING
DIAGRAM, WIRING MAY W11238371 Contact Us For Availability
View on Model
1D
TECH SHEET (FRENCH)
TECH SHEET (FRENCH) MAY W10550652 Contact Us For Availability
View on Model
1D
GUIDE, INTERNET CONNECTIVITY
GUIDE, INTERNET CONNECTIVITY MAY W11234441 Contact Us For Availability
View on Model
1E
TECH SHEET (ENGLISH)
TECH SHEET (ENGLISH) MAY W10550651 Contact Us For Availability
View on Model
2
COOKTOP (BLACK)
COOKTOP (BLACK) MAY W11120998 Contact Us For Availability
View on Model
4
SHIELD, HEAT
SHIELD, HEAT MAY W11102056 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
APPLIANCE MANAGER, EXPANSION
APPLIANCE MANAGER, EXPANSION MAY W11115982 Contact Us For Availability
View on Model
7
MAY W11296738
MAY W11296738 MAY W11296738 Contact Us For Availability
View on Model
9
MAY W11296722
MAY W11296722 MAY W11296722 Contact Us For Availability
View on Model
10
ANTENNA
ANTENNA MAY W11179387 Contact Us For Availability
View on Model
11
ELEMENT (1300W) (LEFT FRONT)
ELEMENT (1300W) (LEFT FRONT) MAY W10342780 Contact Us For Availability
View on Model
11A
ELEMENT (1800W) (LEFT REAR)
ELEMENT (1800W) (LEFT REAR) MAY 8273993 Contact Us For Availability
View on Model
11B
ELEMENT (1200W) (CENTER)
ELEMENT (1200W) (CENTER) MAY 8273994 Contact Us For Availability
View on Model
11C
ELEMENT (3000/1400W) (RIGHT REAR)
ELEMENT (3000/1400W) (RIGHT REAR) MAY W10275048 Contact Us For Availability
View on Model
12
ASSEMBLY, LOKI WIFI
ASSEMBLY, LOKI WIFI MAY W11179787 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
15
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
16
TOP, FOAM (HEAT SHIELD)
TOP, FOAM (HEAT SHIELD) MAY W11177346 Contact Us For Availability
View on Model
17
RAIL, VERTICAL
RAIL, VERTICAL MAY W11102042 Contact Us For Availability
View on Model
18
SHORT RAIL, VERTICAL
SHORT RAIL, VERTICAL MAY W11102044 Contact Us For Availability
View on Model
19
MAY W11242976
MAY W11242976 MAY W11242976 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN MAY W11111804 Contact Us For Availability
View on Model
NI
INSULATION, COOKTOP
INSULATION, COOKTOP MAY W11160362 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, CANNING UNIT
ACCESSORIES, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
View on Model
NI
ACCESSORIES, PROTECTANT, COOKTOP
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, COOKTOP CARE
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
