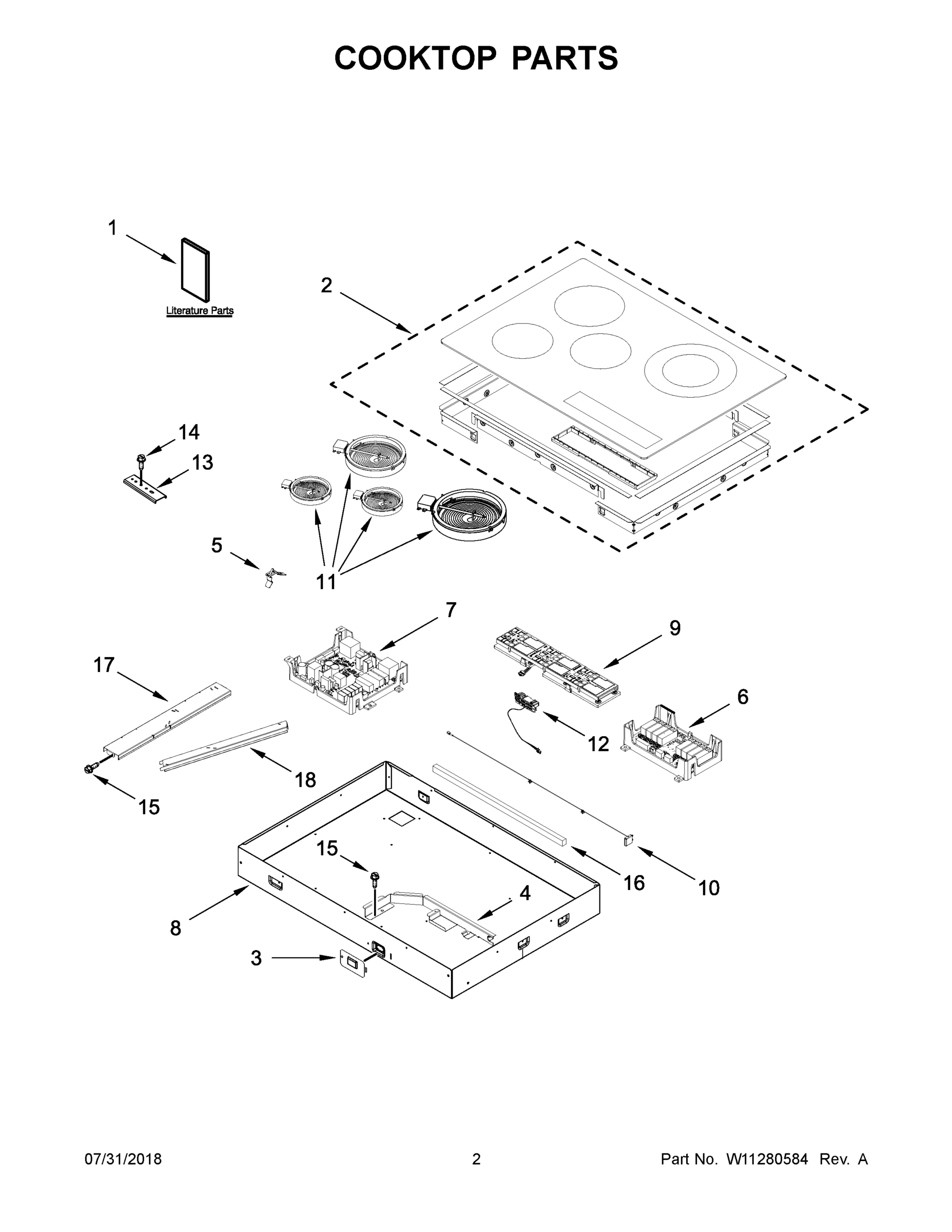

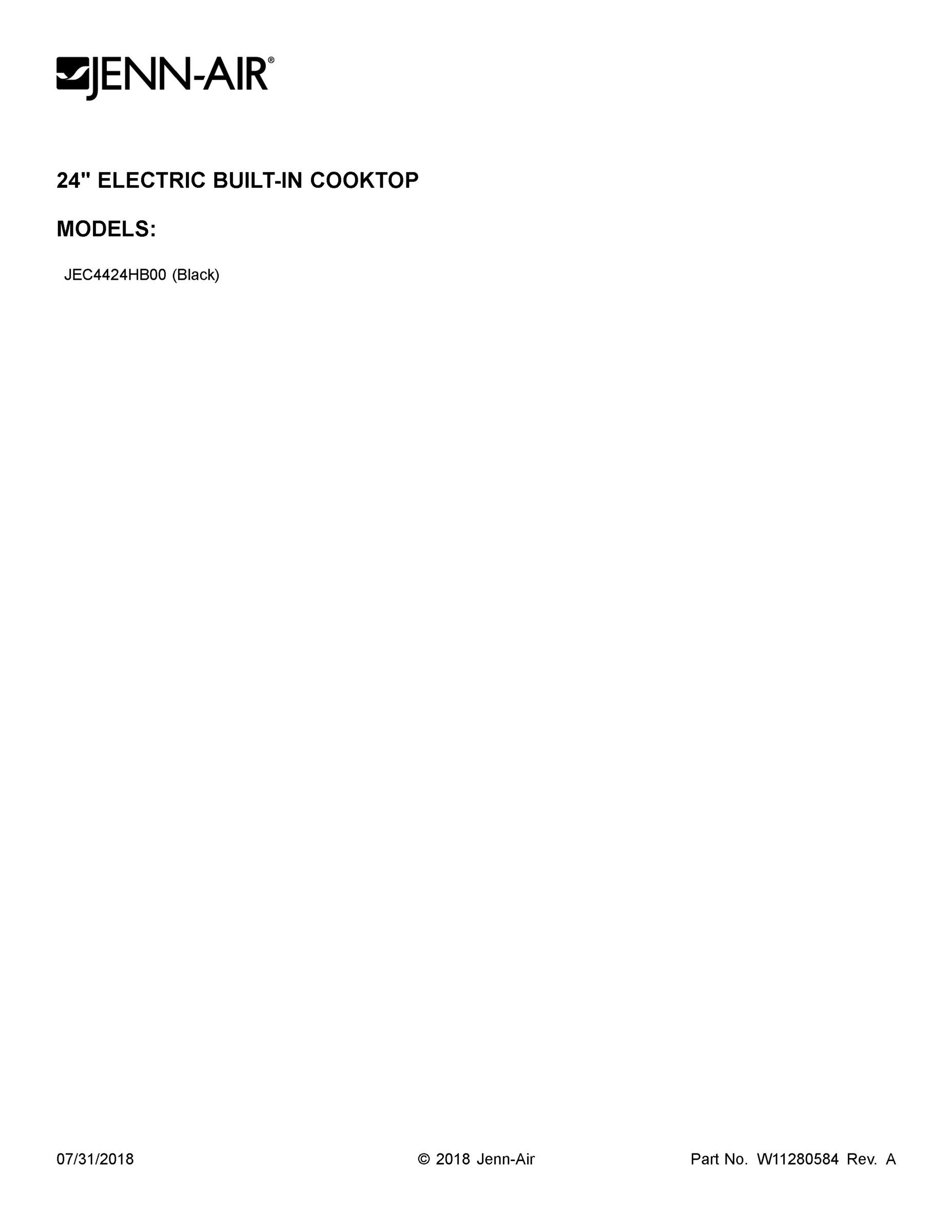

Model Maytag JEC4424HB00 COOKTOP, ELECTRIC, BUILT-IN, 30 INCH (0121100) – Common Parts & Diagrams

1
INSTRUCTION, INSTALLATION
INSTRUCTION, INSTALLATION MAY W11236401 Contact Us For Availability
View on Model
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
View on Model
1B
GUIDE, USE & CARE
GUIDE, USE & CARE MAY W11161577 Contact Us For Availability
View on Model
1C
MAY W11238371
MAY W11238371 MAY W11238371 Contact Us For Availability
View on Model
1D
MAY W11234441
MAY W11234441 MAY W11234441 Contact Us For Availability
View on Model
1E
TECH SHEET (ENGLISH)
TECH SHEET (ENGLISH) MAY W10550651 Contact Us For Availability
View on Model
1F
TECH SHEET (FRENCH)
TECH SHEET (FRENCH) MAY W10550652 Contact Us For Availability
View on Model
2
MAY W11120998
MAY W11120998 MAY W11120998 Contact Us For Availability
View on Model
4
SHIELD, HEAT
SHIELD, HEAT MAY W11102056 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
MAY W11115982
MAY W11115982 MAY W11115982 Contact Us For Availability
View on Model
7
MANAGER, COPERNICUS APPLIANCE
MANAGER, COPERNICUS APPLIANCE MAY W11115992 Contact Us For Availability
View on Model
9
MAY W11115962
MAY W11115962 MAY W11115962 Contact Us For Availability
View on Model
10
ANTENNA
ANTENNA MAY W11179387 Contact Us For Availability
View on Model
11
ELEMENT (1300W) (LEFT FRONT)
ELEMENT (1300W) (LEFT FRONT) MAY W10342780 Contact Us For Availability
View on Model
11A
ELEMENT (1800W) (LEFT REAR)
ELEMENT (1800W) (LEFT REAR) MAY 8273993 Contact Us For Availability
View on Model
11B
ELEMENT (1200W) (CENTER)
ELEMENT (1200W) (CENTER) MAY 8273994 Contact Us For Availability
View on Model
11C
ELEMENT (3000/1400W) (RIGHT REAR)
ELEMENT (3000/1400W) (RIGHT REAR) MAY W10275048 Contact Us For Availability
View on Model
12
ASSEMBLY, LOKI WIFI
ASSEMBLY, LOKI WIFI MAY W11179787 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
15
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
16
TOP, FOAM (HEAT SHIELD)
TOP, FOAM (HEAT SHIELD) MAY W11177346 Contact Us For Availability
View on Model
17
MAY W11102042
MAY W11102042 MAY W11102042 Contact Us For Availability
View on Model
18
MAY W11102044
MAY W11102044 MAY W11102044 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
MAY W11111804
MAY W11111804 MAY W11111804 Contact Us For Availability
View on Model
NI
INSULATION, COOKTOP
INSULATION, COOKTOP MAY W11160362 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, CANNING UNIT
ACCESSORIES, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
View on Model
NI
ACCESSORIES, PROTECTANT, COOKTOP
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, COOKTOP CARE
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
