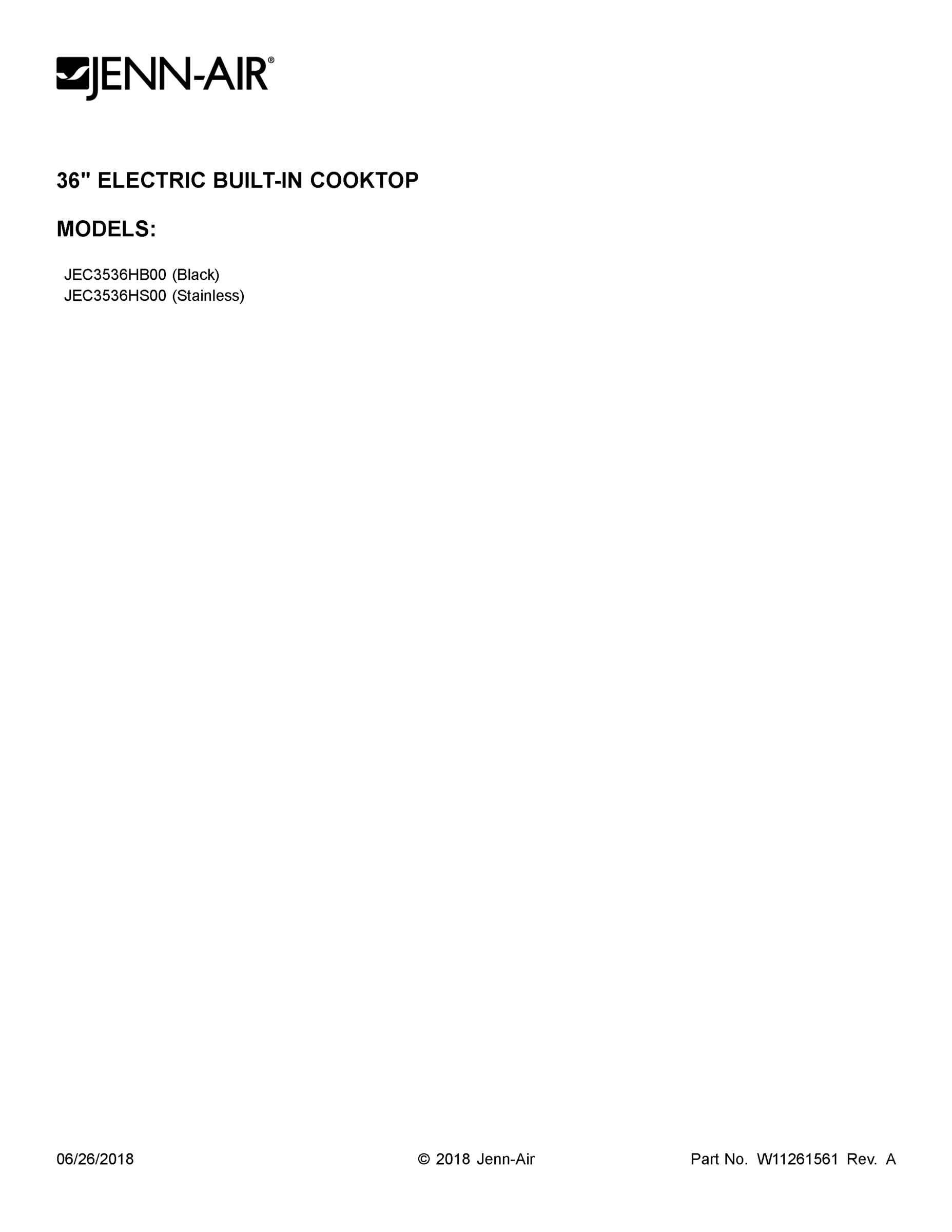

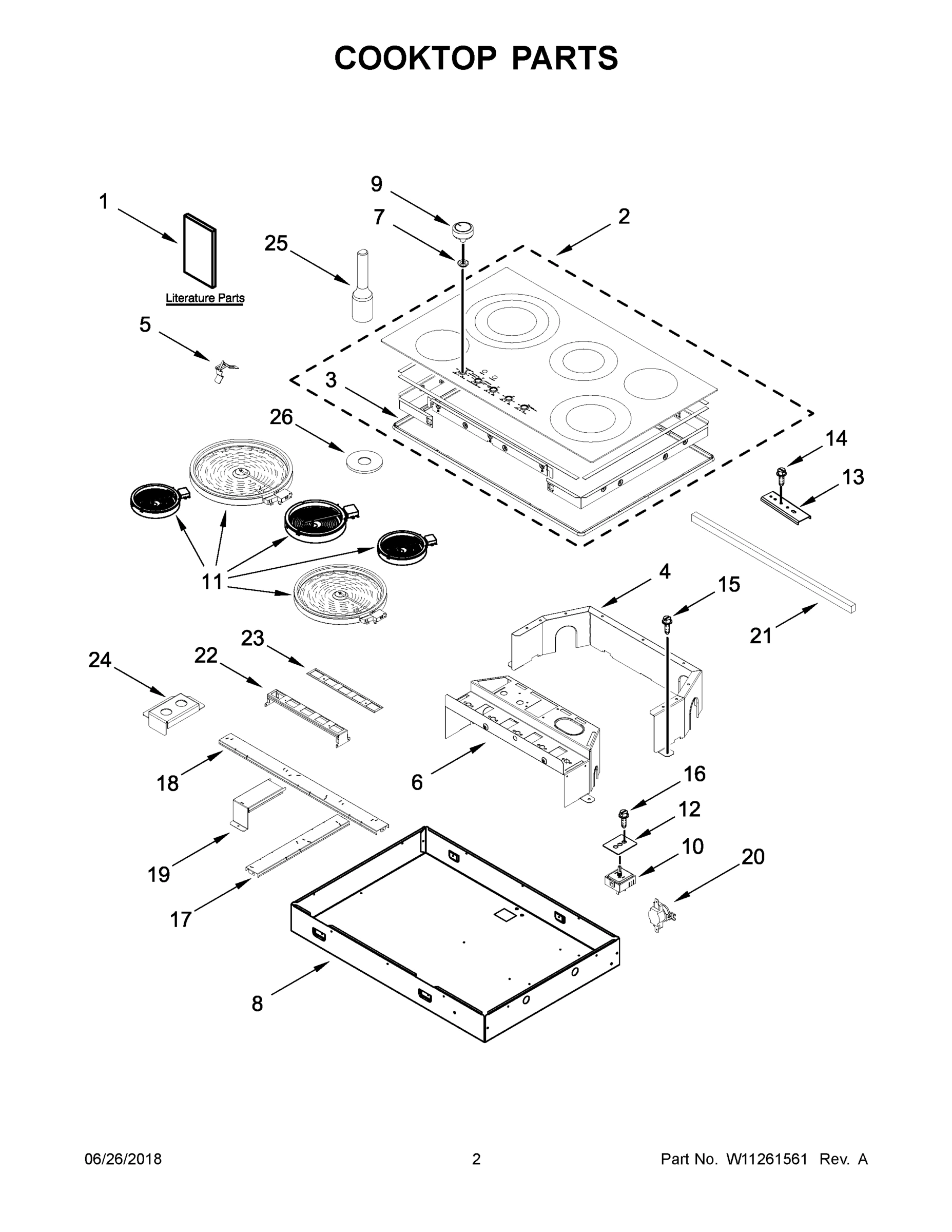

Model Maytag JEC3536HS00 COOKTOP, ELECTRIC, BUILT-IN, 36 INCH – Common Parts & Diagrams

1
MAY W11236401
MAY W11236401 MAY W11236401 Contact Us For Availability
View on Model
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
View on Model
1B
MAY W11161577
MAY W11161577 MAY W11161577 Contact Us For Availability
View on Model
1C
MAY W11238370
MAY W11238370 MAY W11238370 Contact Us For Availability
View on Model
2
MAY W11121001
MAY W11121001 MAY W11121001 Contact Us For Availability
View on Model
2A
MAY W11121002
MAY W11121002 MAY W11121002 Contact Us For Availability
View on Model
4
MAY W11158446
MAY W11158446 MAY W11158446 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
MAY W11240504
MAY W11240504 MAY W11240504 Contact Us For Availability
View on Model
7
GROMMET (BLACK)
GROMMET (BLACK) MAY W10559484 Contact Us For Availability
View on Model
7A
GROMMET (STAINLESS)
GROMMET (STAINLESS) MAY W10559483 Contact Us For Availability
View on Model
9
MAY W11130601
MAY W11130601 MAY W11130601 Contact Us For Availability
View on Model
9A
MAY W11130605
MAY W11130605 MAY W11130605 Contact Us For Availability
View on Model
10
SWITCH, INFINITE (LEFT FRONT & CENTER REAR)
SWITCH, INFINITE (LEFT FRONT & CENTER REAR) MAY W10437094 Contact Us For Availability
View on Model
10A
SWITCH, INFINITE (LEFT REAR)
SWITCH, INFINITE (LEFT REAR) MAY W10437097 Contact Us For Availability
View on Model
10B
SWITCH, INFINITE (RIGHT FRONT)
SWITCH, INFINITE (RIGHT FRONT) MAY W10437092 Contact Us For Availability
View on Model
10C
SWITCH, INFINITE (RIGHT REAR)
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
View on Model
11
ELEMENT (1300W) (LEFT FRONT)
ELEMENT (1300W) (LEFT FRONT) MAY W10342780 Contact Us For Availability
View on Model
11A
ELEMENT (3000W) (LEFT REAR)
ELEMENT (3000W) (LEFT REAR) MAY W10187839 Contact Us For Availability
View on Model
11B
MAY W10673359
MAY W10673359 MAY W10673359 Contact Us For Availability
View on Model
11C
ELEMENT (3000/1400W) (RIGHT FRONT)
ELEMENT (3000/1400W) (RIGHT FRONT) MAY W10275048 Contact Us For Availability
View on Model
11D
ELEMENT (1200W) (RIGHT REAR)
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
View on Model
12
SEAL, SWITCH COVER
SEAL, SWITCH COVER MAY 3183956 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
15
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
17
RAIL, SHORT
RAIL, SHORT MAY W11175342 Contact Us For Availability
View on Model
18
RAIL, HORIZONTAL
RAIL, HORIZONTAL MAY W11175345 Contact Us For Availability
View on Model
19
MAY W11207668
MAY W11207668 MAY W11207668 Contact Us For Availability
View on Model
20
SWITCH, TOD HIGH LIMIT
SWITCH, TOD HIGH LIMIT MAY W10471482 Contact Us For Availability
View on Model
21
TOP, FOAM (HEAT SHIELD)
TOP, FOAM (HEAT SHIELD) MAY W11177349 Contact Us For Availability
View on Model
22
MAY W11240507
MAY W11240507 MAY W11240507 Contact Us For Availability
View on Model
23
MAY W11240509
MAY W11240509 MAY W11240509 Contact Us For Availability
View on Model
24
MAY W11242044
MAY W11242044 MAY W11242044 Contact Us For Availability
View on Model
25
MAY W11131177
MAY W11131177 MAY W11131177 Contact Us For Availability
View on Model
26
MAY W11130622
MAY W11130622 MAY W11130622 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
MAY W11111813
MAY W11111813 MAY W11111813 Contact Us For Availability
View on Model
NI
MAY W11132919
MAY W11132919 MAY W11132919 Contact Us For Availability
View on Model
NI
MAY W11160641
MAY W11160641 MAY W11160641 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, COOKTOP CARE
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
