Model Whirlpool JEC0530ADS ELECTRIC COOK-TOP – Common Parts & Diagrams

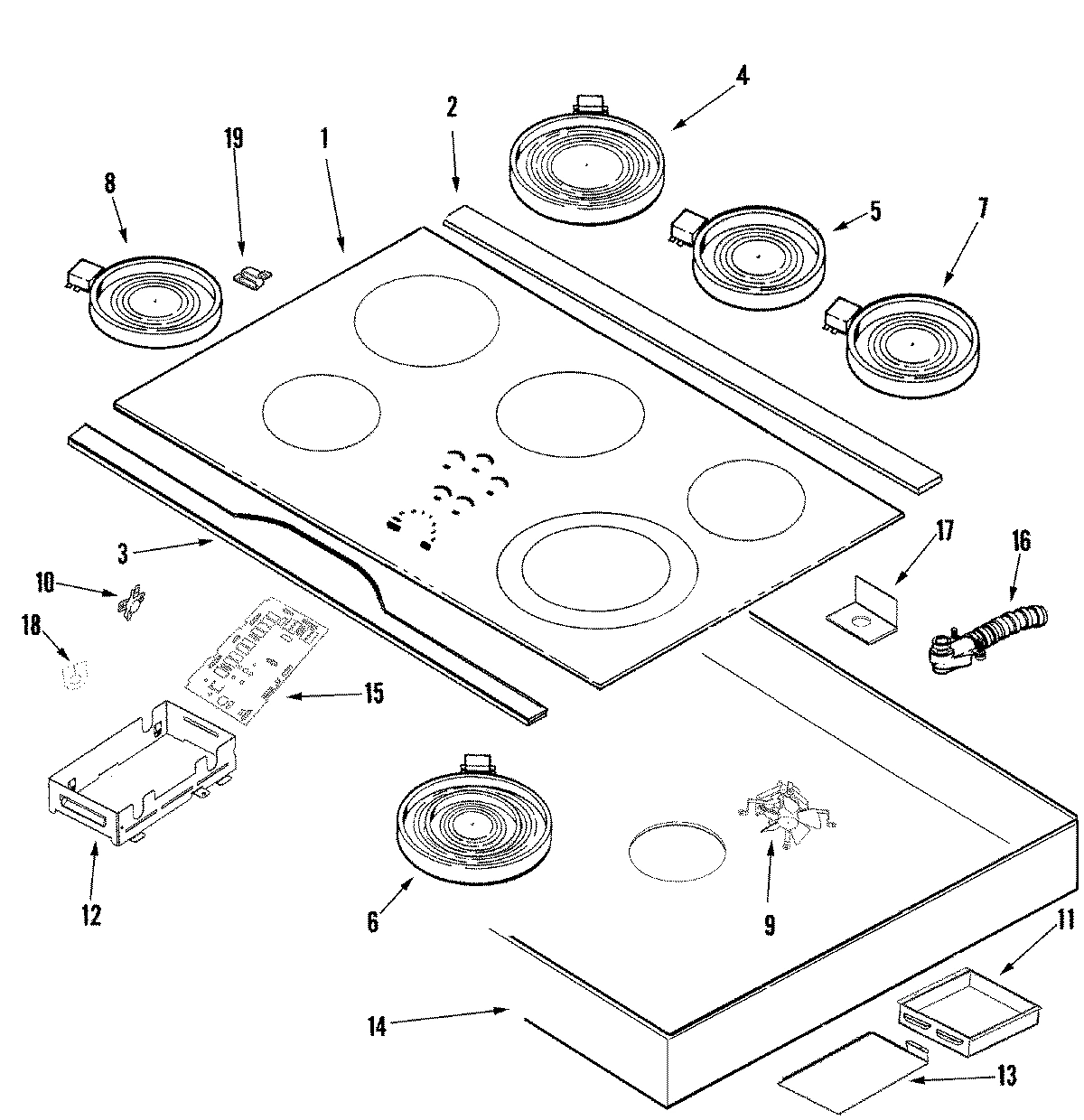

02 - TOP ASSEMBLY/BODY
04 - WIRING INFORMATION
01 - SUPPLEMENTAL INFORMATION
03 - WIRING INFORMATION
Common parts from model Whirlpool JEC0530ADS ELECTRIC COOK-TOP
1
MANUAL, USE & CARE WPL 8111P45660 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15003584 Contact Us For Availability
3
TRIM (FRONT-STL) WPL 74008240 Contact Us For Availability
4
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
5
ELEMENT, WARMING ZONE WPL 74010162 Contact Us For Availability
5
HARNESS, OUTPUT (RT) WPL 74010175 Contact Us For Availability
6
HARNESS, OUTPUT (LT) WPL 74010176 Contact Us For Availability
7
ELEMENT (1200W) WPL 74010159 Contact Us For Availability
8
ELEMENT (1200W) WPL 74010164 Contact Us For Availability
9
FAN, COOLING WPL 74010173 Contact Us For Availability
10
THERMOSTAT, SNAP ACTING WPL 7403P22760 Contact Us For Availability
11
BAFFLE, BOTTOM WPL 74007836 Contact Us For Availability
12
BAFFLE, HEAT SHIELD WPL 74010166 Contact Us For Availability
13
SHIELD, HEAT WPL 74010174 Contact Us For Availability
14
BOTTOM, BURNER BOX WPL 74010282 Contact Us For Availability
15
BOARD, CONTROL WPL 74010165 Contact Us For Availability
16
CONDUIT ASSY. WPL 74010168 Contact Us For Availability
17
BRACKET, CONDUIT/HARNESS ASY. WPL 74007893 Contact Us For Availability
19
SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003583 Contact Us For Availability
× ![]()
