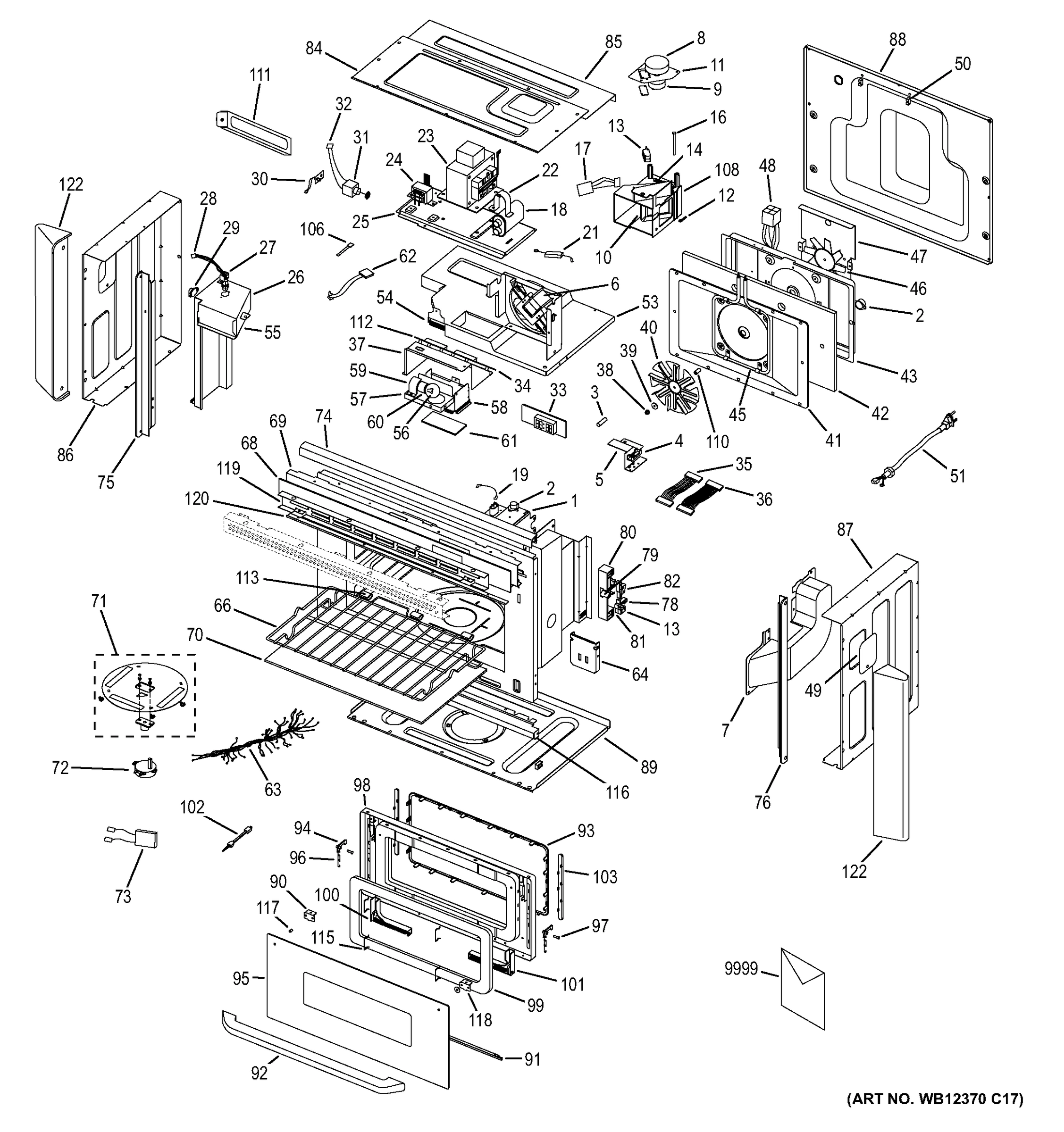

Model GE JEB1095BB01 Microwave Or Advantium – Common Parts & Diagrams
MICROWAVE
Common parts from model GE JEB1095BB01 Microwave Or Advantium
2
THERMOSTAT GEN WB24X10041 Contact Us For Availability
11
BRACKET-DAMPER MOTOR GEN WB06X0341 Contact Us For Availability
12
COVER-DAMPER GEN WB06X0342 Contact Us For Availability
13
SECONDARY SWITCH GEN WB24X0806 Contact Us For Availability
14
LEVER-DAMPER GEN WB01X1472 Contact Us For Availability
16
PIN-DAMPER GEN WB01X1473 Contact Us For Availability
17
WIRE HARNESS-I GEN WB18X0546 Contact Us For Availability
19
WIRE LEAD-A GEN WB18X0455 Contact Us For Availability
22
BRACKET-HVC GEN WB06X10200 Contact Us For Availability
24
TRANS-L V GEN WB27X1109 Contact Us For Availability
25
BRACKET-HVT GEN WB06X0344 Contact Us For Availability
27
BRACKET-COVER GEN WB06X0345 Contact Us For Availability
28
WIRE HARNESS-H GEN WB18X0540 Contact Us For Availability
29
THERMOSTAT GEN WB24X0807 Contact Us For Availability
30
THERMOSTAT ASM GEN WB27X0877 Contact Us For Availability
31
SOCKET-PROBE GEN WB08X0302 Contact Us For Availability
32
WIRE HARNESS-G GEN WB18X0543 Contact Us For Availability
33
ASSY PCB SUB GEN WB27X1055 Contact Us For Availability
34
PCB ASSY GEN WB27X10300 Contact Us For Availability
35
CONNECTOR-BN(E) ASM GEN WB18X0541 Contact Us For Availability
37
BRACKET-PCB GEN WB06X10201 Contact Us For Availability
38
NUT-L GEN WB01X1416 Contact Us For Availability
40
BLADE-FAN GEN WB06X0376 Contact Us For Availability
41
CASE(A) ASM GEN WB53X0296 Contact Us For Availability
42
ADIABATIC-CONVECTION GEN WB53X0294 Contact Us For Availability
43
CASE-CONV-B GEN WB53X0295 Contact Us For Availability
45
HEATER-CONVECTION GEN WB44X10025 Contact Us For Availability
46
BLADE-FAN GEN WB06X0347 Contact Us For Availability
47
MOTOR-SYNCHRONOUS GEN WB26X0164 Contact Us For Availability
48
WIRE HARNESS-D GEN WB18X0547 Contact Us For Availability
49
COVER-OVEN LAMP GEN WB53X0306 Contact Us For Availability
50
WIRE-SADDLE GEN WB02X9330 Contact Us For Availability
51
POWER CORD ASM GEN WB18X0545 Contact Us For Availability
53
BASE-PLATE GEN WB53X0297 Contact Us For Availability
54
ADIABATIC-TOP GEN WB53X0298 Contact Us For Availability
55
DUCT EXHAUST ASSY GEN WB06X10202 Contact Us For Availability
57
COVER-OVEN LAMP GEN WB04X0144 Contact Us For Availability
58
BRACKET-LAMP GEN WB04X0145 Contact Us For Availability
59
HOLDER-LAMP GEN WB04X0146 Contact Us For Availability
60
SOCKET-LAMP GEN WB08X0300 Contact Us For Availability
61
GLASS-LAMP GEN WB36X0867 Contact Us For Availability
62
WIRE HARNESS-B GEN WB18X0544 Contact Us For Availability
63
WIRE HARNESS-A GEN WB18X0538 Contact Us For Availability
64
BRACKET-HINGE GEN WB04X0147 Contact Us For Availability
66
RACK-WIRE GEN WB48X0225 Contact Us For Availability
68
SWITCH-MEMBRANE GEN WB27X10301 Contact Us For Availability
69
BRACKET-PANEL GEN WB04X0148 Contact Us For Availability
70
TRAY CERAMIC ASM GEN WB49X0678 Contact Us For Availability
71
BLADE STIRRER ASM GEN WB06X0349 Contact Us For Availability
72
STIRRER MOTOR GEN WB26X0154 Contact Us For Availability
73
WIRE HARNESS-C GEN WB18X0539 Contact Us For Availability
74
TRIMMER-UPPER GEN WB07X1958 Contact Us For Availability
75
TRIMMER-SIDE-L GEN WB07X1960 Contact Us For Availability
76
TRIMMER-SIDE-R GEN WB07X1962 Contact Us For Availability
78
LEVER-SLIDER-A GEN WB04X0149 Contact Us For Availability
79
LEVER-SLIDER-B GEN WB04X0150 Contact Us For Availability
80
BODY-LATCH GEN WB04X0151 Contact Us For Availability
81
GEN WB24X0428 GEN WB24X0428 Contact Us For Availability
82
GEN WB24X10042 GEN WB24X10042 Contact Us For Availability
84
GEN WB53X0299 GEN WB53X0299 Contact Us For Availability
85
GEN WB53X0300 GEN WB53X0300 Contact Us For Availability
86
GEN WB53X0301 GEN WB53X0301 Contact Us For Availability
87
GEN WB53X0302 GEN WB53X0302 Contact Us For Availability
88
GEN WB53X0303 GEN WB53X0303 Contact Us For Availability
89
GEN WB53X0304 GEN WB53X0304 Contact Us For Availability
90
GEN WB14X0196 GEN WB14X0196 Contact Us For Availability
91
GEN WB04X0153 GEN WB04X0153 Contact Us For Availability
92
GEN WB15X0328 GEN WB15X0328 Contact Us For Availability
93
GEN WB55X0830 GEN WB55X0830 Contact Us For Availability
94
GEN WB04X0154 GEN WB04X0154 Contact Us For Availability
95
GEN WB36X10118 GEN WB36X10118 Contact Us For Availability
96
GEN WB01X1475 GEN WB01X1475 Contact Us For Availability
97
GEN WB02X9766 GEN WB02X9766 Contact Us For Availability
98
GEN WB55X0831 GEN WB55X0831 Contact Us For Availability
99
GEN WB53X10009 GEN WB53X10009 Contact Us For Availability
100
GEN WB04X0155 GEN WB04X0155 Contact Us For Availability
101
GEN WB04X0157 GEN WB04X0157 Contact Us For Availability
102
GEN WB20X0159 GEN WB20X0159 Contact Us For Availability
103
GEN WB55X0861 GEN WB55X0861 Contact Us For Availability
106
GEN WB18X0552 GEN WB18X0552 Contact Us For Availability
108
GEN WB02X9357 GEN WB02X9357 Contact Us For Availability
110
GEN WB01X1486 GEN WB01X1486 Contact Us For Availability
111
GEN WB04X10008 GEN WB04X10008 Contact Us For Availability
113
GEN WB04X01 GEN WB04X01 Contact Us For Availability
× ![]()
