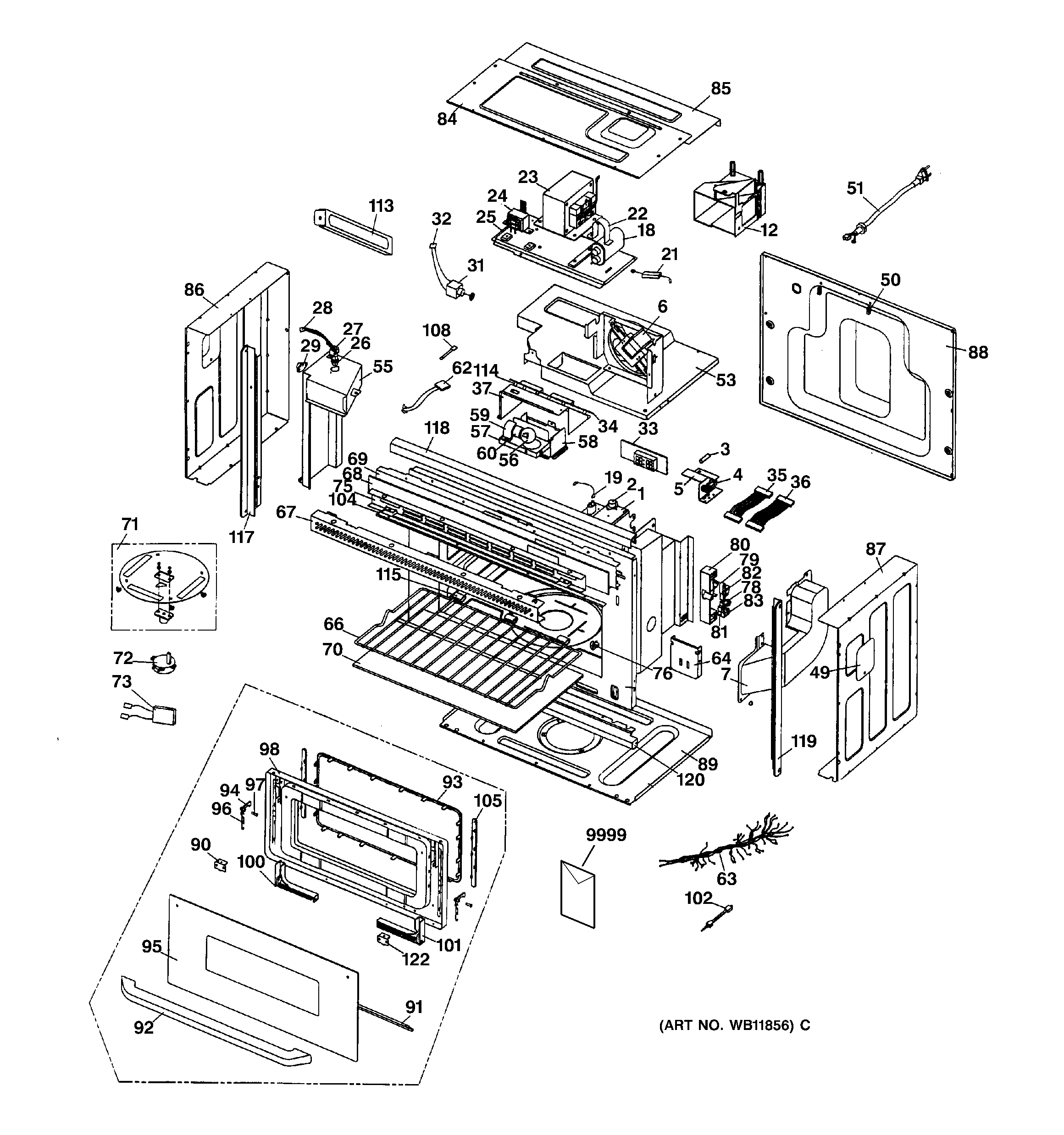

Model GE JEB1055BB01 – Common Parts & Diagrams
0
Common parts from model GE JEB1055BB01
2
GEN WB24X10041 GEN WB24X10041 Contact Us For Availability
18
GEN WB27X10296 GEN WB27X10296 Contact Us For Availability
19
WIRE LEAD-A GEN WB18X0455 Contact Us For Availability
22
GEN WB06X10200 GEN WB06X10200 Contact Us For Availability
24
GEN WB27X1109 GEN WB27X1109 Contact Us For Availability
25
BRACKET-HVT GEN WB06X0344 Contact Us For Availability
27
BRACKET-COVER GEN WB06X0345 Contact Us For Availability
28
WIRE HARNESS-H GEN WB18X0540 Contact Us For Availability
29
THERMOSTAT GEN WB24X0807 Contact Us For Availability
31
SOCKET-PROBE GEN WB08X0302 Contact Us For Availability
32
WIRE HARNESS-G GEN WB18X0543 Contact Us For Availability
33
ASSY PCB SUB GEN WB27X1055 Contact Us For Availability
34
GEN WB27X10297 GEN WB27X10297 Contact Us For Availability
35
CONNECTOR ASSY-BN(E) GEN WB18X0541 Contact Us For Availability
37
GEN WB06X10201 GEN WB06X10201 Contact Us For Availability
49
COVER-OVEN LAMP GEN WB53X0306 Contact Us For Availability
50
CABLE CLAMP GEN WB02X9330 Contact Us For Availability
51
ASSY POWER CORD GEN WB18X0545 Contact Us For Availability
53
BASE-PLATE GEN WB53X0297 Contact Us For Availability
55
GEN WB06X10202 GEN WB06X10202 Contact Us For Availability
57
GEN WB04X0144 GEN WB04X0144 Contact Us For Availability
58
BRACKET-LAMP GEN WB04X0145 Contact Us For Availability
59
HOLDER-LAMP GEN WB04X0146 Contact Us For Availability
60
GEN WB08X0300 GEN WB08X0300 Contact Us For Availability
62
WIRE HARNESS-B GEN WB18X0544 Contact Us For Availability
63
WIRE HARNESS-A GEN WB18X0548 Contact Us For Availability
64
BRACKET-HINGE GEN WB04X0147 Contact Us For Availability
66
RACK-WIRE GEN WB48X0227 Contact Us For Availability
67
GEN WB07X10237 GEN WB07X10237 Contact Us For Availability
68
GEN WB27X10298 GEN WB27X10298 Contact Us For Availability
69
GEN WB04X0148 GEN WB04X0148 Contact Us For Availability
70
ASSY-TRAY CERAMIC GEN WB49X0672 Contact Us For Availability
71
ASSY-BLADE STIRRER GEN WB06X0349 Contact Us For Availability
72
MOTOR-SYNCHRONOUS GEN WB26X0154 Contact Us For Availability
75
BRACKET-GRILLE GEN WB04X0162 Contact Us For Availability
76
GEN WB06X10203 GEN WB06X10203 Contact Us For Availability
78
LEVER-SLIDER-A GEN WB04X0149 Contact Us For Availability
79
LEVER-SLIDER-B GEN WB04X0150 Contact Us For Availability
80
GEN WB04X0151 GEN WB04X0151 Contact Us For Availability
81
SWITCH-MICRO GEN WB24X0428 Contact Us For Availability
82
GEN WB24X10042 GEN WB24X10042 Contact Us For Availability
83
GEN WB24X0806 GEN WB24X0806 Contact Us For Availability
84
CABINET-UPP-A GEN WB53X0299 Contact Us For Availability
85
CABINET-UPP-B GEN WB53X0300 Contact Us For Availability
86
CABINET-L GEN WB53X0301 Contact Us For Availability
87
CABINET-R GEN WB53X0302 Contact Us For Availability
88
GEN WB53X0303 GEN WB53X0303 Contact Us For Availability
89
GEN WB53X0304 GEN WB53X0304 Contact Us For Availability
90
BRACKET-HANDLE-L GEN WB14X0196 Contact Us For Availability
91
BRACKET-DOOR GEN WB04X0165 Contact Us For Availability
92
HANDLE-DOOR GEN WB15X0328 Contact Us For Availability
93
DOOR-C GEN WB55X0830 Contact Us For Availability
94
GEN WB04X0154 GEN WB04X0154 Contact Us For Availability
95
GEN WB36X10118 GEN WB36X10118 Contact Us For Availability
96
SPRING-KEY GEN WB01X1475 Contact Us For Availability
97
PIN-DOOR KEY GEN WB02X9766 Contact Us For Availability
98
GEN WB55X10263 GEN WB55X10263 Contact Us For Availability
100
ASSY-LATCH(L) GEN WB04X0156 Contact Us For Availability
101
ASSY-LATCH(R) GEN WB04X0158 Contact Us For Availability
102
SENSOR-THERMISTOR GEN WB20X0160 Contact Us For Availability
104
GEN WB04X10009 GEN WB04X10009 Contact Us For Availability
105
COVER-SLOT GEN WB55X0861 Contact Us For Availability
108
WIRE HARNESS-C GEN WB18X0539 Contact Us For Availability
113
GEN WB04X10008 GEN WB04X10008 Contact Us For Availability
117
GEN WB07X1960 GEN WB07X1960 Contact Us For Availability
118
GEN WB07X1958 GEN WB07X1958 Contact Us For Availability
119
GEN WB07X1962 GEN WB07X1962 Contact Us For Availability
120
GEN WB07X10236 GEN WB07X10236 Contact Us For Availability
122
BRACKET-HANDLE-R GEN WB14X0197 Contact Us For Availability
9999
MINI MANUAL GEN 31-20088 Contact Us For Availability
9999
GEN 49-40096 GEN 49-40096 Contact Us For Availability
× ![]()
