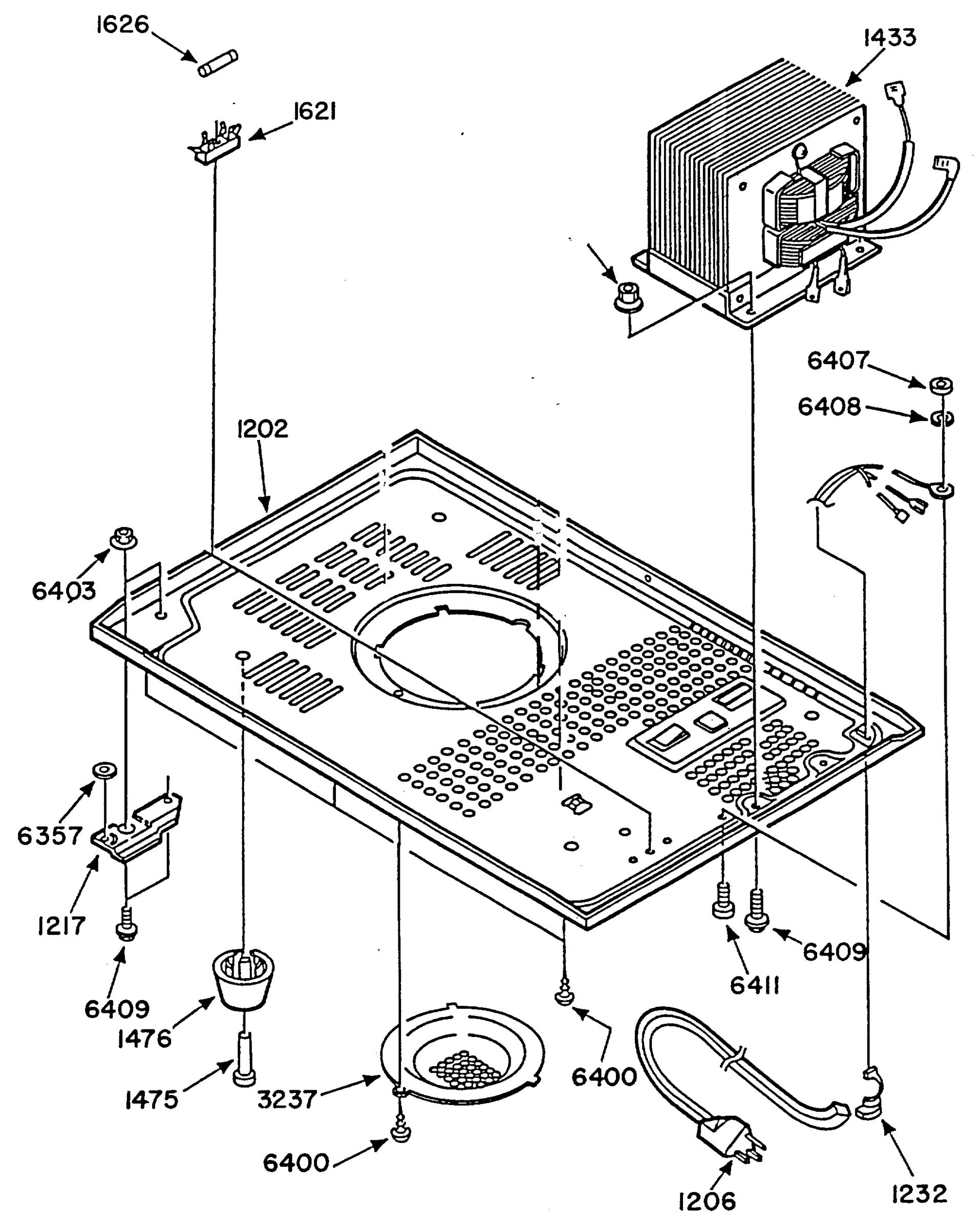

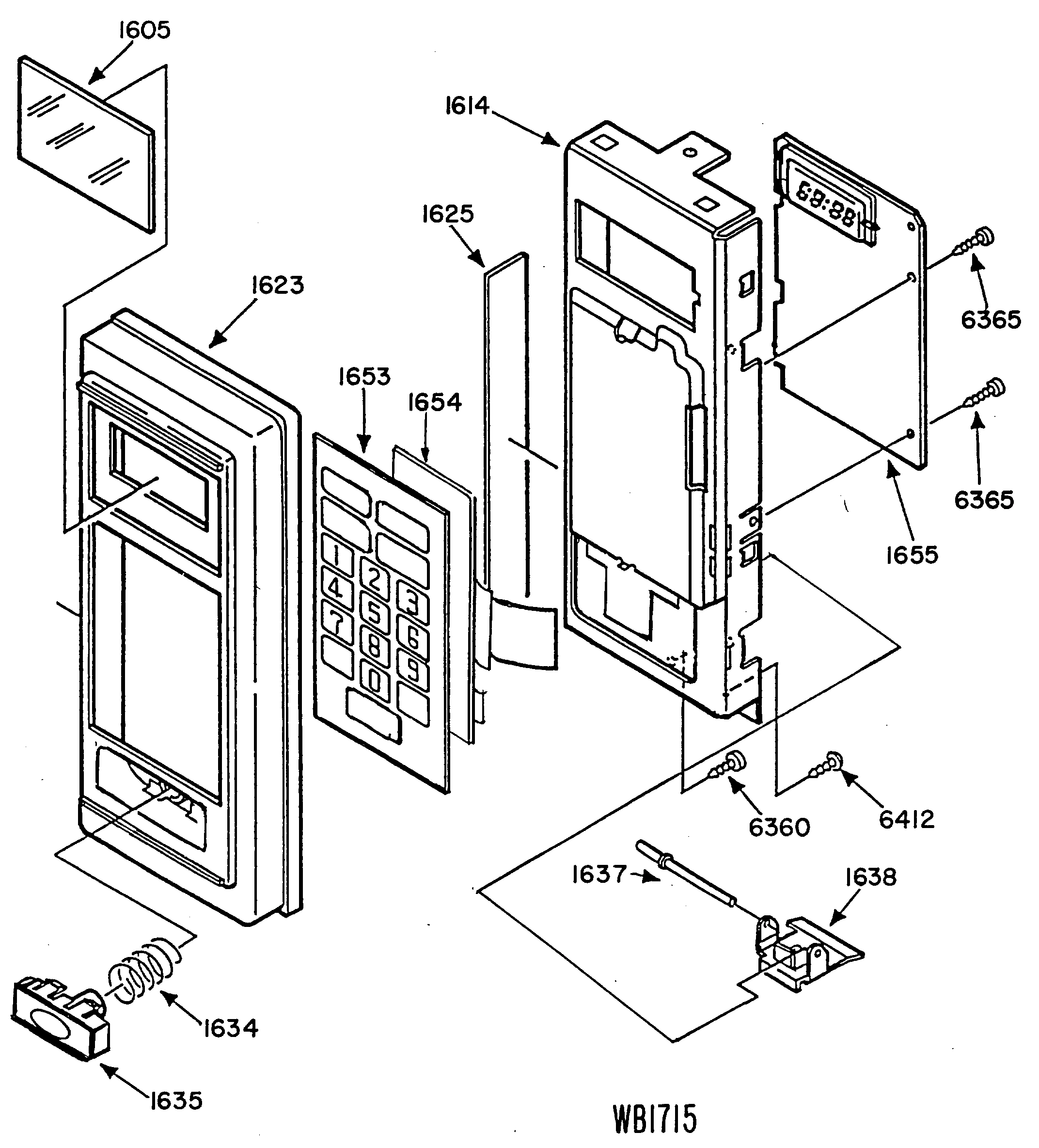

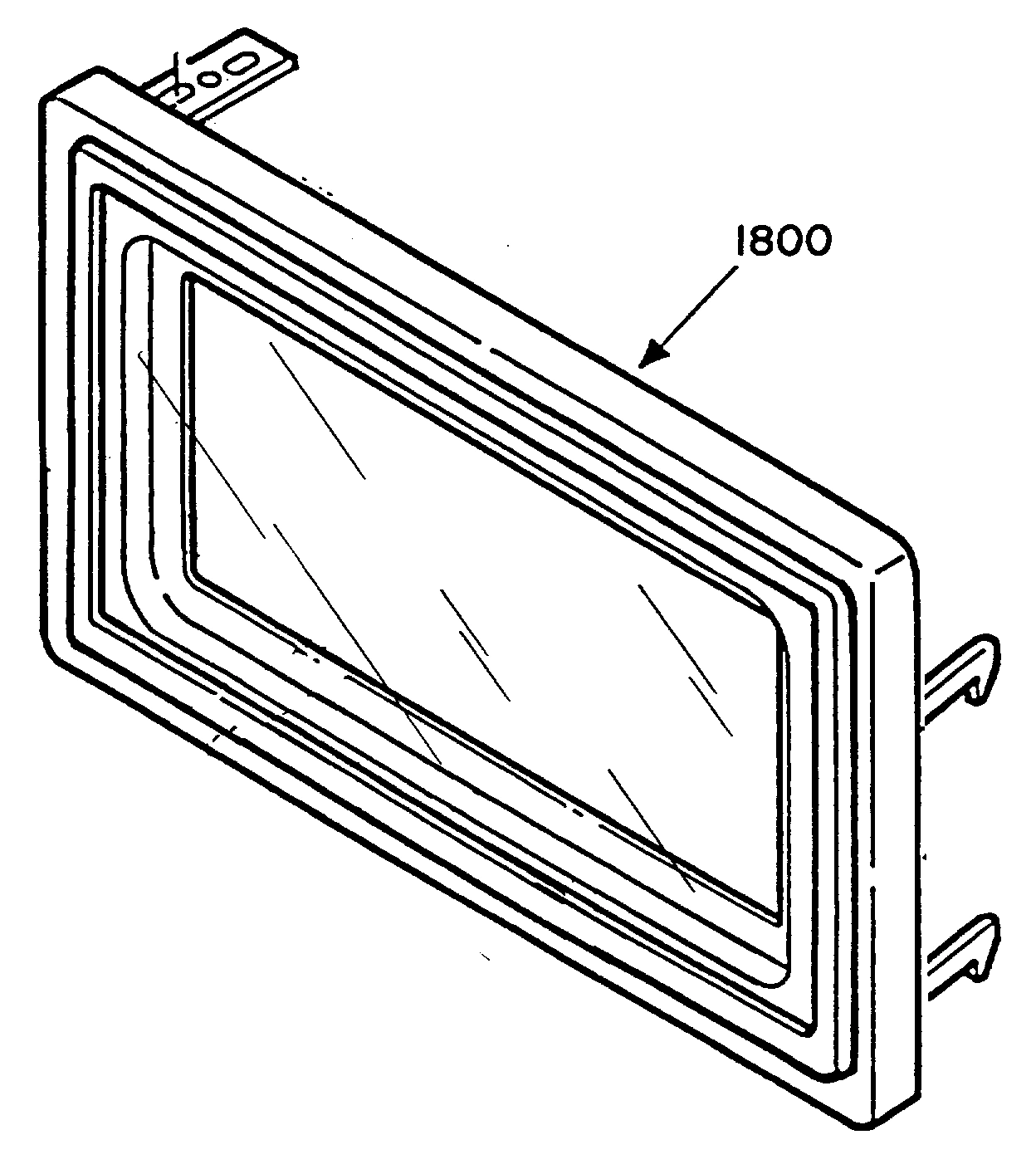

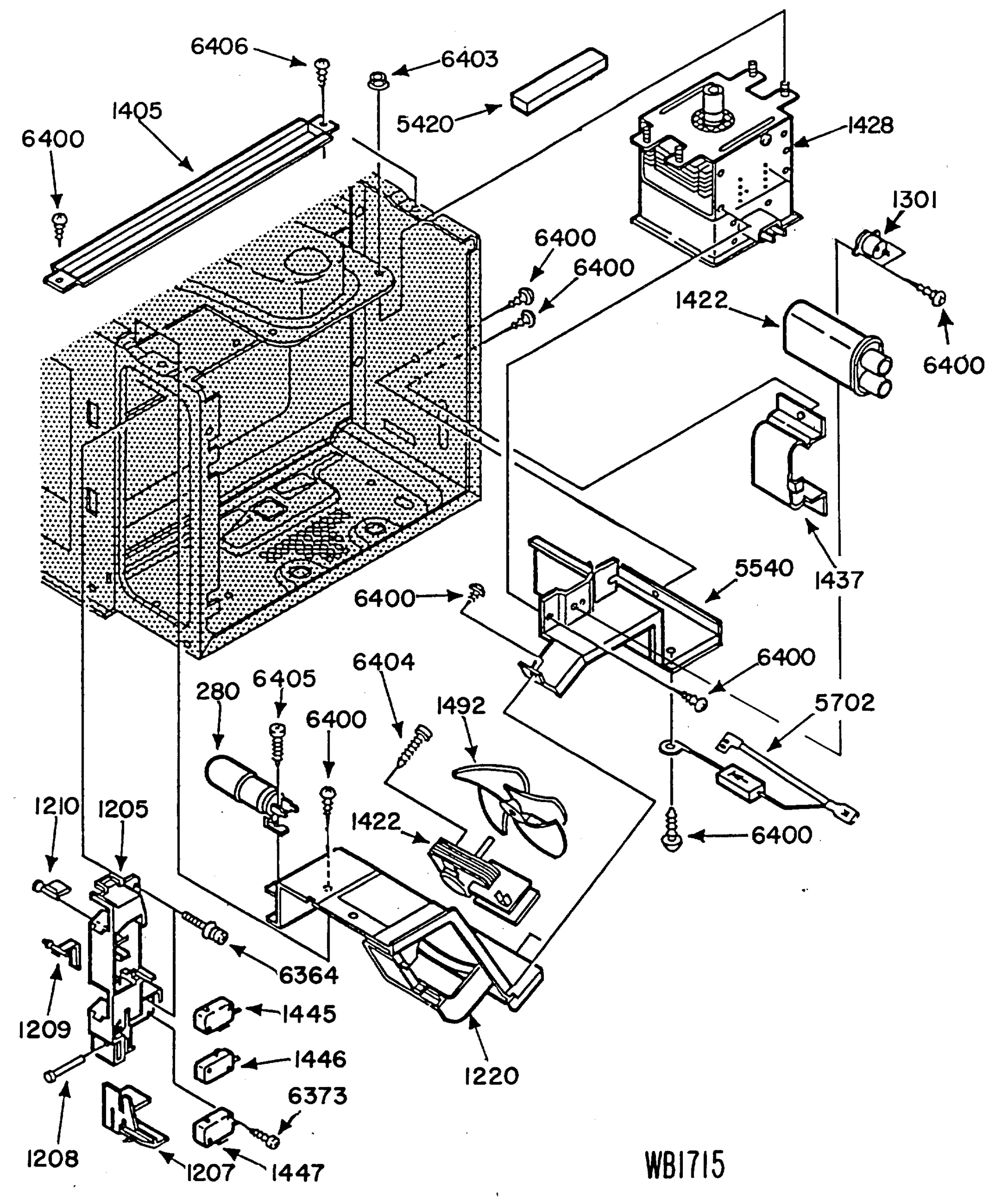

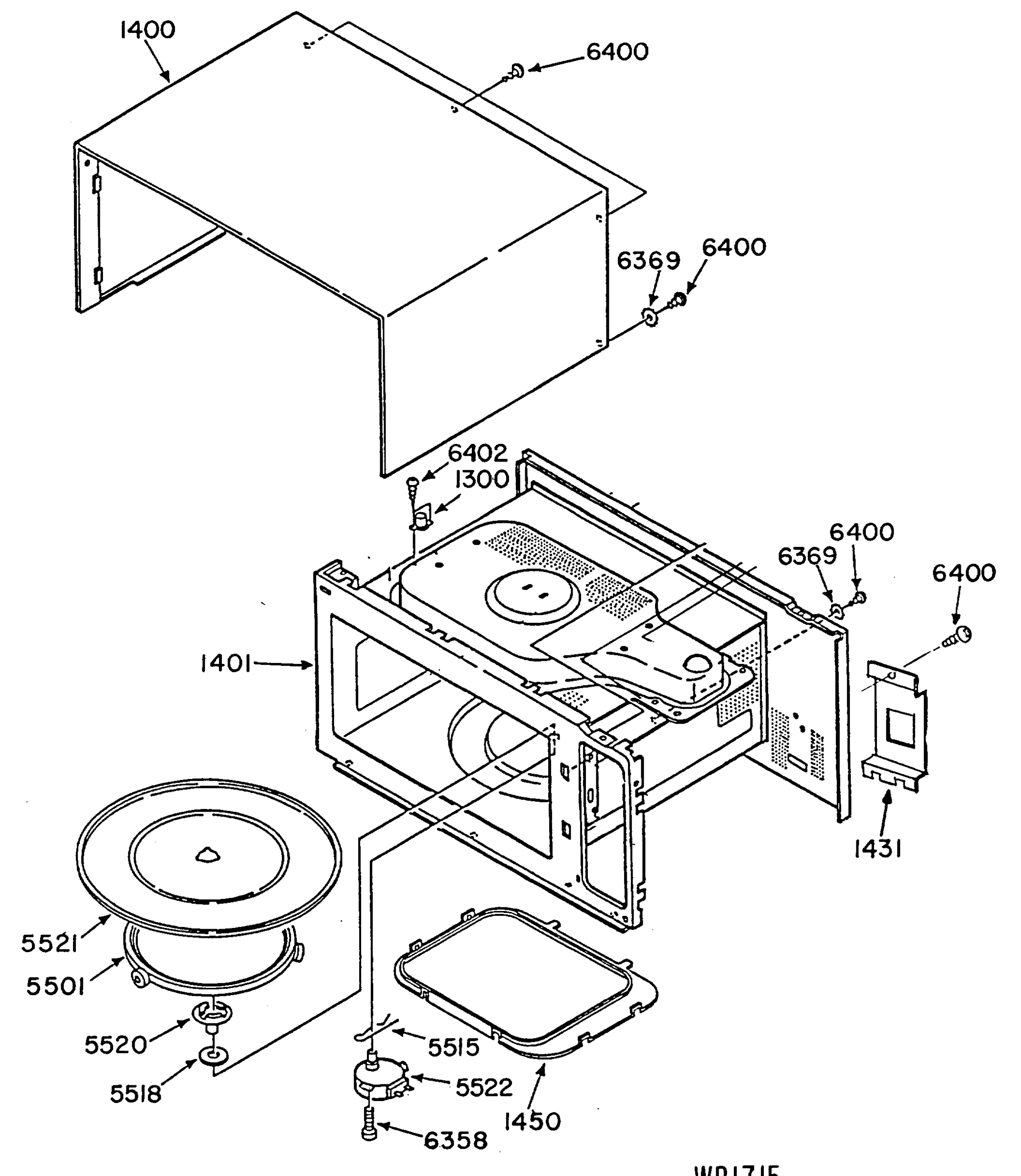

Model GE JE80T01 – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JE80T01
280
LAMP-120V-20W, W/BRACKET GEN WB02X9781 Contact Us For Availability
1202
GEN WB56X2048 GEN WB56X2048 Contact Us For Availability
1205
LATCH BODY GEN WB02X9783 Contact Us For Availability
1206
GEN WB18X0375 GEN WB18X0375 Contact Us For Availability
1207
GEN WB02X9784 GEN WB02X9784 Contact Us For Availability
1208
SHAFT-LATCH LEVER GEN WB02X9785 Contact Us For Availability
1209
LATCH LEVER-SMALL-LOWER GEN WB02X9786 Contact Us For Availability
1210
LATCH LEVER-SMALL-UPPER GEN WB02X9787 Contact Us For Availability
1217
GEN WB10X0274 GEN WB10X0274 Contact Us For Availability
1220
GEN WB02X9984 GEN WB02X9984 Contact Us For Availability
1232
POWER CORD BUSHING GEN WB02X9791 Contact Us For Availability
1300
GEN WB21X0510 GEN WB21X0510 Contact Us For Availability
1301
GEN WB21X0511 GEN WB21X0511 Contact Us For Availability
1400
GEN WB56X2047 GEN WB56X2047 Contact Us For Availability
1401
CAVITY AND FRAME GEN NOT AVAIL Contact Us For Availability
1405
GEN WB02X9994 GEN WB02X9994 Contact Us For Availability
1422
GEN WB26X0118 GEN WB26X0118 Contact Us For Availability
1428
GEN WB27X0536 GEN WB27X0536 Contact Us For Availability
1431
GEN WB02X9975 GEN WB02X9975 Contact Us For Availability
1433
GEN WB27X0535 GEN WB27X0535 Contact Us For Availability
1437
GEN WB02X9981 GEN WB02X9981 Contact Us For Availability
1438
GEN WB27X0534 GEN WB27X0534 Contact Us For Availability
1445
GEN WB24X0461 GEN WB24X0461 Contact Us For Availability
1446
SWITCH-INTERLOCK MONITOR GEN WB24X0457 Contact Us For Availability
1447
SWITCH-PRIMARY INTERLOCK GEN WB24X0459 Contact Us For Availability
1450
GEN WB02X9976 GEN WB02X9976 Contact Us For Availability
1475
CANOE CLIP (FOOT) GEN WB02X9986 Contact Us For Availability
1476
GEN WB02X9987 GEN WB02X9987 Contact Us For Availability
1492
GEN WB02X9983 GEN WB02X9983 Contact Us For Availability
1605
GEN WB36X0797 GEN WB36X0797 Contact Us For Availability
1614
GEN WB02X9990 GEN WB02X9990 Contact Us For Availability
1621
GEN WB02X9794 GEN WB02X9794 Contact Us For Availability
1623
GEN WB07X1789 GEN WB07X1789 Contact Us For Availability
1625
GEN WB02X9989 GEN WB02X9989 Contact Us For Availability
1634
SPRING-DOOR RELEASE GEN WB09X0269 Contact Us For Availability
1635
GEN WB02X9993 GEN WB02X9993 Contact Us For Availability
1637
GEN WB02X9991 GEN WB02X9991 Contact Us For Availability
1638
GEN WB02X9992 GEN WB02X9992 Contact Us For Availability
1653
GEN WB02X9988 GEN WB02X9988 Contact Us For Availability
1654
GEN WB27X0731 GEN WB27X0731 Contact Us For Availability
1654
GEN WB27X0533 GEN WB27X0533 Contact Us For Availability
1655
SMART BOARD & DISPLAY GEN WB27X0532 Contact Us For Availability
1800
GEN WB55X0726 GEN WB55X0726 Contact Us For Availability
3237
GEN WB02X9985 GEN WB02X9985 Contact Us For Availability
5420
GEN WB02X9980 GEN WB02X9980 Contact Us For Availability
5501
GEN WB02X9979 GEN WB02X9979 Contact Us For Availability
5515
GEN WB02X9977 GEN WB02X9977 Contact Us For Availability
5518
SPECIAL WASHER GEN WB01X1359 Contact Us For Availability
5520
GEN WB02X9978 GEN WB02X9978 Contact Us For Availability
5521
GEN WB49X0662 GEN WB49X0662 Contact Us For Availability
5522
GEN WB26X0116 GEN WB26X0116 Contact Us For Availability
5540
GEN WB02X9982 GEN WB02X9982 Contact Us For Availability
6357
WASHER, F 5X10X0.8 GEN WB01X1357 Contact Us For Availability
6358
SCREW, EVR PAN 4X10 GEN WB01X1358 Contact Us For Availability
6360
SCREW, TPG EVR RS 4X10 GEN WB01X1360 Contact Us For Availability
6364
SCREW, PAN+SW+W 4X12 GEN WB01X1364 Contact Us For Availability
6365
SCREW, TPG BIN 4X10 GEN WB01X1365 Contact Us For Availability
6369
WASHER, OUT TW4 GEN WB01X1369 Contact Us For Availability
6373
SCREW, PG PAN 3X10 GEN WB01X1373 Contact Us For Availability
6400
GEN WB01X1400 GEN WB01X1400 Contact Us For Availability
6402
SCREW, TPG PAN 3X6 GEN WB01X1402 Contact Us For Availability
6403
GEN WB01X1403 GEN WB01X1403 Contact Us For Availability
6404
GEN WB01X1404 GEN WB01X1404 Contact Us For Availability
6405
GEN WB01X1405 GEN WB01X1405 Contact Us For Availability
6406
GEN WB01X1406 GEN WB01X1406 Contact Us For Availability
6407
GEN WB01X1407 GEN WB01X1407 Contact Us For Availability
6408
GEN WB01X1408 GEN WB01X1408 Contact Us For Availability
6409
GEN WB01X1409 GEN WB01X1409 Contact Us For Availability
6411
GEN WB01X1411 GEN WB01X1411 Contact Us For Availability
6412
GEN WB01X1412 GEN WB01X1412 Contact Us For Availability
32767
GEN 49-8012 GEN 49-8012 Contact Us For Availability
× ![]()
