Model LG JE1390WA – Common Parts & Diagrams

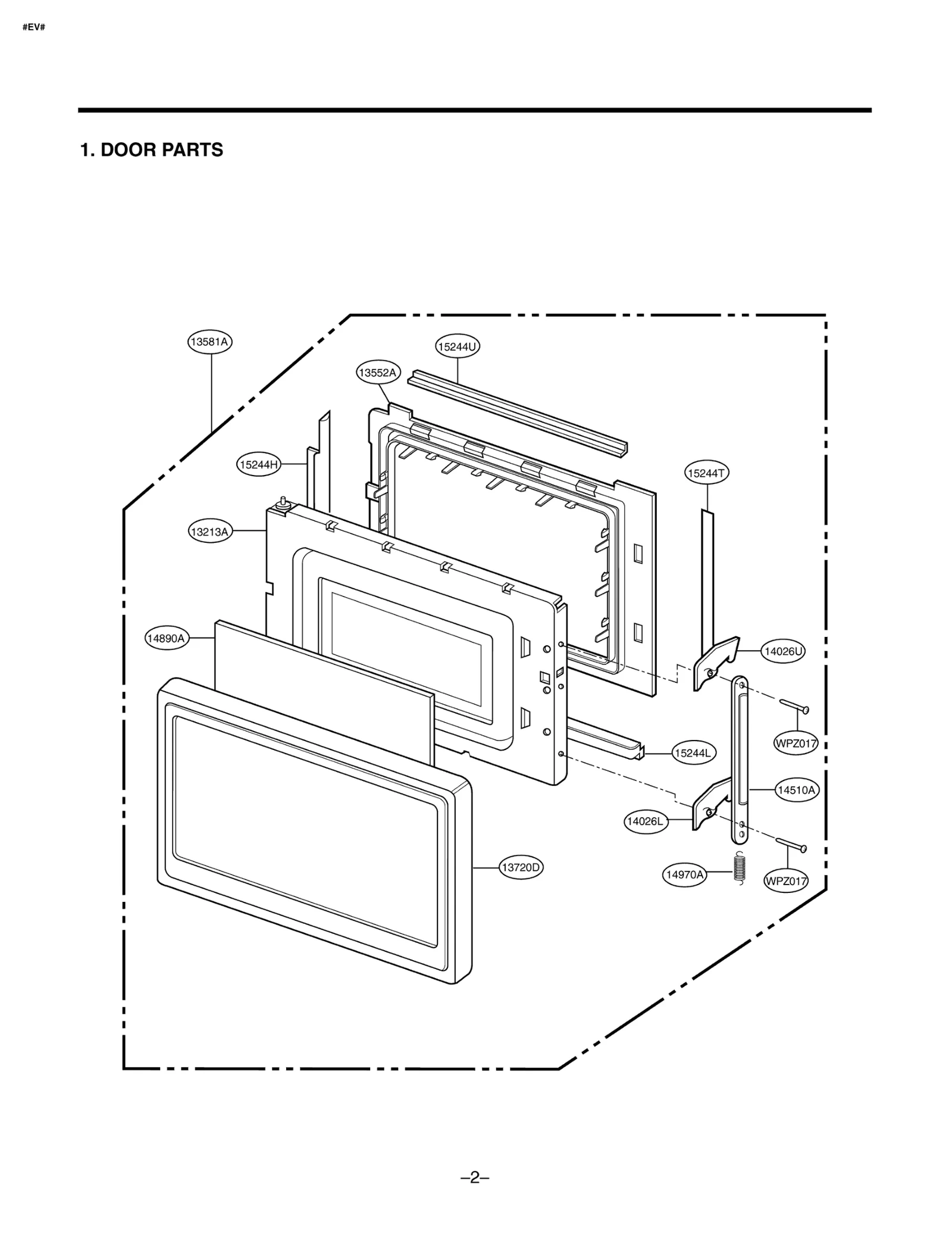

Diagram 0

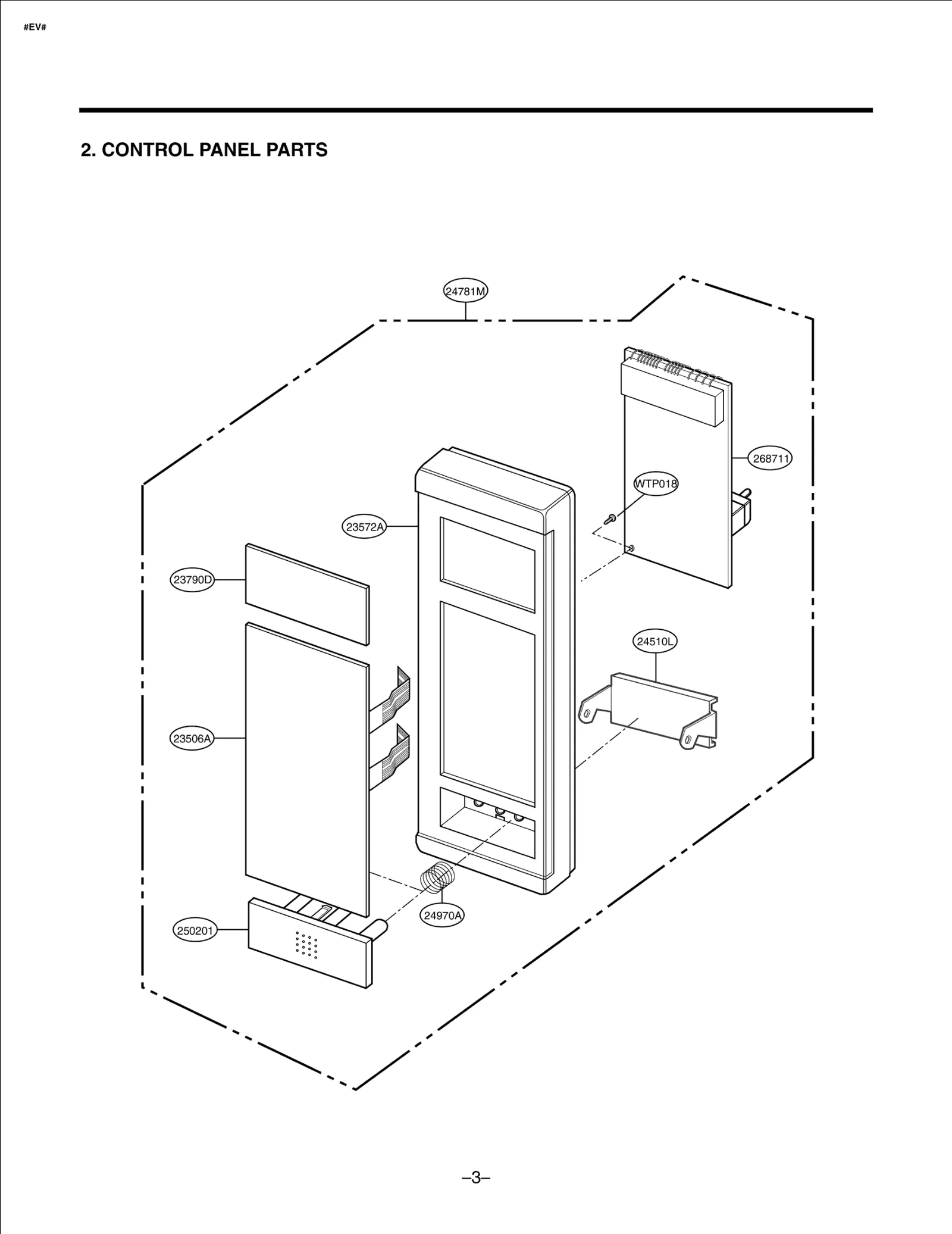

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Common parts from model LG JE1390WA
*01
MANUAL,OWNERS(MWO) LGE 3828W5A0925 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S0600 Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T014X Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y042L Contact Us For Availability
50CZZH
CAPACITOR HIGH VOLTAGE MV-1121 LGE 6120W3H003F Contact Us For Availability
13806F
FRONT DECO MH-1358S(GE BLACK) LGE 3B70060D Contact Us For Availability
23506A
KEY MEMBRANE LGE 6638W2A134B Contact Us For Availability
23572A
CONTROL PANEL MH-1355M LGE 3572W1A043C Contact Us For Availability
23790D
WINDOW-DIGITRON MH-135 S PMMA( LGE 3790W3D009B Contact Us For Availability
24510L
LGE 3B73251A LGE 3B73251A Contact Us For Availability
24781M
CONTROLLER ASSEMBLY,MICOM LGE 4781W1M160L Contact Us For Availability
24970A
RELEASE BUTTON SPRING(4158808) LGE 4B72388A Contact Us For Availability
33052M
OUTLET COVER LGE 4B73904A Contact Us For Availability
33112U
LGE 0B71047J LGE 0B71047J Contact Us For Availability
33741A
LGE 3B73691A LGE 3B73691A Contact Us For Availability
34370T
TURN TABLE SHAFT MH-1354P LGE 4B75372A Contact Us For Availability
34774L
HINGE PLATE-L SCP T3.0 LGE 4B73895A Contact Us For Availability
34774U
HINGE PLATE-U LGE 4B73896A Contact Us For Availability
34810Q
SUPPORTER BRACKET SBHG-R T0.5 LGE 2B72369A Contact Us For Availability
34890C
LAMP GLASS MH-1354P BKEWRP/307 LGE 4B72492A Contact Us For Availability
34990A
LGE 4B73754A LGE 4B73754A Contact Us For Availability
35012R
INSULATOR-R ASSY MH-135 S MH-1 LGE 1B72119B Contact Us For Availability
35012T
INSULATOR-T SBHG-R T0.5 LGE 1B71367C Contact Us For Availability
35026C
LGE 1B72025B LGE 1B72025B Contact Us For Availability
35026G
LGE 5026W1A035B LGE 5026W1A035B Contact Us For Availability
35264A
AIR TUNNEL STS-430#3 T0.7(MH-1 LGE 2B72122B Contact Us For Availability
35301A
HEATER-C ASSEMBLY LGE 1B71187C Contact Us For Availability
35889A
ROTATING RING ASSY A 285,H 17, LGE 5889W2A005P Contact Us For Availability
36549C
C-MOTOR 120V 60HZ(ONLY CON.) LGE 2B72066F Contact Us For Availability
36549S
SYNCHRONOUS MOTOR M2CK5PZS59-H LGE 2B71932D Contact Us For Availability
43500L
LGE 3B72853A LGE 3B72853A Contact Us For Availability
43500U
LATCH BOARD-U LGE 3B71933A Contact Us For Availability
43501L
LATCH BOARD-L ASM ER-9380D MH- LGE 3B72938B Contact Us For Availability
43501U
LGE 3B72277G LGE 3B72277G Contact Us For Availability
44360A
LGE 4B74858A LGE 4B74858A Contact Us For Availability
44510A
LGE 4B70698A LGE 4B70698A Contact Us For Availability
53300C
CERAMIC TRAY 358 MM DIA, MH-1 LGE 1B72060A Contact Us For Availability
53504A
CHAMBER WALL SBHGI-R T0.5 LGE 1B71278A Contact Us For Availability
53550L
COVER,LAMP LGE 3B73601A Contact Us For Availability
53551S
BACK COVER ASM ER-946 S LGE 1B71586C Contact Us For Availability
54370D
DAMPER SHAFT STS-304 WPB D0.8 LGE 4B74088B Contact Us For Availability
54810C
CAPACITOR BRACKET SECC T0.8 LGE 4B75031A Contact Us For Availability
54810U
DAMPER BRACKET SBHG1-R T0.5 LGE 4B75026A Contact Us For Availability
54974S
GUIDE SUCTION MH-135 S MH-1358 LGE 4974W2S015A Contact Us For Availability
54974T
BRACKET-SENSOR STANDARD STS430 LGE 4810W4G063A Contact Us For Availability
54975G
CHAMBER SUB ASSY CHAMBER +AIR LGE 1B71513A Contact Us For Availability
55262A
LGE 1B72015A LGE 1B72015A Contact Us For Availability
55900C
C-FAN GVLM T0.6 LGE 3B72561A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL KTC 120V/ LGE 6010W2H070B Contact Us For Availability
56208A
GLASS WOOL-C T10 LGE 2B72302A Contact Us For Availability
56324A
MAGNETRON 2M214-19F MV-1130SC LGE 2B71165E Contact Us For Availability
56411A
POWER CORD ASM A-2 SPT, #16/3 LGE 2B72325E Contact Us For Availability
56420A
SOLENOID LGE 6420W3S001C Contact Us For Availability
56501A
SERSOR+TEMP JACK ASM MH-1358S( LGE 6501W2A006A Contact Us For Availability
56549F
FAN MOTOR 120V 60HZ LGE 2B72294A Contact Us For Availability
56820A
FUSE HOLDER 65FB(SAMJOO) MV-10 LGE 4930W3B005A Contact Us For Availability
56851C
H.V. CABLE ASSY MA-880M/MW 884 LGE 6861W3A001B Contact Us For Availability
56851D
H.V. DIODE CABLE ASM MH-1355M LGE 6021W3B001C Contact Us For Availability
56912B
BASELESS LAMP 125V/25W DWE 187 LGE 3B71543J Contact Us For Availability
56930G
THERMOSTAT ALL PW-2N.145/0.H.P LGE 6930W3A001B Contact Us For Availability
56930M
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
63302A
BASE PLATE SBHGI-O T0.8 LGE 0B70792A Contact Us For Availability
63303A
BASE PLATE SUB ASM BASE PL+LEG LGE 0B70876A Contact Us For Availability
250201
BUTTON,MWO LGE 5020W3G044G Contact Us For Availability
268711
PCB SUB ASSY LGE 5247W2YS76A Contact Us For Availability
368771
LGE 4B73008D LGE 4B73008D Contact Us For Availability
466001
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
466003
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
568771
LEAD WIRE ASSY MH-1357M/58S LGE 6877W1A014A Contact Us For Availability
568773
LEADWIRE ASSY-SEC. MA-880 S/11 LGE 6877W3T080A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
C05
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE6876H618 Contact Us For Availability
C06
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C08
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C10
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C11
LGE 0CE1076H638 LGE 0CE1076H638 Contact Us For Availability
C17
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C18
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C29
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR WAFER YW396-05(2PIN LGE 6630W5YA10C Contact Us For Availability
CN2
CONNECTOR YW396-03, #3 VOID 8 LGE CQ52212A Contact Us For Availability
CN3
CONNECTOR WAFER YW396-03AVY,#2 LGE 6630WRYA01A Contact Us For Availability
CN4
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
CN5
WAFER 4PIN YEON HO YW396-04V W LGE CQ52190C Contact Us For Availability
D04
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON 6-MT-253GN MH-1358S LGE 6302W5YA12A Contact Us For Availability
IC1
LGE 0IKE704200A LGE 0IKE704200A Contact Us For Availability
PT1
TRANS POWER 120V/60HZ 13V/320M LGE 6010W2P012A Contact Us For Availability
Q04
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q06
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q07
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
R04
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R14
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R15
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R21
RESISTOR FIX METAL FILM 50K 1/ LGE 0RN5002F408 Contact Us For Availability
R22
LGE 0RN8202F408 LGE 0RN8202F408 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R32
LGE 0RD3003F608 LGE 0RD3003F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R46
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R47
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R49
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R50
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R54
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
RY2
RELAY G5J-1-TP-M-DT1 DC12V (MV LGE 6920WRD001A Contact Us For Availability
RY3
RELAY MA-885M SGESEA LOC. RY LGE 6920WRD004A Contact Us For Availability
RY4
RELAY MA-885M SGESEA MA-1190M LGE 6920WRD005B Contact Us For Availability
U01
LSI HD404339-A24S MH-1358S LGE 6000W5YB77A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
WMT001
TRUSS HEAD MACHINE SCREW + LGE 1MTC0402418 Contact Us For Availability
WPZ017
LATCH PIN LGE 4B70898A Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
ZD1
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
