Model LG JE1340WC – Common Parts & Diagrams
Diagram 0
Diagram 1

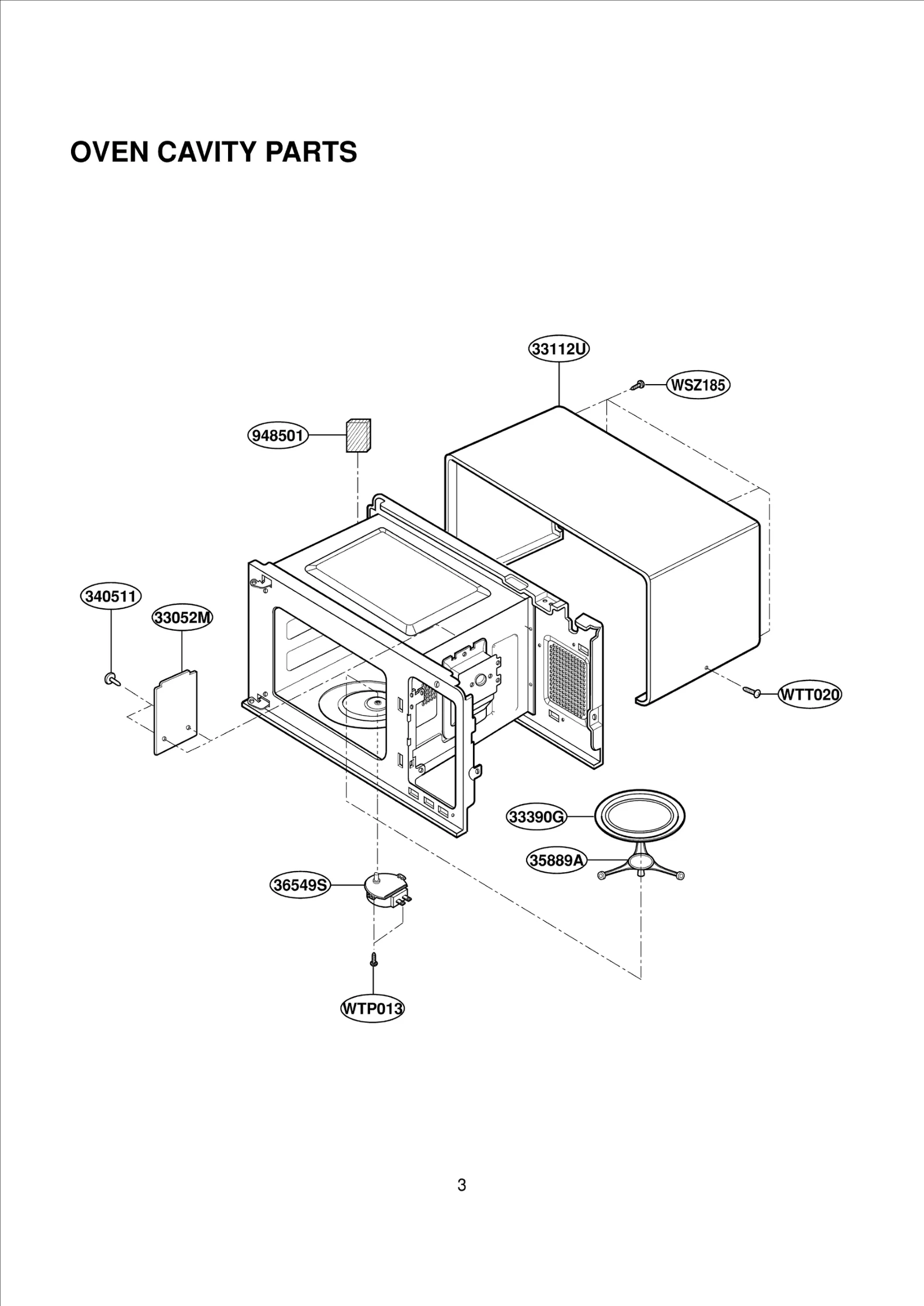

Diagram 2

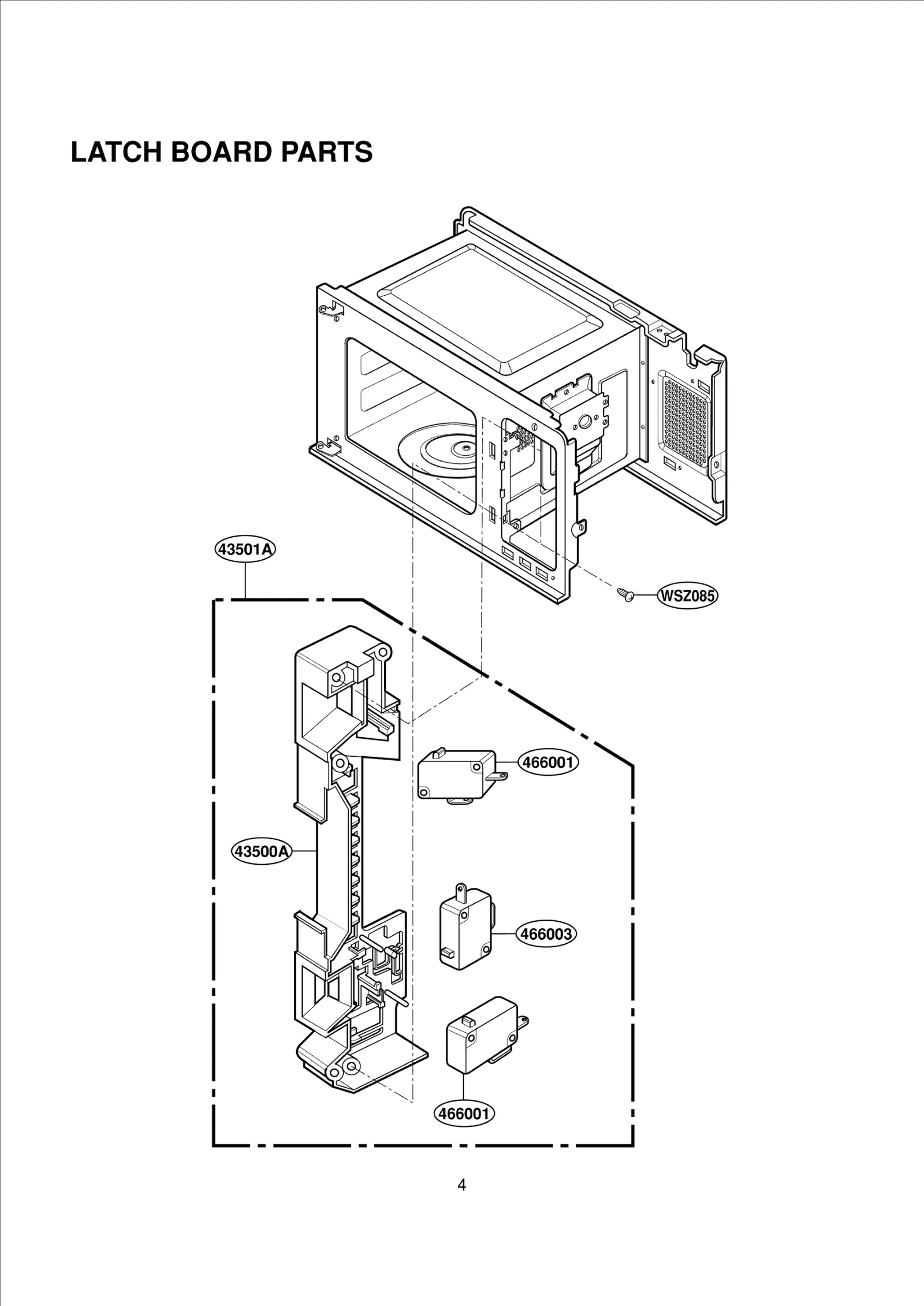

Diagram 3

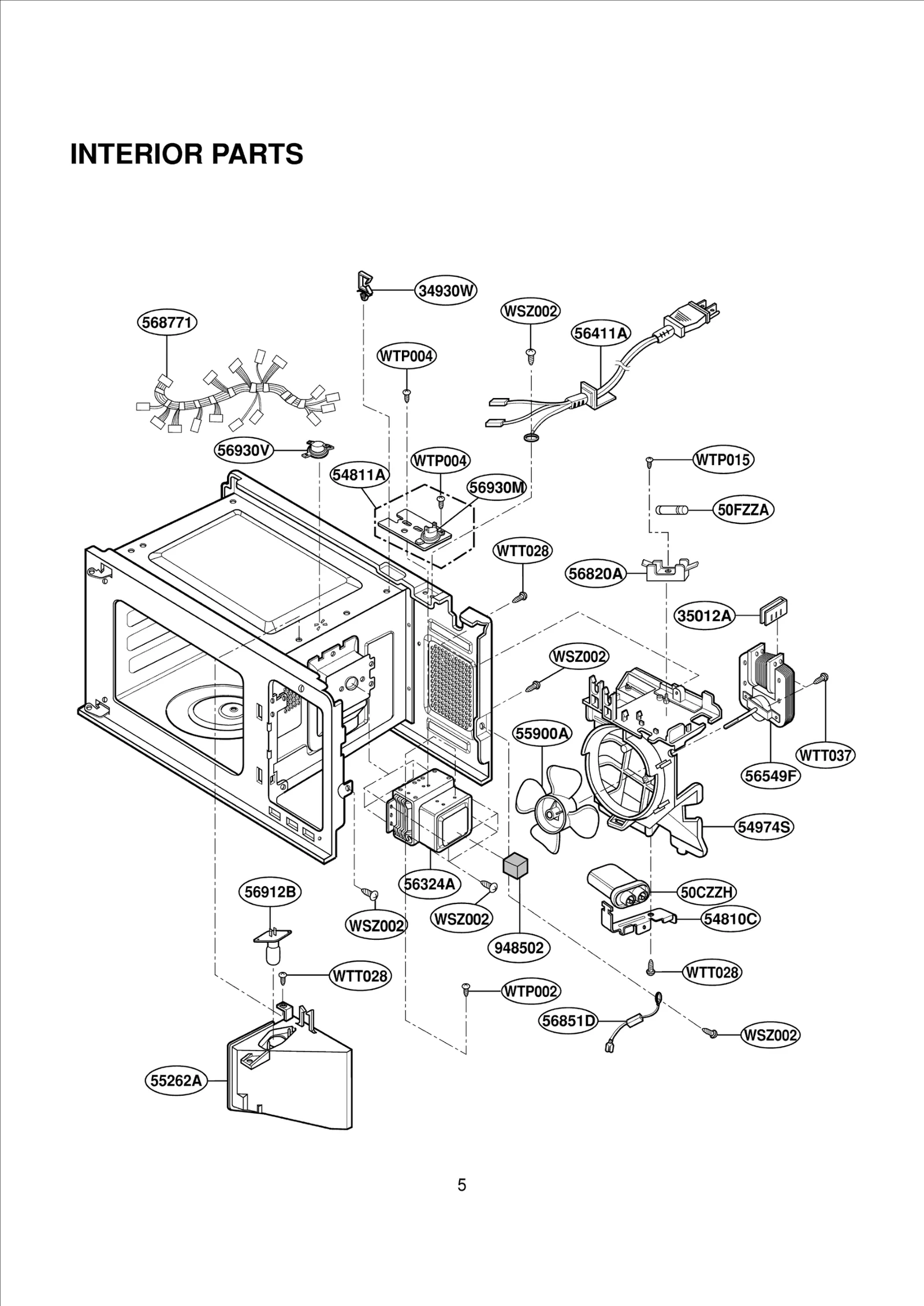

Diagram 4

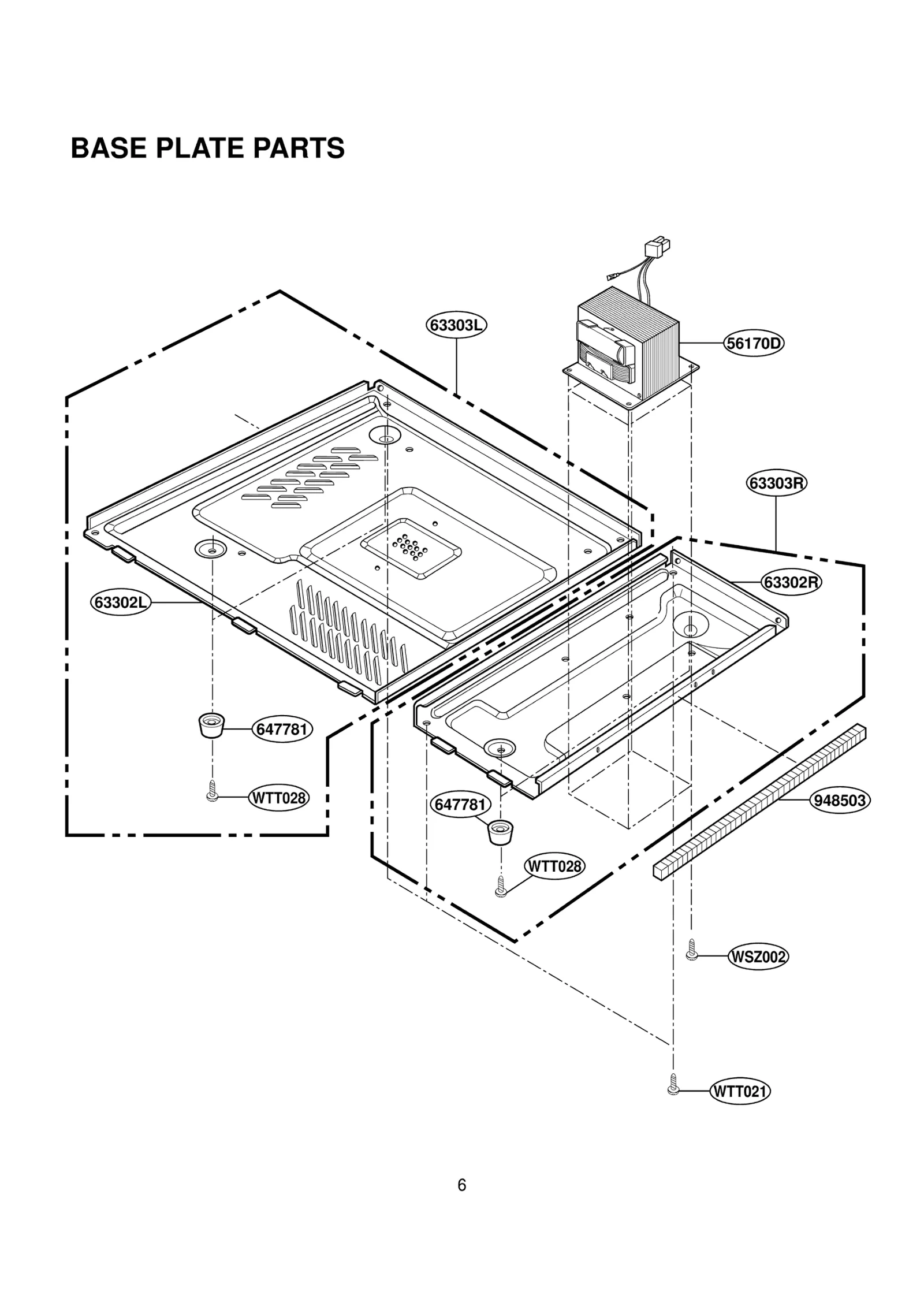

Diagram 5
Diagram 6
Common parts from model LG JE1340WC
*01
LGE 3828W5A1553 LGE 3828W5A1553 Contact Us For Availability
*05
LGE 3850W3D010B LGE 3850W3D010B Contact Us For Availability
*10
LGE 3890W3Y010A LGE 3890W3Y010A Contact Us For Availability
24781M
LGE 4781W1M240A LGE 4781W1M240A Contact Us For Availability
26638A
LGE 6638W2A358A LGE 6638W2A358A Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W0U006T Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
54810A
THERMO-BRACKET SECC, T 0.6 LGE 4B74584A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D023B Contact Us For Availability
56411A
LGE 6411W2A002X LGE 6411W2A002X Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F001E Contact Us For Availability
56820A
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
56930G
THERMOSTAT,BIMETAL LGE 6930WRT001H Contact Us For Availability
56930M
THERMOSTAT 145/60 V LGE 6930WRT003B Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
LGE 3302W1A033F LGE 3302W1A033F Contact Us For Availability
63303L
LGE 3303W1A026E LGE 3303W1A026E Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
250201
LGE 5020W2A138A LGE 5020W2A138A Contact Us For Availability
268711
LGE 6871W2S125T LGE 6871W2S125T Contact Us For Availability
568771
CONNECTOR ASSEMBLY LGE 6877W1A215A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948503
LGE 4B73438L LGE 4B73438L Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C21
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C30
Capacitor,AL,Radial LGE 0CE1056K638 Contact Us For Availability
C31
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C84
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
LGE 6302W5A004A LGE 6302W5A004A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R10
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R34
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R82
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R93
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R100
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R110
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IZZW5A081A LGE 0IZZW5A081A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
WSZ202
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
