Model Maytag JDTSS245GX0 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET

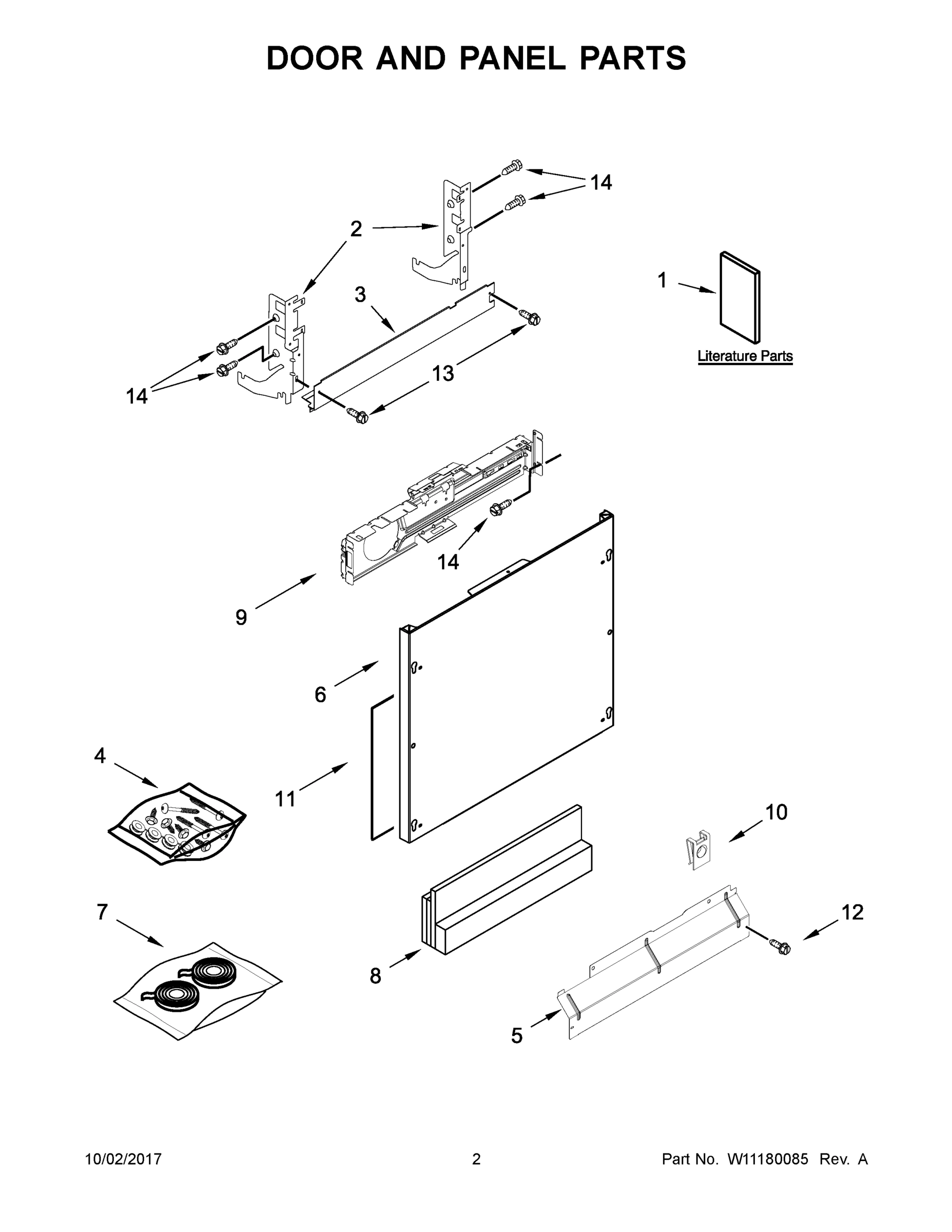

02 - DOOR AND PANEL PARTS
03 - CONTROL PANEL AND LATCH PARTS
04 - INNER DOOR PARTS
05 - FILL, DRAIN AND OVERFILL PARTS
06 - TUB AND FRAME PARTS
07 - PUMP, WASHARM AND MOTOR PARTS
08 - UPPER WASH AND RINSE PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK AND TRACK PARTS
11 - THIRD LEVEL RACK AND TRACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDTSS245GX0 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10806906 Contact Us For Availability
1
MAY W10909695 MAY W10909695 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY) MAY W10681499 Contact Us For Availability
1
MOTOR (ALSO ORDER ITEMS 9 & 11) MAY W10645659 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10753067 Contact Us For Availability
1
DISHRACK, UPPER MAY W10194861 Contact Us For Availability
1
DISHRACK, LOWER MAY W10665650 Contact Us For Availability
1
TRACK ASSEMBLY (LEFT HAND) MAY W10195238 Contact Us For Availability
1A
ENERGY GUIDE MAY W11125132 Contact Us For Availability
1A
TRACK ASSEMBLY (RIGHT HAND) MAY W10195240 Contact Us For Availability
1B
USE & CARE GUIDE MAY W11092957 Contact Us For Availability
1C
TECH SHEET, ENGLISH MAY W10914074 Contact Us For Availability
1D
TECH SHEET, FRENCH MAY W10914075 Contact Us For Availability
1E
TEMPLATE, 6" CUSTOM PANEL MAY W10195005 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10653840 Contact Us For Availability
2
SCREW MAY 8281217 Contact Us For Availability
2
HOSE MAY W10769066 Contact Us For Availability
2
ASSEMBLY, TERMINAL BOX MAY W10713315 Contact Us For Availability
2
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) MAY W10588164 Contact Us For Availability
2
TRACK ASSEMBLY (LEFT HAND) MAY W10781307 Contact Us For Availability
2
STOP, TRACK MAY 8564852 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2A
HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) MAY W10588165 Contact Us For Availability
2A
TRACK ASSEMBLY (RIGHT HAND) MAY W10781311 Contact Us For Availability
3
BARRIER, VAPOR MAY W10844384 Contact Us For Availability
3
JUMPER, 4-WIRE MAY W10898167 Contact Us For Availability
3
INNER DOOR ASSEMBLY MAY W10480716 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10584470 Contact Us For Availability
3
GASKET, TUB MAY W10660528 Contact Us For Availability
3
COVER, OUTLET MAY W10463894 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
CLIP, ADJUSTER MAY W10250160 Contact Us For Availability
3
BASKET ASSEMBLY, SILVERWARE MAY W10473836 Contact Us For Availability
3
MOUNT, TRACK MAY 8564899 Contact Us For Availability
4
HARDWARE, CUSTOM PANEL MAY W10195008 Contact Us For Availability
4
SCREW MAY W10381476 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10497235 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
PLUG, TUB MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11) MAY W10455268 Contact Us For Availability
4
MANIFOLD MAY W10900342 Contact Us For Availability
4
ADJUSTER ASSEMBLY MAY W10546503 Contact Us For Availability
4
TINEROW MAY W10056351 Contact Us For Availability
4
RACK ASSEMBLY (THIRD LEVEL) MAY W10409522 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W10852733 Contact Us For Availability
5
MAY W10901638 MAY W10901638 Contact Us For Availability
5
SEAL, CONSOLE/DOOR MAY W10195007 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
STRIKE, LATCH MAY W10544004 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10448645 Contact Us For Availability
5
STRAP, TETHER ADJUSTER MAY W10195839 Contact Us For Availability
5
CUPSHELF ASSEMBLY, SIDE MAY W10610905 Contact Us For Availability
5
BASKET, THIRD LEVEL MAY W10917018 Contact Us For Availability
6
PANEL READY (FRONT) MAY W10738109 Contact Us For Availability
6
SCREW MAY 304392 Contact Us For Availability
6
SHIELD, CONTROL MAY W10355484 Contact Us For Availability
6
DISPENSER ASSEMBLY MAY W10901088 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
SCREEN MAY W10463906 Contact Us For Availability
6
MAY W10905073 MAY W10905073 Contact Us For Availability
6
POSITIONER, ADJUSTER MAY W10195840 Contact Us For Availability
6
LID, SILVERWARE BASKET MAY W10473835 Contact Us For Availability
7
SEAL, PANEL READY MAY W10366978 Contact Us For Availability
7
BRACE, CONNECTOR MAY W10462395 Contact Us For Availability
7
MAY W10913097 MAY W10913097 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327249 Contact Us For Availability
7
SEAL, CABINET MAY W10835073 Contact Us For Availability
7
WASH ARM ASSEMBLY MAY W10858786 Contact Us For Availability
7
CUPSHELF MAY W10669975 Contact Us For Availability
7
RETAINER, SLIDING TINE ROW MAY W10713283 Contact Us For Availability
8
INSULATION, FOUR LAYER MAY W10735304 Contact Us For Availability
8
BOX, CONNECTOR MAY W10462393 Contact Us For Availability
8
BRACKET, DISPENSER MAY W10462232 Contact Us For Availability
8
SCREW MAY 3390631 Contact Us For Availability
8
MOUNT, LOWER TRACK ASSEMBLY MAY W10622469 Contact Us For Availability
8
SCREW MAY 9741232 Contact Us For Availability
8
FILTER CUP ASSEMBLY MAY W10789806 Contact Us For Availability
8
TINE ROW, SLIDING MAY W10610895 Contact Us For Availability
9
BRACKET, CONTROL MAY W10350242 Contact Us For Availability
9
CLIP, CONTROL MAY W10195237 Contact Us For Availability
9
SCREW MAY W10177098 Contact Us For Availability
9
SWITCH, OVERFILL CONTROL MAY W10734532 Contact Us For Availability
9
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
9
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
9
COVER, ADJUSTER MAY W10250162 Contact Us For Availability
9
SUPPORT, REAR CARRIAGE (LEFT HAND) MAY W10473807 Contact Us For Availability
9A
SUPPORT, REAR CARRIAGE (RIGHT HAND) MAY W10473809 Contact Us For Availability
10
U-NUT MAY W10853886 Contact Us For Availability
10
RETAINER, PUSH IN MAY 3400924 Contact Us For Availability
10
KNOB, RINSE AID MAY W10524919 Contact Us For Availability
10
HOUSING, OVERFILL (ALSO ORDER ITEM 11) MAY W10647205 Contact Us For Availability
10
SCREW MAY 3367670 Contact Us For Availability
10
MAY W10909945 MAY W10909945 Contact Us For Availability
10
TRACK, ASSEMBLY (LEFT HAND) MAY W10852728 Contact Us For Availability
10
SUPPORT, FRONT SKI (LEFT HAND) MAY W10473813 Contact Us For Availability
10A
TRACK, ASSEMBLY (RIGHT HAND) MAY W10852729 Contact Us For Availability
10A
SUPPORT, FRONT SKI (RIGHT HAND) MAY W10473817 Contact Us For Availability
11
INSULATION, FRONT PANEL MAY W10234565 Contact Us For Availability
11
GASKET, FLAT MAY 8531743 Contact Us For Availability
11
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
11
GROMMET MAY W10538166 Contact Us For Availability
11
HANDLE, DISHRACK FRONT MAY W10610898 Contact Us For Availability
11
CUPSHELF MAY W10630204 Contact Us For Availability
12
SCREW (BLACK) MAY 302868 Contact Us For Availability
12
NUT, STANDPIPE MAY W10195038 Contact Us For Availability
12
SCREW MAY 3400074 Contact Us For Availability
12
SCREW MAY W10348407 Contact Us For Availability
12
TINE, FOLD DOWN MAY W10194862 Contact Us For Availability
12
BASKET, UTENSIL MAY W10482109 Contact Us For Availability
13
FLOAT & RETAINER ASSEMBLY MAY W10195036 Contact Us For Availability
13
SUPPORT ASSEMBLY, REAR MAY W10681564 Contact Us For Availability
13
TAB, SUMP MAY W10372113 Contact Us For Availability
13
MAY W10918860 MAY W10918860 Contact Us For Availability
14
SCREW MAY 3400071 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
SCREW MAY W10348411 Contact Us For Availability
14
MOTOR, DRAIN MAY W10531320 Contact Us For Availability
14
CLIP, PIVOT MAY W10082853 Contact Us For Availability
15
CLAMP, HOSE MAY 370445 Contact Us For Availability
15
WHEEL LEG MAY W10190778 Contact Us For Availability
15
HOSE, DRAIN MAY 8269144 Contact Us For Availability
15
POSITIONER, DUAL DISHRACK MAY 8539102 Contact Us For Availability
16
DRAIN LOOP WITH CHECK VALVE ASSEMBLY MAY W10545278 Contact Us For Availability
16
LEVELER, LEG MAY W10619352 Contact Us For Availability
16
DISC, DIVERTER MAY W10476221 Contact Us For Availability
16
CLIP, CUPSHELF MAY 8562026 Contact Us For Availability
17
VENT HOSE MAY W10772907 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MOTOR, DIVERTER MAY W10849439 Contact Us For Availability
17
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
18
OUTLET, AIR ASSEMBLY (ALSO ORDER ITEM 19) MAY W10851715 Contact Us For Availability
18
SPRING, DOOR BALANCE MAY 8270182 Contact Us For Availability
18
SCREW MAY W10309090 Contact Us For Availability
18
CLAMP, HOSE MAY 8269146 Contact Us For Availability
19
SEAL, RUBBER MAY W10653310 Contact Us For Availability
19
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W10723295 Contact Us For Availability
19
HANDLE, DISHRACK REAR MAY W10473792 Contact Us For Availability
20
NUT, AIR ASSEMBLY (ALSO ORDER ITEM 19) MAY W10851721 Contact Us For Availability
20
COVER, TERMINAL BOX MAY W10653292 Contact Us For Availability
20
CLAMP, HOSE MAY W10763498 Contact Us For Availability
20
RETAINER, FEEDTUBE MAY W10875054 Contact Us For Availability
21
BLOWER ASSEMBLY MAY W10673168 Contact Us For Availability
21
CABLE, DOOR MAY W10158291 Contact Us For Availability
21
BASKET, UTENSIL ROW MAY W10702379 Contact Us For Availability
22
NOZZLE, AIRDUCT MAY W10653323 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
TUBE, EXHAUST MAY W10770367 Contact Us For Availability
24
CLIP, RETAINER MAY W10653320 Contact Us For Availability
24
SHIELD, TUB SOUND MAY W10866980 Contact Us For Availability
25
BRACKET, THERMOSTAT MAY W10300703 Contact Us For Availability
26
THERMOSTAT MAY W10195091 Contact Us For Availability
27
SPACER, TUB/BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
27A
SPACER, TUB/BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
28
HARNESS, TUB LIGHTS MAY W10913102 Contact Us For Availability
29
RETAINER MAY 304666 Contact Us For Availability
30
LENS, LIGHT ASSEMBLY MAY W10635340 Contact Us For Availability
31
RETAINER MAY W10486051 Contact Us For Availability
32
NUT, RETAINER MAY W10610790 Contact Us For Availability
33
INSULATION, U-WRAP MAY W10750120 Contact Us For Availability
34
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. METEORITE) MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ SILVER ATLANTIS) MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (SILVER ATLANTIS) MAY 4396854 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
DRAIN HOSE 12 FT. MAY W10712310 Contact Us For Availability
× ![]()
