Model Maytag JDSP548HL00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH – Common Parts & Diagrams

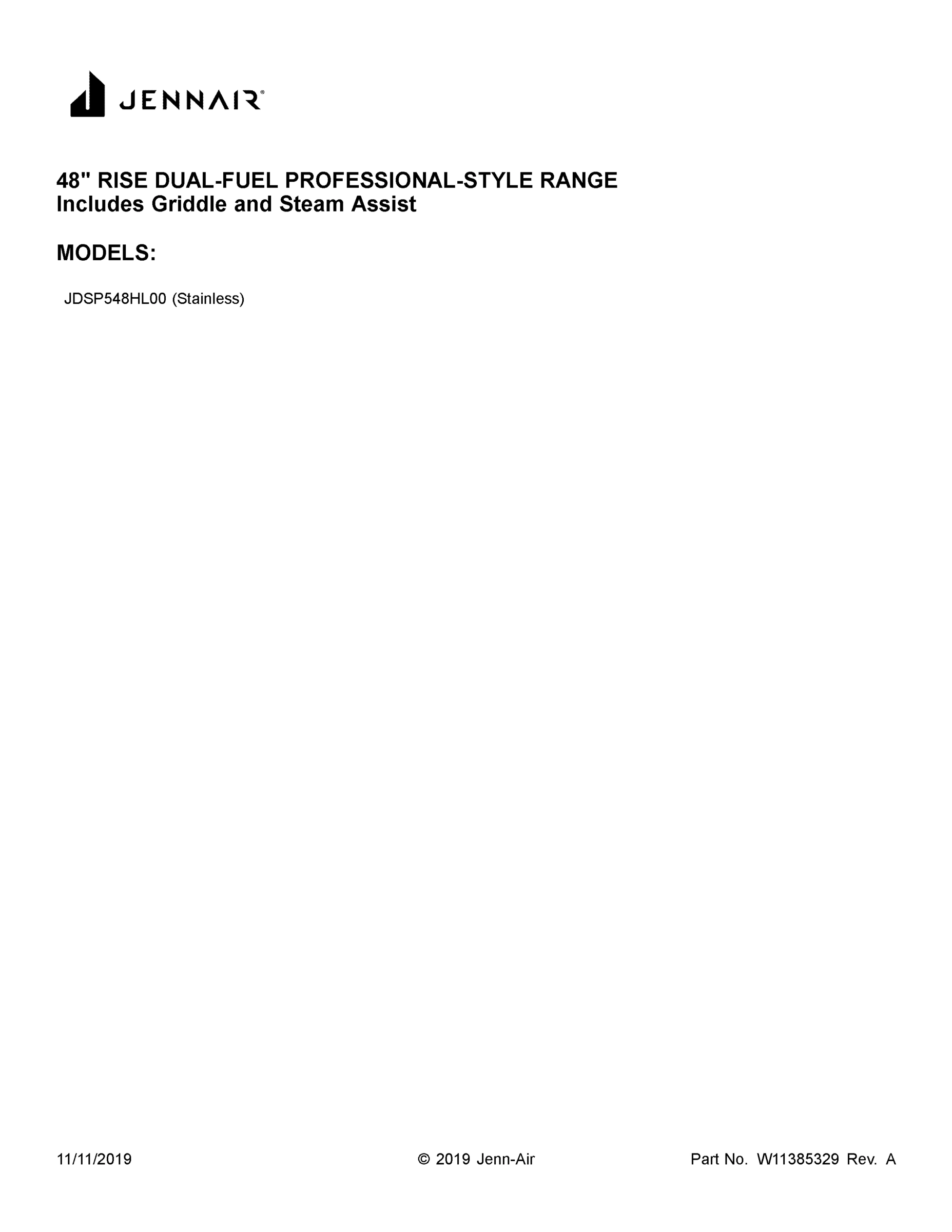

01 - COVER SHEET

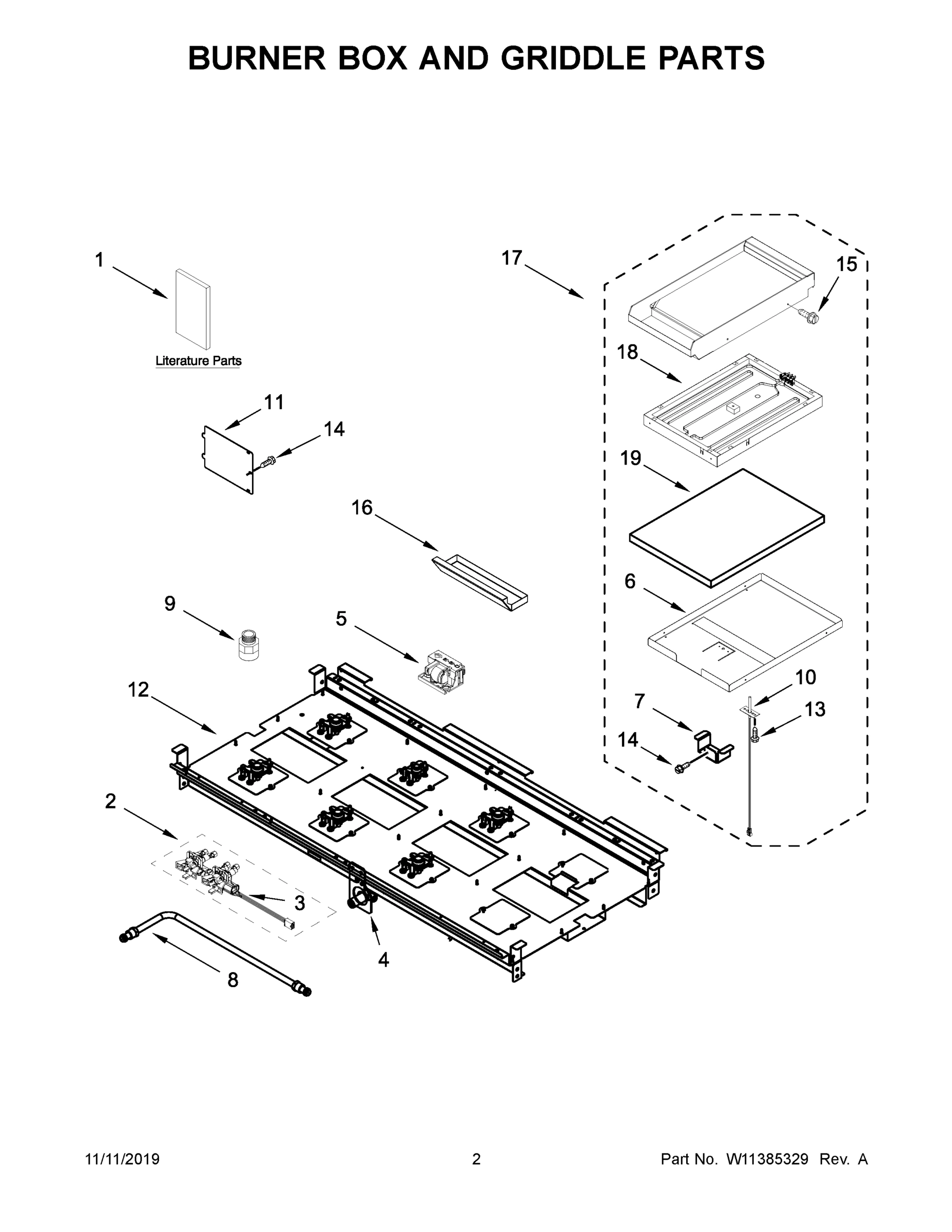

02 - BURNER BOX AND GRIDDLE PARTS

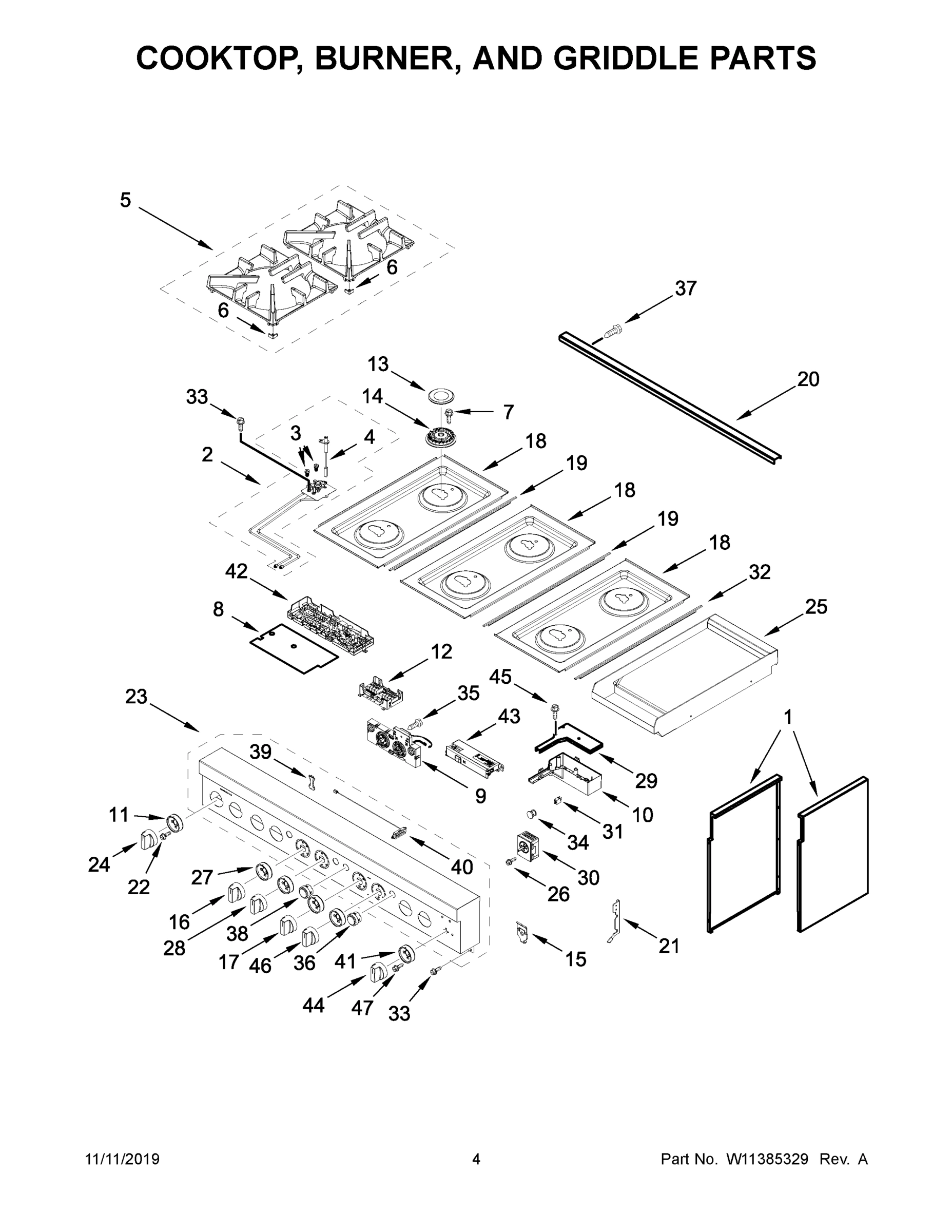

03 - COOKTOP, BURNER, AND GRIDDLE PARTS

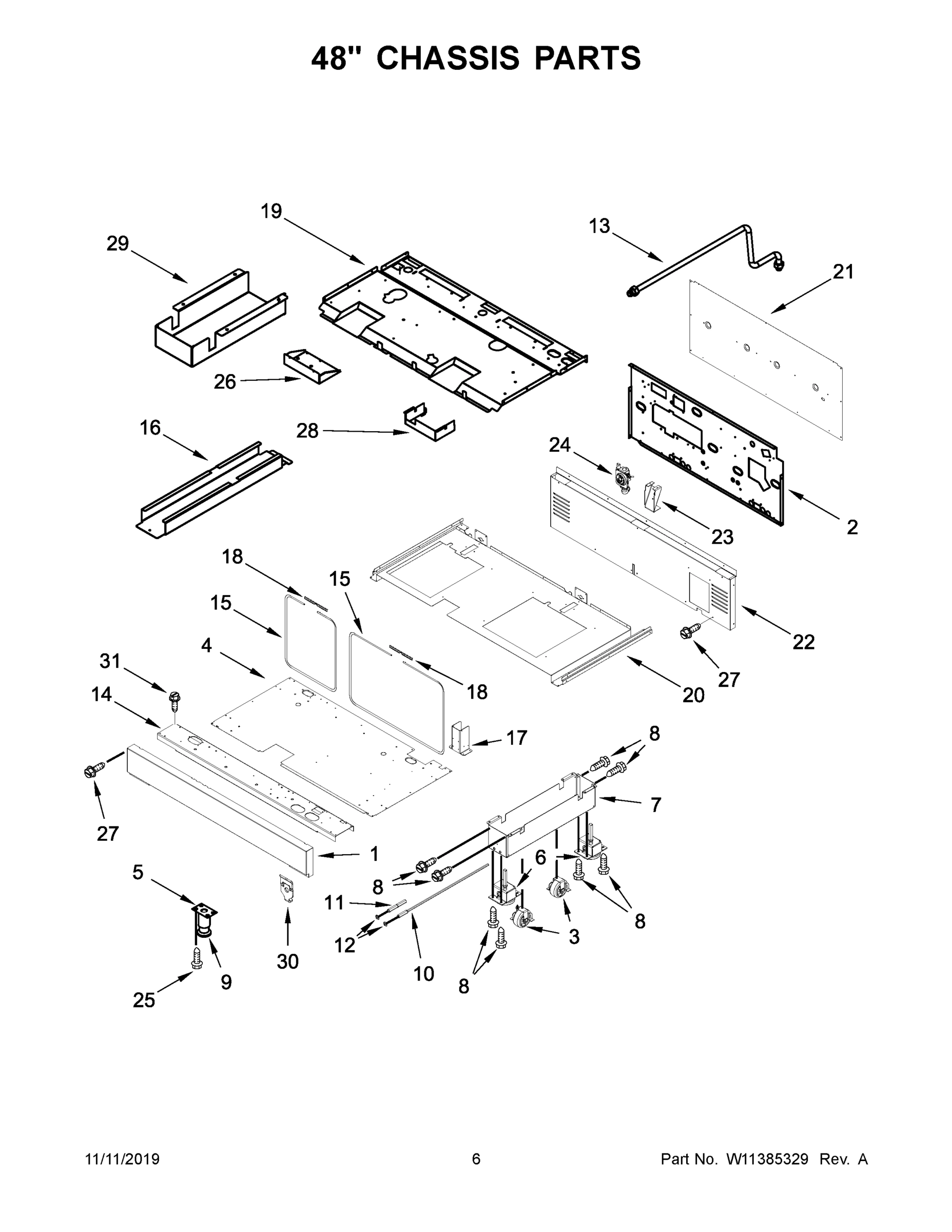

04 - 48" CHASSIS PARTS

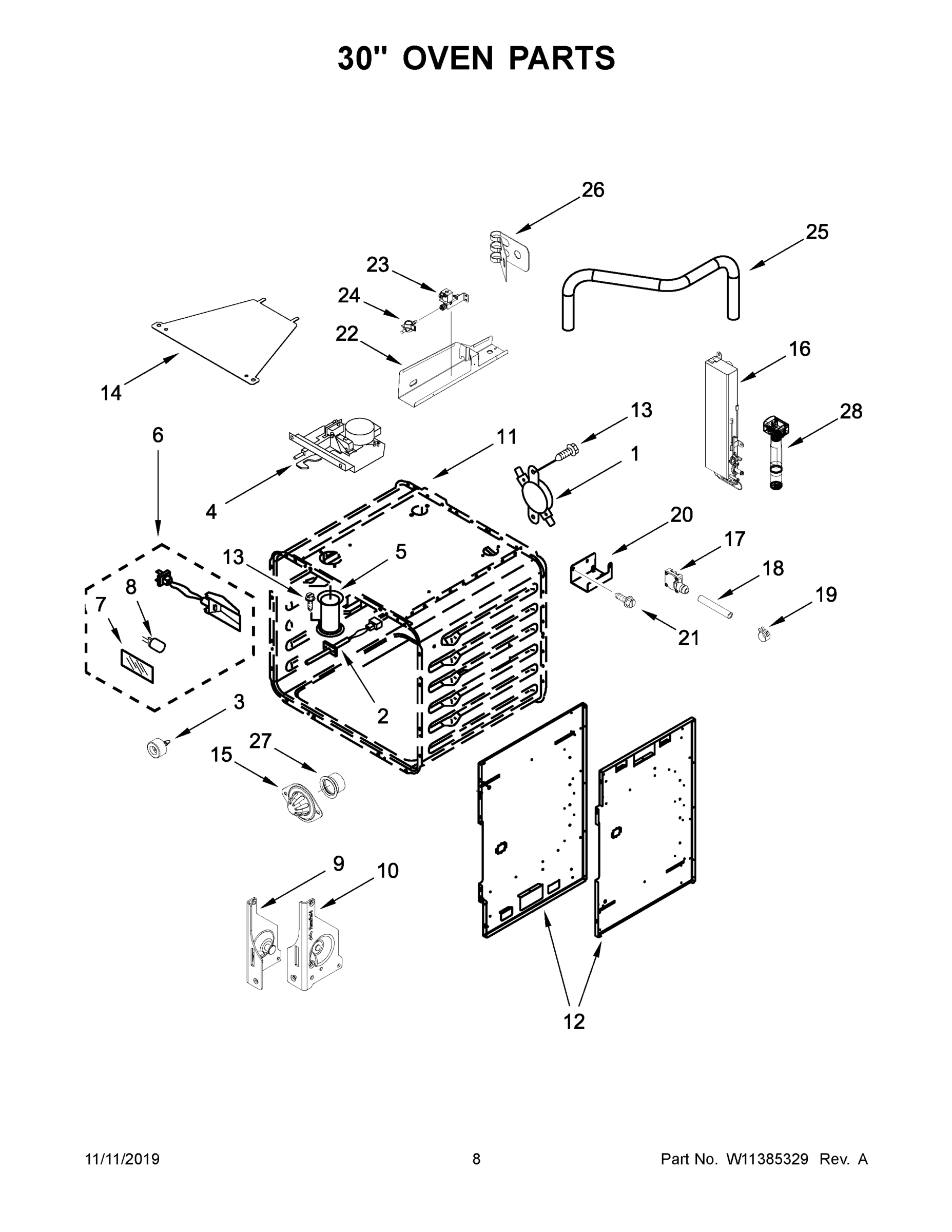

05 - 30" OVEN PARTS

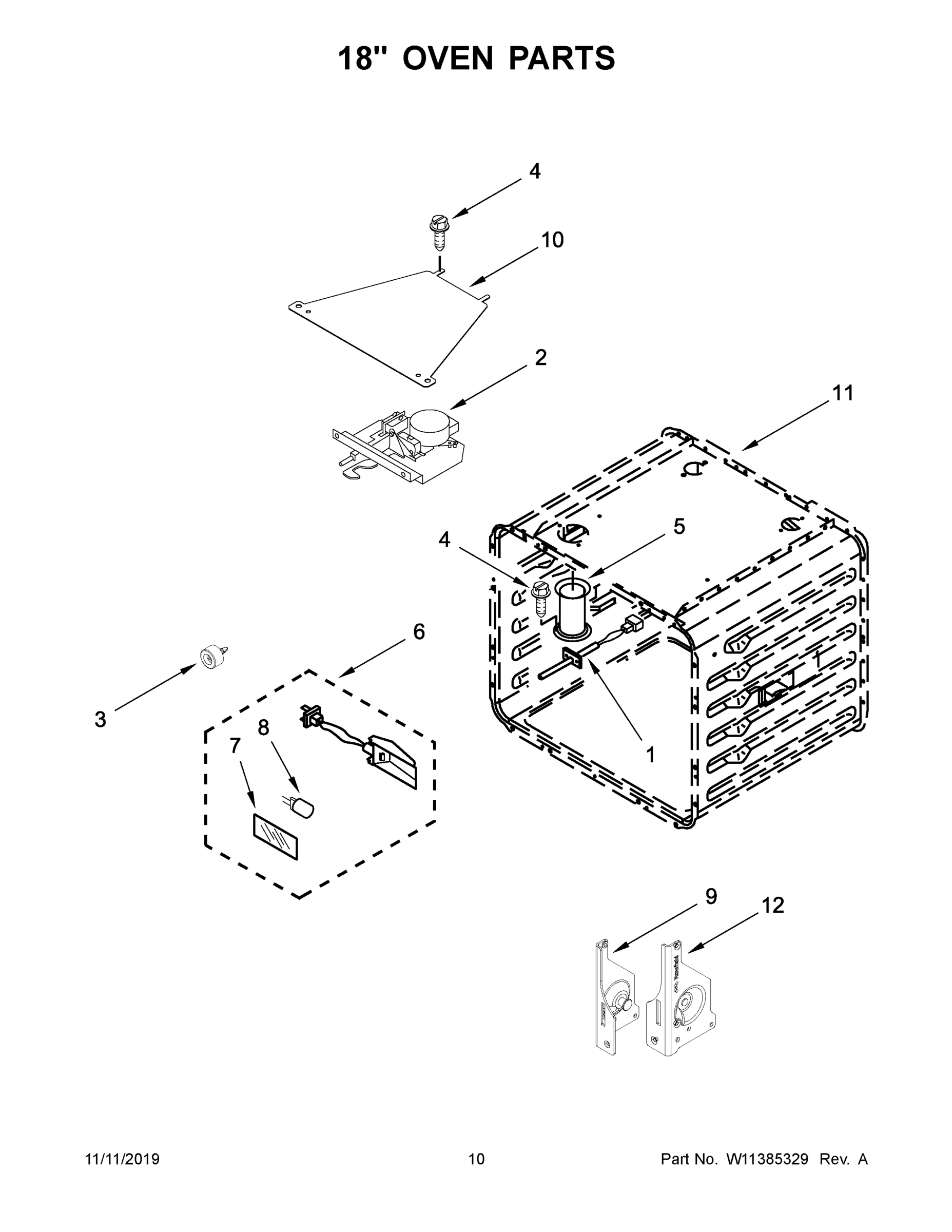

06 - 18" OVEN PARTS

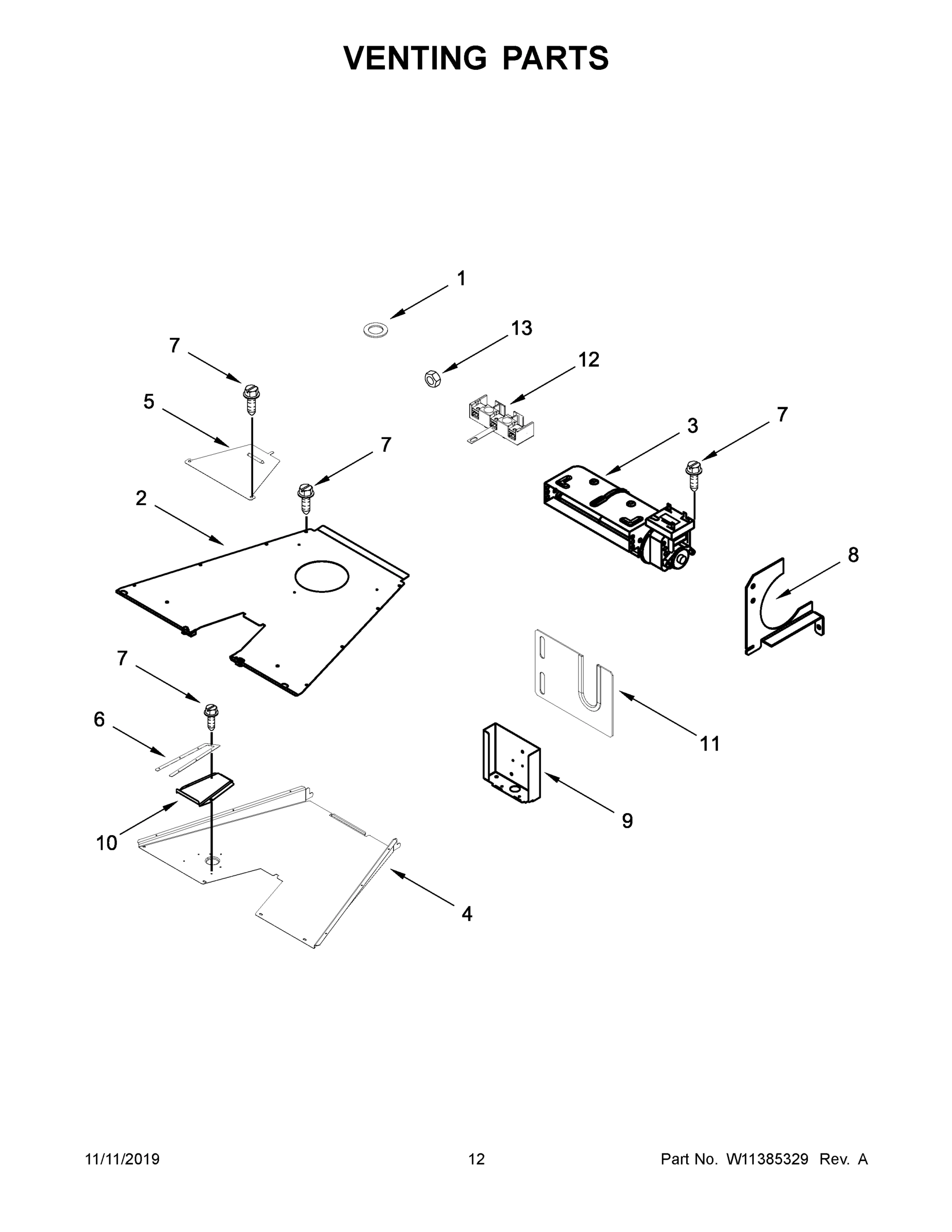

07 - VENTING PARTS

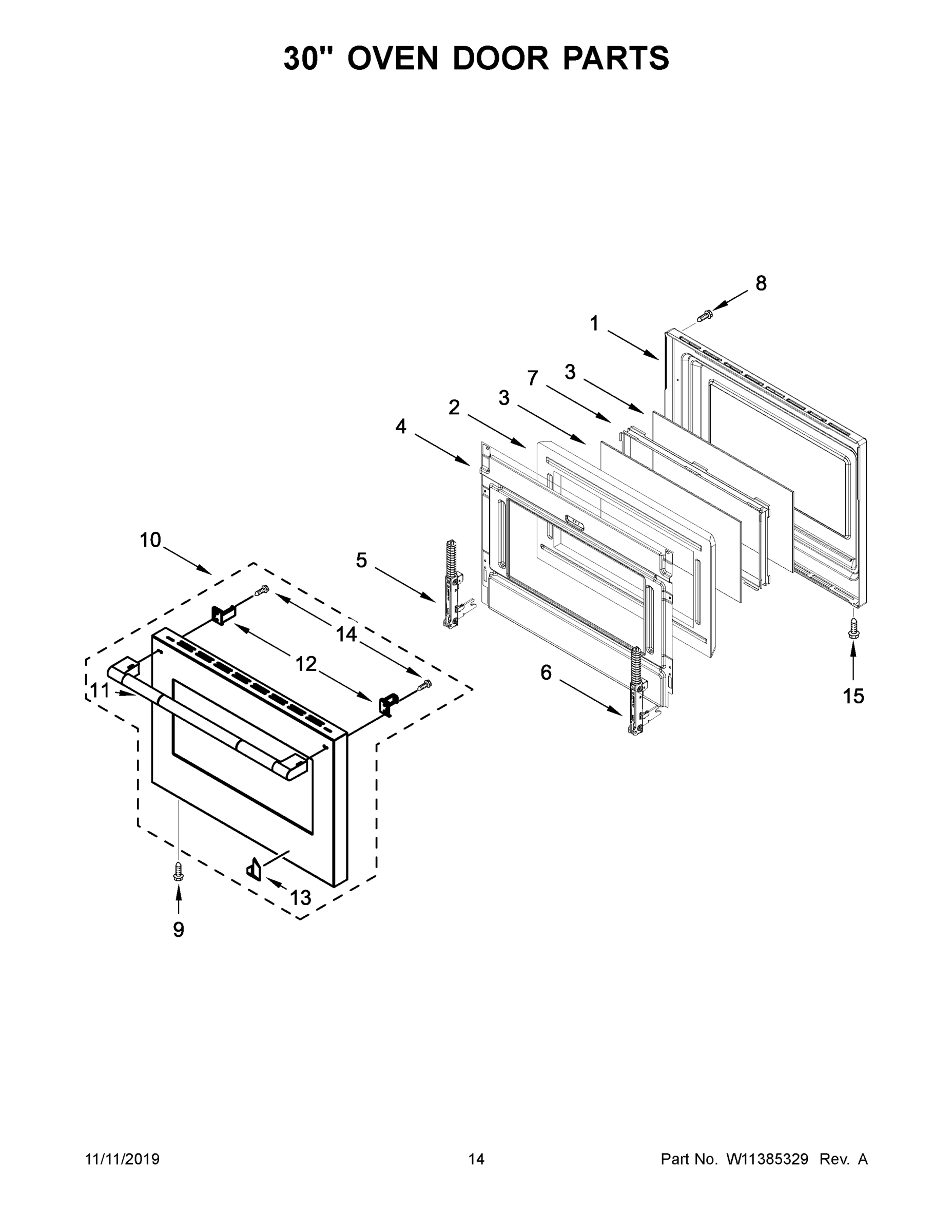

08 - 30" OVEN DOOR PARTS

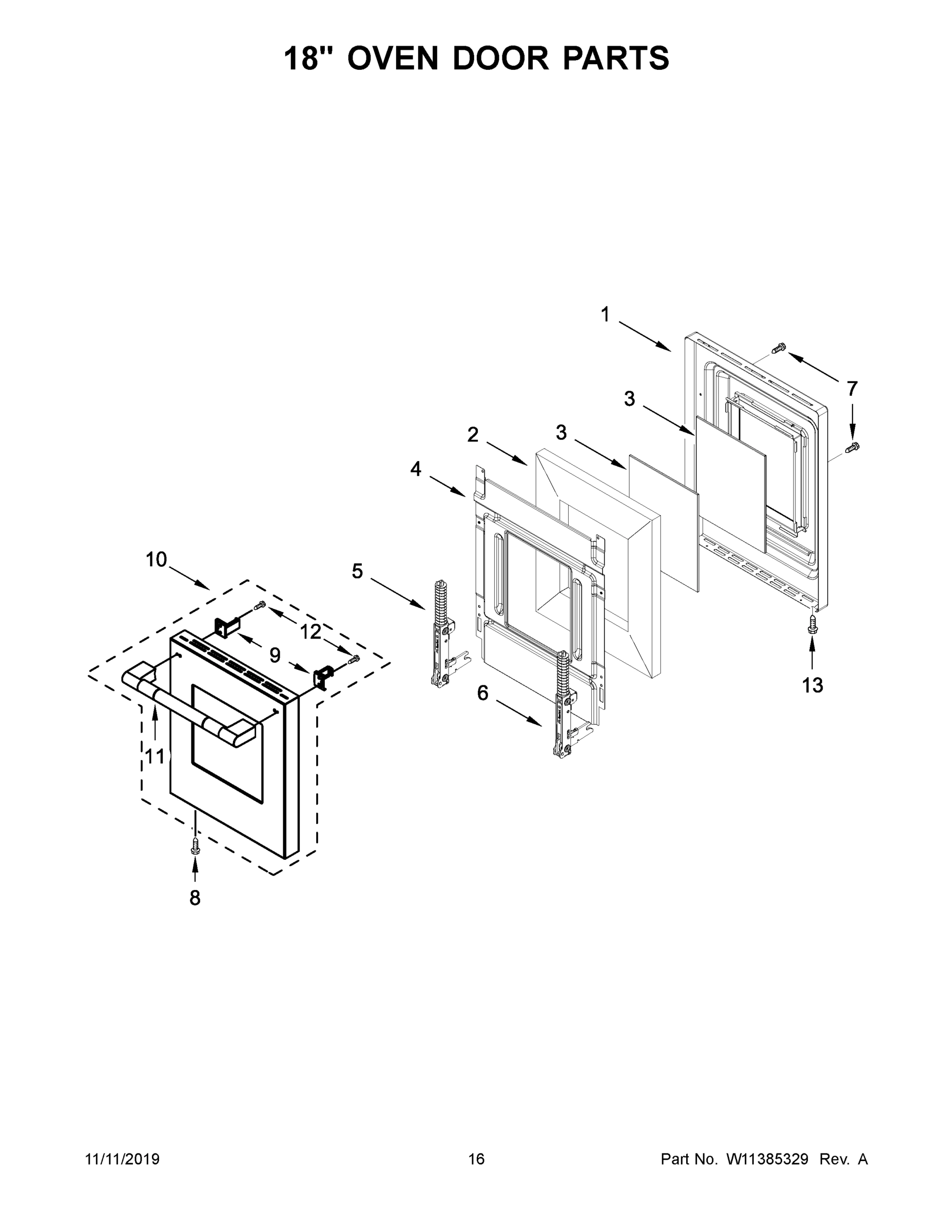

09 - 18" OVEN DOOR PARTS

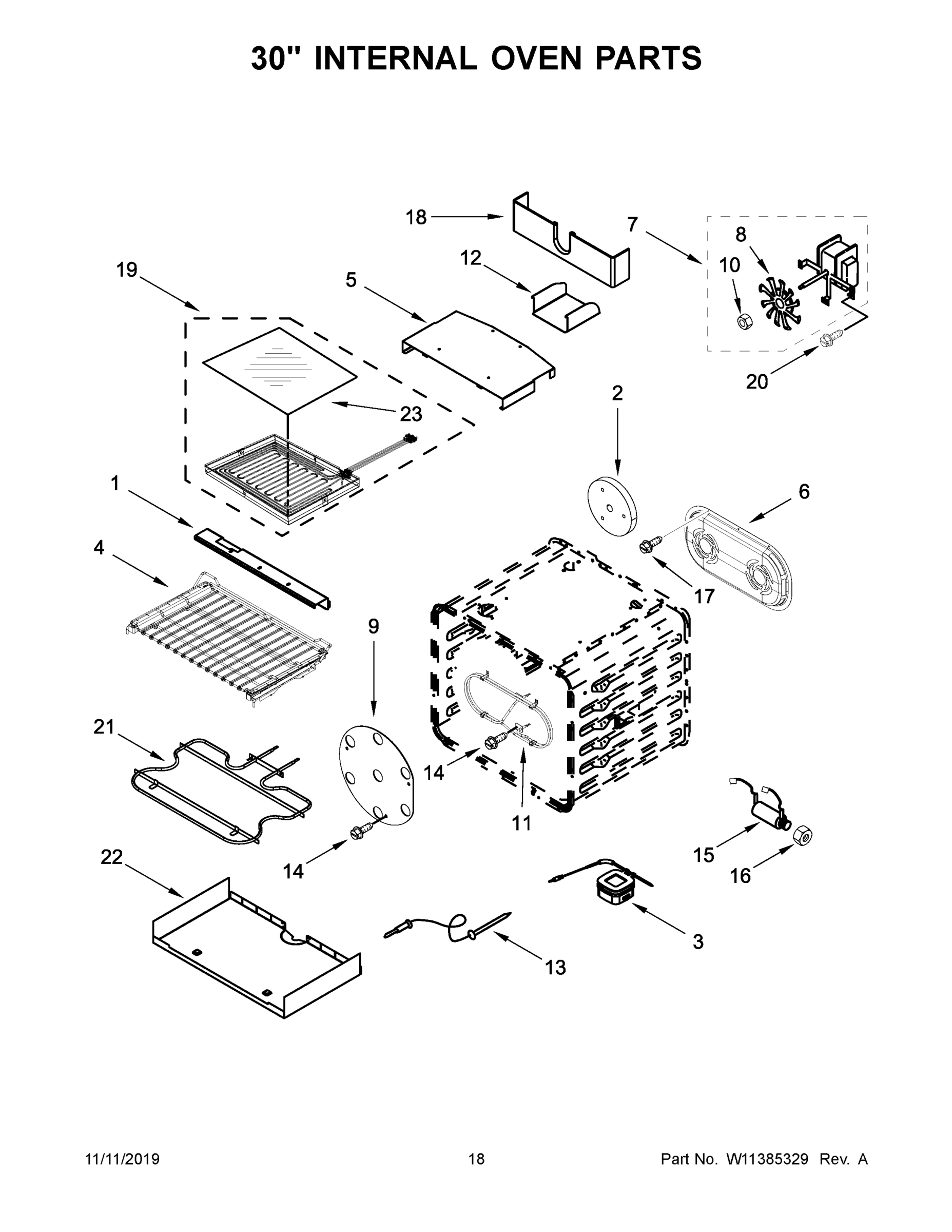

10 - 30" INTERNAL OVEN PARTS

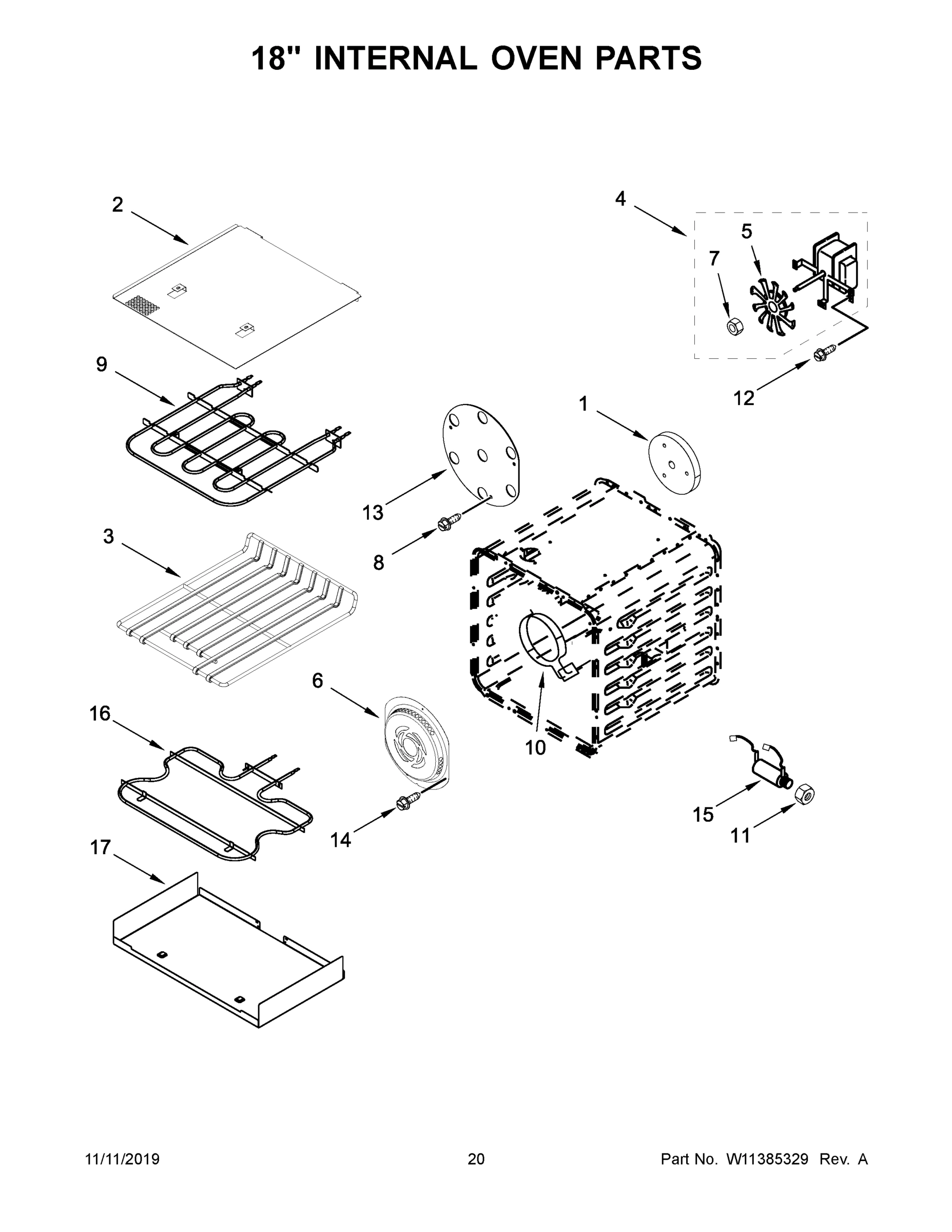

11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDSP548HL00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH
1
GUIDE, USE AND CARE MAY W11114330 Contact Us For Availability
1
PANEL, CABINET SIDE (LEFT) MAY W11111429 Contact Us For Availability
1
KICKPLATE MAY W10883797 Contact Us For Availability
1
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
1
PROBE, SENSOR MAY W10622170 Contact Us For Availability
1
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
1
LINER, DOOR MAY W11036771 Contact Us For Availability
1
LINER, DOOR MAY W11036770 Contact Us For Availability
1
BRACKET, BROIL FRONT MAY W11112336 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11114333 Contact Us For Availability
1A
PANEL, CABINET SIDE (RIGHT) MAY W11111428 Contact Us For Availability
1B
GUIDE, INTERNET CONNECTIVITY MAY W11184746 Contact Us For Availability
1C
MAY W11202366 MAY W11202366 Contact Us For Availability
1D
SHEET, TECH MAY W11202265 Contact Us For Availability
2
ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT MAY W11183722 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) MAY W10892807 Contact Us For Availability
2
MAY W11324987 MAY W11324987 Contact Us For Availability
2
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W11105223 Contact Us For Availability
2
INSULATION, DOOR MAY W10321285 Contact Us For Availability
2
INSULATION, DOOR MAY W10884821 Contact Us For Availability
2
SHIELD, ELEMENT BROIL MAY W10160855 Contact Us For Availability
2A
ASSEMBLY, VALVE MANIFOLD (LEFT CENTER FRONT A MAY W10893058 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (LEFT REAR) MAY W10892495 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W11113380 Contact Us For Availability
2B
ASSEMBLY, VALVE MANIFOLD (RIGHT CENTER FRONT MAY W10893051 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT) MAY W11114338 Contact Us For Availability
2C
ASSEMBLY, ORIFICE HOLDER (LEFT CENTER REAR) MAY W10892810 Contact Us For Availability
2D
ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT) MAY W10892505 Contact Us For Availability
2E
ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR) MAY W10892444 Contact Us For Availability
3
SWITCH, HARNESS MAY W11106300 Contact Us For Availability
3
W10892422 ORIFICE, MAIN (17.4K) (LEFT FRONT A MAY W10892422 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10351278 Contact Us For Availability
3
BLOWER MAY W11200129 Contact Us For Availability
3
GLASS, INNER MAY W11184409 Contact Us For Availability
3
GLASS, INNER MAY W11036789 Contact Us For Availability
3
PROBE, WIRELESS MEAT MAY W11186918 Contact Us For Availability
3
RACK, OVEN (18") MAY W11111351 Contact Us For Availability
3A
ORIFICE, MAIN (15.4K) (LEFT REAR, LEFT CENTER MAY W10892418 Contact Us For Availability
3B
ORIFICE, MAIN (7.2K) (LEFT CENTER REAR) MAY W10892440 Contact Us For Availability
3C
ORIFICE, SIMMER (2.6K) (ALL BUT LEFT CENTER R MAY W10892435 Contact Us For Availability
3D
ORIFICE, SIMMER (2.0K) (LEFT CENTER REAR) MAY W10892429 Contact Us For Availability
4
BRACKET, MANIFOLD MAY W11121194 Contact Us For Availability
4
IGNITER (LEFT FRONT, LEFT REAR, RIGHT CENTER MAY W11238757 Contact Us For Availability
4
DUCT, BOTTOM (48") MAY W11110260 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W11105222 Contact Us For Availability
4
RETAINER, GLASS MAY W11194821 Contact Us For Availability
4
RETAINER, GLASS MAY W11194818 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W11111342 Contact Us For Availability
4
FAN, CONVECTION MAY W11121400 Contact Us For Availability
4A
IGNITER (LEFT CENTER FRONT, RIGHT CENTER REAR MAY W11238758 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W11113378 Contact Us For Availability
4B
IGNITER (LEFT CENTER REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK (SET OF 2)) MAY W11179862 Contact Us For Availability
5
PLATE, MOUNTING MAY 9759118 Contact Us For Availability
5
TUBE, VENT MAY W11290663 Contact Us For Availability
5
TUBE, VENT MAY W10288078 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W11109518 Contact Us For Availability
5
MAY W11390105 MAY W11390105 Contact Us For Availability
5
MAY W11390106 MAY W11390106 Contact Us For Availability
5
BRACKET, BROIL TOP MAY W11158843 Contact Us For Availability
5
BLADE, FAN MAY W11108376 Contact Us For Availability
6
MAY W11330430 MAY W11330430 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
ASSEMBLY, OVEN LIGHT MAY W11223932 Contact Us For Availability
6
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
6
MAY W11390124 MAY W11390124 Contact Us For Availability
6
MAY W11390125 MAY W11390125 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W11232487 Contact Us For Availability
6
MAY W11368180 MAY W11368180 Contact Us For Availability
6A
SEAL, VENT SLOPE (18") MAY W10270402 Contact Us For Availability
7
BRACKET, GRIDDLE-RTD MAY W11121384 Contact Us For Availability
7
SCREW MAY 7101P426-60 Contact Us For Availability
7
MAY W11323260 MAY W11323260 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10908710 Contact Us For Availability
7
LENS, LIGHT MAY W10169756 Contact Us For Availability
7
FRAME, GLASS MAY W10272594 Contact Us For Availability
7
MAY W10898280 MAY W10898280 Contact Us For Availability
7
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
8
TUBE, MANIFOLD SUPPLY (LEFT) MAY W10892784 Contact Us For Availability
8
BARRIER, APPLIANCE MANAGER MAY W11281269 Contact Us For Availability
8
SCREW MAY 4449743 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER MOUNT MAY W11047754 Contact Us For Availability
8
SCREW MAY W10162096 Contact Us For Availability
8
SCREW MAY 4449154 Contact Us For Availability
8A
TUBE, MANIFOLD SUPPLY (LEFT CENTER) MAY W10892775 Contact Us For Availability
8B
TUBE, MANIFOLD SUPPLY (RIGHT CENTER) MAY W10892789 Contact Us For Availability
9
ADAPTER, MALE MAY 4453116 Contact Us For Availability
9
MAY W11095709 MAY W11095709 Contact Us For Availability
9
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY W11096294 Contact Us For Availability
9
MAY W11353392 MAY W11353392 Contact Us For Availability
9
BRACKET, HANDLE MAY W11197830 Contact Us For Availability
9
ELEMENT, BROIL MAY W10116010 Contact Us For Availability
10
SENSOR, GRIDDLE MAY W10891584 Contact Us For Availability
10
COVER, WIFI OUTER MAY W11205795 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
COVER, LATCH MAY W10160858 Contact Us For Availability
10
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W11199071 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W10799306 Contact Us For Availability
10
ELEMENT, CONVECTION STEAM MAY 9762242 Contact Us For Availability
10A
SLOPE, EXHAUST VENT (18") MAY W10818235 Contact Us For Availability
11
COVER, IGNITION MAY W10115843 Contact Us For Availability
11
BEZEL, COOKTOP (FOR 6 COOKTOP BURNERS) MAY W11090283 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
COVER, CHANNEL MAY W11106956 Contact Us For Availability
11
HANDLE, DOOR MAY W11102826 Contact Us For Availability
11
HANDLE, DOOR MAY W11102824 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
11
NUT, LOCKING MAY W11033111 Contact Us For Availability
12
MANAGER, APPLIANCE (EXPANSION) MAY W10890116 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
RECEIVER, HINGE (RIGHT) MAY W11096293 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W11102297 Contact Us For Availability
12
BLOCK, TERMINAL MAY W11030753 Contact Us For Availability
12
SCREW MAY W10276043 Contact Us For Availability
12
COVER, BROIL TERMINAL MAY W11111391 Contact Us For Availability
12
SCREW MAY W10720084 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W11102296 Contact Us For Availability
13
SCREW MAY 3196160 Contact Us For Availability
13
CAP, BURNER (BLACK (SET OF 6)) MAY W11121392 Contact Us For Availability
13
TUBE, PRESSURE REGULATOR MAY W11106963 Contact Us For Availability
13
NUT MAY 3400029 Contact Us For Availability
13
BADGE (STAINLESS) MAY W11238656 Contact Us For Availability
13
SCREW MAY W10607120 Contact Us For Availability
13
PLATE, FAN MAY W10261523 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (ALL BUT LEFT CENTER R MAY W10891987 Contact Us For Availability
14
MAY W11369238 MAY W11369238 Contact Us For Availability
14
SCREW MAY W10739592 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (LEFT CENTER REAR) MAY W10892022 Contact Us For Availability
15
SCREW MAY 3196176 Contact Us For Availability
15
GASKET, OVEN (30") MAY W11115328 Contact Us For Availability
15
MAY W11177696 MAY W11177696 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
15A
GASKET, OVEN (18") MAY W11115326 Contact Us For Availability
16
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
16
KNOB, OVE MAY W10891872 Contact Us For Availability
16
DUCT-CHASSIS, REAR MAY W11050145 Contact Us For Availability
16
MAY W10864671 MAY W10864671 Contact Us For Availability
16
ELEMENT, HIDDEN BAKE MAY W11045324 Contact Us For Availability
17
ASSEMBLY, GRIDDLE MODULE MAY W10891745 Contact Us For Availability
17
MAY W10891873 MAY W10891873 Contact Us For Availability
17
COLUMN, CENTRAL MAY W10115819 Contact Us For Availability
17
SWITCH, PRESSURE MAY W10194453 Contact Us For Availability
17
TRAY, HIDDEN BAKE MAY W11110223 Contact Us For Availability
18
ELEMENT, GRIDDLE MAY W10891698 Contact Us For Availability
18
MAY W10803515 MAY W10803515 Contact Us For Availability
18
MAY W11362015 MAY W11362015 Contact Us For Availability
18
HOSE, SILICONE (TRANSLUCENT) MAY W10076930 Contact Us For Availability
18
COVER PLATE, TERMINAL HOLE MAY W11170823 Contact Us For Availability
18A
MAY W10803519 MAY W10803519 Contact Us For Availability
18A
HOSE, SILICONE (RED) MAY W10116067 Contact Us For Availability
18B
MAY W10804364 MAY W10804364 Contact Us For Availability
19
INSULATION, GRIDDLE MAY W11121383 Contact Us For Availability
19
MAY W10271524 MAY W10271524 Contact Us For Availability
19
MAY W11324984 MAY W11324984 Contact Us For Availability
19
CLAMP, CRIMP (BLACK) MAY 9761147 Contact Us For Availability
19
ELEMENT, BROIL MAY W11210530 Contact Us For Availability
19A
CLAMP, CRIMP (RED) MAY 9761146 Contact Us For Availability
20
MAY W11156418 MAY W11156418 Contact Us For Availability
20
CHASSIS, BOTTOM MAY W11040800 Contact Us For Availability
20
BRACKET, STEAM MOUNT MAY W10331561 Contact Us For Availability
21
MAY W10130760 MAY W10130760 Contact Us For Availability
21
PANEL, BACK TOP MAY W11103335 Contact Us For Availability
21
SCREW MAY 3177991 Contact Us For Availability
21
ELEMENT, HIDDEN BAKE MAY W10115995 Contact Us For Availability
21A
MAY W10130759 MAY W10130759 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
22
PANEL, BACK BOTTOM MAY W11034123 Contact Us For Availability
22
ENCLOSURE, STEAM VALVE MAY W10160877 Contact Us For Availability
22
TRAY, HIDDEN BAKE MAY W11109421 Contact Us For Availability
23
MAY W11253772 MAY W11253772 Contact Us For Availability
23
BRACKET, PRESSURE REGULATOR MAY W11096823 Contact Us For Availability
23
VALVE, SOLENOID MAY W10111418 Contact Us For Availability
23
GLASS, BROIL ELEMENT MAY W11193191 Contact Us For Availability
24
MAY W10882958 MAY W10882958 Contact Us For Availability
24
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
24
SENSOR, CONDUCTIVITY SLIP FIT MAY W10076760 Contact Us For Availability
25
SCREW MAY 3400518 Contact Us For Availability
25
MAY W11334757 MAY W11334757 Contact Us For Availability
26
MAY 3196537 MAY 3196537 Contact Us For Availability
26
DRAWER, APPLIANCE MANAGER MAY W11106341 Contact Us For Availability
26
CLIP, WATER TUBE MAY 2208136 Contact Us For Availability
27
MAY W10914998 MAY W10914998 Contact Us For Availability
27
MAY W11092978 MAY W11092978 Contact Us For Availability
28
MAY W11369237 MAY W11369237 Contact Us For Availability
28
FILTER MAY W10049700 Contact Us For Availability
29
MAY W11205794 MAY W11205794 Contact Us For Availability
29
MAY W11368831 MAY W11368831 Contact Us For Availability
30
SPRING CLIP, RANGE MAY W11036559 Contact Us For Availability
30
MAY W11033497 MAY W11033497 Contact Us For Availability
31
MAY W10116114 MAY W10116114 Contact Us For Availability
31
SCREW MAY 3196560 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
34
MAY W10294500 MAY W10294500 Contact Us For Availability
35
MAY 3400814 MAY 3400814 Contact Us For Availability
36
MAY W11090650 MAY W11090650 Contact Us For Availability
37
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
38
MAY W11090651 MAY W11090651 Contact Us For Availability
39
MAY W10896369 MAY W10896369 Contact Us For Availability
40
MAY W11130078 MAY W11130078 Contact Us For Availability
41
MAY W11104966 MAY W11104966 Contact Us For Availability
42
MAY W11100271 MAY W11100271 Contact Us For Availability
43
MAY W11110768 MAY W11110768 Contact Us For Availability
44
MAY W10884943 MAY W10884943 Contact Us For Availability
45
MAY 7101P624-60 MAY 7101P624-60 Contact Us For Availability
46
MAY W10891871 MAY W10891871 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
NUT, HEX MAY 112432 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
BOARD, TRANSIENT SUPPRESSOR MAY W10590933 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10780278 Contact Us For Availability
NI
HARNESS, GRIDDLE MAY W10903727 Contact Us For Availability
NI
MAY W11200313 MAY W11200313 Contact Us For Availability
NI
MAY W11200316 MAY W11200316 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11200318 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W11200329 Contact Us For Availability
NI
CORD, POWER MAY W11212216 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
HARNESS, WIFI MAY W11242785 Contact Us For Availability
NI
NUT MAY 3400968 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10282816 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10282812 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK BACKSPLASH MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, 48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE KIT, BURN MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
