Model Maytag JDS9865BDP23 RANGE – Common Parts & Diagrams

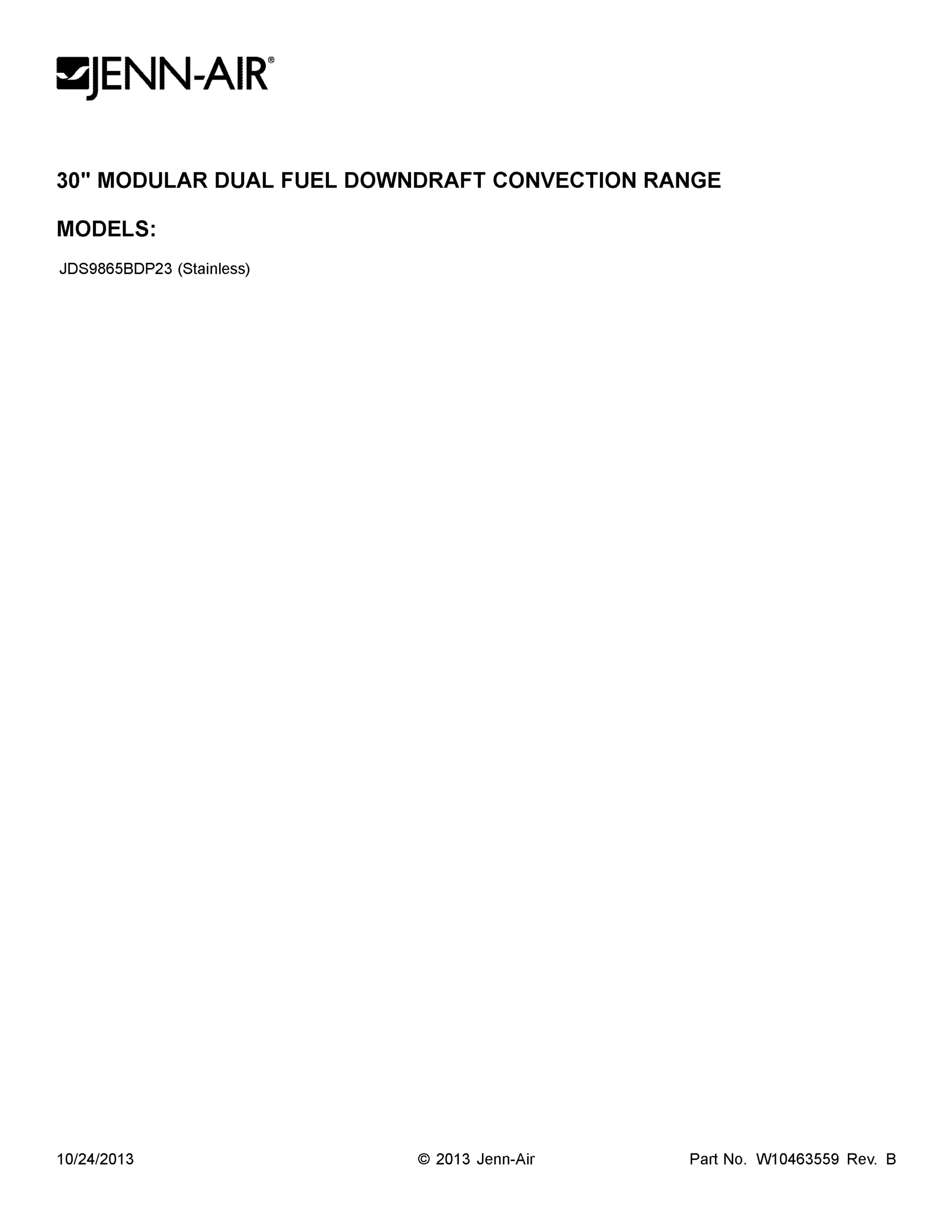

01 - COVER SHEET

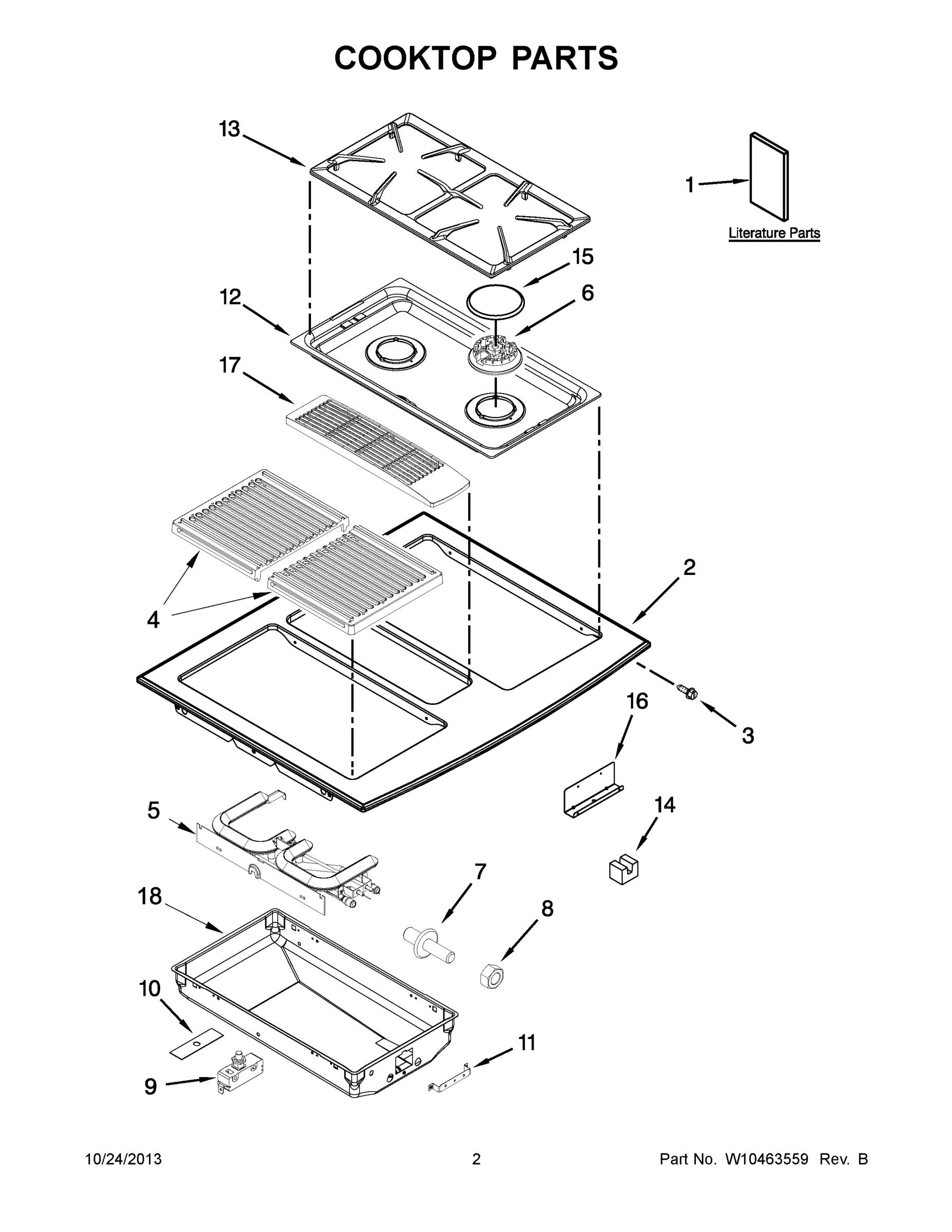

02 - COOKTOP PARTS

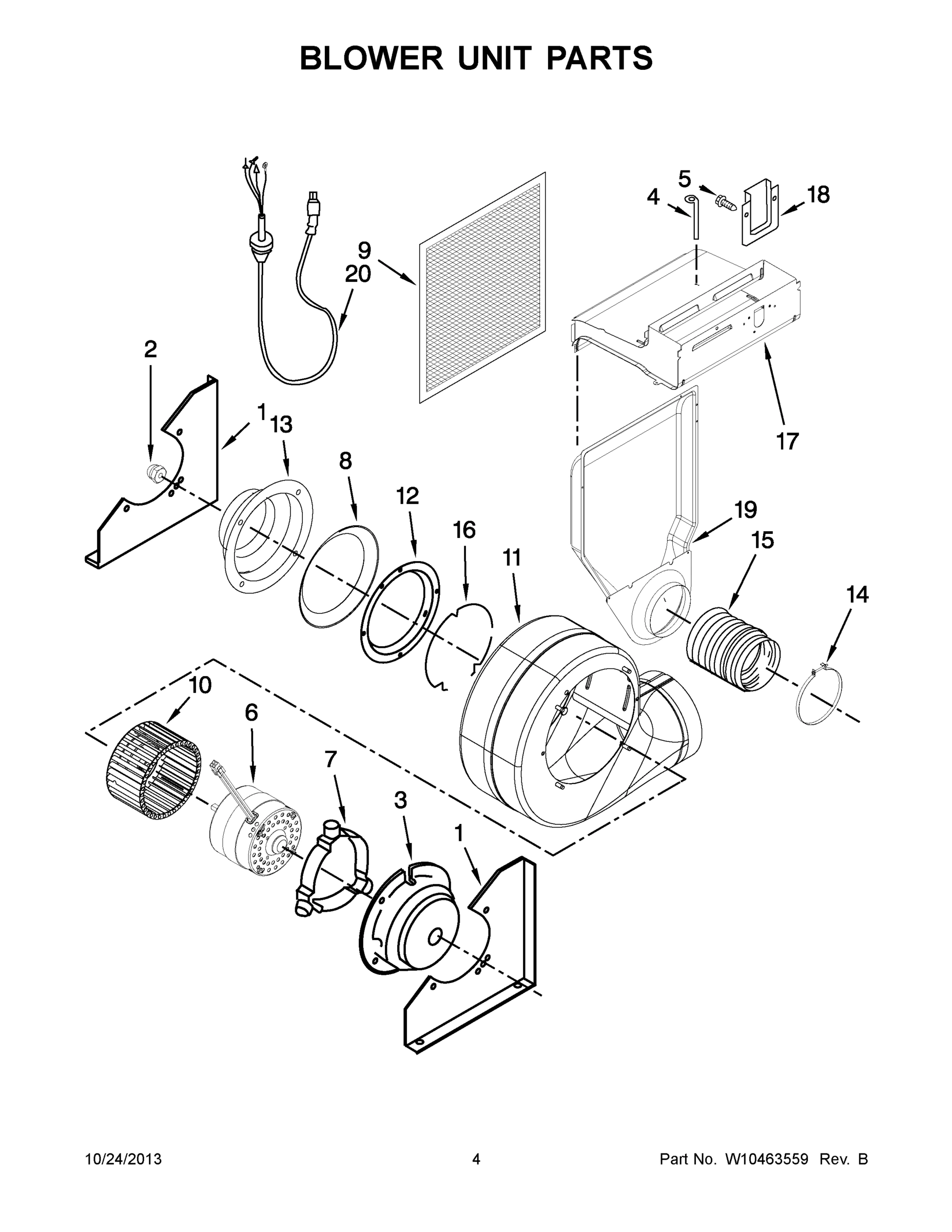

03 - BLOWER UNIT PARTS

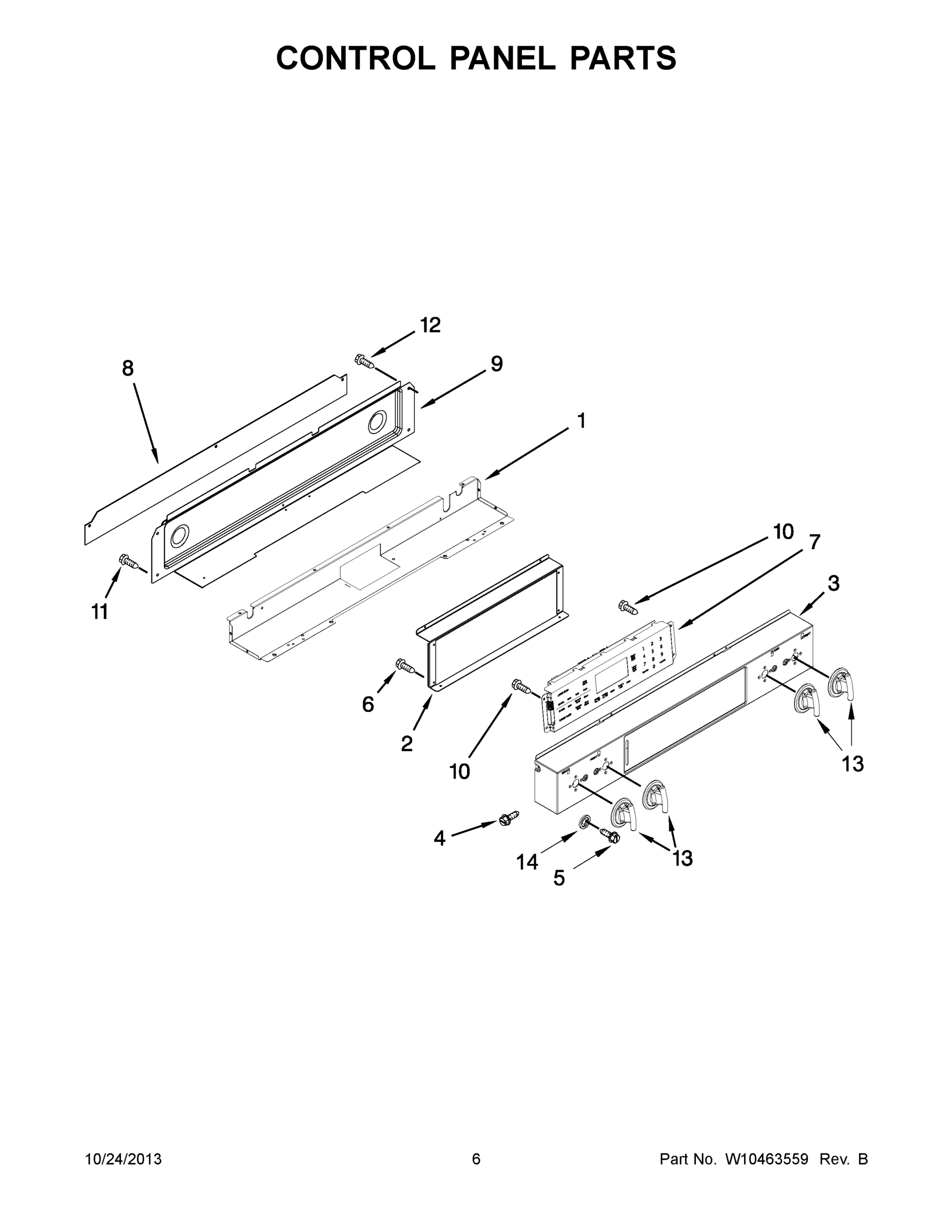

04 - CONTROL PANEL PARTS

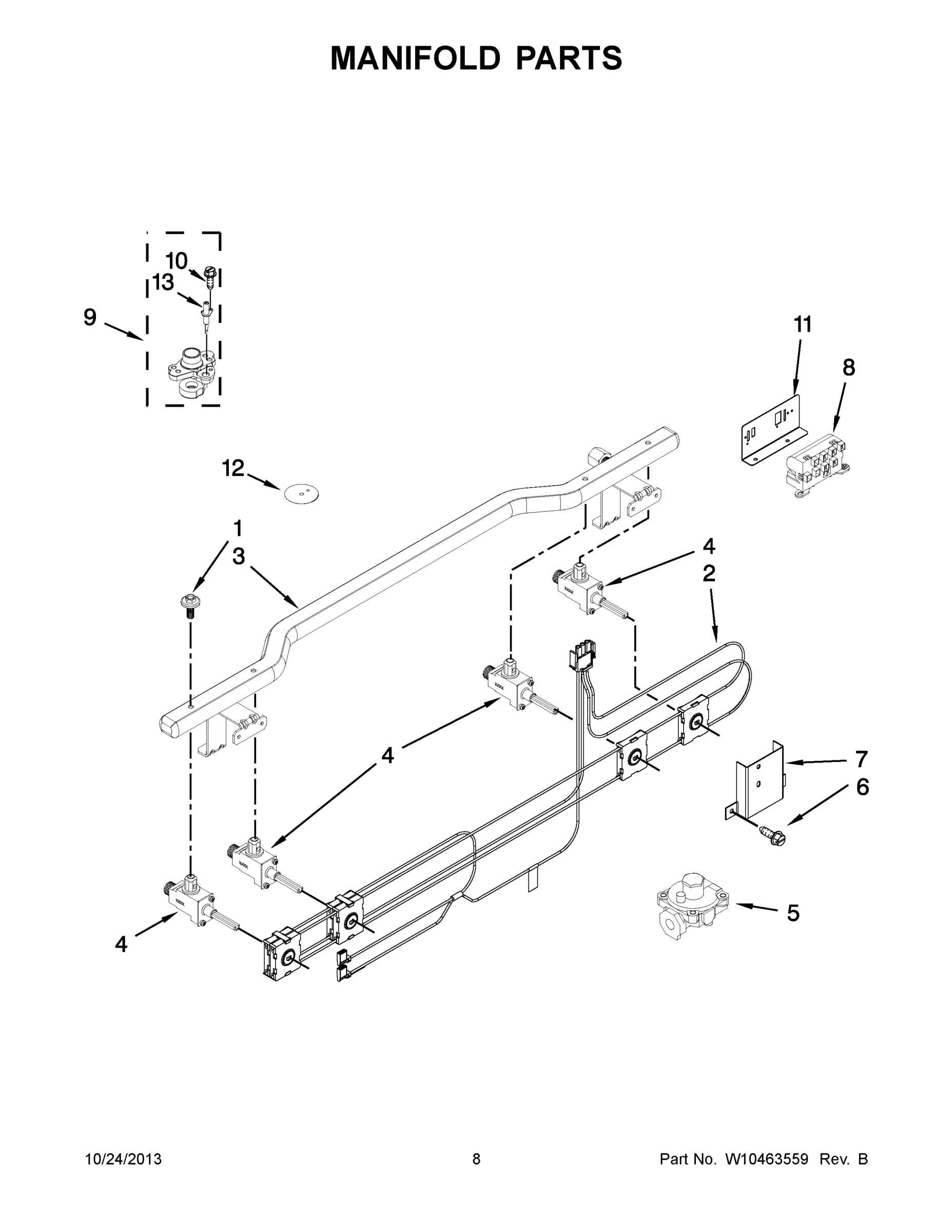

05 - MANIFOLD PARTS

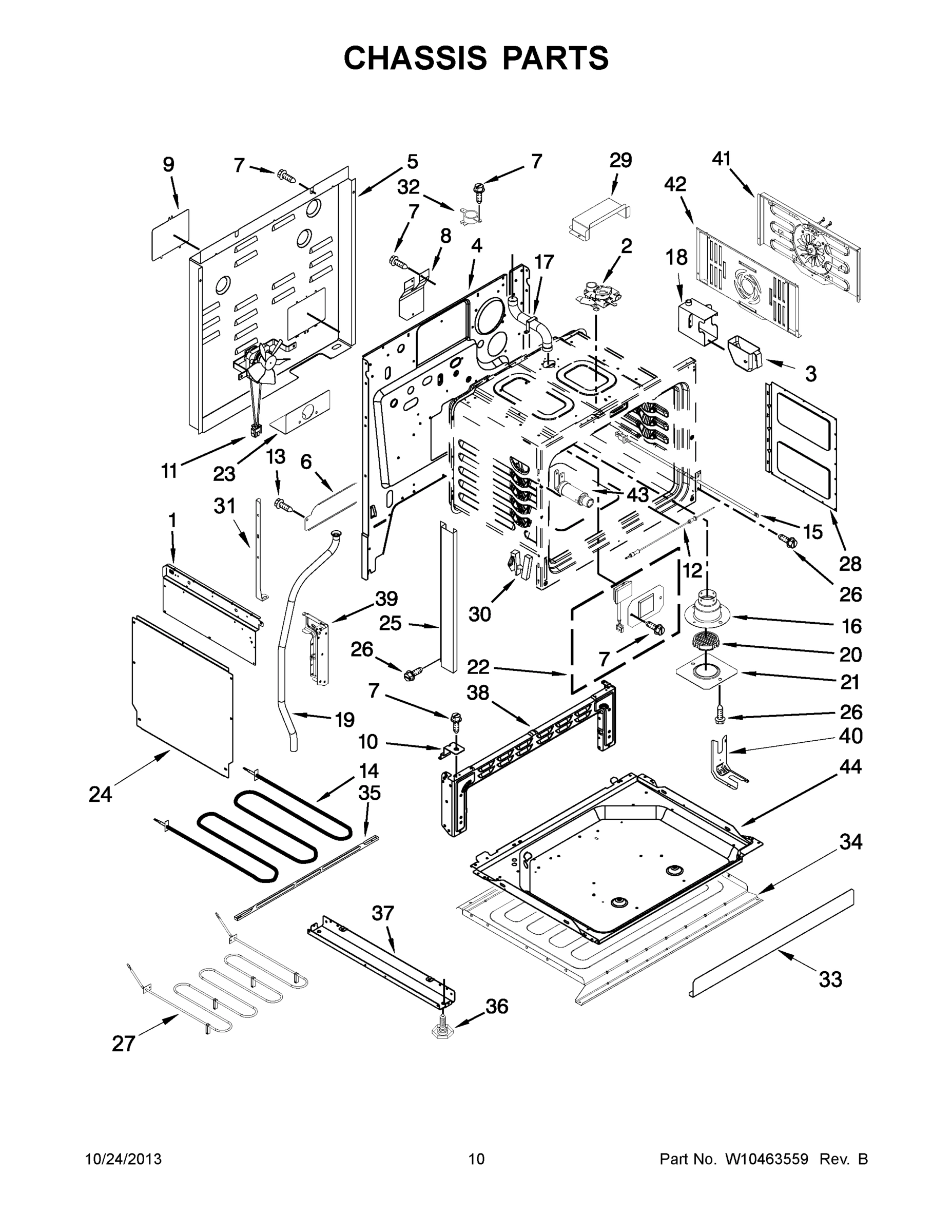

06 - CHASSIS PARTS

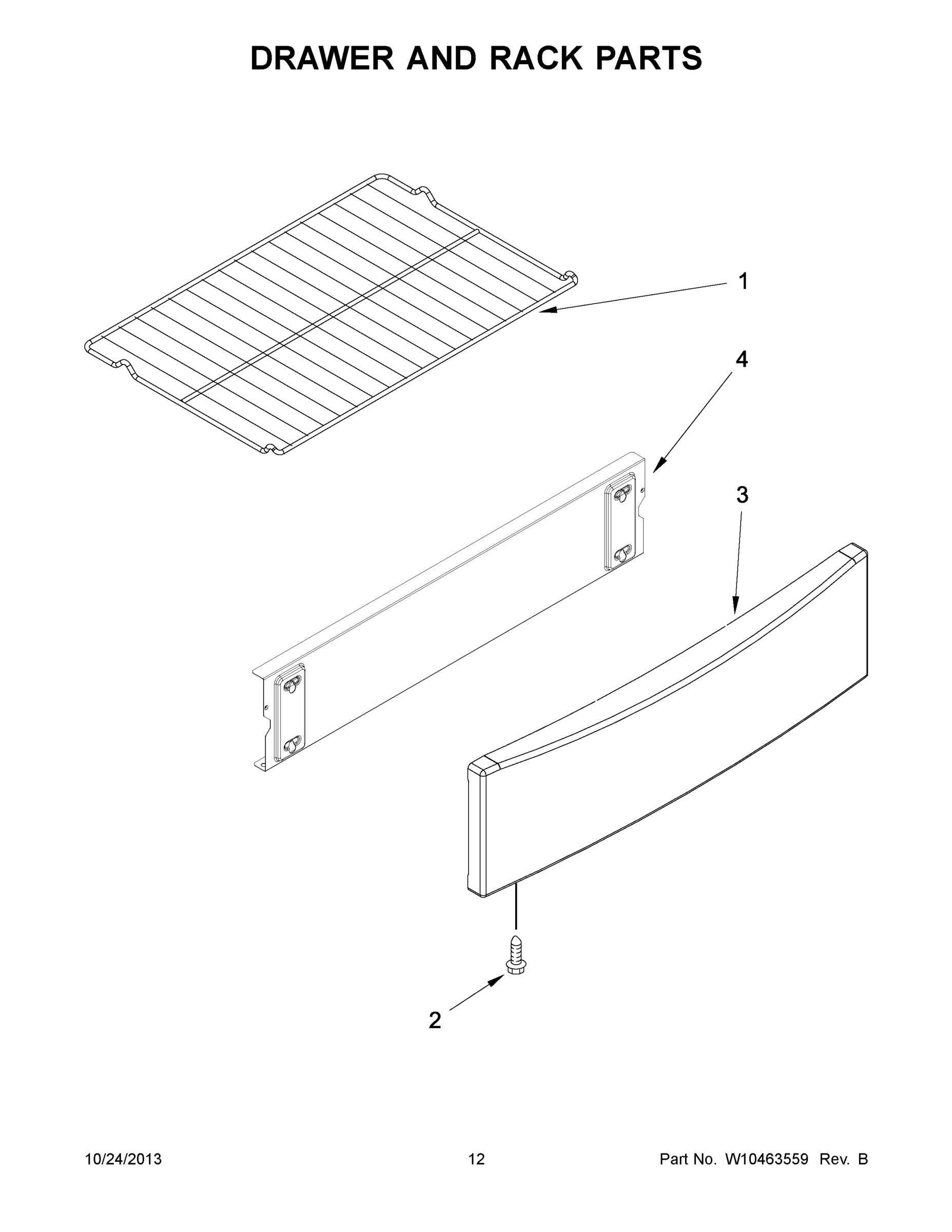

07 - DRAWER AND RACK PARTS

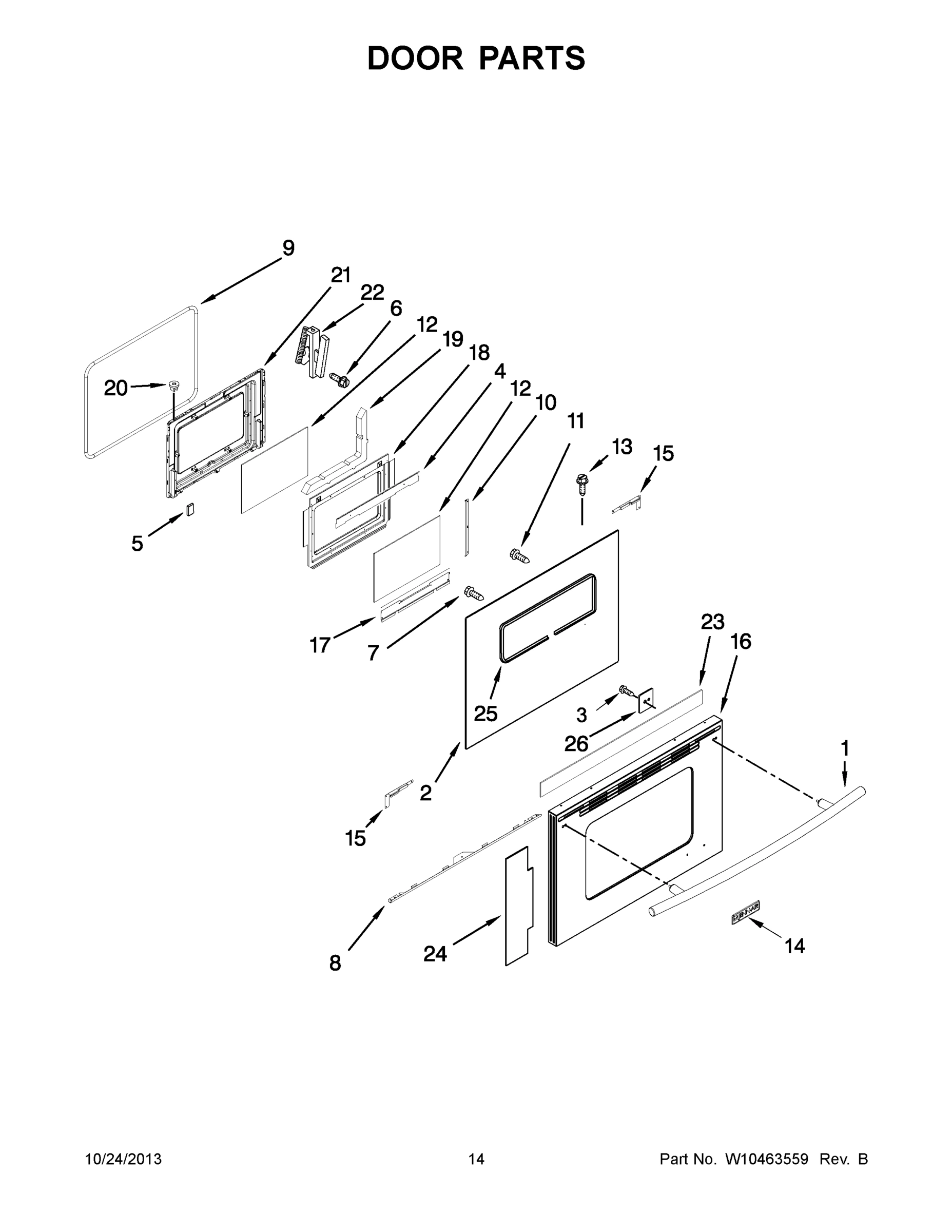

08 - DOOR PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS9865BDP23 RANGE
1
MAY 8101P702-60 MAY 8101P702-60 Contact Us For Availability
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
USE & CARE GUIDE MAY 8113P754-60 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) MAY 8119P395-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10394680 MAY W10394680 Contact Us For Availability
1
MAY 3801F631-51 MAY 3801F631-51 Contact Us For Availability
1
MAY 3807F739-51 MAY 3807F739-51 Contact Us For Availability
1
SCREW MAY 7101P639-60 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
1
Handle, Door MAY 7701P475-60 Contact Us For Availability
2
MAY W10331861 MAY W10331861 Contact Us For Availability
2
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
2
MAY 3801F932-51 MAY 3801F932-51 Contact Us For Availability
2
ASSEMBLY, IGNITOR SWITCH MAY W10183582 Contact Us For Availability
2
MAY W10274035 MAY W10274035 Contact Us For Availability
2
GLASS, INNER COATED MAY 7902P768-60 Contact Us For Availability
3
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
3
PANEL, CONTROL (INCLUDING MEMBRANE SWITCH) MAY 5760M373-60 Contact Us For Availability
3
PIPE, MANIFOLD MAY W10165142 Contact Us For Availability
3
MAY 8312P190-60 MAY 8312P190-60 Contact Us For Availability
3
PANEL, DRAWER FRONT MAY W10253209 Contact Us For Availability
3
SCREW, HANDLE MAY 7101P668-60 Contact Us For Availability
4
MAY 7518P070-60 MAY 7518P070-60 Contact Us For Availability
4
MAY 7809P030-60 MAY 7809P030-60 Contact Us For Availability
4
VALVE, TOP BURNER (5K) (RIGHT REAR) MAY 7502P561-60 Contact Us For Availability
4
VALVE, TOP BURNER (16K) (RIGHT FRONT) MAY 7502P564-60 Contact Us For Availability
4
VALVE, TOP BURNER (LEFT FRONT & LEFT REAR) MAY W10185517 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
HANGER, ACCESS PANEL MAY 3806F011-80 Contact Us For Availability
4
SHIELD MAY 3604F418-51 Contact Us For Availability
5
ASSEMBLY, GRILLE BURNER MAY 7505P290-60 Contact Us For Availability
5
Screw MAY 7101P208-60 Contact Us For Availability
5
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
5
MAY 7510P077-60 MAY 7510P077-60 Contact Us For Availability
5
CLIP, DOOR GLASS MAY 7112P034-60 Contact Us For Availability
6
BURNER HEAD (16K) (RIGHT FRONT) MAY 7540P047-60 Contact Us For Availability
6
MAY W10406243 MAY W10406243 Contact Us For Availability
6
MOTOR, BLOWER MAY W10201322 Contact Us For Availability
6
Screw (Black) MAY 7101P633-60 Contact Us For Availability
6
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
6
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
PIN, LOCATOR MAY 7113P020-60 Contact Us For Availability
7
ASSEMBLY, MOTOR BAND MAY 5700D526-60 Contact Us For Availability
7
CONTROL, EOCIII MAY 8507P232-60 Contact Us For Availability
7
BRACKET, REGULATOR SUPPORT MAY 3801F913-51 Contact Us For Availability
8
MAY 7103P160-60 MAY 7103P160-60 Contact Us For Availability
8
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
8
SHIELD, SIDE MAY 3604F433-51 Contact Us For Availability
8
Module, Spark MAY 7431P064-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
RETAINER, DOOR GLASS SUPPORT MAY 3804F265-45 Contact Us For Availability
9
MAY 7450P012-60 MAY 7450P012-60 Contact Us For Availability
9
MAY 8310P006-60 MAY 8310P006-60 Contact Us For Availability
9
HOLDER, ORIFICE (16K) (RIGHT FRONT) MAY 7527P081-60 Contact Us For Availability
9
HOLDER, ORIFICE (5K) (RIGHT REAR) MAY 7527P084-60 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7003P129-60 MAY 7003P129-60 Contact Us For Availability
10
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
10
MAY 3807F615-51 MAY 3807F615-51 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7112P150-60 MAY 7112P150-60 Contact Us For Availability
11
ASSEMBLY, SCROLL MAY 2822W001-80 Contact Us For Availability
11
Support, Spark Module MAY 3807F752-45 Contact Us For Availability
11
MAY W10317679 MAY W10317679 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
12
MAY 2001F270-09 MAY 2001F270-09 Contact Us For Availability
12
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
12
COVER,VALVE SWITCH MAY 7724P194-60 Contact Us For Availability
12
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
13
GRATE, CARTRIDGE MAY 7518P348-60 Contact Us For Availability
13
MAY 2818F001-80 MAY 2818F001-80 Contact Us For Availability
13
MAY W10175695 MAY W10175695 Contact Us For Availability
13
IGNITOR, E-BURNER MAY 7432P112-60 Contact Us For Availability
13
SCREW, SHOULDER MAY 7101P604-60 Contact Us For Availability
13
SCREW MAY 7101P634-60 Contact Us For Availability
14
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
14
MAY 7111P047-60 MAY 7111P047-60 Contact Us For Availability
14
BEZEL, KNOB (RIGHT REAR) MAY 7740P168-60 Contact Us For Availability
14
BEZEL, KNOB (RIGHT FRONT) MAY 7740P169-60 Contact Us For Availability
14
BEZEL, KNOB (LEFT FRONT & LEFT REAR) MAY W10220976 Contact Us For Availability
14
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
14
MAY 7719P087-60 MAY 7719P087-60 Contact Us For Availability
15
CAP, BURNER (BLACK (RIGHT REAR)) MAY 7504P202-60 Contact Us For Availability
15
CAP, BURNER (BLACK (RIGHT FRONT)) MAY 7504P204-60 Contact Us For Availability
15
MAY 8032P003-60 MAY 8032P003-60 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
15
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
16
MAY 3807F743-51 MAY 3807F743-51 Contact Us For Availability
16
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 7760P158-60 MAY 7760P158-60 Contact Us For Availability
17
MAY 7772P045-60 MAY 7772P045-60 Contact Us For Availability
17
MAY 2801W033-80 MAY 2801W033-80 Contact Us For Availability
17
MAY 8026P094-60 MAY 8026P094-60 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
PAN, GRILLE MAY 3401F099-19 Contact Us For Availability
18
MAY 8312P191-60 MAY 8312P191-60 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
19
ASSEMBLY, PLENUM SIDE MAY 2801L037-80 Contact Us For Availability
19
TUBE, DRAIN MAY 7506P406-60 Contact Us For Availability
19
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
20
MAY 7402P104-60 MAY 7402P104-60 Contact Us For Availability
20
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
PLATE, SMOKE ELIMINATOR MAY 3605F344-45 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
ASSEMBLY, LIGHT MAY 7407P180-60 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
23
MAY 7002P427-60 MAY 7002P427-60 Contact Us For Availability
24
SHIELD, LOWER MAY 3604F416-51 Contact Us For Availability
24
INSULATION, FOIL MAY 7002P463-60 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
25
MAY 7201P141-60 MAY 7201P141-60 Contact Us For Availability
26
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
26
BACKPLATE MAY W10167659 Contact Us For Availability
27
MAY W10310274 MAY W10310274 Contact Us For Availability
28
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
29
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
31
SUPPORT, OVEN REAR MAY 3807F732-51 Contact Us For Availability
32
LIMIT, OVEN MAY 7403P855-60 Contact Us For Availability
33
MAY 4005F779-80 MAY 4005F779-80 Contact Us For Availability
34
RETAINER, INSULATION MAY 3804F312-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
MAY W10271711 MAY W10271711 Contact Us For Availability
39
MAY 4020F032-80 MAY 4020F032-80 Contact Us For Availability
39
MAY 4020F033-80 MAY 4020F033-80 Contact Us For Availability
40
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
41
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
42
MAY W10312218 MAY W10312218 Contact Us For Availability
43
RECEPTACLE, MEAT PROBE MAY 7408P086-60 Contact Us For Availability
44
RETAINER, INSULATION MAY 3804F305-51 Contact Us For Availability
NI
TUBING (LEFT FRONT) MAY 7506P471-60 Contact Us For Availability
NI
TUBING (LEFT REAR) MAY 7506P472-60 Contact Us For Availability
NI
TUBING (RIGHT FRONT) MAY 7506P473-60 Contact Us For Availability
NI
TUBING (RIGHT REAR) MAY 7506P474-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
TUBING, SUPPLY MAY W10224724 Contact Us For Availability
NI
MAY 7002P466-60 MAY 7002P466-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P467-60 Contact Us For Availability
NI
MAY 7002P468-60 MAY 7002P468-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK (LEFT) MAY 5171P787-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORY PARTS, LP CONVERSION KIT MAY 7507P417-60 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, CARTRIDGE SPAR MAY W10173470 Contact Us For Availability
NI
WIRING HARNESS PARTS, CORD, POWER MAY W10221108 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10394653 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10394791 Contact Us For Availability
× ![]()
