Model Maytag JDS9860CDW00 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - BLOWER UNIT PARTS

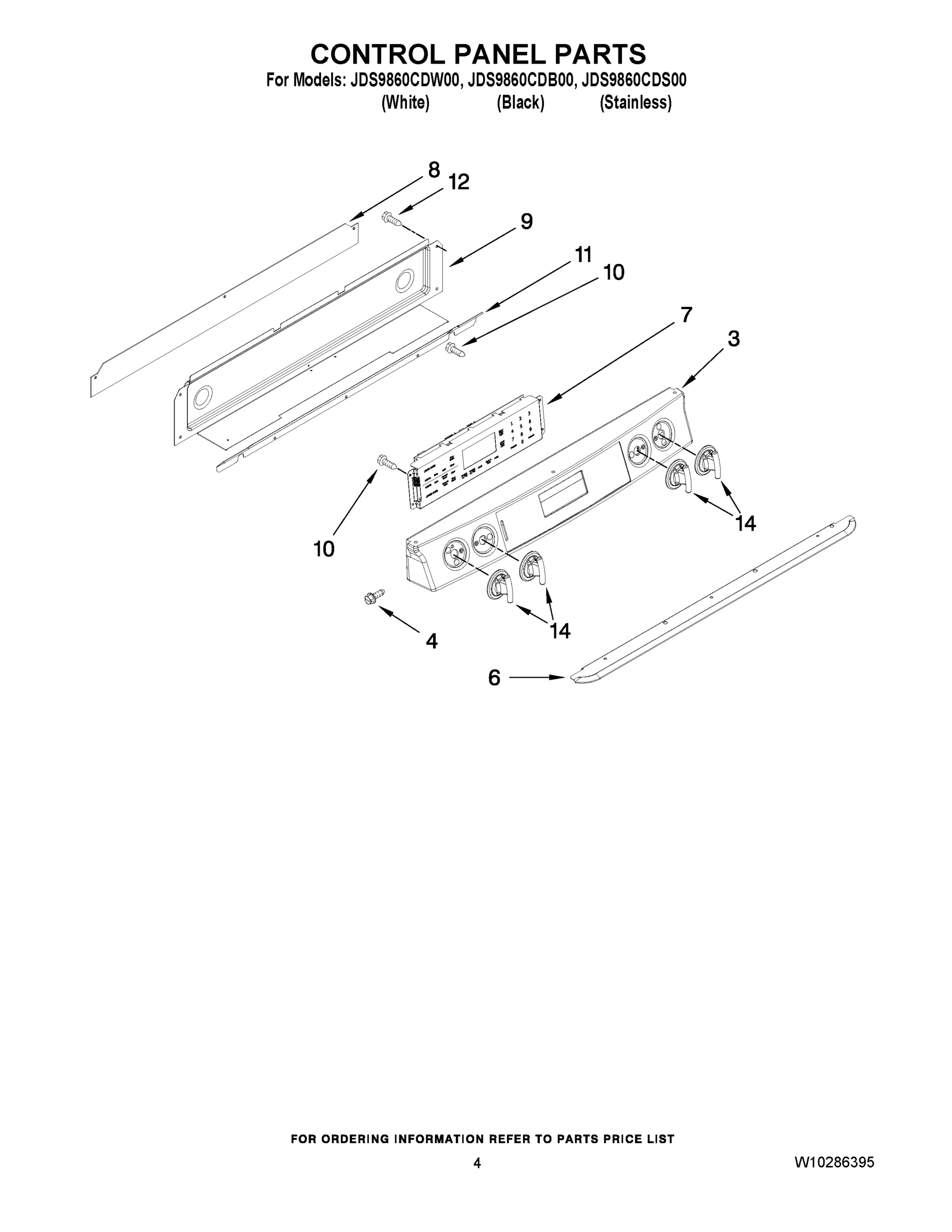

03 - CONTROL PANEL PARTS

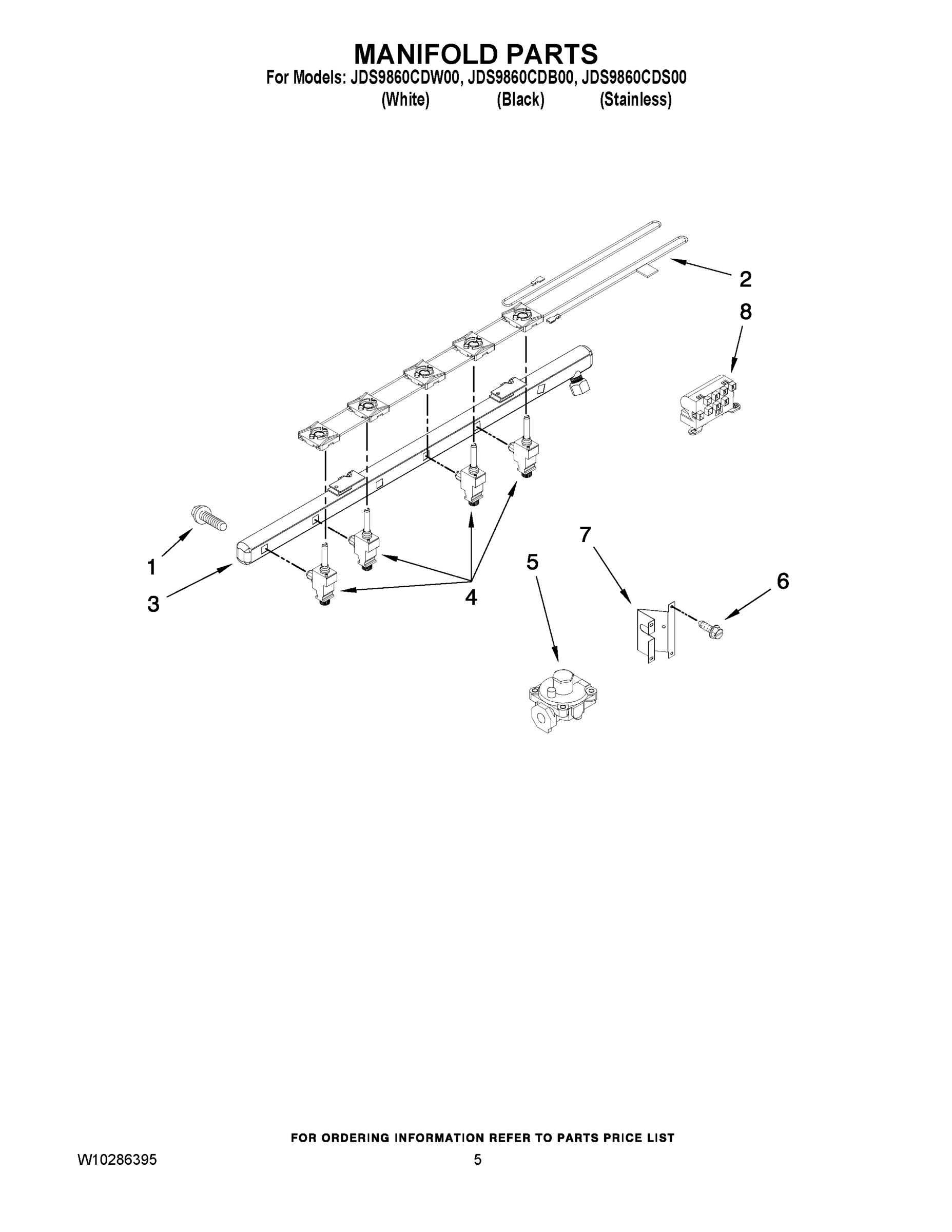

04 - MANIFOLD PARTS

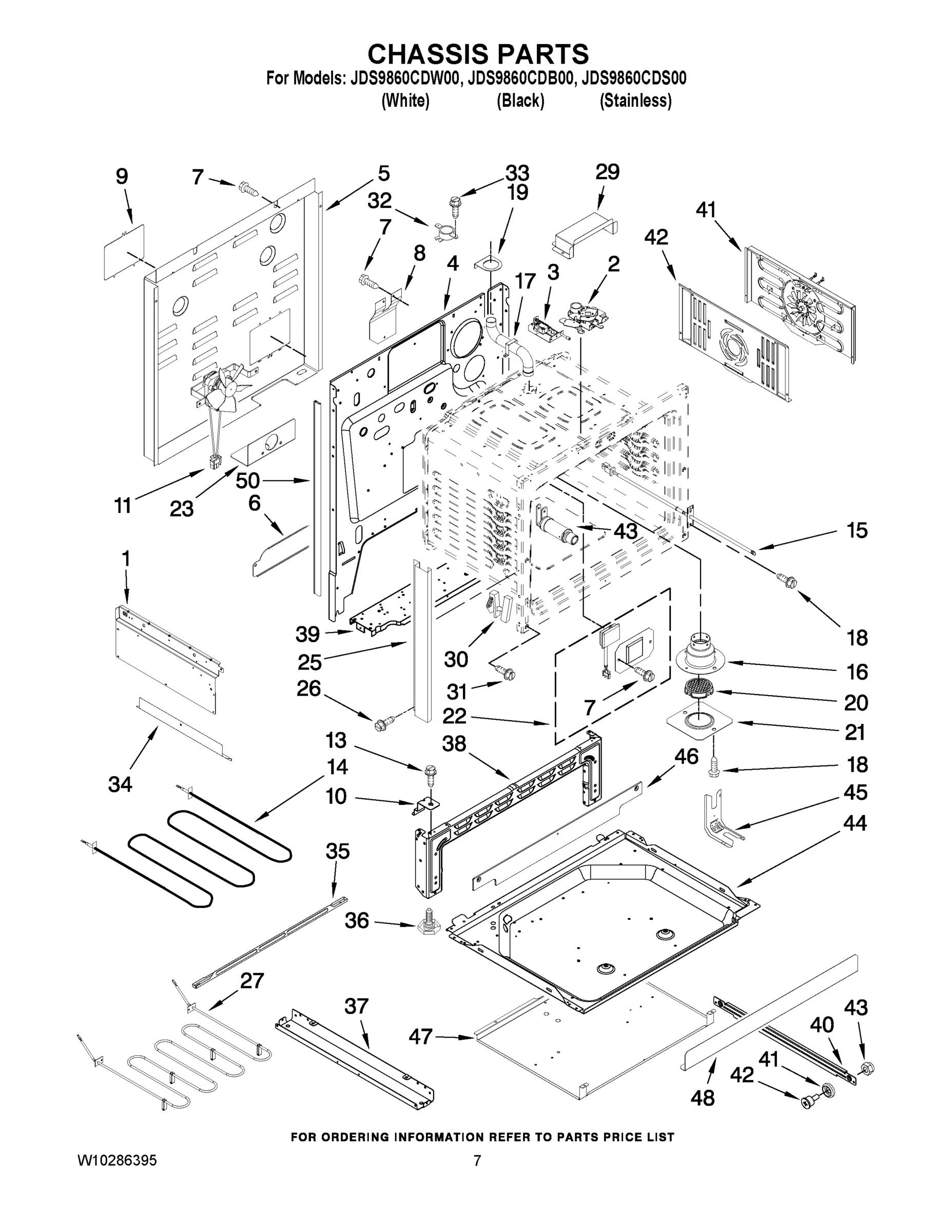

05 - CHASSIS PARTS

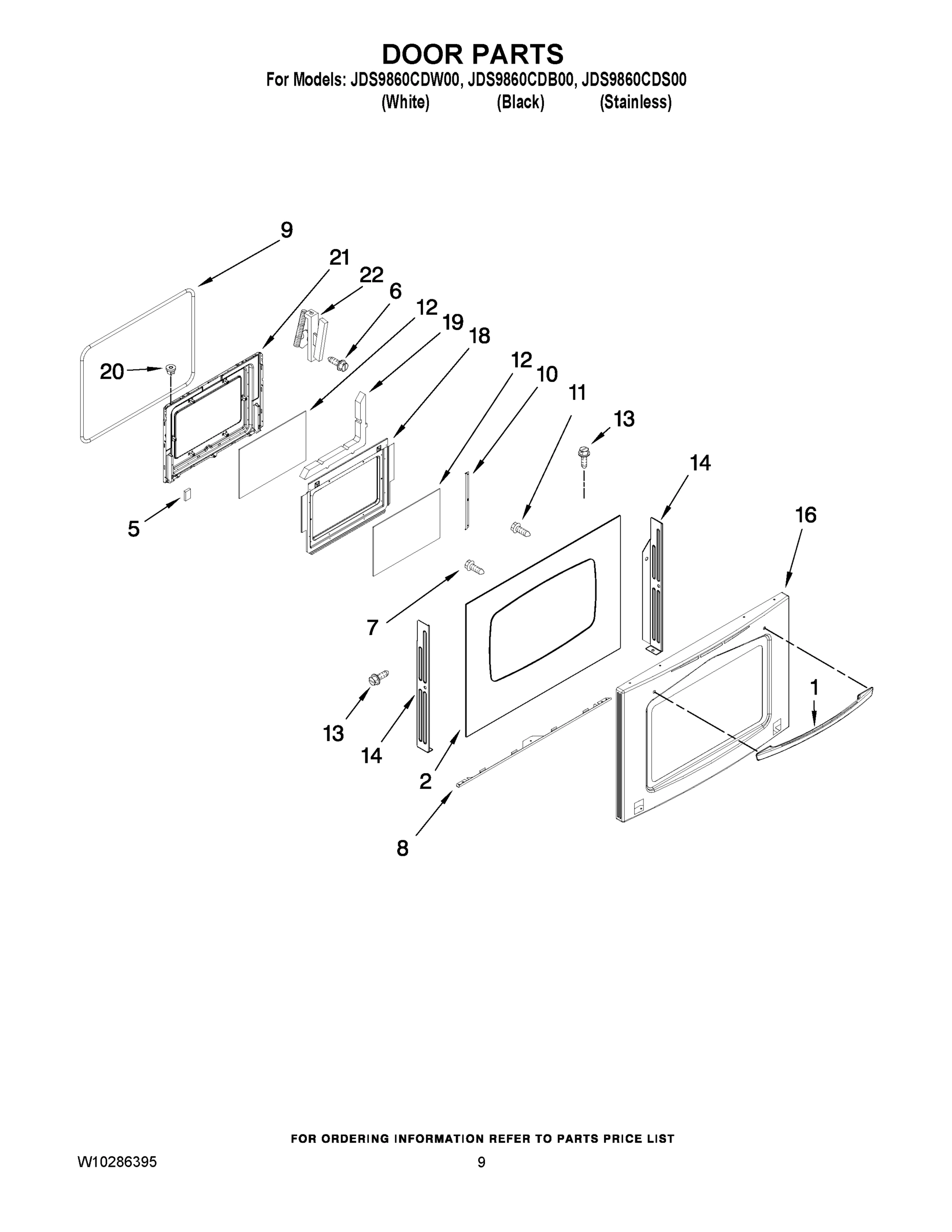

06 - DOOR PARTS

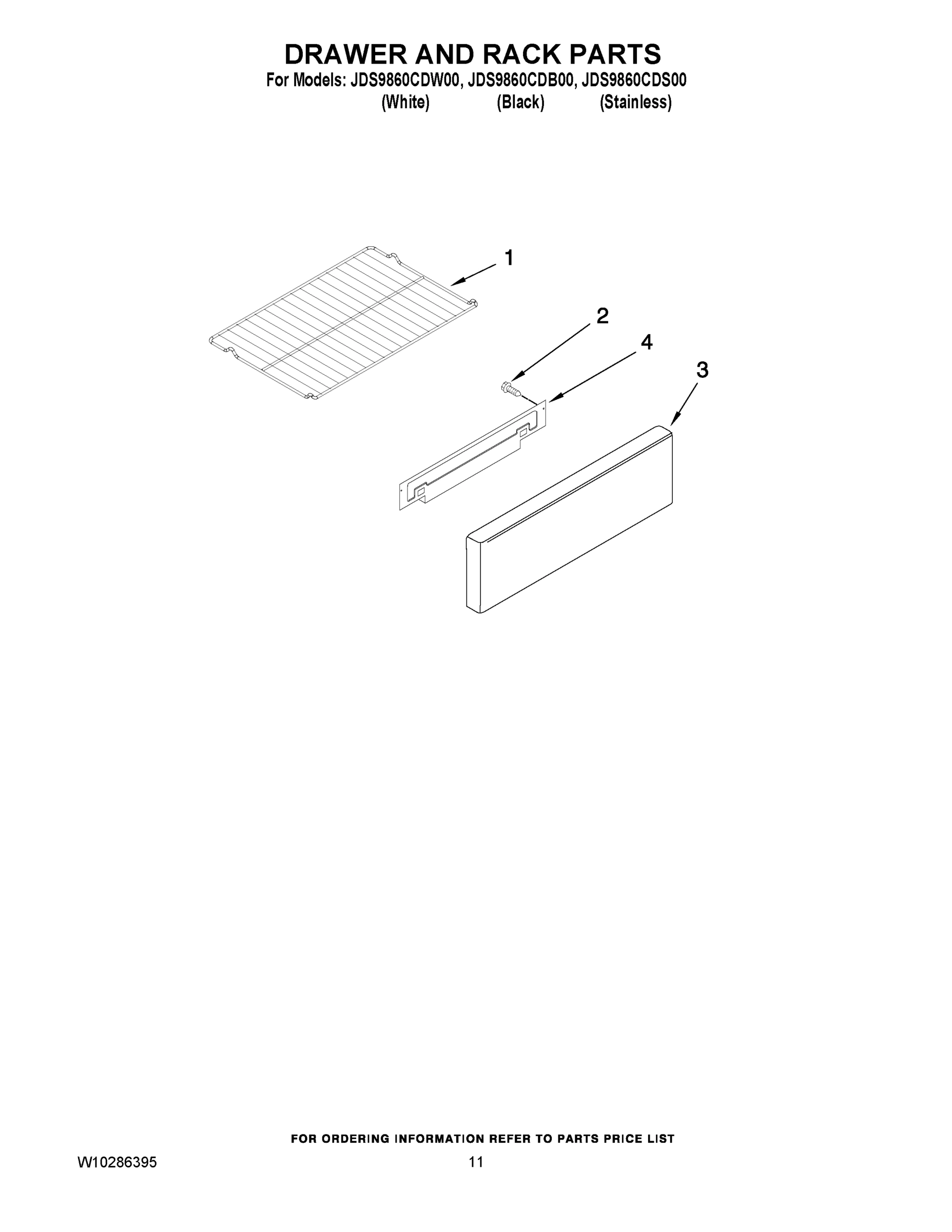

07 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS9860CDW00 GAS RANGE
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10235521 MAY W10235521 Contact Us For Availability
1
MAY W10235680 MAY W10235680 Contact Us For Availability
1
MAY W10253464 MAY W10253464 Contact Us For Availability
1
MAY 2801W033-61 MAY 2801W033-61 Contact Us For Availability
1
Screw, Valve (4) MAY 7101P639-60 Contact Us For Availability
1
PANEL, SHIELD MAY 8004P024-60 Contact Us For Availability
1
MAY W10223152 MAY W10223152 Contact Us For Availability
1
MAY W10223163 MAY W10223163 Contact Us For Availability
1
MAY W10223164 MAY W10223164 Contact Us For Availability
1
RACK, OVEN (3) MAY 7801P173-60 Contact Us For Availability
2
TOP, MAIN (STAINLESS) MAY 2002D245-50 Contact Us For Availability
2
TOP, MAIN (BLACK) MAY W10202594 Contact Us For Availability
2
MAY W10204446 MAY W10204446 Contact Us For Availability
2
MAY 2822W001-80 MAY 2822W001-80 Contact Us For Availability
2
MAY 7450P005-60 MAY 7450P005-60 Contact Us For Availability
2
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
2
MAY W10235390 MAY W10235390 Contact Us For Availability
2
GLASS, DOOR (BLACK) MAY W10272330 Contact Us For Availability
2
GLASS, DOOR (WHITE) MAY W10272332 Contact Us For Availability
2
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
3
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10236208 MAY W10236208 Contact Us For Availability
3
MAY W10236214 MAY W10236214 Contact Us For Availability
3
MAY W10236222 MAY W10236222 Contact Us For Availability
3
MAY 7513P496-60 MAY 7513P496-60 Contact Us For Availability
3
SWITCH, LIGHT ASSY MAY 7450P109-60 Contact Us For Availability
3
PANEL, DRAWER FRNT (BLACK) MAY 7922P057-60 Contact Us For Availability
3
PANEL, DRAWER FRNT (WHITE) MAY 7922P058-60 Contact Us For Availability
3
MAY W10297248 MAY W10297248 Contact Us For Availability
4
MAY 4001F155-61 MAY 4001F155-61 Contact Us For Availability
4
MOTOR, BLOWER MAY W10201322 Contact Us For Availability
4
VALVE (RIGHT REAR) MAY 7502P470-60 Contact Us For Availability
4
VALVE (LEFT FRONT/REAR) MAY 7502P547-60 Contact Us For Availability
4
VALVE (RIGHT FRONT) MAY 7502P548-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
MAY 3806F011-80 MAY 3806F011-80 Contact Us For Availability
5
MAY 3801F894-51 MAY 3801F894-51 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
SPACER, RUBBER MAY 7109P082-60 Contact Us For Availability
5
COVER, WIRE REAR MAY 4005F810-51 Contact Us For Availability
5
MAY 7510P077-60 MAY 7510P077-60 Contact Us For Availability
6
BURNER, HEAD (RIGHT FRONT) MAY 74011473 Contact Us For Availability
6
BURNER, HEAD (RIGHT REAR) MAY 8286181 Contact Us For Availability
6
NUT MAY 7103P212-60 Contact Us For Availability
6
MAY 3604F445-45 MAY 3604F445-45 Contact Us For Availability
6
MAY 3826F066-60 MAY 3826F066-60 Contact Us For Availability
6
SCREW,(10ABX1/4P) MAY 7103P176-60 Contact Us For Availability
7
MAY 8507P231-60 MAY 8507P231-60 Contact Us For Availability
7
MAY 3801F913-51 MAY 3801F913-51 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P426-60 Contact Us For Availability
8
BLOCK, TERMINAL MAY 7432P120-60 Contact Us For Availability
8
MAY 8310P006-60 MAY 8310P006-60 Contact Us For Availability
8
MAY 3604F433-51 MAY 3604F433-51 Contact Us For Availability
8
Module, Spark MAY 7431P064-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 8020P074-60 MAY 8020P074-60 Contact Us For Availability
9
MAY 74011791 MAY 74011791 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 74011792 MAY 74011792 Contact Us For Availability
10
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
10
SUPPORT, OVEN MAY 3807F727-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7212P067-60 MAY 7212P067-60 Contact Us For Availability
11
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
11
MAY 3604F419-51 MAY 3604F419-51 Contact Us For Availability
11
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
12
MAY 2001F270-09 MAY 2001F270-09 Contact Us For Availability
12
TOP, WHITE MAY 2001F270-81 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
MAY 7518P348-60 MAY 7518P348-60 Contact Us For Availability
13
COVER, PLENUM MAY 4005F537-80 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
14
MAY 7724P179-60 MAY 7724P179-60 Contact Us For Availability
14
MAY W10255423 MAY W10255423 Contact Us For Availability
14
MAY W10255424 MAY W10255424 Contact Us For Availability
14
KNOB (STAINLESS) MAY W10255425 Contact Us For Availability
14
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
14
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
15
CAP, BURNER (BLACK RR) MAY 7504P202-60 Contact Us For Availability
15
CAP, BURNER (BLACK RF) MAY 7504P204-60 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
16
MAY 6801F919-51 MAY 6801F919-51 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
MAY 7772P045-60 MAY 7772P045-60 Contact Us For Availability
17
MAY 8026P094-60 MAY 8026P094-60 Contact Us For Availability
18
BOTTOM, GRILLE PAN MAY 3401F099-19 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 7506P290-60 MAY 7506P290-60 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY 7505P290-60 MAY 7505P290-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
MAY 7103P039-60 MAY 7103P039-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
MAY 7518P070-60 MAY 7518P070-60 Contact Us For Availability
21
PLATE, SMOKE ELIM. MAY 3605F344-45 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 4005F792-61 MAY 4005F792-61 Contact Us For Availability
22
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
22
Hinge, Door (2) MAY 7106P143-60 Contact Us For Availability
23
SWITCH, INF. MAY 7450P012-60 Contact Us For Availability
23
BRKT., PSR SUPPLY MAY 3801F911-51 Contact Us For Availability
25
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
26
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
27
MAY 7406P439-60 MAY 7406P439-60 Contact Us For Availability
29
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
31
SCREW, HINGE MAY 7101P282-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7403P855-60 Contact Us For Availability
34
EXTENSION, SHIELD MAY 3826F066-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
BASE, PEDESTAL MAY W10271711 Contact Us For Availability
39
SUPPORT, VALVE REG MAY 3807F615-51 Contact Us For Availability
40
RUNNER, DRAWER MAY W10293200 Contact Us For Availability
41
MAY 7427P129-60 MAY 7427P129-60 Contact Us For Availability
42
MAY 3605F346-19 MAY 3605F346-19 Contact Us For Availability
43
RECEPTACLE, PROBE MAY 7408P086-60 Contact Us For Availability
44
MAY 3804F305-51 MAY 3804F305-51 Contact Us For Availability
45
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
46
TRIM, FRT. FRAME MAY 7713P054-60 Contact Us For Availability
47
SHIELD, WRM DWR MAY 3604F416-51 Contact Us For Availability
48
COVER, FRONT MAY 4005F779-80 Contact Us For Availability
50
MAY W10183566 MAY W10183566 Contact Us For Availability
NI
MAY 7506P462-60 MAY 7506P462-60 Contact Us For Availability
NI
MAY 7506P463-60 MAY 7506P463-60 Contact Us For Availability
NI
MAY 7506P464-60 MAY 7506P464-60 Contact Us For Availability
NI
MAY 7506P465-60 MAY 7506P465-60 Contact Us For Availability
NI
MAY 7506P466-60 MAY 7506P466-60 Contact Us For Availability
NI
MAY 7506P482-60 MAY 7506P482-60 Contact Us For Availability
NI
LEFT MAY 2618F201-51 Contact Us For Availability
NI
RIGHT MAY 2618F206-51 Contact Us For Availability
NI
MAY 7002P466-60 MAY 7002P466-60 Contact Us For Availability
NI
MAY 7002P468-60 MAY 7002P468-60 Contact Us For Availability
NI
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
NI
MAY 8312P190-60 MAY 8312P190-60 Contact Us For Availability
NI
HOUSING, GREASE MAY 8312P191-60 Contact Us For Availability
NI
MAY W10221108 MAY W10221108 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
HARNESS, SENSOR MAY 5171P537-60 Contact Us For Availability
NI
MAY 5171P782-60 MAY 5171P782-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY W10173466 MAY W10173466 Contact Us For Availability
× ![]()
