Model Maytag JDS9860BDS22 GAS RANGE – Common Parts & Diagrams

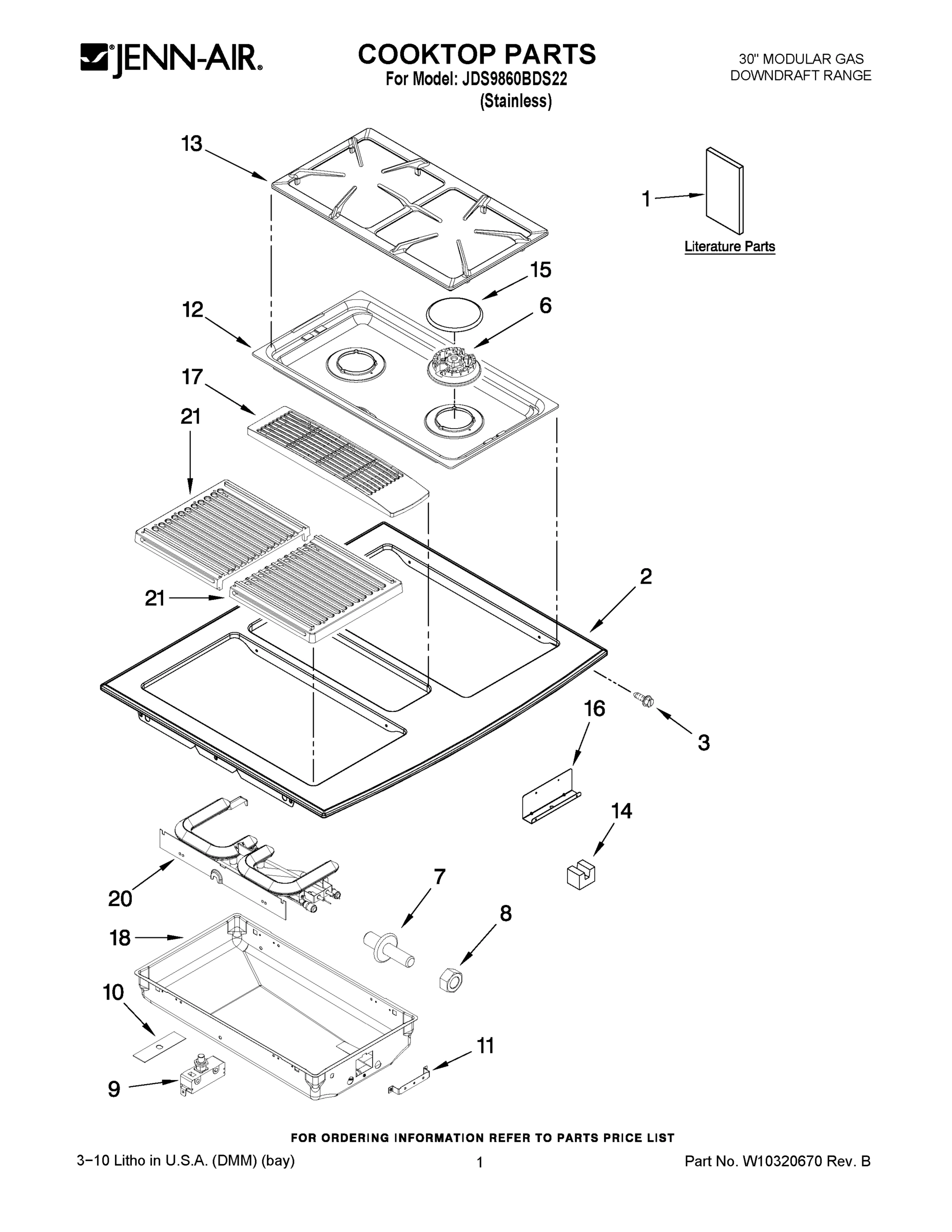

01 - COOKTOP PARTS

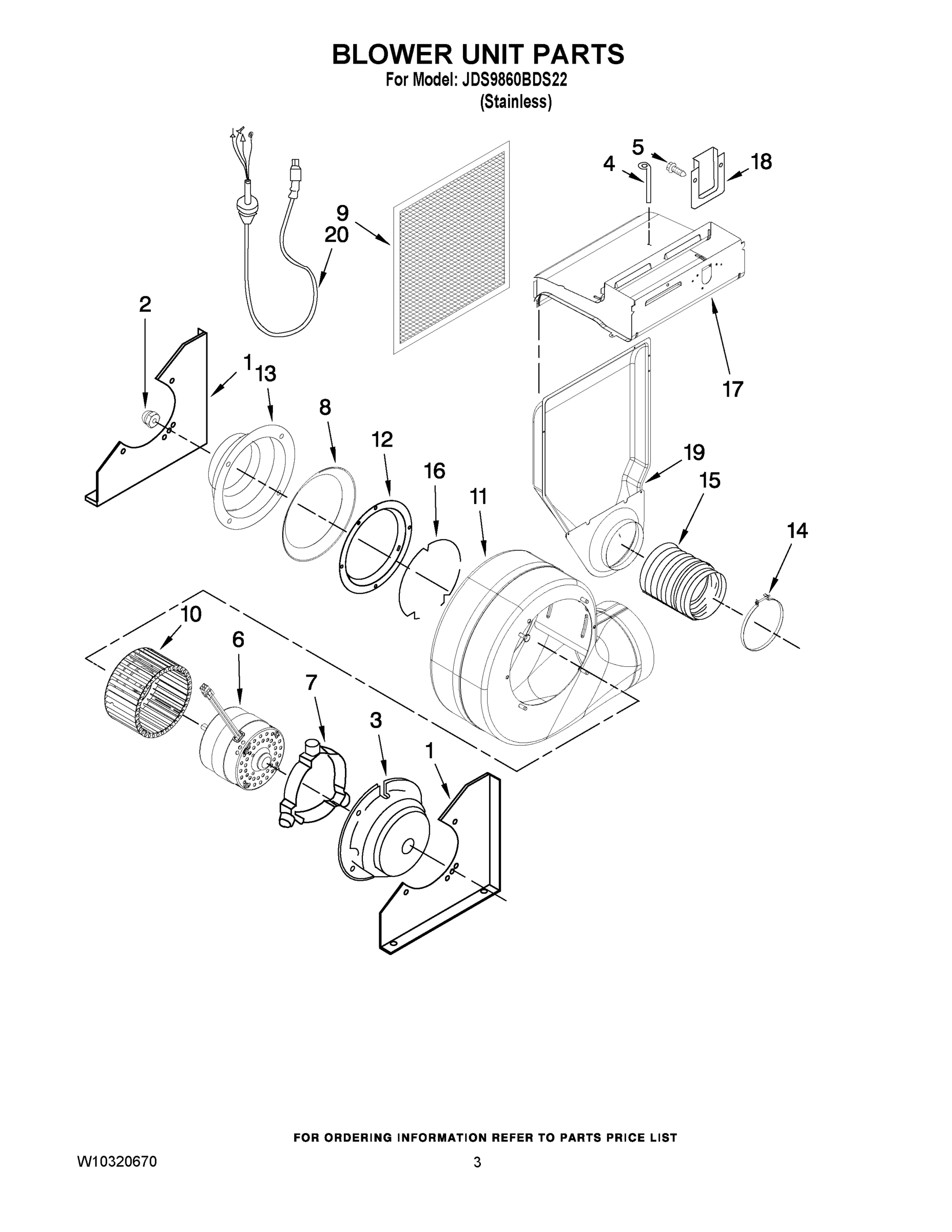

02 - BLOWER UNIT PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - DOOR PARTS
07 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS9860BDS22 GAS RANGE
1
MAY 8101P702-60 MAY 8101P702-60 Contact Us For Availability
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
USE & CARE GUIDE MAY 8113P753-60 Contact Us For Availability
1
MAY 8119P394-60 MAY 8119P394-60 Contact Us For Availability
1
MAY 8119P395-60 MAY 8119P395-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY 3801F631-51 MAY 3801F631-51 Contact Us For Availability
1
MAY 3807F737-51 MAY 3807F737-51 Contact Us For Availability
1
Screw, Valve (4) MAY 7101P639-60 Contact Us For Availability
1
LEFT MAY 2618F201-51 Contact Us For Availability
1
RIGHT MAY 2618F206-51 Contact Us For Availability
1
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
1
RACK, OVEN (3) MAY 7801P173-60 Contact Us For Availability
2
MAY 2002D245-50 MAY 2002D245-50 Contact Us For Availability
2
LOCKNUT MAY 7103P162-60 Contact Us For Availability
2
MAY 7450P005-60 MAY 7450P005-60 Contact Us For Availability
2
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
2
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
2
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
3
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
3
MAY W10206068 MAY W10206068 Contact Us For Availability
3
MAY 7513P496-60 MAY 7513P496-60 Contact Us For Availability
3
SWITCH, LIGHT ASSY MAY 7450P109-60 Contact Us For Availability
3
MAY W10185621 MAY W10185621 Contact Us For Availability
3
PANEL, DRAWER FRNT MAY 2416F086-70 Contact Us For Availability
4
MAY 7809P030-60 MAY 7809P030-60 Contact Us For Availability
4
VALVE (RIGHT REAR) MAY 7502P470-60 Contact Us For Availability
4
VALVE (LEFT FRONT/REAR) MAY 7502P547-60 Contact Us For Availability
4
VALVE (RIGHT FRONT) MAY 7502P548-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
SHIELD MAY 3604F418-51 Contact Us For Availability
4
MAY 3806F011-80 MAY 3806F011-80 Contact Us For Availability
5
MAY 7733P479-60 MAY 7733P479-60 Contact Us For Availability
5
COVER, WIRE REAR MAY 4005F810-51 Contact Us For Availability
5
MAY 7510P077-60 MAY 7510P077-60 Contact Us For Availability
5
SPACER, RUBBER MAY 7109P082-60 Contact Us For Availability
5
OVERLAY, DRAWER MAY W10184467 Contact Us For Availability
6
MAY 7540P047-60 MAY 7540P047-60 Contact Us For Availability
6
BURNER, HEAD (RIGHT REAR) MAY 8286181 Contact Us For Availability
6
MAY W10201322 MAY W10201322 Contact Us For Availability
6
SPACER, SIDE PNL MAY 8004P024-60 Contact Us For Availability
6
SCREW MAY 7103P176-60 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P426-60 Contact Us For Availability
7
PIN, LOCATOR MAY 7113P020-60 Contact Us For Availability
7
MAY 5700D526-60 MAY 5700D526-60 Contact Us For Availability
7
MAY 8507P231-60 MAY 8507P231-60 Contact Us For Availability
7
MAY 3801F913-51 MAY 3801F913-51 Contact Us For Availability
8
MAY 7103P160-60 MAY 7103P160-60 Contact Us For Availability
8
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
8
MAY 3604F433-51 MAY 3604F433-51 Contact Us For Availability
8
Module, Spark MAY 7431P064-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 8020P074-60 MAY 8020P074-60 Contact Us For Availability
9
MAY 7450P012-60 MAY 7450P012-60 Contact Us For Availability
9
MAY 8310P006-60 MAY 8310P006-60 Contact Us For Availability
9
HOLDER, ORIFICE (RIGHT FRONT) MAY 7527P081-60 Contact Us For Availability
9
HOLDER, ORIFICE (RIGHT REAR) MAY 7527P084-60 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7003P129-60 MAY 7003P129-60 Contact Us For Availability
10
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
10
MAY 3807F615-51 MAY 3807F615-51 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7112P150-60 MAY 7112P150-60 Contact Us For Availability
11
ASSY., SCROLL BLWR MAY 2822W001-80 Contact Us For Availability
11
Support, Spark Module MAY 3807F752-45 Contact Us For Availability
11
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
12
MAY 2001F270-09 MAY 2001F270-09 Contact Us For Availability
12
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
12
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
MAY 7518P341-60 MAY 7518P341-60 Contact Us For Availability
13
MAY 2818F001-80 MAY 2818F001-80 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 7733P478-60 MAY 7733P478-60 Contact Us For Availability
13
IGNITOR (RF, RR) MAY 7432M126-60 Contact Us For Availability
13
MAY 7432P112-60 MAY 7432P112-60 Contact Us For Availability
13
MAY 7101P604-60 MAY 7101P604-60 Contact Us For Availability
14
BLOCK, SUPPORT MAY 8255P412-60 Contact Us For Availability
14
MAY 7111P047-60 MAY 7111P047-60 Contact Us For Availability
14
MAY W10220975 MAY W10220975 Contact Us For Availability
14
MAY 7406P430-60 MAY 7406P430-60 Contact Us For Availability
15
CAP, BURNER (BLACK RR) MAY 7504P202-60 Contact Us For Availability
15
CAP, BURNER (BLACK RF) MAY 7504P204-60 Contact Us For Availability
15
MAY 8032P003-60 MAY 8032P003-60 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
15
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
16
MAY 3807F743-51 MAY 3807F743-51 Contact Us For Availability
16
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
FRAME, DOOR MAY 3603F075-70 Contact Us For Availability
17
MAY 7772P045-60 MAY 7772P045-60 Contact Us For Availability
17
MAY 2801W033-80 MAY 2801W033-80 Contact Us For Availability
17
MAY 8026P094-60 MAY 8026P094-60 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
BOTTOM, GRILLE PAN MAY 3401F099-19 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 2801L037-80 MAY 2801L037-80 Contact Us For Availability
19
MAY 7506P406-60 MAY 7506P406-60 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY 7505P290-60 MAY 7505P290-60 Contact Us For Availability
20
MAY 7402P104-60 MAY 7402P104-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
21
MAY 7518P070-60 MAY 7518P070-60 Contact Us For Availability
21
PLATE, SMOKE ELIM. MAY 3605F344-45 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
22
Hinge, Door (2) MAY 7106P143-60 Contact Us For Availability
23
BRKT., PSR SUPPLY MAY 3801F911-51 Contact Us For Availability
23
MAY 7002P465-60 MAY 7002P465-60 Contact Us For Availability
25
TRIM, SIDE MAY 3608F138-70 Contact Us For Availability
26
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
27
MAY 7406P439-60 MAY 7406P439-60 Contact Us For Availability
28
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
29
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
31
SCREW, HINGE MAY 7101P282-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7403P855-60 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
BASE, PEDESTAL MAY W10271711 Contact Us For Availability
39
PEDESTAL, REAR (LEFT) MAY 4020F032-80 Contact Us For Availability
39
PEDESTAL, REAR (RIGHT) MAY 4020F033-80 Contact Us For Availability
41
CONVECTION ASSY MAY W10213813 Contact Us For Availability
42
COVER MAY W10312218 Contact Us For Availability
43
RECEPTACLE, PROBE MAY 7408P086-60 Contact Us For Availability
44
MAY 3804F305-51 MAY 3804F305-51 Contact Us For Availability
45
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
46
TRIM, FRT. FRAME MAY 7713P054-60 Contact Us For Availability
47
MAY 3804F312-51 MAY 3804F312-51 Contact Us For Availability
48
COVER, FRONT MAY 4005F779-80 Contact Us For Availability
49
SUPPORT, OVEN REAR MAY 3807F732-51 Contact Us For Availability
51
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
52
MAY 8312P191-60 MAY 8312P191-60 Contact Us For Availability
53
MAY 8312P190-60 MAY 8312P190-60 Contact Us For Availability
NI
MAY 7506P462-60 MAY 7506P462-60 Contact Us For Availability
NI
MAY 7506P463-60 MAY 7506P463-60 Contact Us For Availability
NI
MAY 7506P464-60 MAY 7506P464-60 Contact Us For Availability
NI
MAY 7506P465-60 MAY 7506P465-60 Contact Us For Availability
NI
MAY 7506P466-60 MAY 7506P466-60 Contact Us For Availability
NI
MAY 7002P466-60 MAY 7002P466-60 Contact Us For Availability
NI
MAY 7002P467-60 MAY 7002P467-60 Contact Us For Availability
NI
MAY 7002P468-60 MAY 7002P468-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P530-60 MAY 5171P530-60 Contact Us For Availability
NI
HARNESS, SENSOR MAY 5171P537-60 Contact Us For Availability
NI
MAY 5171P787-60 MAY 5171P787-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7507P417-60 MAY 7507P417-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY W10173470 MAY W10173470 Contact Us For Availability
NI
CORD, POWER (CANADA) MAY W10221108 Contact Us For Availability
× ![]()
