Model Maytag JDS8850CDS02 DUAL FUEL RANGE – Common Parts & Diagrams

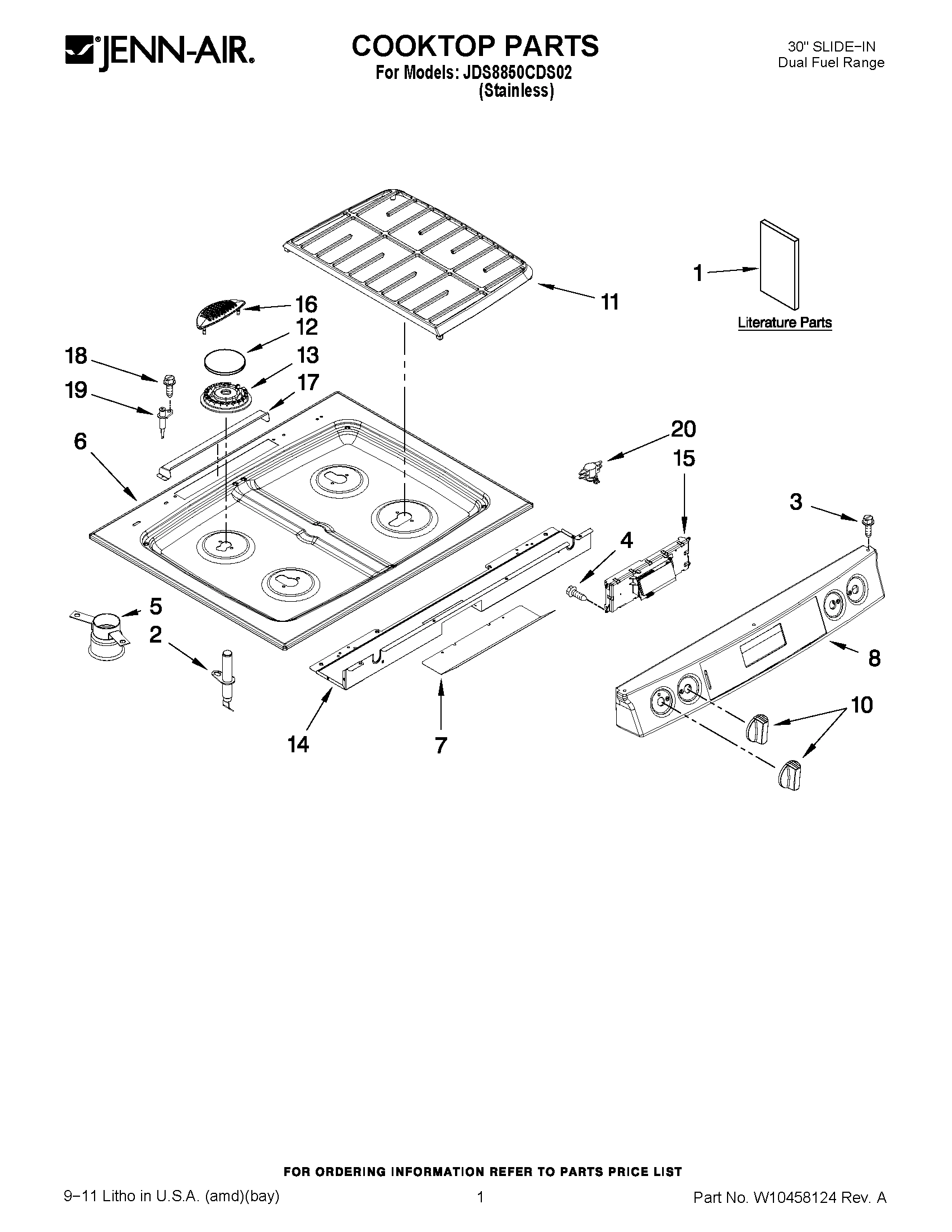

01 - COOKTOP PARTS

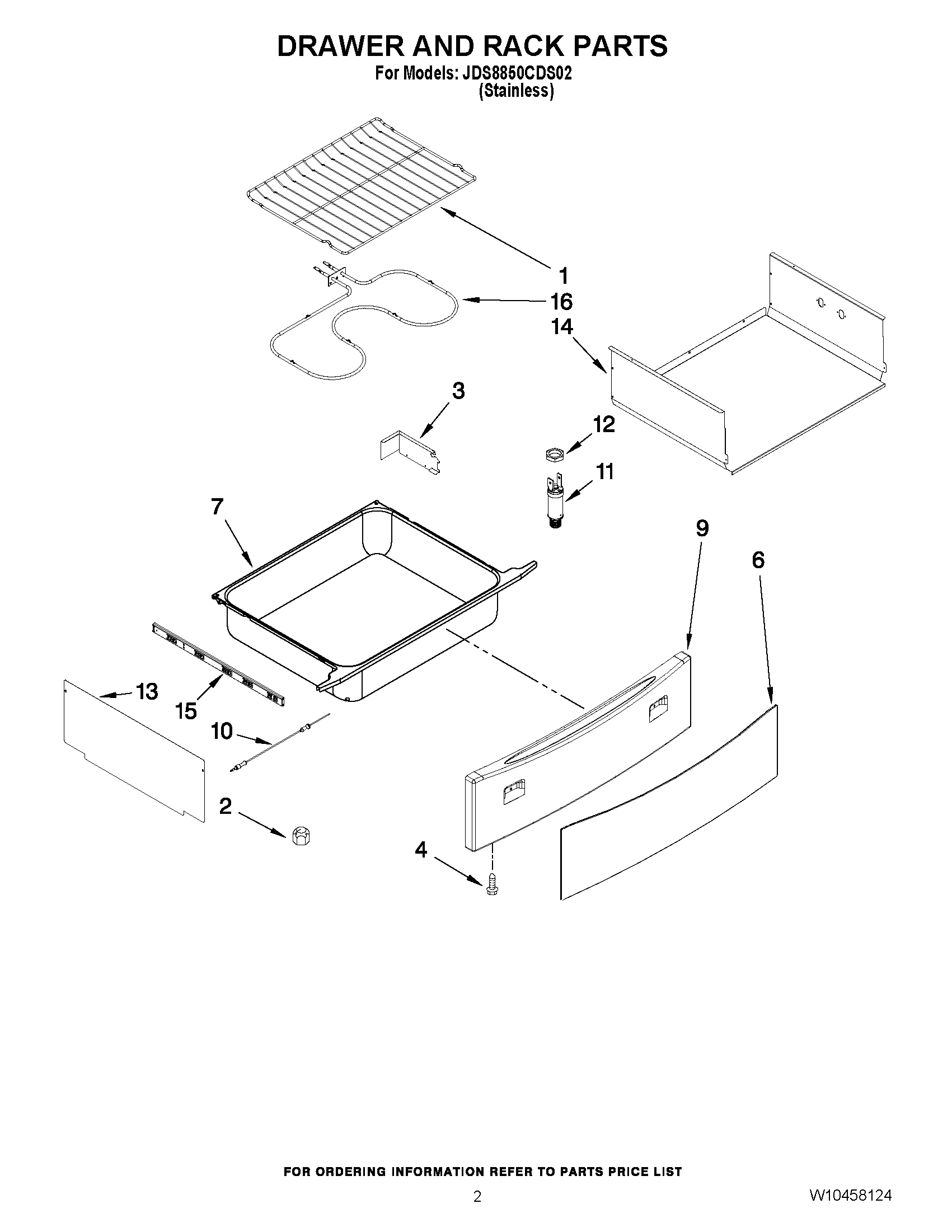

02 - DRAWER AND RACK PARTS

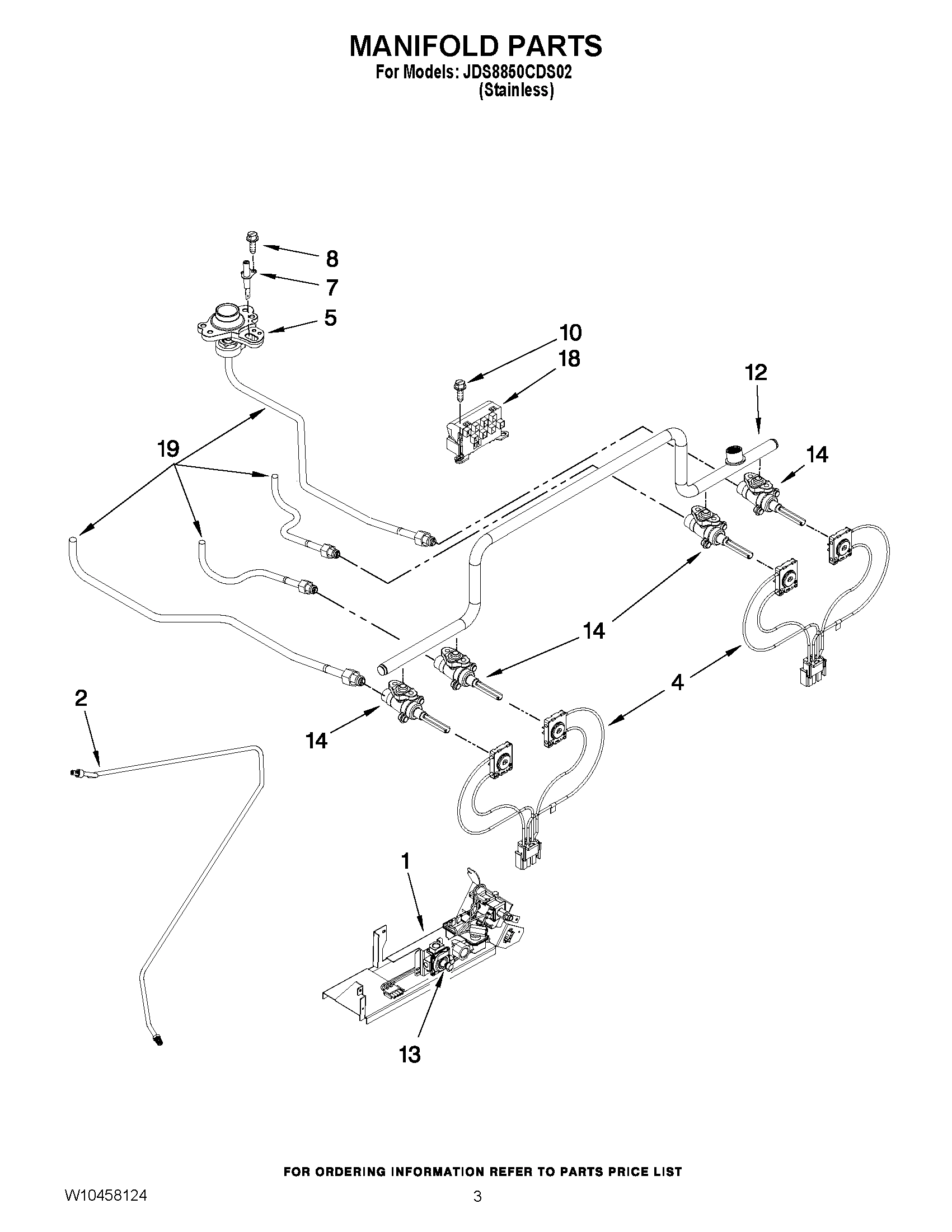

03 - MANIFOLD PARTS

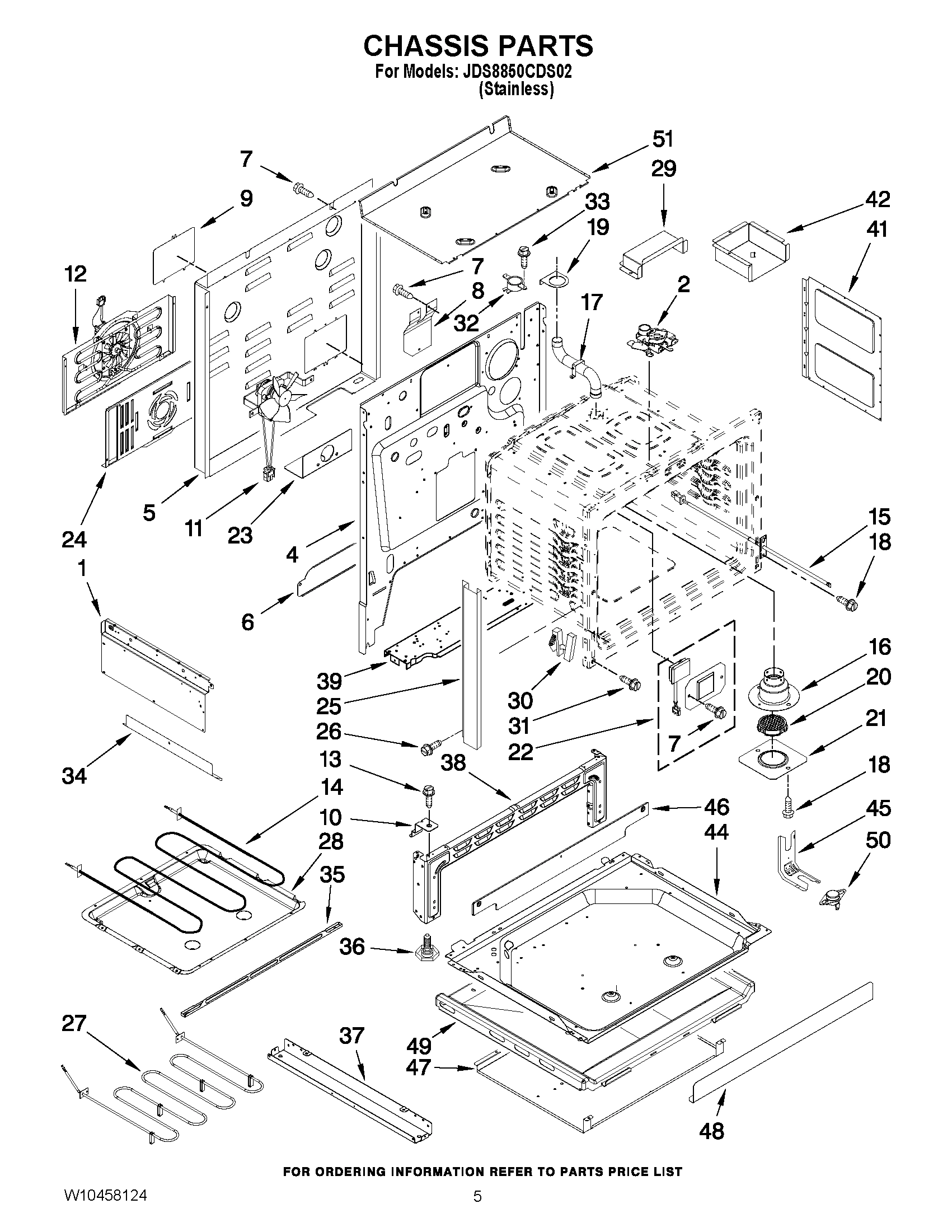

04 - CHASSIS PARTS

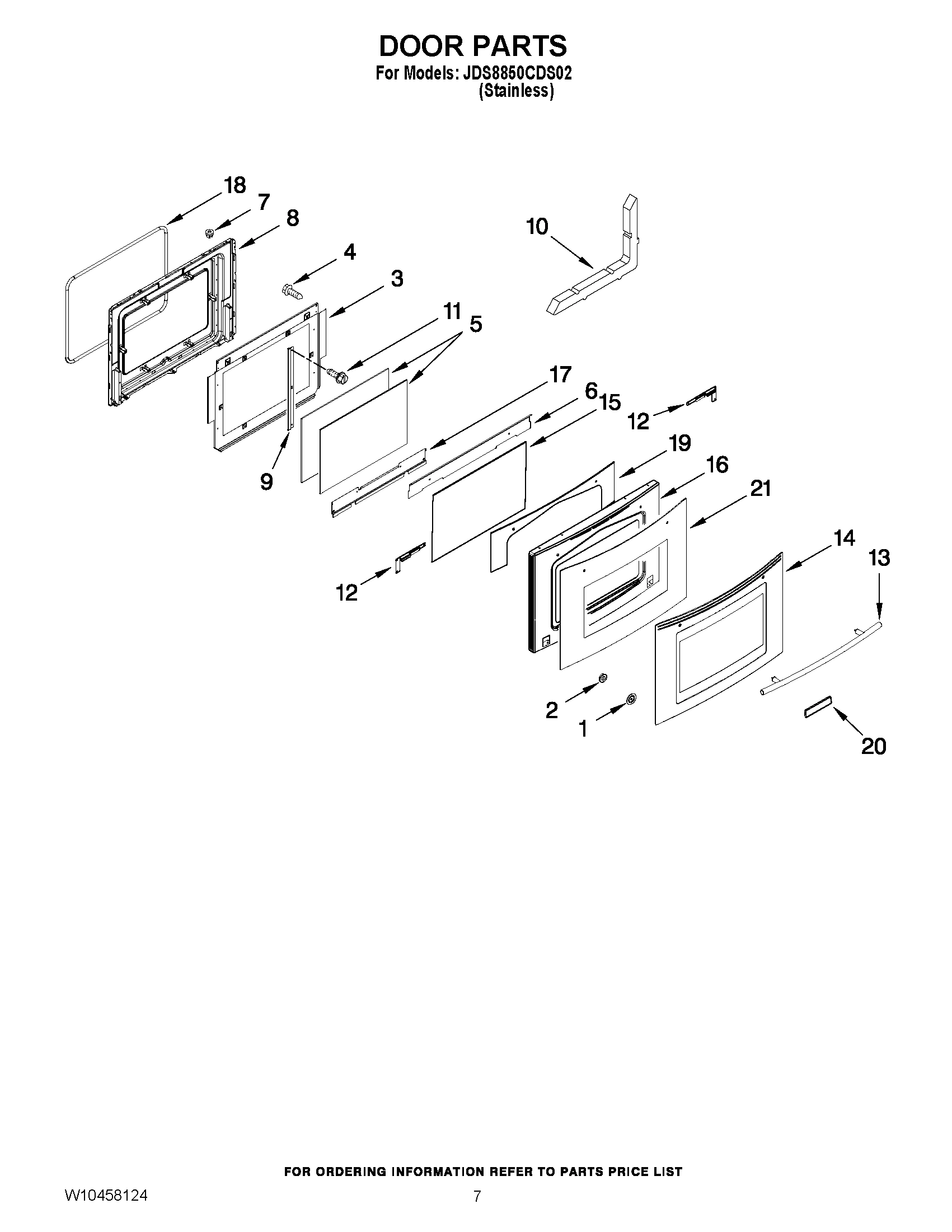

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS8850CDS02 DUAL FUEL RANGE
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10235520 MAY W10235520 Contact Us For Availability
1
MAY W10253460 MAY W10253460 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
2
MAY 7506P489-60 MAY 7506P489-60 Contact Us For Availability
2
LATCH ASSEMBLY MAY W10274035 Contact Us For Availability
2
NUT (10-32) MAY 7103P176-60 Contact Us For Availability
3
SHIELD, BACK MAY 3604F434-51 Contact Us For Availability
3
BAFFLE, OVEN DOOR MAY 3601F373-51 Contact Us For Availability
4
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
4
SCREW, PANEL MAY 7101P375-60 Contact Us For Availability
4
SWITCH, REIGNITION INCLUDES SWITCHES (LF/LR) MAY 7450P003-60 Contact Us For Availability
4
SWITCH, REIGNITION INCLUDES SWITCHES (RF/RR) MAY 7450P004-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
SCREW, 8AB X 1/2 MAY 7101P376-60 Contact Us For Availability
5
TUBE, VENT MAY W10233479 Contact Us For Availability
5
MAY 7527P002-60 MAY 7527P002-60 Contact Us For Availability
5
MAY 7527P004-60 MAY 7527P004-60 Contact Us For Availability
5
MAY 7527P042-60 MAY 7527P042-60 Contact Us For Availability
5
MAY 7527P061-60 MAY 7527P061-60 Contact Us For Availability
5
COVER, WIRE REAR MAY 4005F810-51 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
COOKTOP MAY 2001D313-50 Contact Us For Availability
6
OVERLAY MAY W10184467 Contact Us For Availability
6
MAY 3826F066-51 MAY 3826F066-51 Contact Us For Availability
6
SHIELD MAY 3604F418-51 Contact Us For Availability
7
SHIELD, CONTROL MAY 7003P154-60 Contact Us For Availability
7
IGNITOR MAY 7432P121-60 Contact Us For Availability
7
DRAWER, WARMING MAY 3405W043-19 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
PANEL, CONTROL MAY W10314414 Contact Us For Availability
8
SCREW, IGNITOR MAY 7101P606-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
9
MAY 2416F086-70 MAY 2416F086-70 Contact Us For Availability
9
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
KNOB MAY W10255425 Contact Us For Availability
10
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
10
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
11
SCREW, 8-18 X 3/8 MAY 7101P426-60 Contact Us For Availability
11
GRATE, BURNER MAY 7518P358-60 Contact Us For Availability
11
MAY 7408P086-60 MAY 7408P086-60 Contact Us For Availability
11
MAY W10317679 MAY W10317679 Contact Us For Availability
12
CAP, BURNER (RR (12.5K)) MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (LR (5K)) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (RF (16K)) MAY 7504P204-60 Contact Us For Availability
12
MAY 7504P242-60 MAY 7504P242-60 Contact Us For Availability
12
MAY 7504P243-60 MAY 7504P243-60 Contact Us For Availability
12
NUT MAY 7103P177-60 Contact Us For Availability
12
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
12
KIT, CONVECTION MAY W10213813 Contact Us For Availability
12
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
12
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
13
ASSEMBLY, BURNER (LR (5K)) MAY 7505P304-60 Contact Us For Availability
13
ASSEMBLY, BURNER (RR (12.5K)) MAY 7505P305-60 Contact Us For Availability
13
ASSEMBLY, BURNER (RF (16K)) MAY 7505P306-60 Contact Us For Availability
13
ASSEMBLY, BURNER (LF (DUAL)) MAY 7505P349-60 Contact Us For Availability
13
SHIELD, WARMING DRAWER MAY 3604F416-51 Contact Us For Availability
13
MAY 7510P101-60 MAY 7510P101-60 Contact Us For Availability
13
HANDLE, DOOR MAY W10223152 Contact Us For Availability
14
SUPPORT, CONTROL PANEL MAY 3807F751-51 Contact Us For Availability
14
MAY 2206F087-45 MAY 2206F087-45 Contact Us For Availability
14
VALVE, TOP BURNER (LR 5K) MAY 7502P470-60 Contact Us For Availability
14
VALVE, TOP BURNER (RR 9.2K) MAY 7502P471-60 Contact Us For Availability
14
VALVE, TOP BURNER (LF (DUAL)) MAY 7502P493-60 Contact Us For Availability
14
MAY 7502P548-60 MAY 7502P548-60 Contact Us For Availability
14
MAY W10314704 MAY W10314704 Contact Us For Availability
14
OVERLAY, DOOR MAY W10184466 Contact Us For Availability
15
MAY 8507P230-60 MAY 8507P230-60 Contact Us For Availability
15
MAY W10293200 MAY W10293200 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
16
COVER, VENT MAY 7744P464-60 Contact Us For Availability
16
MAY W10310262 MAY W10310262 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
16
FRAME, DOOR MAY 3603F075-70 Contact Us For Availability
17
MAY 8026P084-60 MAY 8026P084-60 Contact Us For Availability
17
RETAINER,GLASS BTM MAY 3804F317-80 Contact Us For Availability
18
SPARK MODULE MAY 7431P038-60 Contact Us For Availability
18
SEAL, DOOR MAY W10162384 Contact Us For Availability
19
MAY 7506P445-60 MAY 7506P445-60 Contact Us For Availability
19
MAY 7506P447-60 MAY 7506P447-60 Contact Us For Availability
19
MAY 7506P448-60 MAY 7506P448-60 Contact Us For Availability
19
MAY 7506P469-60 MAY 7506P469-60 Contact Us For Availability
19
MAY 7506P470-60 MAY 7506P470-60 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
MAY 7002P465-60 MAY 7002P465-60 Contact Us For Availability
20
LIMIT, OVEN LOWER (260F/200F) MAY 7403P855-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
NAMEPLATE MAY W10214168 Contact Us For Availability
21
PLATE, SMOKE ELEMENT MAY 3605F354-45 Contact Us For Availability
21
DOOR, GLASS MAY W10301578 Contact Us For Availability
22
ASSEMBLY, HALOGEN LIGHT MAY 7407P180-60 Contact Us For Availability
23
MAY 3801F911-51 MAY 3801F911-51 Contact Us For Availability
24
MAY W10312218 MAY W10312218 Contact Us For Availability
25
TRIM, SIDE MAY 3608F138-70 Contact Us For Availability
26
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
27
MAY W10314699 MAY W10314699 Contact Us For Availability
28
MAY 3401F092-45 MAY 3401F092-45 Contact Us For Availability
29
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
30
MAY 7106P143-60 MAY 7106P143-60 Contact Us For Availability
31
SCREW, HINGE MAY 7101P282-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7403P647-60 Contact Us For Availability
34
EXTENSION, SHIELD MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
BASE, PEDESTAL MAY W10271711 Contact Us For Availability
39
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
41
RETAINER, INSUL. MAY 3804F300-51 Contact Us For Availability
42
COVER, BURNER BOX MAY 4005F807-51 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) MAY 3804F231-51 Contact Us For Availability
45
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
46
TRIM, FRONT FRAME MAY 7713P054-60 Contact Us For Availability
47
SHIELD, WARMING DRAWER MAY 3604F327-51 Contact Us For Availability
48
MAY 4005F749-45 MAY 4005F749-45 Contact Us For Availability
49
MAY 2205F060-19 MAY 2205F060-19 Contact Us For Availability
50
MAY 7403P657-60 MAY 7403P657-60 Contact Us For Availability
51
MAY 4011F496-51 MAY 4011F496-51 Contact Us For Availability
NI
KIT, LP CONV. MAY W10258122 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
INSULATION HIDDEN BAKE MAY 7002P448-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
MAY 3195996 MAY 3195996 Contact Us For Availability
NI
MAY 3196076 MAY 3196076 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
UNITY SPARK MAY W10173471 Contact Us For Availability
NI
MAY W10221108 MAY W10221108 Contact Us For Availability
NI
MAY W10250350 MAY W10250350 Contact Us For Availability
NI
MAY W10394654 MAY W10394654 Contact Us For Availability
NI
MAY W10394791 MAY W10394791 Contact Us For Availability
× ![]()
