Model Whirlpool JDS8850CDS00 DUAL FUEL RANGE – Common Parts & Diagrams
02 - DRAWER AND RACK PARTS

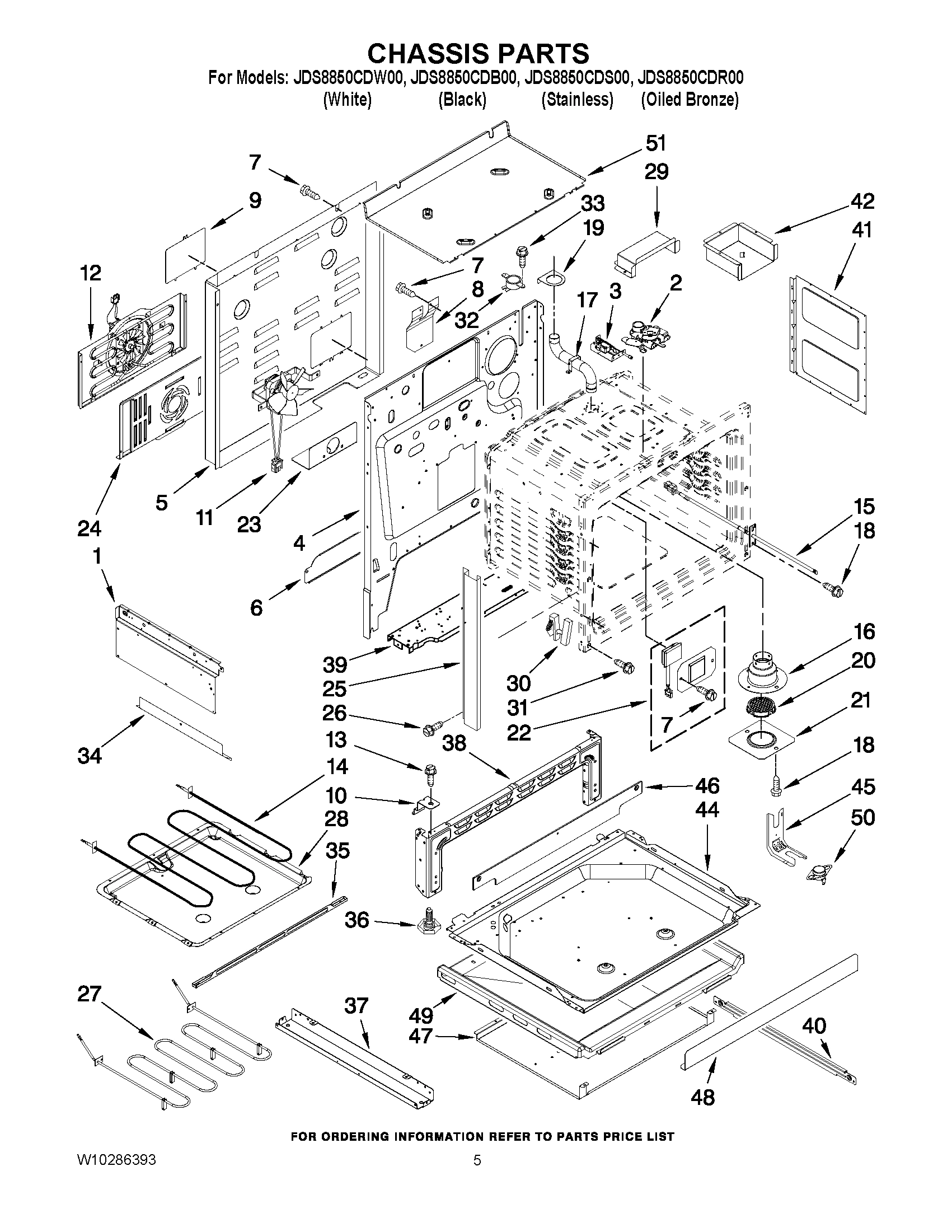

04 - CHASSIS PARTS

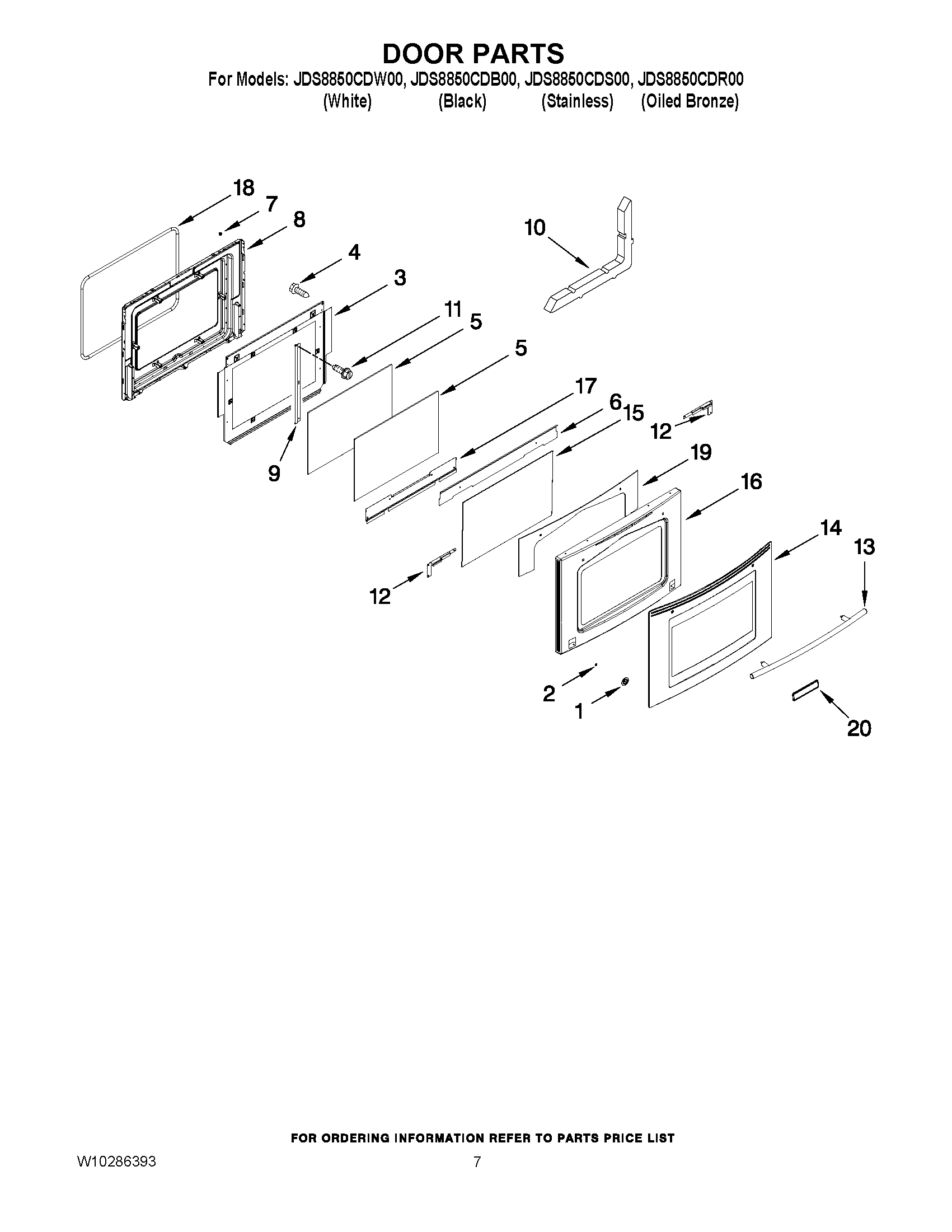

05 - DOOR PARTS

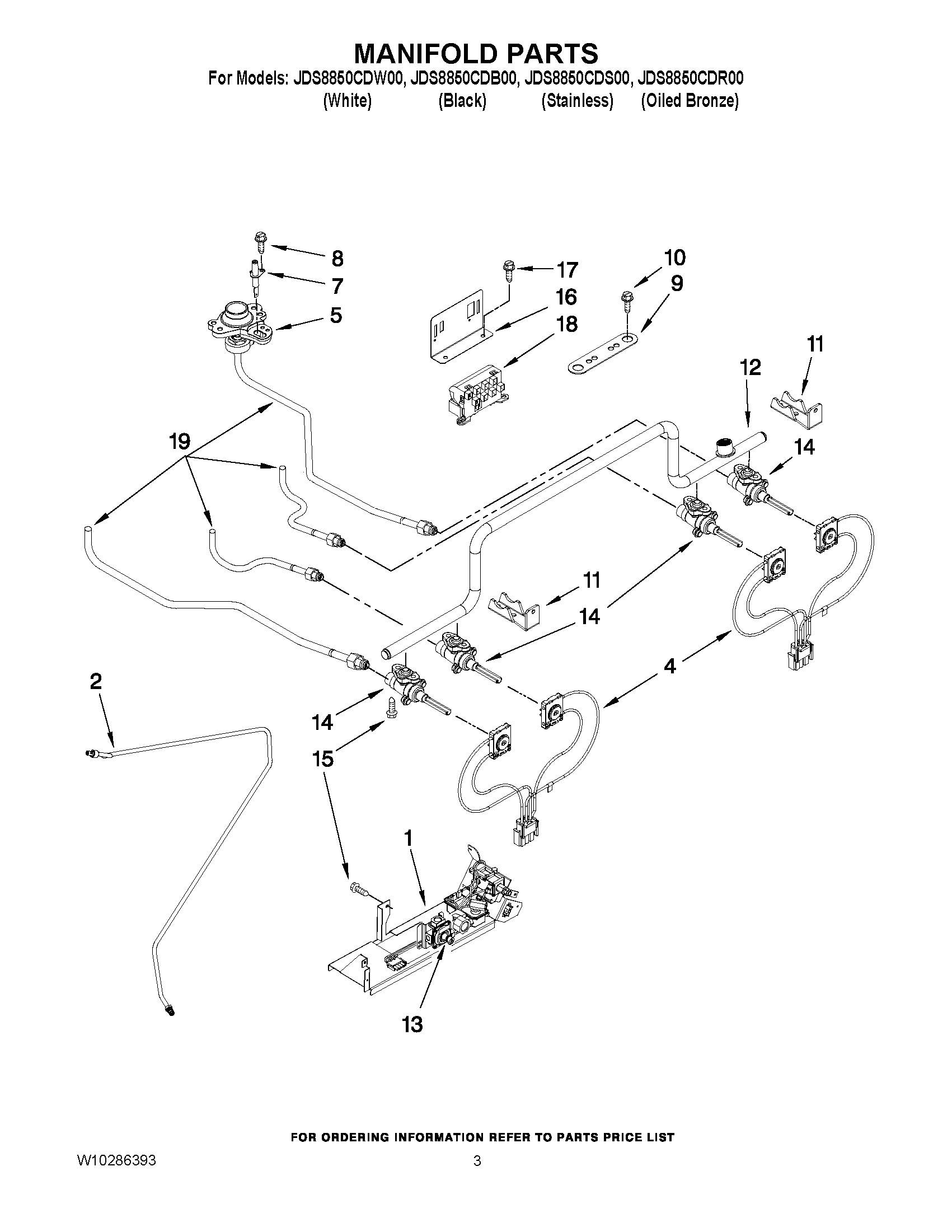

03 - MANIFOLD PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
01 - COOKTOP PARTS
Common parts from model Whirlpool JDS8850CDS00 DUAL FUEL RANGE
1
COVER, BNR VALVE WPL 4005F80751 Contact Us For Availability
1
WASHER WPL 7109P08260 Contact Us For Availability
1
SAFE CKG TIPS (ENGLISH) WPL 9762761 Contact Us For Availability
1
SAFE CKG TIPS (FRENCH) WPL W10065852 Contact Us For Availability
1
OWNERS MANUAL WPL W10235520 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10253460 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
2
TUBING, GAS SUPPLY WPL 7506P48960 Contact Us For Availability
2
IGNITOR, DUAL WPL 7432P13860 Contact Us For Availability
3
SCREW WPL 7101P42660 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
4
SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability
4
SWITCH, REIGNITION (LF/LR) WPL 7450P00360 Contact Us For Availability
4
SWITCH, REIGNITION (RF/RR) WPL 7450P00460 Contact Us For Availability
4
SCREW WPL 7101P67660 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
5
INCLUDES SWITCHES ORIFICE, HOLDER (RR/LF 9.2K WPL 7527P00260 Contact Us For Availability
5
INCLUDES SWITCHES ORIFICE, HOLDER (RF 16K) WPL 7527P00460 Contact Us For Availability
5
INCLUDES SWITCHES ORIFICE, HOLDER (LR 5K) WPL 7527P04260 Contact Us For Availability
5
INCLUDES SWITCHES ORIFICE, HOLDER (LF 12K) WPL 7527P06160 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
6
COOKTOP (STAINLESS) WPL 2001D31350 Contact Us For Availability
6
COOKTOP (BLACK) WPL W10202589 Contact Us For Availability
6
COOKTOP (WHITE) WPL W10204435 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
SHIELD, CONTROL WPL 7003P15460 Contact Us For Availability
8
PANEL, CONTROL (BLACK) WPL W10235331 Contact Us For Availability
8
PANEL, CONTROL (WHITE) WPL W10235330 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
PANEL, CONTROL (STAINLESS) WPL W10235329 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
RETAINER, BASE (4) WPL W10160530 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) WPL 3807F72745 Contact Us For Availability
10
Screw WPL 7101P28260 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
11
FAN, COOLING WPL 7427P09460 Contact Us For Availability
11
BRACKET, VALVE WPL W10160655 Contact Us For Availability
11
GRATE, BURNER (2) WPL 7518P38560 Contact Us For Availability
12
KIT, CONVECTION WPL W10213813 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
12
PIPE,MANIFOLD WPL 7513P47360 Contact Us For Availability
12
CAP, BURNER (BLACK 12.5K) WPL 7504P16560 Contact Us For Availability
12
CAP, BURNER (BLACK 5K) WPL 7504P20260 Contact Us For Availability
12
CAP, BURNER (BLACK 16K) WPL 7504P20460 Contact Us For Availability
12
CAP, BURNER (INNER, DUAL) WPL 7504P24260 Contact Us For Availability
12
CAP, BURNER (OUTER, DUAL) WPL 7504P24360 Contact Us For Availability
13
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
13
VALVE, REGULATOR WPL 7510P10160 Contact Us For Availability
13
BURNER, ASSY. (LR 5K) WPL 7505P30460 Contact Us For Availability
13
BURNER, ASSY. (RR 12.5K) WPL 7505P30560 Contact Us For Availability
13
BURNER, ASSY. (RF 16K) WPL 7505P30660 Contact Us For Availability
13
BURNER, ASSY. (DUAL, LF) WPL 7505P34960 Contact Us For Availability
14
GLASS, DOOR (STAINLESS) WPL W10235390 Contact Us For Availability
14
GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P43060 Contact Us For Availability
14
GLASS, DOOR (OILED BRONZE) WPL W10235391 Contact Us For Availability
14
VALVE, TOP BURNER (RR 5K) WPL 7502P47060 Contact Us For Availability
14
VALVE, TOP BURNER (LR 9.2K) WPL 7502P47160 Contact Us For Availability
14
VALVE, TOP BURNER (LF 15K) WPL 7502P49360 Contact Us For Availability
14
VALVE, TOP BURNER (RF 16K) WPL 7502P54860 Contact Us For Availability
14
SUPPORT, CNTL PNL WPL 3807F75151 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
15
SUPPORT, SCREW WPL 7101P33860 Contact Us For Availability
15
CONTROL, ERC WPL 8507P23060 Contact Us For Availability
16
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
16
FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability
16
SUPPORT, SPARK MOD WPL 3807F75245 Contact Us For Availability
16
COVER, VENT (BLACK) WPL 7744P46460 Contact Us For Availability
16
COVER, VENT (WHITE) WPL 7744P46760 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
17
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
18
SCREW WPL 7101P60660 Contact Us For Availability
18
SPARK MODULE WPL 7431P03860 Contact Us For Availability
19
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
19
IGNITOR WPL 7432P12160 Contact Us For Availability
19
TUBE, BURNER (RF) WPL 7506P44560 Contact Us For Availability
19
TUBE, BURNER (RR) WPL 7506P44760 Contact Us For Availability
19
TUBE, BURNER (LR) WPL 7506P44860 Contact Us For Availability
19
TUBE, BURNER (TUBING, INNER DUAL) WPL 7506P46960 Contact Us For Availability
19
TUBE, BURNER (TUBING, OUTER DUAL) WPL 7506P47060 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
20
LIMIT, OVEN LWR. (260F/200F) WPL 7403P85560 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
22
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
23
BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
25
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
27
ELEMENT, BAKE WPL 7406P41160 Contact Us For Availability
28
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P64760 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL 8016P02360 Contact Us For Availability
41
RETAINER, INSUL. WPL 3804F30051 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
47
SHIELD,WARMING DWR WPL 3604F32645 Contact Us For Availability
48
COVER, FRONT WPL 4005F74945 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
50
SWITCH, HI LIMIT (100F/85F) WPL 7403P65760 Contact Us For Availability
51
BOTTOM,BURNER BOX WPL 4011F49651 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
CONVERSION KIT (KIT, LP CONV.) WPL W10258122 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P53760 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P56160 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
CORD, POWER WPL W10221108 Contact Us For Availability
× ![]()
