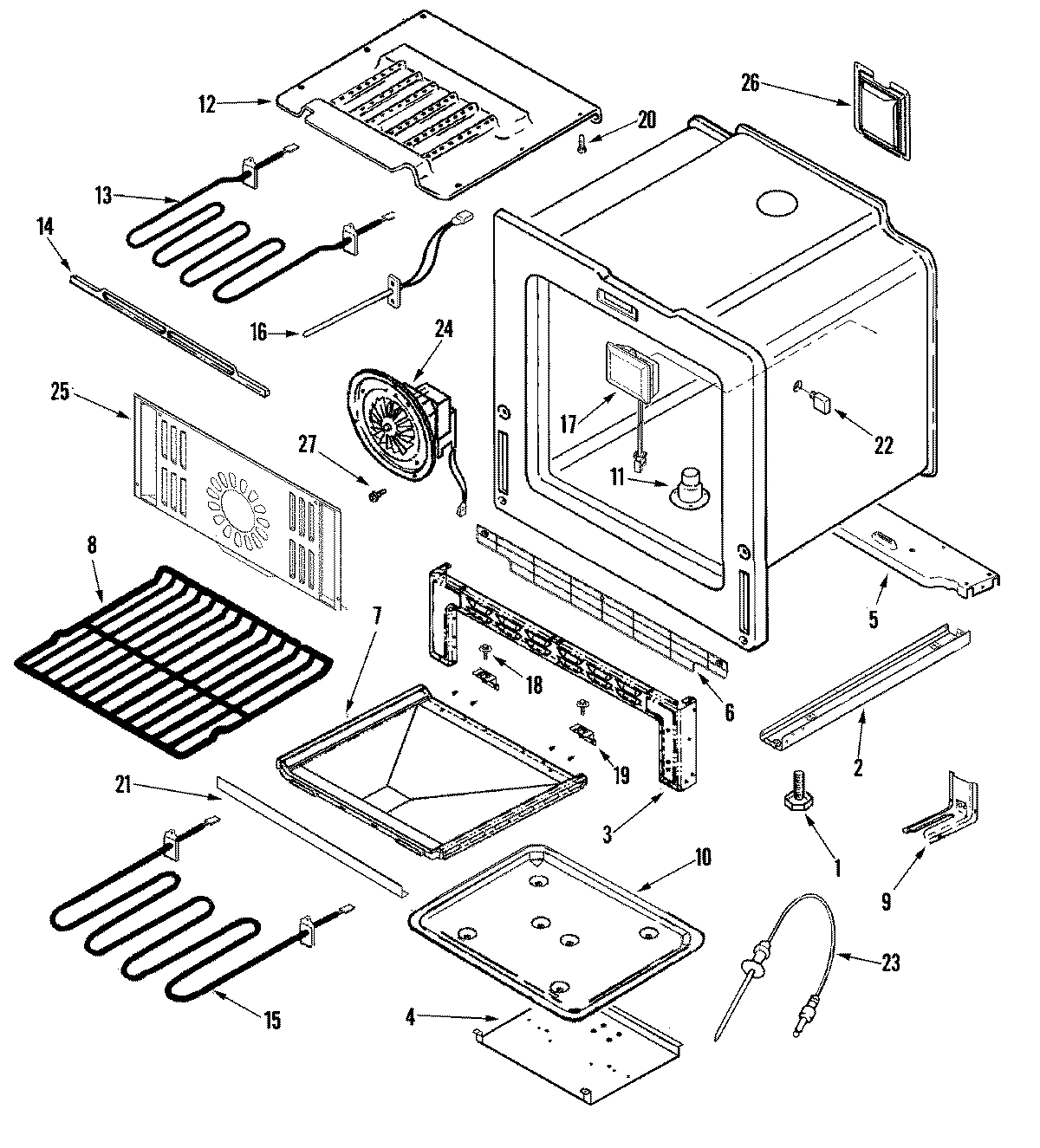

Model Whirlpool JDS8850BDW DUEL FUEL RANGE – Common Parts &amp; Diagrams

1

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $3.84

1

MANUAL, USE & CARE WPL 7113P75660 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P52560 Contact Us For Availability

1

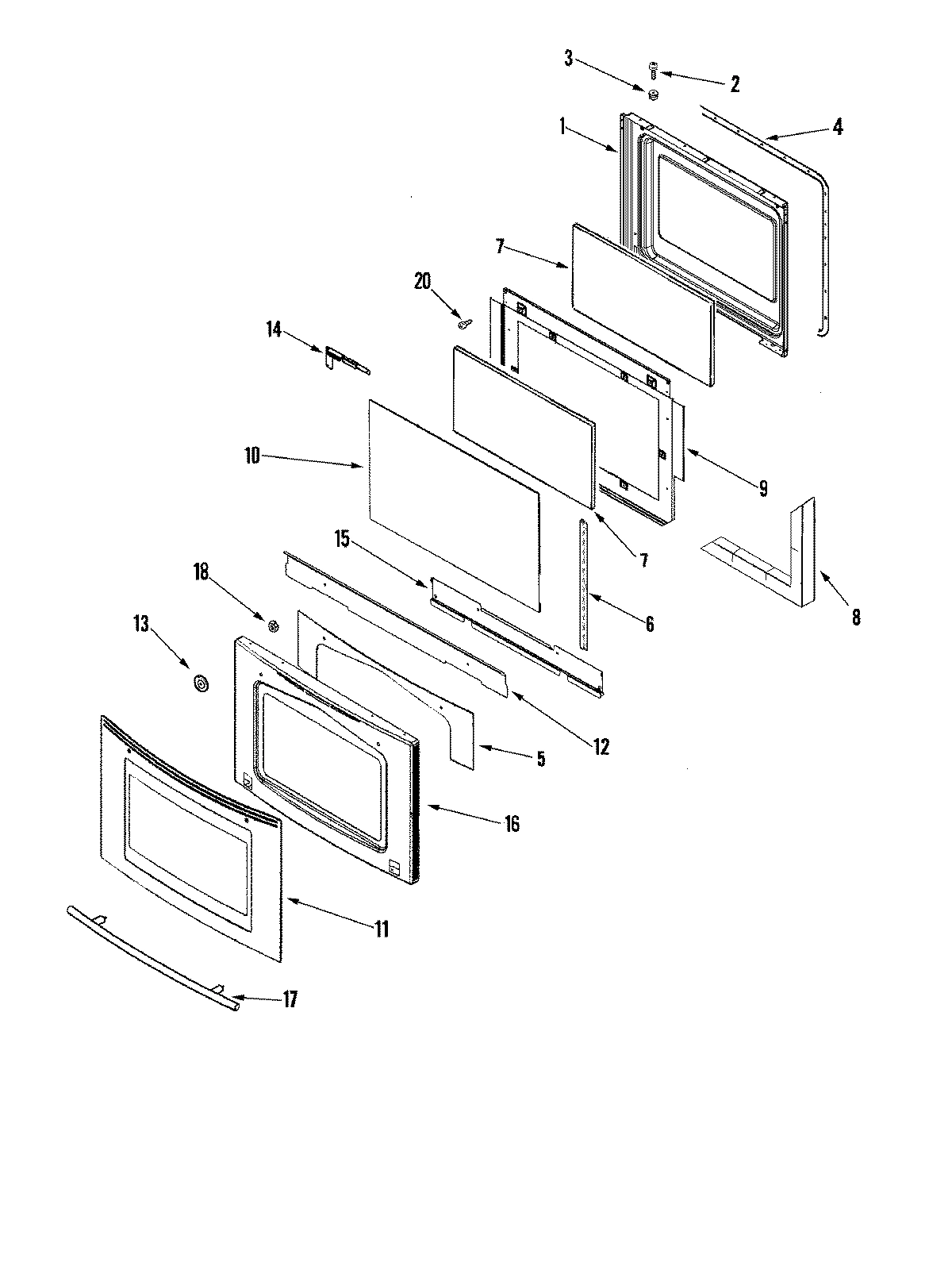

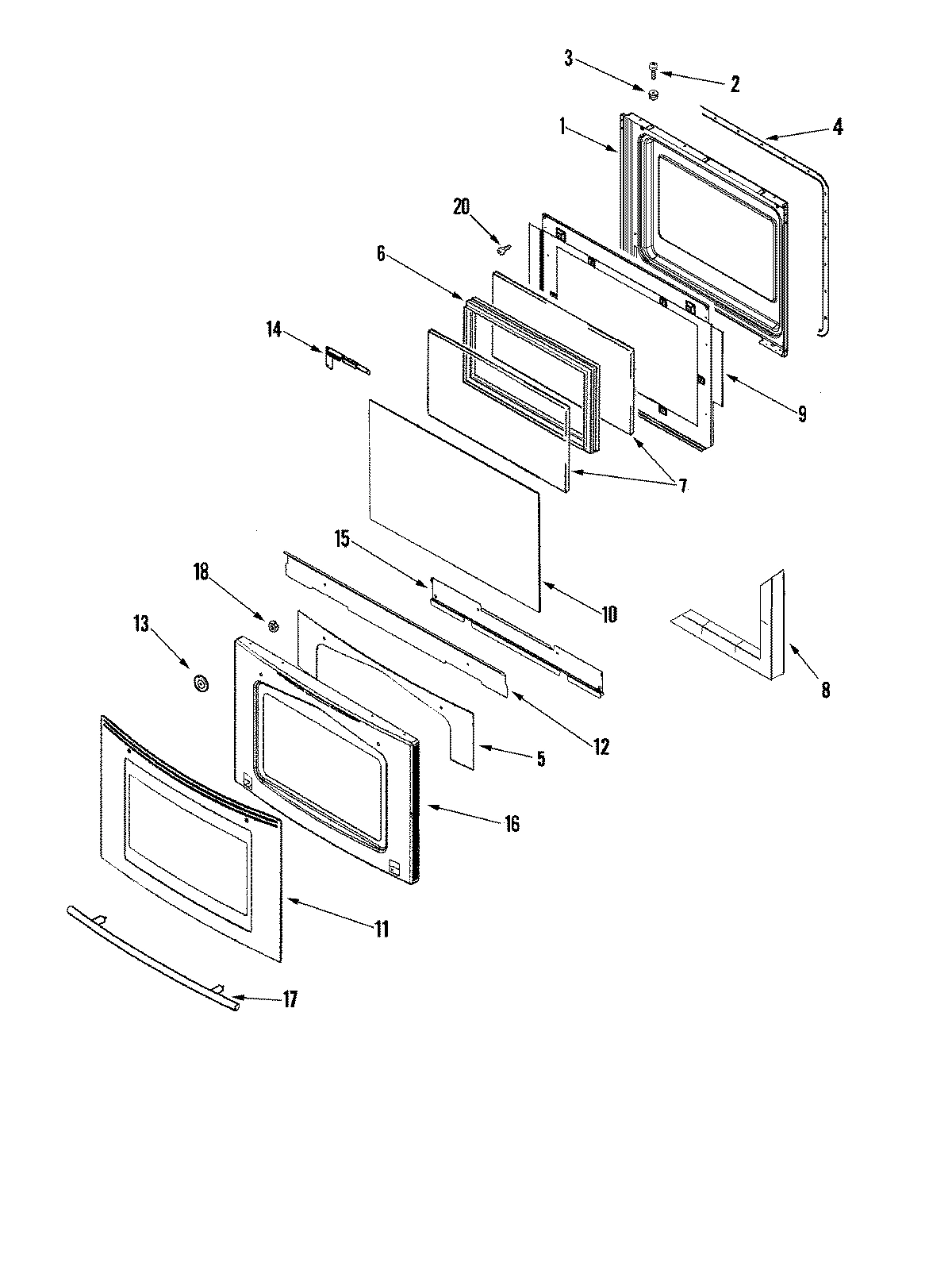

LINING, DOOR WPL 74011456 Contact Us For Availability

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

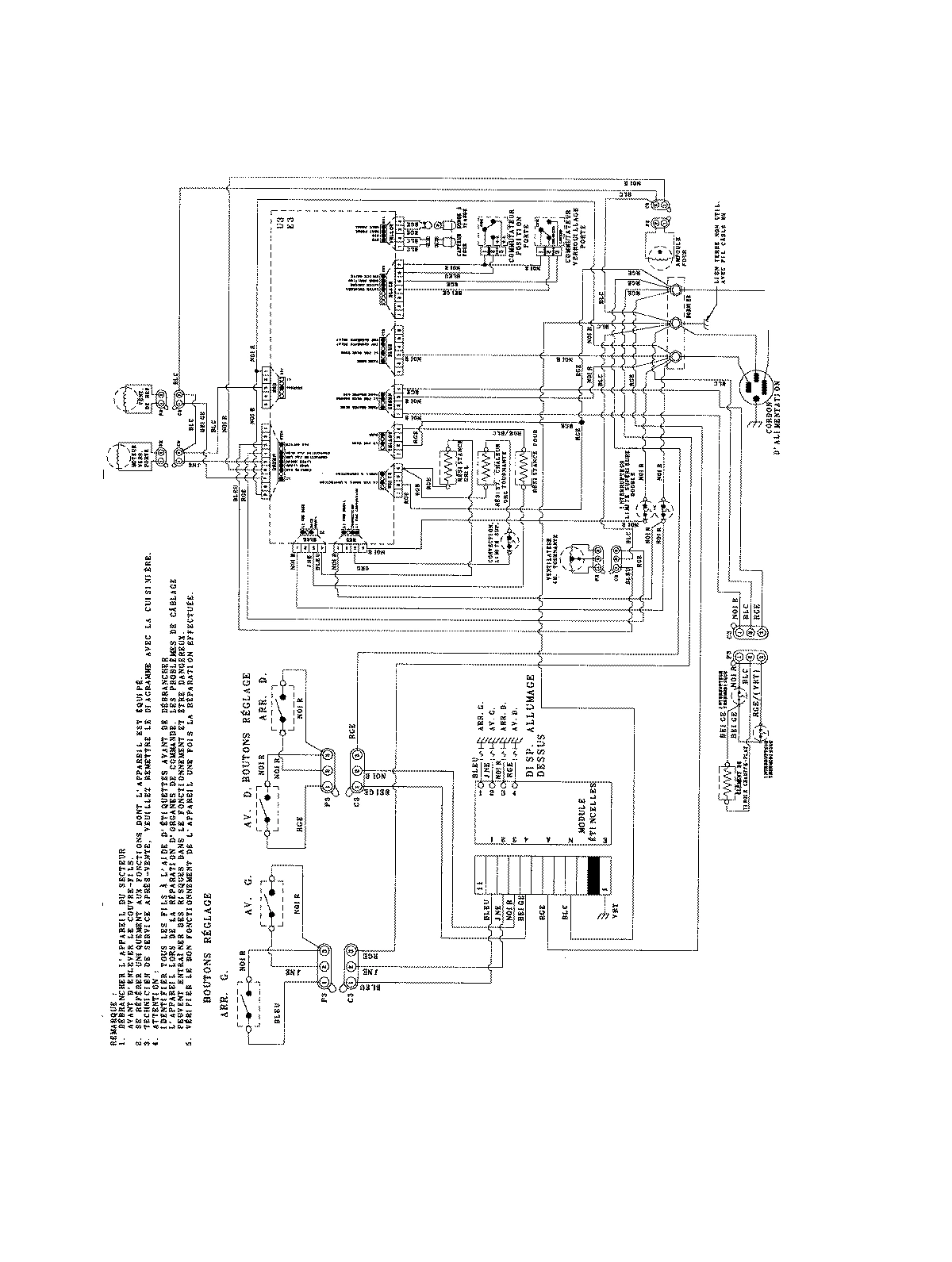

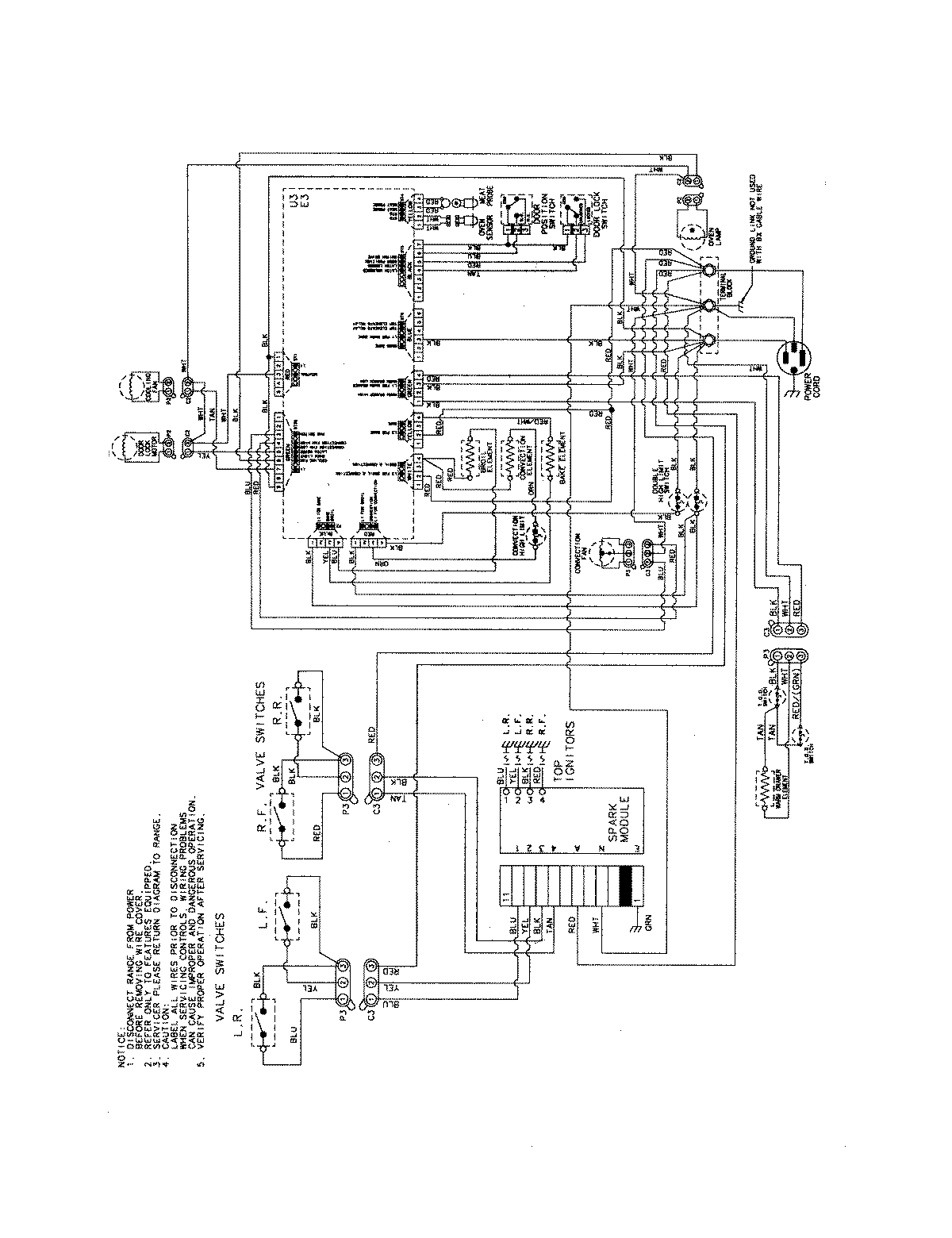

WIRING INFORMATION (FRENCH) WPL 15003901 Contact Us For Availability

1

BACK, MAIN WPL 74011465 Contact Us For Availability

1

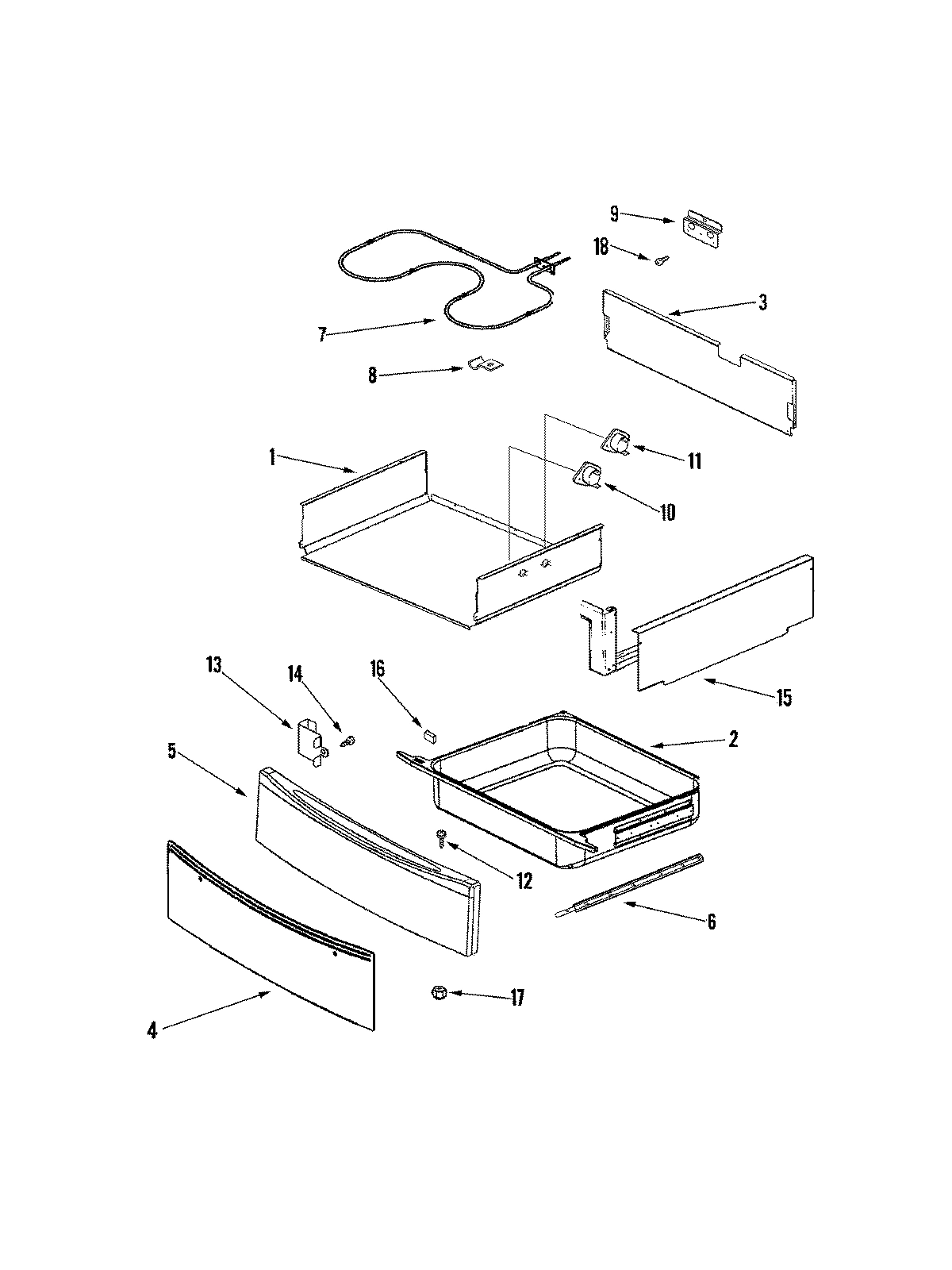

BODY, WARMING DRAWER WPL 74011814 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $46.93

2

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.74

2

HARNESS, MAIN WPL 74011726 Contact Us For Availability

2

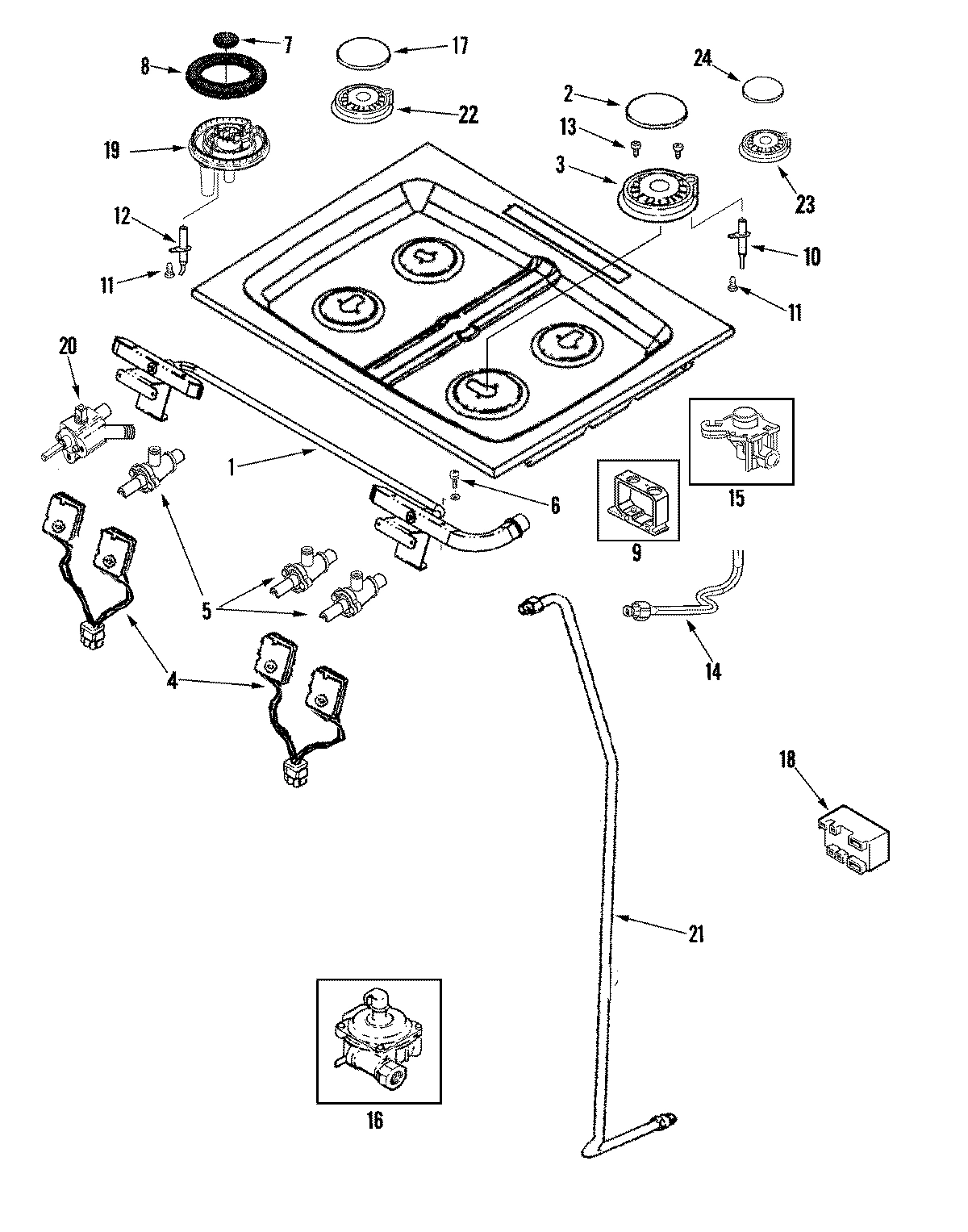

CAP, BURNER (EX-LRG/BLK) WPL 74007750 Contact Us For Availability

2

INSULATION, WRAPPER WPL 74010987 Contact Us For Availability

2

DRAWER, WARMING WPL 74011815 Contact Us For Availability

3

5171P537-60 Whirlpool Wire Harness Backorder WPL 5171P537-60 $70.48

3

74007736 Whirlpool Gas Range Cooktop Burner A In Stock WPL 74007736 $55.44

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.75

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

3

EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability

3

BACK, WARMING DRAWER WPL 74011816 Contact Us For Availability

4

74011475 Whirlpool Range Oven Door Hinge Asse In Stock WPL 74011475 $56.57

4

W10173471 Whirlpool Wire Harness Backorder WPL W10173471 $14.54

4

WP74011647 Whirlpool HAR Switch Backorder WPL WP74011647 $86.33

4

WP74011648 Whirlpool Harsh Switch Backorder WPL WP74011648 $86.35

4

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

GLASS ASY, DRAWER (WHT) WPL 74011544 Contact Us For Availability

5

12002270 Whirlpool Valve Kit and Screw 16K Backorder WPL 12002270 $123.43

5

74011619 Whirlpool Range Harness Backorder WPL 74011619 $33.99

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

5

INSULATION, DOOR WPL 74011509 Contact Us For Availability

5

VALVE, 5K (MUELLER) WPL 74009451 Contact Us For Availability

5

VALVE, 9K (MUELLER) WPL 74009452 Contact Us For Availability

5

TUBE, VENT WPL 74010816 Contact Us For Availability

5

HOLDER, VENT TUBE WPL 74010817 Contact Us For Availability

6

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.96

6

74008265 Whirlpool Oven High Limit Thermostat Backorder WPL 74008265 $85.09

6

WP74006588 Whirlpool Warming Drawer Glide Backorder WPL WP74006588 $43.83

6

TRIM, FRONT FRAME (BLK) WPL 74011482 Contact Us For Availability

6

CONVERSION KIT (LP) WPL 74011514 Contact Us For Availability

6

SCREW WPL 74009416 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $99.83

7

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

7

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $64.11

7

KIT, EXTRUSION FILLER (WHT) WPL K71FILLW Contact Us For Availability

7

CAP, DUAL BURNER (BLK/INNER) WPL 74011650 Contact Us For Availability

7

ELEMENT, WARMER WPL 74005789 Contact Us For Availability

8

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $48.36

8

KIT, SIDE PANEL (WHT) WPL UXA1100AAW Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

CAP, DUAL BURNER (BLK/OUTER) WPL 74011651 Contact Us For Availability

8

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

8

CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $117.22

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

9

HOLDER, ORIFICE (DUAL BNR) WPL W10174524 Contact Us For Availability

9

SCREW WPL 7101P35260 Contact Us For Availability

9

BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability

9

SCREW----NA WPL 22002368 Contact Us For Availability

9

SUPPORT, ELEMENT (REAR) WPL 74006576 Contact Us For Availability

7403P647-60 Whirlpool Limit Switch Backorder WPL 7403P647-60 $14.50

WP74009336 Whirlpool Oven Top Igniter In Stock WPL WP74009336 $15.52

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

PAN, BAKE WPL 74010806 Contact Us For Availability

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.60

SWITCH, HI-LIMIT (ELEC/DRAWER) WPL 74006587 Contact Us For Availability

TUBE, VENT (LWR) WPL 74010808 Contact Us For Availability

PLATE, VENT COVER WPL 74010809 Contact Us For Availability

GLASS ASY, DOOR (WHT) WPL 74011510 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.60

WP74011829 Whirlpool Burner Igniter Dual In Stock WPL WP74011829 $14.10

SHIELD, BROIL (30``) WPL 74008408 Contact Us For Availability

SHIELD, DOOR WPL 74011049 Contact Us For Availability

BUMPER, ROD WPL 74001631 Contact Us For Availability

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.02

WP7406P430-60 Whirlpool Broil Element In Stock WPL WP7406P430-60 $101.09

WASHER, HANDLE WPL 74009194 Contact Us For Availability

INSULATOR WPL 74008264 Contact Us For Availability

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $162.00

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011463 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011797 Contact Us For Availability

TUBING, BURNER (RF) WPL 74011653 Contact Us For Availability

TUBING, BURNER (RR) WPL 74011654 Contact Us For Availability

TUBING, BURNER (LR) WPL 74011655 Contact Us For Availability

TUBING, DUAL BURNER (INNER) WPL 74011656 Contact Us For Availability

TUBING, DUAL BURNER (OUTER) WPL 74011657 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011503 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011504 Contact Us For Availability

74009553 Whirlpool Orifice Holder In Stock WPL 74009553 $45.60

WP7406P411-60 Whirlpool Bake Element Backorder WPL WP7406P411-60 $159.71

WP7527P002-60 Whirlpool Orifice Holder In Stock WPL WP7527P002-60 $34.33

WP7527P004-60 Whirlpool Orifice Holder Backorder WPL WP7527P004-60 $42.24

RETAINER, GLASS (LWR) WPL 74011464 Contact Us For Availability

RETAINER, DOOR GLASS WPL 74007215 Contact Us For Availability

EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability

SHEILD, SIDE (WARMING DRWR) WPL 74011818 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

REGULATOR, PRESSURE WPL 74011871 Contact Us For Availability

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $112.87

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $141.73

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

CAP, BURNER (MED-BLK) WPL 74007749 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.84

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $160.69

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

19

3801F911-51 Whirlpool Bracket Backorder WPL 3801F911-51 $5.93

19

BURNER ASY (DUAL) WPL 74011652 Contact Us For Availability

19

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

20

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.60

20

WP74011649 Whirlpool Burner Valve Backorder WPL WP74011649 $133.68

20

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

21

COVER, FRONT WPL 74010807 Contact Us For Availability

21

TUBING, SUPPLY WPL 74011658 Contact Us For Availability

22

74007735 Whirlpool Burner Assembly In Stock WPL 74007735 $66.10

23

74007734 Whirlpool Burner Assembly In Stock WPL 74007734 $55.48

23

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $82.35

23

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

24

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $3.02

24

WP8284669 Whirlpool Burner Cap Backorder WPL WP8284669 $39.84

24

CONVECTION FAN ASY. WPL 74011517 Contact Us For Availability

25

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

25

WPW10186795 Whirlpool Convection Baffle Backorder WPL WPW10186795 $32.60

26

3804F300-51 Whirlpool Retainer Backorder WPL 3804F300-51 $33.29

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

27

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

27

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

28

CORD, POWER (90C/4 WIRE) WPL 74011522 Contact Us For Availability
