Model Maytag JDS1750FP0 RANGE/OVEN, DUAL FUEL, SLIDE-IN, DOWNDRAFT, 30 INC – Common Parts & Diagrams

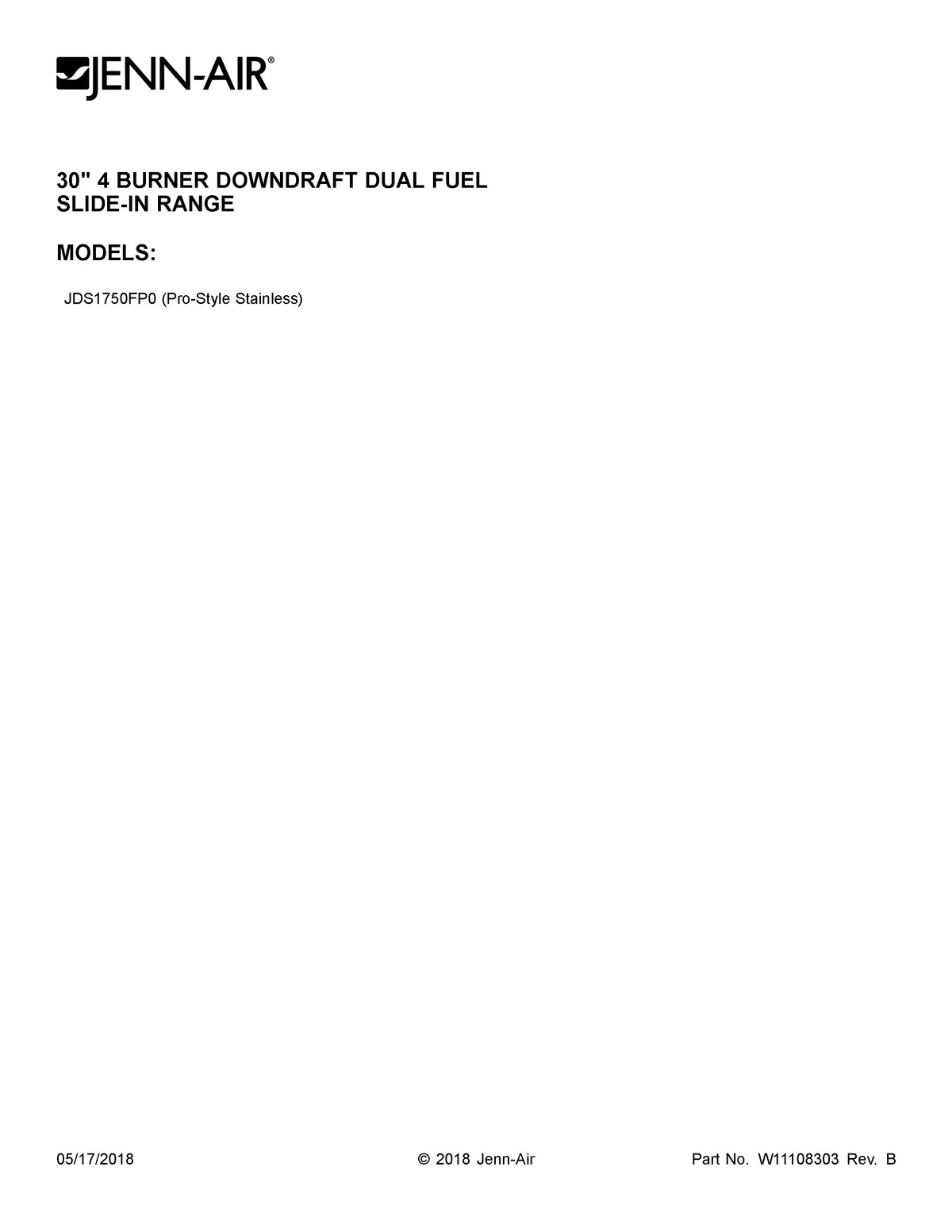

01 - COVER SHEET

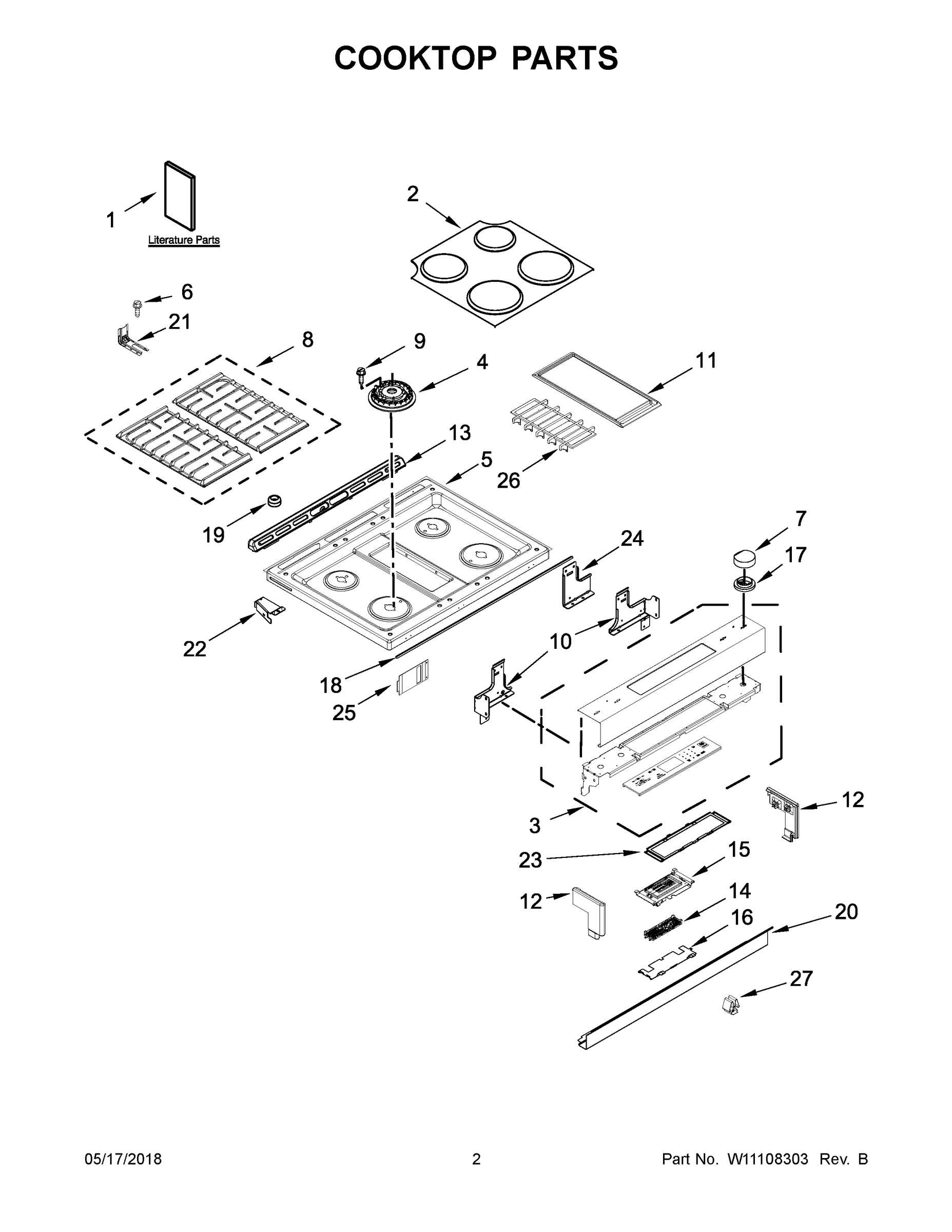

02 - COOKTOP PARTS

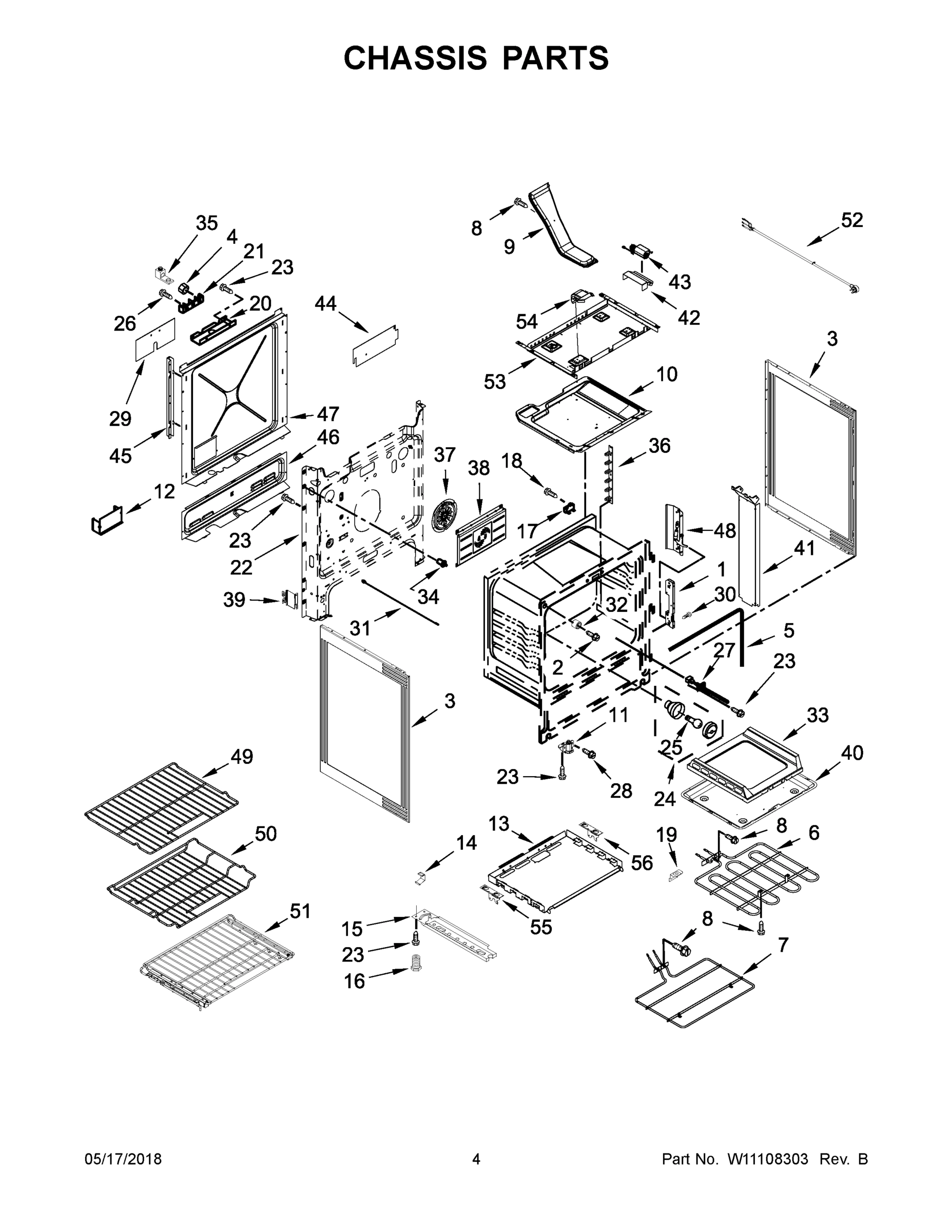

03 - CHASSIS PARTS

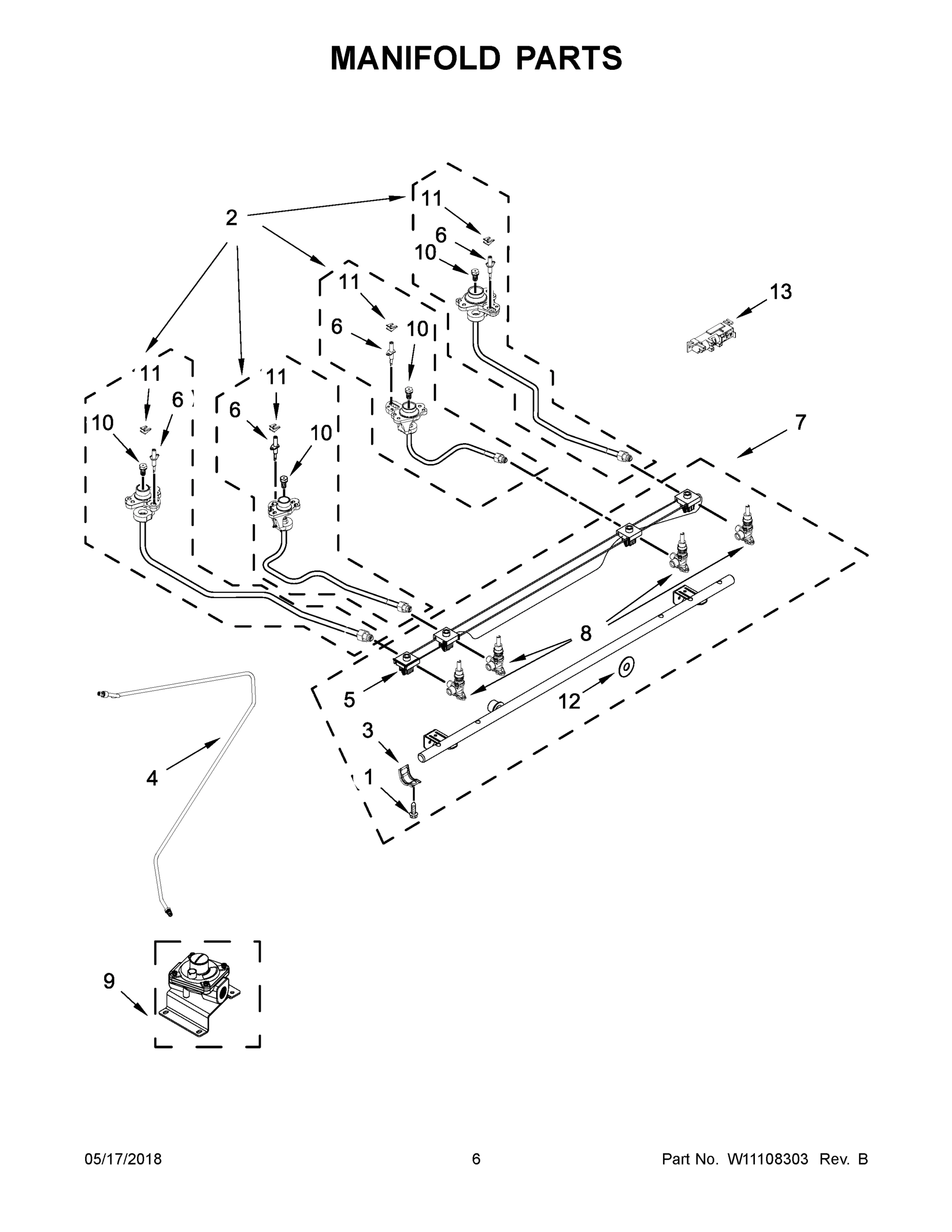

04 - MANIFOLD PARTS

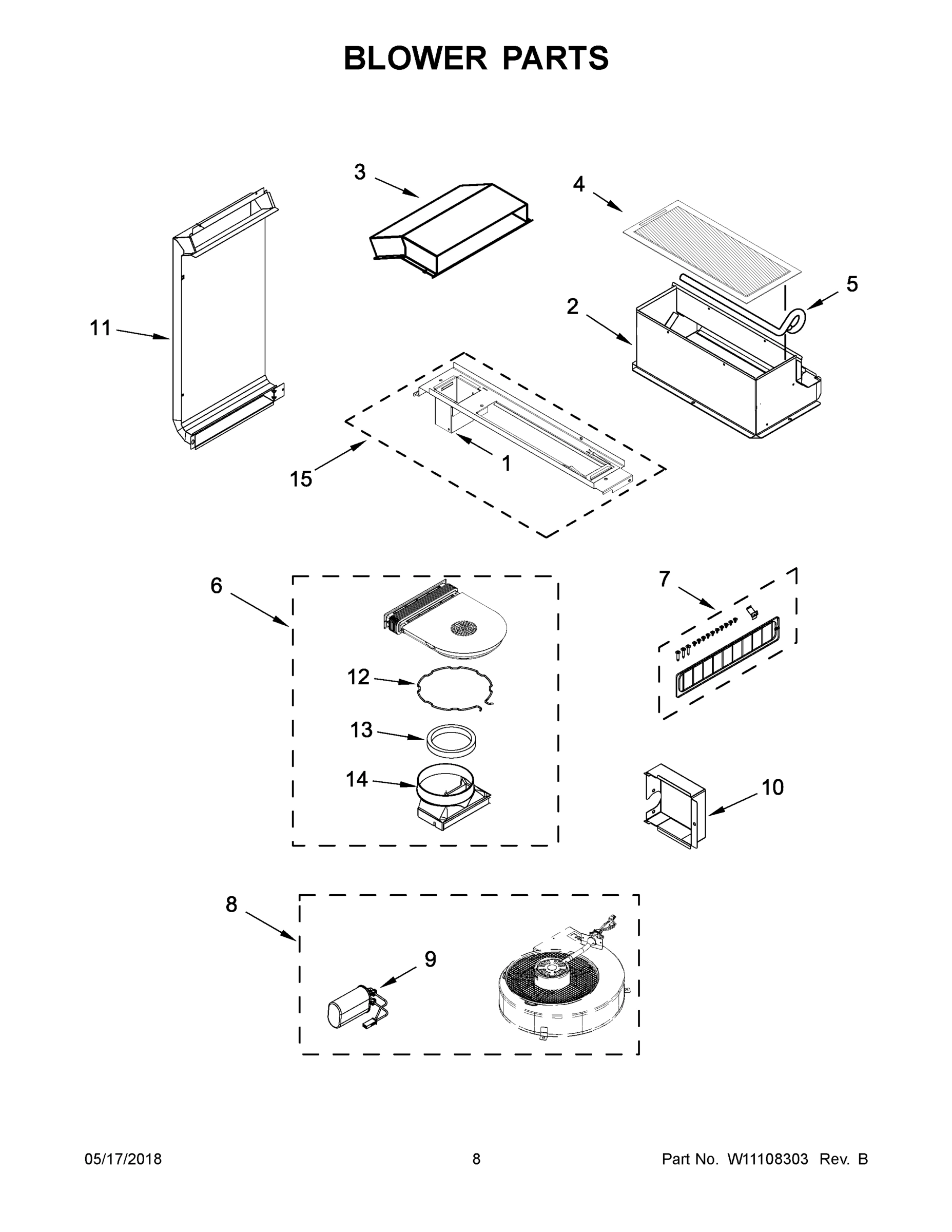

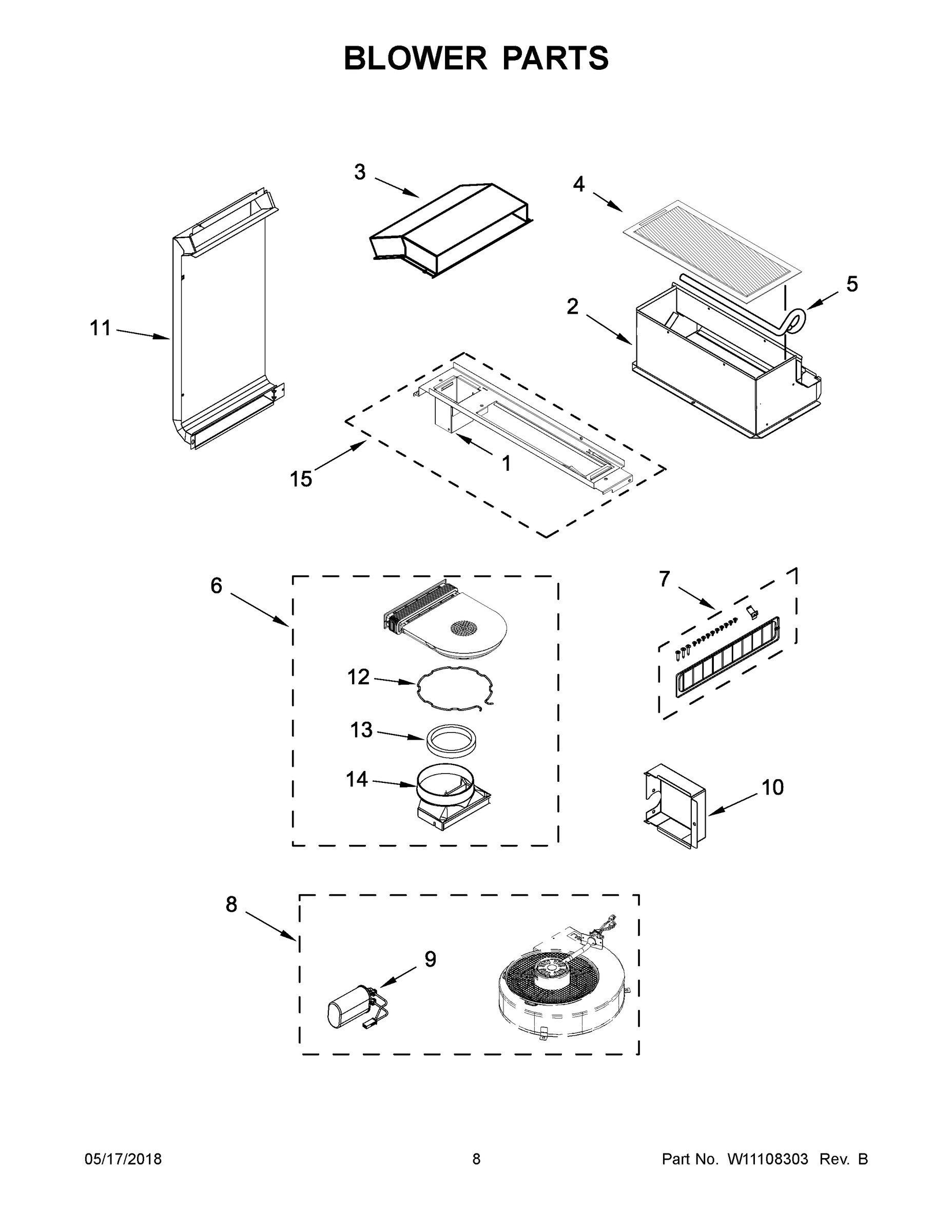

05 - BLOWER PARTS

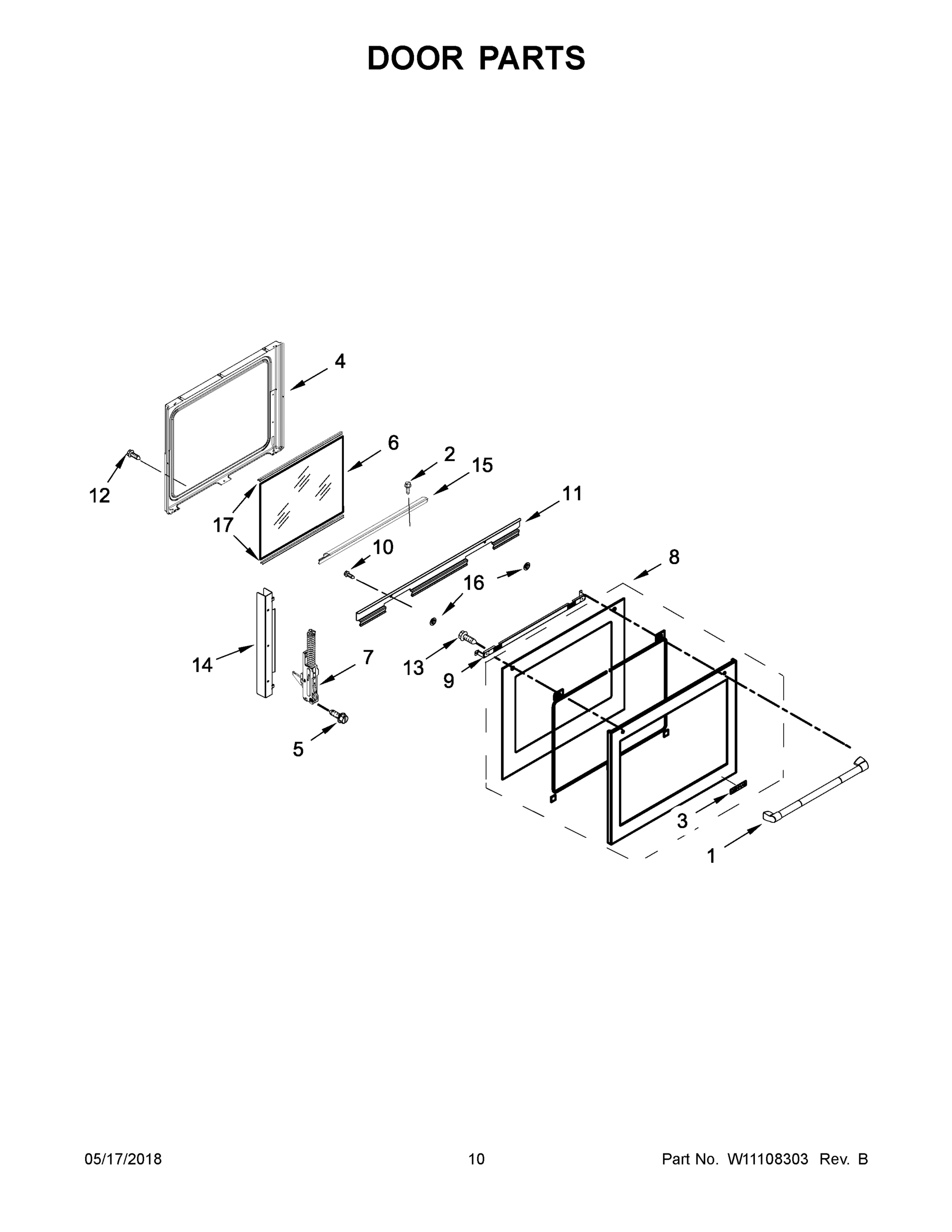

06 - DOOR PARTS

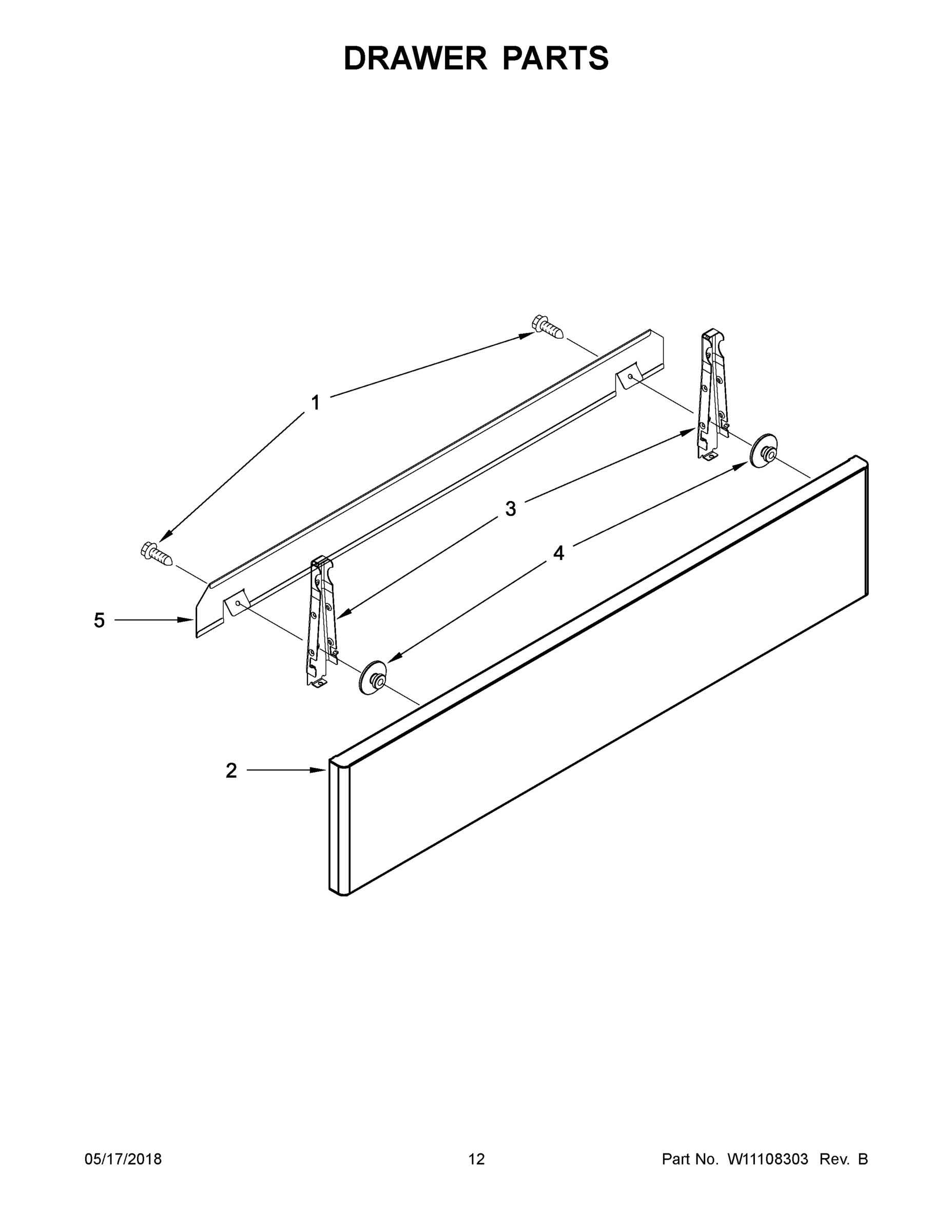

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS1750FP0 RANGE/OVEN, DUAL FUEL, SLIDE-IN, DOWNDRAFT, 30 INC
1
SCREW MAY 3196169 Contact Us For Availability
1
HINGE, RECEIVER MAY W10634238 Contact Us For Availability
1
ENCLOSURE, BLOWER MAY W10661156 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10483386 Contact Us For Availability
1A
MAY W11124002 MAY W11124002 Contact Us For Availability
1B
SHEET, TECH MAY W10844271 Contact Us For Availability
1C
MAY W10902654 MAY W10902654 Contact Us For Availability
1D
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
1E
MAY W11120467 MAY W11120467 Contact Us For Availability
1F
TEMPLATE, DOWNDRAFT MAY W10817089 Contact Us For Availability
2

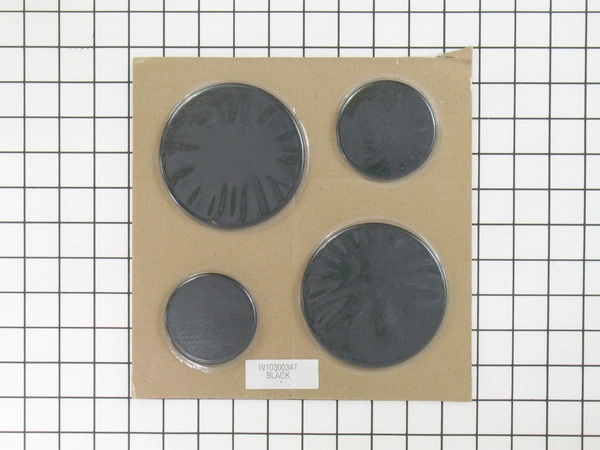

KIT, BURNER CAP (BLACK) MAY W10300347 Contact Us For Availability
2
SCREW MAY 3196560 Contact Us For Availability
2
ORIFICE, ASSEMBLY (RIGHT FRONT) MAY W10552143 Contact Us For Availability
2
PLENUM INTAKE, GAS MAY W10572225 Contact Us For Availability
2
SCREW MAY 9780274 Contact Us For Availability
2
PANEL, DRAWER FRONT (STAINLESS) MAY W10602484 Contact Us For Availability
2A
ORIFICE, ASSEMBLY (RIGHT REAR) MAY W10552142 Contact Us For Availability
2B
ORIFICE, ASSEMBLY (LEFT REAR) MAY W10552133 Contact Us For Availability
2C
ORIFICE, ASSEMBLY (LEFT FRONT) MAY W10552136 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10901068 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
PLENUM, UPPER MAY W10572145 Contact Us For Availability
3
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
3
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
4
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10556378 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
TUBE, SUPPLY MAY W10552945 Contact Us For Availability
4
GREASE, FILTER MAY W10575379 Contact Us For Availability
4
LINER, DOOR MAY W10826568 Contact Us For Availability
4
SPACER, SIDE PANEL MAY 8004P024-60 Contact Us For Availability
4A
SPREADER, FLAME (RIGHT REAR) MAY W10556377 Contact Us For Availability
4B

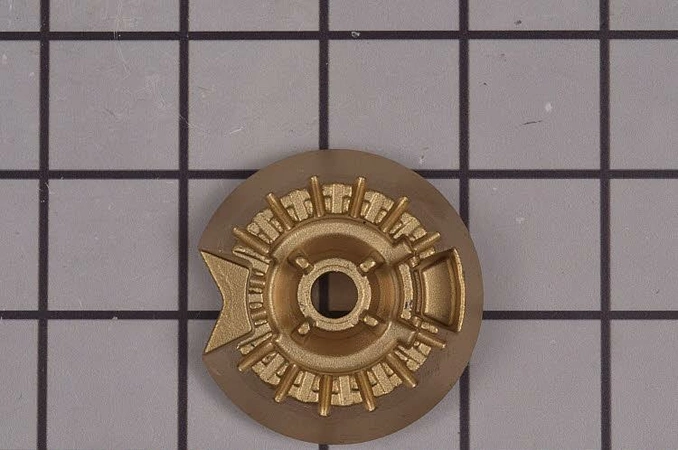

SPREADDER, FLAME (LEFT REAR) MAY W10556381 Contact Us For Availability
5
COOKTOP (STAINLESS) MAY W10482062 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
HARNESS, SPARK SWITCH MAY W10578095 Contact Us For Availability
5
GUARD, FILTER MAY W10575393 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5
BAFFLE, DRAWER PANEL MAY W10798390 Contact Us For Availability
6
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
6
ELEMENT, BROIL MAY W10544952 Contact Us For Availability
6
ELECTRODE (RIGHT REAR) MAY W10496872 Contact Us For Availability
6
KIT, PLENUM TRANSITION MAY W10789431 Contact Us For Availability
6
GLASS, INNER MAY W10813616 Contact Us For Availability
6A
ELECTRODE (LEFT REAR) MAY W10496873 Contact Us For Availability
6B
ELECTRODE (LEFT FRONT) MAY W10496874 Contact Us For Availability
6C
ELECTRODE (RIGHT FRONT) MAY W10496870 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10437064 Contact Us For Availability
7
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
7
MANIFOLD, ASSEMBLY MAY W10790616 Contact Us For Availability
7
KIT, BLOWER INSTALLATION MAY W10789391 Contact Us For Availability
7
HINGE, SLOW CLOSE MAY W10885516 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10752103 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10566042 Contact Us For Availability
8
KIT, BLOWER MAY W10810492 Contact Us For Availability
8
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10634269 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10831588 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10566050 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W11122085 Contact Us For Availability
9
ASSEMBLY, REGULATOR & BRACKET MAY W10661850 Contact Us For Availability
9
ASSEMBLY, CAPACITOR MAY W10788527 Contact Us For Availability
9
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
ORIFICE (9.2K) (RIGHT REAR) MAY W10657949 Contact Us For Availability
10
COVER, CAPICATOR MAY W10787917 Contact Us For Availability
10
SCREW MAY W10327235 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
10A
ORIFICE (17K) (LEFT FRONT) MAY W10657946 Contact Us For Availability
10B
ORIFICE (5K) (LEFT REAR) MAY W10515054 Contact Us For Availability
10C
ORIFICE (1.8MM) (RIGHT FRONT) MAY W10434277 Contact Us For Availability
11
GRIDDLE MAY W10432544 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
CLIP, SPRING (ELECTRODE) (RIGHT FRONT, RIGHT MAY W10575401 Contact Us For Availability
11
PLENUM, SIDE MAY W10661835 Contact Us For Availability
11
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
11A
CLIP, SPRING (ELECTRODE) (LEFT REAR) MAY W10256046 Contact Us For Availability
12
ENDCAP (STAINLESS (LEFT)) MAY W10557751 Contact Us For Availability
12
COVER, REGULATOR MAY W10162258 Contact Us For Availability
12
SCREW MAY W10031780 Contact Us For Availability
12
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
12
RETAINER MAY W10702071 Contact Us For Availability
12A
ENDCAP (STAINLESS (RIGHT)) MAY W10557754 Contact Us For Availability
13
TRIM, VENT (STAINLESS) MAY W10636529 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MODULE, SPARK MAY W10475148 Contact Us For Availability
13
GASKET, BLOWER MAY W10759311 Contact Us For Availability
13
SCREW MAY W10530626 Contact Us For Availability
14
CONTROL, MRC2 MAY W10759274 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
ADAPTOR, EXHAUST MAY W10642096 Contact Us For Availability
14
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
15
DISPLAY, ASSEMBLY MAY W10759326 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
ASSEMBLY, PLENUM SUPPORT BRACKET MAY W10789390 Contact Us For Availability
15
SCOOP, DOOR (STAINLESS) MAY W10551024 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
WASHER, DOOR MAY W10319024 Contact Us For Availability
17
BEZEL (STAINLESS) MAY W10490679 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
SPACER, GLASS MAY W10813142 Contact Us For Availability
18
GASKET, CONSOLE/COOKTOP MAY W10612719 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
19
BUMPER MAY W10664705 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
20
CONSOLE, LOWER PANEL (STAINLESS) MAY W10743281 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
MAIN, BACK (NOT SERVICED) MAY W10162247 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
BRACKET , CONTROL MAY W10557780 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
24
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
26
GRILL, AIR (BLACK) MAY W10752102 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
PANEL, CLIP MAY W10866583 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
29
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
RACK, LADDER MAY W10603482 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10874472 Contact Us For Availability
38
BAFFLE, FULL CONVECTION MAY W10554262 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
PAN, BAKE MAY W10346147 Contact Us For Availability
41
DUCT, COVER MAY W10162255 Contact Us For Availability
42
DUCT, COOLING MAY W10162254 Contact Us For Availability
43
ASSEMBLY, COOLING FAN MAY W10877642 Contact Us For Availability
44
SHIELD, WIRE MAY W11117035 Contact Us For Availability
45
CHANNEL, REAR MAY W10162241 Contact Us For Availability
46
COVER, WIRE MAY W10575377 Contact Us For Availability
47
COVER, BACK MAY W10289172 Contact Us For Availability
48
RECEIVER, SLOW CLOSE HINGE MAY W10605411 Contact Us For Availability
49
RACK, HEAVY DUTY MAY W10554005 Contact Us For Availability
50
RACK, MAXIMUM CAPACITY MAY W10554006 Contact Us For Availability
51
RACK, SLIDING MAY W10911366 Contact Us For Availability
52
CORD, POWER MAY W10624592 Contact Us For Availability
53
BURNER BOX, GAS DOWNDRAFT MAY W10558277 Contact Us For Availability
54
DUCT, COOKTOP MAY W10162257 Contact Us For Availability
55
BRACKET, PANEL (RIGHT) MAY W10828882 Contact Us For Availability
56
BRACKET, PANEL (LEFT) MAY W10828883 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, KEYPAD MAY W10575120 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
SUPPRESSOR MAY W10653092 Contact Us For Availability
NI
HARNESS, JUMPER MAY W10812964 Contact Us For Availability
NI

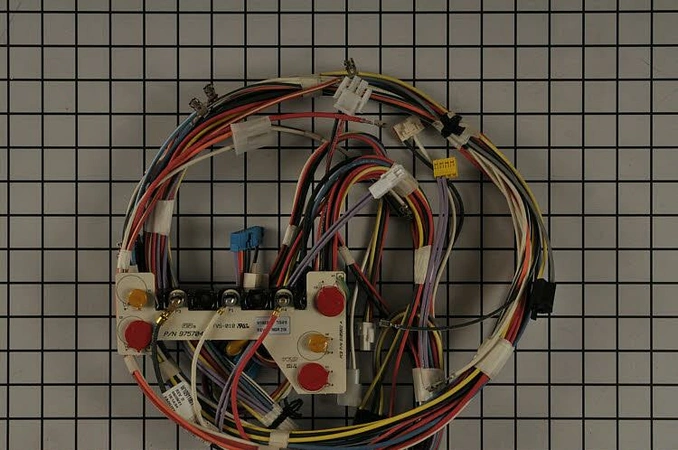

MAY W10911851 MAY W10911851 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BACK MAY W10162240 Contact Us For Availability
NI
INSULATION, WRAP MAY W10289173 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10575374 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10566083 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS, KIT, CANNING MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES PROTECTA MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES KIT, COO MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS, GRID, BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS, RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES WIPES, S MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, CLE MAY W10391473 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
