Model Maytag JDS1750ES1 RANGE/OVEN, DUAL FUEL, SLIDE-IN – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

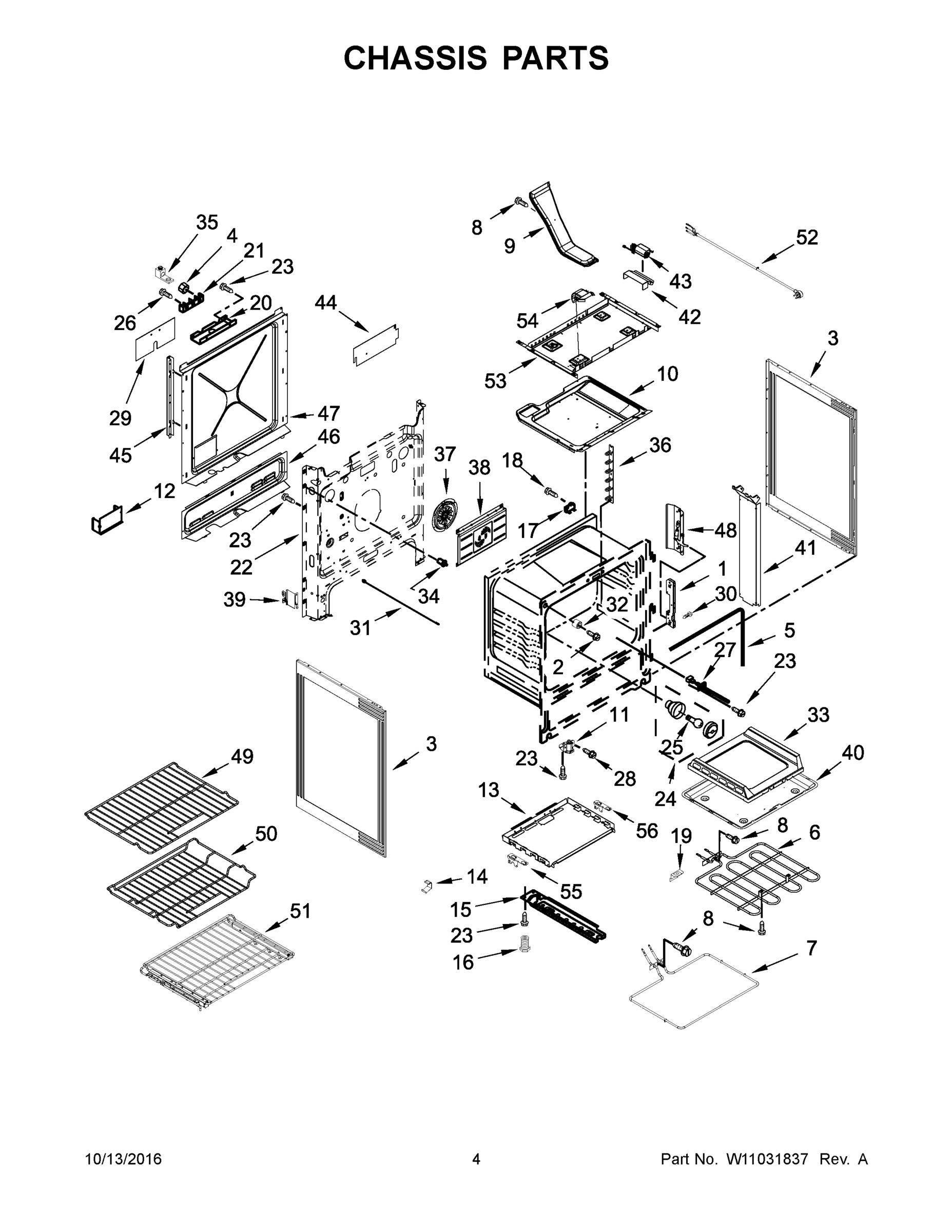

03 - CHASSIS PARTS

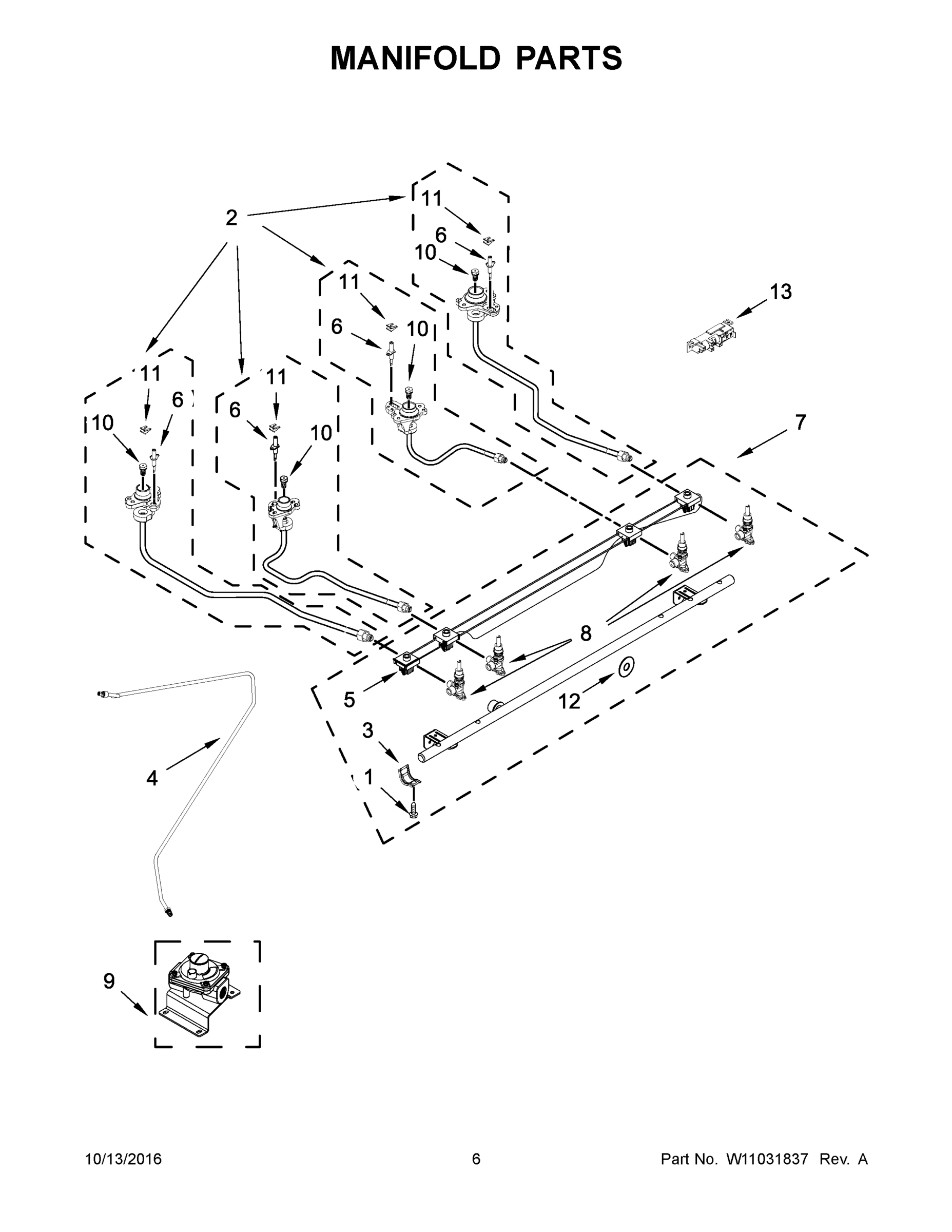

04 - MANIFOLD PARTS

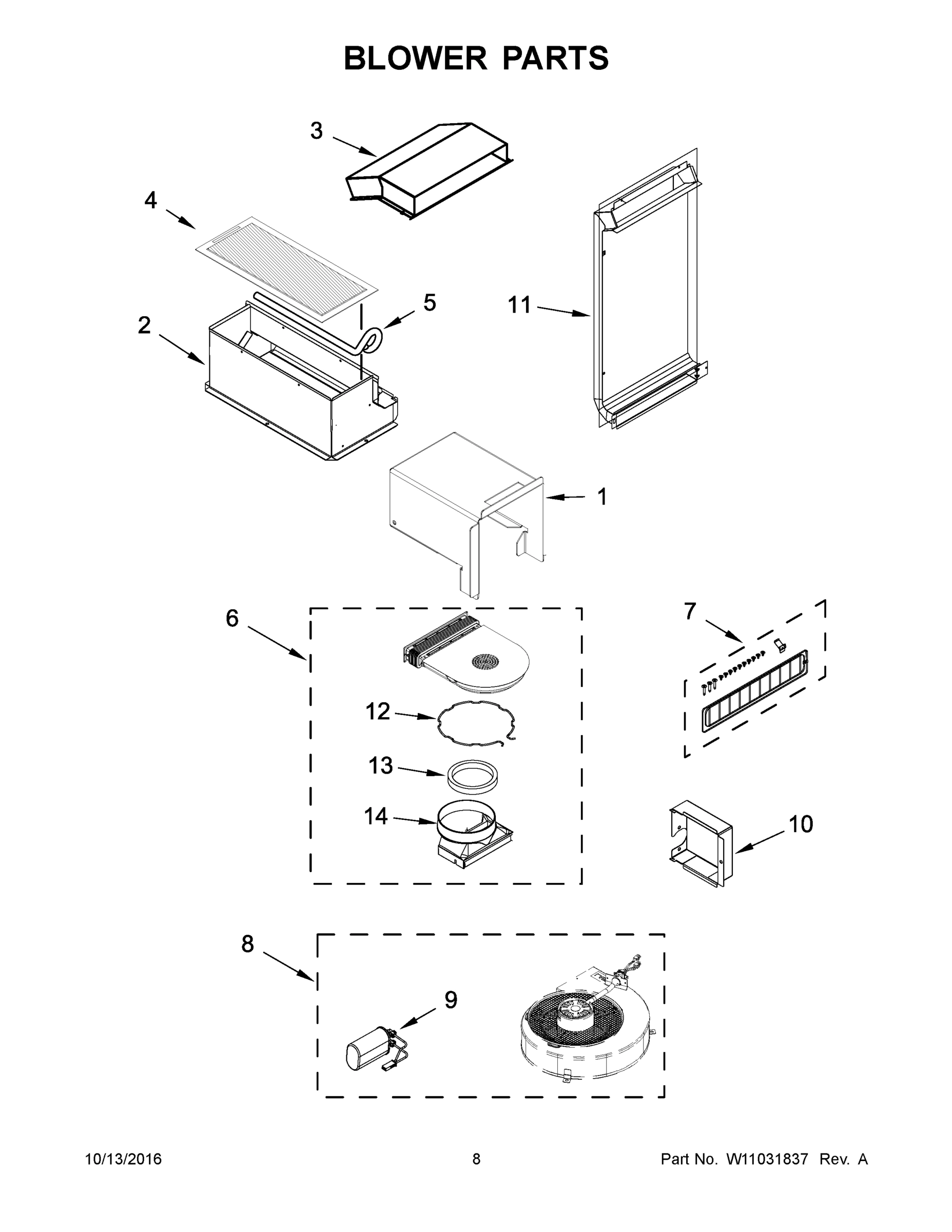

05 - BLOWER PARTS

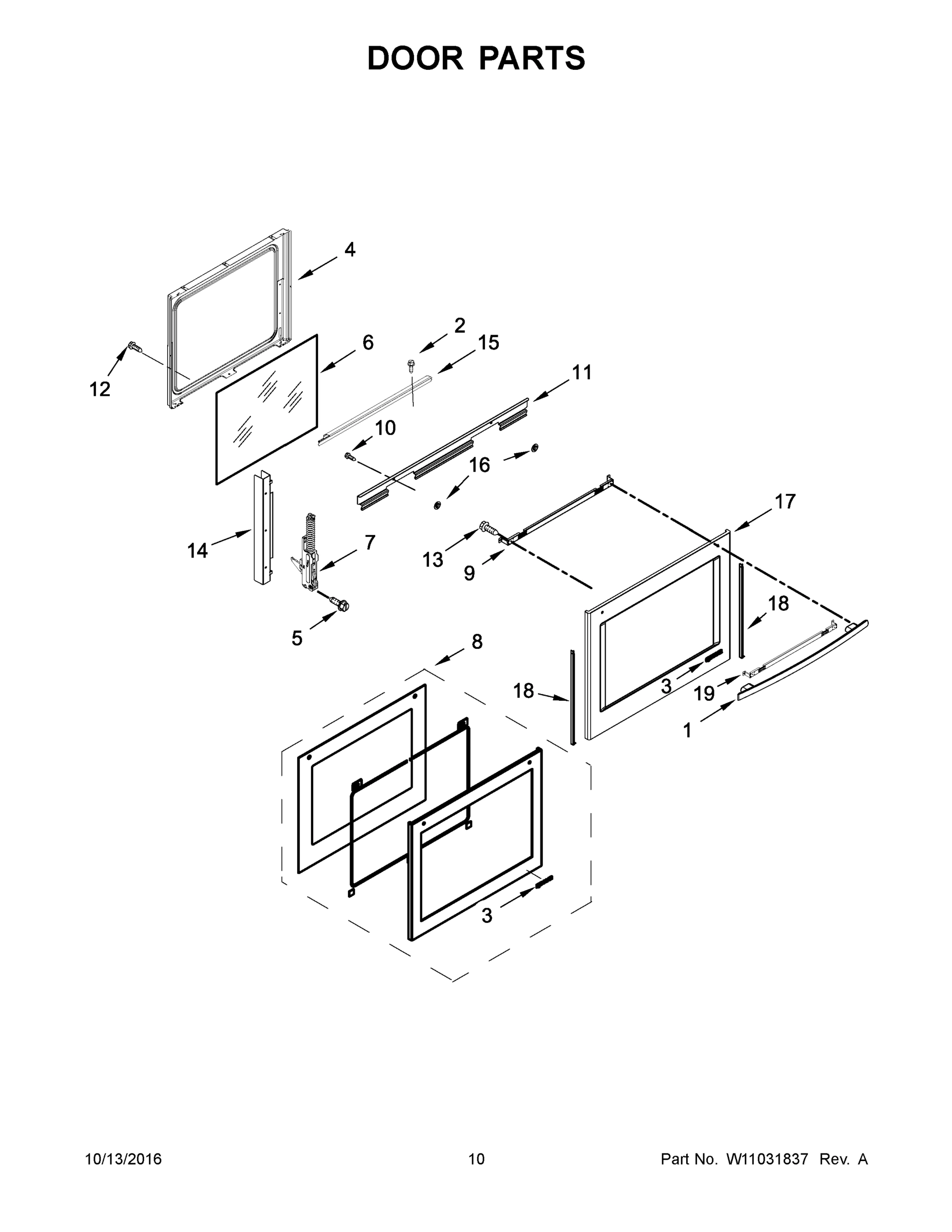

06 - DOOR PARTS

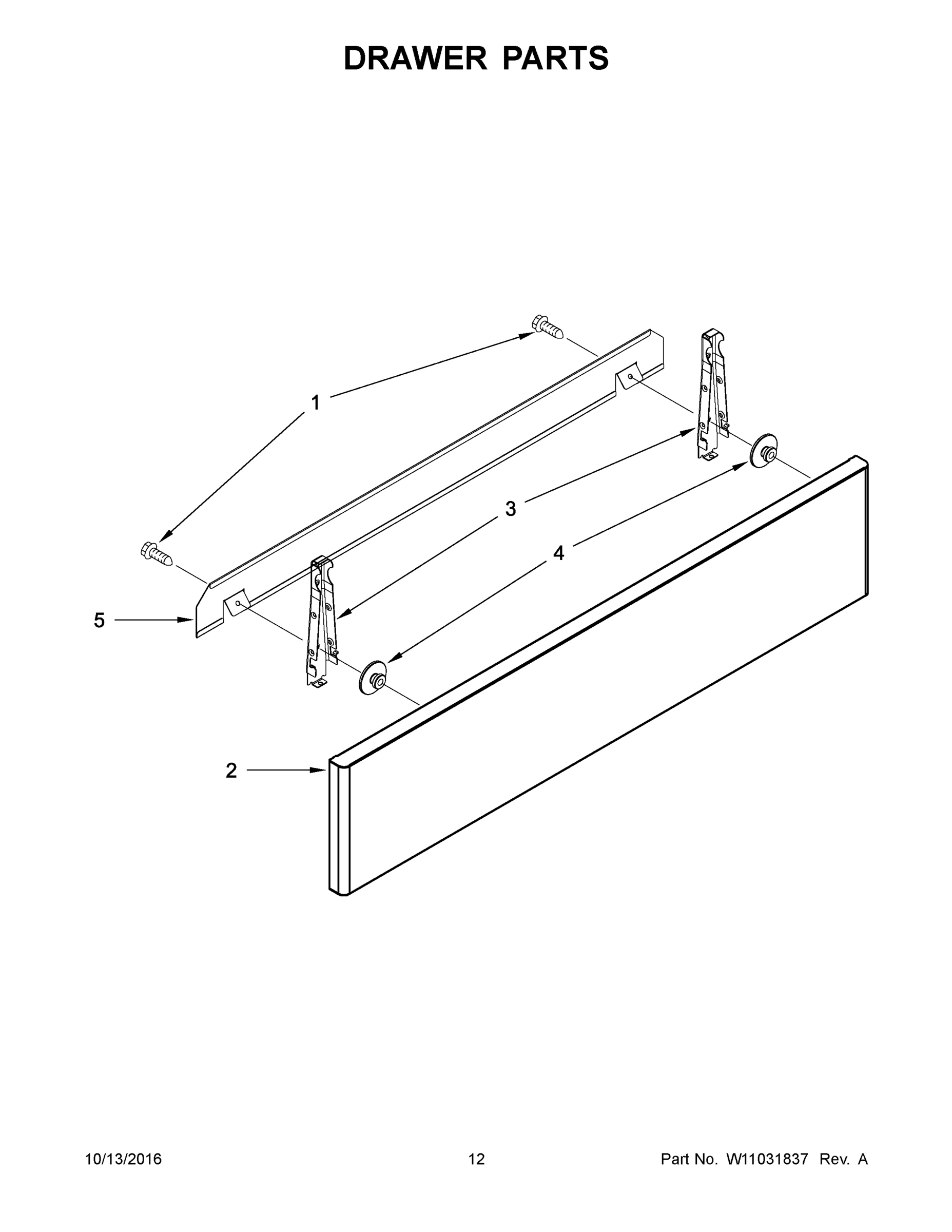

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS1750ES1 RANGE/OVEN, DUAL FUEL, SLIDE-IN
1
MAY 3196169 MAY 3196169 Contact Us For Availability
1
MAY W10634238 MAY W10634238 Contact Us For Availability
1
MAY W10246216 MAY W10246216 Contact Us For Availability
1
MAY W10661156 MAY W10661156 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (BLACK) MAY W10550998 Contact Us For Availability
1A
MAY W10750373 MAY W10750373 Contact Us For Availability
1A
MAY W10551013 MAY W10551013 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY W10750126 MAY W10750126 Contact Us For Availability
1D
MAY 9762761 MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1F
MAY W10400066 MAY W10400066 Contact Us For Availability
1G
MAY W10400067 MAY W10400067 Contact Us For Availability
1H
MAY W10817089 MAY W10817089 Contact Us For Availability
2
KIT, BURNER CAP (BLACK) MAY W10300347 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10552143 MAY W10552143 Contact Us For Availability
2
MAY W10572225 MAY W10572225 Contact Us For Availability
2
SCREW MAY 9780274 Contact Us For Availability
2
MAY W10602485 MAY W10602485 Contact Us For Availability
2A
MAY W10552142 MAY W10552142 Contact Us For Availability
2A
MAY W10602484 MAY W10602484 Contact Us For Availability
2B
MAY W10552133 MAY W10552133 Contact Us For Availability
2C
MAY W10552136 MAY W10552136 Contact Us For Availability
3
MAY W10901069 MAY W10901069 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
MAY W10572145 MAY W10572145 Contact Us For Availability
3
BADGE (BLACK) MAY W10190724 Contact Us For Availability
3
MAY W10318026 MAY W10318026 Contact Us For Availability
3A
MAY W10901068 MAY W10901068 Contact Us For Availability
3A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10556378 Contact Us For Availability
4
MAY 3400029 MAY 3400029 Contact Us For Availability
4
MAY W10552945 MAY W10552945 Contact Us For Availability
4
MAY W10575379 MAY W10575379 Contact Us For Availability
4
MAY W10826568 MAY W10826568 Contact Us For Availability
4
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
4A
MAY W10556377 MAY W10556377 Contact Us For Availability
4B
SPREADDER, FLAME (LEFT REAR) MAY W10556381 Contact Us For Availability
5
MAY W10482049 MAY W10482049 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10578095 MAY W10578095 Contact Us For Availability
5
MAY W10575393 MAY W10575393 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
BAFFLE, DRAWER PANEL MAY W10798390 Contact Us For Availability
5A
MAY W10482062 MAY W10482062 Contact Us For Availability
6
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
6
MAY W10544952 MAY W10544952 Contact Us For Availability
6
MAY W10496872 MAY W10496872 Contact Us For Availability
6
MAY W10789431 MAY W10789431 Contact Us For Availability
6
MAY W10813616 MAY W10813616 Contact Us For Availability
6A
ELECTRODE (RIGHT FRONT) MAY W10496870 Contact Us For Availability
6B
MAY W10496873 MAY W10496873 Contact Us For Availability
6C
MAY W10496874 MAY W10496874 Contact Us For Availability
7
MAY W10505765 MAY W10505765 Contact Us For Availability
7
MAY W10774342 MAY W10774342 Contact Us For Availability
7
MAY W10790616 MAY W10790616 Contact Us For Availability
7
MAY W10789391 MAY W10789391 Contact Us For Availability
7
MAY W10885517 MAY W10885517 Contact Us For Availability
7A
MAY W10505764 MAY W10505764 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10752103 Contact Us For Availability
8
MAY W10362924 MAY W10362924 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10566042 Contact Us For Availability
8
MAY W10810492 MAY W10810492 Contact Us For Availability
8
PANEL, DOOR (STAINLESS) MAY W10634268 Contact Us For Availability
8A
MAY W10831588 MAY W10831588 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10566050 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
MAY W10661850 MAY W10661850 Contact Us For Availability
9
MAY W10788527 MAY W10788527 Contact Us For Availability
9
MAY W10541911 MAY W10541911 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
ORIFICE (RIGHT FRONT) MAY W10434277 Contact Us For Availability
10
MAY W10787917 MAY W10787917 Contact Us For Availability
10
MAY W10327235 MAY W10327235 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
10A
ORIFICE (RIGHT REAR) MAY W10657949 Contact Us For Availability
10B
ORIFICE (LEFT FRONT) MAY W10657946 Contact Us For Availability
10C
MAY W10515054 MAY W10515054 Contact Us For Availability
11
MAY W10432544 MAY W10432544 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
CLIP, SPRING (ELECTRODE) (RIGHT FRONT, RIGHT MAY W10575401 Contact Us For Availability
11
MAY W10661835 MAY W10661835 Contact Us For Availability
11
MAY W10813140 MAY W10813140 Contact Us For Availability
11A
CLIP, SPRING (ELECTRODE) MAY W10256046 Contact Us For Availability
12
MAY W10557750 MAY W10557750 Contact Us For Availability
12
MAY W10162258 MAY W10162258 Contact Us For Availability
12
MAY W10031780 MAY W10031780 Contact Us For Availability
12
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
12
MAY W10702071 MAY W10702071 Contact Us For Availability
12A
ENDCAP (STAINLESS LEFT) MAY W10557751 Contact Us For Availability
12B
MAY W10557753 MAY W10557753 Contact Us For Availability
12C
ENDCAP (STAINLESS RIGHT) MAY W10557754 Contact Us For Availability
13
TRIM, VENT (BLACK) MAY W10636528 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MAY W10475148 MAY W10475148 Contact Us For Availability
13
MAY W10759311 MAY W10759311 Contact Us For Availability
13
MAY 8533988 MAY 8533988 Contact Us For Availability
13A
MAY W10636529 MAY W10636529 Contact Us For Availability
14
MAY W10453974 MAY W10453974 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
TIE, MANIFOLD WIRE MAY W10182767 Contact Us For Availability
14
MAY W10642096 MAY W10642096 Contact Us For Availability
14
MAY W10813139 MAY W10813139 Contact Us For Availability
15
MAY W10603097 MAY W10603097 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15A
MAY W10551024 MAY W10551024 Contact Us For Availability
16
MAY W10558372 MAY W10558372 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10319024 MAY W10319024 Contact Us For Availability
17
MAY W10490680 MAY W10490680 Contact Us For Availability
17
MAY 3196548 MAY 3196548 Contact Us For Availability
17
MAY W10541892 MAY W10541892 Contact Us For Availability
17A
MAY W10490679 MAY W10490679 Contact Us For Availability
18
MAY W10645947 MAY W10645947 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
18
MAY W10634236 MAY W10634236 Contact Us For Availability
19
MAY W10664705 MAY W10664705 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
19
MAY W10634234 MAY W10634234 Contact Us For Availability
20
MAY W10743280 MAY W10743280 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
20A
MAY W10743281 MAY W10743281 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
MAY W10162247 MAY W10162247 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
MAY W10557780 MAY W10557780 Contact Us For Availability
23
MAY 3196178 MAY 3196178 Contact Us For Availability
24
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3400016 MAY 3400016 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
29
MAY W10655441 MAY W10655441 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
MAY W10774446 MAY W10774446 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
MAY W10603482 MAY W10603482 Contact Us For Availability
37
MAY W10563084 MAY W10563084 Contact Us For Availability
38
MAY W10554262 MAY W10554262 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10346147 MAY W10346147 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
43
MAY W10780482 MAY W10780482 Contact Us For Availability
43A
MAY W10742023 MAY W10742023 Contact Us For Availability
44
MAY W10813366 MAY W10813366 Contact Us For Availability
45
MAY W10162241 MAY W10162241 Contact Us For Availability
46
MAY W10575377 MAY W10575377 Contact Us For Availability
47
MAY W10289172 MAY W10289172 Contact Us For Availability
48
MAY W10605411 MAY W10605411 Contact Us For Availability
49
MAY W10554005 MAY W10554005 Contact Us For Availability
50
MAY W10554006 MAY W10554006 Contact Us For Availability
51
MAY W10554008 MAY W10554008 Contact Us For Availability
52
MAY W10624592 MAY W10624592 Contact Us For Availability
53
MAY W10558277 MAY W10558277 Contact Us For Availability
54
MAY W10162257 MAY W10162257 Contact Us For Availability
55
MAY W10828883 MAY W10828883 Contact Us For Availability
56
MAY W10828882 MAY W10828882 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
MAY W10812964 MAY W10812964 Contact Us For Availability
NI
MAY W10814444 MAY W10814444 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10162240 MAY W10162240 Contact Us For Availability
NI
MAY W10289173 MAY W10289173 Contact Us For Availability
NI
MAY W10575374 MAY W10575374 Contact Us For Availability
NI
KIT, LP CONVERSION (BURNERS) MAY W10566083 Contact Us For Availability
NI
MAY W10566535 MAY W10566535 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS KIT, CANNING U MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES PROTECTA MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES KIT, COO MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS GRID, BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES WIPES, S MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES PAD, COO MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES ALT MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
