Model Maytag JDS1450CDS1 RANGE/OVEN, DUAL FUEL, SLIDE-IN – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

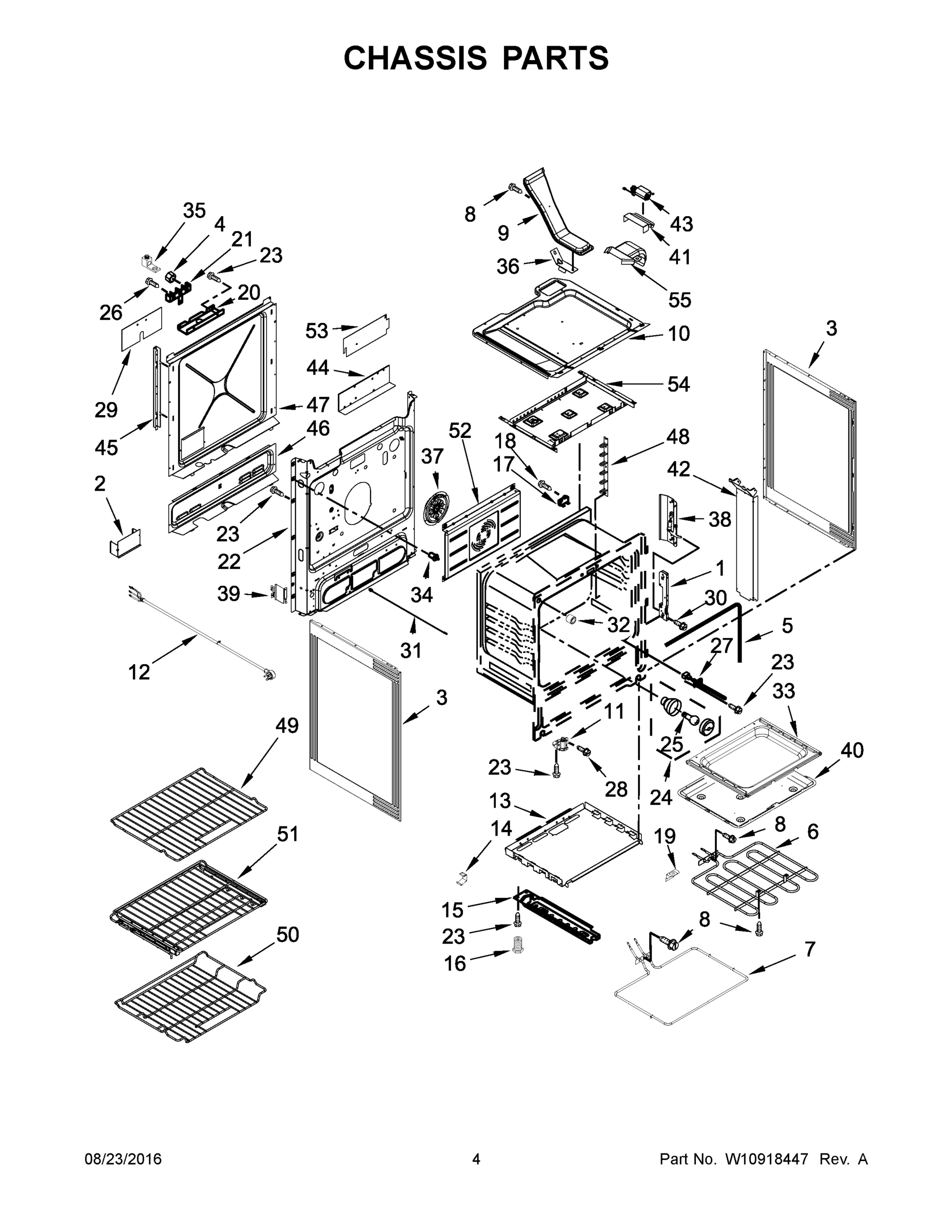

03 - CHASSIS PARTS

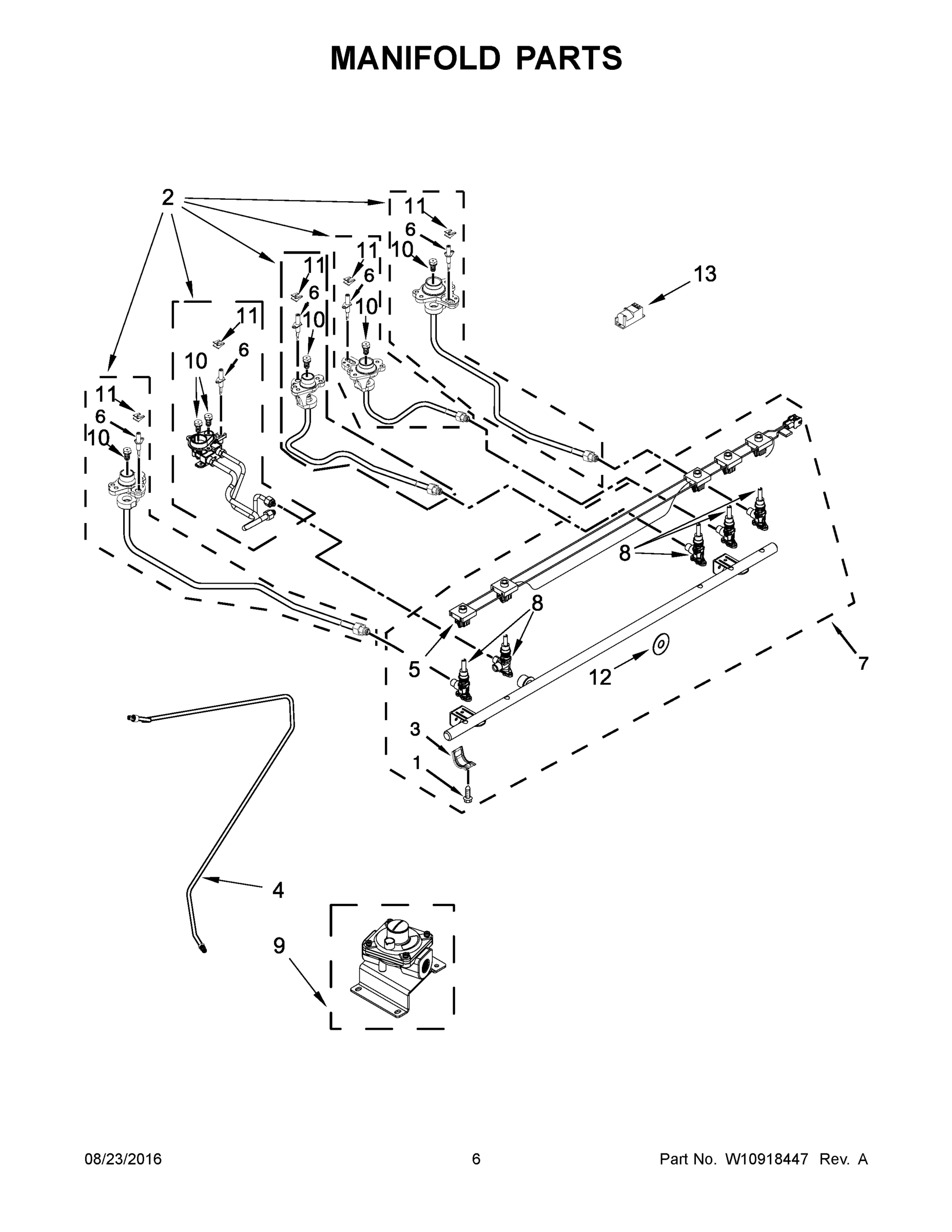

04 - MANIFOLD PARTS

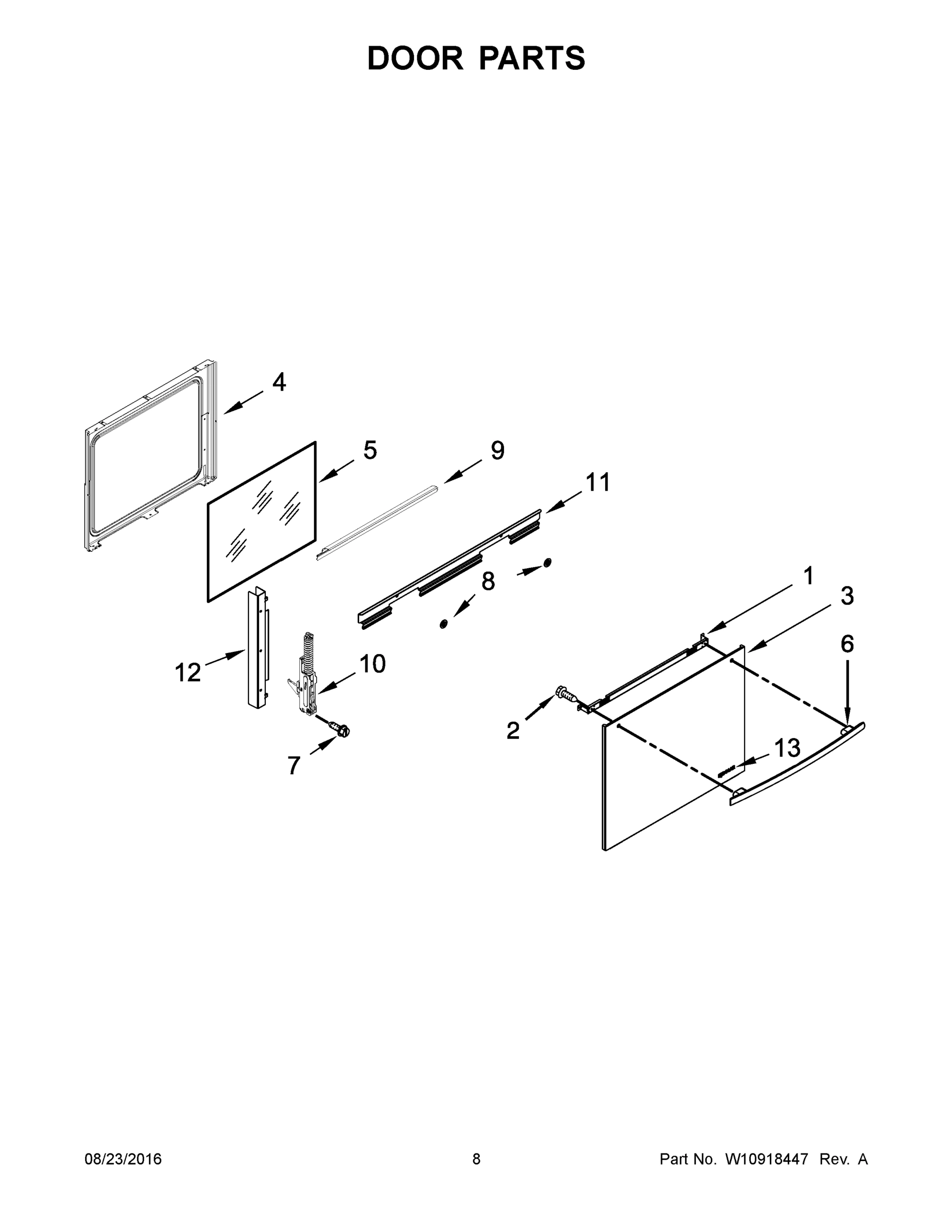

05 - DOOR PARTS

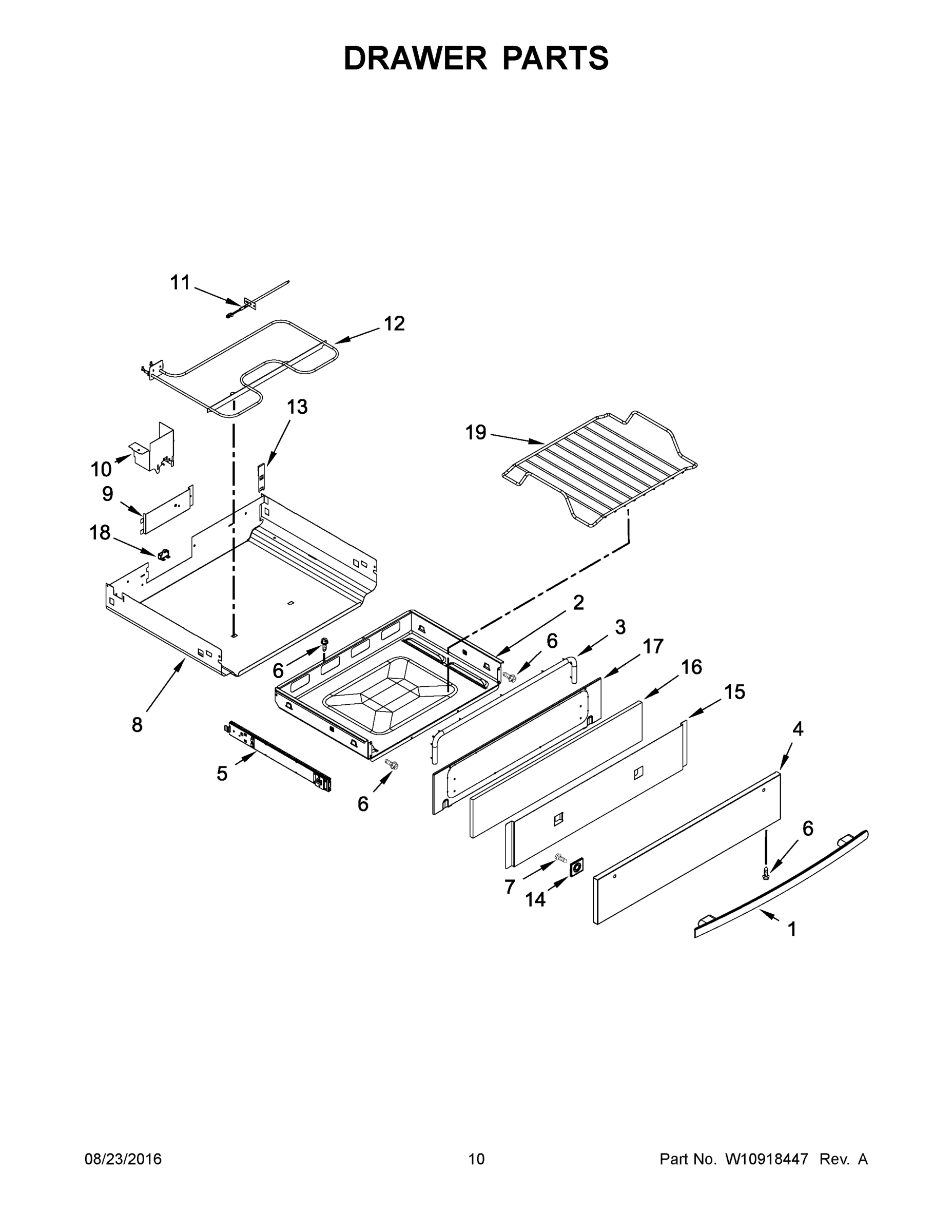

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS1450CDS1 RANGE/OVEN, DUAL FUEL, SLIDE-IN
1
MAY W10665259 MAY W10665259 Contact Us For Availability
1
MAY W10634238 MAY W10634238 Contact Us For Availability
1
MAY W10246216 MAY W10246216 Contact Us For Availability
1
MAY W10541911 MAY W10541911 Contact Us For Availability
1
ASSEMBLY, DRAWER HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
1A
MAY W10665266 MAY W10665266 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10400066 MAY W10400066 Contact Us For Availability
1F
MAY W10400067 MAY W10400067 Contact Us For Availability
2
KIT, BURNER CAP (BLACK) MAY W10432498 Contact Us For Availability
2
MAY W10162258 MAY W10162258 Contact Us For Availability
2
MAY W10552135 MAY W10552135 Contact Us For Availability
2
MAY W10757442 MAY W10757442 Contact Us For Availability
2A
MAY W10552132 MAY W10552132 Contact Us For Availability
2B
MAY W10552131 MAY W10552131 Contact Us For Availability
2C
MAY W10552130 MAY W10552130 Contact Us For Availability
2D
MAY W10552137 MAY W10552137 Contact Us For Availability
3
MAY W10901070 MAY W10901070 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
MAY W10541871 MAY W10541871 Contact Us For Availability
3
MAY W10550987 MAY W10550987 Contact Us For Availability
4
MAY W10556380 MAY W10556380 Contact Us For Availability
4
MAY 3400029 MAY 3400029 Contact Us For Availability
4
MAY W10552945 MAY W10552945 Contact Us For Availability
4
MAY W10826568 MAY W10826568 Contact Us For Availability
4
MAY W10541958 MAY W10541958 Contact Us For Availability
4A
MAY W10556379 MAY W10556379 Contact Us For Availability
4B
MAY W10556378 MAY W10556378 Contact Us For Availability
4C
MAY W10556377 MAY W10556377 Contact Us For Availability
5
MAY W10474665 MAY W10474665 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10468433 MAY W10468433 Contact Us For Availability
5
MAY W10813616 MAY W10813616 Contact Us For Availability
5
MAY W10541946 MAY W10541946 Contact Us For Availability
5A
MAY W10541945 MAY W10541945 Contact Us For Availability
6
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
6
MAY 3196169 MAY 3196169 Contact Us For Availability
6
MAY W10544952 MAY W10544952 Contact Us For Availability
6
MAY W10496874 MAY W10496874 Contact Us For Availability
6A
MAY W10464799 MAY W10464799 Contact Us For Availability
6B
ELECTRODE (RIGHT FRONT & CENTER) MAY W10496870 Contact Us For Availability
6C
MAY W10496872 MAY W10496872 Contact Us For Availability
7
MAY W10505764 MAY W10505764 Contact Us For Availability
7
MAY W10774342 MAY W10774342 Contact Us For Availability
7
MAY W10790618 MAY W10790618 Contact Us For Availability
7
MAY 8533988 MAY 8533988 Contact Us For Availability
7
MAY W10327235 MAY W10327235 Contact Us For Availability
8
MAY W10432535 MAY W10432535 Contact Us For Availability
8
MAY W10362924 MAY W10362924 Contact Us For Availability
8
MAY W10566038 MAY W10566038 Contact Us For Availability
8
MAY W10319024 MAY W10319024 Contact Us For Availability
8
MAY W10634260 MAY W10634260 Contact Us For Availability
8A
MAY W10831589 MAY W10831589 Contact Us For Availability
8B
VALVE, GAS (RIGHT FRONT) MAY W10566042 Contact Us For Availability
8C
VALVE, GAS (RIGHT REAR & CENTER) MAY W10566050 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
MAY W10661850 MAY W10661850 Contact Us For Availability
9
MAY W10551024 MAY W10551024 Contact Us For Availability
9
MAY W10727084 MAY W10727084 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
ORIFICE (LEFT FRONT, POWER) MAY W10566082 Contact Us For Availability
10
MAY W10885516 MAY W10885516 Contact Us For Availability
10
MAY W10634259 MAY W10634259 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
10A
ORIFICE (1.2K) (LEFT FRONT, SIMMER) MAY W10256132 Contact Us For Availability
10B
MAY W10515054 MAY W10515054 Contact Us For Availability
10C
ORIFICE (RIGHT FRONT) MAY W10434277 Contact Us For Availability
10D
ORIFICE (RIGHT REAR) MAY W10657949 Contact Us For Availability
10E
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
11
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
CLIP, SPRING (ELECTRODE) MAY W10575401 Contact Us For Availability
11
SUPPORT, GLASS MAY W10813140 Contact Us For Availability
11
MAY W10720530 MAY W10720530 Contact Us For Availability
12
ENDCAP (STAINLESS LEFT) MAY W10557751 Contact Us For Availability
12
MAY W10624592 MAY W10624592 Contact Us For Availability
12
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
12
HINGE, SUPPORT RAIL MAY W10813139 Contact Us For Availability
12
MAY W10541944 MAY W10541944 Contact Us For Availability
12A
ENDCAP (STAINLESS RIGHT) MAY W10557754 Contact Us For Availability
13
MAY W10636529 MAY W10636529 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
13
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
13
MAY W10551019 MAY W10551019 Contact Us For Availability
14
MAY W10558057 MAY W10558057 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
15
MAY W10603095 MAY W10603095 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10551018 MAY W10551018 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
MAY W10557780 MAY W10557780 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10550982 MAY W10550982 Contact Us For Availability
17
MAY W10490679 MAY W10490679 Contact Us For Availability
17
MAY W10541947 MAY W10541947 Contact Us For Availability
18
MAY W10645947 MAY W10645947 Contact Us For Availability
18
MAY 3196548 MAY 3196548 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
MAY W10664705 MAY W10664705 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
19
MAY W10602493 MAY W10602493 Contact Us For Availability
20
MAY W10565662 MAY W10565662 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
MAY W10556376 MAY W10556376 Contact Us For Availability
23
MAY 3196178 MAY 3196178 Contact Us For Availability
24
MAY W10558372 MAY W10558372 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3400016 MAY 3400016 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
29
MAY W10655441 MAY W10655441 Contact Us For Availability
30
MAY W10031780 MAY W10031780 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
MAY W10774446 MAY W10774446 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
MAY W10603623 MAY W10603623 Contact Us For Availability
37
MAY W10563084 MAY W10563084 Contact Us For Availability
38
MAY W10605411 MAY W10605411 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10346147 MAY W10346147 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
43
MAY W10780482 MAY W10780482 Contact Us For Availability
44
MAY W10162260 MAY W10162260 Contact Us For Availability
45
MAY W10162241 MAY W10162241 Contact Us For Availability
46
MAY W10575377 MAY W10575377 Contact Us For Availability
47
MAY W10289172 MAY W10289172 Contact Us For Availability
48
MAY W10603482 MAY W10603482 Contact Us For Availability
49
MAY W10554005 MAY W10554005 Contact Us For Availability
50
MAY W10554006 MAY W10554006 Contact Us For Availability
51
MAY W10554008 MAY W10554008 Contact Us For Availability
52
MAY W10554262 MAY W10554262 Contact Us For Availability
53
MAY W10813366 MAY W10813366 Contact Us For Availability
54
BOX, BURNER GAS MAY W10558276 Contact Us For Availability
55
MAY W10162257 MAY W10162257 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY W10432544 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTSNOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580315 MAY W10580315 Contact Us For Availability
NI
MAY W10580316 MAY W10580316 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10575374 MAY W10575374 Contact Us For Availability
NI
INSULATION, HEAT SHIELD MAY W10655442 Contact Us For Availability
NI
MAY W10655489 MAY W10655489 Contact Us For Availability
NI
MAY W10655490 MAY W10655490 Contact Us For Availability
NI
INSULATION, BURNER BOX MAY W10716764 Contact Us For Availability
NI
MAY W10681410 MAY W10681410 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
MAY 31463A MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL MAY W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (BLACK MAY W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (WHITE MAY W10675027 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (STAIN MAY W10675028 Contact Us For Availability
NI
MAY W10731885 MAY W10731885 Contact Us For Availability
NI
MAY W10731886 MAY W10731886 Contact Us For Availability
NI
MAY W10731887 MAY W10731887 Contact Us For Availability
NI
ACCESSORY PARTS, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
