Model Maytag JDS1450CDP0 RANGE/OVEN, DUAL FUEL, SLIDE-IN, 30 INCH – Common Parts & Diagrams

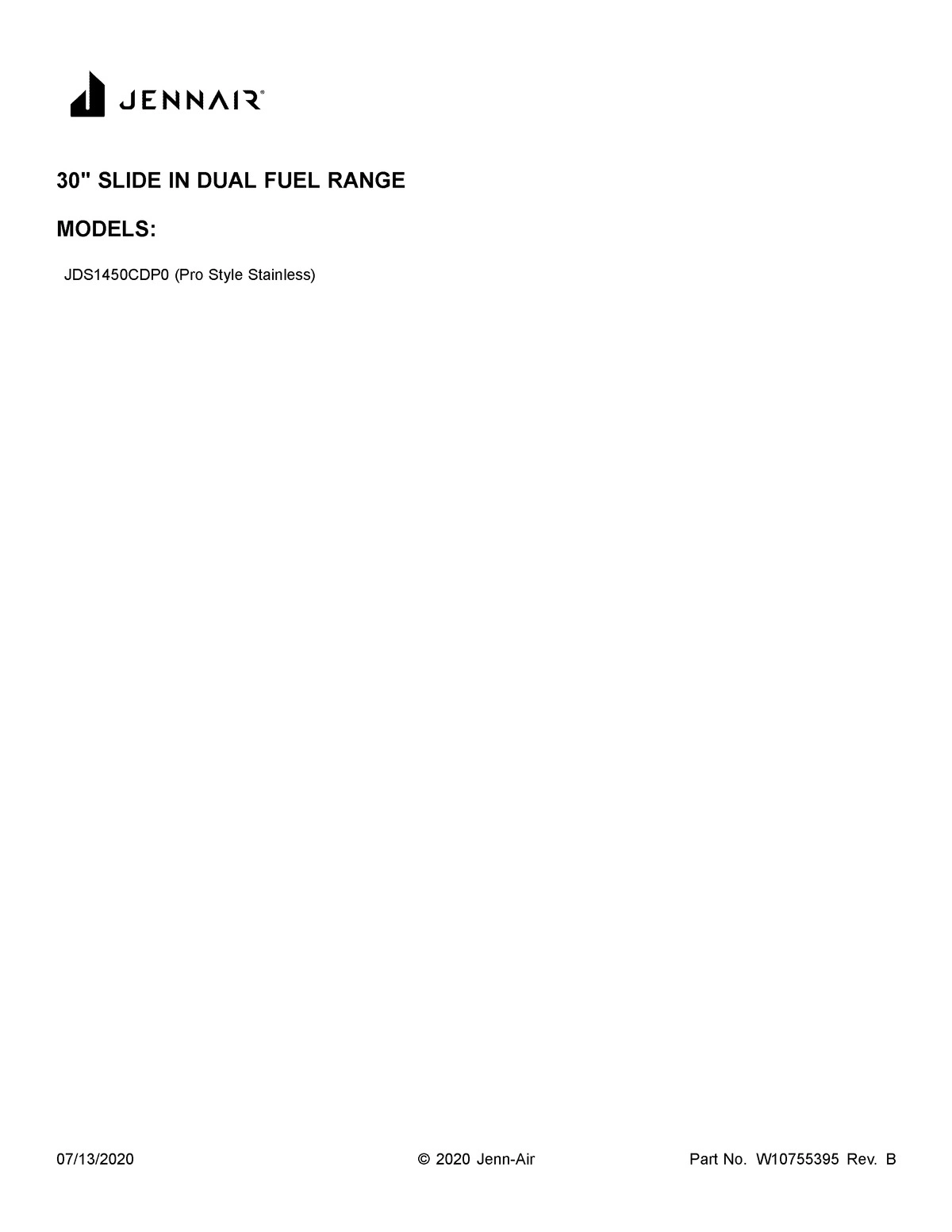

01 - COVER SHEET

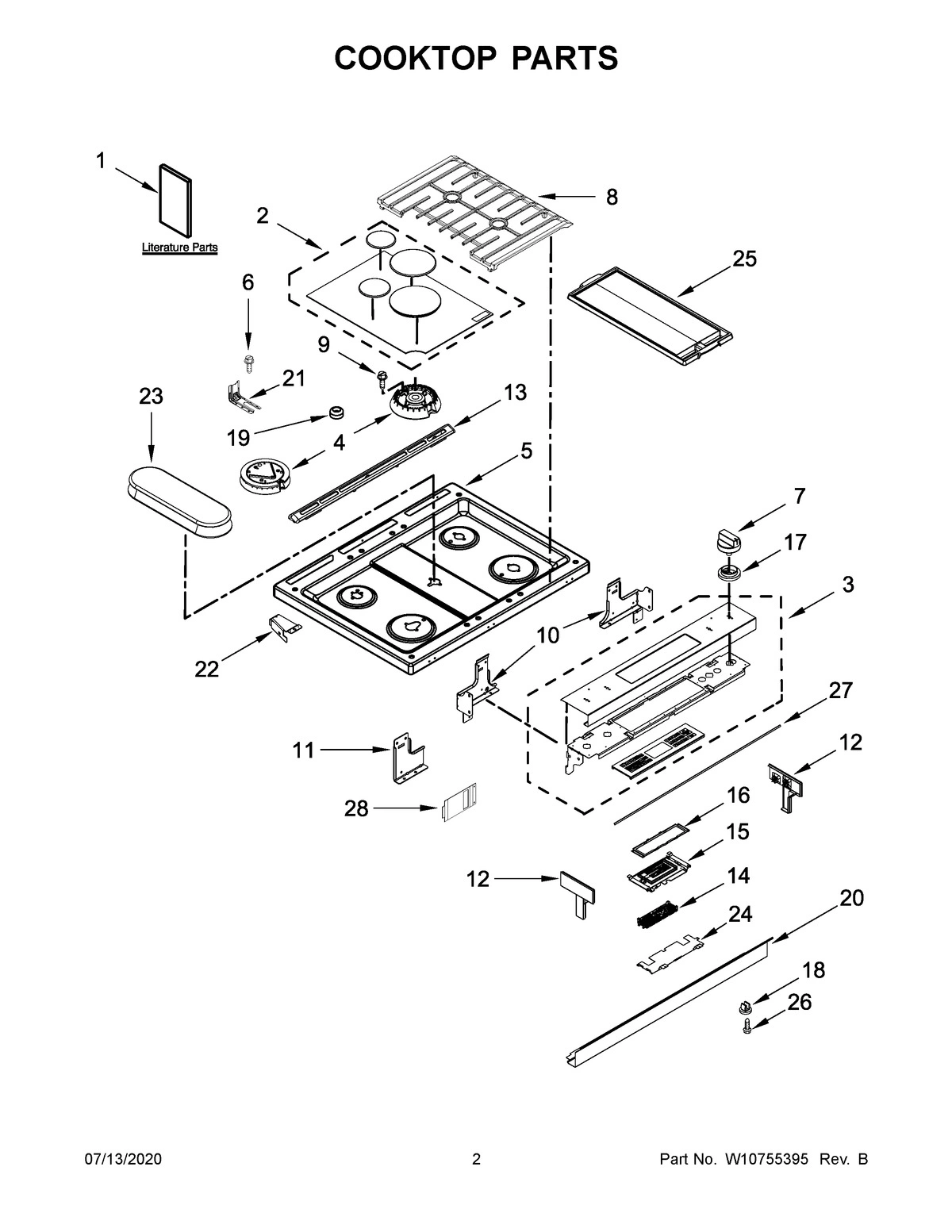

02 - COOKTOP PARTS
03 - CHASSIS PARTS
04 - MANIFOLD PARTS
05 - DOOR PARTS
06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDS1450CDP0 RANGE/OVEN, DUAL FUEL, SLIDE-IN, 30 INCH
1
HINGE, RECEIVER MAY W10634238 Contact Us For Availability
1
SCREW MAY W10246216 Contact Us For Availability
1
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
1
ASSEMBLY, DRAWER HANDLE (STAINLESS) MAY W10483386 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10665266 Contact Us For Availability
1B
TECH SHEET MAY W10665227 Contact Us For Availability
1C
MAY W10665237 MAY W10665237 Contact Us For Availability
1D
QUICK START GUIDE (ENGLISH) MAY W10400066 Contact Us For Availability
1E
QUICK START GUIDE (FRENCH) MAY W10400067 Contact Us For Availability
2
BURNER CAP KIT (BLACK) MAY W10432498 Contact Us For Availability
2
COVER, REGULATOR MAY W10162258 Contact Us For Availability
2
ASSEMBLY, ORIFICE (19K) (LEFT FRONT) MAY W10552135 Contact Us For Availability
2
DRAWER, BAKE MAY W10757442 Contact Us For Availability
2A
ASSEMBLY, ORIFICE (5K) (LEFT REAR) MAY W10552132 Contact Us For Availability
2B
ASSEMBLY, ORIFICE (15K) (RIGHT FRONT) MAY W10552131 Contact Us For Availability
2C
ASSEMBLY, ORIFICE (9.2K) (RIGHT REAR) MAY W10552130 Contact Us For Availability
2D
ASSEMBLY, ORIFICE (8K) (CENTER) MAY W10552137 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10676656 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10634269 Contact Us For Availability
3
SEAL, DRAWER MAY W10550987 Contact Us For Availability
4
SPREADER, FLAME (LEFT FRONT) MAY W10556380 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
TUBE, SUPPLY MAY W10552945 Contact Us For Availability
4
LINER, DOOR MAY W10541882 Contact Us For Availability
4
PANEL, DRAWER FRONT (STAINLESS) MAY W10541958 Contact Us For Availability
4A
SPREADER, FLAME (LEFT REAR) MAY W10556379 Contact Us For Availability
4B
SPREADER, FLAME (RIGHT FRONT) MAY W10556378 Contact Us For Availability
4C
SPREADER, FLAME (RIGHT REAR) MAY W10556377 Contact Us For Availability
5
COOKTOP (STAINLESS) MAY W10474665 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
HARNESS, SPARK SWITCH MAY W10468433 Contact Us For Availability
5
GLASS, INNER MAY W10541888 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10921904 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10921905 Contact Us For Availability
6
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
6
ELEMENT, BROIL MAY W10544952 Contact Us For Availability
6
SCREW MAY 3196169 Contact Us For Availability
6
ELECTRODE (LEFT FRONT) MAY W10496874 Contact Us For Availability
6A
ELECTRODE (LEFT REAR) MAY W10464799 Contact Us For Availability
6B
ELECTRODE (RIGHT FRONT & CENTER) MAY W10496870 Contact Us For Availability
6C
ELECTRODE (RIGHT REAR) MAY W10496872 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10437064 Contact Us For Availability
7
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
7
MANIFOLD ASSEMBLY MAY W10790618 Contact Us For Availability
7
SCREW MAY W10530626 Contact Us For Availability
7
SCREW MAY W10327235 Contact Us For Availability
8
GRATE KIT (INCLUDES 3 GRATES) (BLACK) MAY W10432535 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
VALVE, GAS (DUAL) (LEFT FRONT) MAY W10566038 Contact Us For Availability
8
WASHER, DOOR MAY W10319024 Contact Us For Availability
8
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10831589 Contact Us For Availability
8B
VALVE, GAS (RIGHT FRONT) MAY W10566042 Contact Us For Availability
8C
VALVE, GAS (RIGHT REAR & CENTER) MAY W10566050 Contact Us For Availability
9
SCREW MAY W10673618 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W11122085 Contact Us For Availability
9
ASSEMBLY, REGULATOR & BRACKET MAY W10661850 Contact Us For Availability
9
SCOOP-LINER, DOOR (STAINLESS) MAY W10551024 Contact Us For Availability
9
COVER, GAS VALVE MAY W10727084 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
ORIFICE (19K) (LEFT FRONT, POWER) MAY W10566082 Contact Us For Availability
10
HINGE, SLOW CLOSE MAY W10701152 Contact Us For Availability
10
COVER, WIRE MAY W10634259 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
10A
ORIFICE (1.2K) (LEFT FRONT, SIMMER) MAY W10256132 Contact Us For Availability
10B
ORIFICE (5K) (LEFT REAR) MAY W10515054 Contact Us For Availability
10C
ORIFICE (1.8MM) (RIGHT FRONT) MAY W10434277 Contact Us For Availability
10D
ORIFICE (9.2K) (RIGHT REAR) MAY W10657949 Contact Us For Availability
10E
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
11
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
11
FRONT FOOT ASSEMBLY MAY W10341186 Contact Us For Availability
11
CLIP, SPRING (ELECTRODE) MAY W10575401 Contact Us For Availability
11
SUPPORT, GLASS MAY W10541885 Contact Us For Availability
11
SENSOR MAY W10720530 Contact Us For Availability
12
ENDCAP (STAINLESS (LEFT)) MAY W10557751 Contact Us For Availability
12
DUCT, COOKTOP MAY W10162257 Contact Us For Availability
12
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
12
HINGE, SUPPORT RAIL MAY W10541883 Contact Us For Availability
12
ELEMENT, BAKE MAY W10541944 Contact Us For Availability
12A
ENDCAP (STAINLESS (RIGHT)) MAY W10557754 Contact Us For Availability
13
TRIM, VENT (STAINLESS) MAY W10636529 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
13
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
13
COVER, SIDE MAY W10551019 Contact Us For Availability
14
MAY W11254171 MAY W11254171 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
SCREW MAY 9780274 Contact Us For Availability
14
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
15
ASSEMBLY, DISPLAY MAY W10603095 Contact Us For Availability
15
BASE RAIL ASSEMBLY (LEFT) MAY W10390008 Contact Us For Availability
15
INSULATION, DRAWER FRONT MAY W10551018 Contact Us For Availability
15A
BASE RAIL ASSEMBLY (RIGHT) MAY W10390007 Contact Us For Availability
16
BRACKET , CONTROL MAY W10557780 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
INSULATION, DRAWER MAY W10550982 Contact Us For Availability
17
BEZEL (STAINLESS) MAY W10490679 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
PANEL, FRONT INNER MAY W10541947 Contact Us For Availability
18
GROMMET MAY W10645947 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
18
FUSE, THERMAL MAY W10729897 Contact Us For Availability
19
BUMPER MAY W10664705 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
19
RACK, BAKE DRAWER MAY W10602493 Contact Us For Availability
20
PANEL, LOWER CONSOLE (STAINLESS) MAY W10565662 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY W11379947 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
SPREADER, FLAME (FISH) (CENTER) MAY W10556376 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
24
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
24
LIGHT ASSEMBLY MAY W11175594 Contact Us For Availability
25
GRIDDLE MAY W10432544 Contact Us For Availability
25
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
26
SCREW MAY W10516115 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
GASKET, CONSOLE/ COOKTOP MAY W10612719 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
28
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
29
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
30
SCREW MAY W10031780 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
SCREW MAY W10067840 Contact Us For Availability
37
CONVECTION ASSEMBLY MAY W11353932 Contact Us For Availability
38
RECEIVER, SLOW CLOSE HINGE MAY W10605411 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
BAKE PAN MAY W11379357 Contact Us For Availability
41
DUCT, COVER MAY W10162255 Contact Us For Availability
42
DUCT, COOLING MAY W10162254 Contact Us For Availability
43
ASSEMBLY, COOLING FAN MAY W10780482 Contact Us For Availability
44
SHIELD, HEAT MAY W10162260 Contact Us For Availability
45
CHANNEL, REAR MAY W10162241 Contact Us For Availability
46
COVER, WIRE MAY W10575377 Contact Us For Availability
47
COVER, BACK MAY W11379354 Contact Us For Availability
48
RACK, LADDER MAY W10603482 Contact Us For Availability
49
RACK, HEAVY DUTY MAY W10554005 Contact Us For Availability
50
RACK, MAXIMUM CAPACITY MAY W10554006 Contact Us For Availability
51
RACK, SLIDING MAY W10554008 Contact Us For Availability
52
BAFFLE, FULL CONVECTION MAY W10554262 Contact Us For Availability
53
SHIELD, WIRE MAY W11117035 Contact Us For Availability
54
BURNER, BOX GAS MAY W10558276 Contact Us For Availability
55
CORD, POWER MAY W10624592 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, KEYPAD MAY W10575120 Contact Us For Availability
NI
HARNESS, MAIN MAY W10580315 Contact Us For Availability
NI
HARNESS, BAKE DRAWER MAY W10580316 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
SUPPRESSOR MAY W10653092 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10575374 Contact Us For Availability
NI
INSULATION, HEAT SHIELD MAY W10655442 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10655489 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10655490 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10681410 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
ACCESSORY PARTS, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL MAY W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (INCLUDES BLI MAY W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (INCLUDES BLI MAY W10675027 Contact Us For Availability
NI
ACC MAY W10675028 Contact Us For Availability
NI
MAY W10731885 MAY W10731885 Contact Us For Availability
NI
MAY W10731886 MAY W10731886 Contact Us For Availability
NI
MAY W10731887 MAY W10731887 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
