Model Maytag JDRP848HL00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH – Common Parts & Diagrams

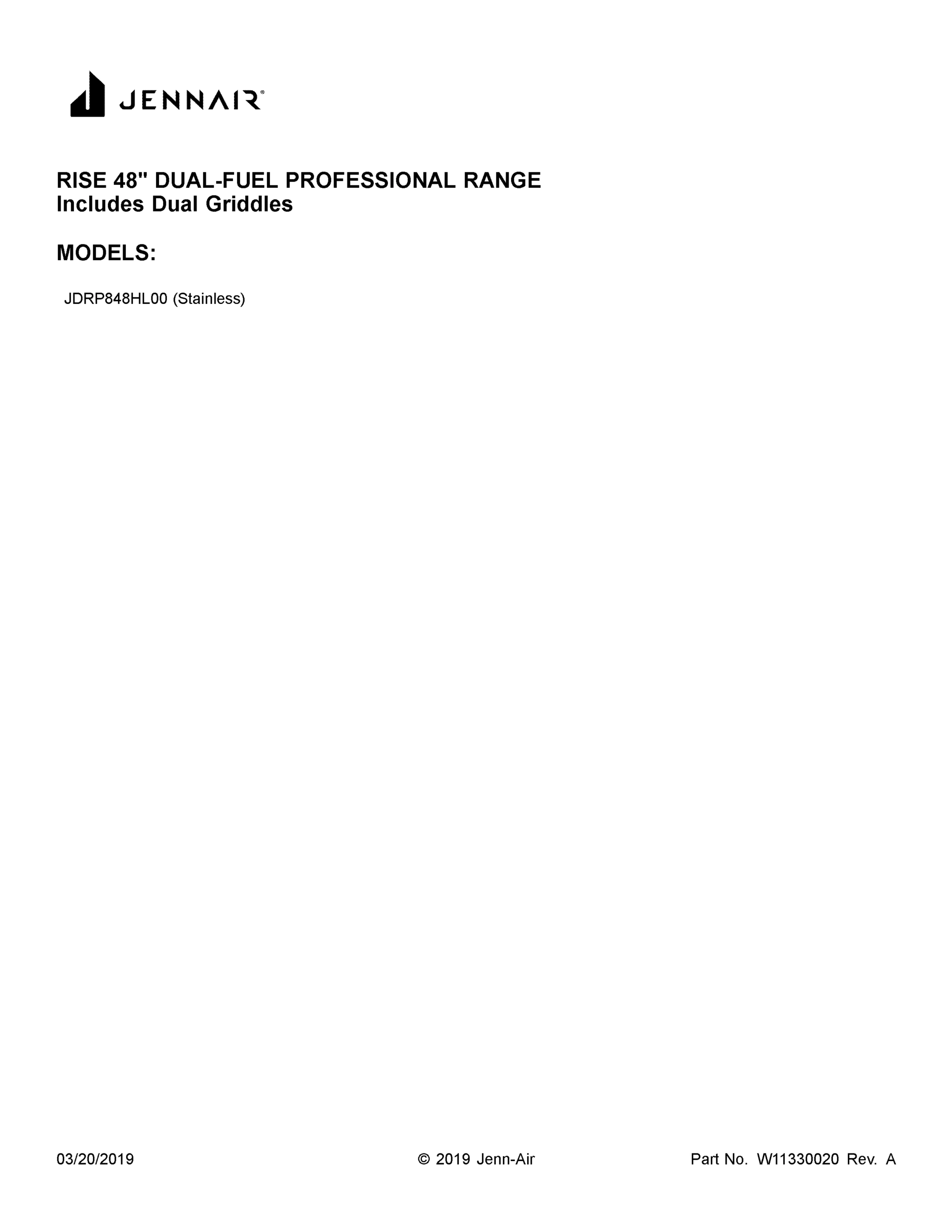

01 - COVER SHEET

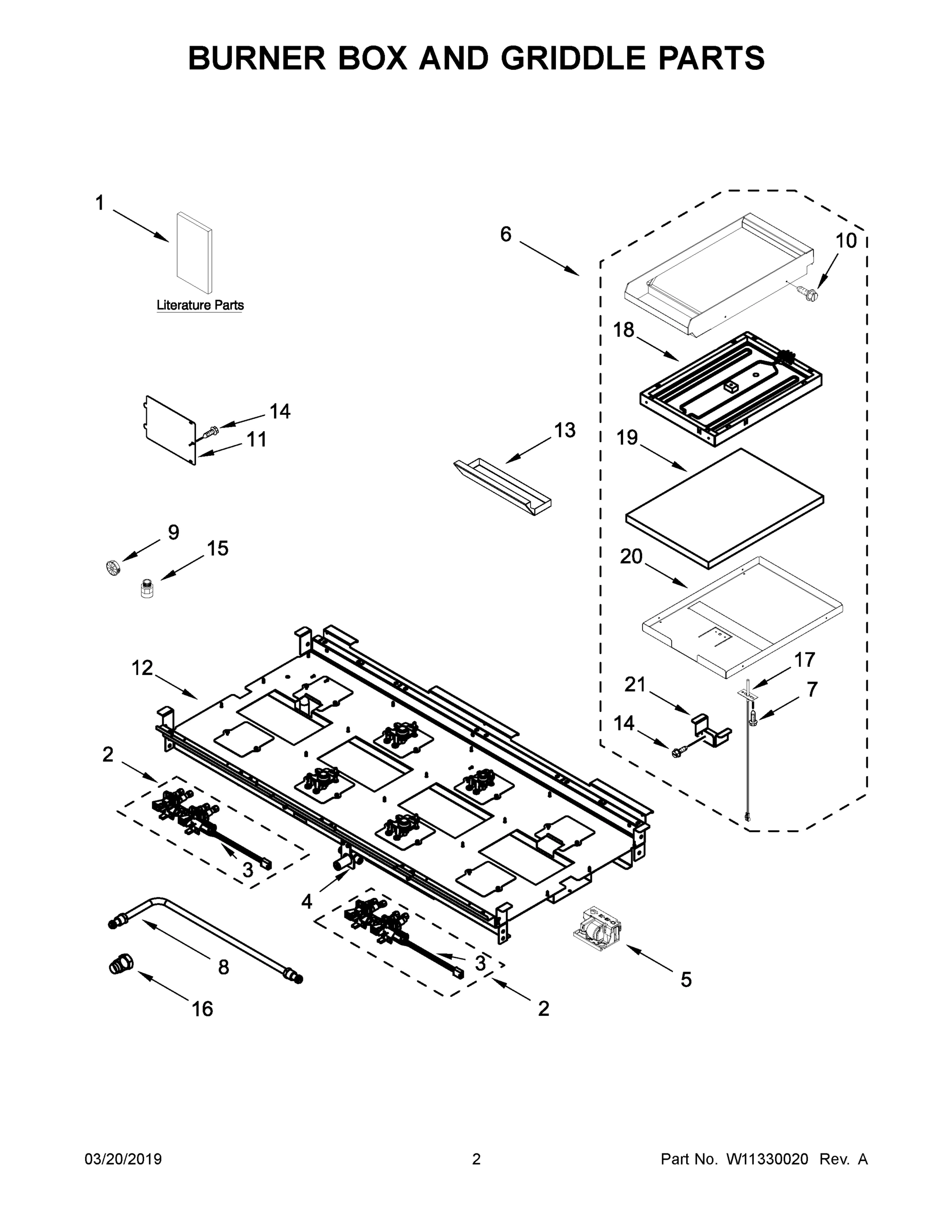

02 - BURNER BOX AND GRIDDLE PARTS
03 - COOKTOP, BURNER, AND GRIDDLE PARTS
04 - 48" CHASSIS PARTS
05 - 30" OVEN PARTS
06 - 18" OVEN PARTS
07 - VENTING PARTS
08 - 30" OVEN DOOR PARTS
09 - 18" OVEN DOOR PARTS
10 - 30" INTERNAL OVEN PARTS
11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDRP848HL00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH
1
GUIDE, USE AND CARE MAY W11114330 Contact Us For Availability
1
PANEL, CABINET SIDE (LEFT) MAY W11111429 Contact Us For Availability
1
KICKPLATE MAY W10883797 Contact Us For Availability
1
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
1
PROBE, SENSOR MAY W10622170 Contact Us For Availability
1
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
1
LINER, DOOR MAY W11036771 Contact Us For Availability
1
LINER, DOOR MAY W11036770 Contact Us For Availability
1
ELEMENT, BROIL MAY W11210530 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11114333 Contact Us For Availability
1A
PANEL, CABINET SIDE (RIGHT) MAY W11111428 Contact Us For Availability
1A
SLOPE, EXHAUST VENT (18") MAY W10818235 Contact Us For Availability
1B
GUIDE, INTERNET CONNECTIVITY MAY W11184746 Contact Us For Availability
1C
DIAGRAM, WIRING (COOKTOP) MAY W11266584 Contact Us For Availability
1D
DIAGRAM, WIRING (OVEN) MAY W11202370 Contact Us For Availability
1E
SHEET, TECH MAY W11202265 Contact Us For Availability
2
ASSEMBLY, VALVE MANIFOLD (LEFT CENTER) MAY W10893051 Contact Us For Availability
2
MAY W10892811 MAY W10892811 Contact Us For Availability
2
BACK, CHASSIS MAY W11105913 Contact Us For Availability
2
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W11105223 Contact Us For Availability
2
INSULATION, DOOR MAY W10321285 Contact Us For Availability
2
INSULATION, DOOR MAY W10884821 Contact Us For Availability
2
ELEMENT, CONVECTION STEAM MAY 9762242 Contact Us For Availability
2A
ASSEMBLY, VALVE MANIFOLD (RIGHT CENTER) MAY W10893058 Contact Us For Availability
2A
MAY W10892503 MAY W10892503 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W11113380 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT) MAY W10892505 Contact Us For Availability
2C
MAY W10892721 MAY W10892721 Contact Us For Availability
3
SWITCH, HARNESS MAY W11106300 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (LEFT CENTER FRONT AND MAY W10892422 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER MAY W11200129 Contact Us For Availability
3
GLASS, INNER MAY W11184409 Contact Us For Availability
3
GLASS, INNER MAY W11036789 Contact Us For Availability
3
PROBE, WIRELESS MEAT MAY W11186918 Contact Us For Availability
3
RACK, OVEN (18") MAY W11111351 Contact Us For Availability
3A
ORIFICE, MAIN (15.4K) (LEFT CENTER REAR) MAY W10892418 Contact Us For Availability
3B
ORIFICE, MAIN (7.2K) (RIGHT CENTER REAR) MAY W10892440 Contact Us For Availability
3C
ORIFICE, SIMMER (2.6K) (ALL BUT RIGHT CENTER MAY W10892435 Contact Us For Availability
3D
ORIFICE, SIMMER (2.0K) (RIGHT CENTER REAR) MAY W10892429 Contact Us For Availability
4
BRACKET, MANIFOLD MAY W11121194 Contact Us For Availability
4
IGNITER (LEFT CENTER FRONT AND RIGHT CENTER F MAY W11238757 Contact Us For Availability
4
DUCT, BOTTOM (48") MAY W11110260 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W11105222 Contact Us For Availability
4
RETAINER, GLASS MAY W11194821 Contact Us For Availability
4
RETAINER, GLASS MAY W11194818 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W11111342 Contact Us For Availability
4
FAN, CONVECTION MAY W11121400 Contact Us For Availability
4A
MAY W11238760 MAY W11238760 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W11113378 Contact Us For Availability
4B
IGNITER (RIGHT CENTER REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK (SET OF 2)) MAY W11179862 Contact Us For Availability
5
PLATE, MOUNTING MAY 9759118 Contact Us For Availability
5
TUBE, VENT MAY W11290663 Contact Us For Availability
5
TUBE, VENT MAY W10288078 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W11109518 Contact Us For Availability
5
HINGE, DOOR (LEFT) MAY W11096974 Contact Us For Availability
5
HINGE, DOOR (LEFT) MAY W11096976 Contact Us For Availability
5
GLASS, BROIL ELEMENT MAY W11193191 Contact Us For Availability
5
BLADE, FAN MAY W11108376 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
ASSEMBLY, OVEN LIGHT MAY W11223932 Contact Us For Availability
6
BOX, TERMINAL MAY W11284049 Contact Us For Availability
6
HINGE, DOOR (RIGHT) MAY W11096973 Contact Us For Availability
6
HINGE, DOOR (RIGHT) MAY W11096975 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W11232487 Contact Us For Availability
6
COVER, FAN MAY W11113808 Contact Us For Availability
7
SCREW MAY 3196160 Contact Us For Availability
7
SCREW MAY 7101P426-60 Contact Us For Availability
7
KNOB, GRIDDLE (STAINLESS) MAY W10884943 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10908710 Contact Us For Availability
7
LENS, LIGHT MAY W10169756 Contact Us For Availability
7
FRAME, GLASS MAY W10272594 Contact Us For Availability
7
SCREW MAY W10292297 Contact Us For Availability
7
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
8
MAY W10892794 MAY W10892794 Contact Us For Availability
8
BEZEL, GRIDDLE MAY W11104966 Contact Us For Availability
8
SCREW MAY 4449743 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER MOUNT MAY W11047754 Contact Us For Availability
8
SCREW MAY W10162096 Contact Us For Availability
8
SCREW MAY 4449154 Contact Us For Availability
8A
TUBE, MANIFOLD SUPPLY (RIGHT CENTER) MAY W10892789 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
KNOB, BURNER (STAINLESS) MAY W10882958 Contact Us For Availability
9
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY W11096294 Contact Us For Availability
9
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
9
BRACKET, HANDLE MAY W11197830 Contact Us For Availability
9
TRAY, HIDDEN BAKE MAY W11110223 Contact Us For Availability
9A
SEAL, VENT SLOPE (18") MAY W10270402 Contact Us For Availability
10
SCREW MAY 3196176 Contact Us For Availability
10
BEZEL, COOKTOP MAY W11090283 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
COVER, LATCH MAY W10160858 Contact Us For Availability
10
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W11199071 Contact Us For Availability
10
ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) MAY W10799306 Contact Us For Availability
10
ELEMENT, HIDDEN BAKE MAY W11045324 Contact Us For Availability
11
COVER, IGNITION MAY W10115843 Contact Us For Availability
11
KNOB, OVEN MODE (STAINLESS) MAY W10891872 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
11
HANDLE, DOOR MAY W11102826 Contact Us For Availability
11
HANDLE, DOOR MAY W11102824 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
11
ELEMENT, BROIL MAY W10116010 Contact Us For Availability
12
KNOB, OVEN TEMPERATURE (STAINLESS) MAY W10891871 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
RECEIVER, HINGE (RIGHT) MAY W11096293 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W11102297 Contact Us For Availability
12
NUT, HEX MAY 112432 Contact Us For Availability
12
SCREW MAY W10276043 Contact Us For Availability
12
TRAY, HIDDEN BAKE MAY W11109421 Contact Us For Availability
12
SHIELD, ELEMENT BROIL MAY W10160855 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W11102296 Contact Us For Availability
13
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
13
BEZEL, OVEN (STAINLESS) MAY W10914998 Contact Us For Availability
13
TUBE, PRESSURE REGULATOR MAY W11106963 Contact Us For Availability
13
COVER, CHANNEL MAY W11106956 Contact Us For Availability
13
BADGE (STAINLESS) MAY W11238656 Contact Us For Availability
13
SCREW MAY W10607120 Contact Us For Availability
13
PLATE, FAN MAY W10261523 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (ALL BUT RIGHT CENTER MAY W10891987 Contact Us For Availability
14
SUPPORT, CHANNEL MAY W11087494 Contact Us For Availability
14
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
14
SCREW MAY W10739592 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (RIGHT CENTER REAR) MAY W10892022 Contact Us For Availability
15
ADAPTER, MALE MAY 4453116 Contact Us For Availability
15
GASKET, OVEN (30") MAY W11115328 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
15A
GASKET, OVEN (18") MAY W11115326 Contact Us For Availability
16
MAY W10892063 MAY W10892063 Contact Us For Availability
16
SCREW MAY W11196257 Contact Us For Availability
16
DUCT-CHASSIS, REAR MAY W11050145 Contact Us For Availability
16
NUT, LOCKING MAY W11033111 Contact Us For Availability
17
SENSOR, GRIDDLE MAY W10891584 Contact Us For Availability
17
ASSEMBLY, WIFI MODULE MAY W11110768 Contact Us For Availability
17
COLUMN, CENTRAL MAY W10115819 Contact Us For Availability
17
SCREW MAY W10720084 Contact Us For Availability
18
ELEMENT, GRIDDLE MAY W10891698 Contact Us For Availability
18
PANEL, COOKTOP (BLACK (LEFT CENTER)) MAY W10804364 Contact Us For Availability
18
RETAINER, GASKET (9" LONG) MAY W10216520 Contact Us For Availability
18
ELEMENT, HIDDEN BAKE MAY W10115995 Contact Us For Availability
18A
PANEL, COOKTOP (BLACK (RIGHT CENTER)) MAY W10803519 Contact Us For Availability
19
INSULATION, GRIDDLE MAY W11121383 Contact Us For Availability
19
BARRIER, APPLIANCE MANAGER MAY W11281269 Contact Us For Availability
19
TOP, CHASSIS MAY W11037132 Contact Us For Availability
19
BRACKET, BROIL FRONT MAY W11112336 Contact Us For Availability
20
MAY W11330430 MAY W11330430 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
CHASSIS, BOTTOM MAY W11040800 Contact Us For Availability
20
BRACKET, BROIL TOP MAY W11158843 Contact Us For Availability
21
BRACKET, GRIDDLE-RTD MAY W11121384 Contact Us For Availability
21
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
21
PANEL, BACK TOP MAY W11103335 Contact Us For Availability
21
COVER, BROIL TERMINAL MAY W11111391 Contact Us For Availability
21A
BRACKET, MOVING CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
22
PANEL, BACK BOTTOM MAY W11034123 Contact Us For Availability
22
COVER PLATE, TERMINAL HOLE MAY W11170823 Contact Us For Availability
23
MAY W11253769 MAY W11253769 Contact Us For Availability
23
BRACKET, PRESSURE REGULATOR MAY W11096823 Contact Us For Availability
24
INTERFACE, USER MAY W11292568 Contact Us For Availability
24
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
25
ASSEMBLY, GRIDDLE MODULE (ASSEMBLY BREAKDOWN MAY W10891745 Contact Us For Availability
25
SCREW MAY 3400518 Contact Us For Availability
26
MAY W10294500 MAY W10294500 Contact Us For Availability
26
DRAWER, APPLIANCE MANAGER MAY W11106341 Contact Us For Availability
27
MAY W11205795 MAY W11205795 Contact Us For Availability
28
MAY W10890116 MAY W10890116 Contact Us For Availability
28
CABINET, APPLIANCE MANAGER MAY W11106335 Contact Us For Availability
29
MAY W11205794 MAY W11205794 Contact Us For Availability
29
CHANNEL, WIRE MAY W11084360 Contact Us For Availability
30
SPRING CLIP, RANGE MAY W11036559 Contact Us For Availability
30
MAY W11121391 MAY W11121391 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
34
MAY W11033497 MAY W11033497 Contact Us For Availability
35
MAY 3400814 MAY 3400814 Contact Us For Availability
36
MAY W11090650 MAY W11090650 Contact Us For Availability
37
MAY W11156418 MAY W11156418 Contact Us For Availability
38
MAY W11090651 MAY W11090651 Contact Us For Availability
39
MAY W10896369 MAY W10896369 Contact Us For Availability
40
MAY W11130078 MAY W11130078 Contact Us For Availability
41
MAY W10116114 MAY W10116114 Contact Us For Availability
42
MAY W11100273 MAY W11100273 Contact Us For Availability
43
MAY W10271524 MAY W10271524 Contact Us For Availability
44
MAY 7101P624-60 MAY 7101P624-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
NI
RETAINER, STRAIN RELIEF MAY 9759877 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10780278 Contact Us For Availability
NI
HARNESS, GRIDDLE MAY W10903727 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11200318 Contact Us For Availability
NI
MAY W11200327 MAY W11200327 Contact Us For Availability
NI
MAY W11200331 MAY W11200331 Contact Us For Availability
NI
MAY W11200334 MAY W11200334 Contact Us For Availability
NI
CORD, POWER MAY W11212216 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
HARNESS, WIFI MAY W11242785 Contact Us For Availability
NI
NUT MAY 3400968 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10299350 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10282812 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK BACKSPLASH MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, 48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE KIT, BURN MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
