Model Maytag JDRP548WP03 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

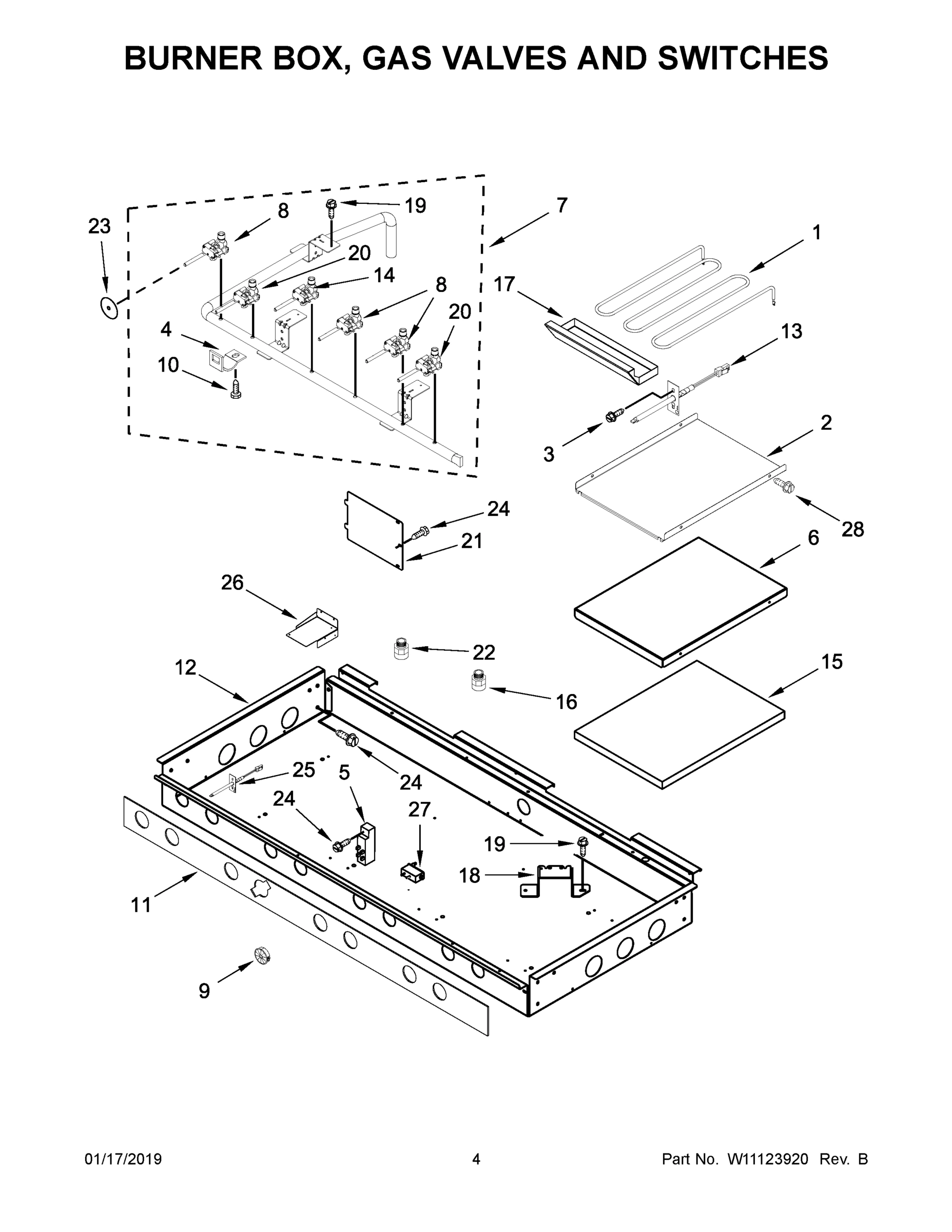

03 - BURNER BOX, GAS VALVES AND SWITCHES

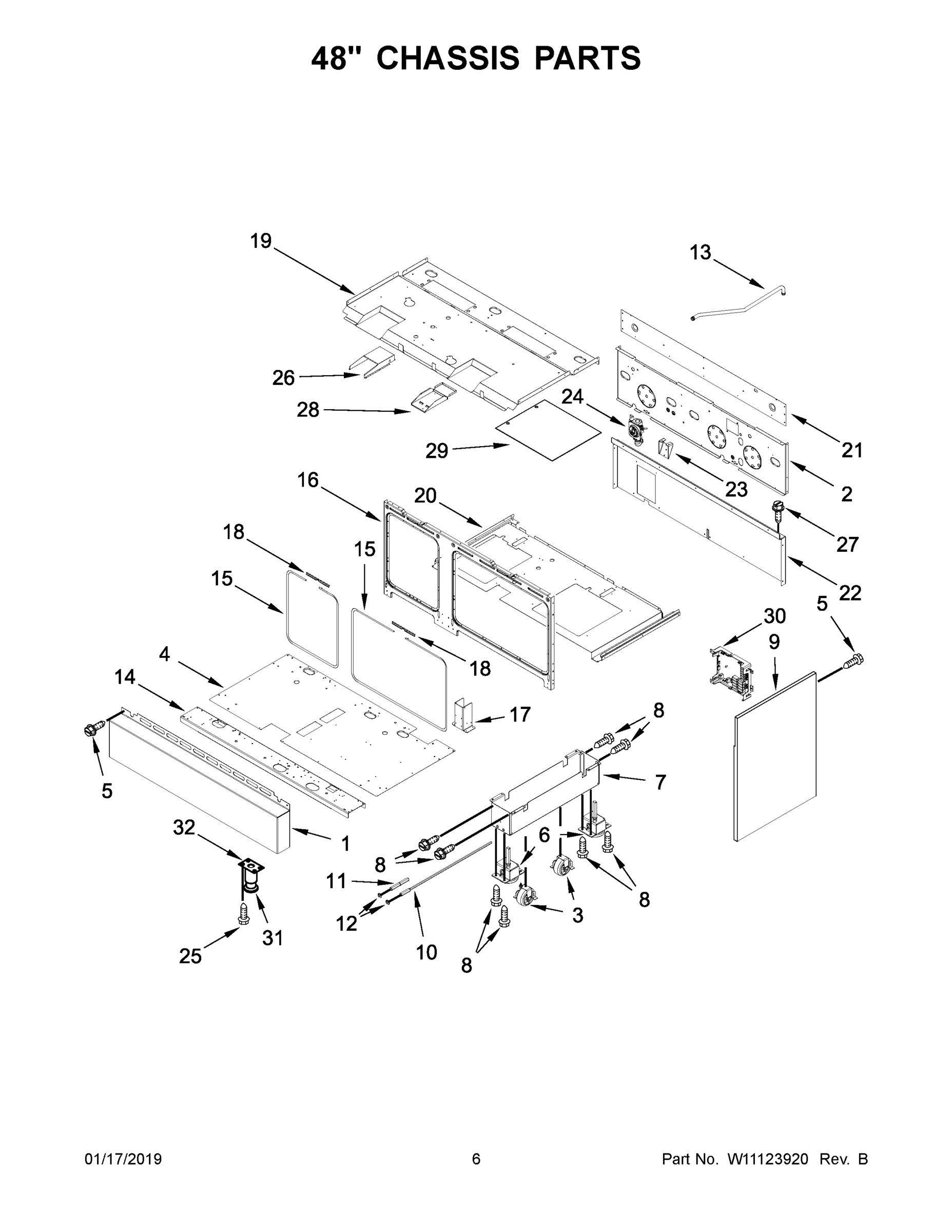

04 - 48" CHASSIS PARTS

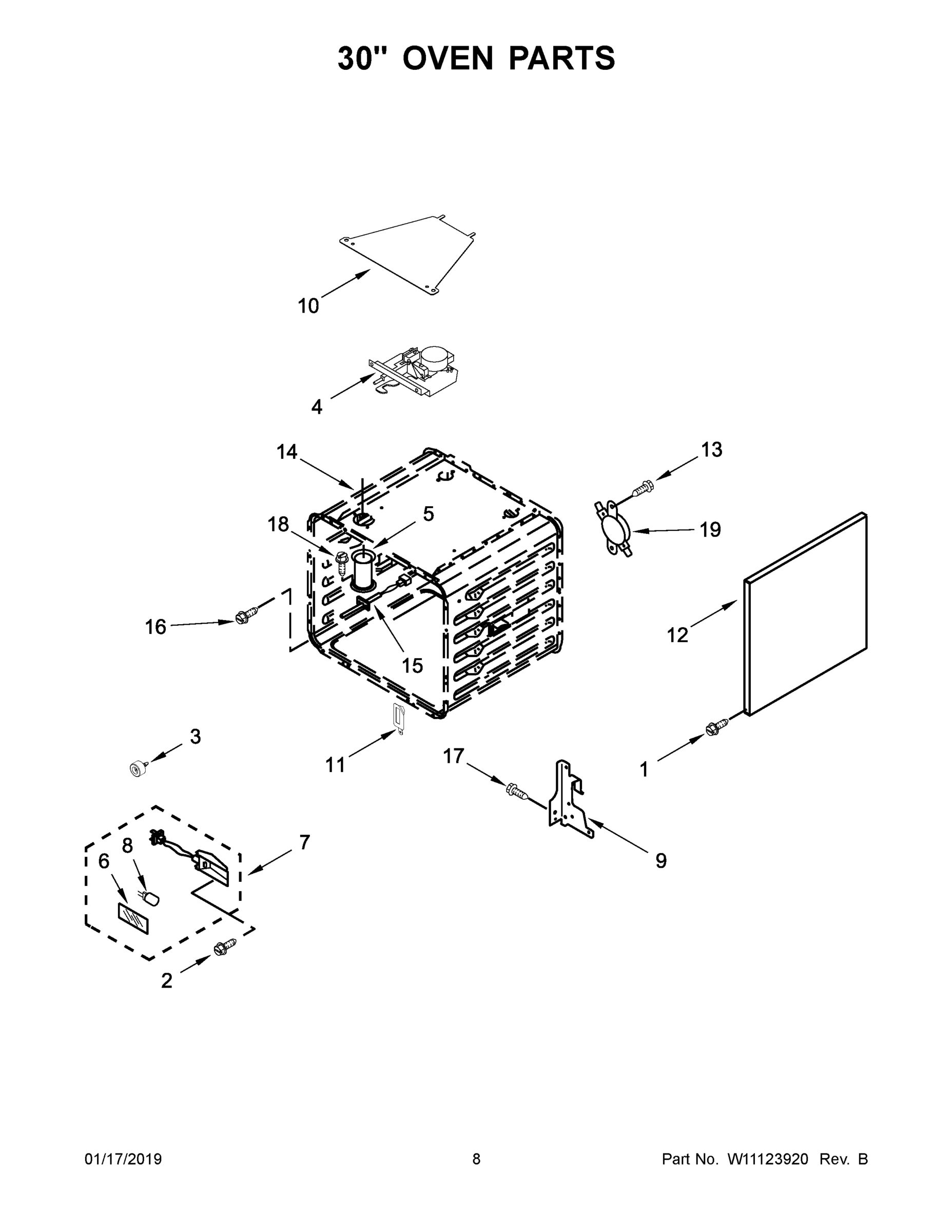

05 - 30" OVEN PARTS

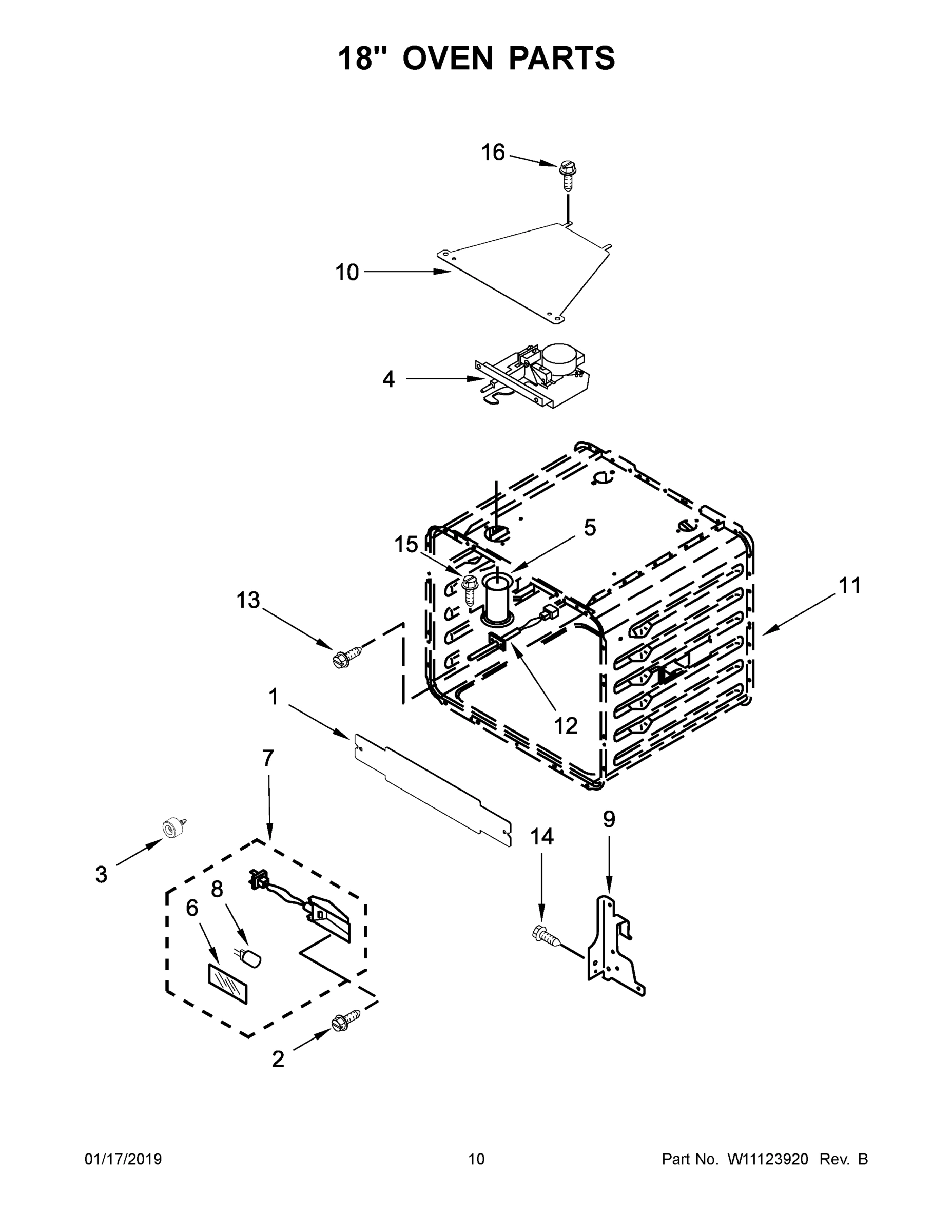

06 - 18" OVEN PARTS

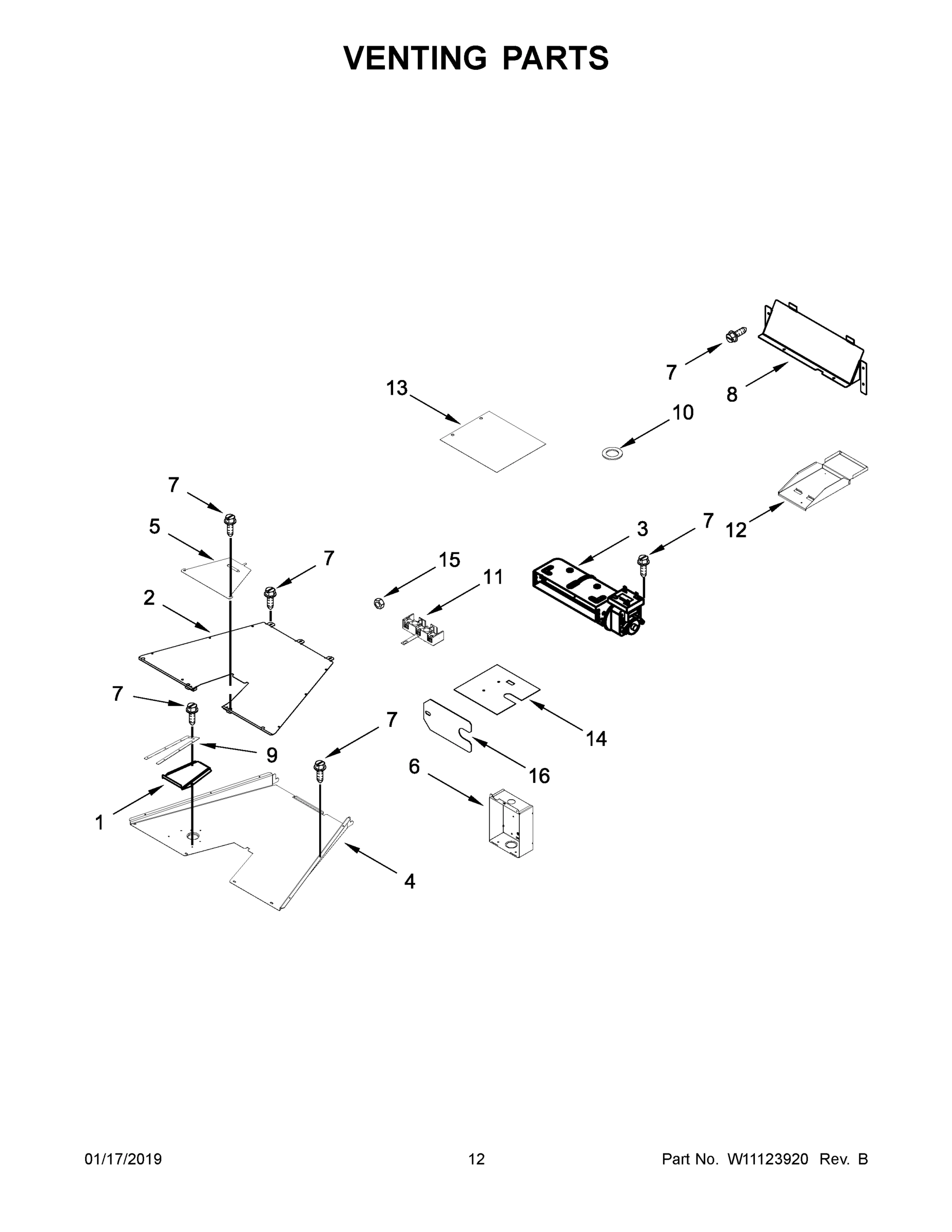

07 - VENTING PARTS

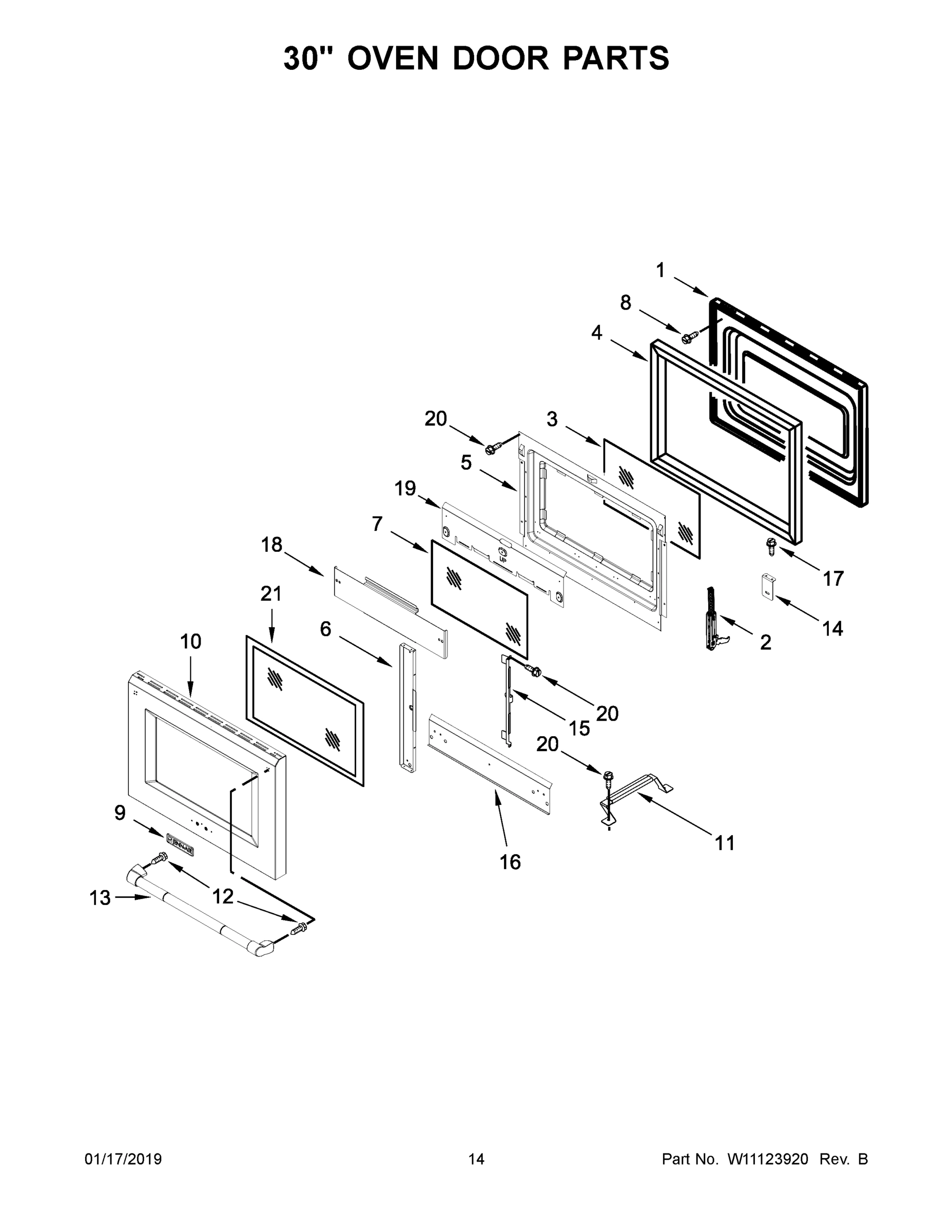

08 - 30" OVEN DOOR PARTS

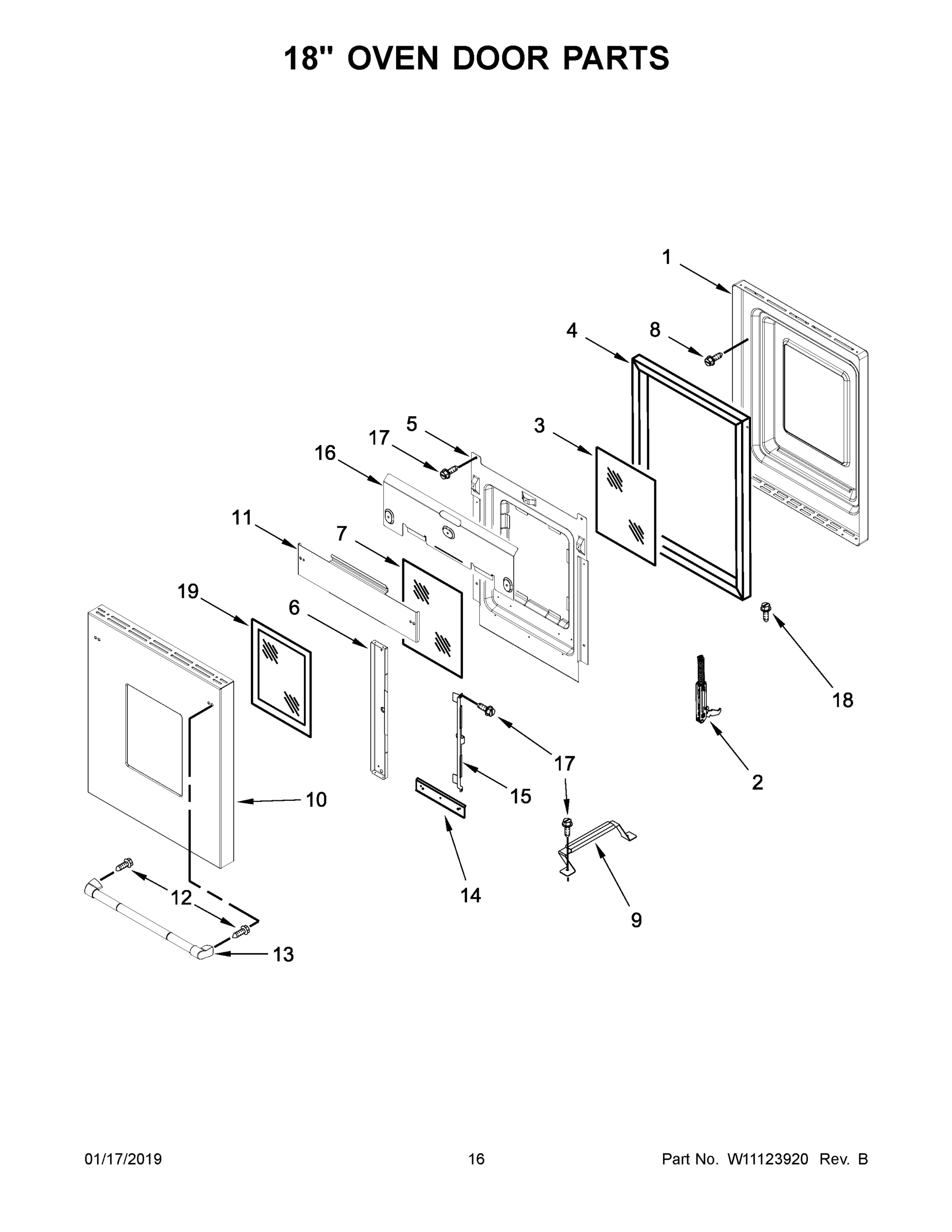

09 - 18" OVEN DOOR PARTS

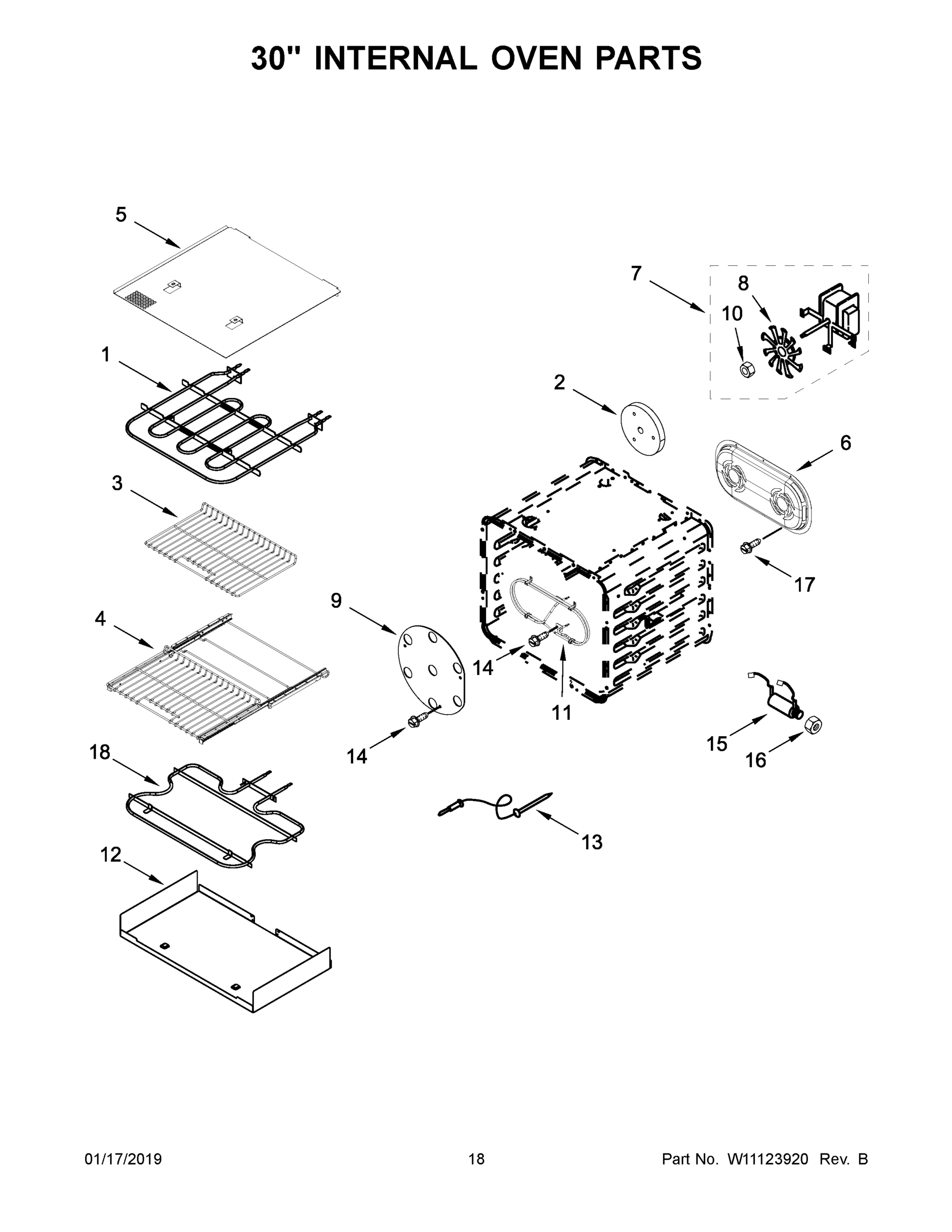

10 - 30" INTERNAL OVEN PARTS

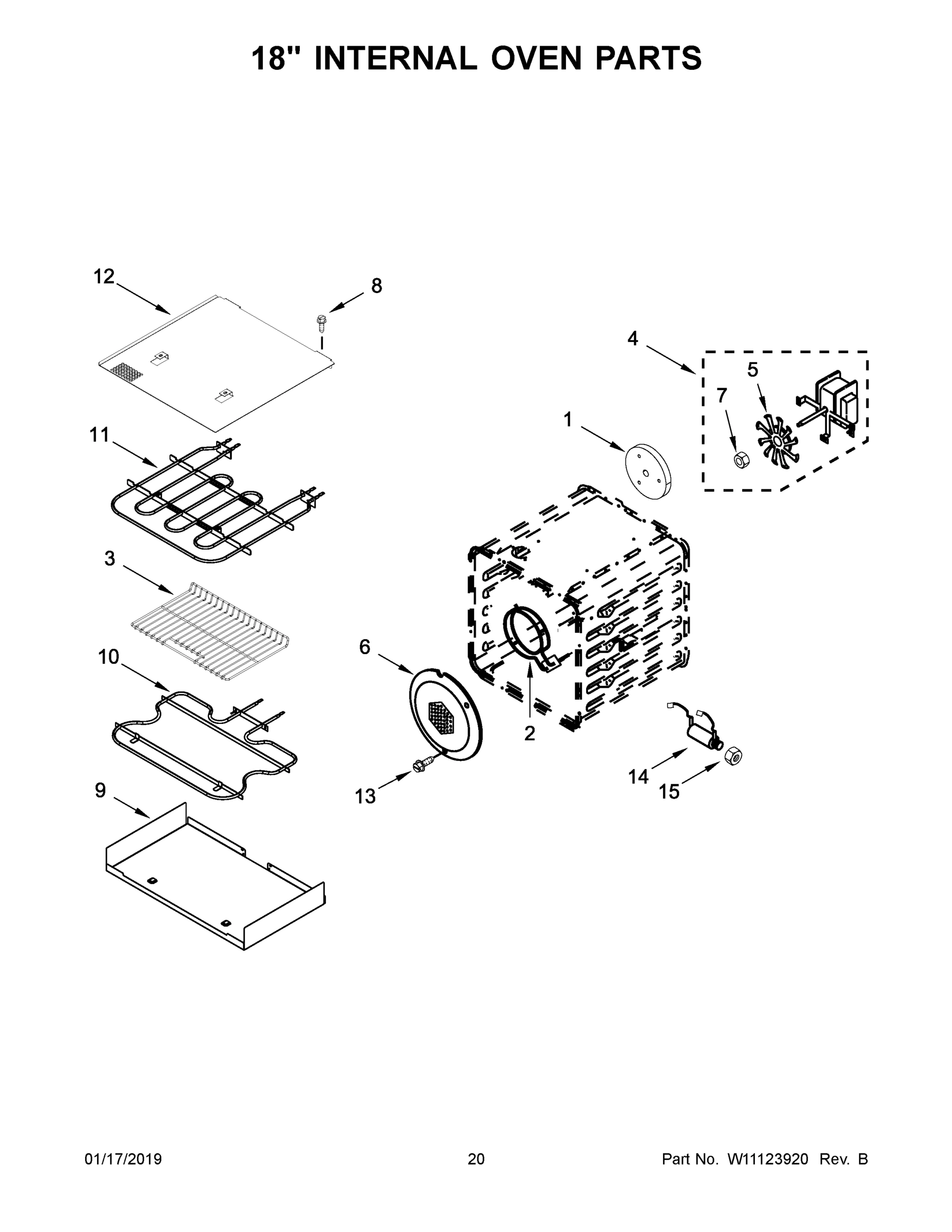

11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDRP548WP03 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH
1
GUIDE, USE & CARE MAY W11090434 Contact Us For Availability
1
ELEMENT, GRIDDLE MAY W10138296 Contact Us For Availability
1
KICKPLATE MAY W10145767 Contact Us For Availability
1
COUNTERBALANCE, DOOR MAY W10335955 Contact Us For Availability
1
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
PANEL, INTERIOR DOOR MAY W10188323 Contact Us For Availability
1
ELEMENT, BROIL MAY W10115994 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11090454 Contact Us For Availability
1A
SLOPE, EXHAUST VENT (18") MAY W10818235 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10403303 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10403304 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH MAY W10657945 Contact Us For Availability
2
TRAY, ELEMENT GRIDDLE MAY W10145620 Contact Us For Availability
2
BACK, CHASSIS MAY W10324080 Contact Us For Availability
2
SCREW MAY 4449748 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10160896 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774095 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774091 Contact Us For Availability
2
ELEMENT, CONVECTION STEAM MAY 9762242 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT & RIGHT FRONT, LOW MAY W10256132 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W10160897 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774094 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774090 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR, RIGHT REAR & CENTER MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (CENTER REAR) MAY W10282663 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT MAY W10846622 Contact Us For Availability
3
SCREW MAY 7101P074-60 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER 60MM MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
GLASS, INNER DOOR MAY W10115693 Contact Us For Availability
3
RACK, OVEN MAY W10570887 Contact Us For Availability
3
RACK, OVEN (18") MAY W10570879 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR, RIGHT RE MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
4
DUCT, BOTTOM (48") MAY W10774046 Contact Us For Availability
4
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10246078 Contact Us For Availability
4
INSULATION, DOOR MAY 4451722 Contact Us For Availability
4
INSULATION, DOOR MAY W10115737 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W11037161 Contact Us For Availability
4
FAN, CONVECTION MAY W10722667 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W10273653 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) MAY W10276551 Contact Us For Availability
5
MODULE, SPARK MAY W10475147 Contact Us For Availability
5
TUBE, VENT MAY W10288061 Contact Us For Availability
5
TUBE, VENT MAY W10288078 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W10160875 Contact Us For Availability
5
RETAINER, GLASS MAY 4457132 Contact Us For Availability
5
RETAINER, GLASS MAY W10188325 Contact Us For Availability
5
SHIELD, ELEMENT BROIL MAY W10160856 Contact Us For Availability
5
BLADE, FAN MAY W10631503 Contact Us For Availability
6
BUMPER, GRATE MAY 9760219 Contact Us For Availability
6
TRAY, GRIDDLE INSULATION MAY W10246074 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
LENS, LIGHT MAY W10169756 Contact Us For Availability
6
BOX, TERMINAL MAY W10467022 Contact Us For Availability
6
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W10246060 Contact Us For Availability
6
COVER, FAN MAY W10160821 Contact Us For Availability
7
SCREW MAY W10673618 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402608 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10249333 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10307114 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
GLASS, DOOR INNER MAY W10115695 Contact Us For Availability
7
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
8
SCREW MAY 3196160 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
SCREW MAY 4449154 Contact Us For Availability
8
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
9
ASSEMBLY, KEYPAD MAY W10464534 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
PANEL, SIDE (LEFT) MAY W10250467 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
9
PLATE, FAN MAY W10261523 Contact Us For Availability
9
TRAY, HIDDEN BAKE MAY W10160847 Contact Us For Availability
9A
PANEL, SIDE (RIGHT) MAY W10250466 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
9A
SEAL, VENT SLOPE (18") MAY W10270402 Contact Us For Availability
10
GASKET, ORIFICE MAY 8286930 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
COVER, LATCH MAY W10160858 Contact Us For Availability
10
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145759 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145758 Contact Us For Availability
10
ELEMENT, HIDDEN BAKE MAY W10116033 Contact Us For Availability
11
BEZEL MAY W10276494 Contact Us For Availability
11
INSULATION, BURNER BOX MAY W10160202 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
COVER, HINGE (LEFT) MAY W10115876 Contact Us For Availability
11
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
11
BRACKET, CENTER OUTER GLASS MAY W10145762 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
11
ELEMENT, BROIL MAY W10116010 Contact Us For Availability
11A
COVER, HINGE (RIGHT) MAY W10115877 Contact Us For Availability
12
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
12
BOX, BURNER MAY W10371517 Contact Us For Availability
12
SENSOR MAY W10131825 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
SUPPORT, CONTROL MAY W10853036 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W10269206 Contact Us For Availability
12
SCREW MAY W10276043 Contact Us For Availability
12
TRAY, HIDDEN BAKE MAY W10160845 Contact Us For Availability
12
SHIELD, ELEMENT BROIL MAY W10160855 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W10269205 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT & RIGHT FRONT) MAY W10256034 Contact Us For Availability
13
SCREW MAY W10906658 Contact Us For Availability
13
SENSOR, GRIDDLE MAY W10319835 Contact Us For Availability
13
TUBE, PRESSURE REGULATOR MAY W10452066 Contact Us For Availability
13
SEAL, CONTROL MAY W10239444 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
HANDLE, DOOR MAY W10145768 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR, RIGHT REAR & C MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (CENTER REAR)) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10879806 Contact Us For Availability
14
VALVE, SIMMER MAY W10385583 Contact Us For Availability
14
SCREW MAY 4449743 Contact Us For Availability
14
SUPPORT, CHANNEL MAY W10145375 Contact Us For Availability
14
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
14
BRACKET, DOOR TOP MAY W10115715 Contact Us For Availability
14
SHIELD, LOWER HEAT MAY W10115708 Contact Us For Availability
14
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR, RIGHT REAR & CENT MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (CENTER REAR) MAY W10282515 Contact Us For Availability
15
SPRING, ELECTRODE (ALL EXCEPT CENTER REAR) MAY W10827923 Contact Us For Availability
15
INSULATION, GRIDDLE MAY W10145621 Contact Us For Availability
15
GASKET, OVEN (30") MAY W10850858 Contact Us For Availability
15
SCREW MAY 3196176 Contact Us For Availability
15
NUT, HEX MAY 112432 Contact Us For Availability
15
BRACKET, SIDE MAY 9759229 Contact Us For Availability
15
NUT, LOCKING MAY W11033111 Contact Us For Availability
15A
SPRING, ELECTRODE (CENTER REAR) MAY 8286863 Contact Us For Availability
15A
GASKET, OVEN (18") MAY W10775946 Contact Us For Availability
16
ELECTRODE, BURNER (CENTER REAR) MAY 8286724 Contact Us For Availability
16
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
16
FRAME, FRONT MAY W10160895 Contact Us For Availability
16
COVER, CHANNEL MAY W10145382 Contact Us For Availability
16
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
16
SHIELD, TOP HEAT MAY W10115700 Contact Us For Availability
17
MODULE, GRIDDLE MAY W10625221 Contact Us For Availability
17
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
17
SCREW MAY 3196537 Contact Us For Availability
17
COLUMN, CENTRAL MAY W10115819 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
SCREW MAY 7101P426-60 Contact Us For Availability
18
BRACKET, BURNER MAY W10560553 Contact Us For Availability
18
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
18
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
18
ELEMENT, HIDDEN BAKE MAY W10115995 Contact Us For Availability
18A
COOKTOP (BLACK (CENTER)) MAY W10352966 Contact Us For Availability
18A
RETAINER, GASKET (18") MAY W10216520 Contact Us For Availability
18B
COOKTOP (BLACK (RIGHT)) MAY W10352963 Contact Us For Availability
19
KNOB, GRIDDLE (STAINLESS) MAY W10145566 Contact Us For Availability
19
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
19
CHASSIS, TOP MAY W10267895 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
19
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
19
GLASS, OUTER DOOR MAY W10145849 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
VALVE, DUAL MAY W10371235 Contact Us For Availability
20
CHASSIS, BOTTOM MAY W10235535 Contact Us For Availability
21
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
21
COVER, IGNITION MAY W10115843 Contact Us For Availability
21
PANEL, BACK TOP MAY W10269209 Contact Us For Availability
21
GLASS, OUTER DOOR MAY W10145850 Contact Us For Availability
21A
BRACKET, MAY W10130759 Contact Us For Availability
22
ADAPTER, MALE MAY 4453116 Contact Us For Availability
22
PANEL, BACK BOTTOM MAY W10145390 Contact Us For Availability
23
MAY W10789955 MAY W10789955 Contact Us For Availability
23
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
23
BRACKET, PRESSURE REGULATOR MAY W10115850 Contact Us For Availability
24
MAY W10145568 MAY W10145568 Contact Us For Availability
24
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
25
MAY W10271524 MAY W10271524 Contact Us For Availability
25
SCREW MAY 3400518 Contact Us For Availability
26
MAY W10145453 MAY W10145453 Contact Us For Availability
26
BRACKET, SPARK MODULE MAY W10498407 Contact Us For Availability
26
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
27
MAY 8286921 MAY 8286921 Contact Us For Availability
27
REIGNITOR MAY W10116108 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
28
SCREW MAY 7101P434-60 Contact Us For Availability
29
MAY 3177991 MAY 3177991 Contact Us For Availability
30
MAY W10116151 MAY W10116151 Contact Us For Availability
30
MANAGER, APPLIANCE (GOC) MAY W10859105 Contact Us For Availability
31
MAY W10294500 MAY W10294500 Contact Us For Availability
31
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
32
PLATE, MOUNTING MAY 9759118 Contact Us For Availability
34
MAY W10116113 MAY W10116113 Contact Us For Availability
35
MAY W10883622 MAY W10883622 Contact Us For Availability
36
MAY W10674068 MAY W10674068 Contact Us For Availability
37
MAY W10269216 MAY W10269216 Contact Us For Availability
38
MAY 3400099 MAY 3400099 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
NI
MAY 9757778 MAY 9757778 Contact Us For Availability
NI
MAY 9759877 MAY 9759877 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116142 MAY W10116142 Contact Us For Availability
NI
MAY W10116182 MAY W10116182 Contact Us For Availability
NI
MAY W10145990 MAY W10145990 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10283996 MAY W10283996 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10399611 MAY W10399611 Contact Us For Availability
NI
MAY W10624586 MAY W10624586 Contact Us For Availability
NI
MAY W10763503 MAY W10763503 Contact Us For Availability
NI
MAY W10766100 MAY W10766100 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
MAY W10830795 MAY W10830795 Contact Us For Availability
NI
TUBE (CENTER REAR) MAY W10145492 Contact Us For Availability
NI
TUBE (LEFT REAR) MAY W10367095 Contact Us For Availability
NI
TUBE (LEFT FRONT, LOW) MAY W10367096 Contact Us For Availability
NI
TUBE (LEFT FRONT, HIGH) MAY W10367097 Contact Us For Availability
NI
TUBE (CENTER FRONT) MAY W10367098 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10367099 Contact Us For Availability
NI
TUBE (RIGHT FRONT, LOW) MAY W10367100 Contact Us For Availability
NI
TUBE (RIGHT FRONT, HIGH) MAY W10367101 Contact Us For Availability
NI
NUT MAY 3400968 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10282816 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10282812 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK BACKSPLASH MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, 48" WITH SHELVES MAY W10285449 Contact Us For Availability
× ![]()
