Model Maytag JDRP536WP03 RANGE/OVEN, DUAL FUEL, FREESTANDING, 36 INCH – Common Parts & Diagrams

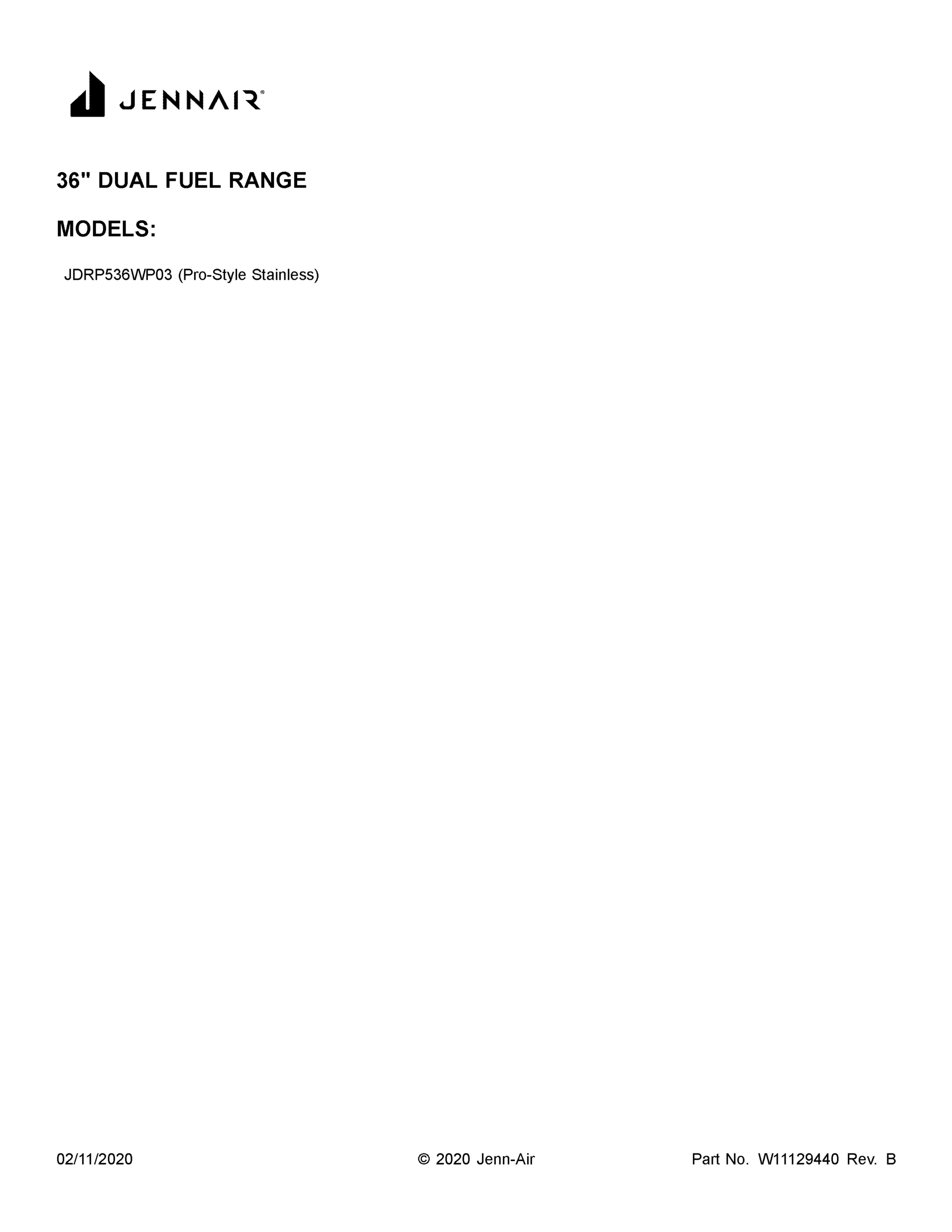

01 - COVER SHEET

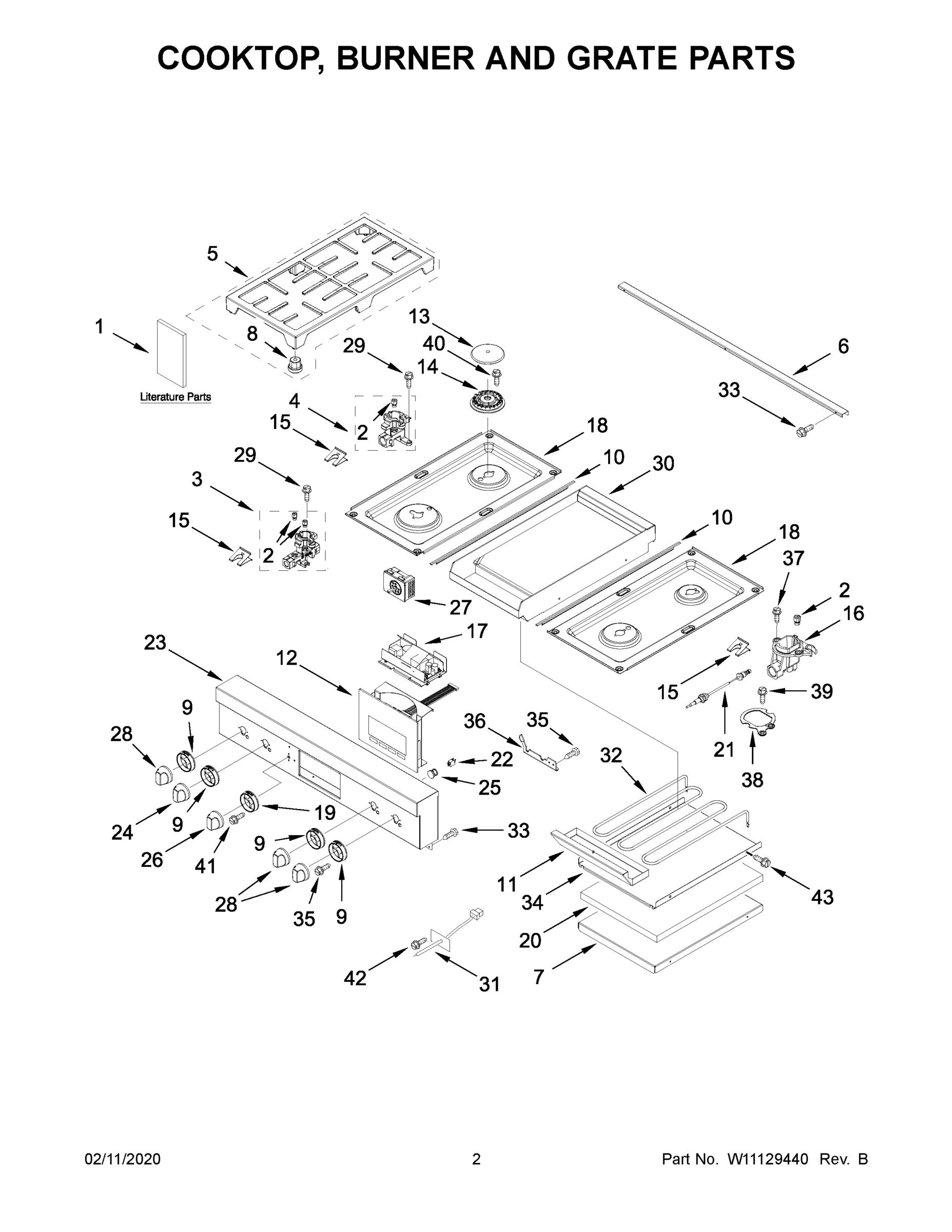

02 - COOKTOP, BURNER AND GRATE PARTS

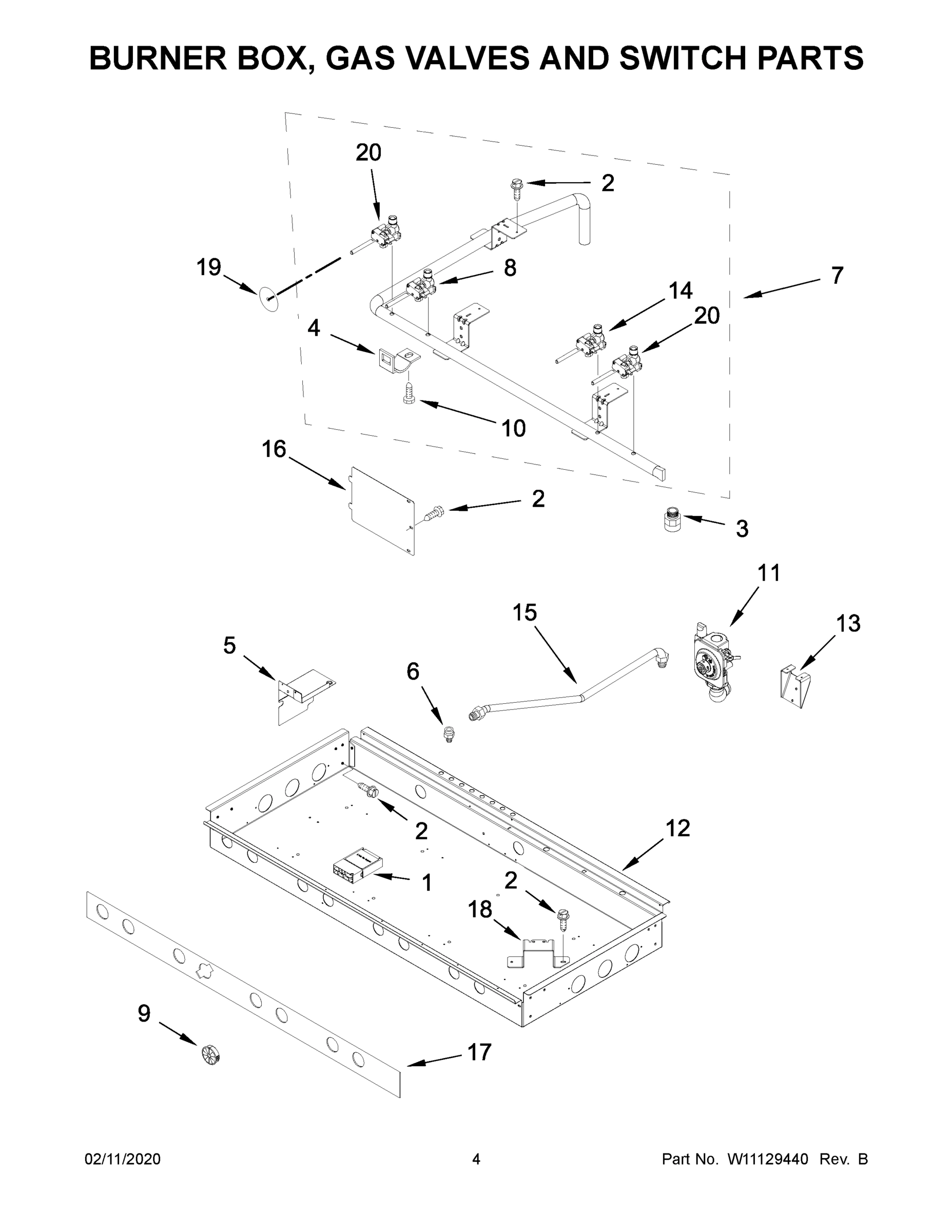

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS

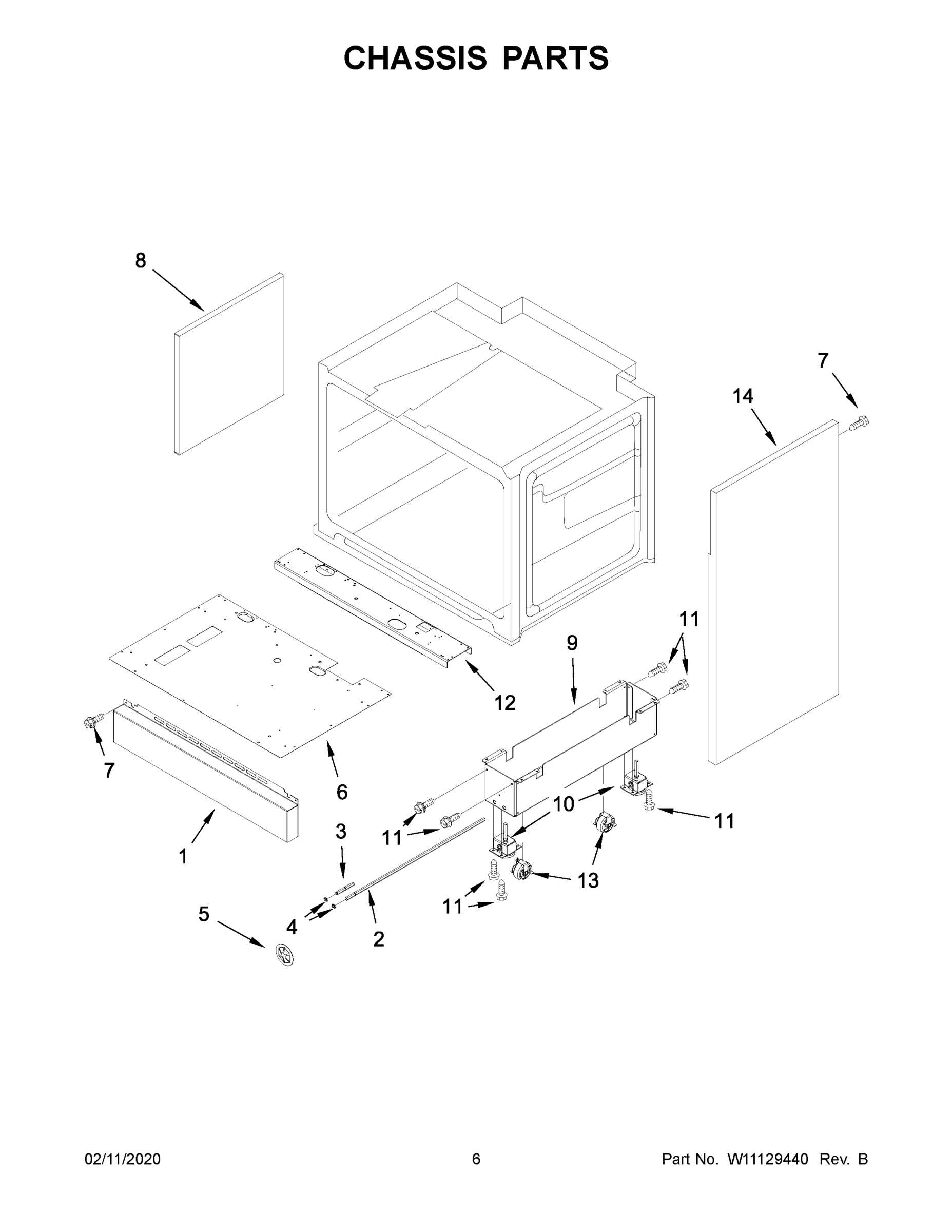

04 - CHASSIS PARTS

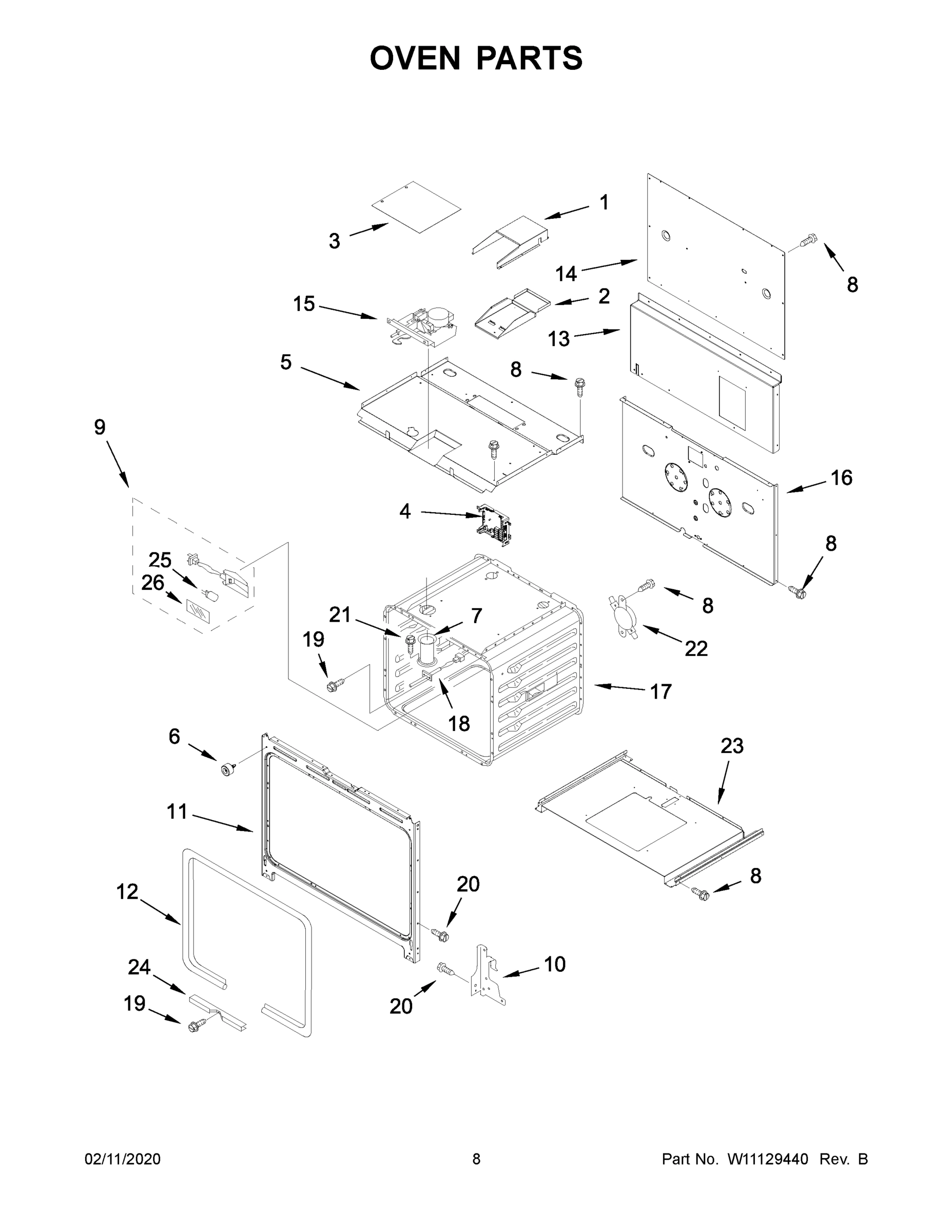

05 - OVEN PARTS

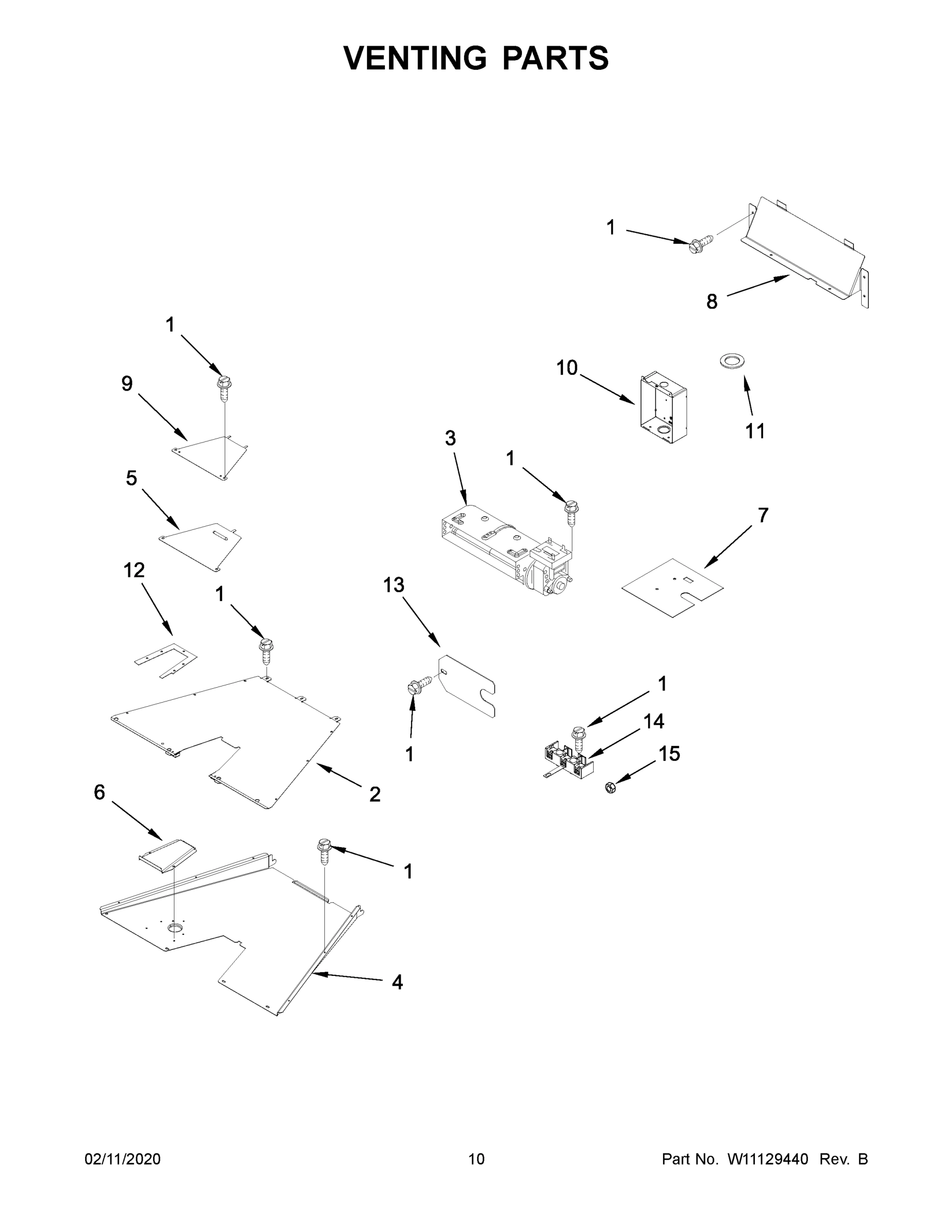

06 - VENTING PARTS

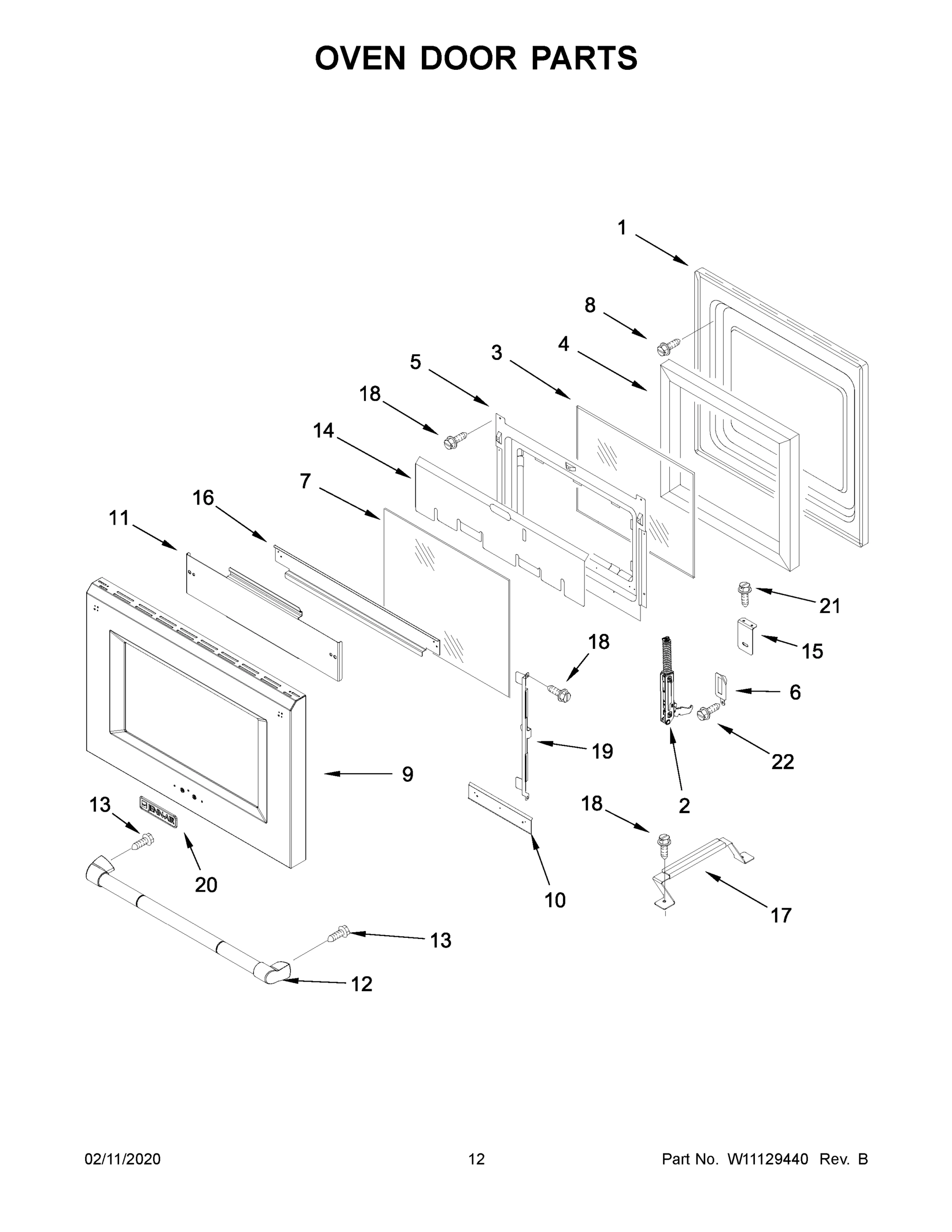

07 - OVEN DOOR PARTS

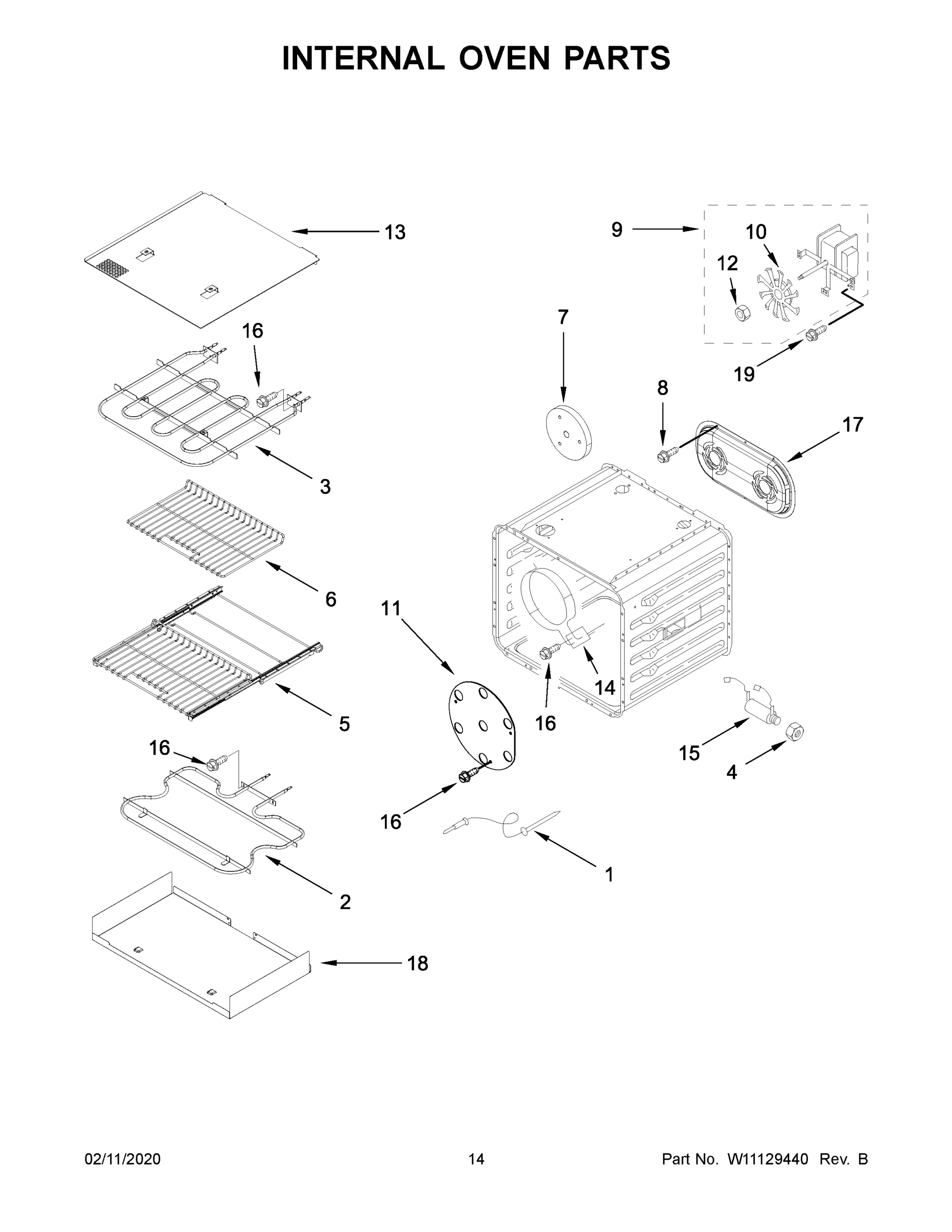

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDRP536WP03 RANGE/OVEN, DUAL FUEL, FREESTANDING, 36 INCH
1
SHEET, TECH (ENGLISH) MAY W10403301 Contact Us For Availability
1
MODULE, SPARK MAY W10475147 Contact Us For Availability
1
KICKPLATE MAY W10145766 Contact Us For Availability
1
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
1
PANEL, DOOR MAY W10188330 Contact Us For Availability
1
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
1A
SHEET, TECH (FRENCH) MAY W10403302 Contact Us For Availability
1B
GUIDE, USE & CARE MAY W11090434 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION MAY W11090454 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT, HIGH) MAY W10657945 Contact Us For Availability
2
SHAFT, LONG MAY W10115869 Contact Us For Availability
2
SUPPORT, CONTROL MAY W10853036 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10160896 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774099 Contact Us For Availability
2
ELEMENT, HIDDEN BAKE MAY W10115992 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT, LOW) MAY W10256132 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774098 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR & RIGHT FRONT) MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (RIGHT REAR) MAY W10282663 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) MAY W10846622 Contact Us For Availability
3
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
3
SHAFT, SHORT MAY W10115793 Contact Us For Availability
3
SEAL, CONTROL MAY W10239444 Contact Us For Availability
3
BLOWER 60MM MAY W10245511 Contact Us For Availability
3
GLASS, INNER MAY W10226005 Contact Us For Availability
3
ELEMENT, BROIL MAY W10115991 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT F MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
4
E-RING MAY 489504 Contact Us For Availability
4
MANAGER, APPLIANCE (GOC) MAY W10859105 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10246078 Contact Us For Availability
4
INSULATION, DOOR MAY W10115765 Contact Us For Availability
4
NUT, LOCKING MAY W11033111 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) MAY W11241666 Contact Us For Availability
5
BRACKET, SPARK MODULE MAY W10498407 Contact Us For Availability
5
NUT MAY 3400968 Contact Us For Availability
5
TOP, CHASSIS MAY W10267896 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W10160875 Contact Us For Availability
5
RETAINER, GLASS MAY W10188324 Contact Us For Availability
5
RACK, OVEN (SLIDING) MAY W11037165 Contact Us For Availability
6
TRIM, ISLAND MAY W10269217 Contact Us For Availability
6
ADAPTER, MALE MAY 4453116 Contact Us For Availability
6
DUCT, BOTTOM MAY W10145379 Contact Us For Availability
6
BUMPER & SCREW MAY W10105790 Contact Us For Availability
6
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
6
COVER, HINGE (LEFT) MAY W10115876 Contact Us For Availability
6
RACK, OVEN MAY W10822069 Contact Us For Availability
6A
COVER, HINGE (RIGHT) MAY W10115877 Contact Us For Availability
7
TRAY, GRIDDLE INSULATION MAY W10246074 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402607 Contact Us For Availability
7
TUBE, VENT MAY W10288061 Contact Us For Availability
7
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
7
GLASS, INNER MAY W10188327 Contact Us For Availability
7
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
8
BUMPER, GRATE MAY W11306485 Contact Us For Availability
8
SCREW MAY W10906658 Contact Us For Availability
8
VALVE, DUAL MAY W10371235 Contact Us For Availability
8
CHASSIS, SIDE (LEFT) MAY W10269206 Contact Us For Availability
8
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8A
CHASSIS, SIDE (RIGHT) MAY W10269205 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
BASE, LEVELING LEG MAY W10249333 Contact Us For Availability
9
ASSEMBLY, OVEN LIGHT MAY W10307114 Contact Us For Availability
9
COVER, LATCH MAY W10160858 Contact Us For Availability
9
ASSEMBLY, OUTER DOOR MAY W10145757 Contact Us For Availability
9
FAN, CONVECTION MAY W10722667 Contact Us For Availability
10
TRIM, L-STRIP MAY W10291193 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
10
LEVELER MAY 9760860 Contact Us For Availability
10
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
10
BOX, TERMINAL MAY W10467022 Contact Us For Availability
10
SHIELD, HEAT BOTTOM MAY W10226024 Contact Us For Availability
10
BLADE, FAN MAY W10631503 Contact Us For Availability
10A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
11
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
11
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
11
FRAME, FRONT MAY W10160867 Contact Us For Availability
11
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
11
BRACKET, CENTER OUTER GLASS MAY W10145764 Contact Us For Availability
11
PLATE, FAN MAY W10261523 Contact Us For Availability
12
ASSEMBLY, KEYPAD MAY W10464535 Contact Us For Availability
12
BOX, BURNER MAY W10371516 Contact Us For Availability
12
SUPPORT, CHANNEL MAY W10145376 Contact Us For Availability
12
GASKET, OVEN MAY W10850857 Contact Us For Availability
12
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
12
HANDLE, DOOR MAY W10145770 Contact Us For Availability
12
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT)) MAY W10256034 Contact Us For Availability
13
BRACKET, PRESSURE REGULATOR MAY W10115850 Contact Us For Availability
13
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
13
PANEL, BACK BOTTOM MAY W10145391 Contact Us For Availability
13
COVER, CHANNEL MAY W10145382 Contact Us For Availability
13
SCREW MAY W10276043 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10160857 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR & RIGHT FRONT)) MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (RIGHT REAR)) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT) MAY W10879806 Contact Us For Availability
14
VALVE, SIMMER MAY W10385583 Contact Us For Availability
14
PANEL, SIDE (LEFT) MAY W10250465 Contact Us For Availability
14
PANEL, BACK TOP MAY W10269208 Contact Us For Availability
14
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
14
SHIELD, HEAT TOP MAY W10188328 Contact Us For Availability
14
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR & RIGHT FRONT) MAY W10256027 Contact Us For Availability
14A
PANEL, SIDE (RIGHT) MAY W10250464 Contact Us For Availability
14B
SPREADER, FLAME (RIGHT REAR) MAY W10282515 Contact Us For Availability
15
CLIP, ELECTRODE SPRING (LEFT FRONT, LEFT REAR MAY W10827923 Contact Us For Availability
15
TUBE, PRESSURE REGULATOR MAY W10452066 Contact Us For Availability
15
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
15
NUT, HEX MAY 112432 Contact Us For Availability
15
BRACKET, DOOR TOP MAY W10115715 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
15A
CLIP, ELECTRODE SPRING (SPRING, ELECTRODE (RI MAY 8286863 Contact Us For Availability
16
HOLDER, ORIFICE (AUX) (RIGHT REAR) MAY W10883622 Contact Us For Availability
16
COVER, IGNITION MAY W10115843 Contact Us For Availability
16
BACK, CHASSIS MAY W10324087 Contact Us For Availability
16
SCREW MAY 4449154 Contact Us For Availability
16
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
17
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
17
INSULATION, BURNER BOX MAY W10145622 Contact Us For Availability
17
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
17
BAFFLE, CONVECTION MAY W10246060 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
BRACKET, BURNER MAY W10560553 Contact Us For Availability
18
SCREW MAY 3196537 Contact Us For Availability
18
SENSOR MAY W10131825 Contact Us For Availability
18
TRAY, HIDDEN BAKE MAY W10160872 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352968 Contact Us For Availability
19
BEZEL, GRIDDLE MAY W10145453 Contact Us For Availability
19
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
19
BRACKET, SIDE MAY 9759229 Contact Us For Availability
19
SCREW MAY W10720084 Contact Us For Availability
20
INSULATION, GRIDDLE MAY W10145621 Contact Us For Availability
20
VALVE, SINGLE MAY W10385582 Contact Us For Availability
20
SCREW MAY 4449040 Contact Us For Availability
20
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
21
ELECTRODE, BURNER (RIGHT REAR) MAY W10146042 Contact Us For Availability
21
SCREW MAY 7101P426-60 Contact Us For Availability
21
SCREW MAY 3196176 Contact Us For Availability
22
HOUSING, INDICATOR LIGHT MAY W10116151 Contact Us For Availability
22
SCREW MAY 4449743 Contact Us For Availability
22
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
23
PANEL, CONTROL MAY W10789954 Contact Us For Availability
23
BOTTOM, CHASSIS MAY W10235536 Contact Us For Availability
24
KNOB, DUAL (STAINLESS (LEFT FRONT)) MAY W10145568 Contact Us For Availability
24
RETAINER, GASKET (12" LONG) MAY W10157511 Contact Us For Availability
25
LENS, I MAY W10294500 Contact Us For Availability
25
BULB, LIGHT MAY W10169757 Contact Us For Availability
26
MAY W10145566 MAY W10145566 Contact Us For Availability
26
LENS, LIGHT MAY W10169756 Contact Us For Availability
27
MAY W10116113 MAY W10116113 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
MAY 3177991 MAY 3177991 Contact Us For Availability
30
MAY W10625221 MAY W10625221 Contact Us For Availability
31
MAY W10319835 MAY W10319835 Contact Us For Availability
32
MAY W10138296 MAY W10138296 Contact Us For Availability
33
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
34
MAY W10145620 MAY W10145620 Contact Us For Availability
36
MAY W10130760 MAY W10130760 Contact Us For Availability
36A
MAY W10130759 MAY W10130759 Contact Us For Availability
37
MAY 8286921 MAY 8286921 Contact Us For Availability
38
MAY 8286930 MAY 8286930 Contact Us For Availability
39
MAY 3196160 MAY 3196160 Contact Us For Availability
40
MAY W10673618 MAY W10673618 Contact Us For Availability
41
MAY W10674068 MAY W10674068 Contact Us For Availability
42
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
43
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
NI
MAY 8019P013-60 MAY 8019P013-60 Contact Us For Availability
NI
MAY 9757778 MAY 9757778 Contact Us For Availability
NI
MAY 9759877 MAY 9759877 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116142 MAY W10116142 Contact Us For Availability
NI
MAY W10116182 MAY W10116182 Contact Us For Availability
NI
MAY W10145988 MAY W10145988 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10624586 MAY W10624586 Contact Us For Availability
NI
MAY W10763501 MAY W10763501 Contact Us For Availability
NI
MAY W10766100 MAY W10766100 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
MAY W10830809 MAY W10830809 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10276501 Contact Us For Availability
NI
TUBE (LEFT REAR) MAY W10368165 Contact Us For Availability
NI
TUBE (LEFT FRONT, LOW) MAY W10368166 Contact Us For Availability
NI
TUBE (LEFT FRONT, HIGH) MAY W10368167 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10368335 Contact Us For Availability
NI
INSULATION, WRAP MAY W10282811 Contact Us For Availability
NI
INSULATION, BACK MAY W10282815 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
ADHESIVE, SEAL, ACCESS PANEL MAY 4453191 Contact Us For Availability
NI
ADHESIVE, SEAL, RIBBON CABLE MAY 4453192 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
× ![]()
