Model Maytag JDRP536HM00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 36 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - BURNER BOX AND GRIDDLE PARTS

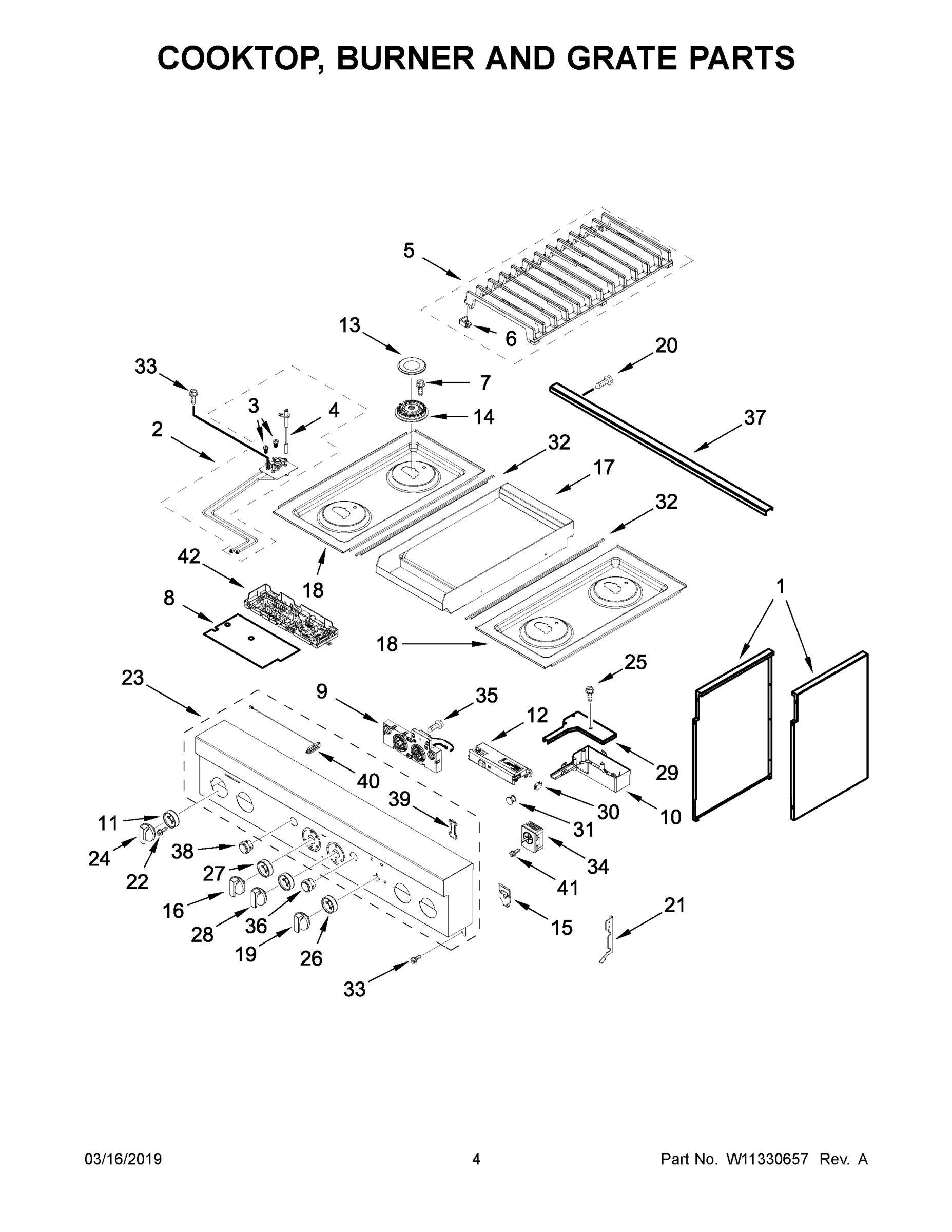

03 - COOKTOP, BURNER AND GRATE PARTS

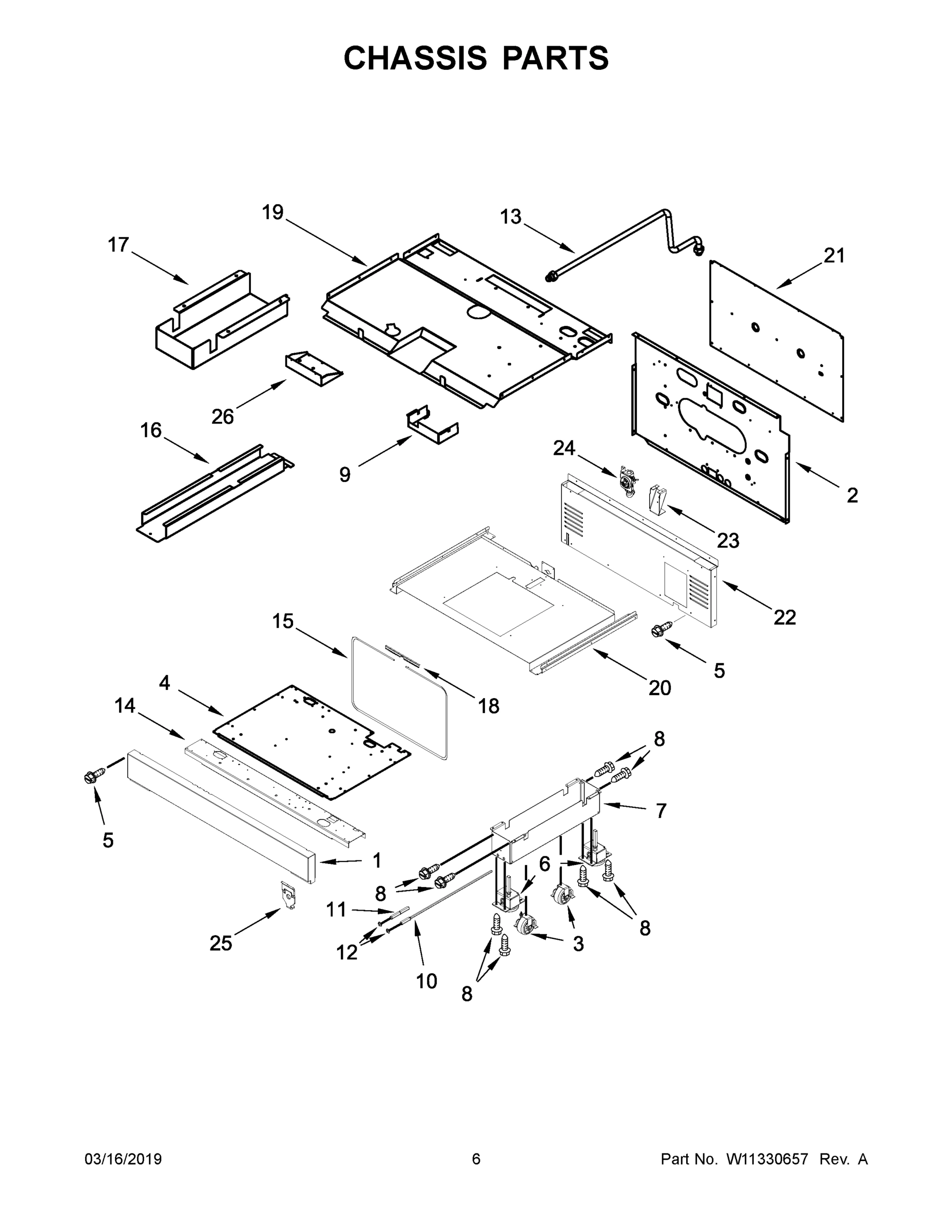

04 - CHASSIS PARTS

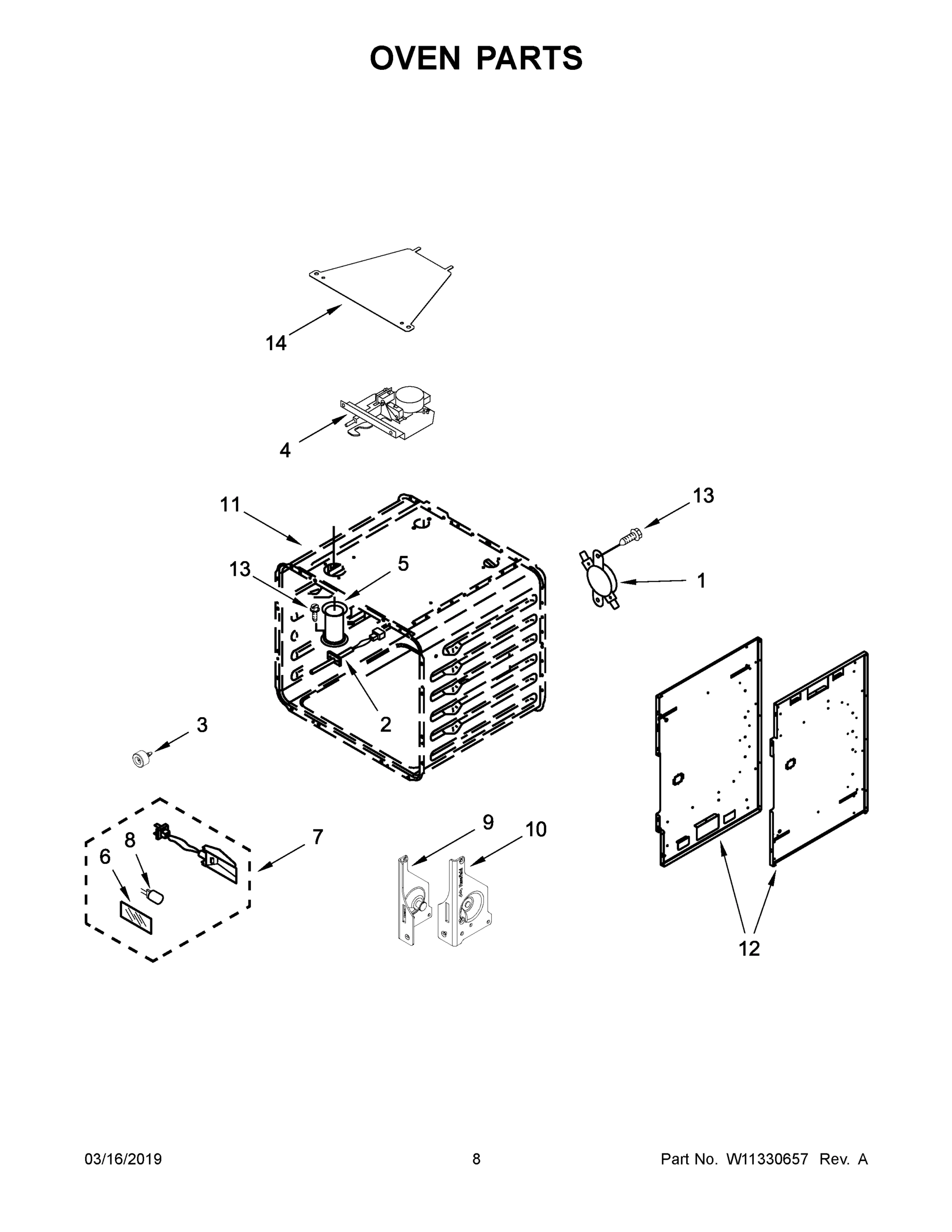

05 - OVEN PARTS

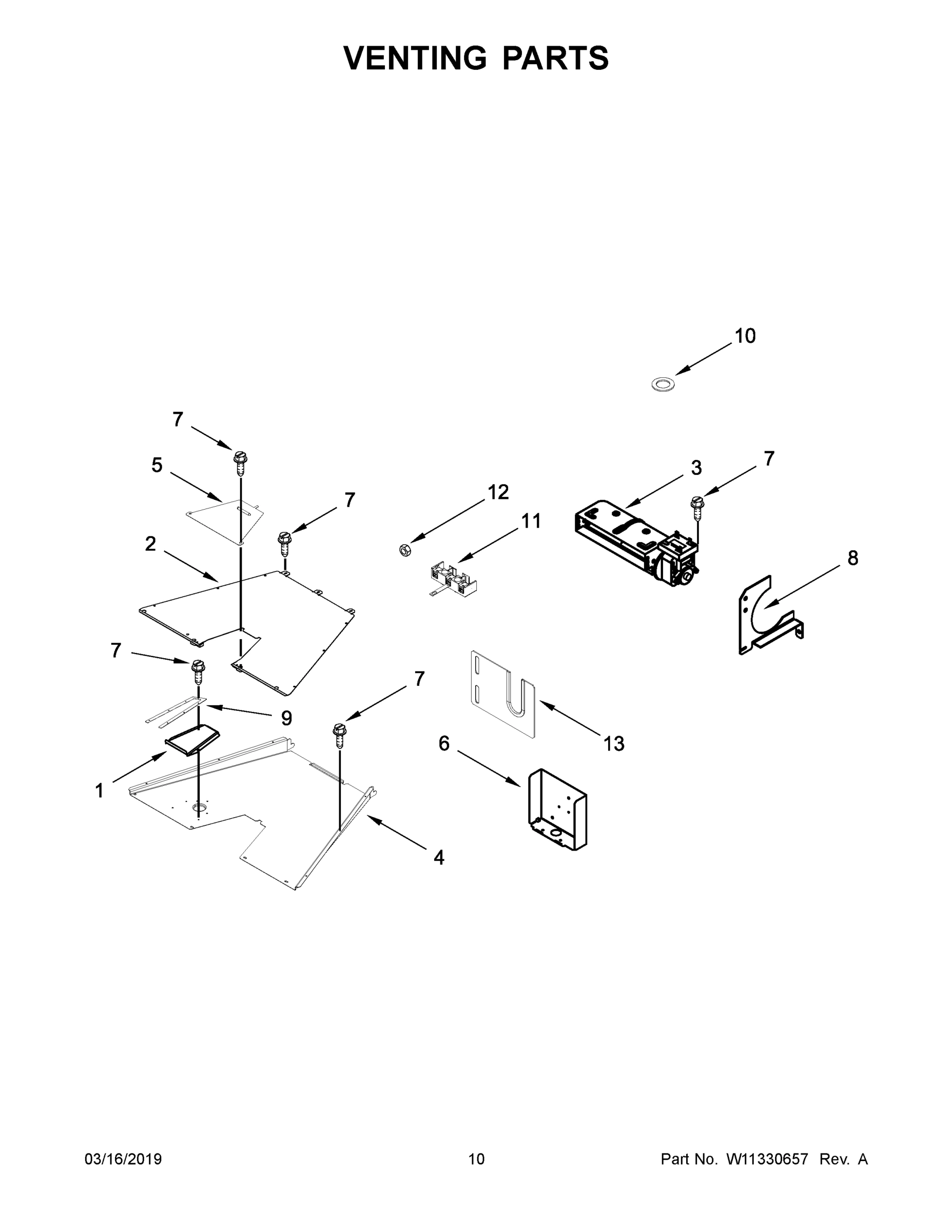

06 - VENTING PARTS

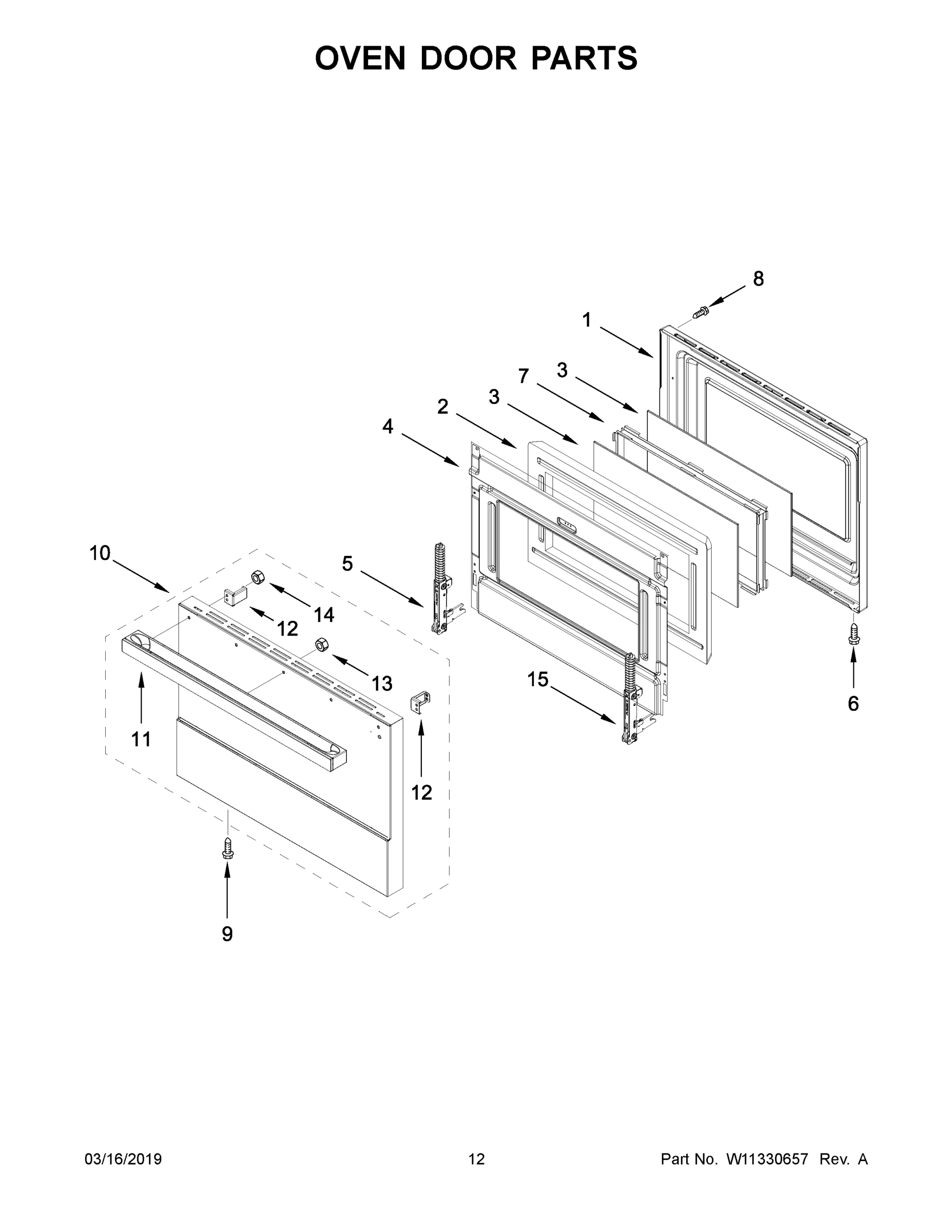

07 - OVEN DOOR PARTS

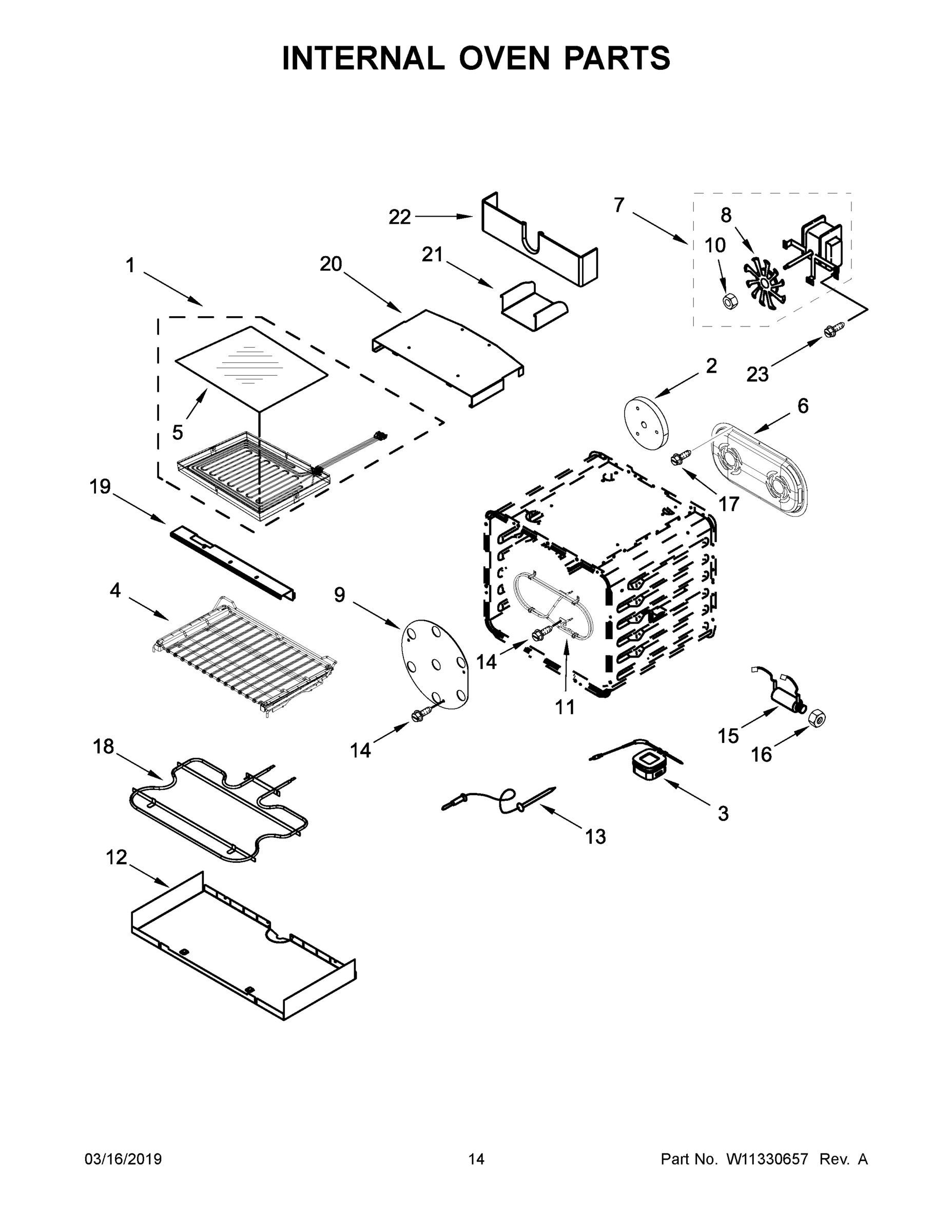

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDRP536HM00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 36 INCH
1
GUIDE, USE AND CARE MAY W11114330 Contact Us For Availability
1
MAY W11106881 MAY W11106881 Contact Us For Availability
1
MAY W10883794 MAY W10883794 Contact Us For Availability
1
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
1
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
1
MAY W11036772 MAY W11036772 Contact Us For Availability
1
ELEMENT, BROIL MAY W11210530 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11114333 Contact Us For Availability
1A
MAY W11106880 MAY W11106880 Contact Us For Availability
1B
GUIDE, INTERNET CONNECTIVITY MAY W11184746 Contact Us For Availability
1C
MAY W11266585 MAY W11266585 Contact Us For Availability
1D
MAY W11202363 MAY W11202363 Contact Us For Availability
1E
SHEET, TECH MAY W11202265 Contact Us For Availability
2
MAY W10893053 MAY W10893053 Contact Us For Availability
2
MAY W10892793 MAY W10892793 Contact Us For Availability
2
MAY W11089589 MAY W11089589 Contact Us For Availability
2
PROBE, SENSOR MAY W10622170 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W11105223 Contact Us For Availability
2
MAY W10884823 MAY W10884823 Contact Us For Availability
2
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
2A
MAY W10893062 MAY W10893062 Contact Us For Availability
2A
MAY W10892494 MAY W10892494 Contact Us For Availability
2B
MAY W10892475 MAY W10892475 Contact Us For Availability
2C
MAY W10892730 MAY W10892730 Contact Us For Availability
3
SWITCH, HARNESS MAY W11106300 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (LEFT FRONT) MAY W10892422 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER MAY W11200129 Contact Us For Availability
3
MAY W11036791 MAY W11036791 Contact Us For Availability
3
PROBE, WIRELESS MEAT MAY W11186918 Contact Us For Availability
3A
ORIFICE, MAIN (15.4K) (LEFT REAR, RIGHT FRONT MAY W10892418 Contact Us For Availability
3B
ORIFICE, MAIN (7.2K) (RIGHT REAR) MAY W10892440 Contact Us For Availability
3C
ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR MAY W10892435 Contact Us For Availability
3D
ORIFICE, SIMMER (2.0K) (RIGHT REAR) MAY W10892429 Contact Us For Availability
4
BRACKET, MANIFOLD MAY W11121194 Contact Us For Availability
4
IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT) MAY W11238757 Contact Us For Availability
4
MAY W11095572 MAY W11095572 Contact Us For Availability
4
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W11105222 Contact Us For Availability
4
MAY W11194820 MAY W11194820 Contact Us For Availability
4
MAY W11111356 MAY W11111356 Contact Us For Availability
4A
IGNITER (RIGHT REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK (LEFT)) MAY W11172289 Contact Us For Availability
5
TUBE, VENT MAY W11290663 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W11109518 Contact Us For Availability
5
MAY W11096984 MAY W11096984 Contact Us For Availability
5
GLASS, BROIL ELEMENT MAY W11193191 Contact Us For Availability
5A
ASSEMBLY, GRATE (BLACK (RIGHT)) MAY W11172625 Contact Us For Availability
6
MAY W11330430 MAY W11330430 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
LENS, LIGHT MAY W10169756 Contact Us For Availability
6
BOX, TERMINAL MAY W11284049 Contact Us For Availability
6
SCREW MAY W10607120 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W11232487 Contact Us For Availability
7
BRACKET, GRIDDLE-RTD MAY W11121384 Contact Us For Availability
7
SCREW MAY 7101P426-60 Contact Us For Availability
7
SCREW MAY W11196257 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10908710 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W11223932 Contact Us For Availability
7
MAY W11194814 MAY W11194814 Contact Us For Availability
7
FAN, CONVECTION MAY W11121400 Contact Us For Availability
8
MAY W10892370 MAY W10892370 Contact Us For Availability
8
BARRIER, APPLIANCE MANAGER MAY W11281269 Contact Us For Availability
8
SCREW MAY 4449743 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER MOUNT MAY W11047754 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8
BLADE, FAN MAY W11108376 Contact Us For Availability
8A
MAY W10892443 MAY W10892443 Contact Us For Availability
9
MAY W11292566 MAY W11292566 Contact Us For Availability
9
CABINET, APPLIANCE MANAGER MAY W11106335 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY W11096294 Contact Us For Availability
9
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
9
SCREW MAY W10162096 Contact Us For Availability
9
PLATE, FAN MAY W10261523 Contact Us For Availability
10
SCREW MAY 3196160 Contact Us For Availability
10
COVER, WIFI OUTER MAY W11205795 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
RECEIVER, HINGE (RIGHT) MAY W11096293 Contact Us For Availability
10
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
10
MAY W10870229 MAY W10870229 Contact Us For Availability
10
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
11
COVER, IGNITION MAY W10115843 Contact Us For Availability
11
BEZEL, COOKTOP (FOR 4 COOKTOP BURNERS) MAY W11090284 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
11
MAY W11125545 MAY W11125545 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
12
ASSEMBLY, WIFI MODULE MAY W11110768 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W11102297 Contact Us For Availability
12
NUT, HEX MAY 112432 Contact Us For Availability
12
BRACKET, HANDLE MAY W11194816 Contact Us For Availability
12
MAY W11106922 MAY W11106922 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W11102296 Contact Us For Availability
13
SENSOR, GRIDDLE MAY W10891584 Contact Us For Availability
13
MAY W11121391 MAY W11121391 Contact Us For Availability
13
TUBE, PRESSURE REGULATOR MAY W11106963 Contact Us For Availability
13
COVER, CHANNEL MAY W11106956 Contact Us For Availability
13
NUT MAY W11198435 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR MAY W10891987 Contact Us For Availability
14
MAY W11087493 MAY W11087493 Contact Us For Availability
14
COVER, LATCH MAY W10160858 Contact Us For Availability
14
NUT MAY 999299 Contact Us For Availability
14
SCREW MAY 4449154 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (RIGHT REAR) MAY W10892022 Contact Us For Availability
15
INSULATION, GRIDDLE MAY W11121383 Contact Us For Availability
15
MAY W11115330 MAY W11115330 Contact Us For Availability
15
MAY W11096983 MAY W11096983 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
16
ADAPTER, MALE MAY 4453116 Contact Us For Availability
16
KNOB, OVEN MODE (STAINLESS) MAY W10891869 Contact Us For Availability
16
DUCT-CHASSIS, REAR MAY W11050145 Contact Us For Availability
16
NUT, LOCKING MAY W11033111 Contact Us For Availability
17
ASSEMBLY, GRIDDLE MODULE (ASSEMBLY BREAKDOWN MAY W10891745 Contact Us For Availability
17
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
17
CHANNEL, WIRE MAY W11084360 Contact Us For Availability
17
SCREW MAY W10739592 Contact Us For Availability
18
ELEMENT, GRIDDLE MAY W10891698 Contact Us For Availability
18
PANEL, COOKTOP (BLACK (LEFT)) MAY W11038237 Contact Us For Availability
18
RETAINER, GASKET (9" LONG) MAY W10216520 Contact Us For Availability
18
ELEMENT, HIDDEN BAKE MAY W10115992 Contact Us For Availability
18A
MAY W11038253 MAY W11038253 Contact Us For Availability
19
SCREW MAY 3196176 Contact Us For Availability
19
KNOB, GRIDDLE (STAINLESS) MAY W10891923 Contact Us For Availability
19
MAY W11037135 MAY W11037135 Contact Us For Availability
19
BRACKET, BROIL FRONT MAY W11112336 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
MAY W11040801 MAY W11040801 Contact Us For Availability
20
BRACKET, BROIL TOP MAY W11158843 Contact Us For Availability
21
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
21
MAY W11103333 MAY W11103333 Contact Us For Availability
21
MAY W11111392 MAY W11111392 Contact Us For Availability
21A
BRACKET, MOVING CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
22
MAY W11034133 MAY W11034133 Contact Us For Availability
22
COVER PLATE, TERMINAL HOLE MAY W11170823 Contact Us For Availability
23
MAY W11253774 MAY W11253774 Contact Us For Availability
23
BRACKET, PRESSURE REGULATOR MAY W11096823 Contact Us For Availability
23
SCREW MAY W10720084 Contact Us For Availability
24
KNOB, BURNER (FOR 4 COOKTOP BURNERS) (STAINLE MAY W10887596 Contact Us For Availability
24
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
25
SPRING CLIP, RANGE MAY W11036559 Contact Us For Availability
25
SCREW MAY 7101P624-60 Contact Us For Availability
26
BEZEL, GRIDDLE MAY W11104967 Contact Us For Availability
26
DRAWER, APPLIANCE MANAGER MAY W11106341 Contact Us For Availability
27
BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS) MAY W11042375 Contact Us For Availability
28
KNOB, OVEN TEMPERATURE (STAINLESS) MAY W10891868 Contact Us For Availability
29
COVER, WIFI INNER MAY W11205794 Contact Us For Availability
30
LIGHT, INDICATOR HOUSING MAY W10116114 Contact Us For Availability
31
LENS, INDICATOR L MAY W10294500 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
34
MAY W11033497 MAY W11033497 Contact Us For Availability
35
MAY 3400814 MAY 3400814 Contact Us For Availability
36
MAY W11090650 MAY W11090650 Contact Us For Availability
37
MAY W11156416 MAY W11156416 Contact Us For Availability
38
MAY W11090651 MAY W11090651 Contact Us For Availability
39
MAY W10896369 MAY W10896369 Contact Us For Availability
40
MAY W11130078 MAY W11130078 Contact Us For Availability
41
MAY W10674068 MAY W10674068 Contact Us For Availability
42
MAY W11100268 MAY W11100268 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
NI
RETAINER, STRAIN RELIEF MAY 9759877 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10780278 Contact Us For Availability
NI
HARNESS, GRIDDLE MAY W10903727 Contact Us For Availability
NI
MAY W11200314 MAY W11200314 Contact Us For Availability
NI
MAY W11200325 MAY W11200325 Contact Us For Availability
NI
MAY W11200326 MAY W11200326 Contact Us For Availability
NI
CORD, POWER MAY W11212216 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
HARNESS, WIFI MAY W11242785 Contact Us For Availability
NI
NUT MAY 3400968 Contact Us For Availability
NI
INSULATION, WRAP MAY W10282811 Contact Us For Availability
NI
INSULATION, BACK MAY W10282815 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK BACKSPLASH MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, 48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE KIT, BURN MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
