Model Maytag JDRP436WP01 DUAL FUEL COOK-TOP – Common Parts & Diagrams

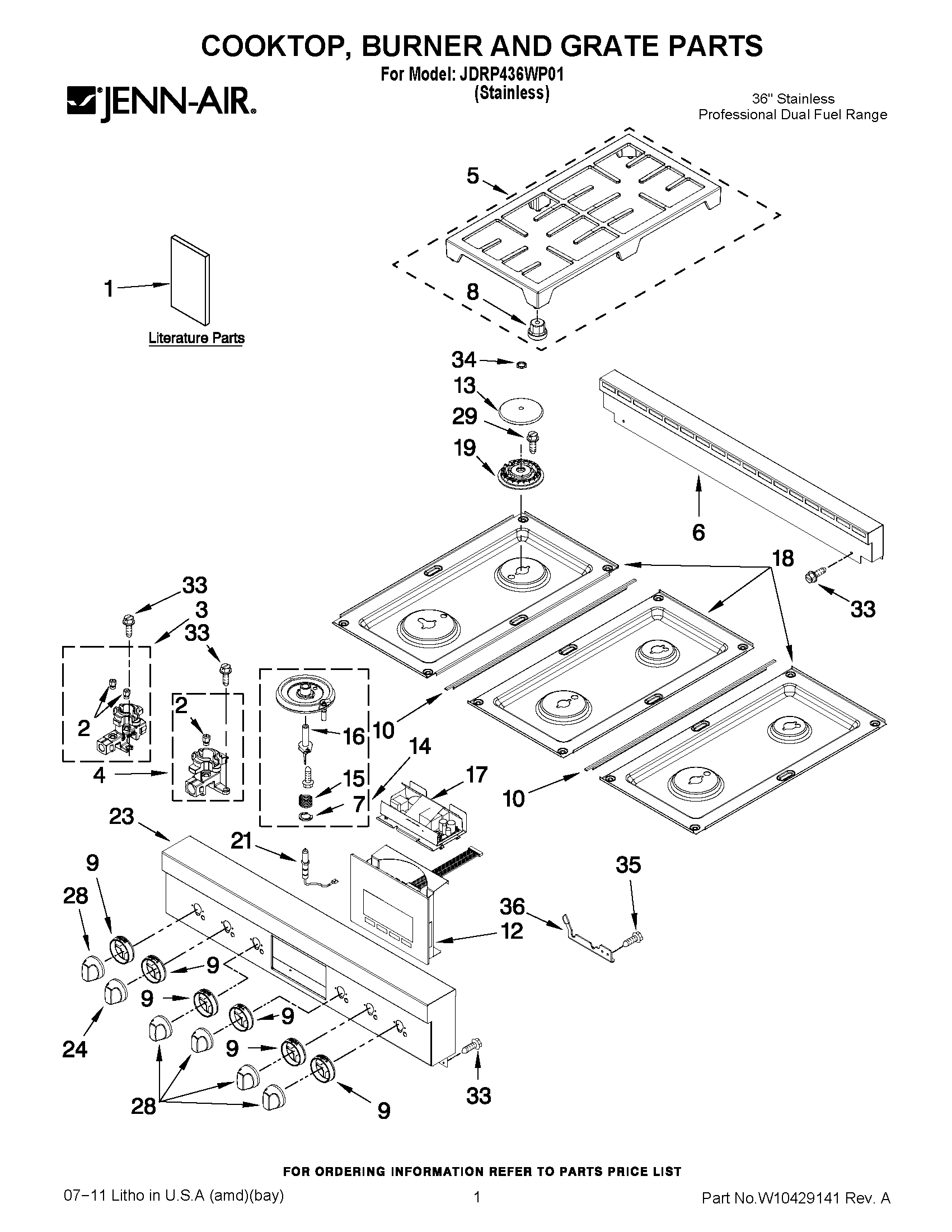

01 - COOKTOP, BURNER AND GRATE PARTS

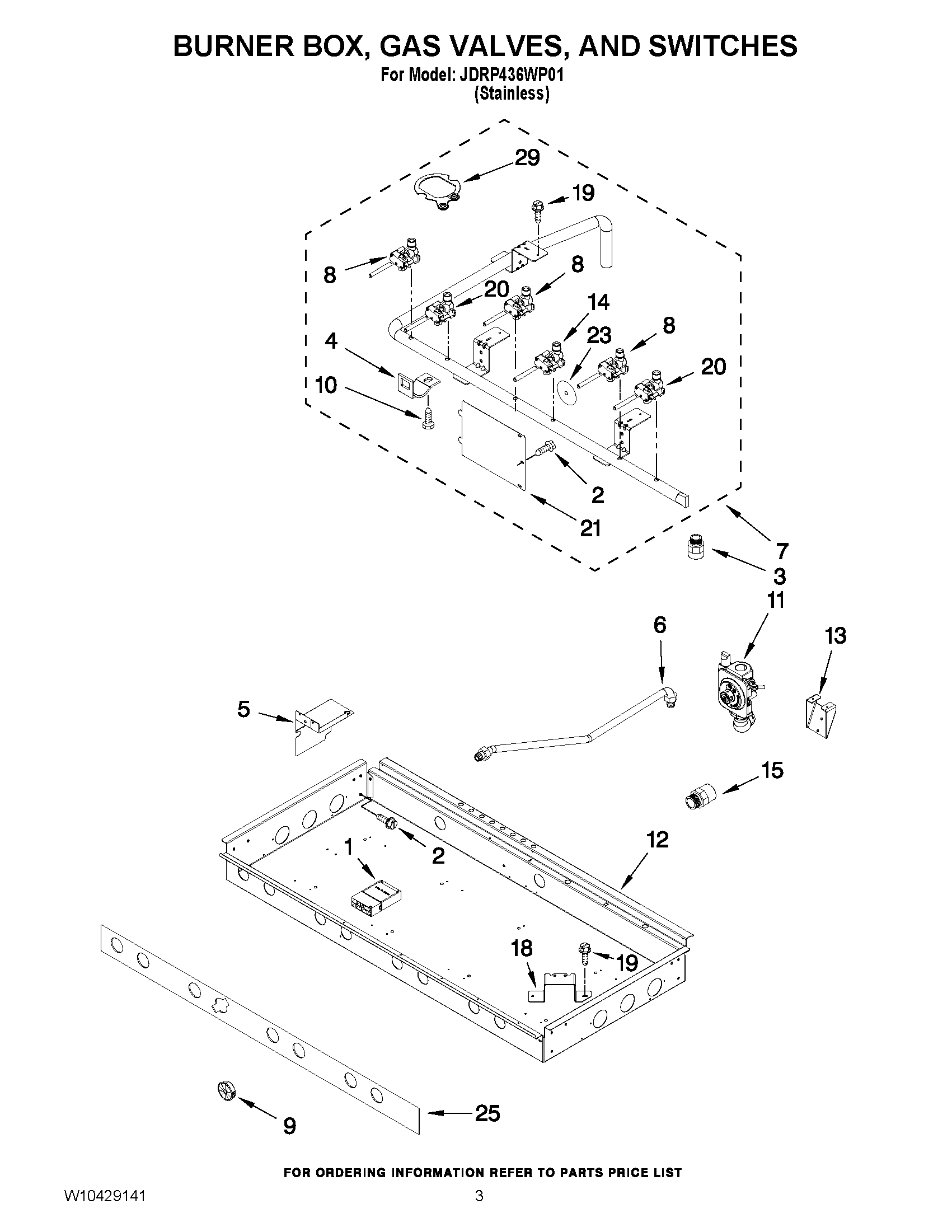

02 - BURNER BOX, GAS VALVES, AND SWITCHES

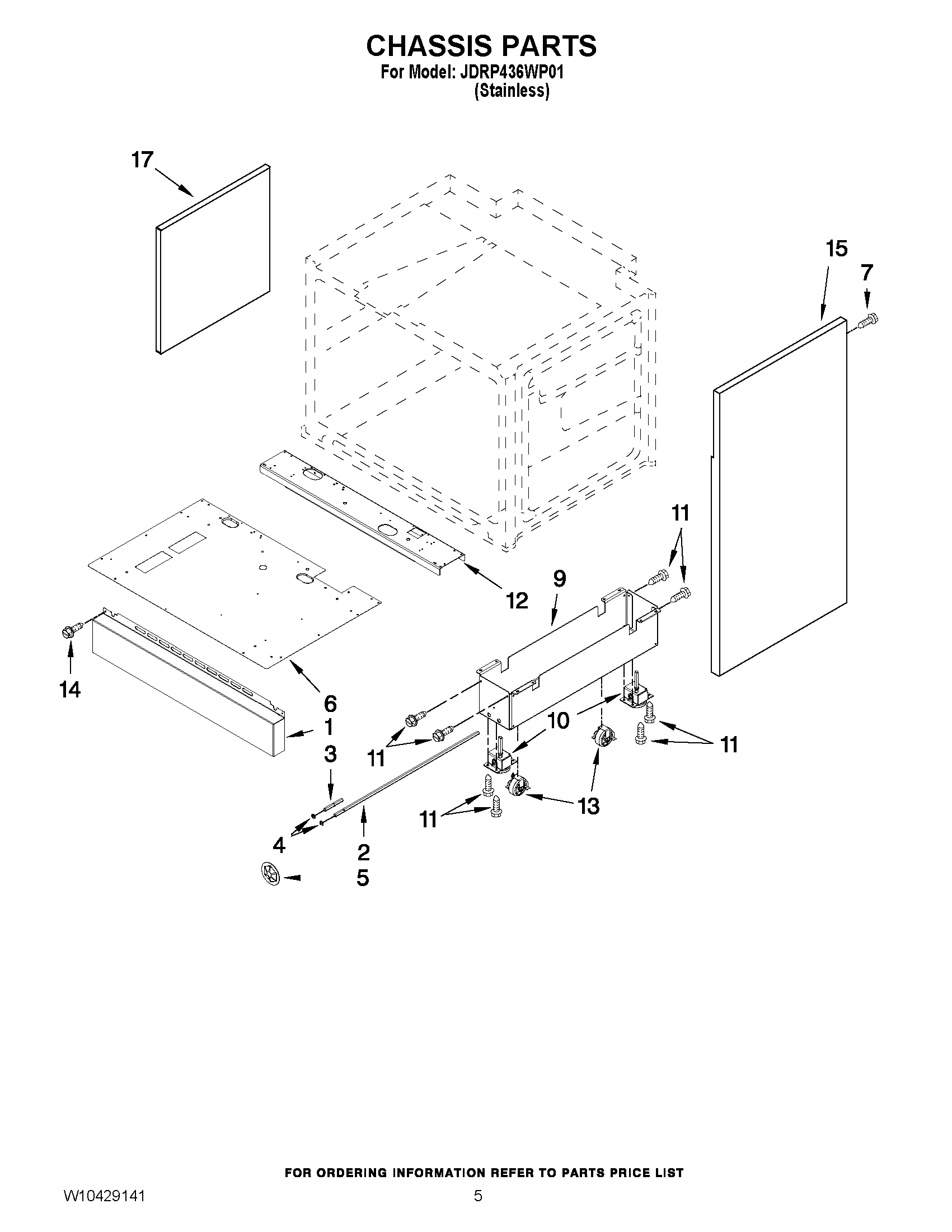

03 - CHASSIS PARTS

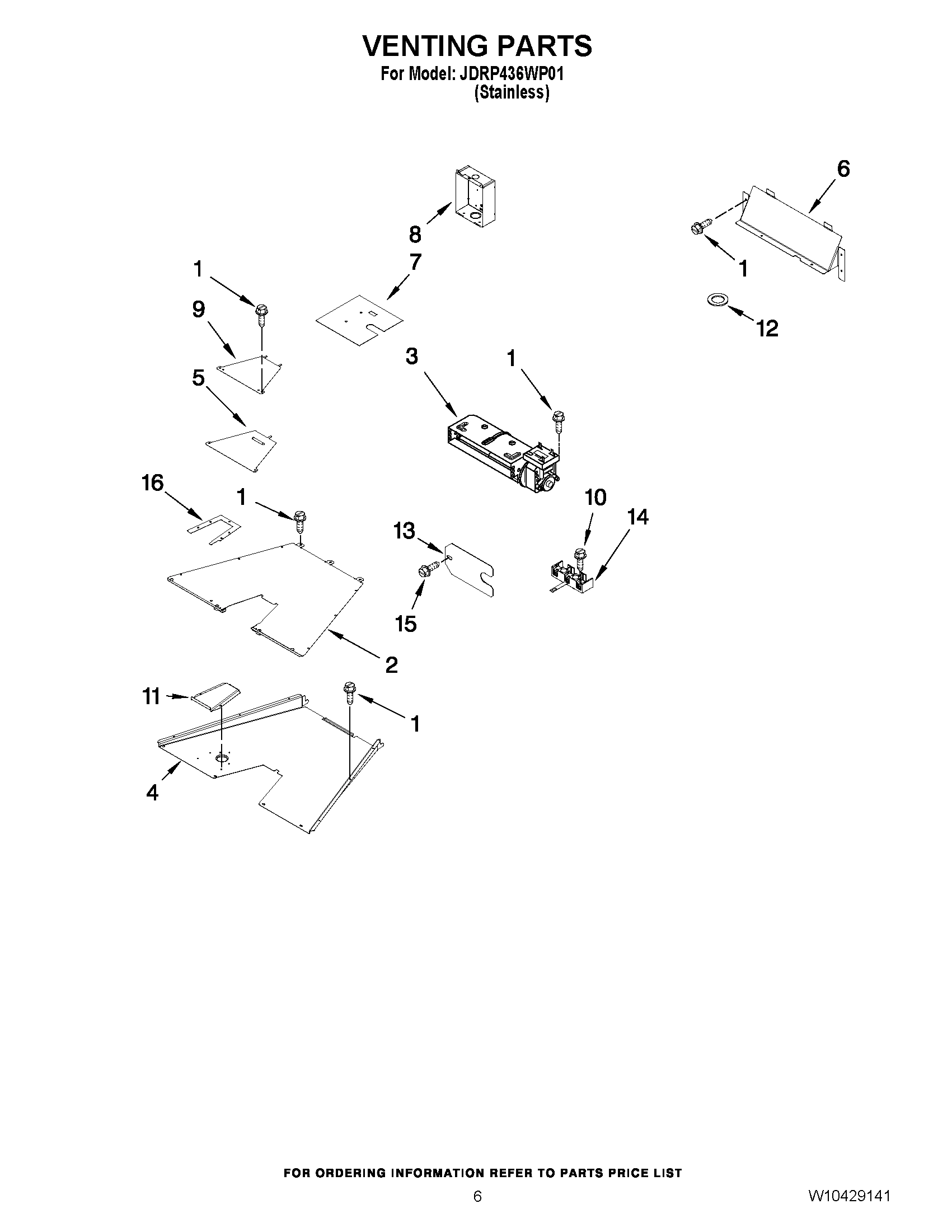

04 - VENTING PARTS

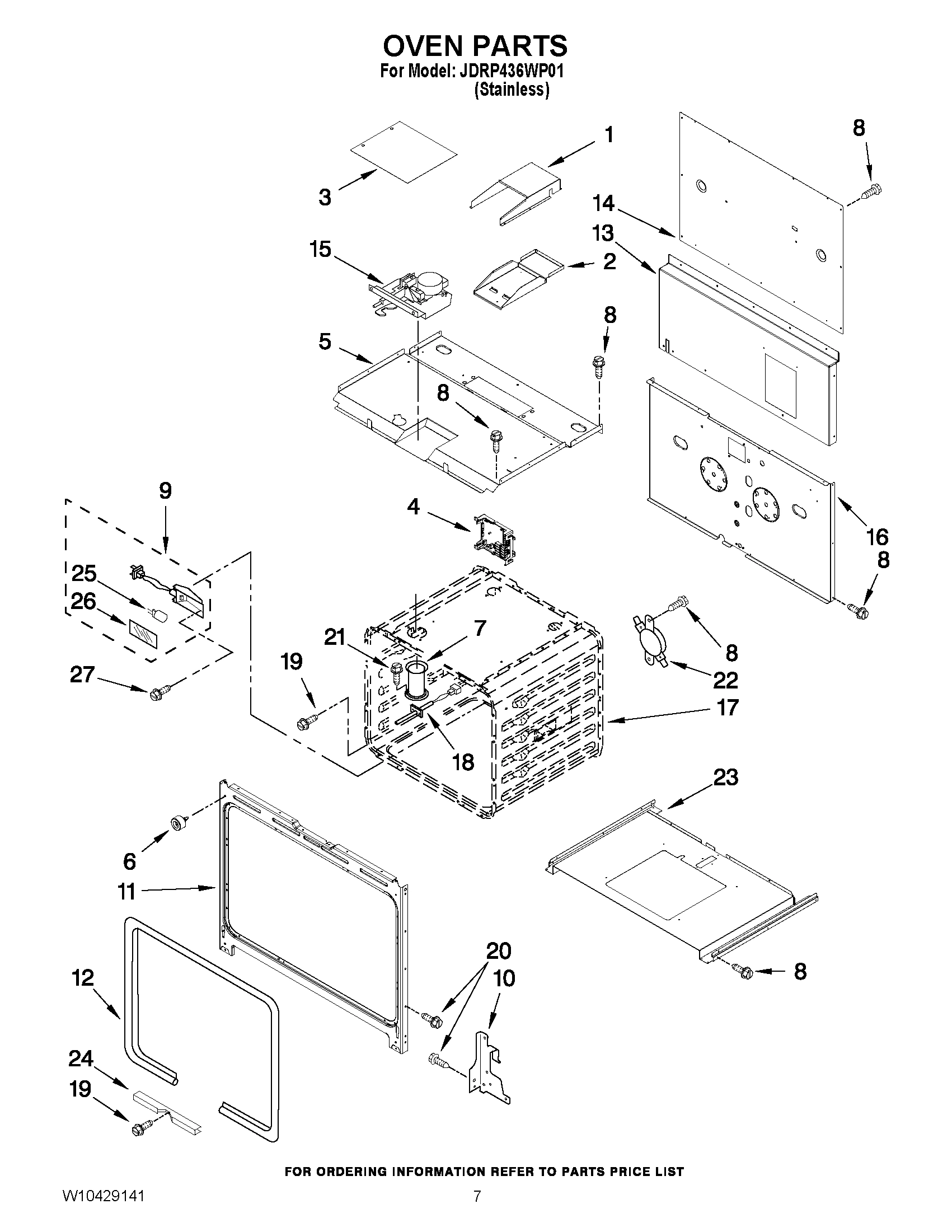

05 - OVEN PARTS

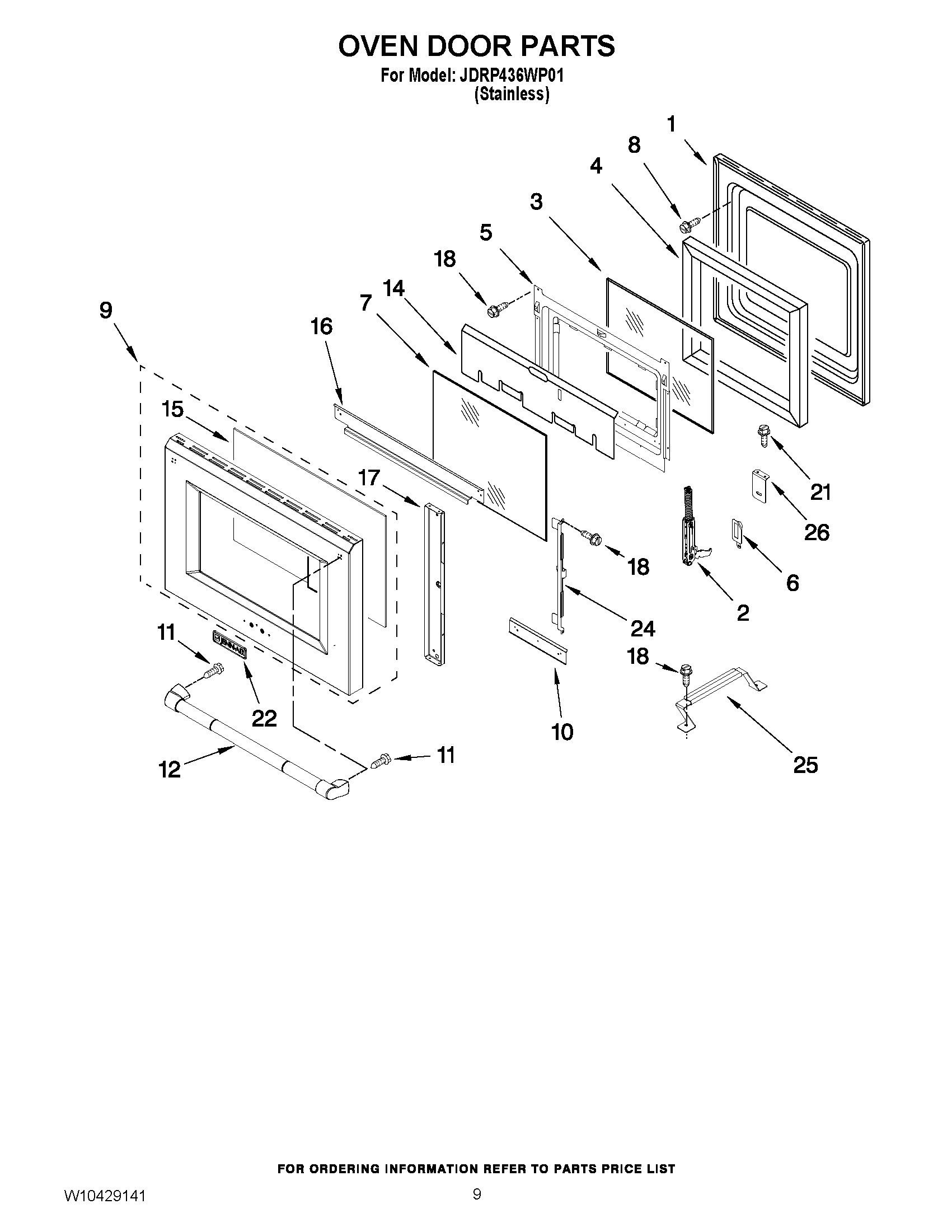

06 - OVEN DOOR PARTS

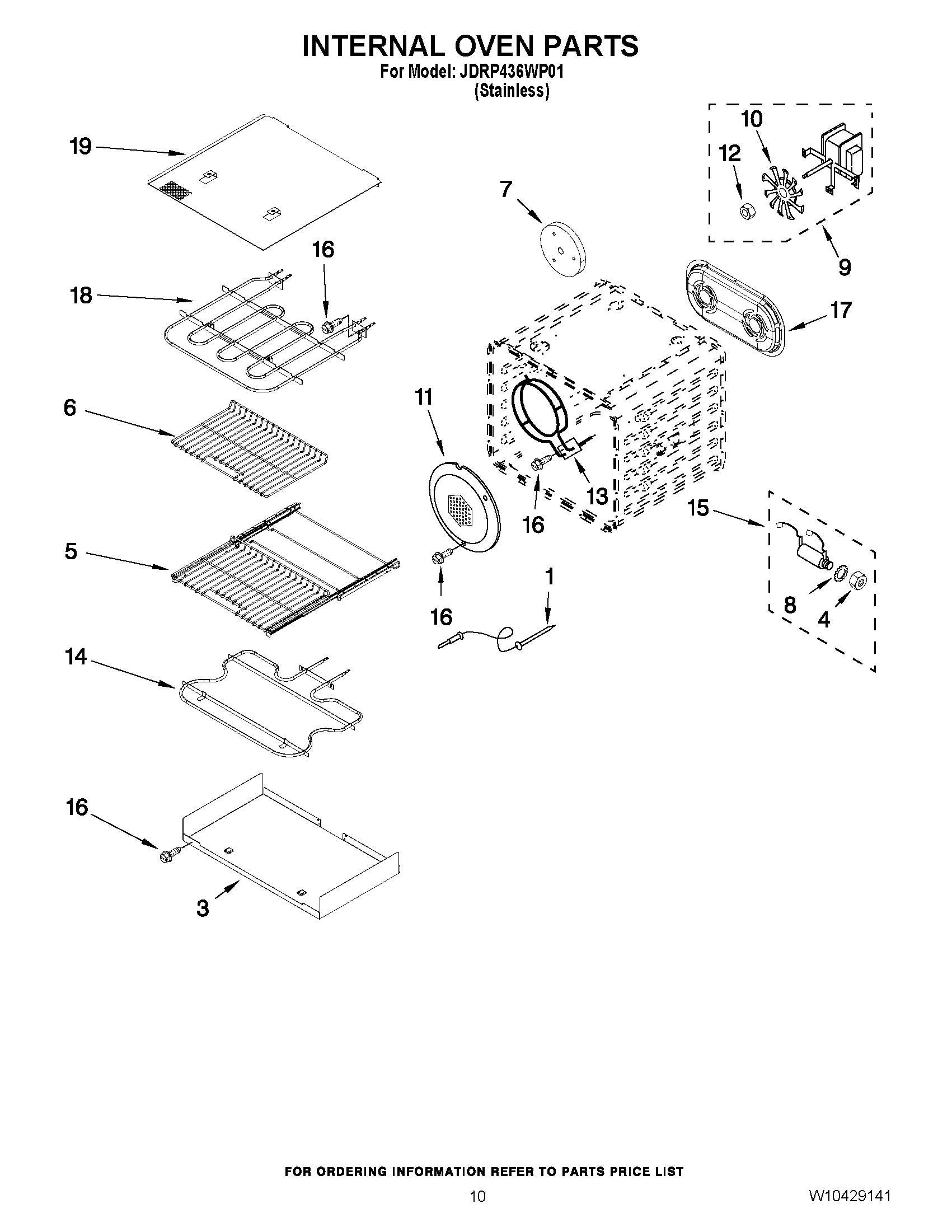

07 - INTERNAL OVEN PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag JDRP436WP01 DUAL FUEL COOK-TOP
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
INSTR, INSTALLER MAY W10075750 Contact Us For Availability
1
MAY W10294839 MAY W10294839 Contact Us For Availability
1
MAY W10294843 MAY W10294843 Contact Us For Availability
1
MAY W10295367 MAY W10295367 Contact Us For Availability
1
MAY W10349768 MAY W10349768 Contact Us For Availability
1
MAY 7431P039-60 MAY 7431P039-60 Contact Us For Availability
1
MAY W10145766 MAY W10145766 Contact Us For Availability
1
MAY 3400843 MAY 3400843 Contact Us For Availability
1
DRAWER MAY W10235557 Contact Us For Availability
1
MAY W10188330 MAY W10188330 Contact Us For Availability
1
PROBE-MEAT MAY 9755542 Contact Us For Availability
2
ORIFICE (LF,RF (INNER)) MAY W10160179 Contact Us For Availability
2
ORIFICE (LF,RF (OUTER)) MAY W10160185 Contact Us For Availability
2
ORIFICE (LR & CF & RR) MAY W10160232 Contact Us For Availability
2
ORIFICE (CR) MAY W10282663 Contact Us For Availability
2
MAY W10115869 MAY W10115869 Contact Us For Availability
2
MAY W10160896 MAY W10160896 Contact Us For Availability
2
SUPPORT MAY W10249337 Contact Us For Availability
2
HINGE, DOOR (RIGHT) MAY W10269203 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10269204 Contact Us For Availability
3
ORIFICE HOLDER LF,RF MAY W10160187 Contact Us For Availability
3
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
3
MAY W10115793 MAY W10115793 Contact Us For Availability
3
BLOWER MAY W10245511 Contact Us For Availability
3
SEAL MAY W10239444 Contact Us For Availability
3
MAY W10226005 MAY W10226005 Contact Us For Availability
3
MAY W10160872 MAY W10160872 Contact Us For Availability
4
ORIFICE HOLDER (LR & CF & RR) MAY W10160234 Contact Us For Availability
4
ORIFICE HOLDER (CR) MAY W10282659 Contact Us For Availability
4
MAY W10189107 MAY W10189107 Contact Us For Availability
4
RING MAY 489504 Contact Us For Availability
4
MAY W10246078 MAY W10246078 Contact Us For Availability
4
MAY W10146048 MAY W10146048 Contact Us For Availability
4
MAY W10115765 MAY W10115765 Contact Us For Availability
4
LOCKNUT MAY 9755546 Contact Us For Availability
5
MAY W10276551 MAY W10276551 Contact Us For Availability
5
MAY W10367052 MAY W10367052 Contact Us For Availability
5
MAY 3400968 MAY 3400968 Contact Us For Availability
5
PLATE, LATCH MAY W10160875 Contact Us For Availability
5
MAY W10267896 MAY W10267896 Contact Us For Availability
5
MAY W10188324 MAY W10188324 Contact Us For Availability
6
MAY W10269217 MAY W10269217 Contact Us For Availability
6
MAY W10269191 MAY W10269191 Contact Us For Availability
6
MAY W10145379 MAY W10145379 Contact Us For Availability
6
BRACKET, MOUNTING COOLING FAN MAY W10160844 Contact Us For Availability
6
ASSEMBLY, BUMPER MAY W10105790 Contact Us For Availability
6
MAY W10115876 MAY W10115876 Contact Us For Availability
6
MAY W10115877 MAY W10115877 Contact Us For Availability
6
RACK-OVEN MAY W10277392 Contact Us For Availability
7
CLIP, ELECTRODE MAY W10160825 Contact Us For Availability
7
MAY W10145507 MAY W10145507 Contact Us For Availability
7
INSULTOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
7
MAY W10288061 MAY W10288061 Contact Us For Availability
7
MAY W10188327 MAY W10188327 Contact Us For Availability
7
MAY W10282821 MAY W10282821 Contact Us For Availability
8
PAD, GRATE MAY 8286695 Contact Us For Availability
8
VALVE, SINGLE LR,CF,RR MAY W10326645 Contact Us For Availability
8
MAY W10292297 MAY W10292297 Contact Us For Availability
8
MAY W10115858 MAY W10115858 Contact Us For Availability
8
WASHER MAY 9755547 Contact Us For Availability
9
MAY W10276494 MAY W10276494 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
9
BASE, LEVELING MAY W10249333 Contact Us For Availability
9
MAY W10160858 MAY W10160858 Contact Us For Availability
9
OVEN LIGHT ASSY MAY W10307114 Contact Us For Availability
9
MAY W10145760 MAY W10145760 Contact Us For Availability
9
MOTOR, CONVECTION MAY W10116228 Contact Us For Availability
10
T-STRIP MAY W10271524 Contact Us For Availability
10
SCREW, VALVE MTG MAY W10189140 Contact Us For Availability
10
FOOT MAY 9760860 Contact Us For Availability
10
SCREW MAY 112432 Contact Us For Availability
10
MAY 4455605 MAY 4455605 Contact Us For Availability
10
MAY 4455606 MAY 4455606 Contact Us For Availability
10
MAY W10226024 MAY W10226024 Contact Us For Availability
10
MAY W10116351 MAY W10116351 Contact Us For Availability
11
MAY W10293267 MAY W10293267 Contact Us For Availability
11
MAY W10246075 MAY W10246075 Contact Us For Availability
11
MAY W10160867 MAY W10160867 Contact Us For Availability
11
MAY W10276043 MAY W10276043 Contact Us For Availability
11
COVER, FAN MAY W10261523 Contact Us For Availability
12
MAY W10344181 MAY W10344181 Contact Us For Availability
12
MAY W10250425 MAY W10250425 Contact Us For Availability
12
MAY W10145376 MAY W10145376 Contact Us For Availability
12
MAY W10270396 MAY W10270396 Contact Us For Availability
12
MAY W10160889 MAY W10160889 Contact Us For Availability
12
MAY W10145770 MAY W10145770 Contact Us For Availability
12
MAY W10116349 MAY W10116349 Contact Us For Availability
13
CAP, BURNER (CR) MAY 8286816 Contact Us For Availability
13
CAP, BURNER (RF,LF) MAY W10115952 Contact Us For Availability
13
CAP, BURNER (RR,CF,LR) MAY W10160229 Contact Us For Availability
13
MAY W10115850 MAY W10115850 Contact Us For Availability
13
MAY W10138054 MAY W10138054 Contact Us For Availability
13
MAY W10145382 MAY W10145382 Contact Us For Availability
13
MAY W10145391 MAY W10145391 Contact Us For Availability
13
MAY W10116434 MAY W10116434 Contact Us For Availability
14
BASE, BURNER (RR,CF,LR) MAY W10189082 Contact Us For Availability
14
BASE, BURNER (RF,LF) MAY W10320937 Contact Us For Availability
14
VALVE, SINGLE (CR) MAY W10305286 Contact Us For Availability
14
Block, Terminal MAY 9761958 Contact Us For Availability
14
MAY W10269208 MAY W10269208 Contact Us For Availability
14
MAY W10188328 MAY W10188328 Contact Us For Availability
14
MAY W10115992 MAY W10115992 Contact Us For Availability
15
SPRING, ELECTRODE (CR) MAY 8286863 Contact Us For Availability
15
SPRING, ELECTRODE (LF,LR,RF,RR,CF) MAY W10160826 Contact Us For Availability
15
ADAPTER, MALE MAY 4453116 Contact Us For Availability
15
SIDE PANEL (RIGHT) MAY W10250464 Contact Us For Availability
15
SIDE PANEL (LEFT) MAY W10250465 Contact Us For Availability
15
MAY 3400805 MAY 3400805 Contact Us For Availability
15
MAY W10195935 MAY W10195935 Contact Us For Availability
15
MAY W10145851 MAY W10145851 Contact Us For Availability
15
MAY 9755543 MAY 9755543 Contact Us For Availability
16
ELECTRODE (CR) MAY W10145991 Contact Us For Availability
16
ELECTRODE (RR,CF,LR) MAY W10160235 Contact Us For Availability
16
ELECTRODE (LF,RF) MAY W10250406 Contact Us For Availability
16
MAY W10270397 MAY W10270397 Contact Us For Availability
16
MAY W10324087 MAY W10324087 Contact Us For Availability
16
MAY 4449154 MAY 4449154 Contact Us For Availability
17
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
17
SIDE, CHASSIS (RIGHT) MAY W10269205 Contact Us For Availability
17
SIDE, CHASSIS (LEFT) MAY W10269206 Contact Us For Availability
17
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
17
BRACKET, SIDE MAY W10145761 Contact Us For Availability
17
MAY W10246060 MAY W10246060 Contact Us For Availability
18
MAY W10189101 MAY W10189101 Contact Us For Availability
18
MAY W10189104 MAY W10189104 Contact Us For Availability
18
MAY W10272902 MAY W10272902 Contact Us For Availability
18
BRACKET, BURNER (RF,RR,CF,LR,LF) MAY W10115929 Contact Us For Availability
18
BRACKET, BURNER (CR) MAY W10280796 Contact Us For Availability
18
Screw MAY 3196537 Contact Us For Availability
18
MAY W10131825 MAY W10131825 Contact Us For Availability
18
MAY W10115991 MAY W10115991 Contact Us For Availability
19
BURNER HEAD (RR,CF,LR) MAY W10250458 Contact Us For Availability
19
BURNER HEAD (RF,LF) MAY W10250459 Contact Us For Availability
19
BURNER HEAD (CR) MAY W10282515 Contact Us For Availability
19
SHIELD, ELEMENT BROIL MAY W10160857 Contact Us For Availability
20
VALVE, GAS (LF & RF) MAY W10305287 Contact Us For Availability
20
MAY 4449040 MAY 4449040 Contact Us For Availability
21
ELECTRODE, WIRE MAY 8286725 Contact Us For Availability
21
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
21
MAY W10115843 MAY W10115843 Contact Us For Availability
21
Screw MAY 3196176 Contact Us For Availability
22
THERMOSTAT MAY 4449751 Contact Us For Availability
22
MAY W10159578 MAY W10159578 Contact Us For Availability
23
MAY W10295785 MAY W10295785 Contact Us For Availability
23
MAY W10423373 MAY W10423373 Contact Us For Availability
23
BOTTOM, CHASSIS MAY W10235536 Contact Us For Availability
24
KNOB, CONTROL RF,LF MAY W10145568 Contact Us For Availability
24
MAY W10157511 MAY W10157511 Contact Us For Availability
24
MAY 9759229 MAY 9759229 Contact Us For Availability
25
MAY W10145622 MAY W10145622 Contact Us For Availability
25
BULB MAY W10169757 Contact Us For Availability
25
MAY 9759230 MAY 9759230 Contact Us For Availability
26
LENS MAY W10169756 Contact Us For Availability
26
MAY W10115715 MAY W10115715 Contact Us For Availability
27
MAY 4449748 MAY 4449748 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
SCREW MAY W10078270 Contact Us For Availability
29
MAY 8286930 MAY 8286930 Contact Us For Availability
33
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
34
MAY W10115953 MAY W10115953 Contact Us For Availability
35
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
36
BRACKET,CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
36
BRACKET,CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
NI
MAY W10145479 MAY W10145479 Contact Us For Availability
NI
MAY W10145480 MAY W10145480 Contact Us For Availability
NI
MAY W10145481 MAY W10145481 Contact Us For Availability
NI
MAY W10145482 MAY W10145482 Contact Us For Availability
NI
MAY W10145483 MAY W10145483 Contact Us For Availability
NI
TUBING, GAS (RF - RIGHT) MAY W10145484 Contact Us For Availability
NI
MAY W10145488 MAY W10145488 Contact Us For Availability
NI
MAY W10145490 MAY W10145490 Contact Us For Availability
NI
MAY W10282811 MAY W10282811 Contact Us For Availability
NI
MAY W10282815 MAY W10282815 Contact Us For Availability
NI
EXTENDABLE ROLLER RACK WITH HANDLE MAY W10212435 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
STAINLESS STEEL CLEANER & POLISH MAY 31462 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
ADHESIVE (SEAL, ACCESS PANEL) MAY 4453191 Contact Us For Availability
NI
ADHESIVE (SEAL, RIBBON CABLE) MAY 4453192 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
KIT, ANTI-TIP MAY 7101P485-60 Contact Us For Availability
NI
ADJUSTABLE, BACKSPLASH MAY 8284756 Contact Us For Availability
NI
BUSHING, SNAP SPLIT 1`` MAY 9757778 Contact Us For Availability
NI
MAY 9759877 MAY 9759877 Contact Us For Availability
NI
MAY 9761059 MAY 9761059 Contact Us For Availability
NI
MAY JXA9002CDP MAY JXA9002CDP Contact Us For Availability
NI
MAY W10116142 MAY W10116142 Contact Us For Availability
NI
BROILER PAN KIT MAY W10123240 Contact Us For Availability
NI
MAY W10145981 MAY W10145981 Contact Us For Availability
NI
MAY W10145989 MAY W10145989 Contact Us For Availability
NI
MAY W10146040 MAY W10146040 Contact Us For Availability
NI
GROMMET, FLEX MAY W10177363 Contact Us For Availability
NI
MAY W10216179 MAY W10216179 Contact Us For Availability
NI
MAY W10221288 MAY W10221288 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
BACKSPLASH W/ DUAL POSITION SHELF MAY W10285448 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10345322 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
× ![]()
